   Proliant DL1000 G1 QuickSpecs  US QuickSpecs
  DL1000 G1 Hard Drives   DL1000 G1 Processors   DL1000 G1 Memory
  DL1000 G1 Controllers   DL1000 G1 Networking   DL1000 G1 Power Supplies
  DL1000 G1 Quickspecs   DL1000 G1 Quickspecs-Options   DL1000 G1 Options
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      DL1000 G1 Core Options      Additional Options      DL1000 G1 Memory      Storage      Power Specifications      System Specifications      DL1000 G1 QuickSpecs images/line.gif (50 bytes)

Proliant DL1000 G1 Overview

HP ProLiant DL1000 Multi Node Server

The HP ProLiant DL1000 Multi Node Server is the first multi node DL server designed for higher density and increased power efficiency yet is flexible enough to be optimally configured for varying application requirements. The DL1000 supports up to four independent HP ProLiant DL170h G6 Servers in the 2U HP ProLiant h1000 G6 Chassis. The servers share power supplies and fans, providing greater power and cooling efficiencies. The HP ProLiant DL170h G6 Server is a two socket Intel server with 16 DDR3 DIMM slots.

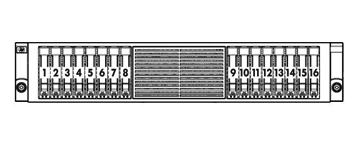

3 Node 16SFF HDD Model Illustrated
Proliant DL1000 G1 Front View: Proliant DL1000 G1 Rear View:
1. 16 DDR3 DIMM slots 1. Video Port
2.

Optional Right Power Buttons, Health LEDs and UID bezel

2. Low-Profile PCI Express x16 Gen2 slot
3. 16 2.5" SFF SAS/SATA hard drive bays (alternate configuration available with 8 3.5" LFF SAS/SATA hard drive bays) 3. Serial Port
4. One GbE LAN port (RJ-45)
4. Optional Left Power Buttons, Health LEDs bezel 5. One GbE LAN port with shared management (RJ-45)
5. 4 x 80mm system fans 6. Two USB ports
6. Quad-Core Intel® Xeon® 5500 series processors (supports up to two per node) 7. Optional dedicated management port (RJ-45)
8. Power supply cable socket
7. Low Profile PCIe x16 Gen2 Slot 9. Full height / full length PCIe Gen2 Slot
8. Access panel 10. Full height / half length PCIe Gen2 Slot
    11. Power Button
    12. Health LED
    13. UID Button

What's New
  • New high efficiency power supplies.
  • New low voltage UDIMM
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      DL1000 G1 Core Options      Additional Options      DL1000 G1 Memory      Storage      Power Specifications      System Specifications      DL1000 G1 QuickSpecs images/line.gif (50 bytes)

Standard Features

NOTE: For the Standard Features shipped in the Factory Integrated Models, please see the "Configuration Information - Factory Integrated Models" section.

Processor
One of the following depending on Model
Six-Core Processors
Intel® Xeon® Processor X5670 (2.93 GHz, 12MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/2/2/3/3)
Quad-Core Processors
Intel® Xeon® Processor E5640 (2.66 GHz, 12MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor L5630 (2.13 GHz, 12MB L3 Cache, 40W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor X5570 (2.93 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3)
Intel® Xeon® Processor X5560 (2.80 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3)
Intel® Xeon® Processor X5550 (2.66 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo, 2/2/3/3)
Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor E5530 (2.40 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor L5530 (2.40 GHz, 8MB L3 Cache, 60W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor L5520 (2.26 GHz, 8MB L3 Cache, 60W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor L5506 (2.13 GHz, 4MB L3 Cache, 60W, DDR3-800)
Intel® Xeon® Processor E5506 (2.13 GHz, 4MB L3 Cache, 80W, DDR3-800)
Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800)
NOTE: HT indicates that the processor model supports Intel® Hyper-Threading Technology
NOTE: Turbo indicates the maximum potential frequency increment when using Intel® Turbo Boost Technology, with 4, 3, 2, and 1 cores active.
NOTE: DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.
NOTE: For the Intel 5600 and 5500 Series, the letter preceding the model number indicates the performance/wattage of the processor. "X" denotes High Performance/Wattage; "E" denotes Enterprise Performance/Wattage (Mainstream), and "L" denotes Lower Wattage.
NOTE: Up to 2 processors supported. Mixing different processor models is not supported.

Cache Memory 12MB (1 x 12MB) Level 3 cache
NOTE: All 5600 processor models.
8MB (1 x 8MB) Level 3 cache
NOTE: All 5500 series processor models except for those identified below.
4MB (1 x 4MB) Level 3 cache
NOTE: For processors L5506, E5506 and E5504.

Chipset Intel® 5520 Chipset
NOTE: For more information regarding Intel chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/

Upgradeability Upgradeable to two processors (12 cores)
NOTE: DL170h G6 servers purchased with Intel Xeon 5500 Series processors are not upgradeable to Intel Xeon 5600 series processors.

Memory Protection Advanced ECC (multi-bit error protection)
Mirroring mode
Lockstep mode

DL1000 G1 Memory Type DDR3 Registered (RDIMM) and Unbuffered (UDIMM)
Standard (UDIMM) (per server node) 6GB (3 x 2GB) PC3-10600E (DDR3-1333)
Maximum (RDIMM) (per server node) 192GB (12 x 16GB) PC3-8500R (DDR3-800)
Maximum (UDIMM) (per server node) 48GB (12 x 4GB) PC3-10600E (DDR3-1333)
NOTE: Depending on the memory configuration and processor model, the memory speed may run at 1333MHz, 1066MHz, or 800MHz. Please see the Online Memory Configuration Tool at http://www.hp.com/go/ddr3memory-configurator

Network Controller HP NC362i Integrated Dual Port Gigabit Server Adapter

Expansion Slots
  • Half Height Nodes (1U): One available PCI Express Gen 2.0 slots: (standard on 4-node BTO model).
    • Slot 1: Low profile PCI-Express 2.0 x16
  • Full Height Nodes (2U): three available riser options:
    • Option 1: Up to three available PCI-Express Gen 2.0 slots:
      • Slot 1: full-length/full-height PCI-Express 2.0 x16
      • Slot 2: full-length/half-height PCI-Express 2.0 x4
      • Slot 3: low-profile PCI-Express 2.0 x4
    • Option 2: Up to three available PCI-Express Gen 2.0 slots:
      • Slot 1: full-length/full-height PCI-Express 2.0 x8
      • Slot 2: full-length/half-height PCI-Express 2.0 x8
      • Slot 3: low-profile PCI-Express 2.0 x8
    • Option 3: Up to two available PCI-Express Gen 2.0 slots: (standard on 2-node BTO model)
      • Slot 1: full-length/full-height PCI-Express 2.0 x16
      • Slot 2: low-profile PCI-Express 2.0 x8
Full-height PCIe Riser Option
Expansion Slots #
Technology
Bus Width**
Connector Width*
Bus Number
Form Factor
Notes
1
PCI-Express 2.0
x16
x16
4
Full length, full height
3.3 volts
2
PCI-Express 2.0
x4
x4
6
Full length, half height
3.3 volts
3
PCI-Express 2.0
x4
x4
7
Low Profile
3.3 volts
Full-height PCIe Riser Option
Expansion Slots #
Technology
Bus Width**
Connector Width*
Bus Number
Form Factor
Notes
1
PCI-Express 2.0
x8
x8
4
Full length, full height
3.3 volts
2
PCI-Express 2.0
x8
x8
5
Full length, half height
3.3 volts
3
PCI-Express 2.0
x8
x8
7
Low Profile
3.3 volts
Full-height PCIe Riser Option
(Standard in 2 Node BTO Models)
Expansion Slots #
Technology
Bus Width**
Connector Width*
Bus Number
Form Factor
Notes
1
PCI-Express 2.0
x16
x16
4
Full length, full height
3.3 volts
3
PCI-Express 2.0
x8
x8
6
Low Profile
3.3 volts
Half-height PCIe Riser
(Standard in 4 Node BTO Models and with half-height nodes)
Expansion Slots #
Technology
Bus Width**
Connector Width*
Bus Number
Form Factor
Notes
1
PCI-Express 2.0
x16
x16
4
Low Profile

3.3 volts

  * Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number.
** Indicates the number of physical electrical lanes running to the connector.

Storage Controller Non-Hot Plug SATA Models Embedded HP Smart Array Hot Plug Advanced Pack for B110i (RAID 0, 1, 10)
NOTE: Transfer rate: up to 3 Gb/s SATA
NOTE: To enable RAID on Embedded SATA (Windows and Linux only), use the HP Smart Array B110i SATA Raid controller, To enable use of the B110i, enter the ROM based setup utility(RBSU). The option for enabling RAID can be found in the advanced section of the RBSU. For additional details www.hp.com/go/SATARAID. For RAID on Solaris, a Smart Array Controller must be purchased.
Hot Plug SATA Models Embedded HP Smart Array Hot Plug Advanced Pack for B110i (RAID 0, 1, 10)
NOTE: Transfer rate: up to 3Gb/s SATA
NOTE: The HP Smart Array B110i SATA Raid Hot Plug Advance Pack provides the hot-plug and RAID support for the embedded SATA controller. The Hot Plug Advance kit is a License to enable the RAID support on Hot Plug models. It supports up to six 3G SATA hard disk drives. It will support a maximum of two (2) logical drives. It supports Raid 0, 1 and 1+0. For additional details www.hp.com/go/SATARAID
Hot Plug SAS/SATA Models HP Smart Array Controller RAID 0,1,10, 5
NOTE: Transfer rate: up to 6GB/s SAS, 3Gb/s SATA
NOTE: SAS Upgrade: A HP Smart Array Controller is required for SAS HDD support. Transfer rate: 6.0 Gb/s SAS supported.
NOTE: When adding a Smart Array Controller to an 8 LFF SAS HDD configuration, a HP h1000 LFF SAS CONTROLLER CABLE OPTION KIT (P/N 519503-B21) must be ordered to connect the Smart Array Controller to the hard drive backplane. When a controller is added during a CTO buildup, the appropriate cables are included and this kit is not required. This cable kit is only needed for BTO configurations or if a CTO customer upgrades to a Smart Array Controller after initial purchase.
NOTE: When adding a Smart Array Controller to a 16SFF SAS HDD configuration, an HP h1000 SFF SAS CONTROLLER CABLE OPTION KIT (P/N 519507-B21) must be ordered to connect the Smart Array Controller to the hard drive backplane. When a controller is added during a CTO buildup, the appropriate cables are included and this kit is not required. This cable kit is only needed if a CTO customer upgrades to a Smart Array Controller after initial purchase.
NOTE: An external diskette drive, USB floppy drive key or virtual FDD using LO100 Advanced Pack is needed to install storage controller drivers during a Windows operating system installation from a CD.

Internal Storage Devices Diskette Drives Via USB only
Optical Drives DVD drive via USB only
NOTE: External support only.
Hard Drives None ship standard
Drive Bays
One of the following depending on Model
Up to 8 Hot plug SAS/SATA 3.5" drives
Up to 16 Hot plug SAS/SATA 2.5" drives

Maximum Internal Storage
LFF 3.5" Hot Plug SATA 16.0TB 8 x 2TB
LFF 3.5" Hot Plug SAS 16.0TB 8 x 2TB
SFF 2.5" Hot Plug SATA 8.0TB 16 x 500GB
SFF 2.5" Hot Plug SAS 4.8TB 16 x 300GB

Interfaces Serial 1
Network RJ-45 (Ethernet) 2 10/100/1000 NIC ports (1 NIC shared for the HP ProLiant Lights Out 100i Remote Management)
Graphics 1
Management 1 Optional Dedicated LO100i Management Port
Health LED 1 rear per server node (Optional front health LED per server node)
Power 1 rear per server node (Optional front power button per server node)
UID

1 rear per server node (Optional front UID per chassis)

USB 3 (two rear, one internal)
NOTE: Please see the following URL for additional information regarding USB support:
http://h18004.www1.hp.com/products/servers/platforms/usb-support.html.

Industry Standard Compliance ACPI V2.0 Compliant
PCI 2.2 Compliant
PXE Support
WOL Support
Microsoft® Logo certifications
IPMI 2.0, DCMI 1.0. SMASH CLP compliant

Graphics

Integrated Matrox Graphics G200e, 32MB Standard

  • 16 bit color: maximum resolution of 1600 x 1200
  • 32 bit color: maximum resolution of 1280 x 1024

The following NVIDIA graphics cards are supported in the DL1000:

  • NVIDIA Quadro FX5800 512MB PCIe x 16 graphics card

NOTE: For more information on the latest visualization and acceleration qualification status, please see http://www.hp.com/go/accelerators.
NOTE: An HP DL170h Graphics Bracket/Cable Kit (P/N 536860-B21) is required when installing this NVIDIA card. The FX5800 can only be installed in the 2 slot full-height riser option: HP DL170h I/O Riser PCIe x16 x8 FIO option (P/N 512481-B21).


Server Power Cords

One 6' Highline (IEC-IEC) power cord ships standard
NOTE: HP ProLiant DL servers are primarily connected to PDU's in data center racks so they ship standard with only a PDU power cord (416151-B21). If a user wishes to power a ProLiant DL server using a 110V receptacle (NEMA-15), the NEMA power cord (227099-001) must be ordered separately.

NOTE: Japan BTO and CTO configurations get the 6' 4165151-291 power cord in addition. China BTO and CTO configurations get the 6' 416151-AA1 power cord in addition.
NOTE: If customers require a local power cord, they can check the power cord matrix for the appropriate cord. Please see the following power cord matrix: http://www.hp.com/go/powercordmatrix


Advanced Power Management: Power Management Controller

In addition to the efficiencies gained by the shared power infrastructure, the DL1000 contains advanced power metering and capping capabilities. The embedded Power Management Controller (PMC) is able to monitor power consumption and throttle the speed of the processors and memory in each node within the chassis in order to maintain a pre-set power budget. HP provides a simple command-line utility, called HP ProLiant Power Interface Control (PPIC) Utility, for reading and configuring the power control logic of the server nodes. Versions are available for MS Windows Server OS (2008 and 2008 R2) and Linux OS (RHEL5 and SLES11) with the requirement that the OS IPMI Driver be installed. The following Power Management modes for power redundancy are standard and are configurable in the controller:

  • No Redundancy - power control disabled. No power throttling will occur.
  • (DEFAULT) AC Redundancy with Throttling. This mode allows all nodes to share both power supplies and run at maximum performance. Power control logic will only throttle the performance of each node when the power draw by the chassis attempts to exceed the load supported by the power supplies. In this mode, the box is expected to survive an unexpected AC Power loss to one of the power supplies.
  • Full AC/DC Redundancy - power control logic will maintain a power cap value for the chassis at the DC rating of a single power supply (750W, or 1200W), such that if one power supply experiences a DC or AC failure, the chassis should remain on-line and operational.

Dynamic Power Capping is included with the LO100 Advanced Pack:

  • Dynamic Power Capping - User specifies the power envelope for the 2U chassis, within the capabilities of the hardware installed. Users run a utility to calibrate the minimum and maximum power consumption envelope for the chassis. In order to avoid any impact to performance due to throttling, a User selectable Power Cap value should not be set below the minimum power value provided by the utility.

Common Slot Power Supplies

HP has a new design for ProLiant power- the new Common Slot Power Supply bay. This design provides the customer with commonality in power supplies across multiple platforms to save on the cost of spares and allows HP to offer multiple power solutions to fit the customers' needs. Many HP ProLiant Servers come with Common Slot, High Efficiency and Right-Size Power Supplies. The new HP Common Slot power supplies are designed for the highest power efficiency without degrading performance of the ProLiant server. Power Supplies have efficiency ratings up to 94%. There are multiple Right Size power options available depending on the configuration of your server. To make sure you select the correct power supply to meet your configuration, please use the HP Power Advisor at: www.hp.com/go/proliant-energy-efficient or www.hp.com/go/hppoweradvisor. All HP Common Slot power sources are UL, CE Mark Compliant, Hot Plug and Redundant.

There is a low cost, Industry Standard 1500W (2x750W) Power Supply option that does not support hot-pluggability, redundancy or power capping functionality.

NOTE: Mixing of power supplies in the same chassis is not supported. All power supplies must be of the same type, all 460W, all 750W 94%, all 750W 92%, all 1200W 94%, or all 1200W 90%. If non-matched power supplies are inserted you will get errors and operation will fail.

It is highly recommended that you use the HP Power Advisor in defining the "Right-Size" power supply for your needs. HP offers several Common Slot Power Supply Options for this platform. HP's ProLiant Common Slot Power supplies meet multiple Energy Efficiency Initiatives.

NOTE: The 80 PLUS program is a unique forum that unites electric utilities, the computer industry, and consumers in an effort to bring energy efficient technology solutions to the marketplace. 80 Plus independently tests power supply efficiency and publicly posts the results on 80Plus.org.
Optional power supplies can be purchased through power supply option kits (see Power Supply Options for part numbers).


System Fans 4 x 80mm system fans ship standard; Non-hot plug, Non-redundant.

Required Cabling

For required cabling information, refer to the HP Web site at: www.hp.com/servers/dl170h.


Operating Systems and Virtualization Software Support for ProLiant Servers Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Solaris
VMware ESX
Citrix XenServer
NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server including how to purchase from HP, please visit our OS Support Site at: http://www.hp.com/go/ossupport and our driver download page www.hp.com/support/DL170hG6

Form Factor HP ProLiant h1000 G6 Chassis - 2U Chassis can support up to four DL170h server nodes in the 2U chassis.
HP ProLiant DL170h G6 Server - Half-width system board. Half-height (1U) or full-height (2U) depending on riser option selected.

HP offers two different drive cages for the 2U HP ProLiant h1000 G6 Chassis: 8 LFF HDD Cage or 16 SFF HDD Cage.

The 2U chassis can support three server node configurations:

  • Two full height nodes
  • One full height node and two half-height nodes
  • Four half-height nodes
4 Node Configuration - Front View
NOTE: For 2 node configurations, Nodes 2 and 4 are ordered. For 3 node configurations, Nodes 1, 2 and 4 are ordered.
NOTE: Additional nodes cannot be added later to 2 or 3 node configurations.

Embedded Manageability

HP LO100 Advanced

HP Lights-Out 100 with Optional LO100 Advanced Licenses for Virtual KVM and Virtual Media.

Standard Features:

  • IPMI 2.0 & SMASH CLP support
  • ROM Setup Utility
  • Improvements to virtual media with the addition of USB 2.0 drives and protocol support for much faster transfer speeds and DVD-ROM support plus simplified virtual media (floppy and CD with no FTTP server requirements)
  • Enhanced browser interface and embedded KVM over IP provides OS-independent remote graphical console
  • 24x7 Technical Support and Update (TSU) 1 year support and license upgrades included in Advanced license

For more information, see: www.hp.com/go/lo100.


Security Power-on password
Setup password
Diskette boot control
Secure Sockets Layer (SSL)
Secure Shell (SSH)

Warranty

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for one year from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE: Server Warranty includes 1 year Parts, 1 year Labor, 1-year on-site support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html.

contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      DL1000 G1 Core Options      Additional Options      DL1000 G1 Memory      Storage      Power Specifications      System Specifications      DL1000 G1 QuickSpecs images/line.gif (50 bytes)

Optional Features

HP Insight Control management software

HP Insight Control for Linux

HP Insight Control for Linux (IC-Linux), as a product option, delivers essential lifecycle management that can help save time and money by integrating discovery, server deployment, firmware updates & provisioning, health & performance management, remote management, and virtualization. This makes it easy to optimize your IT infrastructure through a single, simple management console. The IC-Linux suite installs and licenses software modules that are integrated into HP System Insight Manager (HP SIM).

HP Insight Control for Linux serves environments requiring Linux-based management consoles. See www.hp.com/go/ic-linux.

HP Insight Control for Linux includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit: http://www.hp.com/services/insight.
HP Insight Control server deployment HP Insight Control server deployment is a deployment solution for HP ProLiant and Integrity servers hosted on a Windows CMS. It automates the process of deploying and provisioning server software, enabling companies to quickly and easily adapt to changing business demands. Insight Control server deployment includes software optimizations for HP servers, including the HP scripting toolkits, configuration jobs for leading industry-standard operating systems, sample unattended files, and HP server support packs that include software drivers, management agents, and important documentation. Deploying servers can be accomplished either through imaging or through scripting.

Insight Control server deployment is hosted on a Windows server and is intended for heterogeneous environments deploying Windows, Linux, VMware ESX and Microsoft Hyper-V systems.

Insight Control server deployment includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit: http://www.hp.com/services/insight.

Core Server Management

ProLiant 100 Series G6 Core Management Software for ProLiant 100 Series Servers

HP provides management solutions that are designed to simplify a server's installation, configuration, and maintenance throughout the entire server lifecycle. This provides the customers with higher levels of operational efficiency and highly reliable systems.

While ProLiant 100 series G6 servers do not support the Insight Foundation Suite for ProLiant, they support a key subset of this important suite software tools and utilities which are very suitable for this class of server: SIM, SMH, agents, providers, and a SmartStart 'like' deployment CD called Easy Set-up which greatly simplifies server set-up. Additionally the DL100 and SL100 G6 models support the SmartStart Scripting Toolkit (SSSTK), an automated scalable deployment utility.

Information on core management supported on ProLiant 100 series G6 servers can be found at these URLS:


Core Infrastructure Management HP Systems Insight Manager HP Systems Insight Manager (HP SIM) provides a unified, secure and extensible standards-based environment to centrally manage servers, storage and other infrastructure devices, (both HP and non-HP) across multiple operating system platforms.
Insight Management Agents

HP Insight Management Agents and Insight Management Providers are available for HP Systems Insight Manager (SIM) Integration.

ProLiant 100-series G6 servers can use the same SNMP based Insight Management Agents supported by other ProLiant servers. As a result, administrators can use HP Systems Insight Manager (SIM) 5.3 and greater to manage ProLiant 100-series G6 servers. Administrators can also use any other SNMP- based management tool. These agents are obtained as part of the ProLiant 100-series model-specific "Easy Set-up" CDs, or through http://www.hp.com/servers/easysetup

The following capabilities are enabled on the 100-series G6 servers by the SNMP agents:

  • Health monitoring capabilities, including monitoring for drives, fans, network, power supplies, and temperature
  • Alerting capabilities, including basic alert notification for Smart Array drive pre-failure only
  • Performance monitoring capabilities providing information on processor, memory, disk free space, network utilization

For additional information, please see: http://www.hp.com/go/insight

Easy Set-up CD

Easy Set-up CDs are available on all 100-series G6 servers and are also available as an ISO image web download. HP ProLiant Easy Set-up CDs provide easy, step-by-step, single and multi-server server utilities for the ProLiant 100-series G6 servers to streamline server setup for 100-series G6 servers. The user experience is consistent with SmartStart and offers the following capabilities:

  • Boot environment and GUI
  • Assisted Installation: Windows 2003 Server and Windows 2008 Server drivers
  • Manual installation: Windows 2003 Server, Windows 2008 Server, and Linux drivers (specific OS support varies by server. Refer to each server's QuickSpecs for supported versions)
  • HP Insight Diagnostics
  • AutoRun
  • Array Configuration Utility (ACU) has been combined with Array Diagnostics Utility (ADU) to offer both configuration of array controllers and storage devices and testing of array controller hardware
  • SmartStart Scripting Toolkit (SSSTK) and Smart Components for software and drivers

NOTE: OS and SW available for Manual Installation are listed on each servers' QuickSpecs.

SmartStart Scripting Toolkit (SSSTK) The SmartStart Scripting Toolkit is a server deployment product that delivers an unattended automated installation for high-volume server deployments. The SmartStart Scripting Toolkit includes a set of utilities for configuring and deploying servers in a customized, predictable, and unattended manner. These utilities enable you to duplicate the configuration of a source server on target servers with minimum user interaction.

The Toolkit is designed for IT experts with experience in scripting operating system installations and configuring ProLiant server hardware.

For additional information, please see: http://h18004.www1.hp.com/products/servers/management/toolkit/
index.html

Subscriber's Choice

Subscriber's Choice Driver and Support Alerts/Notifications is a web-based email subscription service that provides software and driver change notifications for ProLiant products. Sign up at: http://www.hp.com/go/subscriberschoice and customize your profile to receive various new alerts as they become available, on a weekly or monthly basis.

ROMPaq, software and latest drivers

The latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options; downloaded from Software and Drivers download pages website at: http://www.hp.com/go/support and from www.hp.com/servers/easysetup. Contains the following:

  • HP Insight Management Agents for Systems Insight Manager (SIM) Integration
  • HP Systems Management Homepage
  • Array Configuration Utility (ACU)
  • Array Diagnostics Utility (ADU)
  • HP Insight Diagnostics

High Performance Clusters HP Cluster Platforms HP Cluster Platforms are specifically engineered, factory-integrated large-scale ProLiant clusters optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and Novell SLES, as well as Microsoft Windows HPC Server. A Cluster Platform Configurator simplifies ordering. http://www.hp.com/go/clusters
HP HPC Interconnects High Performance Computing (HPC) interconnect technologies are available for this server as part of the HP Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects are fully supported by HP when integrated within an HP cluster. Flexible, validated solutions can be defined with the help of configuration tools. http://www.hp.com/techservers/clusters/ucp/index.html
HP Cluster Management Utility HP Cluster Management Utility (CMU) is an HP-licensed and HP-supported suite of tools that are used to manage large-scale Linux ProLiant systems. CMU includes software for the centralized provisioning, management and monitoring of nodes. CMU makes the administration of clusters user friendly, efficient, and effective. http://www.hp.com/go/cmu
HP HPC Linux Value Pack HP HPC Linux Value Pack (Value Pack) is an HP-licensed and HP-supported specially priced software bundle for the development and deployment of applications on HPC Cluster Platforms. Value Pack includes the Platform LSF workload scheduler, the HP-MPI parallelization library, the HP Unified Parallel C compiler and the HP Shmem library, as well as the execution environments for the libraries and compiler. HP HPC Linux Value Pack

Factory Express Portfolio for Servers and Storage HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.

HP Enterprise Configurator

The HP eConfigure Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator

contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      DL1000 G1 Core Options      Additional Options      DL1000 G1 Memory      Storage      Power Specifications      System Specifications      DL1000 G1 QuickSpecs images/line.gif (50 bytes)

Service and Support

Service and Support

HP Care Pack Services: Packaged server and storage services for increased uptime, productivity and ROI
When you buy HP server and storage products and solutions, it's also a good time to think about what levels of support you may need. Our portfolio of service options reduce deployment and management worries while helping you get the most out of your server and storage investments. We take a holistic approach to your environment, bridging servers, blades, storage, software and network infrastructures with our packaged HP Care Pack Services for servers and storage.

Protect your business beyond warranty
When it comes to robustness and reliability, standard computing equipment warranties have matured along with technology. Good news that can also create problems stemming from depending on standard warranties designed to only protect against product defects and some downtime causes. Using a standard approach to warranty uplifts, such as HP Care Pack Services, helps reduce downtime risks and provides operational consistency for mission-critical and standard business computing.

HP Care Pack Services: Upgrading or extending standard server and storage warranties cost effectively
HP Care Pack Services offer a standard reactive hardware and software support services suite sold separately, or combined with our Support Plus and Support Plus 24 services. The portfolio also provides a combination of integrated proactive and reactive services, such as Proactive 24 Service and Critical Service. In addition with HP Proactive Select, you can acquire the specific proactive constancy and technical services. HP Proactive Select menu offers a broad set of service options that you can mix and match depending on your specific requirements. Proactive service options include offers for server, storage, network, SAN device, software, environment and education services.

HP server and storage lifecycle support services offers a full spectrum of customer care-from technology support to complex migrations to complete managed services. HP Factory Express provides customization, integration and deployment services for turnkey solutions. HP Education Services offer flexible, comprehensive training on to help your IT staff get the most out of your server and storage investments. HP Financial solutions extend innovative financing and cost-effective asset management programs-from purchase to equipment retirement.

Learn more: www.hp.com/services/servers and www.hp.com/services/storage

NOTE: Care Pack Services availability may vary by product and country.

HP Care Pack Services are sold by HP and HP Authorized Service Partners:

  • Services for customers purchasing from HP or an enterprise reseller are quoted using HP order configuration tools.
  • Customers purchasing from a commercial reseller can find HP Care Pack Services at http://www.hp.com/go/lookuptool

Recommended HP Care Pack Services for optimal satisfaction with your HP product
Recommended Services

3-Year HP Hardware Support Onsite Service, 4-hour response, 13x5
Delivers increased equipment availability and productivity with rapid remote support and onsite response for your HP server and storage hardware.

  • Help improve or maintain system uptime
  • Convenient onsite support
  • Committed response time

http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE



3-Year HP Hardware Support Onsite Service, 4-hour response, 24x7
Provides you with rapid remote support and if required an HP authorized representative who will arrive on site any time and day of the year to begin hardware maintenance service within 4 hours of the service request being logged.

This service provides a trained HP service specialist to perform an installation that meets HP quality standards, for:

  • Help improve or maintain system uptime
  • Convenient onsite support
  • Committed response time

http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE



HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.

  • Expedited installation, with all service prerequisites met before the installation is performed
  • Installation in accordance with manufacturer's specifications, enhancing the supportability of your HP-installed hardware and software
  • Service delivery at a mutually scheduled time
  • Allows your IT resources to stay focused on their core tasks and priorities
  • Availability of an HP service specialist to answer questions during the onsite delivery of this service

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN


Optional HP Care Pack Services that will enhance your HP product experience
Optional Services

3-Year HP Hardware Support Onsite Call-to-Repair (CTR) Service, 6- or 24-hour
As an alternative to our recommended support level, for customers who need committed call-to-repair for server hardware.

Provides your IT manager with a team of support specialists who will quickly begin troubleshooting the system to help return the hardware to operating condition within 6 or 24 hours of the initial service request to the HP Global Solution Center.

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6636ENN



3-Year HP Hardware Support Onsite Service, next-day response, 9x5
An enhancement to warranty support for products with limited warranty entitlement

Provides high-quality remote assistance and onsite support for your covered hardware if required, helping you to improve product uptime.

http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE



HP Proactive Select Service
Customer needs on demand access to consulting, technical proactive services and education courses.

Provides a flexible way to purchase HP best-in-class consultancy and technical services. You can buy Proactive Select Service Credits when you purchase your hardware and then use the credits over the next 12 months.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN


eSupport

HP eSupport is a portfolio of technology-based services that assist you with managing your business environment - from the desktop to the data center.

Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to manage the daily operations of your IT environment.

Features include:

  • Access to self-solve tools (including search technical knowledge base)
  • Efficient logging and tracking of support cases
  • Collaboration with other business and IT professionals
  • Download of patches and drivers
  • Access to diagnostic tools
  • Proactive notification of relevant information

Access to certain features of the support portal requires an HP service agreement. To access the support portal, visit: http://www.hp.com/support

HP Insight Remote Support software delivers secure remote support for your HP Servers and Storage, 24 X 7, so you can spend less time solving problems and more time focused on your business. You can have your systems remotely monitored for hardware failure using secure technology that's been proven at thousands of companies around the world. In many cases, you can avoid problems before they occur.


Customer Technical Training

HP Education Services
In today's cost-conscious business environment, IT professionals, developers, consultants and users face an interesting challenge: how to keep up with the latest technologies and expand important skills while delivering profitable results on current projects. To help address this challenge, HP offers innovative training solutions that help keep you up-to-date on virtualization, server, storage, Insight Control, Citrix, Microsoft® and open source/Linux-related topics-while spending less time away from business-critical activities.


HP Services Awards

HP Technology Services continues to be recognized for service and support excellence by customers, partners, industry organizations and publications around the world. Recent honors and award reflect our services team's dedications, technical expertise, professionalism and uncompromising commitment to customer satisfaction.


Additional Services Information

To learn more on HP ProLiant servers, HP BladeSystem servers and HP StorageWorks storage products, please contact your HP sales representative or HP Authorized Channel Partner. Or visit: www.hp.com/services/proliant or www.hp.com/services/bladesystem or http://www.hp.com/hps/storage

contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      DL1000 G1 Core Options      Additional Options      DL1000 G1 Memory      Storage      Power Specifications      System Specifications      DL1000 G1 QuickSpecs images/line.gif (50 bytes)

Pre-configured Models

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
NOTE: Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section of this QuickSpecs.
NOTE: HP does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped separately.
NOTE: If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this QuickSpecs.
NOTE: Not all models are available in all regions. Check with your local country HP offices for availability.
Eight Drive Non-Hot-Plug Serial ATA (SATA) 2 Node Models
NOTE: Only hot-plug form-factor HDDs are supported but are used in a cold-swap manner in the base configuration. Upgrading to 8 Hot Plug SATA requires the addition of the B110i Hot-Plug Advance Pack or storage controller. Upgrading to SAS hard drives requires the addition of a storage controller. Adding a storage controller (Smart Array P212/256MB recommended) requires one HP h1000 LFF SAS CTTLR CABLE OPT KIT per controller (P/N 519503-B21).

HP DL2x170h E5504 3x2GB 8LFF SVR
503581-xx1

Processor(s)

One Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800) / server node
Cache Memory 4MB shared L3 cache
Memory 6GB (3 x 2GB) PC3-10600E (UDIMM) / server node
Network Controller HP NC362i Integrated Dual Port Gigabit Server Adapter
Storage Controller Embedded HP Smart Array Hot Plug Advanced Pack for B110i (RAID 0, 1, 10)
Hard Drive None ship standard
Internal Storage 16.0TB (8 x 2TB Hot Plug 3.5" SATA hard drives), Maximum
16.0TB (8 x 2TB Hot Plug 3.5" SAS hard drives), Maximum
NOTE: SAS and/or hot-plug functionality requires the addition of a Smart Array controller.
Optical Drive External support only
Power Supply
1 x 1200Watts, 90% Efficiency, Common Slot Power Supply Standard
2nd 1200W, 90% Efficiency, Power Supply Optional
Fans 4 x 80mm system fans ship standard; Non-hot plug, Non-redundant
Form Factor HP ProLiant h1000 G6 Chassis - 2U
HP ProLiant DL170h G6 Server - Half-width server node

Eight Drive Non-Hot-Plug Serial ATA (SATA) 4 Node Models
NOTE: Only hot-plug form-factor HDDs are supported but are used in a cold-swap manner in the base configuration. Upgrading to 8 Hot Plug SATA requires the addition of the B110i Hot-Plug Advance Pack or storage controller. Upgrading to SAS hard drives requires the addition of a storage controller. Adding a storage controller (Smart Array P212/256MB recommended) requires one HP h1000 LFF SAS CTTLR CABLE OPT KIT per controller (P/N 519503-B21)

HP DL4x170h E5504 3x2GB 8LFF SVR
503578-xx1

Processor(s)

One Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800) / server node
Cache Memory 4MB shared L3 cache
Memory
6GB (3 x 2GB) PC3-10600E (UDIMM) / server node
Network Controller HP NC362i Integrated Dual Port Gigabit Server Adapter
Storage Controller Embedded HP Smart Array Hot Plug Advanced Pack for B110i (RAID 0, 1, 10)
Hard Drive None ship standard
Internal Storage 16.0TB (8 x 2TB Hot Plug 3.5" SATA hard drives), Maximum
16.0TB (8 x 2TB Hot Plug 3.5" SAS hard drives), Maximum
NOTE: SAS and/or hot-plug functionality requires the addition of a Smart Array controller and SAS Controller Cable Option Kit.
Optical Drive External support only
Power Supply
1 x 1200Watts, 90% Efficiency, Common Slot Power Supply Standard
2nd 1200W, 90% Efficiency, Power Supply Optional
Fans 4 x 80mm system fans ship standard; Non-hot plug, Non-redundant
Form Factor HP ProLiant h1000 G6 Chassis - 2U
HP ProLiant DL170h G6 Server - Half-width server node

Country Code Key xx = 00 U.S.
xx = 29 Japan
xx = 37 AP
xx = 42 Europe
xx = AA PRC
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      DL1000 G1 Core Options      Additional Options      DL1000 G1 Memory      Storage      Power Specifications      System Specifications      DL1000 G1 QuickSpecs images/line.gif (50 bytes)

Configuration Information - Factory Integrated Models

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.
NOTE: Configure-to-order (CTO) servers must start with a CTO Chassis.
NOTE: FIO indicates that this option is only available as a factory installable option.

Step 1: Base Configuration (choose one from each list unless otherwise noted)
HP Chassis HP ProLiant h1000 G6 2U Chassis 507653-B21
HP h1000 2 Node Side by Side FIO Kit 516030-B21
HP h1000 3 Node FIO Kit 518028-B21
HP h1000 4 Node FIO Kit 518029-B21

HP Nodes

HP ProLiant DL170h G6 Node 1 Configure-to-order Server
507638-B21
HP ProLiant DL170h G6 Node 2 Configure-to-order Server
507639-B21
HP ProLiant DL170h G6 Node 3 Configure-to-order Server 507640-B21
HP ProLiant DL170h G6 Node 4 Configure-to-order Server 507641-B21
NOTE: A minimum of two nodes are required per 2U chassis. There are only three options for ordering DL170h G6 Nodes.
1) 2 Node Config: user must order Nodes 2 and 4;
2) 3 Node Config: user must order Nodes 1, 2 and 4; or
3) 4 Node Config: user must order Nodes 1, 2, 3 and 4.
NOTE: Additional nodes cannot be added later to 2 or 3 node configurations.


HP Drive Cage Options

HP h1000 G6 8 LFF Drive Cage FIO Kit
NOTE: This selection requires that only SATA drives can be selected and SAS Controller cannot be added to any node.

507654-B21

HP h1000 G6 8 LFF Drive SAS Ctlr Cage FIO Kit
NOTE: With this selection, SAS and SATA drives can be selected but a SAS controller must be selected for each node.

538666-B21

HP h1000 G6 16 SFF Drive Cage FIO Kit
NOTE: This selection requires that only SATA drives can be selected and SAS Controller cannot be added to any node.
507655-B21
HP h1000 G6 16 SFF Drive SAS Ctlr Cage FIO Kit
NOTE: With this selection, a SAS controller must be selected for each node.

538667-B21

HP Power Supplies

NOTE: Prior to making a power supply selection it is highly recommended that the HP Power Advisor is run to determine the right size power supply for your server configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor
NOTE: Selection of a Common Slot High Efficiency or Platinum Power Supply requires the purchase of a Common Slot Power Supply Backplane FIO Kit (P/N: 516136-B21).

HP 460W Common Slot Gold Hot Plug Power Supply Kit
HP 750W Common Slot Gold Hot Plug Power Supply Kit
HP 750W Common Slot Platinum Hot Plug Power Supply Kit
HP 1200W Common Slot Platinum Hot Plug Power Supply Kit 578322-B21 578322-B21
HP 1200W Common Slot Silver Hot Plug Power Supply Kit 500172-B21 500172-B21
HP h1000 750W IS PS FIO Kit
NOTE: Selection of an Industry Standard Power Supply requires the purchase of a Fan Controller FIO Kit (P/N: 516000-B21).
515997-B21
Power Supplies - Enablement Kits
HP h1000 Common Slot PS BP FIO Kit
NOTE: This backplane must be ordered with any Common Slot High Efficiency Power Supply.
516136-B21
HP h1000 IS PS Fan Controller FIO Kit
NOTE: This fan controller kit must be ordered with the 750W Industry Standard Power Supply (P/N: 515997-B21).
516000-B21

Step 2: Choose Required Node Options (only one of the following from each list unless otherwise noted)
HP Processors NOTE: DL170h G6 servers purchased with Intel Xeon 5500 Series processors are not upgradeable to Intel Xeon 5600 series processors.
NOTE: If 2 processors are desired, select one xxxxxx-B21 and one xxxxxx-B21.

Six Core Processors
HP DL170h G6 Intel® Xeon® X5670 (2.93GHz/6-core/12MB/95W) FIO Processor Kit 600545-B21
Quad-Core Processors
HP DL170h G6 Intel® Xeon® E5640 (2.66GHz/4-core/12MB/80W) FIO Processor Kit 600543-B21
HP DL170h G6 Intel® Xeon® L5630 (2.13GHz/4-core/12MB/40W) FIO Processor Kit
600541-B21
HP DL170h G6 Intel® Xeon® X5570 (2.93GHz/4-core/8MB/95W) FIO Processor Kit 507889-B21
HP DL170h G6 Intel® Xeon® X5560 (2.80GHz/4-core/8MB/95W) FIO Processor Kit
538757-B21
HP DL170h G6 Intel® Xeon® X5550 (2.66GHz/4-core/8MB/95W) FIO Processor Kit 503582-B21
HP DL170h G6 Intel® Xeon® E5540 (2.53GHz/4-core/8MB/80W) FIO Processor Kit 507890-B21
HP DL170h G6 Intel® Xeon® E5530 (2.40GHz/4-core/8MB/80W) FIO Processor Kit 583381-B21
HP DL170h G6 Intel® Xeon® E5520 (2.26GHz/4-core/8MB/80W) FIO Processor Kit
503583-B21
HP DL170h G6 Intel® Xeon® L5530 (2.40GHz/4-core/8MB/60W) FIO Processor Kit
583133-B21
HP DL170h G6 Intel® Xeon® L5520 (2.26GHz/4-core/8MB/60W) FIO Processor Kit 507891-B21
HP DL170h G6 Intel® Xeon® L5506 (2.13GHz/4-core/4MB/60W) FIO Processor Kit
503585-B21
HP DL170h G6 Intel® Xeon® E5506 (2.13GHz/4-core/4MB/80W) FIO Processor Kit 583383-B21
HP DL170h G6 Intel® Xeon® E5504 (2.00GHz/4-core/4MB/80W) FIO Processor Kit 503584-B21

HP Memory Registered DIMMs (RDIMMs)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
HP 4GB (1x4GB) Quad Rank x8 PC3-8500 (DDR3-1066) Registered CAS-7 Low Power Memory Kit
HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit
NOTE: Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600 series processors.
HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit 500666-B21 500666-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500662-B21 500662-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit
NOTE: Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600 series processors.
604506-B21 604506-B21
Unbuffered with ECC DIMMs (UDIMMs)
NOTE: Maximum 12 DIMMs supported per node.
HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500670-B21 500670-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500672-B21 500672-B21
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600 (DDR3-1333) Unbuffered CAS-9 Low Power Memory Kit 619488-B21 619488-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as LV include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient
NOTE: PC3L is a low voltage memory.

NOTE: There is a maximum support limitation of 8 ranks per memory channel (maximum of 2 quad rank DIMMs per channel)
NOTE: Memory Min and Max depends on number of processors and type of memory:
1 Processor -> R-Dimm: Min 1 // Max 8 U-Dimm: Min 1 // Max 6
2 Processors -> R-Dimm: Min 2 // Max 16 U-Dimm: Min 2 // Max 12


HP I/O Expansion Options Full-height (or 2U nodes)
HP DL170h I/O Riser PCIe x16 x4 x4 FIO 514005-B21
HP DL170h I/O Riser PCIe x8 x8 x8 FIO
503587-B21
HP DL170h I/O Riser PCIe x16 x8 FIO
NOTE: The 2 slot riser (P/N: 512481-B21) is the only riser option that supports the NVIDIA FX5800 graphics card.
512481-B21
Half-height (or 1U nodes)
HP DL170h I/O Riser PCIe x16 FIO
NOTE: This is the only riser option for 4 Node configurations.
503586-B21

Step 3: Choose Additional Factory Integratable Options (only one of the following from each list unless otherwise noted)
HP Front Power option HP h1000 Front Power Right FIO Kit
516022-B21
HP h1000 Front Power Left FIO Kit 516001-B21
NOTE: Each ProLiant DL170h Server comes with a rear UID, Power Button and Health LED. These options provide a front facing option that will power up to two nodes each. If a 3 or 4 Node Setting kit is selected in Step 1, then both power button kits must be ordered. If the 2 Node Setting kit is selected in Step 1, then only the Right Power Kit (P/N: 516022-B21) is needed.
HP Storage Controllers NOTE: Non-Hot-Plug SATA Models: The embedded HP Smart Array B110i SATA RAID supports RAID 0,1,10 and cold-plug capability with hot-plug form factor drives. Non-hot-plug form factor hard disk drives are not supported in the DL1000.
NOTE: Hot-Plug SATA Models: A HP Smart Array B110i SATA RAID Hot-Plug Advanced Pack per server or virtual machine is required for hot-plug SATA using the embedded B110i SATA RAID controller.
NOTE: SAS Models: A minimum of one SAS Controller per server node is required when purchasing a SAS HDD Model (P/N 538666-B21 or 538667-B21).
NOTE: The P410 Controller is not supported in a Low Profile PCIe G2 slot. For all 8 LFF SAS HDD configurations, a P212 is required. For 16 SFF SAS HDD configurations with 4 nodes, a P212 is required. For 16 SFF SAS HDD configurations with 2 nodes, a P410 is required and the card must be populated in the FH/FL or FH/HL PCI slot. In a 16 SFF SAS HDD configuration with 3 nodes, a P212 is required for both half-height nodes, each supporting 4 HDDs, and a P410 is required for the full height node, supporting 8 HDDs and must be populated in the FH/FL or FH/HL PCI slot.

HP Smart Array P410/ZM 2-ports Int PCIe x8 FIO SAS Controller 462860-B21 462860-B21
HP Smart Array P411/256 2-ports Ext PCIe x8 FIO SAS Controller 491193-B21 491193-B21
HP Smart Array P410/256 2-ports Int PCIe x8 FIO SAS Controller 491195-B21 491195-B21
HP Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 FIO SAS Controller 491191-B21 491191-B21
Optional Upgrades
HP Smart Array Hot Plug Advance Pack for B110i w/1y 24x7 Supp Physical 1 Svr LTU TC421A

Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Core Options" and "Additional Options" section below.
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      DL1000 G1 Core Options      Additional Options      DL1000 G1 Memory      Storage      Power Specifications      System Specifications      DL1000 G1 QuickSpecs images/line.gif (50 bytes)

DL1000 G1 Core Options

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
HP Unique Options HP DL170h Dedicated Management Port OPT Kit
NOTE: Each ProLiant DL170h G6 Server comes standard with sideband support for LO100i through the shared, system NIC. Order this option (P/N 575498-B21) if a dedicated management network is desired.
575498-B21
HP h1000 G6 Large Form Factor SAS Cable Kit
NOTE: When adding a Smart Array Controller to an 8LFF SAS HDD configuration, a HP h1000 LFF SAS CONTROLLER CABLE OPTION KIT (P/N 519503-B21) must be ordered to connect the Smart Array Controller to the hard drive backplane. When a controller is added during a CTO buildup, the appropriate cables are included and this kit is not required. This cable kit is only needed for BTO configurations or if a CTO customer upgrades to a Smart Array Controller after initial purchase.
519503-B21
HP h1000 G6 Small Form Factor SAS Cable Kit
NOTE: When adding a Smart Array Controller to a 16SFF SAS HDD configuration, a HP h1000 SFF SAS CONTROLLER CABLE OPTION KIT (P/N 519507-B21) must be ordered to connect the Smart Array Controller to the hard drive backplane. When a controller is added during a CTO buildup, the appropriate cables are included and this kit is not required. This cable kit is only needed if a CTO customer upgrades to a Smart Array Controller after initial purchase.
519507-B21
HP DL170h Graphics Brkt/Cable Kit
NOTE: This option must be ordered if an NVIDIA FX5800 is installed in a full-height 2 slot riser. The FX5800 can only be installed in the 2 slot riser option: HP DL170h I/O Riser PCIe x16 x8 FIO option, part number 512481-B21.
536860-B21

HP Processors NOTE: DL170h G6 servers purchased with Intel Xeon 5500 Series processors are not upgradeable to Intel Xeon 5600 series processors.
Six Core Processors
HP DL170h G6 Intel® Xeon® X5670 (2.93GHz/6-core/12MB/95W) Processor Kit 600545-B21
Quad-Core Processors
HP DL170h G6 Intel® Xeon® E5640 (2.66GHz/4-core/12MB/80W) Processor Kit 600543-B21
HP DL170h G6 Intel® Xeon® L5630 (2.13GHz/4-core/12MB//40W) Processor Kit 600541-B21
HP DL170h G6 Intel® Xeon® X5570 (2.93GHz/4-core/8MB/95W) Processor Kit 507889-B21
HP DL170h G6 Intel® Xeon® X5560 (2.80GHz/4-core/8MB/95W) Processor Kit 538757-B21
HP DL170h G6 Intel® Xeon® X5550 (2.66GHz/4-core/8MB/95W) Processor Kit 503582-B21
HP DL170h G6 Intel® Xeon® E5540 (2.53GHz/4-core/8MB/80W) Processor Kit 507890-B21
HP DL170h G6 Intel® Xeon® E5530 (2.40GHz/4-core/8MB/80W) Processor Kit 583381-B21
HP DL170h G6 Intel® Xeon® E5520 (2.26GHz/4-core/8MB/80W) Processor Kit 503583-B21
HP DL170h G6 Intel® Xeon® L5530 (2.40GHz/4-core/8MB/60W) Processor Kit 583133-B21
HP DL170h G6 Intel® Xeon® L5520 (2.26GHz/4-core/8MB/60W) Processor Kit 507891-B21
HP DL170h G6 Intel® Xeon® L5506 (2.13GHz/4-core/4MB/60W) Processor Kit 503585-B21
HP DL170h G6 Intel® Xeon® E5506 (2.13GHz/4-core/4MB/80W) Processor Kit 583383-B21
HP DL170h G6 Intel® Xeon® E5504 (2.00GHz/4-core/4MB/80W) Processor Kit 503584-B21

HP Memory

Registered DIMMs (RDIMMs)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500658-B21 500658-B21
HP 4GB (1x4GB) Quad Rank x8 PC3-8500 (DDR3-1066) Registered CAS-7 Low Power Memory Kit 500660-B21 500660-B21
HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 593339-B21 593339-B21
HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit
NOTE: Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600 series processors.
604504-B21 604504-B21
HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit 500666-B21 500666-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500662-B21 500662-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit
NOTE: Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600 series processors.
604506-B21 604506-B21
Unbuffered with ECC DIMMs (UDIMMs)
NOTE: Maximum 12 DIMMs supported per node.

HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500668-B21 500668-B21
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500670-B21 500670-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500672-B21 500672-B21
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600 (DDR3-1333) Unbuffered CAS-9 Low Power Memory Kit 619488-B21 619488-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as LV include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient
NOTE: PC3L is a low voltage memory.
NOTE: There is a maximum support limitation of 8 ranks per memory channel (maximum of 2 quad rank DIMMs per channel)
NOTE: Memory Min and Max depends on number of processors and type of memory:
1 Processor -> R-Dimm: Min 1 // Max 8 U-Dimm: Min 1 // Max 6
2 Processors -> R-Dimm: Min 2 // Max 16 U-Dimm: Min 2 // Max 12

HP Hard Drives NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE: If using SAS hard drives, a Smart Array controller is required. For BTO configurations only, and For 3.5" drive cable kit P/N 519503-B21 or for 2.5" cable kit P/N 519507-B21.

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 581286-B21 581286-B21
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 581284-B21 581284-B21
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 507127-B21 507127-B21
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 512547-B21 512547-B21
HP 146GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 507125-B21 507125-B21
HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 512545-B21 512545-B21
SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

516828-B21 516828-B21

HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

516816-B21 516816-B21

HP 300GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 516814-B21 516814-B21
SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive 507610-B21 507610-B21
SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive 507616-B21 507616-B21
HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive 507614-B21 507614-B21
HP 750GB 3G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive

461135-B21 461135-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html (Worldwide)

SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive

507750-B21 507750-B21

HP 160GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive

530888-B21 530888-B21

SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive 507632-B21 507632-B21
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive 454146-B21 454146-B21
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive 458928-B21 458928-B21
SATA Hot Plug LFF (3.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive 571230-B21 571230-B21
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive 458945-B21 458945-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html
(Worldwide)

SATA Hot Plug Midline (MDL) Solid State Drives
HP 60GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive 572071-B21
HP 120GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive 572073-B21 572073-B21
SATA Hot Plug 3.5" Midline (MDL) Solid State Drives
HP 60GB 3G SATA LFF (3.5-inch) Midline 1yr Warranty Solid State Drive 570761-B21
HP 120GB 3G SATA LFF (3.5-inch) Midline 1yr Warranty Solid State Drive 570763-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13415_div/13415_div.html (Worldwide)


HP Networking Gigabit Ethernet adapters
HP NC112T PCIe Gigabit Server Adapter 503746-B21 503746-B21
HP NC360T PCI Express Dual Port Gigabit Server Adapter 412648-B21 412648-B21
HP NC364T PCI Express Quad Port Gigabit Server Adapter 435508-B21 435508-B21
HP NC365T 4-port Ethernet Server Adapter 593722-B21 593722-B21
HP NC373F PCI Express Multifunction Gigabit Server Adapter 394793-B21 394793-B21
HP NC373T PCI Express Multifunction Gigabit Server Adapter 394791-B21 394791-B21
HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter 458492-B21 458492-B21
10 Gigabit Ethernet Adapters
NOTE: No more than two 10GbE I/O devices are supported in a single ProLiant server.
NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each adapter.
NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately.

HP NC550SFP Dual Port 10GbE Server Adapter 581201-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: www.hp.com/go/ProLiantNICs.

HP InfiniBand HP IB 4X QDR CX-2 PCI-e G2 Dual Port HCA 592520-B21
HP IB 4X DDR CX-2 PCI-e G2 Dual Port HCA 592521-B21
QLogic 4X QDR IB PCI-e G2 HCA 583211-B21
NOTE: Please see the QuickSpecs for additional information: http://h18000.www1.hp.com/products/quickspecs/13078_div/13078_div.html

HP Power Supplies NOTE: Prior to making a power supply selection it is highly recommended that the HP Power Advisor is run to determine the right size power supply for your server configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor
HP 460W Common Slot Gold Hot Plug Power Supply Kit 503296-B21 503296-B21
HP 750W Common Slot Gold Hot Plug Power Supply Kit 512327-B21 512327-B21
HP 750W Common Slot Platinum Hot Plug Power Supply Kit 593831-B21 593831-B21
HP 1200W Common Slot Platinum Hot Plug Power Supply Kit 578322-B21 578322-B21
HP 1200W Common Slot Silver Hot Plug Power Supply Kit 500172-B21 500172-B21
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      DL1000 G1 Core Options      Additional Options      DL1000 G1 Memory      Storage      Power Specifications      System Specifications      DL1000 G1 QuickSpecs images/line.gif (50 bytes)

Additional Options

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
HP Remote Management HP LO100i Advanced Pack, No Media 1-Server License including 1 year of 24x7 Technical Support and Updates
530521-B21
NOTE: For additional information, please see the Lights-Out 100i QuickSpecs at www.hp.com/go/lo100

HP Insight Software HP Insight Control for Linux
HP Insight Control for Linux including 1yr 24x7 Support Electronic License TC213AAE
HP Insight Control for Linux including 1yr 24x7 Support Single Server License TC209A
HP Insight Control for Linux Media Kit
NOTE: Media pack DVD contains the ISO image for HP Insight Control for Linux, HP Systems Insight Manager, HP Insight Control power management, HP Insight Control virtual machine management, and an integrated installer. Servers must be acquired separately.
TC208A
NOTE: Licenses ship without media. The Media Kit for Insight Control for Linux can be ordered separately, or can be downloaded at: http://www.hp.com/go/ic-linux (click on Download button).
NOTE: Electronic software is available in all countries except China and Japan. Customers in China and Japan should order the physical equivalent.
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single set of activation keys.
NOTE: For additional License Kits, including electronic licensing options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/13019_div/13019_div.html
HP Insight Control server deployment
HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License T9082AAE
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Electronic software is available in all countries except China and Japan. Customers in China and Japan should order the physical equivalent.
NOTE: Customer will receive a license entitlement certificate. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
NOTE: Licenses ship without media. The Insight Software Media Kit can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightcontrol (click on Download button).
NOTE: For additional license options please see the Insight Control QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html


High Performance Clusters HP Cluster Management Utility
HP Cluster Management Utility Compute Node Flexible License
NOTE: This part number can be used to purchase one certificate for multiple licenses with a single activation key. Each license is for one node (server). Customer will receive a printed end user license agreement and license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key.
436284-B21
HP Cluster Management Utility License and Media
NOTE: Order a minimum of one license per cluster to purchase media including software and documentation, which will be delivered to the customer, and also licenses CMU management. No license key is delivered or required.
433257-B21
NOTE: For additional license kits please see the QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/12612_div/12612_div.html
HP HPC Linux Value Pack
HP High Performance Computing Linux Value Pack 1 Processor Flexible License
NOTE: This part number can be used to purchase one certificate for multiple licenses with a single activation key. Each license is for one socket (a.k.a. processor). Customer will receive a printed end user license agreement and license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key.
TC293A
HP High Performance Computing Linux Value Pack Media Kit
NOTE: This part number can be used to purchase media including software and documentation, which will be delivered to the customer.
TC294A
NOTE: For additional license kits please see the QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/13485_div/13485_div.html

HP Security - TPM HP Trusted Platform Module Option Kit
488069-B21
NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLockerô Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline. For more information about TPM, including a white paper, go to: www.hp.com/go/TPM.
NOTE: ProLiant OS pre-installed units will come with the partition required for TPM deployment.
NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss.


HP Storage Controllers HP Smart Array P800 Controller
HP Smart Array P800/512 BBWC 2-ports Int/2-ports Ext PCIe x8 SAS Controller 381513-B21 381513-B21
HP Smart Array P212 Controller
HP Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 SAS Controller 462834-B21 462834-B21
HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS Controller 462828-B21 462828-B21
HP Smart Array P410 Controller
HP Smart Array P410/256 2-ports Int PCIe x8 SAS Controller 462862-B21 462862-B21
HP Smart Array P410/512 BBWC 2-ports Int PCIe x8 SAS Controller 462864-B21 462864-B21
HP Smart Array P410/512 FBWC 2-ports Int PCIe x8 SAS Controller 578230-B21 578230-B21
HP Smart Array P410/1G FBWC 2-ports Int PCIe x8 SAS Controller 572532-B21 572532-B21
HP Smart Array P411 Controller
HP Smart Array P411/256 2-ports Ext PCIe x8 SAS Controller 462830-B21 462830-B21
HP Smart Array P411/512 BBWC 2-ports Ext PCIe x8 SAS Controller 462832-B21 462832-B21
HP Smart Array P411/512 FBWC 2-ports Ext PCIe x8 SAS Controller 578229-B21 578229-B21
HP Smart Array P411/1G FBWC 2-ports Ext PCIe x8 SAS Controller 572531-B21 572531-B21
Smart Array P812 Controller
HP Smart Array P812/1G FBWC 2-ports Int/4-ports Ext PCIe x8 SAS Controller 487204-B21 487204-B21
Optional Upgrades
HP 256MB P-series Cache Upgrade
NOTE: Supported on HP Smart Array P212 Controller only.
462968-B21 462968-B21
HP 512MB P-Series Battery Backed Write Cache Upgrade 462967-B21 462967-B21
HP 8484 to Mini SAS 33in Cable Assembly 591734-B21
HP 650 mAh P-Series Battery
NOTE: To enable BBWC on the 256MB cache.
NOTE: Requires 256 MB Cache Module. When used with the embedded HP Smart Array P410i controller, this battery module also requires a 24 inch SFP Battery Cable (496029-B21).
462969-B21
HP 512MB Flash Backed Write Cache 534916-B21 534916-B21
HP 1GB Flash Backed Cache 534562-B21 534562-B21
HP Smart Array Hot Plug Advance Pack for B110i w/1y 24x7 Supp Physical 1 Svr LTU TC421A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/12616_div/12616_div.html
(Smart Array P800 Controller)
http://h18000.www1.hp.com/products/quickspecs/13203_div/13203_div.html
(Smart Array P212 Controller)
http://h18000.www1.hp.com/products/quickspecs/13201_div/13201_div.html
(Smart Array P410 Controller)
http://h18000.www1.hp.com/products/quickspecs/13202_div/13202_div.html
(Smart Array P411 Controller)
http://h18000.www1.hp.com/products/quickspecs/13558_div/13558_div.html
(Smart Array P812 Controller)
SCSI HBA
HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter 412911-B21 412911-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/12566_div/12566_div.html
(SCSI HBA)


HP Tape Backup NOTE: For the complete range of StorageWorks tape drives, autoloaders, libraries and media see: http://www.hp.com/go/tape. For hardware and software compatibility of HP StorageWorks tape backup products see: http://www.hp.com/go/connect.
HP StorageWorks 1/8 G2 LTO-5 Ultrium 3000 Fibre Channel Tape Autoloader
BL541A
HP StorageWorks MSL2024 1 LTO-5 3280 FC Tape Library
BL531A
HP StorageWorks MSL2024 1 LTO-5 Ultrium 3000 Fibre Channel Tape Library
BL542A
HP StorageWorks MSL4048 1 LTO-5 3280 FC Tape Library
BL532A
HP StorageWorks MSL4048 2 LTO-5 Ultrium 3000 Fibre Channel Tape Library
BL543A

HP Disk Backup NOTE: For the complete range of StorageWorks D2D Backup Systems see: http://www.hp.com/go/d2d. For the complete range of StorageWorks RDX drives and media see: http://www.hp.com/go/rdx. For hardware and software compatibility of HP StorageWorks disk backup products see: http://www.hp.com/go/connect.
HP StorageWorks D2D Backup Systems with Backup Data Deduplication
HP StorageWorks D2D2504i Backup System
NOTE: 3.0TB of useable network disk backup capacity. Network connected appliance with connectivity using the iSCSI protocol. If the server requires a hardware iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is recommended.
EJ002B
HP StorageWorks D2D4112 Backup System
NOTE: 9.0TB (expandable to 18.0TB) of useable network disk backup capacity. Fibre Channel SAN connected appliance. Direct server attach is not supported, requires connection via SAN fabric.
EH993B

HP StorageWorks Options StorageWorks Fibre Channel HBA
NOTE: The following is a list of all Fibre Channel Host Bus Adapters for Windows and Linux. For detailed compatibility information please see: http://h18006.www1.hp.com/storage/saninfrastructure/hba.html
Brocade Fibre Channel HBAs
HP StorageWorks 81B PCIe 8Gb Fibre Channel Single Port Host Bus Adapter
HP StorageWorks 82B PCIe 8Gb Fibre Channel Dual Port Host Bus Adapter
HP StorageWorks 41B PCIe 4Gb Fibre Channel Single Port Host Bus Adapter
HP StorageWorks 42B PCIe 4Gb Fibre Channel Dual Port Host Bus Adapter
Emulex Fibre Channel HBAs
HP StorageWorks 81E 8Gb Single Port PCI-e Fibre Channel Host Bus Adapter
HP StorageWorks 82E 8Gb Dual Port PCI-e Fibre Channel Host Bus Adapter
HP StorageWorks FC2142SR 4Gb PCIe Host Bus Adapter A8002A A8002A
HP StorageWorks FC2242SR 4Gb PCIe DC Host Bus Adapter A8003A A8003A
QLogic Fibre Channel HBAs
HP StorageWorks 81Q PCI-e Fibre Channel Host Bus Adapter
HP StorageWorks 82Q 8Gb Dual Port PCI-e Fibre Channel Host Bus Adapter
HP StorageWorks FC1142SR 4Gb PCIe Host Bus Adapter AE311A AE311A
HP StorageWorks FC1242SR 4Gb PCIe DC Host Bus Adapter AE312A AE312A
StorageWorks SCSI HBA
HP StorageWorks U320e SCSI Dual Channel Host Bus Adapter
NOTE: Recommended HBA for MSL SCSI Tape Library connect.
AH627A AH627A
StorageWorks Converged Network Adapter
HP StorageWorks CN1000E Dual Port Converged Network Adapter AW520A AW520A
HP CN1000Q Dual Port Converged Network Adapter BS668A BS668A

HP Disk Storage Systems MSA SAN Storage Arrays
HP StorageWorks 60 Modular Smart Array 418408-B21 418408-B21
NOTE: Rack-mountable 12-drive (3.5" 3G SAS/1.5G SATA) 2U enclosure with 3Gb/s SAS host connectivity and redundant power supplies.
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/12627_div/12627_div.html (Worldwide)

HP StorageWorks 70 Modular Smart Array 418800-B21 418800-B21
NOTE: Rack-mountable 25-drive (2.5" 3G SAS/1.5G SATA) 2U enclosure with 3Gb/s SAS host connectivity and redundant power supplies.
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/12652_div/12652_div.html (Worldwide)

Disk Enclosures
HP StorageWorks D2600 Disk Enclosure AJ940A
HP StorageWorks D2700 Disk Enclosure AJ941A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/13404_div/13404_div.html (Worldwide)

HP Uninterruptible Power Systems HP Rack-mountable UPS
HP R1500 G2 UPS
HP R1500 G2 1440VA Low Voltage NA 1U Rackmount Uninterruptible Power System
AF419A
HP R1500 G2 1440VA INTL 1U Rackmount Uninterruptible Power System
AF418A
HP R1500 G2 1200kVA Low Voltage JP 1U Rackmount Uninterruptible Power System AF421A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12507_div/12507_div.html (Worldwide)

HP Rack-Mountable R5500 UPS
HP R5500 6000VA INTL 3U Rackmount Uninterruptible Power System AF416A
HP R5500 5000kVA NA/JP 3U Rackmount Uninterruptible Power System AF426A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13129_div/13129_div.html (Worldwide)
HP R/T3000 Uninterruptible Power System (UPS)
HP R/T3000 3300VA High Voltage NA/JPN 2U Rackmount Uninterruptible Power System AF453A
HP R/T3000 3300VA INTL 2U Rackmount Uninterruptible Power System AF454A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13417_div/13417_div.html (Worldwide)

NOTE: Additional HP Uninterruptible Power Systems (UPS) are available for this equipment. For information on all HP UPSs and accessories please go to: www.hp.com/products/ups (Worldwide)
NOTE: For additional information on sizing your HP UPS, please reference: http://www.upssizer.com

HP Power Distribution Units HP Monitored Power Distribution Unit: Half Rack Version
HP 4.9 kVA S124 Monitored PDU- single input, 1Ø, 24A (NA/JPN)
AF914A
HP 7.3 kVA S132 Monitored PDU- single input, 1Ø, 32A (INTL)
AF915A
HP Monitored Power Distribution Unit: Full Rack Version
HP 8.6 kVA S1324 Monitored PDU- single input, 3Ø, 24A (NA/JPN) AF504A
HP 8.3 S1140 Monitored PDU- single input, 1Ø, 40A (NA/JPN) AF506A
HP 11 kVA S1316 Monitored PDU- single input, 3Ø, 16A (INTL) AF508A
HP 7.3 kVA S1132 Monitored PDU- single input, 1Ø, 32A (INTL) AF510A
NOTE: Please see the following QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12118_div/12118_div.html
(Worldwide)

Modular Power Distribution Units 1U/0U (Up to 32 outlets)
NOTE: 1U/0U mounting brackets shipped with the unit (optimized for 10000 and 9000 series racks).

HP Modular Power Distribution Units (mPDU), High Volt Model, 24A (200-240 VAC) (NA, Japan) 252663-D72 252663-D72
8.3kVA Model - mPDU, 40A, High (power cord attached) (NA/JPN) 252663-D73
HP Modular Power Distribution Units (mPDU), High Volt Model, 32A (200-240 VAC) (Int'l) 252663-B31
HP Modular Power Distribution Units (mPDU), High Volt Model, 16A (200-240 VAC) (WW)
NOTE: This PDU has a detachable input power cord and allows for adaptability to country specific power requirements.
252663-B24 252663-B24
NOTE: Please see the following QuickSpecs for additional options including shorter jumper cables and country specific power cords:
http://h18000.www1.hp.com/products/quickspecs/11041_div/11041_div.html (Worldwide)
NOTE: For additional information on HP Power Distribution Units including accessories please go to: www.hp.com/go/pdu.

HP Rack Series HP Rack 10000 G2 Series (Carbon/Graphite Metallic)
HP 10642 G2 Pallet Universal Rack AF001A AF001A
HP 10642 G2 Shock Universal Rack
NOTE: It is mandatory to use a shock pallet when shipping racks with equipment installed.
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.html (Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.
NOTE: The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 G2 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.
CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment: Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation). Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 2.75 inches (7 cm).
CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

NOTE: Quick deploy rail system provides tool-free support for racks with square or round mounting holes (including Compaq/HP 7000, 9000, 10000 G2 and HP series), with an adjustment range of 24" - 36". The ambidextrous cable management arm can be mounted on either the left or right side for improved cable management.

HP Rack Options HP Server Console Switches
HP Server console switch 0x2x8 AF616A
HP Server console switch 0x2x16 AF617A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/11834_div/11834_div.html (Worldwide)

HP Server Console Switch G2 with Virtual Media & CAC
0x2x16 KVM Server Console G2 Switch with Virtual Media and CAC AF618A
0x2x32 KVM Server Console G2 Switch with Virtual Media and CAC AF619A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13475_div/13475_div.html (Worldwide)

HP IP Console Switch G2 with Virtual Media & CAC
1x1Ex8 KVM IP Console Switch G2 with Virtual Media and CAC AF620A
2x1Ex16 KVM IP Console Switch G2 with Virtual Media and CAC AF621A
4x1Ex32 KVM IP Console Switch G2 with Virtual Media and CAC AF622A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13474_div/13474_div.html
(Worldwide)


HP USB and SD Options HP USB-P/S2 Mouse
DC369A
HP USB 04 Standard Keyboard
DT528A#ABA

HP Care Pack Services Hardware Services 4-Hour On-site Service
13-Hour x 5-Day Coverage, 3 Years, Electronic
UM828E
24-Hour x 7 Day Coverage, 3 Years, Electronic
UM829E
Hardware Services Next Business Day On-Site Service
9-Hour x 5-Day Coverage, 3 Years, Electronic
UM827E
Hardware Services 6-Hour Call to Repair On-Site Service
HP 3y 6h 24x7 CTR DL1000 HW Supp UM830E
Hardware Installation, Electronic
UM857E
HP LO100i Advanced Pack 3 year 24x7 Software Support
UM748E
NOTE: For more information, customer/resellers can contact: http://www.hp.com/services/carepack
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      DL1000 G1 Core Options      Additional Options      DL1000 G1 Memory      Storage      Power Specifications      System Specifications      DL1000 G1 QuickSpecs images/line.gif (50 bytes)

Memory

HP ProLiant DL170h G6 Server
NOTE: Memory configurations listed do not apply to "Factory Integrated Models".
Standard Memory
6GB (3 x 2GB)/server node, PC3-10600E Unregistered DIMM memory, with ECC

Maximum Memory
Up to 192GB, using PC3-8500R DDR3 Registered (RDIMM) memory, operating at 800MHz when fully populated at 2 DIMMs per Channel in 12 slots
Up to 48GB, using PC3-10600E DDR3 Unbuffered (UDIMM) memory, operating at 1333MHz when fully populated at 2 DIMMs per Channel in 12 slots
NOTE: RDIMMs and UDIMMs cannot be in the same system so the maximum RDIMM memory configuration can only be achieved with BTO models by replacing all of the UDIMMs.
NOTE: Chart does not represent all possible memory configurations.
DDR3 memory population guidelines

For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator

  • Some DIMM installation guidelines are summarized below:
  • For servers with sixteen (16) memory slots
  • There are three (3) channels per processor; six (6) channels per server
  • There are two (3) DIMM slots for two memory channels and one (2) DIMM slots for one memory channel; sixteen (16) total slots
  • Memory channel 1 consists of the two (2) DIMM slots that are closest to the processor
  • Memory channels 2 and 3 consist of the six (6) DIMM slots that are furthest from the processor
  • DIMM slots that are white should be populated first
  • Do not mix Unbuffered memory (UDIMMs) with Registered memory (RDIMMs)
  • Do not install DIMMs if the corresponding processor is not installed
  • If only one processor is installed in a 2CPU system, only half of the DIMM slots are available
  • To maximize performance, balance the total memory capacity between all installed processors
  • It is not required, but it is recommended to load the channels similarly if possible
  • You can only have up to eight (8) ranks installed per channel
  • You can only install two quad-rank DIMMs per channel
  • You can only install two UDIMMs per channel; if available, the third slot in the channel must remain empty
  • Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank) within a channel
  • Heaviest load (DIMM with most ranks) within a channel goes furthest from the chipset
  • Low Voltage DIMMs can only be used with Intel Xeon 5600 series processors.
  • For memory mirroring mode, channel 3 must be unpopulated. Channels 1 and 2 are populated identically
  • For lock-step mode, channel 3 must be unpopulated. DIMMs in channels 1 and 2 will be installed in pairs. The paired slots will be 1,4; 2,5; 3;6 on a 3DPC system or 1,4; 2,5; on a 2DPC system
  • If mixing DIMM voltage is a requirement, please note that the DIMMs will run at 1.5V since all 1.35V are capable of supporting 1.5V operations.

DIMM Type -> Registered DIMMs (RDIMMs) Unbuffered with ECC DIMMs (UDIMMs)
DIMM Rank -> Single
Rank
(1R)
Dual Rank (2R) Quad Rank (4R) Single
Rank
(1R)
Dual Rank (2R)
DIMM Capacity -> 4GB 2GB 4GB 8GB 8GB 4GB 16GB 1GB 2GB 4GB
DIMM Native Speed (MHz) -> 1333 1333 1333 1066 1333 1066 1066 1333 1333 1333
Voltage LV/Reg Reg Reg Reg LV/Reg Reg Reg Reg Reg LV/Reg

SLOTS THAT CAN BE POPULATED
16 slot servers 16 16 16 16 16 12 12 12 12 12

MAXIMUM MEMORY CAPACITY (GB)
16 slot servers 64 32 64 128 128 48 192 12 24 48

POPULATED DIMM SPEED (MHz)
1 DIMM Per Channel 1333 1333 1333 1066 1333 1066 1066 1333 1333 1333
2 DIMMs Per Channel 1333* 1333* 1333* 1066 1333* 800 800 1066 1066 1333*
3 DIMMs Per Channel (on 2 channels) 800 800 800 800 800

N/A

N/A

N/A N/A N/A
*supported with ROM update via ROM Based Setup Utility (RBSU)

NOTES:

  • PC3-10600 DIMMs have a maximum speed of 1333MHz. PC3-8500 DIMMs have a maximum speed of 1066MHz
  • Mixing DIMM speeds is allowed, but the system processor speed rules always override the DIMM capabilities
  • If you do mix DIMM speeds, the memory bus will default to the minimum clock rate of all DIMMs in the system - even if the slower DIMM is on the other processor
  • If you install 1x 1066MHz DIMM in channel 1 and 1x 1333MHz DIMM in channel 2, the maximum speed will be 1066MHz If you install 1x 1066MHz DIMM in channel 1 and 5x 1333MHz DIMMs with 1 DIMM Per Channel (DPC) in each of the other channels, the maximum speed will be 1066MHz
  • If you install 3DPC in one channel (if applicable) and 1DPC in all other channels, you run at 800MHz
  • Maximum memory speed will also depend on the processor installed
  • References to the above MHz speeds are for the various speeds of DDR3 DIMMs; 1333 refers to DDR3-1333, etc.


DIMM slot and configuration diagrams
Basic memory slot & population diagram

  • Population order; start with "A" first, "B" second, "C" third, etc. Channel 1 is channel furthest away from the CPU and Channel 3 is channel closest to CPU.
16 DIMM SLOTS (8 per CPU node)
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 A 1 A Chnl 1
2 D 2 D
3 G 3 G

Chnl 2 4 B 4 B Chnl 2
5 E 5 E
6 H 6 H

Chnl 3 7 C 7 C Chnl 3
8 F 8 F


Standard memory configuration (1 CPU model)

  • 6GB, consisting of three (3) 2GB dual-rank PC3-10600E UDIMMs
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 A; 2GB DIMM
1 A; empty Chnl 1
2 D; empty
2 D; empty
3 G; empty 3 G; empty

Chnl 2 4 B; 2GB DIMM
4 B; empty Chnl 2
5 E; empty
5 E; empty
6 H; empty 6 H; empty

Chnl 3 7 C; 2GB DIMM 7 C; empty Chnl 3
8 F; empty 8 F; empty


Standard memory plus optional memory (1 CPU model)

  • 12GB, consisting of three (3) 2GB UDIMMs plus three (3) 2GB UDIMMs
    • 6x 2GB dual-rank PC3-10600E UDIMMs
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 A; 2GB DIMM
1 A; empty Chnl 1
2 D; 2GB DIMM
2 D; empty
3 G; empty 3 G; empty

Chnl 2 4 B; 2GB DIMM
4 B; empty Chnl 2
5 E; 2GB DIMM
5 E; empty
6 H; empty 6 H; empty

Chnl 3 7 C; 2GB DIMM 7 C; empty Chnl 3
8 F; 2GB DIMM 8 F; empty


Standard memory replaced with optional memory (1 CPU model)
RDIMM maximum configuration

  • 96GB, consisting of six (6) 16GB quad-rank PC3-8500 RDIMMs
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 A; 16GB DIMM 1 A; empty Chnl 1
2 D; 16GB DIMM 2 D; empty
3 G; empty 3 G; empty

Chnl 2 4 B; 16GB DIMM 4 B; empty Chnl 2
5 E; 16GB DIMM 5 E; empty
6 H; empty 6 H; empty

Chnl 3 7 C; 16GB DIMM 7 C; empty Chnl 3
8 F; 16GB DIMM 8 F; empty


Standard memory replaced with optional memory (2 CPU model)
RDIMM maximum configuration

  • 192GB, consisting of sixteen (16) 16GB quad rank PC3-8500 RDIMMs
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 A; 16GB DIMM
1 A; 16GB DIMM
Chnl 1
2 D; 16GB DIMM 2 D; 16GB DIMM
3 G; empty 3 G; empty

Chnl 2 4 B; 16GB DIMM 4 B; 16GB DIMM Chnl 2
5 E; 16GB DIMM 5 E; 16GB DIMM
6 H; empty 6 H; empty

Chnl 3 7 C; 16GB DIMM 7 C; 16GB DIMM Chnl 3
8 F; 16GB DIMM 8 F; 16GB DIMM


UDIMM maximum configuration

  • 48GB, consisting of twelve (12) 2GB dual-rank PC3-10600 UDIMMs
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 A; 4GB DIMM 1 A; 4GB DIMM Chnl 1
2 D; 4GB DIMM
2 D; 4GB DIMM
3 G; empty 3 G; empty

Chnl 2 4

B; 4GB DIMM

4

B; 4GB DIMM

Chnl 2
5

E; 4GB DIMM

5

E; 4GB DIMM

6

H; empty

6

H; empty


Chnl 3 7 C; 4GB DIMM
7 C; 4GB DIMM
Chnl 3
8 F; 4GB DIMM 8 F; 4GB DIMM


NOTE: Capacity references are rounded to the common Gigabyte values.

  • 1GB = 1024MB
  • 2GB = 2048MB
  • 4GB = 4096MB
  • 8GB = 8192MB
  • 16GB = 16384MB

DDR3 memory options part number decoder

Following are memory options available from HP:

HP Memory Registered DIMMs (RDIMMs)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
HP 4GB (1x4GB) Quad Rank x8 PC3-8500 (DDR3-1066) Registered CAS-7 Low Power Memory Kit 500660-B21 500660-B21
HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 593339-B21 593339-B21
HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit
NOTE: Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600 series processors.
604504-B21 604504-B21
HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit 500666-B21 500666-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500662-B21 500662-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit
NOTE: Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600 series processors.
604506-B21 604506-B21
Unbuffered with ECC DIMMs (UDIMMs)
NOTE: Maximum 12 DIMMs supported per node.

HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500668-B21 500668-B21
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500670-B21 500670-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500672-B21 500672-B21
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600 (DDR3-1333) Unbuffered CAS-9 Low Power Memory Kit 619488-B21 619488-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as LV include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient
NOTE: PC3L is a low voltage memory.

NOTE: There is a maximum support limitation of 8 ranks per memory channel (maximum of 2 quad rank DIMMs per channel)
NOTE: Memory Min and Max depends on number of processors and type of memory:
1 Processor -> R-Dimm: Min 1 // Max 8 U-Dimm: Min 1 // Max 6
2 Processors -> R-Dimm: Min 2 // Max 16 U-Dimm: Min 2 // Max 12
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      DL1000 G1 Core Options      Additional Options      DL1000 G1 Memory      Storage      Power Specifications      System Specifications      DL1000 G1 QuickSpecs images/line.gif (50 bytes)

Storage

1-8 Eight 3.5" Hot-plug SAS/SATA hard drive bays

1-16 Sixteen 2.5" Hot-plug SAS/SATA hard drive bays

Drive Support


Removable Media



Quantity
Supported

Position
Supported


Controller

DVD-ROM

Up to 2 per node

External

USB

DVD/CD RW

Up to 2 per node

External

USB


Hard Drives
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives


Quantity
Supported

Position
Supported


Controller

300GB 6G SAS 10K DP
146GB 6G SAS 15K DP
146GB 6G SAS 10K DP
72GB 6G SAS 15K DP
16
1-16
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller

SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
  Quantity
Supported
Position
Supported
Controller
600GB 6G SAS 15K DP
450GB 6G SAS 15K DP
300GB 6G SAS 15K DP
Up to 8 1-8 HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller

SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives
  Quantity
Supported
Position
Supported
Controller
500GB 6G SAS 7.2K Up to 16 1-16 HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller

SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives
  Quantity
Supported
Position
Supported
Controller
2TB 6G SAS 7.2K
1TB 6G SAS 7.2K
750GB 3G SAS 7.2K
Up to 8 1-8 HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller

SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives


Quantity
Supported

Position
Supported


Controller

500GB 3G SATA 7.2K
160GB 3G SATA 7.2K
16
1-16
Embedded HP Smart Array Hot Plug Advanced Pack for B110i (RAID 0, 1, 10)
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller

SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives


Quantity
Supported

Position
Supported


Controller

2TB 3G SATA 7.2K
1TB 3G SATA 7.2K 500GB 3G SATA 7.2K
Up to 8
1-8
Embedded HP Smart Array Hot Plug Advanced Pack for B110i (RAID 0, 1, 10)
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller

SATA Hot Plug LFF (3.5-inch) Entry (ETY) Drives
  Quantity
Supported
Position
Supported
Controller
250GB 3G SATA 7.2K
160GB 3G SATA 7.2K
Up to 8 1-8 Embedded HP Smart Array Hot Plug Advanced Pack for B110i (RAID 0, 1, 10)
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller

SATA Hot Plug Midline (MDL) Solid State Drives
  Quantity
Supported
Position
Supported
Controller
120GB 3.0G SATA SSD 60GB 3.0G SATA SSD 16 1-16 Embedded HP Smart Array Hot Plug Advanced Pack for B110i (RAID 0, 1, 10)
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller

SATA Hot Plug 3.5" Midline (MDL) Solid State Drives
  Quantity
Supported
Position
Supported
Controller
120GB 3.0G SATA SSD 60GB 3.0G SATA SSD Up to 8 1-8 Embedded HP Smart Array Hot Plug Advanced Pack for B110i (RAID 0, 1, 10)
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller

External Storage


Quantity
Supported
Position
Supported
Controller
60 Modular Smart Array
Up to 8
External
HP Smart Array P800/512 BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
Up to 4
External
HP Smart Array P212/ 256 MB Controller
70 Modular Smart Array
Up to 4
External
HP Smart Array P800/512 BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
Up to 2
External
HP Smart Array P212/ 256 MB Controller
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      DL1000 G1 Core Options      Additional Options      DL1000 G1 Memory      Storage      Power Specifications      System Specifications      DL1000 G1 QuickSpecs images/line.gif (50 bytes)

Power Specifications

HP 460W Common Slot Gold Hot Plug Power Supply Kit
Part Number 503296-B21 503296-B21
Input Voltage Range ( V rms ) 100 to 240
Frequency Range (Nominal) ( Hz ) 50/60
Nominal Input Voltage ( Vrms ) 100 120 200 208 220 230 240
Maximum Rated Output Wattage Rating 460 460 460 460 460 460 460
Nominal Input Current ( A rms ) 5.5 4.5 2.6 2.5 2.4 2.3 2.2
Maximum Rated Input Wattage Rating ( Watts ) 526 520 505 505 503 503 503
Maximum Rated VA ( Volt-Amp ) 548 542 527 527 524 524 524
Efficiency ( % ) 87.5 88.5 91 91 91.5 91.5 91.5
Power Factor 0.97
Leakage Current ( mA ) 0.42 0.50 0.83 0.87 0.92 0.96 1.00
Maximum Inrush Current ( A peak ) 30
Maximum Inrush Current duration ( mS ) 20
Maximum British Thermal Unit Rating ( BTU-Hr ) 1794 1773 1725 1725 1715 1715 1715

HP 750W Common Slot Gold Hot Plug Power Supply Kit
Part Number 512327-B21 512327-B21
Input Voltage Range ( V rms ) 100 to 240
Frequency Range (Nominal) ( Hz ) 50/60
Nominal Input Voltage ( Vrms ) 100 120 200 208 220 230 240
Maximum Rated Output Wattage Rating 750 750 750 750 750 750 750
Nominal Input Current ( A rms ) 8.9 7.4 4.3 4.1 3.9 3.7 3.6
Maximum Rated Input Wattage Rating ( Watts ) 857 847 824 824 820 820 820
Maximum Rated VA ( Volt-Amp ) 894 884 859 854 854 854
Efficiency ( % ) 87.5 88.5 91 91 91.5 91.5 91.5
Power Factor 0.97
Leakage Current ( mA ) 0.42 0.50 0.83 0.87 0.92 0.96 1.00
Maximum Inrush Current ( A peak ) 30
Maximum Inrush Current duration ( mS ) 20
Maximum British Thermal Unit Rating ( BTU-Hr ) 2925 2892 2812 2812 2797 2797 2797

HP 750W Common Slot Platinum Hot Plug Power Supply Kit
Part Number 593831-B21 593831-B21
Input Voltage Range ( V rms ) 100 to 240
Frequency Range (Nominal) ( Hz ) 50/60
Nominal Input Voltage ( Vrms ) 100 120 200 208 220 230 240
Maximum Rated Output Wattage Rating 750 750 750 750 750 750 750
Nominal Input Current ( A rms ) 8.6 7.1 4.2 4.0 3.8 3.6 3.4
Maximum Rated Input Wattage Rating ( Watts ) 841 828 809 808 807 806 805
Maximum Rated VA ( Volt-Amp ) 863 850 830 829 828 827 826
Efficiency ( % ) 89.2 90.6 92.7 92.8 93 93.1 93.2
Power Factor 0.985
Leakage Current ( mA ) 0.42 0.50 0.83 0.87 0.92 0.96 1.00
Maximum Inrush Current ( A peak ) 30
Maximum Inrush Current duration ( mS ) 20
Maximum British Thermal Unit Rating ( BTU-Hr ) 2868 2825 2761 2757 2753 2749 2747

HP 1200W Common Slot Platinum Hot Plug Power Supply Kit
Part Number 578322-B21 578322-B21
Input Voltage Range ( V rms ) 100 to 240
Frequency Range (Nominal) ( Hz ) 50/60
Nominal Input Voltage ( Vrms ) 100 120 200 208 220 230 240
Maximum Rated Output Wattage Rating 800 900 1200 1200 1200 1200 1200
Nominal Input Current ( A rms ) 9.3 8.6 6.7 6.5 6.1 5.8 5.6
Maximum Rated Input Wattage Rating ( Watts ) 889 989 1290 1290 1290 1290 1290
Maximum Rated VA ( Volt-Amp ) 927 1031 1345 1345 1345 1345 1345
Efficiency ( % ) 90 91 93 93 93 93 93
Power Factor 0.97
Leakage Current ( mA ) 0.42 0.50 0.83 0.87 0.92 0.96 1.00
Maximum Inrush Current ( A peak ) 30
Maximum Inrush Current duration ( mS ) 10
Maximum British Thermal Unit Rating ( BTU-Hr ) 3033 3375 4403 4403 4403 4403 4403

HP 1200W Common Slot Silver Hot Plug Power Supply Kit
Part Number 500172-B21 500172-B21
Input Voltage Range ( V rms ) 100 to 240
Frequency Range (Nominal) ( Hz ) 50/60
Nominal Input Voltage ( Vrms ) 100 120 200 208 220 230 240
Maximum Rated Output Wattage Rating 800 900 1200 1200 1200 1200 1200
Nominal Input Current ( A rms ) 9.7 9.0 7.0 6.8 6.4 6.1 5.9
Maximum Rated Input Wattage Rating ( Watts ) 930 1034 1348 1348 1348 1348 1348
Maximum Rated VA ( Volt-Amp ) 970 1079 1406 1406 1406 1406 1406
Efficiency ( % ) 86 87 89 89 89 89 89
Power Factor 0.97
Leakage Current ( mA ) 0.42 0.50 0.83 0.87 0.92 0.96 1.00
Maximum Inrush Current ( A peak ) 30
Maximum Inrush Current duration ( mS ) 20
Maximum British Thermal Unit Rating ( BTU-Hr ) 3174 3530 4600 4600 4600 4600 4600

To review typical system power ratings use the Active Answers HP Power Advisor which is available via the online tool located at URL: www.hp.com/go/proliant-energy-efficient or www.hp.com/go/hppoweradvisor

To drill down to calculators:
- Click on: "ProLiant Servers"
- Click on the Server of interest. Example: HP ProLiant DL1000 G6
- Click on: "Power Calculator" link. (You may need to scroll down to see it)

contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      DL1000 G1 Core Options      Additional Options      DL1000 G1 Memory      Storage      Power Specifications      System Specifications      DL1000 G1 QuickSpecs images/line.gif (50 bytes)

System Specifications

Power
ProLiant DL170h G6 Fully Configured
115V/60Hz
220V/50Hz
Fully Loaded System Input Wattage (W)
651
638
Fully Loaded System Input Current (A rms)
5.7
3.0
Fully Loaded System Thermal (BTU- Hr)
2218
2174
Fully Loaded System VA (Volt-Amp)
657
657
System Leakage with all power supplies loaded (mA)
1.58
3.03
System Inrush Current with all power supplies loaded (A)
19
37
Power cord requirements
Nema 5-15P to IEC320-C13
IEC320-C13 to IEC320-C14
NOTE: Power shown is for a fully configured system consisting of (2) CPUs, (16) DIMMs, (2) HDDs, and (1) PCI card per node.
Power Cord
AF556A

Server Power Cords

One 6' Highline (IEC-IEC) power cord ships standard
NOTE: ProLiant DL servers are primarily connected to PDU's in data center racks so they ship standard with only a PDU power cord (416151-B21). If a user wishes to power a ProLiant DL server using a 110V receptacle (NEMA-15), the NEMA power cord (227099-001) must be ordered separately.

NOTE: Japan BTO and CTO configurations get the 6' 4165151-291 power cord in addition. China BTO and CTO configurations get the 6' 416151-AA1 power cord in addition.

NOTE: If customers require a local power cord, they can check the power cord matrix for the appropriate cord. Please see the following power cord matrix: http://www.hp.com/go/powercordmatrix.

contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      DL1000 G1 Core Options      Additional Options      DL1000 G1 Memory      Storage      Power Specifications      System Specifications      DL1000 G1 QuickSpecs images/line.gif (50 bytes)

Quickspecs

System Unit
Dimensions (H x W x D)
(with bezel)
3.44 x 17.64 x 28.91 in (8.74 x 44.81 x 73.43 cm)
Weight
(approximate)
Maximum
(all hard drives, power supplies, and processors installed)
72.00 lb (32.7 kg)
Minimum
(one hard drive, power supply, and processor installed)
40.00 lb (18.2 kg)
Input Requirements
(per power supply)
Rated Line Voltage 90 to 140 VAC
180 to 264 VAC
Rated Input Current 7.31A at 115VAC
3.6A at 230VAC
Rated Input Frequency 47 to 63 Hz
Rated Input Power 855W (at 100 VAC),
840.72W (at 200 VAC)
Power Specifications NOTE: To review typical system power ratings use the HP Power Advisor which is available online located at url: www.hp.com/go/proliant-energy-efficient or www.hp.com/go/hppoweradvisor
Power Supply Output
(per power supply)
Rated Steady-State Power 653.10W (at 100 VAC),
653.08W (at 200 VAC)
System Inlet Temperature Operating 50° to 95° F (10° to 35° C) at sea level with an altitude derating of 1.8°F per every 1000 ft (1.0°C per every 305 m) above sea level to a maximum of 10,000 ft (3050 m), no direct sustained sunlight. Maximum rate of change is 18°F/hr (10°C/hr). The upper limit may be limited by the type and number of options installed.
System performance may be reduced if operating with a fan fault or above 86°F (30°C).
Non-operating 40° to 140° F (-40° to 60° C)
Maximum rate of change is 36°F/hr (20°C/hr).
Relative Humidity
(non-condensing)
Operating 10% to 85% relative humidity (Rh), 82.4°F (28°C) maximum wet bulb temperature, non-condensing.
Non-operating 10% to 95% relative humidity (Rh), 101.7°F (38.7°C) maximum wet bulb temperature, non-condensing.
Altitude Operating 10,000 ft (3050 m). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 1500 ft/min (457 m/min).
Non-operating 30,000 ft (9144 m). Maximum allowable altitude change rate is 1500 ft/min (457 m/min).
Acoustic Noise Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
Idle
   LWAd 7.3
   LpAm 55dBA
Operating
   LWAd 7.3
   LpAm 55dBA
Emissions Classification (EMC) FCC Rating Class A
Normative Standards CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1
NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

HP Smart Array B110i SATA RAID Controller Simultaneous drive transfer channels
4 channels
Transfer rate synchronous
(maximum theoretical)
1.5 Gb/s
Data transfer method
Intel® ICH10R
Drive support
Serial ATA
Data transfer modes
Legacy Mode
Combined Mode
Protocol
Serial ATA
Feature
NCQ (Native Command Queuing); AHCI (Advanced Host Controller Interface)
RAID levels supported 0, 1, 10
RAID Features
Supports multiple logical volumes
Setup through ROM based Array Configuration Utility
Installation scripting support
NOTE: Hot-Plug functions require the purchase of the HP Smart Array Hot Plug Advance Pack for B110i.
RAID OS Support Microsoft Windows Server 2003 x32 and x64 Editions
Microsoft Windows Server 2008 x32 and x64 Editions.
Red Hat Enterprise Linux 4 (x86)
Red Hat Enterprise Linux 5 (x86)
Red Hat Enterprise Linux 5 (AMD64/EM64T)
SUSE Linux Enterprise Server 10 (x86)
SUSE Linux Enterprise Server 10 (AMD64/EM64T)
SUSE Linux Enterprise Server 11 (x86)
SUSE Linux Enterprise Server 11 (AMD64/EM64T)

Embedded NC362i PCIe Gigabit Server Adapter Network Interface Integrated 10/100/1000BASE-T Transceiver
Combines a triple-speed IEEE 802.3TM - Compliant Media Access Controller (MAC) with a triple-speed Ethernet transceiver.
Data Transfer Method Compliant to x4 PCIe Specification
Controller Intel® 82576
Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s
10Base-T (Full-Duplex) 20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex) 200 Mb/s
1000Base-TX (Half and Full-Duplex) 2000Mb/s
Connector RJ-45 connector
Cable Support Performs all the physical layer functions for 10BASE-T, 100BASE-T, and 1000BASE-T Ethemet on standard Category 5 UTP

Environment-friendly Products and Approach End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.


Toll Free: 866.252.9743            Ph: 613.599.1287            Fax: 613.599.8120
Servers | Blades | All Hard Drives | U320 Drives | SAS/SATA Drives | Memory | Controllers | Processors | Tape Drives | Power Supplies | Misc
Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account | Add to favorites

 Controllers                        LegalPrivacy | | Backup SiteContact us | Site Problem?  |  Controllers           Controllers           Controllers
Controllers Hard Drives SAS Hard Drives u320 Hard Drives u320 Hard Drives2 processors processors2 memory tape drives Misc ipphones servers blades power supplies
