 HPE  Proliant DL180 G5 QuickSpecs Flag US QuickSpecs
Folder-Closed DL180 G5 HDD SSD Folder-Closed DL180 G5 Processors Folder-Closed DL180 G5 Memory
Folder-Closed DL180 G5 Controllers Folder-Closed DL180 G5 Networking Folder-Closed DL180 G5 Power
Folder-Closed DL180 G5 Quickspecs Folder-Closed DL180 G5 Quickspecs Folder-Closed DL180 G5 Options New  Refurb
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      DL180 G5 Core Options      Additional Options      DL180 G5 Memory      Storage      Power Specifications      DL180 G5 QuickSpecs images/line.gif

Proliant DL180 G5 Overview

HP ProLiant DL180 Generation 5 (G5)

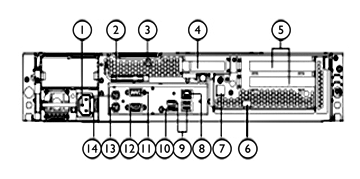

Proliant DL180 G5 Front View: Proliant DL180 G5 Rear View:
1. Access panel
1.
Power Supply Cable Socket
2. Front LED Indicators
2.
T-15/T-10 Screwdriver
3. Power on/off
3.
Thumbscrew For Top DL180 G5 Cover
4. Optional DVD-RW or DVD-ROM drive
4.
Low Profile Card Slot
5. Front USB Ports (2)
5.
PCI Expansion Card Slot
6. Non-Hot Plug Non Redundant fans (4 fans)
6.
Thumbscrew For PCI Cage
7. Air Baffle
7.
HP LO100c Management Card Port (Optional)
8. PCI Cage
8.
LAN Port
9. System Board
9.
4 USB 2.0 Ports

10.
UID LED Button

11.
Serial Port

12.
VGA Port

13.
PS/2 Mouse Port (green)

14.
PS/2 Keyboard Port (purple)

What's New
  • Support for SAS Hot Plug Enterprise(ENT) Hard Drives
  • Support for SATA Hot Plug Midline (MDL) Hard Drives

At A Glance
The HP ProLiant DL180 G5 is a low cost high capacity storage optimized 2-way server that delivers on a history of design excellence and 2U density for a variety of rack deployments and applications.
  • Processors:
    • Supports up to two Quad-Core Intel® Xeon® processors: 5400 sequence with 12MB Level 2 cache
    • Intel® 5100 Chipset
  • Memory:
    • Up to 24 GB of memory supported by six (6) PC2-5300 (667 MHz) DDR2 memory slots
  • Internal Drive Support:
    • Supports up to twelve via CTO with controller or up to eight via BTO with the addition of a controller:
      • Hot Plug Serial ATA (SATA) 3.5"hard drives; or
      • Hot Plug Serial Attached SCSI (SAS) 3.5"hard drives
        NOTE: 4 hard drives are supported standard via BTO. 8 hard drive support requires the addition of a Smart Array or HBA controller. Hot Plug and SAS functionality require the addition of a Smart Array or HBA controller. 12 hard drive support available via CTO only and requires a SAS controller that supports expanders.
    • Internal storage capacity:
      • SATA Models: Up to 12.0TB (12 x 1TB Hot Plug 3.5" hard drives)
      • SAS Model: Up to 12.0TB (12 x 1TB Hot Plug 3.5" hard drives)
  • Network Controller:
    • One integrated NC105i PCI-e Gigabit NIC (embedded) (Wake on LAN and PXE capable)
  • Storage Controllers:
    • HP Embedded SATA RAID Controller (up to 4 hard drive support on standard BTO models)
      NOTE: Transfer rate 1.5 Gb/s SATA
  • Expansion Slots:
    • One available Low Profile x8 PCI-Express slot using a Low profile Riser.
    • Two Full Height/ Full Length Riser options
      • Option1: 2 full-length/full-height PCI-Express x8 connector slots (x4 electrical - Standard)
      • Option2: full-length/full-height riser with 2 PCI-X Slots(Optional)
  • Infrastructure Management:
    • Optional HP Lights Out 100c Remote Management card with Virtual KVM and Virtual Media support (includes IPMI2.0 and SMASH support)
  • USB Ports:
    • Seven USB ports (2) front, (4) rear, (1) internal
  • Optical Drive:
    • Support for one:
      • Optional Multi-bay DVD
      • Optional Floppy (USB only, USB key)
  • Power Supply:
    • 750W Power Supply (Optional Redundancy Hot Plug, Autoswitching) CSCI 2007/8
    • 1200W High Efficiency Power Supply (Optional Redundancy Hot Plug, Autoswitching) (Optional) CSCI 2007/8
      • NOTE: Climate Savers Computing Initiative, 2007-2008 Compliant
  • Form Factor:
    • 2U rack models
  • Deployment/Serviceability:
    • Tooled access to all system components for easy in rack serviceability
    • Customer Self Repair (CSR): HP products are designed with many CSR parts to minimize repair time and allow for greater flexibility in performing defective parts replacement
  • Warranty:
    • This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for one year from date of purchase (3-1-1 warranty in AP and Brazil). Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
    • NOTE: Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year (3-1-1-in AP and Brazil) Onsite support (3-1-1-in AP and Brazil) with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: https://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      DL180 G5 Core Options      Additional Options      DL180 G5 Memory      Storage      Power Specifications      DL180 G5 QuickSpecs images/line.gif

Standard Features

NOTE: For a brief, printer friendly data sheet that describes this product and informs you of the essential capabilities and specifications, please visit: https://h71028.www7.hp.com/ERC/downloads/4AA1-2747EEW.pdf
NOTE: For the Standard Features shipped in the Factory Integrated Models, please see the "Configuration Information - Factory Integrated Models" section.
Processor
One of the following depending on Model
Quad-Core Intel® Xeon® processor L5420 (2.50 GHz, 50W, 1333MHz FSB)
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.
Quad-Core Intel® Xeon® processor L5410 (2.33 GHz, 50W, 1333MHz FSB)
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.
Quad-Core Intel® Xeon® processor E5450 (3.0 GHz, 80W, 1333MHz FSB)
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.
Quad-Core Intel® Xeon® processor E5440 (2.83 GHz, 80W, 1333MHz FSB)
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.
Quad-Core Intel® Xeon® processor E5430 (2.66 GHz, 80W, 1333MHz FSB)
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.
Quad-Core Intel® Xeon® processor E5420 (2.50 GHz, 80W, 1333MHz FSB)
Quad-Core Intel® Xeon® processor E5405 (2.00 GHz, 80W, 1333MHz FSB)
Dual-Core Intel® Xeon® processor E5205 (1.86 GHz, 65W, 1066MHz FSB)
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.

Upgradeability Upgradeable to two processors

ChipsetIntel® 5100 Chipset

Cache Memory 12MB (2 x 6MB) Level 2 cache (5400 sequence)

Memory ProtectionRegistered Advanced ECC memory

Memory

TypePC2-5300 DIMMs (DDR2-667)
Standard1 GB(1 x 1 GB)
Maximum 24 GB (2 x 8 GB) + (4 X 2 GB)
NOTE: Two 8 GB DIMMs should be populated in sockets 1 and 2 first (the right most sockets when looking from the front of the chassis) - sockets 4 through 6 should be populated with 2 GB DIMMs. (Refer to hood label for more information)

Network Controller One NC105i PCI-E Gigabit NIC (embedded) (Wake on LAN and PXE capable)

Expansion Slots
Slot Number
Bus Speed
Bus Number*
Device Number**
Hot Plug
(Y/N)
PCI Voltage
Notes
3
x8 PCI-Express
3
1
N
3.3 volts
Low Profile
1
x4 PCI-Express
5
0
N
3.3 volts
Full Length
Full Height
2
x4 PCI-Express
6
0
N
3.3 volts
Full length
Full Height
1 PCI-X*** Dynamic 1 N 3.3 volts Full Length
Full Height
2 PCI-X*** Dynamic 2 N 3.3 volts Full Length
Full Height
NOTE: All slots can accept universal keyed PCI cards
* Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number.
** Slots are enumerated differently based on OS. MS OS's enumerate from lowest to highest Device ID by bus (starting with the lowest bus).
*** PCI-X bus speed will be 133MHz when only one PCI-X card is installed. It will be 100MHz when both slots have PCI-X cards installed.

Storage Controller 4HDD Models HP Embedded SATA RAID Controller (integrated into the south-bridge) supporting SW RAID 0,1
NOTE: Transfer rate 1.5 Gb/s SATA.
NOTE: A diskette drive is needed to install storage controller drivers during a Windows operating system installation from a CD.

Storage Diskette Drives Via USB only
Optical Drives Optional HP Slim SATA DVD-ROM Optical Drive
Optional HP Slim SATA DVD RW Optical Drive
NOTE: Optical drives can only be installed on 8 bay hard drive models.
Drive Bays Up to 12 Hot Plug SAS/SATA 3.5" drives (4 drive bays standard)
NOTE: 4 Drive Models are Non-Hot Pluggable. Smart Array Controller must be added for Hot Plug drive capability. 4 Drive Models can be upgraded with the addition of a Smart Array Controller and a SAS/SATA Multi-lane cable (464830-B21). 12 Drive Model available via CTO factory integration ONLY.
NOTE: The addition of a Smart Array Controller requires the addition of a SAS/SATA Multi-lane cable (464830-B21)

Maximum Internal Storage Hot Plug SATA 12.0TB 12 x 1TB
Hot Plug SAS 12.0TB 12 x 1TB

Interfaces Parallel None
Network RJ-45 (Ethernet) 1 10/100/1000 NIC port (plus 1 optional for the HP ProLiant Lights Out 100c Remote Management Card)
Serial 1
Pointing Device (Mouse) 1
Graphics 1
Keyboard 1
USB 7 total ports: (2) front, (4) rear, (1) internal
NOTE: Please see the following URL for additional information regarding USB support:
https://h18004.www1.hp.com/products/servers/platforms/usb-
support.html
.

Graphics

32MB shared supporting 1600 x 1200 x 16M resolution.


Form Factor Rack (2U), (3.5 in/8.89 cm)

Remote Management Lights-Out 100c Lights Out LO100c is a family of Remote Management Card (RMC) for HP ProLiant 100 series servers that do not have embedded LO100i. The LO100c has all the features of the LO100i Advanced license and allows customers, or their service providers, to remotely manage ProLiant servers over a LAN or the Internet from anywhere, anytime regardless whether the server is located in the same building, across town, or around the globe.

With LO100c, users can acquire complete remote control with Virtual KVM (graphical hardware-based, remote console). Users can also access the server's serial console, control system power, update system firmware and software, as well as monitor system environmental conditions. The LO100c remote management card can be accessed from a web browser or command line interface. This virtual "at-the-server" functionality means administrators stay in control of remote HP ProLiant 100 series servers.

The HP Lights-Out100c consists of a management processor and firmware that provides cost-effective, entry-level lights-out functionality, basic system board management functions, and diagnostics.

NOTE: For more information, please refer to the QuickSpecs for the LO100c found at:: https://h18004.www1.hp.com/products/servers/management/
remotemgmt/lightsout100/index.html

Industry Standard Compliance ACPI V2.0 Compliant
PCI 2.2 Compliant
PXE Support
WOL Support
Microsoft® Logo certifications
IPMI 2.0 Compliant

Manageability

The optional HP PL100 G5 Lights-Out 100c Kit ALL provides the following OS-independent remote control capabilities with a riser card:

  • Virtual power
  • System event log access
  • System health
  • Remote Serial console (serial redirection)
  • Browser, Telnet access
  • SMASH-CLP compliant
  • IPMI 2.0 compliant
  • Virtual media (Floppy, CD, USB 2.0 (with release 3.0)
  • Secure Socket Layer Encryption
  • Secure Shell Encryption
  • Virtual KVM

Security Power-on password
Setup password

Server Power Cords

One Highline IEC Power cord ships standard (for connection to a Power Distribution Unit)

NOTE: HP ProLiant DL servers no longer ship standard with NEMA power cords that allow connection to 110V US wall outlets in a home or office. HP ProLiant DL servers are primarily connected to PDU's in data center racks so they now ship standard with only a PDU power cord If a user wishes to power a ProLiant DL server using a110V receptacle (NEMA-15), the NEMA power cord (AF556A) must be ordered separately.

If a local power cord is required, please reference the following power cord matrix: https://www.hp.com/go/powercordmatrix.

NOTE: Rack models ship standard with an IEC cable.
Localized cables included with geographic specific models in other world regions.

UPS and PDU Power
Cord Matrix
Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units. Please see the following link: www.hp.com/products/powercords.

Power Supply 750Watts - (Hot Plug, Autoswitching) Ships Standard
1200Watts - High Efficiency 12V Hot Plug AC Power Supply (Autoswitching) (Optional)
750Watts - Power Supply (Redundant Hot Plug, Autoswitching) (Optional)
1200Watts - High Efficiency Power Supply (Redundant Hot Plug, Autoswitching), CSCI 2007/2008 (Optional)
NOTE: Climate Savers Computing Initiative, 2007-2008 Compliant
NOTE: For additional information please see the Options section of this QuickSpecs.

System Fans 4 system fans ship standard; Non-hot plug, Non-redundant

OS Support

Microsoft Windows 2003 R2
Microsoft Windows Server 2008
Microsoft Windows Small Business Server 2008
Microsoft Windows Essential Server 2008
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
Sun Solaris for x64/x86-based Systems

NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: https://www.hp.com/go/supportos and our driver download page https://www.hp.com/support/DL180G5

Rack Airflow Requirements Rack 10000 G2 series Cabinets
The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 G2 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment:

Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation).
Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 2.75 inches (7 cm).

CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.


Rack Kit HP ProLiant DL180 rack models have fixed rails which provide support for round or square mounting holes, including Compaq/HP 7000, 9000, 10000 and HP series), with an adjustment range of 26" - 36".

Telco Rack Support Support for all 2- and 4 post Telco racks and threaded hole racks requires an additional option kit from Rack Solutions. The Rack Solutions brackets can be purchased at: https://www.racksolutions.com/hp.

Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: https://www.hp.com/go/factory-express.


HP Enterprise Configurator

The HP eConfigure Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance.


Service and Support

HP services provide total care and support expertise with committed response designed to meet your IT and business needs.

HP Care Pack services include coverage for the HP branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as 22" and smaller external monitors and tower UPS options up to 3kVA; these items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included, standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

To fully capitalize on your HP ProLiant servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions provides a range of support services designed to meet the varying needs of business. Whether an SMB or large global corporation HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime.

Recommended Service – Simplify ProLiant solution implementation, maintenance and management.

  • Support Service – 3 Year, 9x5 Next Business Day coverage, excluding HP holidays only
  • Deployment Service – Hardware Installation only

Enhanced Service – Optimize service level to increase IT performance and availability

  • Support Service – 3 Year 13x5 Same Business Day, 4-Hour response coverage
  • Deployment Service – Installation and Start-up only

Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays.

For a complete listing of service offerings and information visit: https://www.hp.com/services/proliantservices
https://www.hp.com/go/proliant/carepack

contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      DL180 G5 Core Options      Additional Options      DL180 G5 Memory      Storage      Power Specifications      DL180 G5 QuickSpecs images/line.gif

Models

Four Drive Serial ATA (SATA) Models
NOTE: To upgrade from 4 Non-Hot Plug SATA hard drives to 4 Hot Plug SATA/SAS hard drives the addition of a storage controller and one Internal SATA/SAS cable (464830-B21) are required. To upgrade to 8 Hot Plug SATA/SAS hard drives, the addition of a storage controller and two Internal SATA/SAS cables (464830-B21) are required.
NOTE: To upgrade to server models supporting 12 hard drives; you must start with HP ProLiant DL180 G5 CTO Chassis (P/N 457649-B21). Please see the Configuration To Order section below.

HP DL180 G5, E5420 2.50GHz,(QC) 1GB (1P)
456830-xx1

HP DL180 G5, E5405 2.00 GHz,(QC) 1GB (1P)
456831-xx1

Processor
One of the following depending on model
Quad-Core Intel® Xeon® processor E5420 (2.50 GHz, 80W, 1333 MHz FSB)
Quad-Core Intel® Xeon® processor E5405 (2.00 GHz, 80W, 1333 MHz FSB)
Cache Memory 12MB (2 x 6MB) Level 2 cache (5400 sequence)
Memory 1 GB (1 x 1 GB) PC2-5300 DIMMs (DDR2-667) with Advanced ECC capabilities
Network Controller One HP NC105i PCI-E (embedded)
Storage Controller Embedded SATA Raid Standard
Hard Drive None ship standard (up to 8 Hot Plug SATA or SAS drives supported standard with the addition of a controller and cable. 12 drive models supported via CTO only.)
Internal Storage

BTO internal storage capacity of up to:
8.0TB (8 x 1TB Hot Plug 3.5" SATA hard drives)
8.0TB (8 x 1TB Hot Plug 3.5" SAS hard drives)

Optical Drive DVD-ROM, DVD RW (Optional)
Form Factor Rack (2U)
  NOTE: Server models supporting 4 hard drives are Non-Hot Pluggable. Smart Array Controller must be added for Hot Plug drive capability.
NOTE: SAS (Serial Attach SCSI) capability requires the addition of a Smart Array or HBA Controller card.

Country Code Key

xx = 00 U.S.
xx = 20 Brazil
xx = 29 Japan
xx = 37 APD
xx = 42 Europe
xx = AA PRC
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      DL180 G5 Core Options      Additional Options      DL180 G5 Memory      Storage      Power Specifications      DL180 G5 QuickSpecs images/line.gif

Configuration Information - Factory Integrated Models

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
NOTE: HP does not allow factory integration of options into standard models listed above.
Configure-to-order servers must start with a CTO Chassis.
NOTE: FIO indicates that this option is a Factory Installable Option.
Step 1: Base Configuration (choose one of the following configurable models)
 Hot Plug Models
HP ProLiant DL180 G5 Hot Plug SAS/SATA Rack CTO Chassis
457649-B21
Factory Integrated Model ships with:
One embedded NC105i PCI-E Gigabit Server Adapters (WOL & PXE-capable)
Three available PCI-Express slots:
Slot 1: x8 low-profile/half-height slot
Slot 2 & 3: x4 Full-Height/Full Length
NOTE: Optional PCI-X option kit includes: Slot 1 and 2: full-length/full-height PCI-X 100. PCI-X slots are 64 bits; 133 MHz capable if only one PCI-X card is installed in the server.
One HP SATA Embedded Cable Kit
750 Watt Power Supply
One Highline IEC Power Cord
4 Non-Hot Plug Fans
Rack (2U), (3.5 in/8.89 cm)

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)
Processors Quad-Core Intel® Xeon® processor L5420 (2.50 GHz, 50W, 1333MHz FSB) Kit, FIO
NOTE: If 2 processors are desired, select one 487901-B21 and one 487901-B21.
487901-B21
Quad-Core Intel® Xeon® processor L5410 (2.33 GHz, 50W, 1333MHz FSB) Kit, FIO
NOTE: If 2 processors are desired, select one 491310-B21 and one 491310-B21.
491310-B21
Quad-Core Intel® Xeon® processor E5450 (3.0 GHz, 80W, 1333MHz FSB) Kit, FIO
NOTE: If 2 processors are desired, select one 499047-B21 and one 499047-B21.
499047-B21
Quad-Core Intel® Xeon® processor E5440 (2.83 GHz, 80W, 1333MHz FSB) Kit, FIO
NOTE: If 2 processors are desired, select one 466106-B21 and one 466106-B21.
466106-B21
Quad-Core Intel® Xeon® processor E5430 (2.66 GHz, 80W, 1333MHz FSB) Kit, FIO
NOTE: If 2 processors are desired, select one 458784-B21 and one 458784-B21.
458784-B21
Quad-Core Intel® Xeon® processor E5420 (2.50 GHz, 80W, 1333MHz FSB) Kit, FIO
NOTE: If 2 processors are desired, select one 458785-B21 and one 458785-B21.
458785-B21
Quad-Core Intel® Xeon® processor E5405 (2.00 GHz, 80W, 1333MHz FSB) Kit, FIO
NOTE: If 2 processors are desired, select one 458786-B21 and one 458786-B21.
458786-B21
Dual-Core Intel® Xeon® processor E5205 (1.86 GHz, 65W, 1066MHz FSB) Kit, FIO
NOTE: If 2 processors are desired, select one 458787-B21 and one 458787-B21.
458787-B21

DL180 G5 Memory 1 GB PC2-5300 2 x 512 MB Single Rank Kit
1 GB REG PC2-5300 1 x 1 GB Kit
462483-B21
2 GB REG PC2-5300 2 x 1 GB Low Power Single Rank Kit
2 GB REG PC2-5300 2 x 1 GB Single Rank Kit
4 GB REG PC2-5300 2 x 2 GB Single Rank Kit 461840-B21
4 GB REG PC2-5300 2 x 2 GB Dual Rank Kit
8 GB REG PC2-5300 2 x 4 GB Dual Rank Kit 408854-B21 408854-B21
8 GB REG PC2-5300 2 x 4 GB Low Power Dual Rank Kit
NOTE: Dual Rank DIMMs are supported in slots 1 to 4. See the memory population matrix in the Memory section of this QuickSpecs.
483403-B21 483403-B21

Hard Drive Cage HP DL180 8HDD Cage FIO Kit
451368-B21
HP DL180 12HDD Cage FIO Kit
451369-B21
NOTE: The installation of a 12HDD Cage requires the addition of a 4-port SAS controller that supports expanders. A Smart Array Controller, P400 or better, is recommended.
NOTE: The addition of a Smart Array Controller (or 4-port SAS controller that supports expanders) requires the addition a SAS/SATA Multi-lane cable (464830-B21).


Step 3: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Core Options" and "Additional Options" section below.
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      DL180 G5 Core Options      Additional Options      DL180 G5 Memory      Storage      Power Specifications      DL180 G5 QuickSpecs images/line.gif

DL180 G5 Core Options

NOTE: Some options may not be available for factory integration. Please contact an HP sales representative for additional information.
Unique Options HP ProLiant DL180 PCI/X Riser Kit
NOTE: This option kit replaces the three internal expansion slots listed in step 1 base configuration.
451285-B21
NOTE: Optional PCI-X option kit includes: Slot 1: full-length/full-height PCI-X 100; Slot 2: Full length/Full-height PCI-X 100. PCI-X slots are 64 bits; 133 MHz capable if only one PCI-X card is installed in the server.

Processor Quad-Core Intel® Xeon® processor L5420 (2.50 GHz, 50W, 1333MHz FSB) Option Kit 487901-B21
Quad-Core Intel® Xeon® processor L5410 (2.33 GHz, 50W, 1333MHz FSB) Option Kit 491310-B21
Quad-Core Intel® Xeon® processor E5450 (3.0 GHz, 80W, 1333MHz FSB) Option Kit 499047-B21
Quad-Core Intel® Xeon® processor E5440 (2.83 GHz, 80W, 1333MHz FSB) Option Kit
466106-B21
Quad-Core Intel® Xeon® processor E5430 (2.66 GHz, 80W, 1333MHz FSB) Option Kit
458784-B21
Quad-Core Intel® Xeon® processor E5420 (2.50 GHz, 80W, 1333MHz FSB) Option Kit
458785-B21
Quad-Core Intel® Xeon® processor E5405 (2.00 GHz, 80W, 1333MHz FSB) Option Kit
458786-B21
Dual-Core Intel® Xeon® processor E5205 (1.86 GHz, 65W, 1066MHz FSB) Option Kit
458787-B21

Memory

1 GB REG PC2-5300 2 x 512 MB Single Rank Kit
1 GB REG PC2-5300 1 x 1 GB Kit
462483-B21
2 GB REG PC2-5300 2 x 1 GB Low Power Single Rank Kit
2 GB REG PC2-5300 2 x 1 GB Single Rank Kit
4 GB REG PC2-5300 2 x 2 GB Dual Rank Kit
4 GB REG PC2-5300 2 x 2 GB LP Single Rank Kit
461840-B21
8 GB REG PC2-5300 2 x 4 GB Dual Rank Kit 408854-B21 408854-B21
8 GB REG PC2-5300 2 x 4 GB Low Power Dual Rank Kit
NOTE: Dual Rank DIMMs are only supported in slots 1 and 2. See the memory population matrix in the Memory section of this QuickSpecs.
483403-B21 483403-B21

Optical Drives HP Slim SATA DVD-ROM Optical Drive
481041-B21
HP Slim SATA DVDRW Optical Drive 481043-B21
NOTE: Optical drives can only be installed on 8 bay hard drive models.

Hard Drives NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

SATA Hot Plug 3.5" Midline (MDL) Drives
HP 1TB 3G SATA 7.2K 3.5" MDL HDD
HP 750GB 3G SATA 7.2K 3.5" MDL HDD 458930-B21 458930-B21
HP 500GB 3G SATA 7.2K 3.5" MDL HDD 458928-B21 458928-B21
HP 250GB 3G SATA 7.2K 3.5" MDL HDD 458926-B21 458926-B21
SATA Hot Plug 3.5" Entry (ETY) Drives
HP 160GB 3G SATA 7.2K 3.5" ETY HDD 458945-B21 458945-B21
NOTE: Server BIOS update is required to support 3G SATA drives when configured with embedded SATA controller. Please see communication for details: https://h20000.www2.hp.com/bizsupport/TechSupport/Document.jsp?objectID=
c01511475

NOTE: Please see the QuickSpecs for Technical Specifications and additional specifications:
https://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html (Worldwide)

SATA Hot Plug 3.5" Midline (MDL) Solid State Drives
HP 60GB 3G SATA 3.5in MDL 1y Wty SSD 570761-B21
HP 120GB 3G SATA 3.5in MDL 1y Wty SSD 570763-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/13415_div/13415_div.html (Worldwide)

SAS Hot Plug 3.5" Midline (MDL) Drives
HP 1TB 3G SAS 7.2K 3.5" DP MDL HDD 461137-B21 461137-B21
HP 750GB 3G SAS 7.2K 3.5" DP MDL HDD 461135-B21 461135-B21
SAS Hot Plug 3.5" Enterprise (ENT) Drives
HP 600GB 6G SAS 15K 3.5" DP ENT HDD 516828-B21 516828-B21
HP 450GB 6G SAS 15K 3.5" DP ENT HDD 516816-B21 516816-B21
HP 450GB 3G 15K 3.5" DP SAS ENT HDD 454232-B21 454232-B21
HP 300GB 6G SAS 15K 3.5" DP ENT HDD 516814-B21 516814-B21
HP 300GB 3G SAS 15K 3.5" DP HDD 416127-B21 416127-B21
HP 146GB 3G SAS 15K 3.5" DP HDD 384854-B21 384854-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html (Worldwide)

NOTE: If selecting more than 4 hard drives or if using SAS hard drives a Smart Array controller and two SAS/SATA cables (P/N 464830-B21) are required.

Communications HP NC110T PCI Express Gigabit Server Adapter
NOTE: Does not support Windows 2000.
HP NC360T PCI Express Dual Port Gigabit Server Adapter
HP NC364T PCI Express Quad Port Gigabit Server Adapter
NOTE: Does not support Windows 2000.
HP NC373F PCI Express Multifunction Gigabit Server Adapter
HP NC373T PCI Express Multifunction Gigabit Server Adapter
HP NC380T PCI Express Dual Port Multifunction Gigabit Server Adapter
NOTE: Supported on a Full Length-Full Height slot only.
HP NC522SFP Dual Port 10GbE Server Adapter
NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each NC522SFP adapter.
NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately.
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: www.hp.com/go/ProLiantNICs.

Power Supplies 750W Redundant Power Supply Kit 451366-B21
High Efficiency HP 1200W 12V Hot Plug AC Power Supply
437572-B21
NOTE: Redundant Power Supply configuration for 1200W power supply requires both power supplies to be 1200W. The 1200W and 750W power supplies cannot be mixed.
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      DL180 G5 Core Options      Additional Options      DL180 G5 Memory      Storage      Power Specifications      DL180 G5 QuickSpecs images/line.gif

Additional Options

Remote Management Lights-Out 100c Remote Management Card
HP Lights Out 100c Remote Management Card 100c Kit 445513-B21
NOTE: For more information regarding Lights Out 100c Remote Management Card, please see the following URL: https://www.hp.com/servers/proliantessentials.

HP Insight Software HP Insight Rapid Deployment software
HP Insight Rapid Deployment software No Media 1-Server License including 1 year of 24x7 Technical Support and Updates
NOTE: This license allows 1 server to be deployed. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
452151-B21
NOTE: For additional license kits including electronic delivery options, please see the RDP QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/11053_div/11053_div.html

Storage Controllers SAS Controllers
HP Smart Array E200 Controller
HP Smart Array E200/128 BBWC Controller
HP Smart Array E500 Controller
HP Smart Array E500/256MB Controller
NOTE: When ordering a Smart Array E500 Controller with BBWC the addition of the HP SA-P400 and SA-E500 24" Battery Cable Kit (417836-B21 417836-B21) is required.
HP SA-P400 and SA-E500 24 In Battery Cable Kit
NOTE: This option kit contains a 24" battery cable and adhesive material for installing a battery into the server if a Smart Array P400 or Smart Array E500 is integrated outside of the factory. For all solutions, please refer to the server QuickSpecs and User's Manual for detailed installation instructions.
417836-B21 417836-B21
HP Smart Array P400 Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB Controller with BBWC 411064-B21 411064-B21
NOTE: When ordering a Smart Array P400 Controller with BBWC the addition of the HP SA-P400 and SA-E500 24" Battery (417836-B21 417836-B21) is required.
HP SA-P400 and SA-E500 24 In Battery Cable Kit
NOTE: This option kit contains a 24" battery cable and adhesive material for installing a battery into the server if a Smart Array P400 or Smart Array E500 is integrated outside of the factory. For all solutions, please refer to the server QuickSpecs and User's Manual for detailed installation instructions.
417836-B21 417836-B21
HP Smart Array P800 Controller
HP Smart Array P800/512 BBWC Controller 381513-B21 381513-B21
Optional Upgrades
512 MB Battery-backed write cache upgrade 405148-B21 405148-B21
Battery-backed write cache upgrade 383280-B21 383280-B21
Internal SAS/SATA Cable
NOTE: If selecting more than 4 hard drives or if using SAS hard drives a Smart Array controller is required and two SAS/SATA cables.
NOTE: The addition of a Smart Array Controller requires the addition of a SAS/SATA Multi-lane cable.
464830-B21
SAS HBA
HP SC44Ge Host Bus Adapter 416096-B21 416096-B21
NOTE: When using the SC44Ge with SATA Hard Drives, 1.5G SATA Hard Drives are required. Transfer rate: 1.5 Gb/s SATA, 3 Gb/s SAS.
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://h18004.www1.hp.com/products/quickspecs/12617_div/12617_div.html (SC44Ge HBA)

SCSI HBA
HP SC11Xe Host Bus Adapter
NOTE: Recommended HBA for SCSI tape drive connect.
412911-B21 412911-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/12566_div/12566_div.html
(SCSI HBA)

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/12566_div/12566_div.html
(SCSI HBA)
https://h18000.www1.hp.com/products/quickspecs/12460_div/12460_div.html
(Smart Array E200 Controller)
https://h18000.www1.hp.com/products/quickspecs/12700_div/12700_div.html
(Smart Array E500 Controller)
https://h18000.www1.hp.com/products/quickspecs/12400_div/12400_div.html
(Smart Array P400 Controller)
https://h18000.www1.hp.com/products/quickspecs/12616_div/12616_div.html
(Smart Array P800 Controller)


Tape Storage

NOTE: For the complete listing of Tape Drive offerings, please see:
https://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html


Tape Drives
USB Rack-Mount Tape Solutions
HP StorageWorks 1U USB Rack-Mount Kit with one DAT 160 USB Tape Drive
NOTE: Pre-configured with one DAT 160 USB tape drive.
AG703A
SAS Rack-Mount Tape Solutions
NOTE: HP recommends purchasing the HP SC44Ge HBA (416096-B21 416096-B21) for a dedicated SAS HBA for tape.
HP StorageWorks 1U SAS Rack-Mount Kit with one LTO-4 Ultrium 1760
NOTE: Pre-configured with one LTO-4 Ultrium 1760 SAS tape drive.
EH946A
HP StorageWorks 1U SAS Rack-Mount Kit
NOTE: Supports up to (2) half-height SAS tape drives.
AE459A
HP StorageWorks DAT 160 SAS Internal Tape Drive
NOTE: Mounts inside the 1U SAS Rack-Mount Kit (AE459A)
Q1587A
HP StorageWorks LTO-2 Ultrium 448 SAS Internal Tape Drive
NOTE: Mounts inside the 1U SAS Rack-Mount Kit (AE459A)
DW085A
HP StorageWorks LTO-3 Ultrium 920 SAS Internal Tape Drive
NOTE: Mounts inside the 1U SAS Rack-Mount Kit (AE459A)
EH847A
SCSI Rack-Mount Tape Solutions
NOTE: SCSI Controller required. HP recommends purchasing the HP SC11Xe HBA (412911-B21 412911-B21) for a dedicated SCSI HBA for tape.

HP StorageWorks 1U SCSI Rack-mount kit with one LTO-2 Ultrium 448 SCSI Tape Drive (Carbonite)
NOTE: Pre-configured with one LTO-2 Ultrium 448 SCSI tape drive.
DW028B
HP StorageWorks 1U SCSI Rack-mount kit with one LTO-3 Ultrium 920
NOTE: Pre-configured with one LTO-3 Ultrium 920 SCSI tape drive.
EH903A
HP StorageWorks 3U SCSI Rack-Mount with 1 LTO-4 Ultrium 1840 Tape Drive
NOTE: Pre-configured with one LTO-4 Ultrium 1840 SCSI tape drive.
EH926A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/10854_div/10854_div.html (Worldwide)

For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit: https://www.hp.com/go/connect.
Tape Autoloaders
HP StorageWorks DAT Autoloader
HP StorageWorks DAT 72x10 tape autoloader AE313B
HP StorageWorks 1/8 G2 Tape Autoloader
HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader AK377A
HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS Autoloader AH558A
HP StorageWorks 1/8 LTO-2 Ultrium 448 G2 Tape Autoloader AH164A
HP StorageWorks 1/8 G2 Tape Autoloader Rack Kit
NOTE: Required to install the 1/8 G2 Autoloaders in a standard 19-inch rack; includes rails and rackmount instructions.
AH166A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://www.hp.com/go/automation needed to create a complete solution; reference current compatibility information at: https://www.hp.com/go/ebs.
Tape Libraries
HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1840 SCSI Drive Library AJ033A
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Drive Library AK378A
HP StorageWorks MSL2024 1 LTO-3 Ultrium 960 SCSI Drive Library AG115A AG115A
HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SAS Drive Library AH559A
HP StorageWorks MSL2024 1 LTO-2 Ultrium 448 SCSI Drive Library AG116A AG116A
HP StorageWorks MSL4048 Tape Library
HP StorageWorks MSL4048 1 LTO-4 Ultrium 1840 SCSI Drive Library AJ035A
HP StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SAS Drive Library AK380A
HP StorageWorks MSL4048 1 LTO-3 Ultrium 960 SCSI Drive Library AG322A
HP StorageWorks MSL4048 1 LTO-3 Ultrium 920 SAS Drive Library AH560A
HP StorageWorks MSL4048 1 LTO-2 Ultrium 448 SCSI Drive Library AG320A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://www.hp.com/go/automation needed to create a complete solution; reference current compatibility information at: https://www.hp.com/go/ebs.

Disk-Based Backup RDX Removable Disk Backup
HP StorageWorks RDX160 External Removable Disk Backup System
NOTE: 160GB of Disk Storage.
AJ766A
HP StorageWorks RDX320 External Removable Disk Backup System
NOTE: 320GB of Disk Storage.
AJ768A
HP StorageWorks RDX500 External Removable Disk Backup System
NOTE: 500GB of Disk Storage.
AJ935A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/13036_div/13036_div.html

HP D2D Backup System
HP StorageWorks D2D120 Backup System with Data Protector Express Software Kit
NOTE: 2TB of Disk Storage.
EH924A
HP StorageWorks D2D130 Backup System with LTO-3 Ultrium 920 SAS Tape Drive
NOTE: 3TB of Disk Storage.
EH952A
HP StorageWorks D2D2503i Backup System
NOTE: 3TB of Disk Storage.
EH945A
HP StorageWorks D2D2504i Backup System EJ002A
HP StorageWorks D2D4004i Backup System
NOTE: 4.5TB of Disk Storage.
EH938A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://www.hp.com/go/d2d

StorageWorks Options StorageWorks Fibre Channel HBA
NOTE: The following is a list of all Fibre Channel Host Bus Adapters for Windows and Linux. For detailed compatibility information please see: https://h18006.www1.hp.com/storage/saninfrastructure/hba.html.
Brocade Fibre Channel HBAs
HP 81B PCIe 8Gb FC Single Port HBA
HP 82B PCIe 8Gb FC Dual Port HBA
HP 41B PCIe 4Gb FC Single Port HBA
HP 42B PCIe 4Gb FC Dual Port HBA AP768A AP768A
Emulex Fibre Channel HBAs
HP StorageWorks FC2143 4Gb PCI-X 2.0 HBA AD167A AD167A
HP StorageWorks FC2243 4Gb PCI-X 2.0 DC HBA AD168A AD168A
HP StorageWorks FC2142SR 4Gb PCI-E HBA A8002A A8002A
HP StorageWorks FC2242SR Dual Channel 4 Gb PCI-E HBA A8003A A8003A
QLogic Fibre Channel HBAs
HP StorageWorks FC1142SR 4Gb PCI-E HBA AE311A AE311A
HP StorageWorks FC1242SR Dual Channel 4 Gb PCI-E HBA AE312A AE312A
HP StorageWorks 4Gb PCI-X 2.0-to-Fibre Channel HBA AB429A AB429A
HP StorageWorks 4Gb PCI-X 2.0 DC-to-Fibre Channel HBA AE369A AE369A

HP StorageWorks Modular Smart Array MSA SAN Storage Arrays
HP StorageWorks 20 Modular Smart Array

335921-B21 335921-B21

NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies.
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/11942_div/11942_div.html (Worldwide)

HP StorageWorks 50 Modular Smart Array 364430-B21 364430-B21
NOTE: Rack-mountable 10 SFF drive enclosure with single I/O module, redundant hot plug power supplies and hot plug fans.
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/12245_div/12245_div.html (Worldwide)

HP StorageWorks 60 Modular Smart Array 418408-B21 418408-B21
NOTE: Rack-mountable 12-drive (3.5" 3G SAS/1.5G SATA) 2U enclosure with 3Gb/s SAS host connectivity and redundant power supplies.
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/12627_div/12627_div.html (Worldwide)

HP StorageWorks 70 Modular Smart Array 418800-B21 418800-B21
NOTE: Rack-mountable 25-drive (2.5" 3G SAS/1.5G SATA) 2U enclosure with 3Gb/s SAS host connectivity and redundant power supplies.
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/12652_div/12652_div.html (Worldwide)


Uninterruptible Power Systems HP Tower UPS
HP T1000v Uninterruptible Power System
HP T1000v UPS
AF443A
NOTE: Please see QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/13130_div/13130_div.html (Worldwide)
HP Rack-mountable UPS
HP R1500 G2 UPS
HP R1.5 VA 1U UPS NA AF419A
HP R1.5 VA 1U UPS INTL AF418A
HP, R1.5kVA UPS, 1U, JPN/TW AF421A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/12507_div/12507_div.html
(Worldwide)

HP R3000v UPS Uninterruptible Power System
HP R3000v UPS
NOTE: The R3000v is available in China and India only.
AF444A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/13129_div/13129_div.html
(Worldwide)
NOTE: For additional information on HP Uninterruptable Power Systems please go to: www.hp.com/servers/rackups.


HP Rack Series HP Rack Series10000 G2 Series (Carbon/Graphite Metallic)
10642 G2 (42U) Rack Cabinet 1200mm Deep - Shock Pallet AF034A
10642 G2 (42U) Rack Cabinet 1200mm Deep - Pallet AF038A
10647 G2 (47U) Rack Cabinet 1200mm Deep - Shock Pallet AF044A
10647 G2 (47U) Rack Cabinet 1200mm Deep - Pallet AF045A
NOTE: It is mandatory to use a shock pallet when shipping racks with equipment installed.
NOTE: Please see the Rack 10000 G2 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
https://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.html (Worldwide)

NOTE: For additional information regarding Rack Cabinets, please see the following URL: https://www.hp.com/go/rackandpower.

HP Rack Options HP KVM Switch Options
2x1x16 IP Console Switch with Virtual Media AF601A AF601A
4x1x16 IP Console Switch with Virtual Media AF602A AF602A
2x16 Server Console Switch with Virtual Media AF600A AF600A
PS/2 Virtual Media Interface Adapter, 1 pack
NOTE: Requires PS/2 and one USB port on server.
AF604A AF604A
HP Server Console Switch (KVM), 0 x 2 x 8 port AF616A
HP Server Console Switch (KVM), 0 x 2 x 16 port AF617A
PS/2 Interface Adapter, 1 pack 262588-B21 262588-B21
PS/2 Interface Adapter, 8 pack 262587-B21 262587-B21
HP 1x4 Console Switch AF611A AF611A
HP PS2 Server Console Cable, 6 foot, 2-Pack AF612A AF612A
HP USB Server Console Cable, 6 foot, 2-Pack
NOTE: required for supporting USB peripherals.
AF613A AF613A
NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches. Cat5e cables can be found at the following URL: https://www.hp.com/go/kvm.
HP Serial Console Server Options
HP 16 Port Serial Console Server (worldwide) AF101A AF101A
HP 48 Port Serial Console Server (worldwide) AF102A AF102A
Serial Adapter, RJ45-D89 DCE Female, 1-pack AF103A AF103A
Serial Adapter, RJ45-D89 DCE Female, 8-pack AF110A
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: https://www.hp.com/go/kvm.
Rack Kits
HP Rack Cable Management Velcro Clips 379820-B21

USB Options USB 1.44-MB External Diskette Drive DC141B
HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver) DC172B DC172B
HP Keyboard (USB) standard 2004 DT528A#ABA
HP 1GB USB 2.0 Floppy Drive Key 442085-B21
HP USB Internal Cable Kit 451363-B21

Service and Support Offerings (HP Care Pack Services) Hardware Services 4-Hour On-site Service
13-Hour x 5-Day Coverage, 3 Years, Electronic
UH271E
24-Hour x 7-Day Coverage, 3 Years, Electronic
UH272E
Hardware Services Next Business Day On-Site Service
9-Hour x 5-Day Coverage, 3 Years, Electronic
UH270E
Hardware Services 6-Hour Call to Repair On-Site Service
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UH273E
Hardware Installation, Electronic
UH301E
NOTE: For more information, customer/resellers can contact: https://www.hp.com/services/carepack.
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      DL180 G5 Core Options      Additional Options      DL180 G5 Memory      Storage      Power Specifications      DL180 G5 QuickSpecs images/line.gif

Memory

NOTE: Memory configurations listed do not apply to "Factory Integrated Models".
HP ProLiant DL180 G5 (all models)
Standard Memory
1 GB (1 x 1 GB) PC2-5300 Registered DIMM memory, with Advanced ECC Capabilities Memory installed.

Maximum Memory
Up to 24 GB memory is available with the optional installation of PC2-5300 Registered DIMM memory kits.
NOTE: Memory should be installed in pairs and matched for optimum performance.
NOTE: Chart does not represent all possible memory configurations.
NOTE: Only 2 dual rank 8GB kits can be populated.
Memory
Slot

1*
2*
3
4
5
6
Standard (1 GB)
1 GB
Empty
Empty
Empty
Empty
Empty
Maximum (24 GB)
8 GB
8 GB
2 GB
2 GB
2 GB
2 GB
* Indicates the right most DIMM slots when looking from the front.

Following are memory options available from HP:



1 GB REG PC2-5300 2 x 512 MB Single Rank Kit

408850-B21 408850-B21

1 GB REG PC2-5300 1 x 1 GB Kit

462483-B21

2 GB REG PC2-5300 2 x 1 GB Low Power Single Rank Kit 483399-B21 483399-B21
2 GB REG PC2-5300 2 x 1 GB Single Rank Kit 408851-B21 408851-B21
4 GB REG PC2-5300 2 x 2 GB Dual Rank Kit 408853-B21 408853-B21
4 GB REG PC2-5300 2 x2 GB Kit, Low Power, Single Rank Kit 461840-B21
8 GB REG PC2-5300 2 x 4 GB Dual Rank Kit 408854-B21 408854-B21
8 GB REG PC2-5300 2 x 4 GB Low Power Dual Rank Kit
NOTE: Dual Rank DIMMs are supported in slots 1 to 4.
483403-B21 483403-B21
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      DL180 G5 Core Options      Additional Options      DL180 G5 Memory      Storage      Power Specifications      DL180 G5 QuickSpecs images/line.gif

Storage

1-8
Eight 3.5" Hot Plug SAS/SATA Hard Drive Bays
9
DVD-ROM, DVD RW

Drive Support

Removable Media
  Quantity
Supported
Position
Supported

Controller
DVD-ROM Up to 1 9 Integrated IDE (ATAPI) (optional)
DVD RW Up to 1 9 Integrated IDE (ATAPI) (optional)

DL180 G5 Hard Drives
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
SATA Hot Plug 3.5" Midline (MDL) Drives
  Quantity
Supported
Position
Supported

Controller
1TB 3G SATA 7.2K
750GB 3G SATA 7.2K
500GB 3G SATA 7.2K
250GB 3G SATA 7.2K
Up to 8 with 8 drive cage 1-8

HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256MB Controller
HP Smart Array E500/256MB Controller
HP Smart Array P800/512 BBWC Controller
HP SC11Xe Host Bus Adapter

Up to 12 with 12 drive cage 1-12
SATA Hot Plug 3.5" Entry (ETY) Drives
  Quantity
Supported
Position
Supported
Controller
160GB 3G SATA 7.2K Up to 8 with 8 drive cage 1-8 HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256MB Controller
HP Smart Array E500/256MB Controller
HP Smart Array P800/512 BBWC Controller
HP SC11Xe Host Bus Adapter
Up to 12 with 12 drive cage 1-12
SAS Hot Plug 3.5" Midline (MDL) Drives
  Quantity
Supported
Position
Supported
Controller
1TB 3G SAS 7.2K
750GB 3G SAS 7.2K
Up to 8 with 8 drive cage 1-8 HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256MB Controller
HP Smart Array E500/256MB Controller
HP Smart Array P800/512 BBWC Controller
HP SC44Ge Host Bus Adapter
NOTE: When using the SC44Ge with SATA Hard Drives, 1.5G SATA Hard Drives are required.
NOTE: Transfer rate 1.5 Gb/s SATA, 3 Gb/s SAS

HP SC11Xe Host Bus Adapter
Up to 12 with 12 drive cage 1-12
SATA Hot Plug 3.5" Midline (MDL) Solid State Drives
  Quantity
Supported
Position
Supported
Controller
60GB 3.0G SATA SSD
120GB 3.0G SATA SSD
Up to 8 with 8 drive cage 1-8 HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
SAS Hot Plug 3.5" Enterprise (ENT) Drives
  Quantity
Supported
Position
Supported
Controller
600GB 6G 15K
450GB 6G 15K
450GB 3G 15K
300GB 6G 15K
300GB 3G 15K
146GB 3G 15K
Up to 8 with 8 drive cage 1-8 HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256MB Controller
HP Smart Array E500/256MB Controller
HP Smart Array P800/512 BBWC Controller
HP SC44Ge Host Bus Adapter
NOTE: When using the SC44Ge with SATA Hard Drives, 1.5G SATA Hard Drives are required.
NOTE: Transfer rate 1.5 Gb/s SATA, 3 Gb/s SAS

HP SC11Xe Host Bus Adapter
Up to 12 with 12 drive cage 1-12

External Storage
  Quantity
Supported
Position
Supported
Controller
HP Storageworks MSA20 Enclosure Up to 2 per SA 6402
Up to 4 per SA 6404
External Smart Array 6402 Controller
Smart Array 6404 Controller
HP Storageworks MSA50 Up to 2 External HP Smart Array E500/256MB Controller
HP Smart Array P800 Controller
HP Smart Array P600 Controller
HP Storageworks MSA60 Up to 8 per SA P800 External HP Smart Array E500/256MB Controller
HP Smart Array P800 Controller
HP Smart Array P600 Controller
HP Storageworks MSA70 Up to 4 per SA P800 External HP Smart Array E500/256MB Controller
HP Smart Array P800 Controller
HP Smart Array P600 Controller

Tape and Disk-Based Backup

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:
https://h18000.www1.hp.com/products/quickspecs/division/10233.html (Worldwide)

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders & Tape Libraries listed below, please see the following:
https://h18000.www1.hp.com/products/quickspecs/division/10809.html (Worldwide)

NOTE: For complete listing of tape drive offerings see: https://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

NOTE: SAS Tape Drives: Connecting hard drive cage and SAS tape to the same SAS Controller using split cable (supplied with tape drive) deactivates 1 of the hard drive bays. Actual hard drive bay deactivated depends on where split cable plugs into SAS drive connector. Example: 3x SAS cable connector plugged into SAS drive connector (5-8) on the back of the hard drive cage would mean drive bay 8 is deactivated.


Position
Supported
Controller
Controller Part Number
HP StorageWorks SCSI Tape Drives, External
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-2 Ultrium 460
LTO-3 Ultrium 920
LTO-3 Ultrium 960
LTO4 Ultrium 1760
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
DLT VS160
SDLT 600
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP SC11Xe Host Bus Adapter

HP StorageWorks USB Tape Drives, External
DAT 40 USB
DAT 72 USB
DAT 160 USB
1U USB Rack-Mount Kit
External
USB 2.0 Port
N/A


HP StorageWorks SAS Tape Drives, External
DAT 160 SAS
LTO-2 Ultrium 448 SAS
LTO-3 Ultrium 920 SAS
LT0-4 Ultrium 1760 SAS
LTO-4 Ultrium 1840 SAS
1U Rack-Mount Kit
External
HP SC44Ge Host Bus Adapter


HP StorageWorks SCSI Tape Automation, External
DAT 72x10 Autoloader
1/8 G2 Tape Autoloader
MSL2024
MSL4048
External
HP SC11Xe Host Bus Adapter
HP U320e SCSI Host Bus Adapter
NOTE: Recommended for MSL tape libraries.


HP StorageWorks SAS Tape Automation, External
1/8 G2 Autoloader
MSL2024
MSL4048
External
HP SC44Ge Host Bus Adapter

NOTE: Please visit https://www.hp.com/go/connect for details about minimum SAS controller firmware version and SAS cabling requirements.



HP StorageWorks Fibre Tape Automation, External
MSL2024
MSL4048
External
Please consult the EBS connectivity matrix at: https://www.hp.com/go/ebs for detailed connectivity information.
N/A


HP StorageWorks RDX Removable Disk Backup System
RDX160
RDX320
RDX500
External USB 2.0 Port N/A

HP StorageWorks D2D Backup Systems
D2D120
D2D130
D2D2503i
D2D2504i
D2D4004i
External
Embedded Network Controller
N/A
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      DL180 G5 Core Options      Additional Options      DL180 G5 Memory      Storage      Power Specifications      DL180 G5 QuickSpecs images/line.gif

Power Specifications

750W Power Supply Spare Kit 451366-291, B21
Operational Input Voltage Range (Vrms) 90Vac to 264Vac full range
Frequency Range (Nominal) (Hz) 47 Hz to 63 Hz

Nominal Input Voltage (Vrms)
100
115
200
220
230
240
Max Rated Output Wattage Rating
750
750
750
750
750
750
Nominal Input Current (A rms)
9.1
7.9
4.3
4.0
3.8
3.7
Max Rated Input Wattage Rating (Watts)
893
888
872
862
862
862
Max. Rated VA
(Volt-Amp)
911
906
890
880
880
880
Efficiency (%)
84
84.5
86
87
87
87
Power Factor
0.98
0.98
0.98
0.98
0.98
0.98
Leakage Current (mA)
<0.43
<0.50
<.0.90
<0.96
<1.00
<1.04
Maximum Inrush Current (A peak)
30A
30A
30A
30A
30A
30A
Maximum Inrush Current Duration (mS)
5mS
5mS
5mS
5mS
5mS
5mS

Optional Country Power Cords and Jumper Cords
WW HP 2m 15A C20 C13 Universal Jumper Cord AF590A
Brazil HP 1.83m 10A C13 NBR14136 Power Cord AF591A
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      DL180 G5 Core Options      Additional Options      DL180 G5 Memory      Storage      Power Specifications      DL180 G5 QuickSpecs images/line.gif

Quickspecs

System Unit Dimensions (H x W x D)
(with bezel)
3.44x 17.64 x 27.50 in (8.75 x 44.80 x 69.88cm)
Weight
(approximate)
Maximum
(all hard drives, power supplies and processors installed)
51.5 lb (19.22 kg)
Minimum
(one hard drive, power supply and processor installed)
35.0 lb (13.06 kg)
Input
Requirements

(per power supply)
Rated Line Voltage 100 - 240 VAC
Rated Input Current 9.10 A (at 100 VAC),
4.5 A (at 200 VAC)
Rated Input Frequency 50 to 60 Hz
Rated Input Power 910 W (at 100 VAC),
900 W (at 200 VAC)
BTU Rating Maximum 3107.82 BTU/hr (at 100 VAC),
3073.67 BTU/hr (at 200 VAC)
Power Specifications

To review typical system power ratings use the Power Calculator which is available via the online tool located at URL: https://h30099.www3.hp.com/configurator/calc/
Power%20Calculator%20Catalog.xls

  • Click on the system of interest. Example: DL180 G5
  • Follow the instructions of the next screens.
Power Supply Output
(per power supply)
Rated Steady-State Power 750 W (at 100 VAC),
750 W (at 200 VAC)
Maximum Peak Power 750 W (at 100 VAC),
750W (at 200 VAC)

System Inlet Temperature



Operating

50° to 95°F (10° to 35°C) at sea level with an altitude derating of 1.8°F per every 1000 ft (1.0°C per every 305 m) above sea level to a maximum of 10,000 ft (3050 m), no direct sustained sunlight. Maximum rate of change is 18°F/hr (10°C/hr). The upper limit may be limited by the type and number of options installed.
System performance may be reduced if operating with a fan fault or above 86°F (30°C).
Non-operating -22° to 140° F (-30° to 60° C). Maximum rate of change is 36° F/hr (20° C/hr).

Relative Humidity
(non-condensing)

Operating

10 to 90% relative humidity (Rh), 82.4° F (28° C) maximum wet bulb temperature, non-condensing.
Non-operating 5 to 95% relative humidity (Rh), 101.7° F (38.7° C) maximum wet bulb temperature, non-condensing.
Altitude Operating

10,000 ft (3050 m). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 1500 ft/min (457 m/min).
Non-operating 30,000 ft (9144 m). Maximum allowable altitude change rate is 1500 ft/min (457 m/min).
Acoustic Noise Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
Idle
   LWAd 6.7 B
   LpAm 51 dBA
Operating
   LWAd 6.7 B
   LpAm 51 dBA
Emissions Classification (EMC) FCC Rating A
Normative Standards CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1
NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

Embedded NC105i PCIe Gigabit Server Adapter (Embedded) Network Interface Integrated 10/100/1000BASE-T Transceiver
Compatibility Combines a triple-speed IEEE 802.3TM - Compliant Media Access
Controller (MAC) with a triple-speed Ethernet transceiver.
Data Transfer Method Compliant to x1 PCIe Specification
Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s
10Base-T (Full-Duplex) 20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex) 200 Mb/s
1000Base-TX (Half and Full-Duplex) 2000 Mb/s
Connector RJ-45
Cable Support Performs all the physical layer functions for 10BASE-T, 100BASE-T, and 1000BASE-T Ethernet on standard Category 5 UT

Environment-friendly Products and Approach End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: https://www.hp.com/go/green. To recycle your product, please go to: https://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: https://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.


Sillworks                  Ph: 1.613.599.1287                  Fax: 1.613.599.8120
U320 | SSD | SAS/SATA | Fibre | Memory | Controllers | Processors | Power Supplies | Networking
line
Dell | EqualLogic | EMC | Hewlett-Packard | IBM | Seagate
line
HP      HP      HP      Dell Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account Dell      Dell      Dell      Seagate
Terms of Use | Legal | Privacy | Primary Site | Contact us | Add to favorites
Amex Accepted Visa Accepted MasterCard Accepted
