 HPE  Proliant DL580 G4 QuickSpecs Flag US QuickSpecs
Folder-Closed DL580 G4 HDD SSD Folder-Closed DL580 G4 Processors Folder-Closed DL580 G4 Memory
Folder-Closed DL580 G4 Controllers Folder-Closed DL580 G4 Networking Folder-Closed DL580 G4 Power
Folder-Closed DL580 G4 Quickspecs Folder-Closed DL580 G4 Quickspecs Folder-Closed DL580 G4 Options New  Refurb
contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models      DL580 G4 Options      DL580 G4 Memory      Storage      Power Specifications      DL580 G4 QuickSpecs images/line.gif

Proliant DL580 G4 Overview

HP ProLiant DL580 Generation 4 (G4)

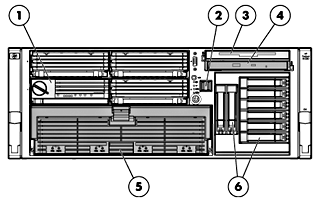

Proliant DL580 G4 Server Image
1. Dual Hot Plug Redundant Power Supplies (one standard with 1P Models, requires optional RPS for redundancy)

2.

Up to Six Available I/O Slots: 3 Standard PCI-Express x4 and 1 Standard 64-bit/133MHz PCI-X. Optional Mezzanine adds Two Hot Plug 64-bit/133MHz PCI-X or two X4 PCI Express, or one X8 PCI Express
3. 4U (7" Height) Rack Form Factor
4. Server Lifting Handles
5. Ships with HP Smart Array P400/256MB Controller. Optional 512MB Battery Backed Write Cache (BBWC ships standard with 2P models)
6. Universal Tool-less "Snap In" Sliding Rail Solution
7. Systems Insight Display
8. Support for up to 8 Small Form-Factor (SFF) SAS or Serial ATA (SATA) drives
9. Support for up to Two Slimline Drives (Ejectable, DVD/CD-RW Drive standard, Floppy Drive optional with all models)
10. One front video port.
11. Two front accessible USB 2.0 ports. Two rear accessible USB 2.0 ports (all bootable).
12. Front Panel LED Display (internal and external health, Two Network Port Status, Unit ID light) and Power Button
13. Front accessible Processor drawer (allows access to Processors and Processor Power Modules)
14. Support for up to four Dual-Core 64-bit Intel® Xeon™ Processors
15. Quick release levers for fast server access
16. Front accessible Hot Plug RAID Memory
17.

Six Hot Plug Redundant Fans Standard on all models

18. Quick Removal Access Panel

What's New
  • New Processors
    • Dual-Core 64-bit Intel® Xeon™ Processor 7140M (3.40GHz, 150 Watts, 800MHz FSB, 16MB L3 Cache)
    • Dual-Core 64-bit Intel® Xeon™ Processor 7130M (3.20GHz, 150 Watts, 800MHz FSB, 8MB L3 Cache)
    • Dual-Core 64-bit Intel® Xeon™ Processor 7120M (3.00GHz, 95 Watts, 800MHz FSB, 4MB L3 Cache)
    • Dual-Core 64-bit Intel® Xeon™ Processor 7110M (2.60GHz, 95 Watts, 800MHz FSB, 4MB L3 Cache)
  • Higher Capacity Internal Drive Support:
    • Second generation small form factor (SFF) SAS hard disk drives with double the capacity of current SFF SAS drives up to 146GB.
    • Internal mass storage capacity up to 1.168TB (8 x 146GB hot plug SFF SAS drives)
  • RDMA support for embedded Multi-function NIC:
    • HP ProLiant Essentials RDMA Pack for Multifunction Gigabit Server Adapter licensing to enable RDMA functionality on embedded Multifunction NICs

At A Glance

The ProLiant DL580 G4 server is an enterprise class, 4 socket server designed for maximum scalability and high availability. Its innovative chassis offers unsurpassed flexibility and serviceability in a versatile, rack-optimized form factor. Based upon the latest industry standard processing, memory, I/O and networking technologies, the ProLiant DL580 G4 provides the highest levels of performance demanded by today's compute intensive applications. Unparalleled high availability features, including front-accessible Hot Plug RAID Memory, and hot-plug redundant components, guarantee maximum uptime. Integrated Lights-Out 2 (iLO2) technology allows remote administration from a standard web-browser without ever having to visit the server. Within the 4U dense form factor, it's highly expandable architecture provides maximum application deployment flexibility with the ability to add PCI-Express, hot plug PCI-X or battery-backed write cache options. Innovative features, such as the ability to access processors, memory, hard drives, and power supplies while the unit remains secured in the rack, enable rapid response to service events, radically decreasing overall IT costs and server downtime.

  • Processors:
    • Supports up to four Dual-Core 64-bit Intel Xeon Processors and HT Technology, with Dual Independent 800MHz Front Side Buses with L3 shared cache
    • Intel® Dual-Core 64-bit Xeon™ processor 7000 sequence
    • Industry Standard Intel E8501 Chipset
  • Memory:
    • Front accessible Hot Plug RAID Memory (Configurable for Standard, Mirrored or RAID) provides maximum up-time, flexibility and serviceability
    • PC2-3200 Registered Memory (DDR2-400) can be configured in Hot Plug Mirrored, Hot Plug RAID, Online Spare or Advanced ECC modes
  • Storage Controller:
    • HP Smart Array P400/256MB Controller (optional 512MB battery backed write cache)
    • HP Smart Array P400/512MB BBWC Controller standard on High Performance Models.
  • Internal Drive Support:
    • Support for up to eight hot-plug SFF SAS drives
    • Slimline DVD Combo Drive standard, Floppy Drive optional on all models (ejectable)
  • Network Controller:
    • Embedded NC371i Multifunction Gigabit Server Adapters with TCP/IP Offload Engine, including support for Accelerated iSCSI and RDMA through optional ProLiant Essentials Licensing Kits
  • Expansion Slots:
    • More PCI-Express slots with up to five available PCI-Express x4 slots with mezzanine option
    • Up to Six Available I/O Slots: 3 Standard PCI-Express x4 and 1 Standard 64-bit/133MHz PCI-X Optional Mezzanine adds Two Hot Plug 64-bit/133MHz PCI-X, Two X4 PCI Express, or One X8 PCI Express
    • Optional x4-x8 PCI-Express Bus Expander provides flexibility to configure I/O slots for different requirements, specifically by converting a x4 slot to a x8 for greater bandwidth/performance
  • USB 2.0 Ports:
    • 4 Total: (2) front, (2) rear accessible ports (configurable for boot capability)
  • Redundancy:
    • Rear accessible Hot Plug Redundant Power Supplies (RPS optional on some models)
    • Hot Plug Fans with full redundancy
  • Management:
    • New Integrated Lights-Out 2 featuring Integrated Remote Console with KVM over IP performance over shared network access
    • Power Regulator for ProLiant, delivering server level, policy based power management with industry leading energy efficiency and savings on system power and cooling costs
    • Automatic Server Recovery (ASR), ROM Based Setup Utility (RBSU), HP Systems Insight Manager, Status LED's including system health and UID, and SmartStart
  • Form Factor:
    • Dense form factor - 4U rack models
  • Deployment/Serviceability:
    • Front and rear video ports
    • Front accessible Processor and Processor Power Modules allow server to stay safely secured in the rack during servicing
    • Quick Deploy Rail System includes sliding universal rails, an ambidextrous cable management arm and quick release levers for fast and easy serviceability and in-rack tool-less access to major components
    • Tool-less access to all system components for easy in rack serviceability
  • Warranty:
    • Protected by HP Services and a worldwide network of resellers and service providers. Three-year Next Business Day, on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SAS hard drives. SATA hard drives have a one-year warranty.
contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models      DL580 G4 Options      DL580 G4 Memory      Storage      Power Specifications      DL580 G4 QuickSpecs images/line.gif

Standard Features

Processor
One or more of the following depending
on Model
Dual-Core 64-bit Intel® Xeon™ 7140M Processor (3.40 GHz, 150Watts, 800MHz FSB)
Dual-Core 64-bit Intel® Xeon™ 7130M Processor (3.20 GHz, 150 Watts, 800MHz FSB)
Dual-Core 64-bit Intel® Xeon™ 7120M Processor (3.00 GHz, 95 Watts, 800MHz FSB)
Dual-Core 64-bit Intel® Xeon™ 7110M Processor (2.60 GHz, 95 Watts, 800MHz FSB)
Dual-Core 64-bit Intel® Xeon™ 7041 Processor (3.00 GHz, 165 Watts, 800MHz FSB)
Dual-Core 64-bit Intel® Xeon™ 7030 Processor (2.80 GHz, 165 Watts, 800MHz FSB)

Cache Memory
One of the following depending on Model
16MB Integrated Level 3 Cache
NOTE: Dual-Core 7140M Model only.
8MB Integrated Level 3 Cache
NOTE: Dual-Core 7130M Model only.
4MB Integrated Level 3 Cache
NOTE: Dual-Core 7120M and 7110M Models only.
2x2MB Integrated Level 2 cache
NOTE: Dual-Core 7041 Model only.
2x1MB Integrated Level 2 cache
NOTE: Dual-Core 7030 Model only.

Upgradeability HP ProLiant DL580 G4 servers with Intel Xeon 7041 and 7030 processors can be upgraded with Intel Xeon 71x0 processors. All ProLiant DL580 G4 servers can support up to 4 processors.

Chipset Industry Standard Intel E8501 Chipset
NOTE: For more information regarding Intel chipsets, please see the following URL:
https://www.intel.com/products/server/chipsets/

Memory Protection Advanced ECC
Hot-Plug RAID Memory
Hot-Plug Mirrored Memory
Online Spare Memory

Memory
One of the following depending on Model
Type PC2-3200 Registered Memory (DDR2-400)
Standard
(1P Base Models)
2 GB (2 x 1 GB)
Standard
(2P High Performance Models)
4 GB (4 x 1 GB)
Maximum 64 GB
NOTE: 64 GB achieved with use of four memory cartridges and sixteen 4 GB PC2-3200 Memory Modules. The HP ProLiant DL580 G4 will accept both single rank and dual rank DIMMs in all sockets.

Network Controller Dual embedded NC371i Multifunction Gigabit Server Adapters with TCP/IP Offload Engine, including support for Accelerated iSCSI and RDMA through optional ProLiant Essentials Licensing Kits

Expansion Slots with
No Mezzanine Option
Bus speed
Bus number
Hot Plug
PCI Voltage
Notes
1
N/A
N/A
N/A
N/A
N/A
2
N/A
N/A
N/A
N/A
N/A
3
64-bit / 133 MHz PCI-X
10
No
3.3 Volt
Standard
4
PCI Express X4
13
No

Recommended for SA-P400
5
PCI Express X4
16
No

Standard
6
PCI Express X4
19
No

Standard
7
PCI Express X4
22
No

Standard
Expansion Slots with
PCI-X Mezzanine Option
Bus speed
Bus number
Hot Plug
PCI Voltage
Notes
1
64-bit / 133 MHz PCI-X
3
Yes
3.3 Volt
Optional
2
64-bit / 133 MHz PCI-X
6
Yes
3.3 Volt
Optional
3
64-bit / 133 MHz PCI-X
11
No
3.3 Volt
Standard
4
PCI Express X4
14
No

Recommended for SA-P400
5
PCI Express X4
17
No

Standard
6
PCI Express X4
20
No

Standard
7
PCI Express X4
23
No

Standard
Expansion Slots with
PCI Express X4 Mezzanine Option
Bus speed
Bus number
Hot Plug
PCI Voltage
Notes
1
PCI Express X4
2
No

Optional
2
PCI Express X4
5
No

Optional
3
64-bit / 133 MHz PCI-X
10
No
3.3 Volt
Standard
4
PCI Express X4
13
No

Recommended for SA-P400
5
PCI Express X4
16
No

Standard
6
PCI Express X4
19
No

Standard
7
PCI Express X4
22
No

Standard
Expansion Slots with
PCI Express X8 Mezzanine Option
Bus speed
Bus number
Hot Plug
PCI Voltage
Notes
1
PCI Express X8
2
No
Optional
2
N/A
N/A
N/A
N/A
N/A
3
64-bit / 133 MHz PCI-X
10
No
3.3 Volt
Standard
4
PCI Express X4
13
No

Recommended for SA-P400
5
PCI Express X4
16
No

Standard
6
PCI Express X4
19
No

Standard
7
PCI Express X4
22
No

Standard

Bus Expansion The x4-x8 PCI Express Bus Expander is a half-length expansion board. When installed into an x4 PCI Express expansion slot, the x4-x8 PCI Express bus expander converts the adjacent x4 PCI Express expansion slot into a x8 PCI Express expansion slot.

The HP ProLiant DL580 G4 Server can support up to two x4-x8 PCI Express bus expander boards. The bus expander can only be installed in expansion slots 5 and 7 to convert the adjacent lower-numbered expansion slot to a PCI Express x8 expansion slot. For example, installing the board into expansion slot 5 converts expansion slot 4 to a PCI Express x8 expansion slot.


Manageability

Integrated Lights-Out (iLO 2) Management 2 (integrated on motherboard)

  • Virtual KVM (text mode)
  • Virtual Power Button Control
  • Integrated Remote Console
  • Remote Serial Console
  • Dedicated & full function shared network Connectivity
  • Browser, command line and scripted access
  • Automatic IP Configuration via DHCP/DNS/WINS
  • Industry Standard 128-bit Secure Sockets Layer (SSL) and Secure Shell security (SSH)
  • OS independent hardware health status
  • IML and iLO Event Logging
  • Support for 12 user accounts with customizable access privilege

Storage Controllers
One of the following depending on Model
HP Smart Array P400/256MB Controller (in a PCI-Express slot)
NOTE: Standard on 1P Base Models.
HP Smart Array P400/512MB BBWC Controller (in a PCI-Express slot)
NOTE: Standard on 2P High Performance Models.

Storage Data Protection The Battery-Backed Write Cache (BBWC) Enabler for the Smart Array P400 Controller protects up to 512-MB write cache memory from hard boot, power, controller, or system board failures.
  • Standard on 2P Models, optional with others
  • Battery charge/life: Up to 72 hours/3 years
  • Transportable data protection
  • Increases overall controller performance
NOTE: Safely transport your write cache data to another HP ProLiant DL580 G4 in the data center by removing the BBWC Enabler and Smart Array P400 Controller Memory Module simultaneously (connected by short cable).

Storage Diskette Drive None Standard - Optional Slimline Floppy Drive available (ejectable)
Optical Drive Slimline DVD/CD-RW Drive Standard on all models (ejectable)
Hard Drives None ship standard
Hard Disk Drive
Backplane
Internal SAS backplane supports up to eight SFF hard disk drives

Maximum Internal Storage Type Hot Plug SAS
1.168TB 8 x 146GB SFF SAS drives (internal hot plug)
Hot Plug SATA
480GB 8 x 60GB SFF SATA

Interfaces Serial 1
Pointing Device (Mouse) 1
Video 1 front; 1 rear
Keyboard 1
USB 2.0 Ports 4 total: 2 front; 2 rear
NOTE: Please see the following URL for additional information regarding USB support:
https://h18004.www1.hp.com/products/servers/platforms/usb-support.html
iLO2 Remote Management 1
Network RJ-45 2

Graphics Integrated ATI-RN50 with 32MB DDR memory

Form Factor Rack (4U = 7 inches), ships with Quick Deploy Sliding Rail System, an ambidextrous cable management arm and quick release levers for fast and easy serviceability and in-rack tool-less access to major components.
Space saving form factor (4U) provides space efficiencies while providing maximum deployment flexibility.

ProLiant Essentials Foundation Pack Software

HP Systems Insight Manager HP Systems Insight Manager (HP SIM) provides a unified, secure and extensible environment to centrally manage servers, storage and other infrastructure devices across multiple operating system platforms.

Through a single management view, HP SIM provides core management services that include device discovery and identification, event views, health monitoring, inventory data collection, software version control and reporting. HP SIM is built on industry standards and is extensible with value-added ProLiant Essentials, Integrity Essentials and Storage Essentials software to meet individual management needs. For more details on HP SIM visit https://www.hp.com/go/hpsim.

HP SIM provides organizations with the following benefits:

  • Simplifies and consolidates infrastructure lifecycle management using task and query based functionality
  • Provides the foundation for infrastructure automation and virtualization
  • Enables IT management based on business processes not hardware platforms
  • Lowers infrastructure maintenance cost and frees resources for innovation
  • Maximizes resource utilization with virtualization technologies
  • Provides a central point of integration between infrastructure and Enterprise management tools such as HP OpenView
SmartStart SmartStart is a tool that simplifies server setup, providing a rapid way to deploy reliable and consistent server configurations. For more information, please visit the SmartStart Web site at https://www.hp.com/servers/smartstart.
SmartStart version supported (minimum): SmartStart 7.50.
Insight Management Agents Insight Management Agents should be installed on all HP servers to present system instrumentation, health and configuration information into HP Systems Insight Manager and the HP System Management Homepage. The HP System Management Homepage aggregates systems data from Insight Management Agents and other HP management tools, providing a consolidated browser-based interface for managing individual servers,

Insight Management Agents and The HP System Management Homepage are included on ProLiant Support Packs, and can also be installed using the server profiles provided with the ProLiant Essentials Rapid Deployment Pack. For additional information about the Management Agents and the HP System Management Homepage please visit the management Web site at https://www.hp.com/servers/manage

Subscriber's ChoiceSubscriber's Choice Driver and Support Alerts/Notifications is a web-based email subscription service that provides automatic delivery of software and driver change notifications for ProLiant products. Sign up at https://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become available, on a weekly or monthly basis.
ROMPaq, support software, and
configuration utilities
The latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options available in SmartStart or downloadable from Software and Drivers download pages, linked from the SmartStart website at https://www.hp.com/servers/smartstart.
Survey Utility and diagnostics utilities The most advanced configuration analysis, reporting and troubleshooting utilities used by HP and at your fingertips, available in SmartStart.
Insight Diagnostics The most advanced configuration analysis, reporting and troubleshooting utilities used by HP and at your fingertips, available in SmartStart.
Optional ProLiant Essentials Value Packs

Optional software offerings that selectively extend the functionality of an Adaptive Infrastructure to address specific business problems and needs:

  • Rapid Deployment Pack (RDP) is an automated deployment and provisioning solution for all ProLiant servers. RDP includes the ProLiant Integration Module featuring ProLiant server pre-configured events for OS installation, and optimized software drivers, firmware and management agents. Every RDP disc includes 10-node trial licenses for evaluation purposes. RDP requires a license for each server deployed and is available for purchase with HP servers. For more information, visit: https://www.hp.com/servers/rdp.
  • Workload Management Pack - provides easier management of complex environments, improving overall server utilization and enabling Windows® 2000 customers for the first time to confidently deploy multiple applications on a single multiprocessor ProLiant Server.
  • Performance Management Pack - a performance management solution that identifies and explains hardware performance bottlenecks on ProLiant servers and attached options enabling users to better utilize their valuable resources.
  • Intelligent Networking Pack - detects and analyzes network bottlenecks or broken network linkages and steers traffic to the optimum route based on network conditions, plus it provides an extra layer of protection. The virus throttle feature of the solution slows the propagation of fast spreading virus.
  • Vulnerability and Patch Management Pack - identifies and remediates software security vulnerabilities due to missing patches as well operating system configurations that can be exploited by viruses, worms, and other blended threats.
  • Virtual Machine Management Pack - provides central management and control of virtual machines from Microsoft and VMware. Integrated approach provides the ability to manage both physical and virtual resources from a single management console.
  • Server Migration Pack - The Server Migration Pack automates the manual processes required for migrating servers between physical or virtual platforms (P2V, V2P, and V2V).
  • Server Migration Pack - P2P Edition: Upgrading or replacing your existing server? Effortlessly transition to new servers with automated, accurate and affordable migration of OS, application and data.
  • Accelerated iSCSI Pack - enables the embedded Multifunction network controller to serve as both a NIC and an iSCSI HBA providing access to SAN storage over the same connection used for networking. Processing of the protocol stack is offloaded to the NIC reducing CPU utilization and greatly improving the speed with which the requests are processed and sent to the network.
Optional Remote Management Packs
  • Integrated Lights-Out Advanced Pack - upgrades the iLO 2 processor with comprehensive remote control including Virtual KVM graphical console, virtual media, power management and enterprise security.
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to https://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: https://www.hp.com/servers/proliantessentials.

Industry Standard Compliance ACPI 1.0a. Compliant
PCI 2.2 Compliant
PXE Support
WOL Support
Physical Address Extension (PAE) Support
Microsoft® Logo certifications
USB 2.0 Support

Remote Management

Integrated Lights Out 2 (iLO 2) Standard Management:

  • Virtual Text Remote Console
  • Virtual Power Button Control
  • Integrated Remote Console
  • Dedicated & full function shared network connectivity
  • Browser, command line and scripted access
  • Automatic IP Configuration via DHCP/DNS/WINS
  • Industry Standard 128-bit Secure Sockets Layer (SSL) and Secure Shell security (SSH)
  • OS independent hardware health status
  • IML and iLO Event Logging
  • Support for 12 user accounts with customizable access privilege

Intelligent Manageability HP Systems Insight Manager
SmartStart
Redundant ROM
Remote Flash ROM
Management Agents
Integrated Management Log (IML)
Automatic Server Recovery-2 (ASR-2)
ROM-Based Setup Utility (RBSU)
Dynamic Sector Repairing (with Smart Array Controllers)
Drive Parameter Tracking (with Smart Array Controllers)
Pre-Failure Warranty (covers processors, SAS hard drives and memory)
Redundant/adaptive load balancing NIC Support
Hot Spare Boot
NOTE: Upon the event of a failed processor or VRM in a multi-processing environment, the system will automatically reboot and use the remaining good processor(s).

Availability

HP Advanced Memory Protection Technology - delivers unsurpassed memory protection and server availability with the following supported modes of operation:

  • Advanced ECC (1 or More Memory Boards)
    Advanced ECC Memory is the default memory protection mode for the HP ProLiant DL580 G4. In Advanced ECC, the server is protected against correctable memory errors. The server will provide notification if the level of correctable errors exceeds a predefined threshold rate. The server does not fail because of correctable memory errors.
    Advanced ECC provides additional protection over Standard ECC in that it is possible to correct certain memory errors that would otherwise be uncorrectable and result in server failure. Whereas Standard ECC can correct single-bit memory errors, Advanced ECC can correct single-bit and multi-bit memory errors if all failed bits are on the same DRAM device on the DIMM. Advanced ECC is the only mode in which hot-add operations are supported by adding a memory board with memory to the server while it is running.
  • Online Spare Memory (1 or More Memory Boards)
    Offers a higher level of memory protection than Advanced ECC alone. If the number of single-bit correctable errors on a bank exceeds the pre-defined error threshold, that bank will fail over to the online spare bank without intervention or server interruption. The failed memory can then be replaced at the user's convenience during a scheduled maintenance window.
    Online Spare Memory is achieved by protecting active memory with online spare memory on the same memory board. No operating system support is required.
  • Hot Plug Mirrored Memory (2 or 4 Memory Boards)
    Hot Plug Mirrored Memory provides a higher level of availability than Advanced ECC and Online Spare Memory. With Hot Plug Mirrored Memory, the server is protected against uncorrectable memory errors that would otherwise result in server failure. Hot Plug Mirrored Memory allows the server to keep two copies of all memory data on separate memory boards. If an uncorrectable error is encountered, the proper data is retrieved from the memory board that did not fail. In addition, Hot Plug Mirrored Memory allows failed or degraded DIMMs to be replaced while the server is running without requiring server downtime. The memory board with the failed DIMMs can be removed from the front of the server, failed DIMMs replaced, and the board re-inserted into the server without disengaging the server from the rack or interrupting the operating system.
  • Hot Plug RAID Memory (4 Memory Boards)
    Hot Plug RAID Memory provides a similar level of protection as Hot Plug Mirrored Memory but obtains this protection using a smaller percentage of the installed memory. While Hot Plug Mirrored Memory keeps two copies of all memory data, Hot Plug RAID Memory keeps only one copy of all memory data and additional parity information. If an uncorrectable memory error is encountered, the server can create the proper data using data from the parity information and the other memory boards that contain no failures. In a Hot Plug RAID Memory configuration, 75% of the installed memory is available to the Operating System; 50% more than in a Hot Plug Mirrored Configuration. As with Hot Plug Mirrored Memory, Hot Plug RAID Memory allows failed DIMMs to be replaced while the server remains running and safely engaged in the rack.

# of Memory Boards Installed
Supported Modes
1 Board
2 Boards
3 Boards
4 Boards
Number of DIMMs Supported
4
8
12
16
Maximum Memory Supported
16 GB
32 GB
48 GB
64 GB
Advanced ECC Memory Protection
Yes
Yes
Yes
Yes
Online Spare Memory
Yes
Yes
Yes
Yes
Hot Plug Mirrored Memory
No
Yes
No
Yes
Hot Plug RAID Memory
No
No
No
Yes

  • PCI-X Hot Plug Technology (Two 64bit/133-MHz PCI-X hot plug slots available with the Hot Plug PCI-X Mezzanine Option).
  • Smart Array P400 Controller with optional Battery Backed Write Cache (BBWC) Enabler provides transportable data protection and increases overall controller performance. Up to 512MB Battery Backed Write Cache protection optional on HP ProLiant DL580 G4 (512MB BBWC ships standard with 2P models).
  • Hot Plug Redundant Fans - Six Hot Plug Redundant Fans ship standard with all models.
  • Front Accessible Chassis - Redesigned chassis allows access to memory, processors and hard drives from the front of the server while it remains safely engaged in the rack. This provides easier serviceability and lowers the chance of interfering with neighboring servers' cables and components.
  • Hot Plug Universal Drives - Up to eight Hot Plug Universal SFF SAS drives are supported.
  • Hot Plug Redundant Power Supplies - Two Hot Plug Redundant Power Supplies ship standard with all 2P High Performance Models (2nd Hot Plug Redundant Power Supply is optional with 1P base models).

Serviceability
  • Front and Rear accessibility provides unsurpassed serviceability by allowing the server to remain safely secured in the rack while maintaining Hot Plug RAID Memory, Hot Plug Universal Hard Drives, Hot Plug Redundant Power Supplies, as well as Processors and Processor Power Modules.
  • Innovative Diagnostic Lighting
  • Systems Insight Display - precisely depicts all major subsystems of the server (PCI I/O, Memory, CPU, Redundant Cooling, Interlock, Thermtrip) and gives instant visual indication of fault status. Located on top front of server.
  • LED display on front panel indicates power, internal health, external health, Unit ID light.
  • LED display on Memory board indicates Memory status, health, and protection mode.
  • LED display on Processor board indicates Processor and Processor Power Module health.
  • Tool-less, virtually cable-less interior design
    • Tool-less access to interior of server
    • Up to two, Slimline media drives are removable without the use of tools (ejectable)
    • Rear Access to Hot Plug Redundant Power Supplies
    • PCI Card Guides locks full length PCI cards in place
    • Six individually removable fans connect without cables to the system board
    • Processor/PPM Retention Cage securely locks Processors into their sockets
    • Tool-less removal of system board
  • Quick Deploy Rails
    • Tool-less design "snap in" rail and ambidextrous cable management arm

Security Power-on password
Keyboard password
Diskette drive control enable/disable
Diskette boot control enable/disable
External USB port enable/disable
Network Server Mode
Serial interface control
Administrator's password
Disk configuration lock
Removable Diskette drive (optional)
Removable CD-ROM or DVD drive

Power Supply 910W (low line), 1300W (high line) with 12V main output. Size is 2.8"(H) X 4.9"(W) X 7.5"(L).
NOTE: One Hot Plug Power Supply ships standard with 1P Base Models (optional Redundant Hot Plug Power Supply Option Kit).
NOTE: Two Hot Plug Power Supplies ship standard with 2P High Performance Models.

UPS and PDU Power
Cord Matrix
Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and specifications for UPS and PDU units:
ftp://ftp.compaq.com/pub/products/servers/ProLiantstorage/power-protection/powercordmatrix.pdf.

System Fans Standard 6 Hot plug, redundant fans (individually removable)
Maximum 6 Hot plug, redundant fans (individually removable)

Required CablingFor required cabling information, refer to the HP Web site at
https://h18000.www1.hp.com/products/servers/proliantDL580/.

OS Support Windows Server 2003
Microsoft Windows 2000
Red Hat Enterprise Linux
SuSE Linux Enterprise Server
Novell NetWare
SCO OpenServer
SCO UnixWare
Sun Solaris Intel Platform Edition
VMware Virtualization Software
NOTE: For a more complete and up-to-date listing of supported OSs and versions, please visit our OS Support Matrix at: https://www.hp.com/go/supportos.
NOTE: For an up-to-date listing of the latest drivers available for the HP ProLiant DL580, please see: https://www.hp.com/support.
NOTE: For more Linux OS support & certification information, please visit our the ProLiant & Bladesystem Server Linux matrix https://h18004.www1.hp.com/products/servers/linux/hpLinuxcert.html
NOTE: For more complete and up-to-date information on how to buy server operating systems from HP please visit the OS product site at: https://h18004.www1.hp.com/products/servers/software/OEM.html

Rack Airflow Requirements Rack 10000 series Cabinets The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.
CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment:
    • Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 5,350 sq cm (830 square inches) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation).
    • Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 7 cm (2.75 inches).
CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

NOTE: For additional information, refer to the Setup and Installation Guide or the Documentation CD provided with the server, or to the server documentation located in the Support section at the following URL: https://www5.HP.com/products/servers/proliantdl580/index.html.


Rack Mounting Requirements

HP ProLiant DL580 G4 rack models provide tool-free support for racks with square or round mounting holes (including Compaq/HP 7000, 9000, 10000, HP/E series and H9 series) with an adjustment range from 24" - 36" in depth. The ambidextrous cable management arm can be mounted on either the left or right side for improved cable management.
NOTE: Cable management arm must be removed to access Hot Plug Power Supplies when the cable management arm is mounted on the right.

HP ProLiant DL580 G4 in Telco Racks
Support for all 2-post Telco racks requires the use of the standard rack kit and an additional option kit from Rack Solutions (https://www.racksolutions.com/hp/)


Factory Express Portfolio for Servers and Storage HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to https://www.hp.com/go/factory-express.

HP Enterprise Configurator

The HP eCo-Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance.
https://www.hp.com/products/configurator.


Service and Support

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of resellers and service providers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Additional support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services or customized service agreements.

NOTE: Server Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support. Additional information regarding worldwide limited warranty and technical support is available at: https://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

HP Care Pack services include coverage for the HP branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as 22" and smaller external monitors and tower UPS options up to 3kVA; these items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included, standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

HP services provide continuous care and support expertise with committed response designed to meet your IT and business needs.

To fully capitalizing on your HP ProLiant servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions provides a range of support services designed to meet the varying needs of business. Whether an SMB or large global corporation HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime.

Enhanced Care - Minimum recommended service support offer designed to ensure customers have access to expert assistance, whenever they need it.

  • 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years

Continuous Care - Recommended service delivering cost-effective support options designed to extend HP Services committed response and guaranteed fix times, designed to speed problem identification and resolution.

  • 6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years

Total Care - Highest HP Support service level recommend to help increase IT performance and availability with comprehensive, integrated hardware and software services

  • Support Plus 24 - Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays

Deployment Services - HP Installation and Start Up services designed to take time, risk, and worry out of the deployment of ProLiant servers - and free customers IT support staff to focus on what they do best, their business.

  • Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays

NOTE: For a complete listing of service offerings and information visit:
https://www.hp.com/services/proliantservices
https://www.hp.com/go/proliant/carepack

contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models      DL580 G4 Options      DL580 G4 Memory      Storage      Power Specifications      DL580 G4 QuickSpecs images/line.gif

Solutions

Solutions

The HP ProLiant DL580 G4 server is an enterprise class, 4-processor server designed for maximum scalability and high availability. It's radically redesigned chassis offers unsurpassed flexibility and serviceability in a versatile, rack-optimized form factor.
Based upon the latest industry standard processing, memory, I/O and networking technologies, the HP ProLiant DL580 G4 provides the highest levels of performance demanded by today's compute intensive applications. Unparalleled high availability features, including Hot Plug RAID Memory technology, an integrated Smart Array P400 controller, and hot-plug redundant components guarantee maximum uptime. The HP ProLiant DL580 G4's Integrated Lights-Out 2 technology, allows remote administration from a standard web-browser without ever having to visit the server. Within the 4U dense form factor, the HP ProLiant DL580 G4's highly expandable architecture provides maximum application deployment flexibility with the ability to add PCI-Express, hot plug PCI-X or battery-backed write cache options. Innovative new features, such as the ability to access processors, memory, hard drives, and power supplies while the unit remains secured in the rack, enable rapid response to service events, radically decreasing overall IT costs and server downtime.

Typical Usage:

Space-constrained corporate data centers and service providers

  • With up to 1.168TB of internal storage, 16 DIMM sockets and PCI-Express or hot-plug PCI-X mezzanine options; the HP ProLiant DL580 G4 packs the storage, memory, and I/O you need in a versatile, 4U chassis
  • Ambidextrous cable management and a quick deploy rail solution make racking a snap
  • Availability features including hot plug RAID memory, hot plug redundant power, hot plug redundant fans, hot plug PCI-X and hot plug RAID hard drives keep environments up and running and users productive

Database, Messaging and Business Applications

  • The latest 64-bit Intel® Xeon™ processors with Hyper-Threading, DDR-2 memory, and large internal storage capacity provide scalability for everything from web apps to mail servers to databases
  • Four standard PCI-Express x4 slots and one standard full-length PCI-X slot and the ability to add either two additional X4 PCI Express, one additional X8 PCI Express, or two additional hot plug PCI-X slots, provide powerful and flexible I/O alternatives
  • Dual integrated multi-function gigabit NICs give you the connectivity and bandwidth needed in today's database or business applications environments
  • Easily attach to SAN or NAS and manage from one location

Server Consolidation

  • Scalability, availability and built-in serviceability make the HP ProLiant DL580 G4 the perfect platform for server consolidation solutions
  • The ProLiant HP DL580 G4 and ProLiant Essentials make it easy to deploy, manage, and migrate virtualized servers with VMware or Microsoft Virtual Server
  • Integrated Lights-Out 2 enables administrators to manage the HP ProLiant DL580 G4 from remote locations

For more solutions visit: https://www.hp.com/solutions/proliantdl580.

contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models      DL580 G4 Options      DL580 G4 Memory      Storage      Power Specifications      DL580 G4 QuickSpecs images/line.gif

Models

HP DL580 G4 High Performance Models

HP DL580R04 X7140M 4GB P400 DC 2P
430808-001
HP DL580R04 X7130M 4GB P400 DC 2P
430809-001
HP DL580R04 X7041 4GB P400 DC 2P
403413-001
HP DL580R04 X7030 4GB P400 DC 2P
403412-001

Processor(s)
Two of the following depending on Model.
Up to 4 supported.

(2) Dual-Core 64-bit Intel® Xeon™ 7140M Processor (3.40 GHz, 150Watts, 800MHz FSB)
(2) Dual-Core 64-bit Intel® Xeon™ 7130M Processor (3.20 GHz, 150 Watts, 800MHz FSB)
(2) Dual-Core 64-bit Intel® Xeon™ 7041 Processor (3.00 GHz, 165 Watts, 800MHz FSB)
(2) Dual-Core 64-bit Intel® Xeon™ 7030 Processor (2.80 GHz, 165 Watts, 800MHz FSB)
Cache Memory
One of the following depending on Model.
16MB Integrated Level 3 Cache
8MB Integrated Level 3 Cache
2 x 2MB level 2 cache
2 x 1MB level 2 cache
Memory 2) Memory Cartridges (up to 4 supported)
4 GB PC2-3200R registered ECC SDRAM (Standard) to 64 GB (Maximum) (2x1 interleaved memory and Advanced Memory Protection Technology)
NOTE: Four memory boards would be required to configure up to 64 GB using 4 GB DIMMs
Network Controller Dual embedded NC371i Multifunction Gigabit Server Adapters
Storage Controller HP Smart Array P400/512MB BBWC Controller
Manageability Integrated Lights-Out 2 (iLO 2) Standard Management
Hard Drives None ship standard
Internal Storage 1.168TB max (with optional 146GB SFF SAS Hot Plug hard drives)
Power Supplies Two 910W/1300W Power Supplies standard (second power supply for redundancy)
Optical Drive Slimline DVD/CD-RW Drive (8X/24X) (ejectable)
Diskette Drive None ship standard (optional Ejectable Slimline Floppy Drive)
Form Factor Rack 4U

HP DL580 G4 Base Models

HP DL580R04 X7120M 2GB P400 DC 1P
430810-001
HP DL580R04 X7110M 2GB P400 DC 1P
430811-001

Processor(s)
One of the following depending on Model.
Up to 4 supported.
Dual-Core 64-bit Intel® Xeon™ 7120M Processor (3.00 GHz, 95 Watts, 800MHz FSB)
Dual-Core 64-bit Intel® Xeon™ 7110M Processor (2.60 GHz, 95 Watts, 800MHz FSB)
Cache Memory
4MB Integrated Level 3 Cache
Memory (1) Memory Cartridge (up to 4 supported)
2 GB PC2-3200R registered ECC SDRAM (Standard) to 64GB (Maximum)
(2x1 interleaved memory and Advanced Memory Protection Technology)
NOTE: Four memory boards would be required to configure up to 64 GB using 4 GB DIMMs
Network Controller Dual embedded NC371i Multifunction Gigabit Server Adapters
Storage Controller HP Smart Array P400/256MB Controller
Manageability Integrated Lights-Out 2 (iLO 2) Standard Management
Hard Drives None ship standard
Internal Storage 1.168TB max (with optional 146GB SFF SAS Hot Plug hard drives)
Power Supplies One 910W/1300W Power Supply standard (second power supply for redundancy optional)
Optical Drive Slimline DVD/CD-RW Drive (8X/24X) (ejectable)
Diskette Drive None ship standard (optional Ejectable Slimline Floppy Drive)
Form Factor Rack 4U
contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models      DL580 G4 Options      DL580 G4 Memory      Storage      Power Specifications      DL580 G4 QuickSpecs images/line.gif

Configuration Information - Factory Integrated Models

NOTE: HP does not allow factory integration of options into standard models listed above.
Configure-to-order servers must start with a CTO Chassis.
NOTE: This product offering does not support HP Factory Express Server Configuration Level 1.
NOTE: FIO indicates that this option only available as a Factory Installable Option.

Step 1: Base Configuration
Models HP ProLiant DL580 G4 Highly Serviceable Rack Chassis
410058-B21
Factory Integrated Model ships with:
Dual embedded NC371i Multifunction Gigabit Server Adapters

Four standard PCI-Express x4 slots and one 64-bit/133MHz non-hot plug PCI-X slots
One (1) Hot Plug Power Supply with One high-line IEC power cord

Six (6) Redundant Hot Plug Fans

SFF SAS Drive Cage

Integrated Lights-Out 2 (iLO2) Standard Management

Rack (4U), 7-inch

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)
Processors HP X7140M DC 570 G4 Kit, Factory Integrated Only
NOTE: If more than one processor is desired, additional processor selections would be 430816-B21 430816-B21 unless High Performance Model features are desired, then select 435280-B21 which includes a 2nd processor and select any desired additional processors.
430816-L22
HP X7130M DC 570 G4 Kit, Factory Integrated Only
NOTE: If more than one processor is desired, additional processor selections would be 430817-B21 430817-B21 unless High Performance Model features are desired, then select 435281-B21 which includes a 2nd processor and select any desired additional processors.
430817-L22
HP X7120M DC 570 G4 Kit, Factory Integrated Only
NOTE: If more than one processor is desired, additional processor selections would be 430818-B21 430818-B21.
430818-L22
HP X7110M DC 570 G4 Kit, Factory Integrated Only
NOTE: If more than one processor is desired, additional processor selections would be 430819-B21 430819-B21.
430819-L22
Dual-Core 64-bit Intel Xeon 7041 (3.00GHz, 2x2M L2) 580 G4 FIO
NOTE: If more than one processor is desired, additional processor selections would be 404752-B21 404752-B21 unless High Performance Model features are desired, then select 410059-B21 which includes a 2nd processor and select any desired additional processors.
404752-L22
Dual-Core 64-bit Intel Xeon 7030 (2.80GHz, 2x1M L2) 580 G4 FIO
NOTE: If more than one processor is desired, additional processor selections would be 404753-B21 404753-B21 unless High Performance Model features are desired, then select 410060-B21 which includes a 2nd processor and select any desired additional processors.
404753-L22
Base Memory 8 GB (2 x 4 GB 2RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit
4 GB (2 x 2 GB 2RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit
NOTE: With Advanced ECC and online spare memory capabilities. 2GB 2RANK DIMM's are recommended with the HP ProLiant DL580 G4. However, 2GB 1RANK DIMM's are also supported for commonality with other HP ProLiant servers.
4 GB (2 x 2 GB 1RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit
NOTE: With Advanced ECC and online spare memory capabilities.
2 GB (2 x 1 GB 1RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit
NOTE: With Advanced ECC and online spare memory capabilities.
1 GB (2 x 512 MB 1RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit
NOTE: With Advanced ECC and online spare memory capabilities.
Storage Controllers HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
Optical Drive Slimline CD-RW/DVD-ROM 24X Combo Drive Option Kit (Servers)
Slimline DVD-ROM Drive (8X/24X) Option Kit (Servers)
HP DVD+R/RW 8X Slim

Step 3: Choose Additional Factory Integratable Options
High Performance Model Options

The HP ProLiant DL580 G4 Performance Packs include the latest performance technologies and enterprise class availability features pre-installed for convenience and value. In addition to the standard features listed in Step 1, the Performance Packs include the following:

  • 2nd Intel Xeon Processor and Processor Power Module
  • 2nd Rear Accessible Hot Plug Redundant Power Supplies
DL580G4 X7140M (3.40 GHz, 16MB L3 Cache) HPM Performance Pack
435280-B21
DL580G4 X7130M (3.20 GHz, 8MB L3 Cache) HPM Performance Pack
435281-B21
DL580G4 X7041 (3.00 GHz, 2x2MB L2 Cache) HPM Performance Pack
410059-B21
DL580G4 X7030 (2.80 GHz, 2x1MB L2 Cache) HPM Performance Pack
410060-B21

Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Options" section below.
contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models      DL580 G4 Options      DL580 G4 Memory      Storage      Power Specifications      DL580 G4 QuickSpecs images/line.gif

Options

NOTE: Some options may not be integrated at the factory. Contact your local sales representative for additional information.
ProLiant DL580 Unique Options Hot Plug 64-bit/133MHz PCI-X Mezzanine Option
NOTE: Adds two Hot Plug PCI-X slots.
377520-B21
PCI Express X4 Mezzanine Option
NOTE: Adds two PCI Express (X4) I/O slots. Each slot will accept PCI Express cards with X1 through X8 connectors and utilize X4 lanes.
377522-B21
PCI Express X8 Mezzanine Option
NOTE: Adds one PCI Express (X8) I/O slot. The slot will accept PCI Express Cards with X1 through X8 connectors and utilize X8 lanes.
389876-B21
DL580 G4 Memory Expansion Board
NOTE: The HP ProLiant DL580 G4 utilizes up to four Memory Expansion Boards that support up to four DIMMs each. These memory boards are Front accessible providing unsurpassed levels of memory protection as well as scalability for the most memory-intensive applications. See Memory Configuration Diagram.
NOTE: One Memory Expansion Board ships standard with 1P models. Two Memory Expansion Boards ship standard with High Performance 2P models.
410061-B21

ProLiant Essentials
Value Pack Software
ProLiant Essentials Accelerated iSCSI Pack
ProLiant Essentials Accelerated iSCSI Pack, 1 License
NOTE: For additional Accelerated iSCSI Pack License Kits, please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12466_na/12466_na.HTML
407484-B22
ProLiant Essentials Intelligent Networking Pack
ProLiant Essentials Intelligent Networking Pack - Windows Edition, Single Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.
436225-B21
NOTE: For additional ProLiant Intelligent Networking Pack License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12062_na/12062_na.HTML
ProLiant Essentials Intelligent Networking Pack - Linux Edition, Single Server License
436229-B21
NOTE: For additional ProLiant Intelligent Networking Pack - Linux License Kits please see the QuickSpecs at:
https://h18000.www1.hp.com/products/quickspecs/12327_na/12327_na.HTML

ProLiant Essentials Performance Management Pack

ProLiant Essentials Performance Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key, HP Management CD and documentation.
NOTE: The most recent version of the software can always be downloaded at https://www.hp.com/products/pmp.
306696-B21
NOTE: For additional ProLiant Performance Management Pack License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/11925_na/11925_na.HTML
ProLiant Essentials Rapid Deployment Pack
Rapid Deployment Pack, Single-Server License
NOTE: This license allows 1 server to be deployed and managed via RDP.
267196-B21
HP ProLiant Essentials Rapid Deployment Pack - Windows Edition 3.50 MEDIA ONLY FLATPACK
434559-B21
ProLiant Essentials Rapid Deployment Pack, Flatpack - single server license
434560-B21
NOTE: For additional ProLiant Essentials Rapid Deployment Pack License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/11053_na/11053_na.HTML
ProLiant Essentials Workload Management Pack
ProLiant Essentials Workload Management Pack, Single Server License
NOTE: For additional ProLiant Workload Management Pack License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/11452_na/11452_na.HTML
ProLiant Essentials Virtualization Management Software
ProLiant Essentials Virtual Machine Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.
435661-B21
ProLiant Essentials Server Migration Pack, Single-Migration License
NOTE: Contains one license, enabling 1 server migration, with a unique license activation key and documentation.
435663-B21
ProLiant Essentials Server Migration Pack - Physical to ProLiant Edition, Single-Migration License
412978-B21
HP ProLiant Essentials Server Migration Pack - Physical to ProLiant Edition. 1 Year Unlimited Migration License
412982-B21
NOTE: This license allows 1 server to be migrated from a physical server to a virtual machine. Or this license can be used to migrate a virtual machine from one virtualization layer i.e. VMware GSX to a different virtualization layer such as VMware ESX or Microsoft Virtual Server 2005.
NOTE: For additional ProLiant Essentials Virtualization Management Software License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12328_na/12328_na.HTML
ProLiant Essentials Vulnerability and Patch Management Pack
ProLiant Essentials Vulnerability and Patch Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.
371645-B21
NOTE: For additional ProLiant Vulnerability and Patch Management Pack License Kits, please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12111_na/12111_na.HTML
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to https://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: https://www.hp.com/servers/proliantessentials.


Remote Management Integrated Lights-Out Advanced Pack
Integrated Lights-Out Advanced Pack, 1 server
Featuring: Sophisticated virtual administration features for ultimate control of servers in the data centers and remote sites.
NOTE: For additional Integrated Light-Out Advanced Pack License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/11052_na/11052_na.HTML

Processor Dual-Core 64-bit Intel® Xeon™ 7140M Processor (3.40 GHz, 150Watts, 800MHz FSB)
NOTE: This processor option kit supports the HP ProLiant DL580 G4 and the HP ProLiant ML570 G4.
430816-B21 430816-B21
Dual-Core 64-bit Intel® Xeon™ 7130M Processor (3.20 GHz, 150 Watts, 800MHz FSB)
NOTE: This processor option kit supports the HP ProLiant DL580 G4 and the HP ProLiant ML570 G4.
430817-B21 430817-B21
Dual-Core 64-bit Intel® Xeon™ 7120M Processor (3.00 GHz, 95 Watts, 800MHz FSB)
NOTE: This processor option kit supports the HP ProLiant DL580 G4 and the HP ProLiant ML570 G4.
430818-B21 430818-B21
Dual-Core 64-bit Intel® Xeon™ 7110M Processor (2.60 GHz, 95 Watts, 800MHz FSB)
NOTE: This processor option kit supports the HP ProLiant DL580 G4 and the HP ProLiant ML570 G4.
430819-B21 430819-B21
Dual-Core 64-bit Intel® Xeon™ 7041 Processor (3.00 GHz, 165 Watts, 800MHz FSB)
NOTE: This processor option kit supports the HP ProLiant DL580 G4 and the HP ProLiant ML570 G4.
404752-B21 404752-B21
Dual-Core 64-bit Intel® Xeon™ 7030 Processor (2.80 GHz, 165 Watts, 800MHz FSB)
NOTE: This processor option kit supports the HP ProLiant DL580 G4 and the HP ProLiant ML570 G4.
404753-B21 404753-B21

DL580 G4 Memory (DIMMs)

8 GB (2 x 4 GB 2RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit
4 GB (2 x 2 GB 2RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit
NOTE: With Advanced ECC and online spare memory capabilities. 2GB 2RANK DIMM's are recommended with the HP ProLiant DL580 G4. However, 2GB 1RANK DIMM's are also supported for commonality with other HP ProLiant servers.
4 GB (2 x 2 GB 1RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit
NOTE: With Advanced ECC and online spare memory capabilities.
2 GB (2 x 1 GB 1RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit
NOTE: With Advanced ECC and online spare memory capabilities.
1 GB (2 x 512 MB 1RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit
NOTE: With Advanced ECC and online spare memory capabilities.
DL580 G4 Memory Expansion Board
NOTE: The HP ProLiant DL580 G4 utilizes up to four Memory Expansion Boards that support up to four DIMMs each. These memory boards are Front accessible providing unsurpassed levels of memory protection as well as scalability for the most memory-intensive applications. See Memory Configuration Diagram.
NOTE: One Memory Expansion Board ships standard with 1P base models and two Memory Expansion Boards ship standard with 2P High Performance models.
410061-B21

Diskette Drive Slimline Floppy Diskette Drive Option Kit
NOTE: Ejectable drive.
390164-B21

Optical Drives Slimline CD-RW/DVD-ROM Combo Drive Option Kit
NOTE: Ejectable drive.
Slimline DVD-ROM Drive (8X/24X) Option Kit
NOTE: Ejectable drive.
264007-B21 264007-B21
HP DVD+R/RW 8X Slim
NOTE: Ejectable drive.
383975-B21 383975-B21

DL580 G4 Hard Drives Serial Attached SCSI (SAS) SFF Hot Plug
HP 146GB 3G SAS 10K SFF SP HDD
HP 72GB 3G SAS 10K SFF SP HDD
HP 72GB 3G SAS 15K SFF SP HDD
HP 36GB 3G SAS 10K SFF SP HDD
HP 36GB 3G SAS 15K SFF SP HDD
NOTE:  Please see the SAS Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:
https://h18000.www1.hp.com/products/quickspecs/12224_na/12224_na.HTML
SFF SATA Hot Plug
HP 60GB 1.5G SATA 5.4K SFF HDD
NOTE: SATA drives have a 1 year warranty. Please see the SATA Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:
https://h18000.www1.hp.com/products/quickspecs/11940_na/11940_na.HTML

Storage Controllers PCI Option
x4-x8 PCI-Express Bus Expander Option
NOTE: The HP ProLiant DL580 Generation 4 Server can support up to two x4-x8 PCI Express bus expander boards. The bus expander can only be installed in expansion slots 5 and 7 to convert the adjacent lower-numbered expansion slot to a PCI Express x8 expansion slot.
403724-B21
DL580 G4 SAS Controllers
Smart Array E200 Controller

HP Smart Array E200/128 BBWC Controller
HP Smart Array E200/64MB Controller
128-MB BBWC (Battery-Backed Write Cache) Enabler
NOTE: Supports the Smart Array E200 Controller, Smart Array 641 Controller, Smart Array 642 Controller.
Smart Array P400 Controller
HP Smart Array P400/256MB Controller
NOTE: The Smart Array P400 Controller supports internal Serial Attached SCSI and Serial ATA drives. It is supported in all HP ProLiant DL580 G4 Models. This controller model ships standard on 1P Models.
HP Smart Array P400/512MB BBWC Controller
NOTE: The Smart Array P400 Controller supports internal Serial Attached SCSI and Serial ATA drives. It is supported in all HP ProLiant DL580 G4 Models. This controller model ships standard on 2P Models.
512MB DDR BBWC Upgrade
NOTE: For Smart Array P400 Controller only.
Battery-backed write cache upgrade
NOTE: For Smart Array P400 Controller only.
Smart Array P400 Battery Attach Kit
NOTE: This option kit contains a 24" battery cable and adhesive material for installing a battery into the server if a Smart Array P400 is integrated outside of the factory. For all solutions, please refer to the server QuickSpecs and User's Manual for detailed installation instructions.
Smart Array P600 Controller
HP Smart Array P600/256 BBWC Controller
NOTE: The Smart Array P600 Controller supports internal and external Serial Attached SCSI and Serial ATA drives. It is supported in all HP ProLiant DL580 G4 Models.
512MB DDR BBWC Upgrade
NOTE: For Smart Array P600 Controller only.
Smart Array P800 Controller
HP Smart Array P800/512 BBWC Controller 381513-B21 381513-B21
NOTE: Please see the following QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/12460_na/12460_na.HTML
(Smart Array E200 Controller)
https://h18000.www1.hp.com/products/quickspecs/12400_na/12400_na.HTML
(Smart Array P400 Controller)
https://h18000.www1.hp.com/products/quickspecs/12247_na/12247_na.HTML
(Smart Array P600 Controller)

https://h18000.www1.hp.com/products/quickspecs/12616_na/12616_na.HTML
(Smart Array P800 Controller)
SAS HBA
HP SC44Ge Host Bus Adapter
HP 8 Internal Port SAS HBA with RAID
NOTE: Please see the HBA QuickSpecs for additional information:
https://h18004.www1.hp.com/products/quickspecs/12617_na/12617_na.html (SC44Ge HBA)
https://h18004.www1.hp.com/products/quickspecs/12332_na/12332_na.html
(8 Internal Port SAS HBA)
SCSI Controllers for External Drive/Storage Support
Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Ultra320 Expansion Module for SA-6402
Smart Array 642 Controller
128-MB BBWC (Battery-Backed Write Cache) Enabler
NOTE: Supports the Smart Array 641, and Smart Array 642 Controller.
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
NOTE: Please see the following QuickSpecs for Technical Specifications and additional information:
https://h18000.www.1.hp.com/products/quickspecs/12030_na/12030_na.HTML
(Smart Array 6i)
https://h18000.www1.hp.com/products/quickspecs/11587_na/11587_na.HTML
(Smart Array 6400 Series)
https://h18000.www1.hp.com/products/quickspecs/12069_na/12069_na.HTML
(Smart Array 642)
https://h18000.www1.hp.com/products/quickspecs/11943_na/11943_na.HTML
(U320 G2 Adapter)


Communications

HP NC110T PCI Express Gigabit Server Adapter
HP NC150T PCI 4-port Gigabit 1000T Combo Switch Adapter
HP NC310F PCI-X 1000SX Gigabit Server Adapter
HP NC340T PCI-X 4-port Gigabit Server Adapter
HP NC373F PCI Express Multifunction Gigabit Server Adapter
HP NC370T PCI-X Multifunction 1000T Gigabit Server Adapter
HP NC380T PCI Express Dual Port Multifunction Gigabit Server Adapter
HP NC7771 PCI-X 1000T Gigabit Server Adapter
HP NC510F PCIe 10 Gigabit Server Adapter
NOTE: A minimum of 1 gigabyte (1 GB) of server memory is required per each NC510F adapter.
HP NC510C PCIe 10 Gigabit Server Adapter
NOTE: A minimum of 1 gigabyte (1 GB) of server memory is required per each NC510C adapter.

Redundant Options 910W (low line), 1300W (high line) Hot Plug Redundant Power Supply - includes Nema 5-15P to IEC320-C19
348114-001
910W (low line), 1300W (high line) Hot Plug Redundant Power Supply - includes C14 to C19 IEC cable
348114-B21

Tape Drives

NOTE: For the complete listing of Tape Drive offerings, please see:
https://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html
USB Tape Drives
HP StorageWorks DAT 72 USB Internal Tape Drive (Carbonite)
NOTE: HP recommends combining this tape drive with the 1U USB Rack-Mount kit (A8007A A8007A) for a complete rack-mount solution.
DW026A
SAS Tape Drives
NOTE: Connecting hard drive cage and SAS tape to the same 8 Internal Port SAS HBA (347786-B21 347786-B21) using split cable (supplied with tape drive) deactivates 1 of the hard drive bays. Actual hard drive bay deactivated depends on where split cable plugs into SAS drive connector. Example: 3x SAS cable connector plugged into SAS drive connector (5-8) on the back of the hard drive cage would mean drive bay 8 is deactivated.
HP StorageWorks Ultrium 448 SAS Internal Tape Drive
NOTE: HP recommends combining this tape drive with the 1U SAS Rack-Mount kit (AE459A) for a complete rack-mount solution.
DW085A
HP StorageWorks Ultrium 920 SAS Internal Tape Drive
NOTE: HP recommends combining this tape drive with the 1U SAS Rack-Mount kit (AE459A) for a complete rack-mount solution.
EH847A
NOTE: Please refer to the "Tape Drives, Tape Autoloaders & Tape Libraries" table in the Storage section of this document for a list of SAS controllers with tape support.
Ultrium Tape Drives
HP StorageWorks Ultrium 232 Internal Tape Drive (Carbonite)
NOTE: HP recommends combining this tape drive with the 1U SCSI Rack-Mount kit (A7445B A7445B) for a complete rack-mount solution.
HP StorageWorks 3U SCSI Rack-mount kit with one Ultrium 460 (Carbon)
350546-B22
HP StorageWorks 1U SCSI Rack-mount kit with one Ultrium 448 SCSI Tape Drive (Carbonite)
DW028B
HP StorageWorks 1U SCSI Rack-mount kit with one Ultrium 920
EH903A
HP StorageWorks 3U SCSI Rack-mount kit with one Ultrium 960 (Carbonite)
Q1595B
NOTE: Please see the HP StorageWorks Ultrium Tape Drive QuickSpecs for additional options such as controllers, media, and other related items:
https://h18006.www1.hp.com/products/quickspecs/11739_na/11739_na.html
https://h18006.www1.hp.com/products/quickspecs/12128_na/12128_na.html
For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit: https://www.hp.com/go/connect
Rack-Mount Tape Drive Enclosures
HP StorageWorks 1U SCSI Rack-Mount kit
NOTE: The 1U Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with multiple Single-Ended and LVD SCSI tape drives including the DAT 24, DAT 40, DAT 72, DLT VS80, DLT VS160, Ultrium 215, Ultrium 232, Ultrium 448 and Ultrium 920 tape drives.
HP StorageWorks 1U USB Rack-Mount Kit
NOTE: The 1U USB Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with the DAT 24 USB, DAT 40 USB and DAT 72 USB tape drives.
HP StorageWorks 1U SAS Rack-Mount Kit
NOTE: The 1U SAS Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with the Ultrium 448 SAS and Ultrium 920 SAS tape drives.
AE459A
HP StorageWorks 3U Rack-mount kit
NOTE: The 3U Rack-mount Kit can support up to (2) full-height or (4) half-height tape drives and compatible with multiple LVD SCSI tape drives including DAT 40, DAT 72, DLT VS160, SDLT 320, SDLT 600, Ultrium 232, Ultrium 460, Ultrium 448, Ultrium 920 and Ultrium 960 tape drives.
274338-B22
NOTE: Please see the Rack-Mount Tape Drive Kits QuickSpecs for additional information regarding these kits:
https://h18000.www1.hp.com/products/quickspecs/10854_na/10854_na.HTML


Tape Autoloaders
HP StorageWorks DAT Autoloader

HP StorageWorks DAT 72x10 tape autoloader AE313A
HP StorageWorks 1/8 Tape Autoloader AF204A AF204A
HP StorageWorks 1/8 Ultrium 920 G2 Tape Autoloader AH165A
HP StorageWorks 1/8 Ultrium 448 G2 Tape Autoloader AH164A
HP StorageWorks 1/8 Ultrium 232 G2 Tape Autoloader AH163A
HP StorageWorks 1/8 G2 Tape Autoloader Rack Kit
NOTE: Required to install the 1/8 G2 Autoloaders in a standard 19-inch rack; includes rails and rackmount instructions
AH166A
NOTE: Please reference the Tape Autoloader QuickSpecs at https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at https://www.hp.com/go/ebs

Tape Libraries

HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 Ultrium 960 Drive Library AG115A AG115A
HP StorageWorks MSL2024 1 Ultrium 960 4GB FC Drive Library AG326B
HP StorageWorks MSL2024 1 Ultrium 920 Drive Library AH169A
HP StorageWorks MSL2024 2 Ultrium 920 Drive Library AH170A
HP StorageWorks MSL2024 1 Ultrium 448 Drive Library AG116A AG116A
HP StorageWorks MSL2024 2 Ultrium 448 Drive Library AG117A AG117A
HP StorageWorks MSL4048 Tape Library
HP StorageWorks MSL4048 1 Ultrium 448 Drive Library
AG320A
HP StorageWorks MSL4048 2 Ultrium 448 Drive Library
AG321A
HP StorageWorks MSL4048 1 Ultrium 920 Drive Library AH171A
HP StorageWorks MSL4048 2 Ultrium 920 Drive Library AH172A
HP StorageWorks MSL4048 1 Ultrium 960 Drive Library
AG322A
HP StorageWorks MSL4048 1 Ultrium 960 4GB FC Drive Library AG324B
HP StorageWorks MSL4048 2 Ultrium 960 Drive Library
HP StorageWorks MSL4048 2 Ultrium 960 4GB FC Drive Library AG325B
HP StorageWorks MSL6000 Tape Library
Ultrium 960 technology
HP StorageWorks MSL6030 1 Ultrium 960 Dr LVDS Library AD606B
HP StorageWorks MSL6030 1 Ultrium 960 Dr FC Library AD608B
HP StorageWorks MSL6030 2 Ultrium 960 Dr LVDS Library AD607B
HP StorageWorks MSL6030 2 Ultrium 960 Dr FC Library AD609B
Ultrium 460 technology
HP StorageWorks MSL6030 1 Ultrium 460 Dr LVDS Library AD598B
HP StorageWorks MSL6030 1 Ultrium 460 Dr FC Library AD600B
HP StorageWorks MSL6030 2 Ultrium 460 Dr LVDS Library AD599B
HP StorageWorks MSL6030 2 Ultrium 460 Dr FC Library AD601B
NOTE: Please reference the MSL2024, MSL4048 and MSL6000 Tape Library QuickSpecs at https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at https://www.hp.com/go/ebs.

HP Data Protector Express Software

HP DP Express Backup Server Upgrade for ProLiant Software
BB117AP
HP DP Express Package for Microsoft Small Business Server
BB118AA
NOTE: To obtain a free licensed copy of HP Data Protector Express for ProLiant edition software, please visit the "Protect Your Data" link accessible from your ProLiant server's System Management Homepage (SMH) software (SmartStart 7.5 or later).

NOTE: Please see the HP Data Protector Express QuickSpecs for additional information regarding the purchase of HP Data Protector Express software:
https://h18000.www1.hp.com/products/quickspecs/12337_na/12337_na.html



Cluster Options

ProLiant Cluster Starter Kit
364023-B22
NOTE: For additional information regarding the ProLiant Cluster Starter Kit please see the following QuickSpecs at:
https://h18000.www1.hp.com/products/quickspecs/11935_na/11935_na.html

HP HA/F200 for Entry SAN Cluster

364026-B22

NOTE: For additional information regarding the ProLiant Cluster for Entry Level SAN please see the following QuickSpecs at:
https://h18000.www1.hp.com/products/quickspecs/11932_na/11932_na.html

ProLiant Cluster HA/F500 for the Enterprise SAN 364024-B21
NOTE: For additional information regarding the ProLiant Cluster HA/F500 for Enterprise SAN please see the following QuickSpecs at:
https://h18000.www1.hp.com/products/quickspecs/11933_na/11933_na.html

HP Serviceguard for Linux ProLiant Cluster A.11.16 for SUSE SLES 9 & 10 and Red Hat EL 3 & 4 (2 node license cluster kit) 305199-B26
HP Serviceguard for Linux A.11.16 for SUSE SLES 9 & 10 and Red Hat EL 3 & 4 (single license version)
307754-B26
HP Serviceguard for Linux and Red Hat Global File System - 1 year subscription T2798AA#001
HP Serviceguard for Linux and Red Hat Global File System - 3 years subscription T2798AA#003
NOTE: For additional information regarding the HP Serviceguard for Linux License, please see the following QuickSpecs at:
https://h18000.www1.hp.com/products/quickspecs/11518_na/11518_na.html
NOTE: For configuration/certification options for the HP Parallel Database Cluster for Oracle RAC please go to: https://www.hp.com/solutions/highavailability/oracle


StorageWorks Options

NOTE: The following is a list of all Fibre Channel Host Bus Adapters for Windows and Linux. For detailed compatibility information please see: https://h18006.www1.hp.com/storage/saninfrastructure/hba.html
HP StorageWorks FC2142SR 4Gb PCI-e HBA
HP StorageWorks FC2242SR Dual Channel 4 Gb PCI-e HBA
HP StorageWorks FC1142SR 4Gb PCI-e HBA
HP StorageWorks FC1242SR Dual Channel 4 Gb PCI-e HBA
HP StorageWorks FC2143 4Gb PCI-X 2.0 -to-Fibre Channel HBA
HP StorageWorks FC2243 Dual Channel 4Gb PCI-X 2.0 HBA
HP StorageWorks FC1143 4Gb PCI-X 2.0 HBA
HP StorageWorks FC1243 Dual Channel 4Gb PCI-X 2.0 HBA

HP StorageWorks Modular Smart Array 20

HP StorageWorks Modular Smart Array 20
NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies.
335921-B21 335921-B21
HP StorageWorks Modular Smart Array 20 Starter Kit
NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies. Includes Smart Array 6402/128 Controller.
366172-B21
NOTE: The Modular Smart Array Enclosure 20 Family supports the SATA 1.5Gb/s 3.5” Hot Plug Hard Drives.

HP StorageWorks Modular Smart Array 30

HP StorageWorks Modular Smart Array 30 SB
NOTE: Rack-mountable 14 drive enclosure with single bus, redundant power supplies.
302969-B21
HP StorageWorks Modular Smart Array 30 DB
NOTE: Rack-mountable 14 drive enclosure with dual bus, redundant power supplies.
302970-B21
NOTE: The Modular Smart Array Enclosure 30 Family supports the Wide Ultra3, Ultra320 Hot Plug Hard Drives.

HP StorageWorks Modular Smart Array 50

HP StorageWorks Modular Smart Array 50 Enclosure
NOTE: Please see the Modular Smart Array 50 QuickSpecs for additional options and configuration information at
https://h18000.www1.hp.com/products/quickspecs/12245_na/12245_na.HTML


HP StorageWorks Modular Smart Array 500

HP StorageWorks Modular Smart Array 500 Generation 2
335880-B21
NOTE: Please see the Modular Smart Array 500 Generation 2 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at:
https://h18000.www1.hp.com/products/quickspecs/11956_na/11956_na.HTML


HP StorageWorks Modular Smart Array 1000

HP StorageWorks Modular Smart Array 1000

201723-B22 201723-B22

NOTE: Please see the Modular Smart Array 1000 QuickSpecs for additional options and configuration information at:
https://h18000.www1.hp.com/products/quickspecs/11033_na/11033_na.HTML

HP StorageWorks Modular Smart Array 1500 cs

Modular Smart Array 1500 Controller Shelf

AA986A

NOTE: Please see the StorageWorks Modular SAN Array 1500 cs QuickSpecs for additional options and configuration information at:
https://www.hp.com/go/MSA1500cs

Uninterruptible Power Systems - Rack

HP, R1.5kVA UPS, 1U
AF419A
HP R3000 VA UPS, 2U, L5-30
NOTE: Replaces non-RoHs compliant part number 192186-001 192186-001.
AF422A
HP R3000 VA UPS, 2U, L6-20
NOTE: Replaces non-RoHs compliant part number 192186-002 192186-002.
AF423A
HP R5500 VA UPS
NOTE: Replaces non-RoHs compliant part number 326529-D71 326529-D71.
AF426A

HP Monitored Power Distribution Unit (PDU) HP Monitored Power Distribution Unit: Full Rack Version
HP 17.3 kVA S2324 Monitored PDU- dual input, 3U, 24A
NOTE: Replaces non-RoHs compliant part number 370959-D71 370959-D71.
AF503A
HP 8.3 kVA S1324 Monitored PDU- single input, 3U, 24A
NOTE: Replaces non-RoHs compliant part number 370960-D71 370960-D71.
AF504A
HP 16.6 kVA S2140 Monitored PDU- dual input, 1U, 40A
NOTE: Replaces non-RoHs compliant part number 37061-D71.
AF505A
HP 8.6 S1140 Monitored PDU- single input, 1U, 40A
NOTE: Replaces non-RoHs compliant part number 370962-D71 370962-D71.
AF506A
HP Monitored Power Distribution Unit: Half Rack Version
HP 17.3 kVA S348 Monitored PDU- single input, 3-phase, 60A
HP 4.9kVA S124 Monitored PDU- single input, 1U, 24A
AF914A

Modular Power Distribution Units 1U/0U
(Up to 32 outlets)
NOTE: 1U/0U mounting brackets shipped with
the unit (optimized for 10000 and 9000 series racks).

3.6kVA Model - mPDU, 16A, High
2.8 kVA Model - mPDU, 24A, Low
4.9kVA Model - mPDU, 24A, High
8.3kVA Model - mPDU, 40A, High
8.3kVA Model - mPDU, 40A, High (power cord attached)
252663-D73
8.3kVA Model - mPDU 40A, High (core only)
252663-D75
4.9kVA Model - mPDU 24A, High (core only)
252663-D74
NOTE: Please see the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs for additional options including cables:
https://h18000.www1.hp.com/products/quickspecs/11041_na/11041_na.HTML

USB Options USB 2-Button Optical Scroll Mouse (Carbonite/Silver)
HP USB 04 Standard Keyboard DT528A#xxx
USB 2.0 4-port HUB DG954A
HP 1GB Drive Key II- USB 2.0 Flash Drive AG382AA
HP 512MB DriveKey II- USB Flash Drive ED516AA

HP Rack 5000 Series (Graphite Metallic)HP 5642 Rack-Unassembled
NOTE: Please see the HP Rack 5642 QuickSpecs for additional part numbers and Technical Specifications such as height, width, depth, weight, and color:
https://h18000.www1.hp.com/products/quickspecs/12074_na/12074_na.HTML
NOTE: For additional information regarding Rack Cabinets, please see the following URL: https://www.hp.com/go/rackandpower.

HP Rack 10000 G2 Series
(Carbon/Graphite Metallic)

10642 G2 (42U) Rack Cabinet - Pallet
10642 G2 (42U) Rack Cabinet - Shock Pallet
10642 G2 (42U) Rack Cabinet - Crated
AF003A
10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet
10636 G2 (36U) Rack Cabinet - Pallet
10636 G2 (36U) Rack Cabinet - Shock Pallet
10636 G2 (36U) Rack Cabinet - Crated
10636 G2 (36U) Rack Cabinet, with Extension - Shock Pallet
10622 G2 (22U) Rack Cabinet - Pallet
AF021A
10622 G2 (22U) Rack Cabinet - Shock Pallet
AF022A
10842 G2 (42U) 800mm Wide Rack Cabinet - Pallet
AF041A
10842 G2 (42U) 800mm Wide Rack Cabinet - Shock Pallet
AF042A
10647 G2 (47U) Rack Cabinet - Pallet
AF031A
NOTE: It is mandatory to use a shock pallet when shipping racks with equipment installed.
NOTE: Please see the Rack 10000 G2 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
https://h18000.www1.hp.com/products/quickspecs/12402_na/12402_na.HTML
NOTE: For additional information regarding Rack Cabinets, please see the following URL: https://www.hp.com/go/rackandpower.

HP Rack 10000 Series
(Graphite Metallic)

HP Rack S10614 (14U) Rack Cabinet – Shock Pallet

HP Rack 10842 (42U, 800mm wide) – Pallet

257415-B21 257415-B21

HP Rack 10842 (42U, 800mm wide) – Shock Pallet

257415-B22 257415-B22

HP Rack 10647 (47U) – Pallet

245160-B21 245160-B21

HP Rack 10647 (47U) – Crated

245160-B23

HP Rack 10622 (22U) – Pallet

245163-B21 245163-B21

HP Rack 10622 (22U) – Shock Pallet

245163-B22 245163-B22

HP Rack 10622 (22U) – Crated

245163-B23

NOTE: xxxxxx-B21 (pallet) used to ship empty racks shipped on a truck. -B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels). xxxxxx-B23 (crated) used for air shipments of empty racks.



NOTE: Please see the Rack 10000 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
https://h18000.www1.hp.com/products/quickspecs/10995_na/10995_na.HTML



NOTE: For additional information regarding Rack Cabinets, please see the following URL: https://www.hp.com/go/rackandpower.




Keyboards and Monitors

TFT7210R Rack Mounted 17" Monitor
TFT7600 Rackmount Keyboard Monitor
1U Rackmount Keyboard with USB

AG072A AG072A

NOTE: For additional information regarding Rack Options, please see the following URL: https://www.hp.com/go/rackandpower.

HP KVM Switch Options 2x1x16 IP Console Switch with Virtual Media
4x1x16 IP Console Switch with Virtual Media
2x16 Server Console Switch with Virtual Media
PS/2 Virtual Media Interface Adapter, 1 pack
NOTE: Requires PS/2 and one USB port on server.
Server Console Switch (KVM), 0 x 1 x 8 port
Server Console Switch (KVM), 0 x 2 x 16 port
PS/2 Interface Adapter, 1 pack
PS/2 Interface Adapter, 8 pack
USB Interface Adapter, 1 pack
Serial Interface adapter - 1 Pack with power supply
NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches. Cat5e cables can be found at the following URL: https://www.hp.com/go/kvm.
HP 1x 4 Server Console Switch (ALL)
PS2 Server Console Cable, 6 ft, 2 pack
USB Server Console Cable, 6 ft, 2 pack
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: https://www.hp.com/go/kvm.

HP Serial Console Server Options

HP 16 Port Serial Console Server
HP 48 Port Serial Console Server
Serial Adapter, RJ45-DB9 DCE Female, 1 Pack
Serial Adapter, RJ45-DB9 DCE Female, 8 Pack
AF110A
NOTE: Cat5e cables are required to connect Serial Adapters to Serial Console Servers. Additional Serial Adapters and Cat5e cables can be found at the following URL: https://www.hp.com/go/kvm.
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: https://www.hp.com/go/kvm.

Service and Support Offerings (HP Care Pack Services)

Hardware Services On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
U4607E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4608E
6-Hour Call to Repair, On-site Service 7-Day x 24-Hour Coverage, 3 Years (U.S. Part Number)
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4609E
Installation & Start-up Services
Hardware Installation, Electronic
U4617E
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays, Electronic
U4618E
Installation and Startup for Essentials Rapid Deployment Pack, Electronic
U5683E
Support Plus
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4619E
Support Plus 24
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4620E
Onsite HW support 24x7, 4hr response and RedHat AS O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U9239E
Onsite HW support 24x7, 4hr response and SuSE O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U6316E
NOTE: For more information, customer/resellers can contact: https://www.hp.com/services/carepack
contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models      DL580 G4 Options      DL580 G4 Memory      Storage      Power Specifications      DL580 G4 QuickSpecs images/line.gif

Memory

HP ProLiant DL580 G4 2P Models
NOTE: Memory configurations listed do not apply to "Factory Integrated Models".

Standard Memory
4 GB PC2-3200 Registered Memory (DDR2-400) with Advanced ECC functionality

Standard Memory Plus Optional Memory and Optional Memory Boards
Up to 52 GB of memory is available with the optional installation of PC2-3200 Registered (DDR2-400) Option Kits and the use of all four memory boards.

Standard Memory Replaced with Optional Memory and Optional memory board

Up to 64 GB of memory is available with the removal of the standard 4 GB of memory, the optional installation of PC2-3200 Registered (DDR2-400) Option Kits and the use of all four memory boards.

NOTE: Memory must be added in banks of two DIMMS. This chart does not represent all possible memory configurations. Additional requirements may apply to enable Advanced Memory Protection features.

Standard Memory

Standard Memory Board (Slots)

 Standard (2P models come standard with 4GB of memory on two memory boards)
4 GB

1

2

3

4

1 GB
1 GB
Blank
Blank
Second Memory Board (Slots)

1

2

3

4

1 GB
1 GB
Blank
Blank
Optional Third Memory Board (Slots)

1

2

3

4

Blank
Blank
Blank
Blank
Optional Fourth Memory Board (Slots)

1

2

3

4

Blank
Blank
Blank
Blank

Optional Memory Summary

Standard Memory Board (Slots)

 Optional (Standard Memory Plus Optional Memory Boards and Optional Memory)
52 GB

1

2

3

4

1 GB
1 GB
4 GB
4 GB
Second Memory Board (Slots)
1
2
3
4
1 GB
1 GB
4 GB
4 GB
Optional Third Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Optional Fourth Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB

Maximum Memory Summary

Standard Memory Board (Slots)

Maximum (Standard Memory Replaced with Optional Memory with Optional Memory board)
64 GB

1

2

3

4

4 GB
4 GB
4 GB
4 GB
Second Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Optional Third Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Optional Fourth Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
HP ProLiant DL580 G4 1P Models
NOTE: Memory configurations listed do not apply to "Factory Integrated Models".

Standard Memory
2 GB PC2-3200 Registered Memory (DDR2-400) with Advanced ECC functionality

Standard Memory Plus Optional Memory and Optional Memory Boards
Up to 58 GB of memory is available with the optional installation of PC2-3200 Registered (DDR2-400) Option Kits and the use of all four memory boards.

Standard Memory Replaced with Optional Memory and Optional memory board
Up to 64 GB of memory is available with the removal of the standard 2 GB of memory, the optional installation of PC2-3200 Registered (DDR2-400) Option Kits and the use of all four memory boards.

NOTE: Memory must be added in banks of two DIMMS. This chart does not represent all possible memory configurations. Additional requirements may apply to enable Advanced Memory Protection features.

Standard Memory

Standard Memory Board (Slots)

 Standard (1P models come standard with 2GB of memory on one memory boards)
2 GB

1

2

3

4

1 GB
1 GB
Blank
Blank
Optional Second Memory Board (Slots)

1

2

3

4

Blank
Blank
Blank
Blank
Optional Third Memory Board (Slots)

1

2

3

4

Blank
Blank
Blank
Blank
Optional Fourth Memory Board (Slots)

1

2

3

4

Blank
Blank
Blank
Blank

Optional Memory Summary

Standard Memory Board (Slots)

 Optional (Standard Memory Plus Optional Memory Boards and Optional Memory)
58 GB

1

2

3

4

1 GB
1 GB
4 GB
4 GB
Optional Second Memory Board (Slots)
1
2
3
4
1 GB
1 GB
4 GB
4 GB
Optional Third Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Optional Fourth Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB

Maximum Memory Summary

Standard Memory Board (Slots)

Maximum (Standard Memory Replaced with Optional Memory with Optional Memory boards)
64 GB

1

2

3

4

4 GB
4 GB
4 GB
4 GB
Optional Second Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Optional Third Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Optional Fourth Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB


The following memory options are available from HP:


  • 8 GB (2 x 4 GB 2RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit
  • 4 GB (2 x 2 GB 2RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit
    NOTE: With Advanced ECC and online spare memory capabilities. 2GB 2RANK DIMM's are recommended with the HP ProLiant DL580 G4. However, 2GB 1RANK DIMM's are also supported for commonality with other HP ProLiant servers.
  • 4 GB (2 x 2 GB 1RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit
    NOTE: With Advanced ECC and online spare memory capabilities.
  • 2 GB (2 x 1 GB 1RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit
    NOTE: With Advanced ECC and online spare memory capabilities.
  • 1 GB (2 x 512 MB 1RANK) PC2-3200 Registered Memory (DDR2-400) Option Kit
    NOTE: With Advanced ECC and online spare memory capabilities.
343055-B21 343055-B21
  • DL580 G4 Memory Expansion Board
    NOTE: The HP ProLiant DL580 G4 utilizes up to four Memory Expansion Boards that support up to four DIMMs each. These memory boards are Front accessible providing unsurpassed levels of memory protection as well as scalability for the most memory-intensive applications. See Memory Configuration Diagram.
    NOTE: One Memory Expansion Board ships standard with 1P base models and two Memory Expansion Boards ship standard with 2P High Performance models.

410061-B21
NOTE: memory is interchangeable between the HP ProLiant DL580 G3 and HP ProLiant DL580 G4, but the memory boards are not.
contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models      DL580 G4 Options      DL580 G4 Memory      Storage      Power Specifications      DL580 G4 QuickSpecs images/line.gif

Storage

1

Front-accessible DL580 G4 Memory Expansion Boards, up to four configurable

2

Front-accessible USB 2.0 Ports
3
Slimline 1.44-MB Diskette Drive (ejectable, optional)
4
Slimline DVD/CD-RW Drive (8X/24X) (ejectable, standard)
5
Front-accessible DL580 G4 Processor Board (allows front access to processors and Processor Power Modules)
6
8-Bay SAS/SATA Drive Cage. Supports up to 8 Small Form Factor (SFF) SAS or SATA Hot Plug Drives



Drive Support



Quantity
Supported

Position
Supported


Controller

Slimline Drives (ejectable)





  1.44-MB Slimline Diskette Drive Up to 2 3 or 4 Integrated
  IDE slimline CD-ROM Drive Up to 2 3 or 4 Integrated IDE
  Slimline DVD-ROM Drive (8X/24X) Option Kit Up to 2 3 or 4 Integrated IDE
  NOTE: The HP ProLiant DL580 G4 can support a maximum of two Slimline drives (ejectable). Additional configuration settings may be required if running 2 Diskette Drives. When running 1 diskette drive, the top bay is the default location, but can be changed with additional configuration settings.

DL580 G4 Hard Drives
  SAS SFF Hot Pluggable Drives
  Quantity
Supported
Position
Supported

Controller
  146GB 3G SAS 10K SP 72GB 3G SAS 10K SP
72GB 3G SAS 15K SP
36GB 3G SAS 10K SP
36GB 3G SAS 15K SP
Up to 8 6 HP Smart Array E200/64MB Controller
HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller

  SATA SFF Hot Pluggable Drives
  Quantity
Supported
Position
Supported

Controller
  60GB 1.5G SATA 5.4K Up to 8 6 HP Smart Array E200/64MB Controller
HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller

External Storage



Quantity
Supported

Position
Supported


Host Controller or Adapter



Modular Smart Array 30 Family

Up to 28

External

Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 642 Controller
  Modular Smart Array 50 Enclosure Up to 26 External HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller
  Modular Smart Array 500 G2 Please see the Modular Smart Array 500 G2 QuickSpecs below to determine configuration requirements External Please see the Modular Smart Array 500 G2 QuickSpecs (URL below) for the latest list of supported HBAs
  Modular Smart Array 1000 Please see the Modular Smart Array 1000 QuickSpecs below to determine configuration requirements External Please see the Modular Smart Array 1000 QuickSpecs (URL below) for the latest list of supported HBAs
  Modular Smart Array 1500 cs Please see the Modular Smart Array 1500 cs QuickSpecs below to determine configuration requirements External Please see the Modular Smart Array 1500 cs QuickSpecs (URL below) for the latest list of supported HBAs
  Modular Smart Array 500 G2: https://h18000.www1.hp.com/products/quickspecs/11956_na/11956_na.HTML
Modular Smart Array 1000: https://h18000.www1.hp.com/products/quickspecs/11033_na/11033_na.HTML
Modular Smart Array 1500 cs: https://www.hp.com/go/MSA1500cs

Maximum Storage Capacity - (External SAS Enclosure Attached)



Internal

1.168TB (8 x 146GB SFF SAS Drives)
  External 32.120TB (22 MSA50 Enclosures x 10 drive bays each x 146GB SFF SAS Drives)
  Total 33.288TB

Tape Drives, Tape Autoloaders, & Tape Libraries

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:
https://h18000.www1.hp.com/products/quickspecs/North_America/10233.html

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders and Tape Libraries listed below, please see the following:
https://h18000.www1.hp.com/products/quickspecs/North_America/10809.html

NOTE: For complete listing of tape drive offerings see https://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

For recommended tape drive offerings for this ProLiant server see the following:



Position
Supported

Controller

Controller Part Number

  HP StorageWorks Tape Drives, External
DAT 24 USB
DAT 40 USB
DAT 72 USB
External
USB 2.0 Port
N/A


HP StorageWorks Tape Drives, External
Ultrium 232
Ultrium 448
Ultrium 460
Ultrium 920
Ultrium 960
DAT 40
DAT 72
DLT VS160
SDLT 600
External
HP SC11Xe Host Bus Adapter


HP StorageWorks Tape Drives, SAS External
Ultrium 448 SAS
Ultrium 920 SAS
External
HP 8 Internal Port SAS HBA with RAID 0/1
HP Smart Array P800/512 BBWC Controller
NOTE: Please visit https://www.hp.com/go/connect for details about minimum SAS controller firmware version and SAS cabling requirements.


HP StorageWorks Autoloaders, External
DAT 72x10 Autoloader
1/8 G2 Tape Autoloader
External
HP SC11Xe Host Bus Adapter


HP StorageWorks SCSI Rack-Mount Tape Drive Enclosures
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP SC11Xe Host Bus Adapter


HP StorageWorks USB Rack-Mount Tape Drive Enclosures
1U Rack-Mount Kit
External
USB 2.0 Port
N/A


HP StorageWorks SAS Rack-Mount Tape Drive Enclosures
1U Rack-Mount Kit
External
HP 8 Internal Port SAS HBA with RAID 0/1
HP Smart Array P800/512 BBWC Controller
NOTE: Please visit https://www.hp.com/go/connect for details about minimum SAS controller firmware version and SAS cabling requirements.


HP StorageWorks Tape Libraries, External
MSL2024 (Ultrium 448, Ultrium 920 and 960-based)
MSL4048 (Ultrium 448, Ultrium 920 and 960-based)
MSL6000 (Ultrium 960 and 460-based)
MSL6000 (SDLT 600-based)
External
Please consult the EBS connectivity matrix at https://www.hp.com/go/ebs for detailed connectivity information.
N/A
contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models      DL580 G4 Options      DL580 G4 Memory      Storage      Power Specifications      DL580 G4 QuickSpecs images/line.gif

Power Specifications

Part Number 348114-001
Operational Input Voltage Range (V rms) 90 to 264
Frequency Range (Nominal) (Hz) 47 to 63 (50/60)




Nominal Input Voltage (Vrms)
100
115
208
220
230
240
Max Rated Output Wattage Rating
910
910
1300
1300
1300
1300
Nominal Input Current (A rms)
11.9
10.2
7.7
7.3
6.9
6.6
Max Rated Input Wattage Rating (Watts)
1163
1148
1566
1566
1548
1548
Max. Rated VA (Volt-Amp)
1186
1172
1598
1598
1579
1579

Efficiency (%)

80
81
83
83
84
84
Power Factor
0.98
0.98
0.98
0.98
0.98
0.98

Leakage Current (mA)

.43
.50
.90
.96
1.00
1.04
Maximum Inrush Current (A peak)
100
100
100
100
100
100

Maximum Inrush Current duration

10
10
10
10
10
10

NOTES:
To review typical system power ratings use the Active Answers Power Calculator which is available via the online tool located at URL: https://h30099.www3.hp.com/configurator/powercalcs.asp.
To drill down to calculators:

  • Click on: "ProLiant Servers"
  • Click on the Server of interest. Example: DL580 G4
  • Click on: "Power Calculator" link. (You may need to scroll down to see it)
  • There are certain Dual-Core, lowline, max configurations that are not supported. All highline configurations are supported. Consult the Power Calculator to determine if your lowline configuration is supported.

Standard Rack Model Power Cords / Jumper Cords Description



IEC320-C14 to IEC320-C19 Jumper Cord

Optional Country Power Cords and Jumper Cords

Description
Option Kit Part Number
  5-15P to IEC320-C19
235603-001
  6-20P to IEC320-C19
235604-001
  L6-20P to IEC320-C19, 20A, 250V, US
340653-001
  IEC320-C19 to IEC320-C14 Jumper (10A, IEC, 6 ft/2.0m)
313227-B21
  IEC320-C19 to IEC320-C14 Jumper (10A, IEC, 8 ft/2.5m)
291034-B21
  IEC320-C19 to IEC320-C14 Jumper (10A, IEC, 10 ft/3.0m)
310927-B21
  IEC320-C19 to IEC320-C14 Jumper (10A, IEC, 12ft/3.7m)
313228-B21
  IEC320-C19 to IEC320-C20 Jumper (16A, IEC, 8ft/2.5m)
295633-B22
contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models      DL580 G4 Options      DL580 G4 Memory      Storage      Power Specifications      DL580 G4 QuickSpecs images/line.gif

Quickspecs

System Unit Rack

Chassis Footprint (HxWxD)

6.94 x 19 x 26.5 in (17.6 x 48.3 x 67.3 cm)

Weight
No hard drives installed,
one power supply

80 lb (36.3 kg)

Input Requirements

Rated Input Voltage 100 to 120 VAC/200 to 240 VAC
Rated Input Frequency 50 to 60 Hz
Input Power 1148W @ 115 VAC/1566W @ 220 VAC
Rated Input Current 12A (100 to 127 VAC), 8.0A (200 to 240 VAC)
Max BTU Rating 5457 BTU
Power Supply Output Power (per power supply) Rated Steady-State Power 910W/1300W (lowline/highline)
Maximum Peak Power 910W/1300W (lowline/highline)
Temperature Range Operating 50° to 95° F (10° to 35° C)
Non-operating -20° to 140° F (-29° to 60° C)
Shipping -22° to 122° F (-30° to 50° C)

Relative Humidity
(non-condensing)

Operating 10% to 70%
Non-operating 5% to 95%

Maximum Wet Bulb Temperature

101.7° F (38.7° C)
Acoustic Noise



NOTE: Listed are the declared A-weighted sound power levels LWAd and the declared average bystander position sound pressure levels LpAm when operating in a 23° C ambient environment. Noise emissions were measured in accordance with ECMA 74 and declared in accordance with ECMA 109.
Idle (Fixed Disk Drives Spinning)
  L WAd (BELS) 7.8
  L pAm (dBA) 60
NOTE: These values apply to 4U rack configuration. The configuration tested included 4 processors, 4 15,000 rpm hard drives, (also 8 SFF SAS hard drives), 2 power supplies, and 6 system fans.

24X Max (or higher) IDE CD-ROM Drive Slim Line

Disk Applicable Disk CD-DA, CD-ROM (Mode 1 and 2)
  CD-XA, CD-I (Mode 2, Form 1 and 2)
    Photo CD (Single and Multi-session)
    Mixed Mode (Audio and Data combined)
  Capacity 540 MB (Mode 1, 12 cm)
    650 MB (Mode 2, 12 cm)
  Diameter 4.7 x 3.15 in (12 x 8 cm)
  Rotational Speed 4200 rpm maximum
  Center Hole 0.6 in (15 mm) diameter
  Thickness 0.05 in (1.2 mm)
  Track Pitch 1.6 µm
Block Size Mode 1 2,048
  Mode 2 2,340, 2,336, 1,024 bytes
  CD-DA 2,352 bytes
  CD-XA 2,328 bytes
Interface IDE (ATAPI)
Access Times (typical) Random 100 ms
Full-Stroke 2000 ms
Audio Output Level Line-Out 0.7 VRMS at 47 kOhms
Headphone 0.6 VRMS at 32 kOhms (maximum volume)
Data Transfer Rate Sustained 150 KB/s (sustained 1X)
Burst 2100 to 3600 KB/s
Cache Buffer 128 KB
Start-up Time (typical) < 7seconds
Stop Time < 4seconds
Laser Parameters Type Semiconductor Laser GaA1As
Wave Length 780 ± 25 nm
Divergence Angle 53.5° ± 1.5°
Output Power 0.14 mW
Operating Conditions Temperature 41° to 113° F (5° to 45° C)
  Humidity 10% to 80%
Dimensions

(HxWxD, maximum)

1.69 x 5.75 x 8.19 in (4.29 x 15 x 20.8 cm)
  Weight 2.66 lb (1.2 kg)

Slimline CD-RW/DVD-ROM 24X Combo Drive (Multibay)

Shipping Dimensions13.88 x 11.38 x 9.25 in (35.26 x 28.91 x 23.50 cm)

Shipping Weight

5 lb (2.27 kg)
Disk

Applicable Disk

DVD-ROM



DVD-R (Read Only)



2.6 GB/side DVD-RAM (Read Only)



5.2 GB/side DVD-RAM (Read Only)



CD-ROM Mode-1 data disc

  CD-ROM Mode-2 data disc
  CD Audio disc
  CD-Extra
  CD-RW
  CD-R
  CD Text
  PhotoCD
  CD-I (mode 2)
  CD-I Ready
  CD-Bridge


Capacity

DVD-ROM

DVD-SL4.7 GB/side
   DVD-DL8.5 GB/side
   Double Sided9.40 GB/side
  DVD-R 3.95 GB/side
  DVD-RAM 2.6 GB/side and 5.2 GB/
  CD-ROMMode-1650 MB (550 MB)
   Mode-2742 MB (640 MB)
 Block SizeDVD 2,048 bytes
  CD 2,352 (Mode-0)
    2352, 2340, 2336, 2048 bytes
(Mode-1)
    2352, 2340, 2336, 2048 bytes
(Mode-2)


Diameter

120 mm (4.7 in), 80 mm (3.1 in)(with adapter at vertical mounting mode)

Loading Mechanism

Tray type



Interface

EIDE (ATAPI)



Access Times (typical)

Random

DVD-ROM < 120 ms, CD-ROM < 110 ms



Full-Stroke

DVD-ROM < 240 ms, CD-ROM < 160 ms

Audio Output Level (typical)

Line-out

CD 0.7 Vrms at 47 Kohms Load

Data Transfer Rate (sustained)

DVD-ROM

Single Layer

10.8 MB/sec. Max.
DVD-RAM2.77 MB/sec. Max


CD-ROM

7.2 MB/sec. Max.

Cache Buffer

2 MB



Spin-up Time (typical)

less than 10 seconds



MTBF

120,000 Power On Hours (POH)



Ambient Temperature

Operating

-22° to 140° F (-30° to 60° C)

Relative Humidity

Operating

10% to 80%



Storage/Transportation

5% to 95%

Dimensions

(HxWxD, maximum)

0.5 x 5.04 x 5.1 in (12.7 x 128 x 129.4 mm)

Option Kit Contents DVD-ROM drive with installation guide, warranty card, registration card

Integrated Lights-Out 2 Standard (integrated on system board) Architecture 32-bit PCI-based health and remote management ASIC (Application Specific Integrated Circuit)
Processor 32-bit RISC processor core running at 66 MHz
Upgradability Option firmware upgradable via flash ROM.
Video Support Utilizes the host server's embedded video chip. Supports VGA/SVGA, 640 x 480 (256 to 16.7M colors), 800 x 600 (256 to 16.7M colors), 1024 x 768 (256 to 65K colors), 1280 x 1024 (256 colors)
Interfaces One Ethernet network connection (10/100 Mb/s)
Memory 2-MB Flash ROM
8-MB SDRAM
Operating System Support Microsoft Windows NT 4.0 Server
Windows NT 4.0 Enterprise Edition
Windows 2000 Server
Windows 2000 Advanced Server
Red Hat 7.x
SuSE 7.0
Novell NetWare 5.x, 6.x
Client Browser Support Microsoft Internet Explorer 5.5 or later.
iLO 2 Standard Features Virtual Text Remote Console
Virtual KVM
Virtual Power Button Control
Virtual UID Control
Power Regulator Control
Dedicated LAN Connectivity
Secure access using web browser
Secure access using Secure Shell (SSH) client
Serial connectivity
Automatic IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure Sockets Layer (SSL) Security
IML and iLO2 Event Logging
Support for up to 12 user accounts with customizable access privileges

iLO 2 Advanced Features (optional)

Virtual Graphical Remote Console
Virtual Floppy/USB Key drive
Virtual CD-ROM drive
Directory Services Integration
Processor States Reporting
Terminal Services Integration

Smart Array P400 Controller

Disk Drive and Enclosure Interface

3G SAS (Serial Attached SCSI)
1.5G SATA (Serial Advanced Technology Attachment)
SAS Connectors
2 internal (SFF8484) x4 wide port connectors
Cache Memory Speed

DDR2-533MHz with 40 or 72-bit wide bus provides up to 4.2 GB/s maximum bandwidth.
Server Interface x8 2.5G PCIe provides 2GB/s maximum bandwidth.
SAS Speed
x8 3G SAS provides 2.4GB/s maximum bandwidth.
Cache Memory
40-bit 256MB cache (72-bit 512MB module upgrades available); ECC protection, battery-backed, and transportable
Logical Drives Supported
Up to 32 logical drives
Maximum Logical Drive Capacity 2TB
Host Memory Addressing
64-bit, supporting greater than 4GB server memory space
RAID Support RAID 6 with ADG (Advanced Data Guarding) requires Battery Backed Write Cache Upgrade
RAID 5 (Distributed Data Guarding)
RAID 1, 1+0 (Striping & Mirroring)
RAID 0 (Striping)

Dual embedded NC371i Multifunction Gigabit Server Adapters

Network Interface 10Base-T/100Base-TX/1000Base-TX
Compatibility IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method 64-bit/133MHz PCI-X
Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s
10Base-T (Full-Duplex) 20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex) 200 Mb/s
1000Base-TX (Half and Full-Duplex) 2000 Mb/s
Connector RJ-45
Cable Support 10Base-T
Categories 3, 4, or 5 UTP; up to 328 ft (100 m)
100Base-TX
Category 5 or higher UTP; up to 328 ft (100 m)
1000Base-TX Category 5 or higher UTP; up to 328 ft (100 m)

Sillworks                  Ph: 1.613.599.1287                  Fax: 1.613.599.8120
U320 | SSD | SAS/SATA | Fibre | Memory | Controllers | Processors | Power Supplies | Networking
line
Dell | EqualLogic | EMC | Hewlett-Packard | IBM | Seagate
line
HP      HP      HP      Dell Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account Dell      Dell      Dell      Seagate
Terms of Use | Legal | Privacy | Primary Site | Contact us | Add to favorites
Amex Accepted Visa Accepted MasterCard Accepted
