HP ProLiant DL585 Generation 2 (G2)

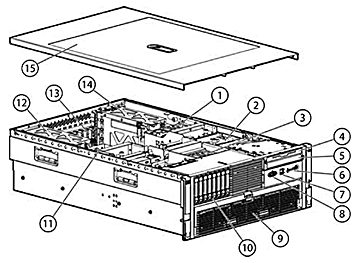

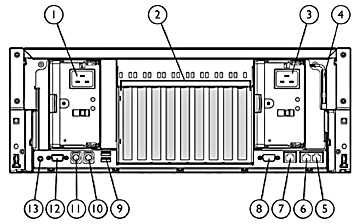

Front View:Rear View:
1. Hot Plug Redundant Fans (standard)1.Redundant hot-plug power supply (optional)
2. System Insight Display2.

PCI Express and PCI-X non-hot-plug expansion slots

3. Hot Plug Redundant Fans (standard)3.

Hot-plug power supply (primary)

4.1.44 MB Diskette Drive (optional) 4.

T-15 Torx screwdriver

5. DVD/CD-RW drive (standard)5. NIC connector 2
6. Front Panel LED Display (internal and external health, Unit ID light) and Power Button6. NIC connector 1
7. Two USB ports7. Integrated Lights-Out 2 (iLO 2) connector
8. One video port8. Serial connector
9. Front accessible processor / memory cage9. USB connectors (two)
10. Eight bay Small Form Factor (SFF) Serial Attached SCSI (SAS) drive cage 10. Mouse connector
11.4U (7" Height) Rack Form Factor 11. Keyboard connector
12.Hot Plug Redundant Power Supply12. Video connector
13.Nine PCI I/O Slots (2 64-bit/100MHz PCI-X, 4 PCI-Express x4, 3 PCI-Express x8)13.

Rear UID button and LED

14.Hot Plug Redundant Power Supply
15.Removable Top Access Panel

What's New
  • Support for AMD OpteronTM 8224SE processor (3.2GHz, 120 watt) CTO option

At A Glance

The HP ProLiant DL585 G2, the best price/performance x86 4-processor server in the industry, supports the AMD Rev F OpteronTM Dual-Core processors, further increasing the performance leadership of this system. Dual-Core AMD OpteronTM processors enable a huge boost in performance over single-core processors.

The HP ProLiant DL585 G2 follows the award winning legacy of the HP ProLiant DL585 by offering exceptional price/performance and price per watt metrics. The ProLiant DL585 G2 continues to maintain price: performance leadership, especially with a variety of 32-bit application benchmarks. The 128 GB memory footprint enables most applications to run faster or support more users than other systems and with the inclusion of Rev F processors the ProLiant DL585 G2 has now been optimized for virtualization. The ProLiant DL585 G2 combines AMD OpteronTM processor technology, best-in-class management and outstanding uptime features in an enterprise-class system ideal for large data center deployments.

  • Processors:
    • Dual-Core AMD 8200 Series Processors
  • Memory:
    • Up to 128 GB of memory, supported by (32) slots of PC2-5300 Registered DIMMs at 667MHz
  • Storage Controller:
    • HP Smart Array P400/256MB Controller (optional 512MB battery backed write cache)
    • HP Smart Array P400/512MB BBWC Controller standard on some models
  • Internal Drive Support:
    • Up to 1.168TB (8 x 146GB SFF SAS hot plug drives)
    • Slimline floppy (optional) and slimline DVD/CD-RW (standard) drives
  • Network Controller:
    • Two embedded NC371i Multifunction Gigabit Network Adapters with TCP/IP Offload Engine, including support for Accelerated iSCSI through an optional Licensing Kit
  • Expansion Slots:
    • 9 total slots: (3) x8 PCI-Express; (4) x4 PCI-Express; (2) PCI-X (100MHz)
    • One slot populated with the Smart Array P400 Controller
  • Video Ports:
    • One front and one rear video ports
  • USB Ports:
    • (5) Total USB 2.0 Ports: (2) front; (2) rear; (1) internal
  • Redundancy:
    • Redundant hot plug power supplies and fans
  • Management:
    • Integrated Lights-Out 2 featuring Integrated Remote Console with KVM over IP performance over shared network access
    • Innovative diagnostic lighting (System Insight Display) for rapid response to service events
  • Form Factor:
    • Delivering maximum performance in a versatile, rack optimized form factor
  • Deployment/Serviceability:
    • Tool-less and virtually cable-less internal design
    • Rapid Deployment racking solution (rack rails and cable management)
  • Warranty:
    • This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. SATA hard drives have a one-year warranty.
      NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models      Options      Memory      Storage      Power Specifications      Technical Specifications line.gif (50 bytes)

Standard Features

NOTE: For a brief, printer friendly data sheet that describes this product and informs you of the essential capabilities and specifications, please visit: http://h71028.www7.hp.com/ERC/downloads/4AA0-7461ENW.pdf.
Processor
Two or four of the following depending on Model
AMD OpteronTM Processor 8224SE, Dual-Core (3.2 GHz, 120 Watts)
NOTE: 2 or 4 supported.
AMD OpteronTM Processor 8222, Dual-Core (3.0 GHz, 95 Watts)
NOTE: 2 or 4 supported.
AMD OpteronTM Processor 8222SE, Dual-Core (3.0 GHz, 120 Watts)
NOTE: 2 or 4 supported.
AMD OpteronTM Processor 8220, Dual-Core (2.8 GHz, 95 Watts)
NOTE: 2 or 4 supported.
AMD OpteronTM Processor 8220SE, Dual-Core (2.8 GHz, 120 Watts)
NOTE: 2 or 4 supported.
AMD OpteronTM Processor 8218, Dual-Core (2.6 GHz, 95 Watts)
NOTE: 2 or 4 supported.
AMD OpteronTM Processor 8216, Dual-Core (2.4 GHz, 95 Watts)
NOTE: 2 or 4 supported.
AMD OpteronTM Processor 8214, Dual-Core (2.2 GHz, 95 Watts)
NOTE: 2 or 4 supported.
AMD OpteronTM Processor 8212, Dual-Core (2.0 GHz, 95 Watts)
NOTE: 2 or 4 supported.

Cache Memory 1MB Integrated Level 2 Cache memory per core

Upgradeability HP ProLiant DL585 G2 servers can support up to 4 processors.
Upgradeable to quad-core processors (not available at this time)

Chipset nVidia NForce Professional 2200 and 2050 chipsets, and AMD-8132 chipset

Memory Protection & Functionality Advanced ECC

Memory Type

PC2-5300 Registered DIMMs at 667 MHz

Standard
One of the following depending on Model

2 GB (4 x 512 MB)

4 GB (4 x 1 GB)
8 GB (8 x 1 GB)
Maximum 128 GB (32 x 4 GB)

Network Controller Two embedded NC371i Multifunction Gigabit Network Adapters with TCP/IP Offload Engine, including support for Accelerated iSCSI through an optional Licensing Kit

Expansion Slots
Bus speed
Bus number
PCI Voltage
Notes
1
64-bit / 100 MHz PCI-X
Bus 0x42 = 66
3.3 Volt
Half-length Slot
2
64-bit / 100 MHz PCI-X Bus 0x42 = 66
3.3 Volt

3
PCI-Express x4
Bus 0x49 = 73


4
PCI-Express x4
Bus 0x4C = 76


5
PCI-Express x8
Bus 0x46 = 70


6
PCI-Express x4
Bus 0x4F = 79


7 PCI-Express x8 Bus 0x02 = 2


8 PCI-Express x8 Bus 0x05 = 5


9 PCI-Express x4 Bus 0x08 = 8   Half-length slot; Reserved slot for Smart Array P400 Controller
NOTE: All slots are non-hot-plug Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number. Slots are enumerated differently based on the operating system. Microsoft operating systems enumerate from lowest to highest Device ID by bus (starting with the lowest bus).

Manageability Integrated Lights-Out 2 (iLO 2) Standard Management (ASIC on the System Board)

Storage Controllers
One of the following depending on Model
HP Smart Array P400/256MB Controller (in a PCI-Express slot)
NOTE: Standard on 2.0GHz and 2.2GHz models.

HP Smart Array P400/512MB BBWC Controller (in a PCI-Express slot)
NOTE: Standard on 2.4GHz, 2.6GHz, 2.8GHz, and 3.0GHz models.


Storage Data Protection The Battery-Backed Write Cache (BBWC) Enabler for the Smart Array P400 Controller protects up to 512-MB write cache memory from hard boot, power, controller, or system board failures.
  • Standard on all HP ProLiant DL585 G2 Models
  • Battery charge/life: Up to 72 hours/3 years
  • Transportable data protection
  • Increases overall controller performance
NOTE: Safely transport your write cache data to another HP ProLiant DL585 G2 in the data center by removing the BBWC Enabler and Smart Array P400 Controller Memory Module simultaneously (connected by short cable).

Storage Diskette Drive Optional 1.44 MB Diskette Drive (slimline) - ejectable for security and serviceability
Optical Drive Slimline DVD/CD-RW Drive Standard on all models - ejectable for security and serviceability
Hard Drives None ship standard
Hard Disk Drive Backplane Internal SAS backplane supports up to eight SFF hard disk drives

Maximum Internal Storage Type Hot Plug SAS 1.168TB 8 x 146GB SFF SAS drives (internal hot plug)
Hot Plug SATA 960GB 8 x 120GB SFF SATA (internal hot plug)

Interfaces Serial 1
Pointing Device (Mouse) 1
Video 1 front, 1 rear
Keyboard 1
USB 2.0 Ports 2 front, 2 rear, 1 internal
iLO 2 Remote Management 1
Network RJ-45 2

Graphics Integrated ATI-RN50 with 32MB DDR memory

Form Factor Rack (4U = 7 inches), ships with sliding rails and cable management system
Space saving form factor (4U) provides space efficiencies while providing maximum deployment flexibility

HP Insight Control Management Suites

HP Insight Control Environment delivers foundation management, including remote monitoring, hardware resource deployment, health monitoring, software version control, performance monitoring, vulnerability scanning and patch management, and power management.
HP Insight Control Environment installs and licenses the following components by default using a wizard-based integrated installer:

  • HP Systems Insight Manager
  • HP iLO Advanced Pack
  • HP Rapid Deployment Pack
  • HP Insight Power Manager
  • HP Performance Management Pack
  • HP Vulnerability and Patch Management Pack

Additional ProLiant Essentials software and management tools included on the Insight Control Management kit can be installed manually

  • HP Server Migration Pack - Universal Edition
  • HP Open Service Event Manager
  • HP Instant Support Enterprise Edition

NOTE: Server Migration Pack - Universal Edition can be installed from the SMP Universal CD included in the Insight Control Management media kit.
NOTE: For additional product and licensing information about HP Insight Control Environment, visit: http://www.hp.com/go/ice.

HP Insight Control management suites and most HP ProLiant Essentials include a one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit: http://www.hp.com/services/insight.


Server Management Stand Alone Software Product - ProLiant Essentials

HP Systems Insight Manager



HP Systems Insight Manager (HP SIM) provides a unified, secure and extensible standards-based environment to centrally manage servers, storage and other infrastructure devices, (both HP and non-HP) across multiple operating system platforms.

ProLiant Essentials Rapid Deployment Pack



Rapid Deployment Pack (RDP) extends HP Systems Insight Manager with a complete deployment solution for HP ProLiant servers. RDP provides a central location to configure server hardware, deploy Windows, Linux and VMware ESX operating environments and install HP ProLiant Support Pack drivers using images and scripted profiles. For more information, visit: http://www.hp.com/servers/rdp.

ProLiant Essentials Server Migration Pack - Universal Edition

Upgrading, replacing, or virtualizing your existing server? Effortlessly transition to new virtual or physical HP ProLiant servers or BladeSystem with automated, accurate and affordable migration of OS, application and data. SMP Universal automates the manual processes required for migrating servers between physical or virtual platforms, whether migrating to VMware or Microsoft virtual machines. SMP Universal allows all of the following migrations:

  • physical to ProLiant
  • physical to virtual
  • virtual to virtual
  • virtual to ProLiant

NOTE: For more information, visit: http://www.hp.com/go/migrate.

ProLiant Essentials Performance Management Pack

Performance Management Pack (offered exclusively through the Insight Control suites) - a performance management solution that identifies and explains hardware performance bottlenecks on ProLiant servers and attached options enabling users to better utilize their valuable resources

Integrated Lights-Out Advanced Pack

Upgrades the iLO 2 processor with comprehensive remote control including Virtual KVM remote graphical console, enhanced console sharing and replay, virtual media (floppy, CD/DVD, USB key), virtual folders, and enterprise security (directory services and two-factor authentication).

ProLiant Essentials Accelerated iSCSI Pack

Enables the embedded Multifunction network controller to serve as both a NIC and an iSCSI HBA providing access to SAN storage over the same connection used for networking. Processing of the protocol stack is offloaded to the NIC reducing CPU utilization and greatly improving the speed with which the requests are processed and sent to the network.
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to: http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.

Core Infrastructure Management

SmartStartSmartStart is a tool that simplifies server setup, providing a rapid way to deploy reliable and consistent server configurations. For more information, please visit the SmartStart Web site at: http://www.hp.com/servers/smartstart.
SmartStart version supported (minimum): SmartStart 7.60.
Insight Management Agents

The Insight Management Agents should be installed on all HP servers to present system instrumentation, health and configuration information into HP Systems Insight Manager and the HP System Management Homepage. The HP System Management Homepage aggregates systems data from Insight Management Agents and other HP management tools, providing a consolidated browser-based interface for managing individual servers.

Insight Management Agents and The HP System Management Homepage are included on ProLiant Support Packs, and can also be installed using the server profiles provided with the ProLiant Essentials Rapid Deployment Pack.

For additional information about the Management Agents and the HP System Management Homepage please visit the management Web site at: http://www.hp.com/servers/manage.

Subscriber's ChoiceSubscriber's Choice Driver and Support Alerts/Notifications is a web-based email subscription service that provides software and driver change notifications for ProLiant products. Sign up at: http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become available, on a weekly or monthly basis.
ProLiant Support Packs and ROMPaq, softwareThe latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options, available through ProLiant Support Packs the ProLiant Essentials Rapid Deployment Pack, SmartStart or downloaded from software and drivers download pages website at: http://www.hp.com/go/support.

Industry Standard Compliance ACPI 1.0a. Compliant
PCI 2.2 Compliant
PXE Support
WOL Support (with embedded NC371i Multifunction Gigabit Network Adapters)
Physical Address Extension (PAE) Support
Microsoft® Logo certifications
USB 2.0 Support

Remote ManagementIntegrated Lights-Out 2 (iLO 2) Standard Management
  • Virtual Text Remote Console (pre OS-only)
  • Remote Serial Console
  • Virtual Power Button Control
  • Virtual Unit ID control
  • Integrated Remote Console (ActiveX Control client)
  • Dedicated & full function shared network connectivity with VLAN
  • Embedded system health
  • Browser, command line and scripted access
  • Automatic IP Configuration via DHCP/DNS/WINS
  • Industry Standard 128-bit Secure Sockets Layer (SSL) and Secure Shell security (SSH)
  • Advanced Encryption Standard (AES) / Triple Data Encryption Standard (3DES)
  • OS independent hardware health status
  • IML and iLO Event Logging
  • Support for 12 user accounts with customizable access privilege

Intelligent Manageability HP Systems Insight Manager
SmartStart
Redundant ROM
Remote Flash ROM
Management Agents
Integrated Management Log (IML)
Automatic Server Recovery-2 (ASR-2)
ROM-Based Setup Utility (RBSU)
Dynamic Sector Repairing (with Smart Array Controllers)
Drive Parameter Tracking (with Smart Array Controllers)
Pre-Failure Warranty (covers processors, SAS hard drives and memory)
Redundant/adaptive load balancing NIC Support

Availability
  • Smart Array P400 Controller with standard Battery Backed Write Cache (BBWC) Enabler provides transportable data protection and increases overall controller performance. Up to 512MB Battery Backed Write Cache protection available on all HP ProLiant DL585 G2 models.
  • Up to eight hot-plug SFF SAS Hard Drives
  • Dual Hot-Plug Redundant Power Supplies
  • Hot-Plug Redundant Fans (standard)
Fans are N+1 hot plug redundant and individually removable.

Serviceability
  • System Insight Display - precisely depicts all major subsystems of the server (PCI I/O, Memory, CPU, Redundant Cooling, Interlock, Thermtrip) and gives instant visual indication of fault status. Located on top front of server, beneath lid.
  • Tool-less, virtually cable-less interior design
    • Tool-less access to interior of server
    • Two ejectable, slimline Media Bay media drives (DVD/CD-RW standard with support for optional floppy or optical drives) are removable without the use of tools
    • Front accessible processors and memory
    • PCI Card Guides locks full length PCI cards in place during transit
    • Six individually removable fans connect without cables to the system board
    • Tool-less removal of system board
  • Quick Deploy Rails
  • Tool-less design "snap in" rail

Security Power-on password
Keyboard password
Diskette drive control enable/disable
Diskette boot control enable/disable
External USB port enable/disable
Network Server Mode
Serial interface control
Administrator's password
Removable Diskette drive (optional)
Removable optical drive

Power Supply 910W (low line), 1300W (high line) with 12V main output. Size is 2.8"(H) X 4.9"(W) X 7.5"(L).
NOTE: One Hot Plug Power Supply ships standard with 2.0GHz and 2.2GHz models (optional Redundant Hot Plug Power Supply Option Kit).
NOTE: Two Hot Plug Power Supplies ship standard with 2.4GHz, 2.6GHz, 2.8GHz, and 3.0GHz models.

UPS and PDU Power Cord Matrix Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and specifications for UPS and PDU units:
http://h18004.www1.hp.com/products/servers/proliantstorage/power-protection/index.html.

Server Power CordsAsia PacificIEC320-C14 to IEC320-C19 Jumper Cord
EuropeIEC320-C14 to IEC320-C19 Jumper Cord
JapanJIS C8303 to IEC320-C19
IEC320-C14 to IEC320-C19 Jumper Cord
PRCIEC320-C14 to IEC320-C19 Jumper Cord
USA IEC320-C14 to IEC320-C19 Jumper Cord
NOTE: The HP ProLiant DL585 G2 servers ship standard worldwide with a 6-foot IEC 320-C14 to IEC320-C19 jumper cord. Japanese models also include a 3.6 meter lowline (100V) power cord. If you require a local power cord, please check the Power Specifications below for the appropriate country-specific power cord, or consult the Power Cord Matrix: http://www.hp.com/go/powercordmatrix.

System Fans Standard 6 Hot plug, redundant fans (individually removable)
Maximum 6 Hot plug, redundant fans (individually removable)

Required CablingFor required cabling information, refer to the HP Web site at: www.hp.com/servers/dl585

OS Support

Microsoft Windows Server 2003
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
Sun Solaris
VMware Virtualization Software

NOTE: For a more complete and up-to-date listing of supported OSs and versions, please visit our OS Support Matrix at: http://www.hp.com/go/supportos.
NOTE: For an up-to-date listing of the latest drivers available for the HP ProLiant DL585 G2, please see: http://www.hp.com/support.
NOTE: For more Linux OS support & certification information, please visit our the ProLiant & BladeSystem Server Linux matrix at: http://h18004.www1.hp.com/products/servers/linux/hpLinuxcert.html
NOTE: For more information on HP's Certified and Supported ProLiant Servers, please visit the VMware Server Support Matrix at: http://h18004.www1.hp.com/products/servers/software/vmware/hpvmwarecert.html
NOTE: For more complete and up-to-date information on how to buy server operating systems from HP please visit the OS product site at: http://h18004.www1.hp.com/products/servers/software/OEM.html

Rack Airflow Requirements Rack 10000 series Cabinets

The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment:
    • Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 5,350 sq cm (830 square inches) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation).
    • Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 7 cm (2.75 inches).
CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

NOTE: For additional information, refer to the Setup and Installation Guide or the Documentation CD provided with the server, or to the server documentation located in the Support section at the following URL: www.hp.com/servers/dl585.


Rack Mounting Requirements HP ProLiant DL585 G2 rack models provide tool-free support for racks with square or round mounting holes (including Compaq/HP 7000, 9000, 10000, HP/E series, H9 series and third party racks) with an adjustment range from 24" – 36" in depth. The ambidextrous cable management arm can be mounted on either the left or right side for improved cable management.

HP ProLiant DL585 G2 in Telco Racks Support for all 2-post Telco racks requires the use of the standard rack kit and an additional option kit from Rack Solutions (http://www.racksolutions.com/hp/)

Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model, please contact your sales representative or go to http://www.hp.com/go/factory-express.


HP Enterprise Configurator

The HP eCo-Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance.

contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models      Options      Memory      Storage      Power Specifications      Technical Specifications line.gif (50 bytes)

Solutions

Solutions Designed for enterprise customers with growing data centers and application and Internet service providers that require a rack optimized 4-processor server that delivers maximum performance and high availability for highly complex, business critical applications. Specifically, the HP ProLiant DL585 G2 would be excellent for running the following types of applications:
Typical Usage:
  • High Performance Computing (HPC)
  • Electronic Design Automation (EDA)/Semiconductor
  • Financial
  • Large database applications
  • ERP / CRM
  • Petrochemical
  • Life Science and Material Science
  • Video Rendering
contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models      Options      Memory      Storage      Power Specifications      Technical Specifications line.gif (50 bytes)

Models

Models
DL585R02 O3.0GHz-1 MB, 8 GB, 120W
(4P Dual-Core)
448183-001

Processor(s)(4) AMD OpteronTM Processor 8222SE, Dual-Core (3.0 GHz, 120 Watts)
Cache Memory1-MB Integrated Level 2 Cache
Memory 8 x 1 GB of PC2-5300 DDR SDRAM (Standard) to 128 GB, running at 667 MHz
Network ControllerTwo embedded NC371i Multifunction Gigabit Network Adapters
Storage ControllerHP Smart Array P400/512MB BBWC Controller
ManageabilityIntegrated Lights-Out 2 (iLO 2) Standard management (integrated on system board)
Hard DrivesNone ship standard
Internal Storage1.168TB max (with optional 146GB SFF SAS Hot Plug hard drives)
Power SupplyTwo 910W/1300W Power Supplies standard (second power supply for redundancy)
Optical DriveSlimline DVD/CD-RW Drive (8X/24X) (ejectable)
Form FactorRack 4U

DL585R02 O2.8GHz-1 MB, 8 GB, 95W
(4P Dual-Core)
439727-001
Processor(s)(4) AMD OpteronTM Processor 8220, Dual-Core (2.8 GHz, 95 Watts)
Cache Memory1-MB Integrated Level 2 Cache
Memory 8 x 1 GB of PC2-5300 DDR SDRAM (Standard) to 128 GB, running at 667 MHz
Network ControllerTwo embedded NC371i Multifunction Gigabit Network Adapters
Storage ControllerHP Smart Array P400/512MB BBWC Controller
ManageabilityIntegrated Lights-Out 2 (iLO 2) Standard management (integrated on system board)
Hard DrivesNone ship standard
Internal Storage1.168TB max (with optional 146GB SFF SAS Hot Plug hard drives)
Power SupplyTwo 910W/1300W Power Supplies standard (second power supply for redundancy)
Optical DriveSlimline DVD/CD-RW Drive (8X/24X) (ejectable)
Form FactorRack 4U

DL585R02 O2.8GHz-1 MB, 8 GB, 120W
(4P Dual-Core)
413930-001
Processor(s)(4) AMD OpteronTM Processor 8220SE, Dual-Core (2.8 GHz, 120 Watts)
Cache Memory1-MB Integrated Level 2 Cache
Memory 8 x 1 GB of PC2-5300 DDR SDRAM (Standard) to 128 GB, running at 667 MHz
Network ControllerTwo embedded NC371i Multifunction Gigabit Network Adapters
Storage ControllerHP Smart Array P400/512MB BBWC Controller
ManageabilityIntegrated Lights-Out 2 (iLO 2) Standard management (integrated on system board)
Hard DrivesNone ship standard
Internal Storage1.168TB max (with optional 146GB SFF SAS Hot Plug hard drives)
Power SupplyTwo 910W/1300W Power Supplies standard (second power supply for redundancy)
Optical DriveSlimline DVD/CD-RW Drive (8X/24X) (ejectable)
Form FactorRack 4U

DL585R02 O2.6GHz-1 MB, 4 GB, 95W
(2P Dual-Core)
413929-001
Processor(s)(2) AMD OpteronTM Processor 8218, Dual-Core (2.6 GHz, 95 Watts) (2 or 4 supported)
Cache Memory1-MB Integrated Level 2 Cache
Memory 4 x 1 GB of PC2-5300 DDR SDRAM (Standard) to 128 GB, running at 667 MHz
Network ControllerTwo embedded NC371i Multifunction Gigabit Network Adapters
Storage ControllerHP Smart Array P400/512MB BBWC Controller
ManageabilityIntegrated Lights-Out 2 (iLO 2) Standard management (integrated on system board)
Hard DrivesNone ship standard
Internal Storage1.168TB max (with optional 146GB SFF SAS Hot Plug hard drives)
Power SupplyTwo 910W/1300W Power Supplies standard (second power supply for redundancy)
Optical DriveSlimline DVD/CD-RW Drive (8X/24X) (ejectable)
Form FactorRack 4U

DL585R02 O2.4 GHz-1 MB, 2 GB, 95W
(2P Dual- core)
413928-001

Processor(s)(2) AMD OpteronTM Processor 8216, Dual-Core (2.4 GHz, 95 Watts) (2 or 4 supported)
Cache Memory1-MB Integrated Level 2 Cache
Memory4 x 512 MB of PC2-5300 DDR SDRAM (Standard) to 128 GB, running at 667 MHz
Network ControllerTwo embedded NC371i Multifunction Gigabit Network Adapters
Storage ControllerHP Smart Array P400/512MB BBWC Controller
ManageabilityIntegrated Lights-Out 2 (iLO 2) Standard management (integrated on system board)
Hard DrivesNone ship standard
Internal Storage1.168GB max (with optional 146GB SFF SAS Hot Plug hard drives)
Power SupplyTwo 910W/1300W Power Supplies standard (second power supply for redundancy)
Optical DriveSlimline DVD/CD-RW Drive (8X/24X) (ejectable)
Form FactorRack 4U

DL585R02 O2.2 GHz-1 MB, 2 GB, 95W
(2P Dual-Core)
418550-001

DL585R02 O2.0 GHz-1 MB, 2 GB, 95W
(2P Dual-Core)
413927-001


Processor(s)
One of the following depending on Model
(2) AMD OpteronTM Processor 8214, Dual-Core (2.2 GHz, 95 Watts) (2 or 4 supported)
(2) AMD OpteronTM Processor 8212, Dual-Core (2.0 GHz, 95 Watts) (2 or 4 supported)
Cache Memory1 MB Integrated Level 2 Cache
Memory 4 x 512 MB of PC2-5300 DDR SDRAM (Standard) to 128 GB, running at 667 MHz
Network ControllerTwo embedded NC371i Multifunction Gigabit Network Adapters
Storage ControllerHP Smart Array P400/256MB Controller
ManageabilityIntegrated Lights-Out 2 (iLO 2) Standard management (integrated on system board)
Hard DrivesNone ship standard
Internal Storage1.168TB max (with optional 146GB SFF SAS Hot Plug hard drives)
Power SupplyOne 910W/1300W Power Supply standard (second power supply for redundancy is optional)
Optical DriveSlimline DVD/CD-RW Drive (8X/24X) (ejectable)
Form FactorRack 4U

Country Code Key XX=00 US
XX=20 Brazil
XX=29 Japan
XX=37 A/P
XX=42 Europe
XX=AA PRC
contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models      Options      Memory      Storage      Power Specifications      Technical Specifications line.gif (50 bytes)

Configuration Information - Factory Integrated Models

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
NOTE: HP does not allow factory integration of options into standard models listed above. Configure-to-order servers must start with a CTO Chassis.
NOTE: This product offering does not support HP Factory Express Server Configuration Level 1.
NOTE: FIO indicates that this option only available as a Factory Installable Option.
Step 1: Base Configuration
Models HP ProLiant DL585 G2 Rack CTO Chassis
418633-B21
Factory Integrated Models ship with:

Two embedded NC371i Multifunction Gigabit Network Adapters
Integrated Lights-Out 2 (iLO 2) Standard management
Six (6) Redundant Hot Plug Fans
One Hot Plug Power Supply
Rack 4U Form Factor


Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)
Processors AMD OpteronTM 8224SE 3.2 GHz-1 MB Dual-Core Processor (120W) 2P Option Kit
NOTE: If four processors are desired, select one 458932-L21 and one 458932-B21.
458932-L21
AMD OpteronTM 8222 3.0 GHz-1 MB Dual-Core Processor (95W) 2P Option Kit
NOTE: If four processors are desired, select one 458933-L21 and one 458933-B21.
458933-L21
AMD OpteronTM 8222SE 3.0 GHz-1 MB Dual-Core Processor (120W) 2P Option Kit
NOTE: If four processors are desired, select one 448184-L21 and one 448184-B21.
448184-L21
AMD OpteronTM 8220 2.8 GHz-1 MB Dual-Core Processor (95W) 2P Option Kit
NOTE: If four processors are desired, select one 439728-L21 and one 439728-B21.
439728-L21
AMD OpteronTM 8220SE 2.8 GHz-1 MB Dual-Core Processor (120W) 2P Option Kit
NOTE: If four processors are desired, select one 413934-L21 and one 413934-B21.
413934-L21
AMD OpteronTM 8218 2.6 GHz-1 MB Dual-Core Processor 2P Option Kit
NOTE: If four processors are desired, select one 413933-L21 and one 413933-B21.
413933-L21
AMD OpteronTM 8216 2.4 GHz-1 MB Dual-Core Processor 2P Option Kit
NOTE: If four processors are desired, select one 413932-L21 and one 413932-B21.
413932-L21
AMD OpteronTM 8214 2.2 GHz-1 MB Dual-Core Processor 2P Option Kit
NOTE: If four processors are desired, select one 416734-L21 and one 416734-B21.
416734-L21
AMD OpteronTM 8212 2.0 GHz 1 MB Dual-Core Processor 2P Option Kit
NOTE: If four processors are desired, select one 413931-L21 and one 413931-B21.
413931-L21

Base Memory1 GB PC2-5300 DDR2 (2 x 512 MB) Kit, single rank
408850-B21
2 GB PC2-5300 DDR2 (2 x 1 GB) Kit, single rank
408851-B21
4 GB PC2-5300 DDR2 (2 x 2 GB) Kit, dual rank
408853-B21
8 GB REG PC2-5300 (2 x 4 GB) Kit, dual rank
408854-B21
NOTE: Memory must be ordered in like-pairs, i.e. two of the same size.
NOTE: If all four banks on a memory node are populated, the maximum memory clock speed will be 533 MHz. If two or fewer banks on a memory node are populated, the maximum memory clock speed will be 667 MHz.

Storage Controllers
HP Smart Array P800/512 BBWC Controller
381513-B21
HP Smart Array P600/256 BBWC Controller
337972-B21

HP Smart Array P600/512 BBWC Controller, Factory Integrated Only

432103-B21

HP Smart Array P400/256MB Controller

405132-B21

HP Smart Array P400/512MB BBWC Controller

411064-B21

HP 8 Internal Port SAS HBA with RAID
347786-B21
HP Smart Array 6404/512 FIO CNTRLR
452240-B21

Optical Drives Slimline CD-RW/DVD-ROM 24X Combo Drive Option Kit
331903-B21
Slimline DVD-ROM Drive (8X/24X) Option Kit (Servers)
264007-B21
HP DVD±R/RW 8X Slim
383975-B21
NOTE: Optical drives are ejectable.

Step 3: Choose Additional Options for Factory Integration
  NOTE: Select from "Options" section below.
contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models      Options      Memory      Storage      Power Specifications      Technical Specifications line.gif (50 bytes)

Options

NOTE: Some options may not be factory integratable. Please contact your local sales representative for additional information.
HP ProLiant DL585
G2 Unique Options
AMD OpteronTM 8224SE 3.2 GHz-1 MB Dual-Core Processor (120 Watts) 2P Option Kit
458932-B21
AMD OpteronTM 8222 3.0 GHz-1 MB Dual-Core Processor (95 Watts) 2P Option Kit
458933-B21
AMD OpteronTM 8222SE, Dual-Core Processor (3.0 GHz, 120 Watts) 2P Option Kit
448184-B21
AMD OpteronTM 8220, Dual-Core Processor (2.8 GHz, 95 Watts) 2P Option Kit
439728-B21
AMD OpteronTM 8220SE, Dual-Core Processor (2.8 GHz, 120 Watts) 2P Option Kit
413934-B21
AMD OpteronTM 8218, Dual-Core Processor (2.6 GHz, 95 Watts) 2P Option Kit
413933-B21
AMD OpteronTM 8216, Dual-Core Processor (2.4 GHz, 95 Watts) 2P Option Kit
413932-B21
AMD OpteronTM 8214, Dual-Core Processor (2.2 GHz, 95 Watts) 2P Option Kit
416734-B21
AMD OpteronTM 8212, Dual-Core Processor (2.0 GHz, 95 Watts) 2P Option Kit
413931-B21

HP Insight Control Management SuitesNOTE: Electronic licensing options are available for Insight Control suites software products. Please see the appropriate Insight Control QuickSpecs for additional information.
HP Insight Control Environment
HP Insight Control Environment, No Media 1-Server License including 1 year of 24x7 Technical Support and Updates
452148-B21
HP Insight Control Management Software Media Kit
NOTE: Insight Control Management DVD media without licenses. Contains Insight Manager and Essentials software products and components licensed by Insight Control Management suites. Uses an integrated installer to perform quick and accurate software installation and updates.
436222-B21
NOTE: For additional License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html

Server Management Stand Alone Software Product - ProLiant EssentialsNOTE: Electronic licensing options are available for select ProLiant Essentials software products. Please see the appropriate ProLiant Essentials QuickSpecs for additional information.
Deploy
ProLiant Essentials Rapid Deployment Pack
ProLiant Essentials Rapid Deployment Pack No Media 1-Server License including 1 year of 24x7 Technical Support and Updates
NOTE: This license allows 1 server to be deployed and managed via RDP. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service
452151-B21
NOTE: For additional License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11053_div/11053_div.html
HP Server Migration Pack - Universal Edition
HP Server Migration Pack - Universal Edition, No Media, Physical / Virtual to ProLiant Single Migration License, including 1 year of 24x7 Technical Support and Updates
NOTE: This license allows 1 physical to ProLiant or virtual to ProLiant migration. Customer will receive a printed license entitlement certificate and documentation via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
460750-B21
HP Server Migration Pack - Universal Edition, No Media, Physical / Virtual to Virtual Single Migration License, including 1 year of 24x7 Technical Support and Updates
NOTE: This license allows 1 physical to virtual or virtual to virtual migration. Customer will receive a printed license entitlement certificate and documentation via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
460753-B21
HP Server Migration Pack - Universal Edition, No Media, 1-Year Unlimited Migration License, including 1 year of 24x7 Technical Support
NOTE: This license allows unlimited migrations (physical to ProLiant, physical to virtual, virtual to virtual, and virtual to ProLiant) for one year. Customer will receive a printed license entitlement certificate and documentation via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service
460756-B21
NOTE: For additional License Kits, please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12855_div/12855_div.html

Control
Integrated Lights-Out Select Pack
ProLiant Essentials Integrated Lights-Out Select Pack, No Media, 1-Server License
NOTE: For additional License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12362_div/12362_div.html
452158-B21
Integrated Lights-Out Advanced Pack
Integrated Lights-Out Advanced Pack, No Media ,1 Server License
NOTE: For additional License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/10861_div/10861_div.html
452141-B21
Optimize
Accelerated iSCSI Pack
ProLiant Essentials Accelerated iSCSI Pack, No Media, Single License
NOTE: For use with a single NIC port. Contains one license with a unique license activation key and documentation.
452679-B21
NOTE: For additional License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12466_div/12466_div.html
ProLiant Essentials Virtual Machine Management Pack
ProLiant Essentials Virtual Machine Management Pack, No Media, 1-Server License, including 1 year of 24x7 Technical Support and Updates
NOTE: Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
452153-B21
NOTE: For additional License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12328_div/12328_div.html
RDMA Pack
RDMA Pack for Embedded Multifunction Gigabit Server Adapters, No Media, 1-Server License
NOTE: For additional License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12573_div/12573_div.html
452681-B21
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to: http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials QuickSpecs for more information.

ProcessorsAMD OpteronTM 8224SE 3.2 GHz-1 MB Dual-Core Processor (120 Watts) 2P Option Kit458932-B21
AMD OpteronTM 8222 3.0 GHz-1 MB Dual-Core Processor (95 Watts) 2P Option Kit458933-B21
AMD OpteronTM 8222SE, Dual-Core Processor (3.0 GHz, 120 Watts) 2P Option Kit448184-B21
AMD OpteronTM 8220, Dual-Core Processor (2.8 GHz, 95 Watts) 2P Option Kit439728-B21
AMD OpteronTM 8220SE, Dual-Core Processor (2.8 GHz, 120 Watts) 2P Option Kit413934-B21
AMD OpteronTM 8218, Dual-Core Processor (2.6 GHz, 95 Watts) 2P Option Kit413933-B21
AMD OpteronTM 8216, Dual-Core Processor (2.4 GHz, 95 Watts) 2P Option Kit413932-B21
AMD OpteronTM 8214, Dual-Core Processor (2.2 GHz, 95 Watts) 2P Option Kit 416734-B21
AMD OpteronTM 8212, Dual-Core Processor (2.0 GHz, 95 Watts) 2P Option Kit 413931-B21

Memory (DIMMs)

1 GB PC2-5300 DDR2 (2 x 512 MB) Kit, single rank408850-B21
2 GB PC2-5300 DDR2 (2 x 1 GB) Kit, single rank408851-B21
4 GB PC2-5300 DDR2 (2 x 2 GB) Kit, dual rank408853-B21
8 GB REG PC2-5300 (2 x 4 GB) Kit, dual rank408854-B21

Diskette DriveSlimline Floppy Diskette Drive Option Kit
NOTE: Ejectable drive.
390164-B21

Optical Drives Slimline CD-RW/DVD-ROM Combo Drive Option Kit
331903-B21
Slimline DVD-ROM Drive (8X/24X) Option Kit (Servers) 264007-B21
HP DVD±R/RW 8X Slim 383975-B21
Slimline CD-ROM Drive 24X 356963-B21

Hard DrivesSFF SATA Hard Disk Drives – Hot Plug
HP 120 GB 1.5G SATA 5.4K SFF HDD
431786-B21
HP 60 GB 1.5G SATA 5.4K SFF HDD
379306-B21
NOTE: SATA drives have a 1 year warranty. Please see the SATA Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:
http://h18000.www1.hp.com/products/quickspecs/11940_div/11940_div.html (Worldwide)

SFF SAS Hard Disk Drives – Hot Plug
HP 146 GB 3G SAS 10K SFF SP HDD
431958-B21
HP 72 GB 3G SAS 10K SFF SP HDD
375861-B21
HP 72 GB 3G SAS 15K SFF SP HDD
431935-B21
HP 36 GB 3G SAS 10K SFF SP HDD
375859-B21
HP 36 GB 3G SAS 15K SFF SP HDD
431933-B21
NOTE: Please see the SFF SAS Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:
http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html (Worldwide)


Storage ControllersSCSI Controllers for External Drive/Storage Support
Smart Array 6402/128 Controller
273915-B21
Smart Array 6404/256 Controller273914-B21
Smart Array 642 Controller
291967-B21
128-MB BBWC (Battery-Backed Write Cache) Enabler
NOTE: This 128MB BBWC supports the Smart Array 642 Controller.
351580-B21
Ultra320 Expansion Module for SA-6402
273911-B21
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
374654-B21
SCSI HBA
HP SC11Xe Host Bus Adapter
412911-B21
NOTE: Please see the following QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/11587_div/11587_div.html
(Smart Array 6400 Series)
http://h18000.www1.hp.com/products/quickspecs/12069_div/12069_div.html (Smart Array 642)
http://h18000.www1.hp.com/products/quickspecs/11943_div/11943_div.html (U320 SCSI G2 HBA)
http://h18000.www1.hp.com/products/quickspecs/12566_div/12566_div.html (SC11Xe HBA)

SAS Controller
Smart Array E500 Controller
HP Smart Array E500/256 MB Controller
435129-B21
Smart Array P400 Controller
HP Smart Array P400/256 MB Controller
NOTE: The Smart Array P400 Controller supports internal Serial Attached SCSI and Serial ATA drives. It is supported in all HP ProLiant DL585 G2 Models.
405132-B21
HP Smart Array P400/512 MB BBWC Controller
NOTE: The Smart Array P400 Controller supports internal Serial Attached SCSI and Serial ATA drives. It is supported in all HP ProLiant DL585 G2 Models.
411064-B21
512 MB DDR BBWC Upgrade
NOTE: For Smart Array P400 Controller only.
NOTE: If you install the 512MB DDR BBWC as an upgrade to a Smart Array P400/256MB Controller, you must also order part 417836-B21 (HP Smart Array P400 24 Inch Battery Cable Kit).
405148-B21
Battery-backed write cache upgrade
NOTE: For Smart Array P400 Controller only.
NOTE: If you install the Battery-backed write cache as an upgrade to a Smart Array P400/256MB Controller, you must also order part 417836-B21 (HP Smart Array P400 24 Inch Battery Cable Kit).
383280-B21
Smart Array P600 Controller
HP Smart Array P600/256 BBWC Controller
NOTE: The Smart Array P600 Controller supports internal and external Serial Attached SCSI and Serial ATA drives. It is supported in all HP ProLiant DL585 G2 Models.
337972-B21
512 MB DDR BBWC Upgrade
NOTE: For Smart Array P600 Controller only.
372538-B21
Smart Array P800 Controller
HP Smart Array P800/512 BBWC Controller
381513-B21

NOTE: Please see the following Controller QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/12700_div/12700_div.html
(Smart Array E500 Controller)
http://h18000.www1.hp.com/products/quickspecs/12400_div/12400_div.html
(Smart Array P400 Controller)
http://h18000.www1.hp.com/products/quickspecs/12247_div/12247_div.html
(Smart Array P600 Controller)
http://h18000.www1.hp.com/products/quickspecs/12616_div/12616_div.html
(Smart Array P800 Controller)


SAS HBA
HP SC44Ge Host Bus Adapter
416096-B21
HP 8 Internal Port SAS HBA with RAID
347786-B21

NOTE: Please see the following QuickSpecs for additional information:
http://h18004.www1.hp.com/products/quickspecs/12617_div/12617_div.html (SC44Ge HBA)
http://h18004.www1.hp.com/products/quickspecs/12332_div/12332_div.html (SAS HBA)



Communications

HP NC110T PCI Express Gigabit Server Adapter
NOTE: Does not support Windows 2000.
434905-B21
HP NC360T PCI Express Dual Port Gigabit Server Adapter
412648-B21
HP NC364T PCI Express Quad Port Gigabit Server Adapter
NOTE: Does not support Windows 2000.
NOTE: There is a maximum of five NC364T PCI Express Quad Port Gigabit Server Adapter NICs allowed in this server.
435508-B21
HP NC373F PCI Express Multifunction Gigabit Server Adapter
394793-B21
HP NC373T PCI Express Multifunction Gigabit Server Adapter
394791-B21
HP NC380T PCI Express Dual Port Multifunction Gigabit Server Adapter
394795-B21
HP NC510C PCIe 10 Gigabit Server Adapter
NOTE: A minimum of 1 gigabyte (1 GB) of server memory is required per each NC510C adapter.
414129-B21
HP NC510F PCIe 10 Gigabit Server Adapter
NOTE: A minimum of 1 gigabyte (1 GB) of server memory is required per each NC510F adapter.
414126-B21
HP NC7170 PCI-X Dual Port 1000T Gigabit Server Adapter
313881-B21
HP NC7771 PCI-X 1000T Gigabit Server Adapter
290563-B21

HPC Specific Options

HP IB 4X SDR PCI-e single PORT HCA
431038-B21
HP IB 4X DDR PCI-e Single PORT HCA
431039-B21
HP IB 4X DDR PCI-e Dual Port HCA
409376-B21
HP IB 4X DDR PCI-e SINGLE PORT HCA
448398-B21
HP IB 4X DDR Conn-X PCI-e Dual Port HCA
448397-B21

Redundant Options 910W (low line), 1300W (high line) Hot Plug Redundant Power Supply US – includes Nema 5-15P to IEC320-C19 power cord
348114-001
910W (low line), 1300W (high line) Hot Plug Redundant Power Supply - includes C14 to C19 IEC power jumper cable 348114-B21
NOTE: If you require a local power cord, please check the Power Specifications below for the appropriate country-specific power cord, or consult the Power Cord Matrix: http://www.hp.com/go/powercordmatrix.

Tape Drives

NOTE: For the complete listing of Tape Drive offerings, please see:
http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

For recommended tape drive offerings for this ProLiant server see the following:

USB Tape Drives
HP StorageWorks 1U USB Rack-Mount Kit with one DAT 160 USB drive
AG703A
SAS Tape Drives
NOTE: For the DL585 G2, HP recommends purchasing the HP SC44Ge HBA (416096-B21) for a dedicated SAS HBA for tape.
HP StorageWorks LTO-2 Ultrium 448 SAS Internal Tape Drive
NOTE: HP recommends combining this tape drive with the 1U SAS Rack-Mount kit (AE459A) for a complete rack-mount solution.
DW085A
HP StorageWorks LTO-3 Ultrium 920 SAS Internal Tape Drive
NOTE: HP recommends combining this tape drive with the 1U SAS Rack-Mount kit (AE459A) for a complete rack-mount solution.
EH847A
HP StorageWorks LTO-4 Ultrium 1840 SAS Internal Tape Drive
NOTE: HP recommends combining this tape drive with the 3U SAS Rack-Mount kit (AG576A) for a complete rack-mount solution.
EH860A
NOTE: Please refer to the "Tape Drives, Tape Autoloaders & Tape Libraries" table in the Storage section of this document for a list of SAS controllers with tape support.
SCSI Tape Drives
NOTE: For the DL585 G2, HP recommends purchasing the HP SC11Xe HBA (412911-B21) for a dedicated SCSI HBA for tape.
HP StorageWorks 1U SCSI Rack-mount kit with one LTO-2 Ultrium 448 (Carbonite)
DW028B
HP StorageWorks 1U SCSI Rack-mount kit with one LTO-3 Ultrium 920
EH903A
HP StorageWorks 3U SCSI Rack-Mount with 1 LTO-4 Ultrium 1840 Tape Drive
EH926A
NOTE: Please see the HP StorageWorks Ultrium Tape Drive QuickSpecs for additional options such as controllers, media, and other related items:
http://h18006.www1.hp.com/products/quickspecs/11739_div/11739_div.html
(Worldwide)
http://h18006.www1.hp.com/products/quickspecs/12128_div/12128_div.html
(Worldwide)
For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit: http://www.hp.com/go/connect

Rack-Mount Tape Drive Enclosures
HP StorageWorks 1U SCSI Rack-Mount kit
NOTE: The 1U Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with multiple Single-Ended and LVD SCSI tape drives including the DAT 40, DAT 72, DAT 160, DLT VS160, LTO-1 Ultrium 232, LTO-2 Ultrium 448 and LTO-3 Ultrium 920 tape drives.
A7445B
HP StorageWorks 1U USB Rack-Mount Kit
NOTE: The 1U USB Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with the DAT 40 USB, DAT 72 USB and DAT 160 tape drives.
A8007A
HP StorageWorks 1U SAS Rack-Mount Kit
NOTE: The 1U SAS Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with the LTO-2 Ultrium 448 SAS and LTO-3 Ultrium 920 SAS tape drives.
AE459A
HP StorageWorks 3U Rack-mount kit
NOTE: The 3U Rack-mount Kit can support up to (2) full-height or (4) half-height tape drives and compatible with multiple LVD SCSI tape drives including DAT 40, DAT 72, DLT VS160, SDLT 600, LTO-1 Ultrium 232, LTO-2 Ultrium 460, LTO-2 Ultrium 448, LTO-3 Ultrium 920, LTO-3 Ultrium 960 and LTO-4 Ultrium 1840 tape drives.
274338-B22
HP StorageWorks 3U SAS Rack-mount Kit
NOTE: The 3U Rack-mount Kit can support up to (2) full-height or (4) half-height tape drives and compatible with multiple SAS tape drives including DAT 160 SAS, LTO-2 Ultrium 448 SAS, LTO-3 Ultrium 920 SAS, and LTO-4 Ultrium 1840 SAS tape drives.
AG576A
NOTE: Please see the Rack-Mount Tape Drive Kits QuickSpecs for additional information regarding these kits:
http://h18000.www1.hp.com/products/quickspecs/10854_div/10854_div.html (Worldwide)

HP D2D Backup SystemHP StorageWorks D2D110 Backup System
NOTE: 1TB of Disk Storage
EH880A
HP StorageWorks D2D110 Backup System with Data Protector Express Software Kit
NOTE: 1TB of Disk Storage
EH923A
HP StorageWorks D2D120 Backup System
NOTE: 2TB of Disk Storage
EH884A
HP StorageWorks D2D120 Backup System with Data Protector Express Software Kit
NOTE: 2TB of Disk Storage
EH924A
NOTE: Please see the HP D2D Backup Systems QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12651_div/12651_div.html
(Worldwide)

Tape Autoloaders HP StorageWorks DAT Autoloader
HP StorageWorks DAT 72x10 tape autoloader
AE313B
HP StorageWorks 1/8 Tape Autoloader
HP StorageWorks 1/8 LTO-3 Ultrium 920 G2 Tape Autoloader
AH165A
HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS Autoloader
AH558A
HP StorageWorks 1/8 LTO-2 Ultrium 448 G2 Tape Autoloader
AH164A
HP StorageWorks 1/8 LTO-1 Ultrium 232 G2 Tape Autoloader
AH163A
HP StorageWorks 1/8 G2 Tape Autoloader Rack Kit
NOTE: Required to install the 1/8 G2 Autoloaders in a standard 19-inch rack; includes rails and rackmount instructions
AH166A
NOTE: Please reference the Tape Autoloader QuickSpecs at: http://www.hp.com/go/automation for additional information needed to create a complete solution.

Tape LibrariesHP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1840 SCSI Drive LibraryAJ033A
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1840 4GB FC LibraryAJ034A
HP StorageWorks MSL2024 1 LTO-3 Ultrium 960 SCSI Drive Library AG115A
HP StorageWorks MSL2024 1 LTO-3 Ultrium 960 4GB FC Library AG326B
HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SAS Drive LibraryAH559A
HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SCSI Drive LibraryAH169A
HP StorageWorks MSL2024 1 LTO-2 Ultrium 448 SCSI Drive Library AG116A
HP StorageWorks MSL4048 Tape Library
HP StorageWorks MSL4048 1 LTO-4 Ultrium 1840 SCSI Drive Library
AJ035A
HP StorageWorks MSL4048 1 LTO-4 Ultrium 1840 4GB FC Library
AJ036A
HP StorageWorks MSL4048 1 LTO-3 Ultrium 960 SCSI Drive Library
AG322A
HP StorageWorks MSL4048 1 LTO-3 Ultrium 960 4GB FC Library
AG324B
HP StorageWorks MSL4048 1 LTO-3 Ultrium 920 SAS Drive Library
AH560A
HP StorageWorks MSL4048 1 LTO-3 Ultrium 920 SCSI Drive Library
AH171A
HP StorageWorks MSL4048 1 LTO-2 Ultrium 448 SCSI Drive LibraryAG320A
HP StorageWorks MSL8096 Tape Library
HP StorageWorks MSL8096 2 LTO-4 Ultrium 1840 SCSI Drive Library
AJ039A
HP StorageWorks MSL8096 2 LTO-4 Ultrium 1840 4GB FC Library
AJ040A
HP StorageWorks MSL8096 2 LTO-3 Ultrium 920 SAS Drive Library
AH561A
HP StorageWorks MSL8096 2 LTO-3 Ultrium 960 4GB FC Library
AH218A
HP StorageWorks MSL8096 2 LTO-3 Ultrium 960 Drive Library
AH219A
HP StorageWorks MSL6000 Tape Library
LTO-4 Ultrium 1840 technology
HP StorageWorks MSL6030 1 LTO-4 Ultrium 1840 SCSI Drive LibraryAJ029A
HP StorageWorks MSL6030 1 LTO-4 Ultrium 1840 4GB FC LibraryAJ030A
HP StorageWorks MSL6060 2 LTO-4 Ultrium 1840 SCSI Drive LibraryAJ031A
HP StorageWorks MSL6060 2 LTO-4 Ultrium 1840 4GB FC LibraryAJ032A
LTO-3 Ultrium 960 technology
HP StorageWorks MSL6030 1 Ultrium 960 Dr LVDS LibraryAD606B
HP StorageWorks MSL6030 1 Ultrium 960 Dr FC LibraryAD608B
HP StorageWorks MSL6030 2 Ultrium 960 Dr LVDS LibraryAD607B
HP StorageWorks MSL6030 2 Ultrium 960 Dr FC LibraryAD609B
NOTE: Please reference the MSL2024, MSL4048, MSL8096 and MSL6000 Tape Library QuickSpecs at: http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at: http://www.hp.com/go/ebs.

Cluster Options

ProLiant Cluster Starter Kit 364023-B22
NOTE: For additional information regarding the ProLiant Cluster Starter Kit please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11935_div/11935_div.html (Worldwide)

HP Serviceguard for Linux ProLiant Cluster, A.11.18 (2 license version - Red Hat EL 4&5, SUSE SLES10) 305199-B27
HP Serviceguard for Linux, A.11.18 (single license version - Red Hat EL 4&5, SUSE SLES10)307754-B27
HP Serviceguard for Linux and Red Hat Global File System – 1 year subscriptionT2798AA#001
HP Serviceguard for Linux and Red Hat Global File System – 3 years subscriptionT2798AA#003
NOTE: For additional information regarding HP Serviceguard for Linux, please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11518_div/11518_div.html (Worldwide)


StorageWorks OptionsNOTE: The following is a list of all Fibre Channel Host Bus Adapters for Windows and Linux. For detailed compatibility information please see:
http://h18006.www1.hp.com/storage/saninfrastructure/hba.html

HP StorageWorks FC2142SR 4Gb PCI-e HBA A8002A
HP StorageWorks FC2242SR Dual Channel 4 Gb PCI-e HBAA8003A
HP StorageWorks FC1142SR 4Gb PCI-e HBA AE311A
HP StorageWorks FC1242SR Dual Channel 4 Gb PCI-e HBAAE312A
HP StorageWorks FC2143 4Gb PCI-X 2.0 -to-Fibre Channel HBA AD167A
HP StorageWorks FC2243 Dual Channel 4Gb PCI-X 2.0 HBA AD168A
HP StorageWorks FC1143 4Gb PCI-X 2.0 HBAAB429A
HP StorageWorks FC1243 Dual Channel 4Gb PCI-X 2.0 HBAAE369A

HP StorageWorks Modular Smart Array 20HP StorageWorks Modular Smart Array 20
NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies.
335921-B21
NOTE: The Modular Smart Array Enclosure 20 Family supports the SATA 1.5Gb/s 3.5" Hot Plug Hard Drives.
NOTE: Please see the Modular Smart Array 20 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at: http://h18000.www1.hp.com/products/quickspecs/11942_div/11942_div.html
(Worldwide)


HP StorageWorks Modular Smart Array 30HP StorageWorks Modular Smart Array 30 SB
NOTE: Rack-mountable 14 drive enclosure with single bus, redundant power supplies
302969-B21
HP StorageWorks Modular Smart Array 30 DB
NOTE: Rack-mountable 14 drive enclosure with dual bus, redundant power supplies
302970-B21
NOTE: Please see the Modular Smart Array 30 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at: http://h18000.www1.hp.com/products/quickspecs/11738_div/11738_div.html
(Worldwide)


HP StorageWorks Modular Smart Array 50

HP StorageWorks Modular Smart Array 50 Enclosure
364430-B21
NOTE: Please see the Modular Smart Array 50 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at:
http://h18000.www1.hp.com/products/quickspecs/12245_div/12245_div.html
(Worldwide)


HP StorageWorks Modular Smart Array 500

HP StorageWorks Modular Smart Array 500 Generation 2
NOTE: Please see the Modular Smart Array 500 Generation 2 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at:
http://h18000.www1.hp.com/products/quickspecs/11956_div/11956_div.html
(Worldwide)
335880-B21

HP StorageWorks Modular Smart Array 1000

HP StorageWorks Modular Smart Array 1000

201723-B22

NOTE: Please see the Modular Smart Array 1000 QuickSpecs for additional options and configuration information at: http://hp.com/go/msa1000

HP StorageWorks Modular Smart Array 1500 cs

Modular Smart Array 1500 Controller Shelf

AA986A

NOTE: Please see the StorageWorks Modular SAN Array 1500 cs QuickSpecs for additional options and configuration information at: http://www.hp.com/go/MSA1500cs

Uninterruptible Power Systems – Rack

HP, R1.5kVA UPS, 1U, NA
AF419A
HP, R1.5kVA UPS, 1U, INTL
AF418A
HP, R1.5kVA UPS, 1U, JPN/TW
AF421A
HP R3000 VA UPS, 2U, DTC, INTLAF414A
HP R3000 VA UPS, 2U, L5-30, NAAF422A
HP R3000 VA UPS, 2U, L6-20, NAAF423A
HP R3000 VA UPS, 2U, L6-20, JPNAF424A
HP R3000 VA UPS, 2U, L5-30, JPNAF425A
HP R5500 VA UPS, INTL
AF416A
HP R5500 VA UPS, NA/JPN
AF426A

HP Monitored Power Distribution Unit (PDU)HP Monitored Power Distribution Unit: Full Rack Version
HP 17.3 kVA S2324 Monitored PDU – dual input, 3U, 24A (NA/JPN)
AF503A
HP 8.3 kVA S1324 Monitored PDU – single input, 3U, 24A (NA/JPN)
AF504A
HP 16.6 kVA S2140 Monitored PDU – dual input, 1U, 40A (NA/JPN)
AF505A
HP 8.6 S1140 Monitored PDU – single input, 1U, 40A (NA/JPN)
AF506A
HP 22.1 kVA S2316 Monitored PDU – dual input, 3U, 16A (INTL)
AF507A
HP 11 kVA S1316 Monitored PDU – single input, 3U, 16A (INTL)
AF508A
HP 14.7 kVA S2132 Monitored PDU – dual input, 1U, 32A (INTL)
AF509A
HP 7.3kVA S1132 Monitored PDU – single input, 1U, 32A (INTL)
AF510A
HP Monitored Power Distribution Unit: Half Rack Version
HP 17.3 kVA S348 Monitored PDU- single input, 3Ø, 48A (NA/JPN)
AF916A
HP 22 kVA S332 Monitored PDU – single input, 3-phase, 32A (INTL)
AF917A
HP 4.9kVA S124 Monitored PDU – single input, 1U, 24A (NA/JPN)
AF914A
HP 7.3kVA S132 Monitored PDU – single input, 1U, 32A (INTL)
AF915A

Modular Power Distribution Units 1U/0U
(Up to 32 outlets)
NOTE: 1U/0U mounting brackets shipped with
the unit (optimized for 10000 and 9000 series racks).

HP Modular Power Distribution Units (mPDU), Low Volt Model, 24A (100-127 VAC) (NA, Japan)
NOTE: This mPDU (252663-D71) may also be used to connect the low volt model of the UPS R3000 XR.
252663-D71
HP Modular Power Distribution Units (mPDU), High Volt Model, 24A (200-240 VAC) (NA, Japan)
252663-D72
HP Modular Power Distribution Units (mPDU), High Volt Model, 32A (200-240 VAC) (Int'l)
252663-B31
HP Modular Power Distribution Units (mPDU), High Volt Model, 40A (200-240 VAC) (WW)
NOTE: This mPDU (252663-B21), 40A model has a hardwired input.
252663-B21

HP Modular Power Distribution Units (mPDU), High Volt Model, 16A (200-240 VAC) (WW)
NOTE: This PDU has a detachable input power cord and allows for adaptability to country specific power requirements. This model may also be used with the high volt UPS R3000 XR. For North America, need to order cable PN 340653-001.

252663-B24
NOTE: Please see the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs for additional options including shorter jumper cables and country specific power cords:
http://h18000.www1.hp.com/products/quickspecs/11041_div/11041_div.html (Worldwide)

USB Options HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver) DC172B
HP USB 04 Standard Keyboard DT528A#xxx
USB 2.0 4-port HUB DG954A
HP 1GB USB 2.0 Floppy Drive Key 442085-B21
HP 256MB USB 2.0 Floppy Drive Key 442084-B21

HP Rack 5000 Series (Graphite Metallic) HP 5642 Rack-Unassembled
358254-B21
NOTE: Please see the HP Rack 5642 QuickSpecs for additional part numbers and Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/12074_div/12074_div.html (Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.


HP Rack 10000 G2 Series
(Carbon/Graphite Metallic)
10642 G2 (42U) Rack Cabinet – Pallet
AF001A
10642 G2 (42U) Rack Cabinet – Shock Pallet
AF002A
10642 G2 (42U) Rack Cabinet – Crated
AF003A
10642 G2 (42U) Rack Cabinet, with Extension – Shock Pallet
AF004A
10636 G2 (36U) Rack Cabinet – Pallet
AF011A
10636 G2 (36U) Rack Cabinet – Shock Pallet
AF012A
10636 G2 (36U) Rack Cabinet – Crated
AF013A
10636 G2 (36U) Rack Cabinet, with Extension – Shock Pallet
AF014A
10622 G2 (22U) Rack Cabinet - Pallet
AF021A
10622 G2 (22U) Rack Cabinet - Shock Pallet
AF022A
10842 G2 (42U) 800mm Wide Rack Cabinet - Pallet
AF041A
10842 G2 (42U) 800mm Wide Rack Cabinet - Shock Pallet
AF042A
10647 G2 (47U) Rack Cabinet - Pallet
AF031A
NOTE: It is mandatory to use a shock pallet when shipping racks with equipment installed.
NOTE: Please see the Rack 10000 G2 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.html (Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.

HP Rack 10000 Series
(Graphite Metallic)

HP Rack S10614 (14U) Rack Cabinet – Shock Pallet
292302-B22

NOTE: xxxxxx-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels).



NOTE: Please see the Rack 10000 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/10995_div/10995_div.html (Worldwide)



NOTE:NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.




Keyboards and Monitors

TFT7210R Rack Mounted 17" Monitor
348373-B21
TFT7600 Rackmount Keyboard Monitor US
AG052A
TFT7600 Rackmount Keyboard Monitor UK

AG053A

TFT7600 Rackmount Keyboard Monitor GR

AG054A

TFT7600 Rackmount Keyboard Monitor FR

AG055A

TFT7600 Rackmount Keyboard Monitor IT

AG056A

TFT7600 Rackmount Keyboard Monitor SP
AG057A
TFT7600 Rackmount Keyboard Monitor DEN
AG058A
TFT7600 Rackmount Keyboard Monitor NOR
AG059A
TFT7600 Rackmount Keyboard Monitor SE/FI
AG060A
TFT7600 Rackmount Keyboard Monitor SWI
AG061A
TFT7600 Rackmount Keyboard Monitor PORT
AG062A
TFT7600 Rackmount Keyboard Monitor BEL
AG063A
TFT7600 Rackmount Keyboard Monitor JPN2
AG064A
TFT7600 Rackmount Keyboard Monitor RUS
AG065A
TFT7600 Rackmount Keyboard Monitor INTL
AG066A
1U Rackmount Keyboard with USB, US
AG072A
1U Rackmount Keyboard with USB, UK
AG073A
1U Rackmount Keyboard with USB, GR
AG074A
1U Rackmount Keyboard with USB, FR
AG075A
1U Rackmount Keyboard with USB, ITL
AG076A
1U Rackmount Keyboard with USB, SP
AG077A
1U Rackmount Keyboard with USB, DEN
AG078A
1U Rackmount Keyboard with USB, NOR
AG079A
1U Rackmount Keyboard with USB, SE/FI
AG080A
1U Rackmount Keyboard with USB, SWI
AG081A
1U Rackmount Keyboard with USB, PORT
AG082A
1U Rackmount Keyboard with USB, BEL
AG083A
1U Rackmount Keyboard with USB, JPN2
AG084A
1U Rackmount Keyboard with USB, RUS
AG085A
1U Rackmount Keyboard with USB, INTL
AG086A
NOTE: For additional information regarding Rack Options, please see the following URL: http://www.hp.com/go/rackandpower.

HP KVM Switch Options 2x1x16 IP Console Switch with Virtual Media
AF601A
4x1x16 IP Console Switch with Virtual Media
AF602A
2x16 Server Console Switch with Virtual Media
AF600A
PS/2 Virtual Media Interface Adapter, 1 pack
NOTE: Requires PS/2 and one USB port on server.
AF604A
Server Console Switch (KVM), 0 x 1 x 8 port
336044-B21
Server Console Switch (KVM), 0 x 2 x 16 port
336045-B21
PS/2 Interface Adapter, 1 pack
262588-B21
PS/2 Interface Adapter, 8 pack
262587-B21
USB Interface Adapter, 1 pack
336047-B21
Serial Interface adapter – 1 Pack with power supply
373035-B21
NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches. Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
HP 1x4 Server Switch
AF611A
PS2 Server Console Cable, 6 ft, 2 pack
AF612A
USB Server Console Cable, 6 ft, 2 pack
AF613A
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.

HP Serial Console Server OptionsHP 16 Port Serial Console Server (worldwide)
AF101A
HP 48 Port Serial Console Server (worldwide)
AF102A
Serial Adapter, RJ45-DB9 DCE Female, 1 Pack
AF103A
Serial Adapter, RJ45-DB9 DCE Female, 8 Pack
AF110A
NOTE: Cat5e cables are required to connect Serial Adapters to Serial Console Servers. Additional Serial Adapters and Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.

Service and Support Offerings (HP Care Pack Services)
Hardware Services On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
U4607E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4608E
Hardware Services 6-Hour Call to Repair On-site Service
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4609E
Installation & Start-up Services
Hardware Installation, Electronic
U4617E
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays, Electronic
U4618E
Support Plus
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4619E
Support Plus 24
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4620E
Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U6316E
Onsite HW support 24x7, 4hr response and Red Hat AS Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U9239E
NOTE: For more information, customer/resellers can contact http://www.hp.com/services/carepack.
contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models      Options      Memory      Storage      Power Specifications      Technical Specifications line.gif (50 bytes)

Memory

NOTE: Memory configurations listed do not apply to "Factory Integrated Models."
HP ProLiant DL585 G2 2P Models

Standard Memory
4 GB PC2-5300 Double Data Rate 2 (DDR2) SDRAM (Registered SDRAM) memory running at 667 MHz or
2 GB PC2-5300 Double Data Rate 2 (DDR2) SDRAM (Registered SDRAM) memory running at 667 MHz with Advanced ECC

At least one pair of DIMMs must be installed in slots 1A and 2A to operate the server. Observe the following DIMM installation guidelines to add additional memory to the server:

  • DIMMs must be installed in pairs.
  • DIMM installed on the same memory bank must have the same part number.
  • DIMMs installed in different banks can be of different sizes.
  • DIMMs must be installed in decreasing capacity with the largest DIMMs installed in the banks furthest away from each processor.
  • DIMM banks are active only when the corresponding processor socket is populated.

NOTE: If all four banks on a memory node are populated, the maximum memory clock speed will be 533 MHz. If two or fewer banks on a memory node are populated, the maximum memory clock speed will be 667 MHz.


The following memory options are available from HP:

1 GB PC2-5300 DDR2 (2 x 512 MB) Kit, single rank

408850-B21

2 GB PC2-5300 DDR2 (2 x 1 GB) Kit, single rank

408851-B21

4 GB PC2-5300 DDR2 (2 x 2 GB) Kit, dual rank

408853-B21

8 GB REG PC2-5300 (2 x 4 GB) Kit, dual rank

408854-B21

Standard Memory Configuration (2.0GHz, 2.2GHz and 2.4GHz models)
Total Memory = 2 GB


1
(Slot furthest from processor)

2

3

4

5

6

7
8
(Slot closest to processor)
Processor 1 Memory Bus
512 MB
512 MB
Empty
Empty
Empty
Empty
Empty
Empty
Processor 2 Memory Bus
512 MB
512 MB
Empty
Empty
Empty
Empty
Empty
Empty
Processor 3 Memory Bus Empty Empty Empty Empty Empty Empty Empty Empty
Processor 4 Memory Bus Empty Empty Empty Empty Empty Empty Empty Empty

Standard Memory Configuration (2.6GHz model)
Total Memory = 4 GB


1
(Slot furthest from processor)

2

3

4

5

6

7
8
(Slot closest to processor)
Processor 1 Memory Bus
1 GB
1 GB
Empty
Empty
Empty
Empty
Empty
Empty
Processor 2 Memory Bus
1 GB
1 GB
Empty
Empty
Empty
Empty
Empty
Empty
Processor 3 Memory Bus Empty Empty Empty Empty Empty Empty Empty Empty
Processor 4 Memory Bus Empty Empty Empty Empty Empty Empty Empty Empty

Standard Memory Configuration (2.8GHz models)
Total Memory = 8 GB


1
(Slot furthest from processor)

2

3

4

5

6

7
8
(Slot closest to processor)
Processor 1 Memory Bus
1 GB
1 GB
Empty
Empty
Empty
Empty
Empty
Empty
Processor 2 Memory Bus
1 GB
1 GB
Empty
Empty
Empty
Empty
Empty
Empty
Processor 3 Memory Bus 1 GB 1 GB Empty Empty Empty Empty Empty Empty
Processor 4 Memory Bus 1 GB 1 GB Empty Empty Empty Empty Empty Empty

Examples of other optional configurations include, but are not limited to:
Example #1: Optional Memory Configuration with DIMM mixing
Standard Memory plus Optional Memory and Processors
Total Memory = 34 GB


1

2

3

4

5

6

7
8
Processor 1 Memory Bus
2 GB
2 GB
1 GB
1 GB
512 MB
512 MB
512 MB
512 MB
Processor 2 Memory Bus
2 GB
2 GB
1 GB
1 GB
512 MB
512 MB
512 MB
512 MB
Processor 3 Memory Bus 2 GB 2 GB 2 GB 2 GB 1 GB 1 GB 512 MB 512 MB
Processor 4 Memory Bus 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 512 MB 512 MB
Example #2: Optional Memory Configuration with Partial Bus Population
Standard Memory plus Optional Memory and Processors
Total Memory = 8 GB


1

2

3

4

5

6

7
8
Processor 1 Memory Bus 512 MB 512 MB 512 MB 512 MB Empty Empty Empty Empty
Processor 2 Memory Bus 512 MB 512 MB 512 MB 512 MB Empty Empty Empty Empty
Processor 3 Memory Bus 512 MB 512 MB 512 MB 512 MB Empty Empty Empty Empty
Processor 4 Memory Bus 512 MB 512 MB 512 MB 512 MB Empty Empty Empty Empty
Example #3: Maximum Memory Configuration
Maximum Memory (Standard replaced with Optional Memory)
Total Memory = 128 GB


1

2

3

4

5

6

7
8
Processor 1 Memory Bus 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB
Processor 2 Memory Bus 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB
Processor 3 Memory Bus 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB
Processor 4 Memory Bus 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB
contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models      Options      Memory      Storage      Power Specifications      Technical Specifications line.gif (50 bytes)

Storage

A

Ejectable: Slimline Diskette or Optical Drive (Optional)

B

Ejectable: Slimline Optical Drive (DVD/CD-RW Standard)
1-8 SFF SAS Internal Drive cage




Drive Support



Quantity
Supported

Position
Supported


Controller

Ejectable Slimline Drives



1.44-MB slimline Diskette DriveUp to 1A or B
Based on Boot Device Selector Switch
Integrated
IDE slimline CD-ROM DriveUp to 2A or BIntegrated IDE
IDE Slimline DVD-ROM Drive (8X/24X)Up to 2A or BIntegrated IDE
IDE Slimline CD-RW/DVD-ROM Combo DriveUp to 2A or BIntegrated IDE
IDE DVD±R/RW 8X DriveUp to 2A or BIntegrated IDE

Hard Drives


SATA – Hot Plug Drives


Quantity
Supported

Position
Supported


Controller

120GB 1.5G SATA 5.4K
60GB 1.5G SATA 5.4K
Up to 81-8HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller

SFF SAS – Hot Plug Drives


Quantity
Supported

Position
Supported


Controller

146GB 3G SAS 10K SP 72GB 3G SAS 10K SP
72GB 3G SAS 15K SP
36GB 3G SAS 10K SP
36GB 3G SAS 15K SP
Up to 8 1-8HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller

External Storage



Quantity
Supported

Position
Supported


Host Controller or Adapter

Modular Smart Array 20 Family 1 per SCSI VHDCI connector External Smart Array 6402/128 Controller
Smart Array 6404/256 Controller

Modular Smart Array 30 Family

Up to 13

External

Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 642 Controller
Modular Smart Array 50 Enclosure 2 per connector (supports 1+1 cascading) External HP Smart Array P600/256 BBWC Controller
Modular Smart Array 1000Please see the Modular Smart Array 1000 QuickSpecs to determine configuration requirements
ExternalPlease see the Modular Smart Array 1000 QuickSpecs for the latest list of supported HBAs: http://www.hp.com/go/MSA1000
Modular Smart Array 1500 csPlease see the Modular Smart Array 1500 cs QuickSpecs to determine configuration requirements ExternalPlease see the Modular Smart Array 1000 QuickSpecs for the latest list of supported HBAs: http://www.hp.com/go/MSA1500cs

Maximum Storage Capacity – (External Enclosure Attached)

Internal

1.168TB (8 x 146 GB SFF SAS Drives)
External5.840TB (2 MSA50 Enclosures 20 drives per enclosure x 146 GB SFF SAS Drives)
Total7.008TB

Tape Drives, Tape Autoloaders, and Tape Libraries

NOTE:For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:
http://h18000.www1.hp.com/products/quickspecs/division/10233.html (Worldwide)

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders and Tape Libraries listed below, please see the following:
http://h18000.www1.hp.com/products/quickspecs/division/10809.html (Worldwide)

NOTE: For complete listing of tape drive offerings see: http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

NOTE: SAS Tape Drives: Connecting hard drive cage and SAS tape to the same SAS Controller using split cable (supplied with tape drive) deactivates 1 of the hard drive bays. Actual hard drive bay deactivated depends on where split cable plugs into SAS drive connector. Example: 3x SAS cable connector plugged into SAS drive connector (5-8) on the back of the hard drive cage would mean drive bay 8 is deactivated.



Position
Supported

Controller

Controller Part Number

HP StorageWorks SCSI Tape Drives, External
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-2 Ultrium 460
LTO-3 Ultrium 960
LTO-3 Ultrium 920
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
DLT VS160
SDLT 600
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP SC11Xe Host Bus Adapter
412911-B21


HP StorageWorks USB Tape Drives, External
DAT 40 USB
DAT 72 USB
DAT 160 USB
1U Rack-Mount Kit

External
USB 2.0 Port
N/A

HP StorageWorks SAS Tape Drives, External
DAT 160 SAS
LTO-2 Ultrium 448 SAS
LTO-3 Ultrium 920 SAS
LTO-4 Ultrium 1840 SAS
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP SC44Ge Host Bus Adapter
NOTE: Recommended.
416096-B21
HP Smart Array E500 Controller
435129-B21
NOTE: The following SAS Smart Array controllers require ROM Flash version 2.04 or higher for SAS tape support:
HP Smart Array P400/256MB Controller
405132-B21
HP Smart Array P400/512MB Controller
411064-B21
NOTE: Please visit: http://www.hp.com/go/connect for details about minimum SAS controller firmware version and SAS cabling requirements.

HP StorageWorks SCSI Tape Automation, External
DAT 72x10 Autoloader 1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096
MSL6000
External
HP SC11Xe Host Bus Adapter
412911-B21
HP U320e SCSI Host Bus Adapter
NOTE: Only valid for MSL tape libraries.

AH627A


HP StorageWorks SAS Tape Automation, External
1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096
External
HP SC44Ge Host Bus Adapter
NOTE: Please visit http://www.hp.com/go/connect for details about minimum SAS controller firmware version and SAS cabling requirements.
416096-B21

HP StorageWorks Fibre Tape Automation, External
MSL2024
MSL4048
MSL8096
MSL6000
External

Please consult the EBS connectivity matrix at http://www.hp.com/go/ebs for detailed connectivity information.

N/A

HP StorageWorks D2D Backup Systems
D2D110
D2D120
External
Embedded Network Controller
N/A
contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models      Options      Memory      Storage      Power Specifications      Technical Specifications line.gif (50 bytes)

Power Specifications

Part number348114-001
Operational Input Voltage Range
(Vrms)
90 to 264
Frequency Range (Nominal) (Hz)
47 to 63 (50/60)
Nominal Input Voltage (Vrms)
100
115
208
220
230
240
Max Rated Output Wattage Rating
910
910
1300
1300
1300
1300
Nominal Input Current (A rms)
11.9
10.2
7.7
7.3
6.9
6.6
Max Rated Input Wattage Rating (Watts)
1163
1148
1566
1566
1548
1548
Max. Rated VA (Volt-Amp)
1186
1172
1598
1598
1579
1579
Efficiency (%)
80
81
83
83
84
84
Power Factor
0.98
0.98
Leakage Current (mA)
0.43
0.50
0.90
0.96
1.00
1.04
Max. Inrush Current (A peak)
100
100
100
100
100
100
Max. Inrush Current duration (mS)
10

*NOTE: – To review typical system power ratings use the Active Answers Power Calculator which is available via the online tool located at url: http://h30099.www3.hp.com/configurator/powercalcs.asp
To drill down to calculators:

  • Click on: "ProLiant Servers"
  • Click on the Server of interest. Example: DL585 G2
  • Click on: "Power Calculator" link. (You may need to scroll down to see it)
  • There are certain Dual-core, lowline, max configurations that are not supported. All highline configurations are supported. Consult the Power Calculator to determine if your lowline configuration is supported.

Standard Rack Model Power Cords / Jumper Cords Description
Asia Pacific IEC320-C14 to IEC320-C19 Jumper Cord
Europe IEC320-C14 to IEC320-C19 Jumper Cord
Japan JIS C8303 to IEC320-C19
IEC320-C14 to IEC320-C19 Jumper Cord

PRC

IEC320-C14 to IEC320-C19 Jumper Cord

USA

IEC320-C14 to IEC320-C19 Jumper Cord

Optional Country Power Cords and Jumper Cords

Description
Option Kit Part Number
Australia/New Zealand AS/NZS 3112 to IEC320-C19
305340-011
Denmark/Switzerland IEC320-C19, Industrial
305340-081
Europe CEE 7 to IEC320-C19
305340-021
Italy IEC320-C19, Italy
305340-061
South Africa/India IEC320-C19, SA
305340-AR1
UK BS1363 to IEC320-C19
305340-031
US Nema 5-15P to IEC320-C19
235603-001
US Nema 6-20P to IEC320-C19
235604-001
US Nema L6-20P to IEC320-C19, 20A, 250V, US
340653-001
WW IEC320-C19 to IEC320-C14 Jumper (10A, IEC, 6 ft/2.0m)
313227-B21
WW IEC320-C19 to IEC320-C14 Jumper (10A, IEC, 8 ft/2.5m)
291034-B21
WW IEC320-C19 to IEC320-C14 Jumper (10A, IEC, 10 ft/3.0m)
310927-B21
WW IEC320-C19 to IEC320-C14 Jumper (10A, IEC, 12ft/3.7m)
313228-B21
WW IEC320-C19 to IEC320-C20 Jumper (16A, IEC, 8ft/2.5m)
295633-B22
contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models      Options      Memory      Storage      Power Specifications      Technical Specifications line.gif (50 bytes)

Technical Specifications

System Unit

Dimensions (H x W x D)
(with bezel)

6.94 x 19 x 26.5 in (17.6 x 48.3 x 67.3 cm)

Weight
(approximate)

Maximum
(all hard drives, power supplies, and processors installed)
95 lb (43 kg)
Minimum
(one hard drive, power supply, and processor installed)
79 lb (36 kg)

Input Requirements
(per power supply)

Rated Line Voltage 90 - 132 VAC,
180 - 264 VAC
Rated Input Current 12 A (at 100 VAC),
8 A (at 200 VAC)
Rated Input Frequency 47 to 63 Hz
Rated Input Power 1161 W (at 100 VAC),
1598 W (at 200 VAC)
BTU Rating Maximum 3985 BTU/hr (at 100 VAC),
5457 BTU/hr (at 200 VAC)
Power Specifications

To review typical system power ratings use the Power Calculator which is available via the online tool located at URL:
http://h30099.www3.hp.com/configurator/calc/Power%20
Calculator%20Catalog.xls

  • Click on the system of interest. Example: DL585 G2
  • Follow the instructions of the next screens
Power Supply Output (per power supply) Rated Steady-State Power 910 W (at 100 VAC),
1300 W (at 200 VAC)
Maximum Peak Power 960 W (at 100 VAC),
1420 W (at 200 VAC)
System Inlet Temperature


Operating 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed.
System performance may be reduced if operating with a fan fault or above 30°C (86°F).
Non-operating -30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity
(non-condensing)

Operating 10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.
Non-operating 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.
Altitude Operating 3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating 9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Acoustic Noise



Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
Idle
  L WAd 7.7 B
  L pAm 58 dBA
Operating
  L WAd 7.7 B
  L pAm 58 dBA

24X Max (or higher) IDE CD-ROM Drive Slim Line

Disk Applicable Disk CD-DA, CD-ROM (Mode 1 and 2)
CD-XA, CD-I (Mode 2, Form 1 and 2)
Photo CD (Single and Multi-session)
Mixed Mode (Audio and Data combined)
Capacity 540 MB (Mode 1, 12 cm)
650 MB (Mode 2, 12 cm)
Diameter 4.7 x 3.15 in (12 x 8 cm)
Rotational Speed 4200 rpm maximum
Center Hole 0.6 in/15 mm diameter
Thickness 1.2 mm
Track Pitch 1.6 µm
Block Size Mode 1 2,048
Mode 2 2,340, 2,336, 1,024 bytes
CD-DA 2,352 bytes
CD-XA 2,328 bytes
Interface IDE (ATAPI)
Access Times (typical) Random 100 ms
Full-Stroke 2000 ms
Audio Output Level Line-Out 0.7 Vrms at 47 kOhms
Headphone 0.6 Vrms at 32 kOhms (maximum volume)
Data Transfer Rate Sustained 150 KB/s (sustained 1X)
Burst 2100 to 3600 KB/s
Cache Buffer 128 KB
Start-up Time (typical) < 7seconds
Stop Time < 4seconds
Laser Parameters Type Semiconductor Laser GaA1As
Wave Length 780 ± 25 nm
Divergence Angle 53.5° ± 1.5°
Output Power 0.14 mW
Operating Conditions Temperature 41° to 113° F (5° to 45° C)
  Humidity 10% to 80%
Dimensions

(HxWxD, maximum)

1.69 x 5.75 x 8.19 in (4.29 x 15 x 20.8 cm)
  Weight 2.66 lb (1.2 kg)

Slimline CD-RW/DVD-ROM 24X Combo Drive

Shipping Dimensions 13.88 x 11.38 x 9.25 in (35.26 x 28.91 x 23.50 cm)

Shipping Weight

5 lb (2.27 kg)
Disk

Applicable Disk

DVD-ROM

DVD-R (Read Only)

2.6 GB/side DVD-RAM (Read Only)

5.2 GB/side DVD-RAM (Read Only)

CD-ROM Mode-1 data disc

CD-ROM Mode-2 data disc
CD Audio disc
CD-Extra
CD-RW
CD-R
CD Text
PhotoCD
CD-I (mode 2)
CD-I Ready
  CD-Bridge

Capacity

DVD-ROM

DVD-SL 4.7 GB/side
  DVD-DL 8.5 GB/side
  Double Sided 9.40 GB/side
DVD-R   3.95 GB/side
DVD-RAM   2.6 GB/side and 5.2 GB/
CD-ROM Mode-1 650 MB (550 MB)
  Mode-2 742 MB (640 MB)
Block Size DVD   2,048 bytes
CD   2,352 (Mode-0)
    2352, 2340, 2336, 2048 bytes
(Mode-1)
    2352, 2340, 2336, 2048 bytes
(Mode-2)

Diameter

120 mm, 80 mm (with adapter at vertical mounting mode)

Loading Mechanism

Tray type



Interface

EIDE (ATAPI)



Access Times (typical)

Random

DVD-ROM < 120 ms, CD-ROM < 110 ms

Full-Stroke

DVD-ROM < 240 ms, CD-ROM < 160 ms

Audio Output Level (typical)

Line-out

CD 0.7 Vrms at 47 Kohms Load

Data Transfer Rate (sustained)

DVD-ROM

Single Layer

10.8 MB/sec. Max.
DVD-RAM 2.77 MB/sec. Max

CD-ROM

7.2 MB/sec. Max.

Cache Buffer

2 MB



Spin-up Time (typical)

less than 10 seconds



MTBF

120,000 Power On Hours (POH)



Ambient Temperature

Operating

-22° to 140° F (-30° to 60° C)

Relative Humidity

Operating

10% to 80%

Storage/Transportation

5% to 95%

Dimensions

(HxWxD, maximum)

0.5 x 5.04 x 5.1 in (12.7 x 128 x 129.4 mm)

Option Kit Contents DVD-ROM drive with installation guide, warranty card, registration card

Integrated Lights-Out 2 Standard (integrated on system board) Architecture 32-bit PCI-based health and remote management ASIC (Application Specific Integrated Circuit)
Processor 32-bit RISC processor core running at 66 MHz
Upgradeability Option firmware upgradeable via flash ROM
Video Support Utilizes the host server's embedded video chip. Supports VGA/SVGA, 640 x 480 (256 to 16.7M colors), 800 x 600 (256 to 16.7M colors), 1024 x 768 (256 to 65K colors), 1280 x 1024 (256 colors)
Interfaces One Ethernet network connection (10/100 Mb/s)
Memory 2-MB Flash ROM
8-MB SDRAM
Operating System Support Windows 2000 Server
Windows 2000 Advanced Server
Red Hat 7.x
SuSE 7.0
Client Browser Support Microsoft Internet Explorer 5.5 or later.
iLO 2 Standard Features Virtual Text Remote Console
Virtual KVM
Virtual Power Button Control
Virtual UID Control
Power Regulator Control
Dedicated LAN Connectivity
Secure access using web browser
Secure access using Secure Shell (SSH) client
Serial connectivity
Automatic IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure Sockets Layer (SSL) Security
IML and iLO2 Event Logging
Support for up to 12 user accounts with customizable access privileges
iLO Advanced Features (optional) Virtual Graphical Remote Console
Virtual Floppy/USB Key drive
Virtual CD-ROM drive
Directory Services Integration
Processor States Reporting
Terminal Services Integration

Smart Array P400 Controller

Disk Drive and Enclosure Interface
3G SAS (Serial Attached SCSI)
1.5G SATA (Serial Advanced Technology Attachment)
SAS Connectors 2 internal (SFF8484) x4 wide port connectors
Cache Memory Speed
DDR2-533MHz with 40 or 72-bit wide bus provides up to 4.2 GB/s maximum bandwidth.
Server Interface x8 2.5G PCIe provides 2GB/s maximum bandwidth.
SAS Speed x8 3G SAS provides 2.4GB/s maximum bandwidth.
Cache Memory
40-bit 256MB cache (72-bit 512MB module upgrades available); ECC protection, battery-backed, and transportable
Logical Drives Supported
Up to 32 logical drives
Maximum Logical Drive Capacity 2TB
Host Memory Addressing 64-bit, supporting greater than 4GB server memory space
RAID Support RAID 6 with ADG (Advanced Data Guarding) requires Battery Backed Write Cache Upgrade
RAID 5 (Distributed Data Guarding)
RAID 1, 1+0 (Striping & Mirroring)
RAID 0 (Striping)
Upgradeable Firmware Upgradeable Firmware with recovery ROM feature

Two embedded NC371i Multifunction Gigabit Server Adapters

Network Interface 10/100/1000-T
Compatibility IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method PCI Express, four lanes (x4)
Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s
10Base-T (Full-Duplex) 20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex) 200 Mb/s
1000Base-TX (Half and Full-Duplex) 2000 Mb/s
Connector RJ-45
Cable Support 10Base-T Categories 3, 4, or 5 UTP; up to 328 ft (100 m)
10/100/1000 Base-TX Category 5 UTP up to 328 ft (100 m)
