 HPE  Proliant BL860c G1 QuickSpecs Flag US QuickSpecs
Folder-Closed BL860c G1 HDD SSD Folder-Closed BL860c G1 Processors Folder-Closed BL860c G1 Memory
Folder-Closed BL860c G1 Controllers Folder-Closed BL860c G1 Networking Folder-Closed BL860c G1 Power
Folder-Closed BL860c G1 Quickspecs Folder-Closed BL860c G1 Quickspecs Folder-Closed BL860c G1 Options New  Refurb
contents
 Overview      Standard Features (Server Blade)      Standard Features      Models      Configuration Information - Factory Integrated Models      BL860c G1 Core Options      Additional Options      BL860c G1 Memory      Storage      Power Specifications      BL860c G1 QuickSpecs images/line.gif

Proliant BL860c G1 Overview

HP Integrity BL860c Server Blade

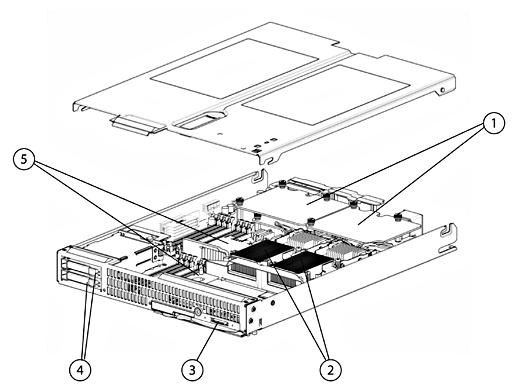

Proliant BL860c G1 Server Image



1.
Three Mezzanine slots
4.
Two small form factor (SFF) hot-plug drive bays
2.
Up to two Intel® Itanium® 9100 series processors
5.
Up to 48 GB PC2-4200, DDR2 memory (12 DIMMs)
3.
Local I/O connector

What's New
  • Support for Hot Plug SAS 6G Enterprise Hard Drives

At A Glance

This document covers the HP Integrity BL860c server blade only. For more information on HP BladeSystem c-Class Enclosures and HP BladeSystem c-Class Interconnects and Mezzanine Components, please see the following:

  • Processor:
    • Up to two Intel® Itanium® 9100 Series processors
  • Memory:
    • Up to 48 GB of memory. Supporting (12) DDR2-533 ECC memory DIMMS
  • Storage Controller:
    • Embedded LSI 1068 SAS RAID Controller integrated on system board
    • Standard RAID 1 controller
  • Internal Drive Support:
    • Supports up to (2) two small form factor (SFF) SAS hot plug hard drives
  • Network Controller:
    • Four (4) Embedded Standard Gigabit Network Adapter ports
    • Plus one (1) additional 10/100 NIC dedicated to Integrity iLO 2 Management
  • Mezzanine Support:
    • Three (3) additional I/O expansion slots via mezzanine cards.
    • Supports up to (3) mezzanine cards
      • HP NC532m Dual Port Flex-10 10GbE BL-c Adapter
        NOTE: Supported with HP-UX 11i v3 and Windows; requires 2GB of system memory to be ordered for each card in the blade. To obtain the software and instructions required to run the NC532m in a Windows Integrity environment, please contact: windows_integrity_nic@hp.com
      • HP BLc Emulex PLe1205 8Gb FC HBA (2-Port 8Gb Emulex FC HBA)
      • HP BLc Q MH 2562 8Gb FC HBA (2-Port 8Gb QLogic FC HBA)
      • HP BLc Emulex LPe1105 FC HBA Opt kit (2-Port 4Gb Emulex FC HBA)
      • HP BLc QLogic QMH2462 FC HBA (4Gb 2-Port QLogic FC HBA)
      • HP Smart Array P700m/512 Controller
      • HP BLc 4X DDR IB Dual Port Mezz HCA Opt Kit
      • 4X DDR InfiniBand (IB) Mezzanine (20 Gb/s) options for low latency server interconnectivity
        NOTE: For Linux support See the HPC Cluster Platform 6000 at: https://www.hp.com/go/hptc
      • HP NC364m 4-Port 1GbE BL-c Adapter
      • HP NC360m 2-Port 1GbE BLc Adapter
      • HP BLc PCIe Pass Thru (Required for support of BLc SB40c Storage Blade)
        NOTE: For SB40c information see:
        https://h18004.www1.hp.com/products/servers/storageworks/c-class/sb40c/index.html

  • Internal USB Support:
    • No internal USB port on the BL860c
  • Management:
    • HP Integrity Server Blades Management Software
      • Integrity Integrated Lights Out 2 (iLO 2) management processor
      • HP Integrity Integrated Light Out 2 (iLO 2) with Advanced Pack,(factory integrated - standard with all BL860c models)
      • HP Integrity Essentials, www.hp.com/go/integrityessentials
      • HP System Insight Manager
      • HP System Management Homepage
      • HP-UX 11i Management Software for Integrity Blades, www.hp.com/go/hpuxblades
        • HP Ignite-UX
        • HP Software Assistant (SWA)
        • HP Dynamic Root Disk (DRD)
    • HP BladeSystem Infrastructure Management Software:
      • HP BladeSystem Integrated Manager in HP SIM
      • HP Insight Control Environment for BladeSystem
      • HP BladeSystem c-Class Onboard Administrator
      • HP BladeSystem c-Class Virtual Connect
    • Enterprise Management Software
      • Data Protector Software
      • GlancePlus Pak
      • Performance Manager and Agent
  • Virtualization with HP Virtual Server Environment, www.hp.com/go/vse
    • Intelligent Control
      • HP Capacity Advisor
      • HP Virtualization Manager
      • HP-UX Workload Manager and HP Global Workload Manager
      • HP Systems Insight Manager
    • Partitioning Continuum
      • HP Integrity Virtual Machines (with HP-UX guest OS's and Windows Guest OS's)
      • HP Process Resource Manager/pSets
      • Secure Resource Partitions
    • Continuous availability
      • HP Serviceguard for HP-UX 11i
      • HP Serviceguard Extensions for SAP
      • HP Serviceguard Extensions for Faster Failover
    • VSE Reference Architectures
      • VSE Suites including HP Capacity Advisor, HP Virtualization Manager, HP Global Workload Manager, HP Integrity Virtual Machines, and VSE Reference Architectures
  • Form Factor:
    • HP Integrity BL860c server blade is a full-height, BladeSystem c-Class form factor. The BL860c server blade plugs into the BladeSystem enclosure. In the c7000 enclosure, 8 server blades are supported per 10U enclosure. 4 enclosures can be configured to a standard 42U rack; 32 BL860c server blades can be configured in a fully populated rack. In the c3000 enclosure, 4 BL860c server blades are supported per 6U enclosure.
  • Warranty:
    • Protected by HP Services and a worldwide network of HP Authorized Channel Partners. Three-year parts, 3 Year Labor and 3 Year on-site limited global warranty. Certain restrictions and exclusions apply. Hard drives have either a one year or three year warranty; refer to specific hard drive QuickSpecs for details.
contents
 Overview      Standard Features (Server Blade)      Standard Features      Models      Configuration Information - Factory Integrated Models      BL860c G1 Core Options      Additional Options      BL860c G1 Memory      Storage      Power Specifications      BL860c G1 QuickSpecs images/line.gif

Standard Features (Server Blade)

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
Processor Intel® Itanium® Single-Core Processors Model 9110N (1.6 GHz, 12MB L3 cache, FSB533)
Intel® Itanium® Dual-Core Processors Model 9140M (1.66 GHz, 18MB L3 cache, FSB667)
Intel® Itanium® Dual-Core Processors Model 9120N (1.42 GHz, 12MB L3 cache, FSB533)

Upgradeability Upgradeable to two (2) processors
NOTE: The HP Integrity BL860c only supports 1 or 2 processor configurations. Processors must be identical

Cache Memory 1.2 MB per Core Level 2 cache memory

Chipset HP zx2

Memory TypePC2-4200 DDR2 DIMMs (DDR2-533)
Minimum2 GB (2 x 1 GB)
Maximum48 GB (12 x 4 GB)
NOTE: Memory modules are DIMM pairs.
NOTE: Double Chip Spare is enabled in a single memory module. Double Chip Spare requires identical DIMM types and capacities

Network Adapter Four (4) embedded NIC ports, plus one (1) additional management NIC port:

Four (4) NIC ports via (2) Broadcom 5704 Dual Port Gigabit NIC

One (1) additional 10/100 NIC dedicated to Integrity iLO 2 Management

Up to twelve additional Gigabit Ethernet ports via the NC364m Quad-port mezzanine adapter

Expansion Slots Three Mezzanine slots (two (2) Type II PCIe, one (1) Type I PCIe x4)

Integrated Manageability Integrity Integrated Lights-Out 2 (iLO 2) Advanced Pack (Factory integrated)
HP BladeSystem c-Class Onboard Administrator
HP BladeSystem c-Class Virtual Connect

Storage Controller LSI 1068 SAS Controller
2 SAS Channels (one to each HDD)
Supports RAID 1

Maximum Internal Storage Hot Plug SAS 1.2TB SAS 2 x 600GB SAS

GraphicsIntegrated ATI RN-50 1280 x 1024 x 16M color (32 MB DDR memory)

Graphics Resolution SupportedResolution Color Depths
Depths 1280 x 1024, 16.7M , 64k, 256,16
1024 x 768, 16.7M, 64k, 256, 16
800 x 600, 16.7M, 64k, 256, 16
640 x 480, 16.7M, 64k, 256, 16

Fiber Channel Support

Optional Fibre Channel HBAs are supported by the HP Integrity BL860c. The mezzanine circuit board connects directly to the server blade system board.

8Gb Fibre Channel Host Bus Adapters:

  • QLogic QMH2562 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem
    (PN 451871-B21)
  • Emulex LPe1205 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem
    (PN 456972-B21)

8Gb Fibre Channel HBAs feature:

  • 8/4/2/1Gb/s auto negotiating speeds
  • Dual ports for redundant path connections
  • Optimized for HP StorageWorks and supported by third party SAN vendors
  • Support for HP-UX 11i v3, Microsoft® Windows for Integrity (6.2)

NOTE: 8Gb FC HBAs are supported on BL860c models AD323B and AD217B. 8Gb FC HBAs are supported on BL860c models AD323A and AD217A when configured with HP BL860c System Board Upgrade Kit (AM333A).

4Gb Fibre Channel Host Bus Adapters:
Emulex LPe1105 4Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem (PN 403621-B21 403621-B21)
QLogic QMH2462 4Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem (PN 403619-B21 403619-B21)

4Gb Fibre Channel HBAs feature

  • Optimal performance utilizing PCI Express
  • 4/2/1Gb/s auto negotiating speeds
  • Dual-ports for redundant path connections
  • Two FC HBAs per server blade provide redundant FC HBA support
  • Optimized for HP StorageWorks and supported by third party SAN vendors
  • Support for HP-UX, Microsoft® Windows® OpenVMS, and Linux operating systems environments. HP-UX 11i v3 and v2 are supported on HP BLc QLogic QMH2462 FC HBA. HP-UX 11i v3 is supported on HP BLc Emulex LPe1105 FC HBA.

Smart Array Controller Support

Optional Smart Array Controller is supported by BL860c. The mezzanine circuit board connects directly to the server blade system board.

HP Smart Array P700m/512 4-ports Ext PCIe x8 SAS Controller (PN 508226-B21 508226-B21)

  • Provides support for HP Zoned Storage for BladeSystem
  • Zoned Storage solution requires compatible HP StorageWorks 600 Modular Disk System and HP StorageWorks 3Gb SAS BL Switch
  • Optional HP Smart Array P-Series Low Profile Battery (PN 452348-B21 452348-B21)
  • BBWC is required for RAID 6 and highly recommended for RAID 5
  • Support for HP-UX 11i v3; HP-UX 11i v2; Microsoft Integrity Windows 2008 and 2003 (6.2); and OpenVMS (8.3-1H1)
  • Provides support for HP StorageWorks MSA2000sa
  • Support for MSA2000sa also requires HP StorageWorks 3Gb SAS BL Switch
  • Optional HP Smart Array P-Series Low Profile Battery (452348-B21 452348-B21)
  • BBWC is required for RAID 6 and highly recommended for RAID 5
  • Support for HP-UX 11i v3 and Microsoft Integrity Windows 2008 and 2003 (6.2)

See https://h18004.www1.hp.com/products/servers/proliantstorage/arraycontrollers/smartarrayp700m
/index.html
for additional details.


Compatible SAN

HP Integrity BL860c server blades are optimized for HP StorageWorks MSA, EVA, and XP


HP USB Options

External USB DVD drive with 7 ft USB extension cable is supported with c7000 enclosures.

The solution includes the following components:

  • External USB DVD drive with 9-inch USB cable
  • Power adaptor, power cable and USB Y-connector
  • 7-foot USB extension cable

NOTE: The USB extension cable (PN SH046AA) will be added automatically when the drive is ordered.
NOTE: The USB Y-connector goes between the extension cable (SH046AA) and the 9-inch USB cable fixed with DVD drive.
NOTE: The Y-connector should NOT be placed between the server blade and the 7-foot Extension cable

contents
 Overview      Standard Features (Server Blade)      Standard Features      Models      Configuration Information - Factory Integrated Models      BL860c G1 Core Options      Additional Options      BL860c G1 Memory      Storage      Power Specifications      BL860c G1 QuickSpecs images/line.gif

Standard Features

Integrity Server Blades Management Software and HP Integrity Essentials Software Plug-insHP-UX 11i Management Software for HP Integrity BL860c Server Blade and HP BladeSystem



  • Getting Started
    • HP Systems Insight Manager
    • HP Integrity Essentials for HP-UX 11i
    • HP-UX 11i System Management
    • HP BladeSystem Integrated Manager in HP System Insight Manager
    • HP Onboard Administrator
    • HP BladeSystem c-Class Onboard Administrator Firmware
    • HP BladeSystem c-Class Virtual Connect Firmware
    • HP Insight Control Environment for BladeSystem
  • Deploy
    • HP Ignite-UX
    • Software Distributor-UX
    • Software Package Builder
  • Monitor
    • HP Systems Insight Manager
    • HP System Management Homepage
    • Glance Plus Pak
    • Performance Manager and Agent
    • HP Serviceguard Manager
  • Control
    • HP Integrity Integrated Lights Out (iLO) 2 (Advanced Pack factory integrated with BL860c), includes Integrity iLO 2Power Regulator which is supported by HP-UX 11i v3
  • Protect
    • HP-UX Bastille
    • Secure Resource Partitions
    • Data Protector Software
    • Software Assistant (SWA)
    • Security Patch Check and Patch Assessment Tool
  • Optimize
    • HP Capacity Advisory
    • HP Virtualization Manager
    • HP-UX Workload Manager
    • HP Global Workload Manager
    • Process Resource Manager
    • HP Insight Power Manager
  • Integrate
    • HP Business Technology Optimization
    • IT Management Software
    • HP Virtual Server Environment Suite for HP-UX 11i for HP Integrity server blades
  • Learn More
    • HP-UX 11i on Integrity Server Blade
Microsoft ®Windows for Integrity Management Software for HP Integrity BL860c Server Blade and HP BladeSystem
  • Get Started
    • HP Systems Insight Manager
    • HP Integrity Essentials for Windows
    • HP BladeSystem Integrated Manager in HP Systems Insight Manager
    • HP Onboard Administrator
    • HP BladeSystem c-Class Onboard Administrator Firmware
    • HP BladeSystem c-Class Virtual Connect Firmware
    • HP Insight Control Environment for BladeSystem
  • Deploy
    • Integrity Essentials Foundation Pack for Windows
    • Smart Setup CD
    • Smart Setup Scripting Toolkit
    • HP Rapid Deployment Pack
  • Monitor
    • HP Systems Insight Manager
    • HP System Management Homepage
    • GlancePlus Pak
    • Performance Manager and Agent
    • Version Control
    • Repository Manager
    • NIC Configuration Utility
    • HP Performance Management Pack
  • Control
    • HP Integrity Integrated Lights Out (iLO) 2 (Advanced Pack factory integrated with BL860c), includes Integrity iLO 2Power Regulator which is supported by Windows Server 2008
  • Protect
    • Data Protector Software
  • Optimize
    • HP Capacity Advisor
    • HP Virtualization Manager
    • HP Insight Power Manager
  • Integrate
    • HP Business Technology Optimization
    • IT Management Software
    • SMS Inventory Tool for HP ProLiant and Integrity Update
    • HP Management Packs for Microsoft Operations Manager 2005
    • HP Management Packs for Microsoft Operations Manager 2007
  • Learn More
    • Windows for Integrity
Linux for Integrity Management Software for HP Integrity BL860c Server Blade and HP BladeSystem
  • Get Started
    • HP Systems Insight Manager
    • HP Integrity Essentials for Linux
    • HP BladeSystem Integrated Manager in HP Systems Insight Manager
    • HP Onboard Administrator
    • HP BladeSystem c-Class Onboard Administrator Firmware
    • HP BladeSystem c-Class Virtual Connect Firmware
    • HP Insight Control Environment for BladeSystem
  • Deploy
    • HP Integrity Essentials Foundation Pack for Linux
    • HP Rapid Deployment Pack
  • Monitor
    • HP Systems Insight Manager
    • HP System Management Homepage
    • GlancePlus Pak
    • Performance Manager and Agent
    • HP Serviceguard Manager
  • Control
    • HP Integrity Integrated Lights Out (iLO) 2 (Advanced Pack factory integrated with BL860c)
  • Protect
    • Data Protector Software
  • Optimize
    • HP Integrity Essentials Capacity Advisor
    • HP Integrity Essentials Virtualization Manager
    • HP Insight Power Manager (monitoring features only)
  • Integrate
    • HP Business Technology Optimization
    • IT Management Software
  • Learn More
    • Linux for Integrity
OpenVMS Management Software for HP Integrity BL860c Server Blade and HP BladeSystem
  • Get Started
    • HP Systems Insight Manager
    • HP Integrity Essentials for OpenVMS
    • HP BladeSystem Integrated Manager in HP Systems Insight Manager
    • HP Onboard Administrator
    • HP BladeSystem c-Class Onboard Administrator Firmware
    • HP BladeSystem c-Class Virtual Connect Firmware
    • HP Insight Control Environment for BladeSystem
  • Deploy
    • PCSI and Secure Delivery
  • Monitor
    • HP Systems Insight Manager
    • HP System Management Homepage
    • GlancePlus Pak
    • Performance Manager and Agent
    • Availability Manager
  • Control
    • HP Integrity Integrated Lights Out (iLO) 2 (Advanced Pack factory integrated with BL860c)
  • Protect
    • Data Protector Software
  • Optimize
    • HP Integrity Essentials Capacity Advisor
    • HP Integrity Essentials Virtualization Manager
    • HP Insight Power Manager (monitoring features only)
  • Integrate
    • HP Business Technology Optimization
    • IT Management Software
  • Learn More

Glossary of Integrity Server Blades Management Software Product DescriptionHP BladeSystem Integrated Manager in HP Systems Insight Manager



The HP BladeSystem Integrated Manager is a component in HP Systems Insight Manager (SIM) that provides streamlined management for the entire HP BladeSystem product family. The HP BladeSystem Integrated Manager enables users to quickly navigate their HP blade environments including blade servers, enclosure infrastructures, racks, and integrated switches, via automatically generated blade rack picture views and hierarchical trees. Users are able to conveniently configure, deploy, and manage individual or groups of blade systems. Additionally, users are able to quickly set up logical collections of blade systems for convenient management and control.

HP Blades VisualizationUsed by System Administrators to identify, associate and group blades into collections, using tables, trees, and picture views, and it can also be used to monitor performance and launch Integrity Essentials.
NOTE: For more information about Manageability solutions for Integrity Servers go to https://www.hp.com/go/integrityessentials
HP GlancePlus PakHP GlancePlus Pak provides you with a single product for managing a system's availability and performance. It is an integrated product that includes HP GlancePlus and HP OpenView Performance Agent. As an integrated product, the GlancePlus Pak includes the real-time diagnostic capabilities of GlancePlus and the historical data collection capabilities of the Performance Agent. The performance agent is used with other availability and performance management products, thus providing an integrated real-time and historical performance management solution.
HP Ignite-UX
for HP-UX Deployments
HP Ignite-UX is a free toolset that enables a network install of HP-UX onto multiple PA-RISC and/or Integrity servers on a network. It can also be used to create custom install configurations, or golden images, recover systems remotely, create custom recovery media including tape, CD and DVD, and manage and monitor multiple client installation sessions
HP Capacity AdvisorHP Capacity Advisor is the industry's first lightweight, integrated tool for ongoing capacity planning, simulating placement of application workloads to help IT administrators improve server utilization. Capacity Advisor provides planning capability for the intelligent control of the HP Virtual Server Environment.
HP Integrity Essentials Foundation Pack for WindowsThe HP Integrity Essentials Foundation Pack for Windows contains software designed to simplify the installation, configuration, and management of Microsoft Windows Server environments on HP Integrity Servers. The Smart Setup bootable utility simplifies tasks including system and disk partitioning and the Integrity Support Pack provides necessary drivers and management agents for use with your Windows Server environments
HP Integrity Essentials Foundation Pack for Linux

The HP Integrity Essentials Foundation Pack for Linux contains software designed to simplify the installation, configuration, and management of Linux on HP Integrity Servers with Linux in a Data Center. HPIEFPL simplifies tasks including system and disk partitioning as well as prepares your system for installing either the RHEL or SLES distribution.

The Smart Setup application is a bootable media that HP recommends to be used prior to installing the operating system distribution. This application media contains the latest documentation, firmware, and tools to help configure and optimize your system. Smart Setup provides the following: a system hardware inventory tool, tools to help configure system internal storage arrays and adapters, installation of the hardware diagnostics tools, and tools to launch the appropriate Red Hat or Novell distribution installer.

The Support Pack component of HPIEFPL includes HP value added software that can be used to either integrate with existing system management solutions or directly manage an HP Integrity server. Following the installation of the Linux distribution of choice, use the Management media to install additional tools, HP Insight Management Agents, HP WBEM providers, and System Management Homepage (SMH).

  • HP System Insight Manager
  • HP Insight Manager Agents
  • HP System Management Homepage
  • Web-based Enterprise Management (WBEM) Solutions
  • HP Management Base for Integrity Servers
  • OpenPegasus
  • HP Array Configuration Utility
HP Virtualization ManagerHP Virtualization Manager is easy-to-use virtualization management software that reduces complexity by providing unified visualization and management of physical and virtual servers. Virtualization Manager provides a central point of control that allows you to manage all the resources in your Virtual Server Environment (VSE). It is a powerful way to connect IT resources to real business needs.
HP Integrity Integrated Lights Out (iLO) 2 (Advanced Pack factory integrated with BL860c)HP Integrity Integrated Lights Out (iLO) management processors make it simpler, faster, and less costly to remotely manage your Integrity servers. HP Integrity iLO 2, the next generation of iLO management processors, is available in the newest Integrity entry-class servers. Integrity iLO 2 enables a complete remote console experience with the Advanced Pack addition of Virtual Media and Integrated Remote Console (virtual keyboard, video, and mouse). iLO 2 Advanced Pack also enables integration with Insight Power Manager. Integrity BL860c ships with an Integrity iLO 2 Advanced Pack license factory installed - no additional iLO licensing is needed.
HP Onboard Administrator

The Onboard Administrator for the HP BladeSystem enclosure is the brains of the new c-Class infrastructure. Together with the enclosure's HP Insight Display, the Onboard Administrator has been designed for both local and remote administration of HP BladeSystem c-Class. This module and its firmware provides:

  • Wizards for simple, fast setup and configuration
  • Highly available and secure access to the HP BladeSystem infrastructure
  • Security roles for server, network, and storage administrators
  • Automated power and cooling of the HP BladeSystem infrastructure
  • Agent-less device health and status
  • Thermal Logic power and cooling information and control
HP Serviceguard ManagerHP Serviceguard Manager is a graphical user interface (GUI) that provides configuration, administration, and monitoring capabilities for Serviceguard, Serviceguard Extension for RAC, Metrocluster, and Continentalclusters. Using Serviceguard Manager, operators see color-coded icons that provide a big-picture view of multiple clusters. From this big-picture view, operators can drill down and proactively manage clusters, systems (nodes), and packages that run applications.
HP Systems Insight
Manager
HP Systems Insight Manager (HP SIM) provides a unified, secure and extensible environment to centrally manage servers, storage and other infrastructure devices across multiple operating system platforms.
HP System Management HomepageHP System Management Homepage is a web-based interface that consolidates and simplifies the management of individual ProLiant and Integrity servers running Microsoft Windows or Linux operating systems, or HP 9000 and HP Integrity servers running HP-UX 11i. By aggregating data from HP Insight Management Agents and other management tools, the System Management Homepage provides a secure and intuitive interface to review in-depth hardware configuration and status data, performance metrics, system thresholds and software version control information. The System Management Homepage can also be used to access the HP Lights-Out Management processor on ProLiant and Integrity servers.
HP Virtual Server Environment for HP IntegrityHP Virtual Server Environment (VSE) for HP Integrity servers and blades provides an automated infrastructure that can adapt in seconds with mission-critical reliability. HP VSE allows you to optimize server utilization in real time by creating virtual servers that can automatically grow and shrink based on business priorities and service-level objectives.
HP-UX Software Assistant (SWA)HP-UX Software Assistant (SWA) is a command-line based tool that consolidates and simplifies patch management and security bulletin management on HP-UX systems. The SWA tool is new for HP-UX releases as of January 2007, includes Security Patch Check (SPC), and is the HP-recommended utility to use to maintain currency with HP-published security bulletins for HP-UX software.
HP-UX Workload ManagerHP-UX Workload Manager (HP-UX WLM) is a resource management tool that provides automatic CPU resource allocation and application performance management based on your service-level objectives (SLOs) and business priorities. WLM is most effective managing applications that are CPU-bound. It automatically adapts system or partition CPU resources (cores) to the demands, SLOs, and priorities of the running applications. (A core is the actual data processing engine within a processor, where a single processor can have multiple cores, and a core can support multiple execution threads through Hyper-Threading, introduced with HP-UX 11i v3, as discussed below.) It adjusts the CPU allocation of a group of processes known as a workload, basing adjustment on the current needs and performance of the applications in that workload.
HP-UX Global Workload ManagerHP servers. Using these policies can increase system utilization and facilitate controlled sharing of system resources. In addition, gWLM provides both real-time and historical monitoring of the resource allocation.

gWLM consists of a VSE Central Management Server, or CMS. You configure gWLM and monitor your workloads from the system where the CMS software is installed. Also, you use agent software on the systems where you have workloads you want gWLM to manage.
Insight Management Agents

Insight Management Agents should be installed on all HP servers to present system instrumentation, health and configuration information into HP Systems Insight Manager and the HP System Management Homepage. The HP System Management Homepage aggregates systems data from Insight Management Agents and other HP management tools, providing a consolidated browser-based interface for managing individual servers.

The HP System Management Homepage (SMH) and OS instrumentation (WBEM providers) to support management tools such as SMH and HP SIM are included in the HP-UX Operating Environments

Insight Management Agents and The HP System Management Homepage are included on ProLiant Support Packs, and can also be installed using the server profiles provided with the Insight Essentials Rapid Deployment Pack

For additional information about the Management Agents and the HP System Management Homepage please visit the management Web site at https://www.hp.com/servers/manage.

Performance Manager and AgentHP Performance Manager, Agents, and Monitor combine to provide a powerful and flexible distributed management solution. This solution is a single interface for centrally monitoring, analyzing, and forecasting resource utilization for distributed multi-vendor environments, enabling you to offer the best possible level of service in a cost-effective manner.
Process Resource Manager

HP Process Resource Manager (HP PRM) is a resource management tool used to control the amount of resources that processes use during peak system load. HP PRM can manage allocation of the following resources:

  • CPU: Ensures a minimum allocation of CPU; can also simultaneously cap CPU resource usage for each group in the configuration. (Starting with HP-UX 11i v3, per-group capping is available.)
  • Memory: Ensures a minimum allocation of private real memory; can also cap private memory usage. Allows you to allocate an exact amount of shared memory.
  • Disk bandwidth: Ensures a minimum allocation of disk bandwidth
Insight Essentials Performance Management Pack (Windows for HP Integrity Servers only)Performance Management Pack detects, analyzes, and explains hardware bottlenecks on HP Integrity servers running Windows.
Insight Essentials Rapid Deployment Pack (designed for Windows and Linux for HP Integrity Servers only)Rapid Deployment Pack (RDP) extends HP Systems Insight Manager with a complete deployment solution for HP Integrity server blades running Linux or Windows. RDP provides a central location to configure server hardware, deploy the Windows, Linux operating environments and install HP Integrity Support Pack drivers using images and scripted profiles.
Secure Resource PartitionsOne method the HP VSE uses to improve server resource utilization is to consolidate multiple applications within a single operating system image. Secure Resource Partitions combine kernel level security and proven resource management to stack multiple applications within the same operating system. HP Process Resource Manager and HP-UX Workload Manager can dedicate specific resources to specific applications within an operating system image, avoiding resource contention issues. Using HP-UX 11i V2 Security Containment, organizations can ensure that application instances cannot access processes or files from other applications or the system. This ensures that multiple application instances run securely in a consolidated environment, providing the benefits of consolidation while preserving the security of a scale out environment. For software licensing purposes, the maximum number of CPUs in a Secure Resource Partition can be capped.
Software Distributor-UXSoftware Distributor (SD) is the HP-UX administration tool set used to deliver and maintain HP-UX operating systems and layered software applications. SD is delivered as part of HP-UX; you do not need to download it separately.

OS Support

HP-UX 11i v3 Data Center Operating Environment
HP-UX 11i v3 Virtual Server Operating Environment
HP-UX 11i v3 High Availability Operating Environment
HP-UX 11i v3 Base Operating Environment
HP-UX 11i v2 Mission Critical Operating Environment
HP-UX 11i v2 Enterprise Operating Environment
HP-UX 11i v2 Foundation Operating Environment
HP-UX 11i v2 Technical Computing Operating Environment
Microsoft Windows Server 2008 for Itanium-based Systems
Microsoft Windows Server 2003 Database Edition for Itanium-based Systems
Microsoft Windows Server 2003 Enterprise Edition for Itanium-based Systems
Red Hat Enterprise Linux 4
Red Hat Enterprise Linux 5
Novell SUSE Linux Enterprise Server 10
OpenVMS v8.3 I64 Foundation Operating Environment for Itanium Servers
OpenVMS v8.3 I64 Enterprise Operating Environment for Itanium Servers
OpenVMS v8.3 I64 Mission Critical Operating Environment for Itanium Servers

NOTE: For a more complete and up to date information on HP-UX 11i support, please visit the HP-UX11i website at: https://www.hp.com/go/hpux11iblades
NOTE: For a more complete and up to date information on OpenVMS support, please visit the HP-OpenVMS website at: https://www.hp.com/go/openvms
NOTE: For a more complete and up to date information on Integrity Windows support, please visit the HP Integrity Windows website at: https://www.hp.com/go/integrity/windows
NOTE: For a more complete and up to date information on Linux Operating Systems on Integrity or BladeSystem platforms, please visit the Integrity and BladeSystem Linux matrix website: https://www.hp.com/go/lxintegritycert


Supported Software Options

HP Integrity Virtual Machines
HP Virtualization Manager
HP Capacity Advisor
HP Secure Resource Partition
HP-UX Workload Manager
HP Global Workload Manager
HP Virtual Server Environment Suite for HP-UX 11i for HP Integrity server blades
HP Serviceguard for HP-UX 11i
HP Serviceguard Manager
HP Serviceguard Extensions for SAP
HP Serviceguard Extensions for Faster Failover
HP Integrity iLO 2 Power Regulator for HP-UX 11i v3 and Windows Server 2003 (provided with the Integrity iLO 2 Advanced Pack and included with purchase of the BL860c
HP Insight Power Manager
GlancePlus Pak
Performance Manager and Agent


Intelligent Manageability HP Integrity Integrated Lights-Out 2 (iLO 2) Advanced Pack (factory integrated with the HP Integrity BL860c)
Virtual serial console (Multiple, mirrored sessions, with previous context and console log buffer)
Virtual Media (CD-ROM, DVD-ROM, and ISO file image)
Virtual Power Button Control
Integrated Remote Console (virtual KVM) for Windows environments
iLO 2 Power Regulator and integration with Insight Power Manager

Embedded system health and Integrity fault management Diagnostics and troubleshooting:

  • virtual front panel
  • log access to Integrity SEL
  • FPL Blade power consumption reading

Dedicated LAN Connectivity
Automatic IP Configuration via DHCP/DNS/WINS browser
Command Line and scripted access Industry Standard RC4, 128-bit Secure Sockets Layer (SSL) and Secure Shell (SSH) Security
Directory Services Integration (LDAP)
Support for 19 user accounts with customizable access privileges

NOTE: iLO 2 Advanced Pack features such as Directory Services Integration (LDAP), Integrated Remote Console for Windows and browser accessible Virtual Media are included with the HP Integrity BL860c server blade.

Availability

Dual-Port Fibre Channel Mezzanine Card for redundant SAN connection
Two hot-plug SAS hard drive bays and integrated RAID (LSI 1068) controller on every server blade

Network adapter teaming (network fault tolerance, transmit load balancing, switch-assisted load balancing)

On line memory page deallocation

  • ECC protected DDR2 memory
  • Memory double chip spare to overcome two DRAM chip failures
  • Dynamic Processor resilience and deallocation with HP-UX
  • Journal file system with HP-UX*
  • Auto reboot
  • HP Serviceguard for HP-UX*
  • HP Serviceguard Extension for RAC for HP-UX*
  • HP Serviceguard Extension for SAP for HP-UX*
  • Serviceguard Manager for HP-UX and Linux Clusters*
  • HP Event Monitoring Service
  • HA Monitors for HP-UX
  • HA Toolkits for HP-UX and Linux
  • HP Mirrordisk/UX* (Included if purchase HP-UX 11i Enterprise or Mission-Critical OEs)
  • Extended Campus Cluster*, HP Metrocluster*, and HP Continentalclusters* for HP UX
  • HP System Insight Manager (SIM) for proactive fault management
  • HP StorageWorks Cluster Extension XP for Linux
  • HP Serviceguard Storage Management Suites for HP-UX*

*Fee based software products


Industry Standard Compliance
  • ACPI 2.0 Compliant
  • PCI 2.2 Compliant
  • WOL Support
  • Microsoft® Logo certifications
  • USB 2.0 Support

Security

Hardware Security

  • Power-on password
  • Administrator's password
  • Integrity Integrated Lights Out 2 has 19 customizable user accounts and SSL encryption
  • Integrity Integrated Lights Out 2 can be disabled via a Global Setting
  • SSL encryption on web console

Platform security fundamentals

Designed for the optimal protection against both external and internal threats, HP-UX 11i offers industry-leading breadth and depth of UNIX security features. Focused on feature integration aimed at proactively mitigating risk, reducing compliance cost and accelerating time to implementation, HP-UX security solutions significantly lower IT costs. This set of fully integrated and complementary features is designed to provide layered security with in-depth protection of all your enterprise assets by protecting data, systems and identities. For more details, visit www.hp.com/go/hpux11isecurity

Downloads and documentationFunction
Encrypted volume and file system (EVFS)EVFS is an operating system service that fills the compliance need to store files in a way that they cannot be read by unauthorized parties who obtain physical access to storage. Files and databases from current applications can be encrypted without changes to the application or underlying storage infrastructure. Read more
Trusted Computing Services (TCS)HP-UX TCS provides software support for hardware-enforced key management on supported HP Integrity servers. By providing a low-cost embedded security chip option (known as a Trusted Platform Module) in its zx2-based Integrity servers, HP has established a foundation for strong protection of sensitive information - including cryptographic keys, such as for EVFS.
Security containmentHP-UX 11i security containment introduces three core technologies: compartments, fine-grained privileges, and role-based access control. Together, these three components provide a highly secure operating environment without requiring applications to be modified. Read more
Protected Systems: Webserver (PS-Webserver) PS-Webserver is a pre-configured secure Web services platform built on HP-UX. The secure architecture and run time environment isolates the Internet from backend servers and isolates the Web server from the intranet. Read more
Open SSLOpen SSL offers a general-purpose cryptography library and implementation of the Secure Sockets Layer (SSL v2/v3) and Transport Layer Security (TLS v1) protocols.
Secure ShellSecure Shell is a powerful software-based approach to encrypted network security. It provides secured remote login. Credentials and data sent over the network are encrypted by SSH-1 or SSH-2 protocols and decrypted once they reach their destination
IPSecIPSec adds integrity protection and confidentiality to network communication over the Internet and within the enterprise to applications which lack these capabilities without modifying existing applications.
MD5 Secure Checksum
(MD5sum)
MD5sum provides a cryptographic file integrity utility and API based on the standard Message Digest 5 (MD5) algorithm.
HP-UX 11i Internet ExpressIn addition to the fully-supported features listed above, HP packages a number of limited-support open source products that offer additional data security, including: OpenSC/OpenCT, ClamAV, CyrusSASL, GnuPG, SSLDump, Stunnel, and Tripwire.
BastilleBastille is a very easy-to-use security hardening wizard (also known as a lockdown wizard) that enhances the security of an HP-UX 11i host by turning off unneeded services, tightening security configuration settings, configuring IPFilter, etc. It accommodates the various degrees of hardening required for web, application and database servers, and can walk a non-security expert through the hardening decisions.
Host IDSHIDS enhances host-level security with near real-time automatic monitoring of each configured host for signs of potentially damaging intrusions. HIDS is a standard feature of HP-UX 11i, making HP the only systems vendor to offer its own host intrusion detection product. Read more
Secure resource partitionsSecure Resource Partitions combine kernel level security (via Security Containment) and proven resource management to stack multiple applications within the same operating system.
IPFilterIPFilter is a stateful firewall (filters IP packets to control packet flow in or out of the system; stateful simplifies and increases security of rule definitions by allowing return traffic based on outbound rules without having to define broader inbound rules). HP's unique dynamic connection allocation provides protection from denial-of-service attacks. IPFilter provides increased security defense by minimizing the number of server exposure points.
Software Assistant (SWA)HP-UX SWA is a command-line tool that consolidates, simplifies and helps automate patch and security bulletin management on HP-UX systems. The SWA tool is the HP-recommended utility to maintain currency with HP-published security bulletins for HP-UX software.
Install-time SecurityInstall-time Security (ITS) is available to customers running HP-UX 11i v2 or later releases of the operating system, as an install option to lockdown systems during installation. ITS makes HP-UX 11i more secure out-of-the-box when customers select higher security levels. There are four choices, ranging from a highly locked down (DMZ) level with a tightly configured IPFilter firewall blocking most inbound traffic (and many services also disabled or secured) to a maximum compatibility level which installs security tools, but doesn't apply a security level.
Boot AuthenticationA site's security policies may require users to authenticate before they can boot the system into single-user mode. Previously, this feature was only available on a system that had been converted to Trusted Mode. This product now provides secure single-user mode with root password protection, but without the overhead of converting the system to trusted mode.
Standard Mode Security ExtensionsEnhances the system security of HP-UX 11i v2 and v3. Several security features previously available only in trusted mode are now available on standard mode HP-UX 11i systems. Features include enhanced password and user account security, such as password expiration on inactivity history reuse restrictions, auditing, and much more.
Shadow PasswordsShadow Passwords enhance system security by hiding user encrypted passwords in a shadow password file. Encrypted passwords previously stored in the publicly readable /etc/passwd file can be optionally moved to the /etc/shadow file, which is accessible only by a privileged user.
Strong Random Number GeneratorThe Strong Random Number Generator provides a cryptographically strong, non-reproducible source of true random numbers for applications with strong security requirements, such as for generating encryption keys
HP-UX 11i Internet ExpressIn addition to the fully-supported features listed above, HP packages a number of limited-support open source products that offer additional system security, including: Chkrootkit, PAM_passwdqc, DanteSOCKS, Snort, Nessus, Xinetd.
Identity Management Integration (IdMI)Providing the most complete and integrated solution for security management, IdMI allows administrators to enforce critical system access and authorizations. In addition to integrated enforcement, with the bundled version of Select Access for IdMI, customers benefit from single-vendor support for this mission critical capability.
Select Access for IdMI Select Access for IdMI is a follow-up product to the HP-UX Identity Management Integration feature. This version of Select Access supports complete administration of HP-UX security policy for both user authentication and access control privileged functions within the OS. HP-UX security policy can be centrally controlled and managed through Select Access.
Role-based Access Control (RBAC)HP-UX RBAC (a component of security containment) is an alternative to the traditional "all-or-nothing" root user model, which grants permissions to the root user for all operations, and denies permissions to non-root users for certain operations. HP-UX RBAC allows you to distribute administrative responsibilities by creating roles with appropriate authorizations and assigning them to non-root users and groups.
AAA ServerHP-UX 11i AAA Server provides authentication, authorization and accounting services using the RADIUS and EAP protocols to authenticate and authorize user access to network devices and software applications. The AAA Server also generates usage logs for accounting, auditing and billing purposes.
Red Hat Directory Server Red Hat Directory Server is a Lightweight Directory Access Protocol (LDAP) compliant software server that centralizes user profiles, application settings, group data, policies and access control information into a network-based registry. The server is available on HP-UX 11i and operates on both HP 9000 and HP Integrity 64-bit hardware server platforms.
LDAP-UX ClientWith growth, consolidation and a dynamic environment, enterprises need new technologies to manage and verify security in their IT environments. In a highly distributed environment, local processes, security practices and administration methods are often inconsistent, repetitive and difficult to audit. With LDAP-UX Enterprise IT architects can use LDAP directories as one tool to help unify and simplify many of the above-mentioned practices
Kerberos ServerKerberos Server provides key distribution facilities to implement the Kerberos authentication protocol in network-distributed enterprises. It operates with an LDAP directory providing integrated identity management for authentication and access control.
PAM KerberosPAM Kerberos provides transparent Kerberos login support for HP-UX.
Kerberos ClientHP-UX provides Kerberos Client software including libraries, header files, and utilities for implementing secured client/server applications
HP-UX 11i Internet ExpressIn addition to the fully-supported features listed above, HP packages a number of limited-support open source products that offer additional identity management, including: Perl-LDAP, sudo, and OpenSAML.

Common Criteria certification

HP-UX 11i v3, the latest release of HP's strategic UNIX operating environment running on HP Integrity server blades in evaluation for Common Criteria Certification.

Many enterprise and government customers require this vendor-independent security certification because it increases confidence in the product's security assurance, functionality, quality and effectiveness. Many governments, including the United States, require certification for government IT procurement.

Certification evaluations are only conducted by the evaluation agency after release of the product. HP expects the certification for EAL4 Common Criteria (ISO 15408) Assurance Level, augmented by ALC_FLR.3 (flaw remediation), using the Controlled Access (CAPP), Role-Based Access Control (RBACPP) Protection Profiles and nPartitions (nPars).

View the in-evaluation statement for more information.

The HP-UX 11i v2 operating system running on HP Integrity server blades has been successfully evaluated against the requirements for the EAL4 Common Criteria (ISO 15408) Assurance Level, augmented by ALC_FLR.3 (flaw remediation), using the Controlled Access (CAPP) and Role-Based Access Control (RBAC) Protection Profiles. EAL4+ is sometimes used as the abbreviated form for additional assurances. Details of the evaluation and evaluated configuration are available at
https://www.commoncriteriaportal.org/files/epfiles/CRP225.pdf and
https://www.commoncriteriaportal.org/files/epfiles/hp-ux11iv2.pdf.


Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP Integrity Server Blades, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSA1xxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: https://www.hp.com/go/factory-express.


HP Enterprise Configurator The HP eConfigure Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance. For additional information please visit:
https://h30099.www3.hp.com/configurator/

Service and Support

HP Premium Services are available for the HP Integrity BL860c server blade. These services offer integrated hardware and software support to help customers maintain a robust, stable, flexible IT environment that enhances their business agility. They encompass today's most popular products, including UNIX, Windows and Linux servers, as well as mobile technology, network devices, desktops, printers, storage solutions, management software and more.

All of these Premium offerings let customers leverage HP Services multi-vendor, multi-technology experience and expertise; global reach with delivery capabilities from 600 offices in 160 countries; single-point-of-contact problem diagnosis and resolution; advanced remote monitoring and performance enhancement technologies; and proven support management processes based on IT best practices.

HP Services professionals can help customers identify the Premium support offering that fits their business and technology goals. HP Premium Hardware and Software Services include:

  • Mission Critical Partnership – custom services to help you achieve your strategic business goals and fulfill your most demanding service-level commitments through continual service-quality improvements
  • HP Critical Service – comprehensive preventive services and super-responsive support to maximize availability and minimize downtime risk exposure in mission-critical environments
  • HP Proactive 24 Service – collaborate with HP Services professionals to improve operational effectiveness, performance, and stability through joint services planning and 24x7 hardware/Software Support
  • Support Plus 24 – 24x7x365 onsite hardware and over-the-phone Software Support for HP and selected multi vendor products, plus software updates at substantial subscription savings
  • Support Plus – the economical choice for single-source hardware/Software Support delivered during extended business hours, as well as cost-saving software updates

This product is covered by a global limited warranty and supported by HP Services.

Care Pack services provide a range of life cycle support options that let you choose the service levels that meet your business requirements, from basic to mission-critical.

A full range of HP Care Pack hardware and software services are available including:

  • Installation and start up
  • Education courses
  • Extended onsite hardware coverage hours from same business day 13 hours, 5 day to 24 hours, 7 days call window with options including 4-hour response or 6-hour Call To Repair
  • Comprehensive range of software technical support.
  • System Management, Performance Services and Mission Critical Support Solution

NOTE: For more information regarding the Blade service portfolio visit our worldwide web site on the internet at: https://h20219.www2.hp.com/services/cache/81725-0-0-225-121.html

HP Care Pack services for the c7000 Enclosure cover the enclosure, power supplies and fans. HP qualified rack options are covered by these services when installed within the same rack. HP Supported Ethernet devices covered include the Ethernet Pass-Through Module, Fibre Channel Pass-Through Module and GbE2c Ethernet Blade Switch and Cisco Catalyst 3020 Blade Switch.

For a complete listing of service offerings and information visit:
https://www.hp.com/services/bladesystemservices

contents
 Overview      Standard Features (Server Blade)      Standard Features      Models      Configuration Information - Factory Integrated Models      BL860c G1 Core Options      Additional Options      BL860c G1 Memory      Storage      Power Specifications      BL860c G1 QuickSpecs images/line.gif

Models

Two (2) Processors Base Models

HP Integrity BL860c 9110N SC (2P)
AD323B#004

HP Integrity BL860c 9120N DC (2P)
AD323B#005

HP Integrity BL860c 9140M DC (2P)
AD323B#006

Processor(s)
One of the following depending on model
Two (2) Intel® Itanium® Single-Core Processors Model 9110N (1.6 GHz, 12MB L3 cache)
Two (2) Intel® Itanium® Dual-Core Processors Model 9120N (1.42 GHz, 12MB L3 cache)
Two (2) Intel® Itanium® Dual-Core Processors Model 9140M (1.66 GHz, 18MB L3 cache)
Cache Memory1.2 MB per Core Level 2 cache memory
MemoryNo memory included (PC2-4200, DDR2-533)
Network Adapter4 Embedded NIC ports, Dual Broadcom 5704 Gigabit NICs plus (1) additional 10/100 NIC dedicated to Integrity iLO2 Management
Storage ControllerLSI1068 SAS Controller
Hard DrivesNo drives included; (2) SFF SAS drive bays
Internal Storage600GB SAS
Optical DriveNone
Form Factor

Up to 8 supported in HP BladeSystem c7000 Enclosure
Up to 4 supported in HP BladeSystem c3000 Enclosure


One (1) Processor Base Models

HP Integrity BL860c 9110N SC (1P)
AD217B#004

HP Integrity BL860c 9120N SC (1P)
AD217B#005

HP Integrity BL860c 9140M SC (1P)
AD217B#006

Processor(s)
One of the following depending on model
One (1) Intel® Itanium® Single-Core Processors Model 9110N (1.6 GHz, 12 MB L3 cache)
One (1) Intel® Itanium® Dual-Core Processors Model 9120N (1.42 GHz, 12 MB L3 cache)
One (1) Intel® Itanium® Dual-Core Processors Model 9140M (1.66 GHz, 18 MB L3 cache)
Cache Memory1.2 MB per Core Level cache memory
MemoryNo memory included (PC2-4200, DDR2-533)
Network Adapter4 Embedded NIC ports: Dual Broadcom 5704 Gigabit NICs plus (1) additional 10/100 NIC dedicated to Integrity iLO 2 Management
Storage ControllerLSI 1068 SAS Controller
Hard DrivesNo drives included; (2) SFF SAS drive bays
Internal Storage600GB SAS
Optical DriveNone
Form Factor

Up to 8 supported in HP BladeSystem c7000 Enclosure
Up to 4 supported in HP BladeSystem c3000 Enclosure

contents
 Overview      Standard Features (Server Blade)      Standard Features      Models      Configuration Information - Factory Integrated Models      BL860c G1 Core Options      Additional Options      BL860c G1 Memory      Storage      Power Specifications      BL860c G1 QuickSpecs images/line.gif

Configuration Information - Factory Integrated Models

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
NOTE: HP does not allow factory integration of options into standard models listed above.
Configure-to-order servers must start with a CTO Chassis.
NOTE: FIO indicates that this option is a Factory Installable Option.
Step 1: Base Server Blade Configuration
ModelsHP Integrity BL860c Server Blade
NOTE: Choose from base models above.
NOTE: Adding Option code "#0D1" to the Server Blade PN will integrate the configured blade into the enclosure (which must be on the same order)

Configurable Model ships with:
Four embedded Gigabit Ethernet NIC ports plus (1) additional 10/100 NIC dedicated to Integrity iLO 2 Management
Integrated LSI 1068 hardware RAID controller
Two small form factor (SFF) SAS hot plug hard drive bays
HP Integrity Integrated Lights-Out 2 Advanced Pack

Step 2: Choose Required Options (one of the following from each list unless otherwise noted):
HP Processors Select a base model (either 2P or 1P models) which has the desired CPU offering.
HP Memory HP BL860c 4GB PC4300 DDR-SDRAM Dual Memory
AD344A
HP BL860c 8GB PC4300 DDR-SDRAM Dual Memory
AD345A
NOTE: Memory Modules consist of pairs of DIMMs
NOTE: DIMMs must be installed in pairs
RAID 1 Configuration Upgrade Option Factory configured hardware RAID 1
AD248A#106
NOTE: Requires two (2) SAS Hard Drives identical in speed and capacity
NOTE: Ordering AD242A#106 provides factory configuration of the embedded LSI 1068 SAS controller to RAID1.


Step 3: Choose Additional Options for Factory Integration
HP Hard Drives NOTE: Hard drives have either a one year or three year warranty; refer to specific hard drive QuickSpecs for details.
SAS Hot Plug SFF(2.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 581284-B21 581284-B21
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 512545-B21 512545-B21
HP Fibre Channel Mezzanine Options QLogic QMH2562 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem 451871-B21
Emulex LPe1205 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem 456972-B21
QLogic QMH2462 4Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem
Emulex LPe1105 4Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem
NOTE: BL860c supports HP Virtual Connect Fibre Channel Interconnect Modules. See: https://www.hp.com/go/bladesystem/virtualconnect for complete details.
HP InfiniBand Mezzanine Options HP 4X DDR IB Dual Port Mezzanine HCA
NOTE: Supported with HP-UX 11i.
448262-B21
HP c-Class Mezzanines HP PCI Express Mezzanine pass-thru card for HP BladeSystem
431643-B21
NOTE: Required to support the HP StorageWorks SB40c Storage Blade (P/N 411243-B21) with HP c-Class BladeSystem full-height server blades
NOTE: Adding option "0D1" to these options indicates factory integration of that product.

HP Ethernet Mezzanine Options Gigabit Ethernet Mezzanines
HP NC364m Quad Port 1GbE BL-c Adapter 447883-B21
NOTE: Provides four additional Gigabit Ethernet ports per I/O expansion slot.
NOTE: BL860c supports HP Virtual Connect Ethernet Interconnect Modules. See https://www.hp.com/go/bladesystem/virtualconnect for complete details

10 Gigabit Ethernet Mezzanines
HP NC532m Dual Port Flex-10 10GbE BL-c Adapter 467799-B21
NOTE: Provides Flex-10 connectivity when used in conjunction with the HP Virtual Connect Flex-10 10Gb Ethernet Module for the c-Class BladeSystem Option (P/N 455880-B21).
NOTE: Supported with HP-UX 11i v3 and Windows; requires 2GB of system memory to be ordered for each card in the blade. To obtain the software and instructions required to run the NC532m in a Windows Integrity environment, please contact: windows_integrity_nic@hp.com


Step 4: Choose Additional Options for Field Upgrades
NOTE: For additional options, please refer to the "Core Options" and "Additional Options" section below. For additional options, including server blade enclosures interconnect and mezzanine options and power subsystem options; please see the Core Options and Additional sections below; or the following:

HP BladeSystem c3000 Enclosure QuickSpecs:
https://h18000.www1.hp.com/products/quickspecs/12790_div/12790_div.html
HP BladeSystem c7000 Enclosure QuickSpecs:
https://h18000.www1.hp.com/products/quickspecs/12810_div/12810_div.html
HP BladeSystem c-Class Interconnect and Mezzanine Components:
https://h18004.www1.hp.com/products/blades/components/c-class-interconnects.html
https://h18004.www1.hp.com/products/blades/components/c-class-adapters.html
contents
 Overview      Standard Features (Server Blade)      Standard Features      Models      Configuration Information - Factory Integrated Models      BL860c G1 Core Options      Additional Options      BL860c G1 Memory      Storage      Power Specifications      BL860c G1 QuickSpecs images/line.gif

BL860c G1 Core Options

NOTE: For additional options please refer to the "Options" section below.
HP Ethernet Mezzanine Options Gigabit Ethernet Mezzanines
HP NC364m Quad Port 1GbE BL-c Adapter 447883-B21
NOTE: Provides four additional Gigabit Ethernet ports per each I/O expansion slot.
HP NC360m Dual Port 1GbE BL-c Adapter
445978-B21
NOTE: Provides two additional Gigabit Ethernet ports per each I/O expansion slot.
10 Gigabit Ethernet Mezzanines
HP NC532m Dual Port Flex-10 10GbE BL-c Adapter 467799-B21
NOTE: Provides Flex-10 connectivity when used in conjunction with the Provides Flex-10 connectivity when used in conjunction with the HP Virtual Connect Flex-10 10Gb Ethernet Module for the c-Class BladeSystem Option (P/N 455880-B21).
NOTE: Supported with HP-UX 11i v3 and Windows; requires 2GB of system memory to be ordered for each card in the blade. To obtain the software and instructions required to run the NC532m in a Windows Integrity environment, please contact: windows_integrity_nic@hp.com


HP Fibre Channel Mezzanine Options QLogic QMH2562 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem
451871-B21
Emulex LPe1205 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem
456972-B21
QLogic QMH2462 4Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem
Emulex LPe1105 4Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem

HP Storage Controllers HP Smart Array P700m/512 4-ports Ext PCIe x8 SAS Controller
Optional Upgrades
HP Smart Array P-Series Low Profile Battery
NOTE: The P700M will function as a SAS RAID controller when connected to MDS600 disk subsystem via the StorageWorks 3Gb SAS Switch. In the RAID mode, HP-UX 11iv3 and v2, OpenVMS 8.3-1H1, and Integrity for Windows 6.2 are supported.
NOTE: The P700M will function as a Pass-Thru when connected to the MAS200sa SAS Storage Array via the StorageWorks 3Gb SAS Switch. In the Pass-Thru mode, HP-UX 11i v3 and Integrity for Windows 6.2 are supported.
NOTE: The optional battery is required for RAID 6 and highly recommended for RAID 5 implementations.


HP Processors
(field upgrade only)
HP BL860c Intel® Itanium 9110N (1.6GHz/1-core/12MB) Processor Kit
AD395A
HP BL860c Intel® Itanium 9120N (1.42GHz/2-core/12MB) Processor Kit
AD394A
HP BL860c Intel® Itanium 9140M (1.66GHz/2-core/18MB) Processor Kit
AD396A
NOTE: HP Integrity BL860c processor upgrade kits contain one processor. Processors must be identical. No mixing of processor models is allowed.

NOTE: The Integrity BL860c only supports 1 or 2 processor configurations.

HP Memory HP BL860c 4GB PC4300 DDR-SDRAM Dual Memory
AD344A
HP BL860c 8GB PC4300 DDR-SDRAM Dual Memory
AD345A
NOTE: Memory Modules consist of pairs of DIMMs
DIMMS must be installed in pairs

NOTE: DIMMs must be installed in decreasing capacity with the largest DIMMs installed in the lowest numbered slots.

BL860c G1 Hard Drives NOTE: Hard drives have either a one year or three year warranty; refer to specific hard drive QuickSpecs for details.
SAS Hot Plug SFF(2.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 581286-B21 581286-B21
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 581284-B21 581284-B21
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 512547-B21 512547-B21
HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html (Worldwide)

contents
 Overview      Standard Features (Server Blade)      Standard Features      Models      Configuration Information - Factory Integrated Models      BL860c G1 Core Options      Additional Options      BL860c G1 Memory      Storage      Power Specifications      BL860c G1 QuickSpecs images/line.gif

Additional Options

HP InfiniBand Mezzanine Options HP 4X DDR IB Dual Port Mezzanine HCA
448262-B21
NOTE: For Linux support See the HPC Cluster Platform 6000 at: https://www.hp.com/go/hptc

HP c-Class Mezzanines HP PCI Express Mezzanine pass-thru card for HP BladeSystem
431643-B21
NOTE: Required to support the SB40c storage blade (P/N 411243-B21) or PCI-Express Expansion Blade (P/N 448018-B21) with HP c-Class BladeSystem full-height server blades.

HP StorageWorks SB40c Storage Blade

HP StorageWorks SB40c Storage Blade

411243-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional options at:
https://h18000.www1.hp.com/products/quickspecs/12587_div/12587_div.html (Worldwide)


HP USB Options HP Mobile USB DVD/RW Drive BU516AA#ABA
NOTE: The HP Mobile USB DVD/RW solution includes the DVD/RW Drive (BU516AA), power adaptor, power cable and USB Y-connector and 7-foot USB extension cable (SH046AA).
NOTE: HP Monster 700 A-A 7ft USB Extension Cable (SH046AA) will be added automatically when the drive is ordered.
NOTE: The USB Y-connector goes between the extension cable (SH046AA) and the 9-inch USB cable fixed with DVD drive.
NOTE: The Y-connector should NOT be placed between the server blade and the 7-foot Extension cable.


HP Care Pack Services

NOTE: The HP Care Pack service part numbers below for the Integrity BL860 c-Class server blades, cover the server blade and all HP branded hardware options qualified for the server, purchased at the same time or afterwards, internal to the server.


NOTE: HP Care Pack services for the c7000 Enclosure cover the enclosure, power supplies and fans. HP qualified rack options are covered by these services when installed within the same rack. HP Supported Ethernet devices covered include the Ethernet Pass-Through Module, Fibre Channel Pass-Through Module, Cisco Catalyst 3020 Blade Switch and GbE2c Ethernet Blade Switch.
NOTE: The services listed below are available for both Integrity and ProLiant blades, as well as the c7000 enclosure, when ordering flexible services
Support Plus
Support Plus, 1 Year
HA109A1
Support Plus, 3 Years
HA109A3
Support Plus 24, 1 Year
HA110A1
Support Plus 24, 3 Years
HA110A3
HP Proactive Service
HP Proactive Service, 24 Hour, 1 Year
HA111A1
HP Proactive Service, 24 Hour, 3 Year
HA111A3
HP Critical Service
Hardware Only, Critical Service, 7-Day x 24 Hour, 1 Year
HA112A1
Hardware Only, Critical Service, 7-Day x 24 Hour, 3 Years
HA112A3
Installation Services
Integrity BL860c Server Blade Hardware Installation
HA113A1
ProLiant BL c-Class Enclosure and Server Blade Hardware Installation
HA113A1
Installation & Start-up Services
Provides for the Installation and Start-up of Insight Essentials Rapid Deployment Pack
NOTE: Provides installation on a Customer supplied server designated as a Deployment Server. Includes the deployment of a single server. This new server will be deployed using either one of the pre-configured scripts or an image. In addition, the service will provide for the capture and storage of the configuration of the newly deployed server and orientation on product usage. To be delivered during standard office ours, standard office days.
HA114A1
Provides for the Installation and Start-up of Rapid Deployment Pack Implementation of Rapid Deployment Pack (Basic) (Electronic)
HA114A1
Provides for the Installation and Start-up of System Insight Manager (Electronic)
HA124A1
HP Installation & Startup Service for HP BladeSystem Infrastructure
HA114A1

Provides for an integrated hardware and software implementation that includes remote service planning, onsite deployment of hardware and software, installation verification testing and customer orientation. Hardware deployment covers the installation of a single BladeSystem enclosure that includes server blades (up to 16), Ethernet network interconnect, and power options. Software deployment covers the installation and configuration, where required of HP BladeSystem Essential Insight Control Datacenter Edition which includes Systems Insight Manager (SIM), HP Rapid Deployment Pack (RDP) and Performance Management Pack (PMP), HP-UX ignite server or HP-UX manual load, and deploy up to two editions of either Windows or Linux, using scripted operating system installation software.

For more information: https://www.hp.com/services/bladesystemservices


contents
 Overview      Standard Features (Server Blade)      Standard Features      Models      Configuration Information - Factory Integrated Models      BL860c G1 Core Options      Additional Options      BL860c G1 Memory      Storage      Power Specifications      BL860c G1 QuickSpecs images/line.gif

Memory

DIMM installation guidelines:
  1. All DIMMs must be PC2-4200 DIMMs (DDR2 533MHz)
  2. Both DIMM slots in a memory bank must be populated.
  3. Banks must be populated in sequential numeric order, starting with bank 0.
  4. Both DIMMs in a memory bank must be identical. Install identical DIMMs in pairs, starting with DIMM socket A, bank 0.
  5. DIMMs must be installed in decreasing capacity with the largest DIMMs installed in the smallest numbered DIMM slot.

HP Integrity BL860c Server Blade



Standard Memory
4 GB Registered PC2-4200, DDR2 533MHz ECC DIMMs (4 x 1 GB)

Memory Bus Bandwidth:12.8 GB/s

Standard Memory Plus Optional Memory
Up to 48GB of PC2-4200, DDR2-533 DIMMs memory is available.


BL860c G1 Memory
Slot
Standard
4 GB
0A
0B
2A
2B
4A
4B

1 GB
1 GB
Empty
Empty
Empty
Empty


1A
1B
3A
3B
5A
5B


1 GB
1 GB
Empty
Empty
Empty
Empty







Maximum
48 GB
0A
0B
2A
2B
4A
4B


4 GB
4 GB
4 GB
4 GB
4 GB
4 GB


1A
1B
3A
3B
5A
5B

4 GB
4 GB
4 GB
4 GB
4 GB
4 GB


Following are memory options available from HP:


HP Memory HP BL860c 4GB PC4300 DDR-SDRAM Dual Memory AD344A
HP BL860c 8GB PC4300 DDR-SDRAM Dual Memory AD345A
NOTE: Must be installed in pairs.
NOTE: DIMMs must be installed in decreasing capacity with the largest DIMMs smallest numbered slot.
contents
 Overview      Standard Features (Server Blade)      Standard Features      Models      Configuration Information - Factory Integrated Models      BL860c G1 Core Options      Additional Options      BL860c G1 Memory      Storage      Power Specifications      BL860c G1 QuickSpecs images/line.gif

Storage

1-2
2 x SFF SAS Hot Plug Hard Drives
BL860c G1 Hard Drives
SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives
NOTE: Hard drives have either a one year or three year warranty; refer to specific hard drive QuickSpecs for details.

Quantity
Supported
Position
Supported

Controller
600GB 6G 10K SFF
450GB 6G 10K SFF
146GB 6G 15K SFF
72GB 6G 15K SFF
2
1-2
LSI 1068
contents
 Overview      Standard Features (Server Blade)      Standard Features      Models      Configuration Information - Factory Integrated Models      BL860c G1 Core Options      Additional Options      BL860c G1 Memory      Storage      Power Specifications      BL860c G1 QuickSpecs images/line.gif

Power Specifications

NOTE: To review maximum system power ratings for facilities planning purposes use the Active Answers Blade Power Sizer which is available via the online tool located at URL: https://h71019.www7.hp.com/ActiveAnswers/cache/347628-0-0-0-121.html
contents
 Overview      Standard Features (Server Blade)      Standard Features      Models      Configuration Information - Factory Integrated Models      BL860c G1 Core Options      Additional Options      BL860c G1 Memory      Storage      Power Specifications      BL860c G1 QuickSpecs images/line.gif

Quickspecs

System UnitDimensionsHeight14.42 in (36.63 cm)
Depth20.02 in (50.85 cm)
Width2.03 in (5.16 cm)

Shipping Dimensions

Height21.50 in (54.61 cm)
Depth23.13 in (58.75 cm)
Width9.94 in (25.25 cm)

Weight

Maximum22.8 lbs (10.3 kg)

Temperature Range*

Operating10° to 35° C (50° to 95° F)
Non-Operating-40° to 60° C (-40° to 140° F)
Storage-20° to 60° C (-4° to 140° F)
Maximum Wet Bulb
Temperature
30° C (86° F)
Relative Humidity**Operating10% to 90%
Shipping10% to 90%
Storage10% to 95%
* All temperature ratings shown are for sea level. An altitude derating of 1°C per 304.8 m (1.8°F per 1,000 ft) to 3048 m (10,000 ft) is applicable. No direct sunlight allowed. Upper operating limit is 3,048m (10,000 ft) or 70 Kpa/10.1 psia. Upper non-operating limit is 9,144 m (30,000 ft) or 30.3 KPa/4.4 psia.
** Storage maximum humidity of 95% is based on a maximum temperature of 45°C (113°F). Altitude maximum for storage corresponds to a pressure minimum of 70 KPa.

SAS RAID LSI 1068 Controller

Disk Drive and Enclosure Interface

3G SAS (Serial Attached SCSI)

SAS Connectors

2 internal (SFF8484) x4 wide port connectors

Cache Memory Speed

DDR-1/266 MHz provides up to 4.2 GB/s maximum bandwidth.

Server Interface

x8 2.5G PCIe provides 2GB/s maximum bandwidth.

SAS Speed

x8 3G SAS provides 2.4GB/s maximum bandwidth.

Cache Memory

40-bit 64MB or 128MB cache: ECC protection, battery-backed, and transportable

Logical Drives Supported

Up to 32 logical volumes

Maximum Logical Drive Capacity

292GB (2 x 300GB)

Host Memory Addressing

64-bit, supporting greater than 4GB server memory space

RAID Support

RAID 1 (Mirroring)

Upgradeable Firmware

Upgradeable Firmware

Embedded Dual Broadcom 5704 Gigabit NICs

Network Interface

1000Base-Sx
Compatibility IEEE 802.3ab 1000Base-Sx

Data Transfer Method

PCI Express, four lanes (x4)
Network Transfer Rate
(Theoretical Maximum Values)
1000Base-SX 2000 Mb/s
ConnectorRJ-45 (at SWM of enclosure)
Cable Support1000 Base-TX Cable Support 1000 Base-TX Category 5 UTP up to 328 ft (100 m)

Environment-friendly Products and Approach End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to https://www.hp.com/go/green. To recycle your product, please go to: https://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: https://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.


Sillworks                  Ph: 1.613.599.1287                  Fax: 1.613.599.8120
U320 | SSD | SAS/SATA | Fibre | Memory | Controllers | Processors | Power Supplies | Networking
line
Dell | EqualLogic | EMC | Hewlett-Packard | IBM | Seagate
line
HP      HP      HP      Dell Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account Dell      Dell      Dell      Seagate
Terms of Use | Legal | Privacy | Primary Site | Contact us | Add to favorites
Amex Accepted Visa Accepted MasterCard Accepted
