 HPE  Proliant DL385 G2 QuickSpecs Flag US QuickSpecs
Folder-Closed DL385 G2 HDD SSD Folder-Closed DL385 G2 Processors Folder-Closed DL385 G2 Memory
Folder-Closed DL385 G2 Controllers Folder-Closed DL385 G2 Networking Folder-Closed DL385 G2 Power
Folder-Closed DL385 G2 Quickspecs Folder-Closed DL385 G2 Quickspecs Folder-Closed DL385 G2 Options New  Refurb
contents
 Overview      Standard Features      HPC Interconnects      Models      Smart Buys      Configuration Information - Factory Integrated Models      DL385 G2 Options      DL385 G2 Memory      Storage      Power Specifications      DL385 G2 QuickSpecs images/line.gif

Proliant DL385 G2 Overview

HP ProLiant DL385 Generation 2 (G2)


Proliant DL385 G2 Front View:

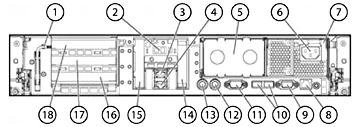

Proliant DL385 G2 Rear View:
1.Eight sockets for PC2-5300 DIMMs (DDR2-667) with Advanced ECC1.T-10/T-15 Torx screwdriver
2.External option blank
2.Hot-plug fans, full redundancy3. NIC 2 connector
3.Systems Insight Display4.NIC 1 connector
4.Quick release lever for rapid server access5. Power supply bay 2
5. Support for eight Small Form Factor hot plug hard drives bays6. Power cord connector
6. Front LEDs (show server status) and Unit Identification button/LED (for easy in rack server identification)7. Power supply bay 1 (populated)
8. Integrated Lights-Out 2 (iLO 2) connector
7. Two front USB ports (+two rear, one internal USB port)9. Video connector
8. AMD Dual Core Rev. F Processor (Performance models include two processors)10. USB connectors (2)
11. Serial connector
9. Hot plug power supply, redundancy option (High performance models include redundant power supply)12. Mouse connector
13.Keyboard connector
10. Three PCI-E non-hot plug expansion slots (or optional mixed PCI-X/E expansion cage or optional x16 PCI-E expansion cage). Two additional PCI-E slots embedded on system board. This provides Four available PCI-E non-hot plug expansion slots for use; one consumed by Smart Array Controller14.Expansion slot 1
15.Expansion slot 2
16.Expansion slot 3
17.Expansion slot 4
11.Quick removal access panel18.Expansion slot 5

What's New
  • New Quad-Core AMD Opteron™ Processor 2356 (2.3 GHz / 75 Watts) upgrade kit
  • New Quad-Core AMD Opteron™ Processor 2352 (2.1 GHz / 75 Watts) upgrade kit

At A Glance

The HP ProLiant DL385, the world's largest selling AMD server, delivers on its history of design excellence with enterprise-class uptime and manageability, proven 2-way, dual core AMD Opteron™ performance, and 2U density for a variety of rack deployments and applications.

  • Processors:
    • AMD Dual-Core Rev F, 2200 series processors with 2MB (2 x 1MB) Level 2 cache for blazing performance; systems support up to 2 processors (2 processors standard on all Performance models)
    • AMD Quad-Core, 2300 series processors with 2MB (4 x 512KB) Level 2 cache and 2MB (1 x 2MB) Level 3 cache
    • Preconfigured Performance models save valuable deployment time at a discounted bundle price
    • Serverworks HT-2100 Northbridge and HT1000 Southbridge chipset
  • Memory:
    • Up to 32 GB PC2-5300 DIMMs (DDR2-667). Standard models support 2:1 Interleaving. Bank Interleaving (Data saved across 2 pairs of DIMMs) and Node interleaving supported (data saved across 2 processors memory sets) also available.
  • Storage Controller:
    • Performance Models: Smart Array P400/512MB BBCW Controller (RAID 0/1/5/6)
    • Base Models: Smart Array P400/256MB Controller (RAID 0/1/1+0/5)
      • Upgrade to 512 MB cache w/o Battery Backed Cache module, optional BBWC
      • The Smart Array P400/256MB Controller ships installed in slot 1 (slots 2-5 are available)
    • Entry Model: Smart Array E200/64MB Controller (RAID 0/1)
      • Upgrade to 128 MB cache, adds Raid 5 and BBWC
      • The Smart Array E200/64MB Controllers ships installed in slot 3
  • Internal Drive Support:
    • (8) small form factor (SFF) hot-plug drive bays to support Serial-attached SCSI (SAS) and Serial ATA (SATA) drives
  • Network Controller:
    • Two embedded NC373i Multifunction Gigabit Network Adapters with TCP/IP Offload Engine, including support for Accelerated iSCSI through an optional Licensing Kit
  • Expansion Slots:
    • 4 Total PCI-Express slots: three x8 and one x4.
    • Optional mixed 2 PCI-X / two x8 PCI-Express and Optional cage with PCI-Express with one x8, one x16 and one x4 configurations available.
  • USB 2.0 Ports:
    • 5 total ports: (2) ports up front; (2) ports in back; (1) port internal
  • Redundancy:
    • Fully redundant hot plug fans
    • Hot plug power supply with optional redundancy (Included in Performance models)
  • Management:
    • Integrated Lights-Out 2 featuring Integrated Remote Console with KVM over IP performance over shared network access
    • Automatic Server Recovery (ASR), ROM Based Setup Utility (RBSU), HP System Insight Manager, Status LEDs including system health and UID and SmartStart
    • System Insight Display on the front bezel for quick and easy server diagnostics
  • Form Factor:
    • Rack (2U), (3.5-inch)
  • Deployment/Serviceability:
    • Quick Deploy Rail System includes sliding universal rails, an ambidextrous cable management arm and quick release levers for fast and easy serviceability
    • Tool-less access to all system components for easy in rack serviceability
    • Customer Self Repair (CSR): HP products are designed with many CSR parts to minimize repair time and allow for greater flexibility in performing defective parts replacement
  • Warranty:
    • This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. SATA hard drives have a one-year warranty.
      NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: https://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
contents
 Overview      Standard Features      HPC Interconnects      Models      Smart Buys      Configuration Information - Factory Integrated Models      DL385 G2 Options      DL385 G2 Memory      Storage      Power Specifications      DL385 G2 QuickSpecs images/line.gif

Standard Features

NOTE: For a brief, printer friendly data sheet that describes this product and informs you of the essential capabilities and specifications, please visit: https://h71028.www7.hp.com/erc/downloads/4AA0-8261enw.pdf.
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
Processor
One of the following depending on Model
AMD Opteron™ Processor 2356 (2.3 GHz, 75 Watts)
AMD Opteron™ Processor 2352 (2.1 GHz, 75 Watts)
AMD Opteron™ Processor 2222 (3.0 GHz, 75 Watts)
NOTE: CTO only.
AMD Opteron™ Processor 2220 (2.8 GHz, 75 Watts)
AMD Opteron™ Processor 2218 (2.6 GHz, 75 Watts)
AMD Opteron™ Processor 2218 HE (2.6 GHz, 55 Watts)
NOTE: CTO only.
AMD Opteron™ Processor 2216 HE (2.4 GHz, 55 Watts)
AMD Opteron™ Processor 2216 (2.4 GHz, 75 watts)
NOTE: CTO only.
AMD Opteron™ Processor 2214 HE (2.2 GHz, 55 Watts)
AMD Opteron™ Processor 2212 HE (2.0 GHz, 55 Watts)
NOTE: CTO only.
AMD Opteron™ Processor 2210 HE (1.8 GHz,55 Watts)
AMD Opteron™ Processor 2210 (1.8 GHz, 75 Watts)
NOTE: CTO only.
NOTE: Up to 2 processors supported. High Performance Model configurations include two processors, Upgraded memory to 512, BBWC, DVD/CDRW and Redundant Power Supply.

Cache Memory 2MB (2 x 1MB) Level 2 cache (2200 series)
2MB (4 x 512KB) Level 2 cache and 2MB (1 x 2MB) Level 3 cache (2300 series)

Chipset Serverworks HT-2100 Northbridge and HT1000 Southbridge Chipset

Upgradeability Upgradeable to 2 processors

Memory Protection Advanced ECC

DL385 G2 MemoryTypePC2-5300 DIMMs (DDR2-667)
Standard models support 2:1 Interleaving, with Bank Interleaving (Data saved across 2 pairs of DIMMs) and Node interleaving supported (data saved across 2 processors memory sets) available.
NOTE: DIMM banks are active only when the corresponding processor socket is populated.
Standard
(Entry Models)
1 GB (2 x 512 MB)
Standard
(Base Models)
2 GB (2 x 1 GB)
Standard
(Performance Models)
4 GB (4 x 1 GB)
Maximum32 GB (8 x 4 GB)

Network Controller Two embedded NC373i Multifunction Gigabit Network Adapters with TCP/IP Offload Engine, including support for Accelerated iSCSI through an optional Licensing Kit

Expansion Slots

With Standard PCIe Riser Installed
NOTE: For PCIe only situations.
Expansion Slots # Technology Bus Width** Connector Width Bus Number* Form Factor Notes
1 PCIe x8 x8 70 Low profile slot Reserved slot for Smart Array P400 Controller
2 PCIe x8 x8 67 Low profile slot
3 PCIe x4 x8 11 Full length, full height slot
4 PCIe x8 x16 8 Full length, full height slot
5 PCIe x8 x16 5 Full length, full height slot
* Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment number.
** Indicates the number of physical electrical lanes running to the connector.

With Optional PCIe x16 150 W Riser Installed
NOTE: For PCIe only situations.
Expansion Slots # Technology Bus Width** Connector Width Bus Number* Form Factor Notes
1 PCIe x8 x8 70 Low profile slot Reserved slot for Smart Array P400 Controller
2 PCIe x8 x8 67 Low profile slot
3 PCIe x4 x8 8 Full length, full height slot
4 PCIe x16 x16 5 Full length, full height slot Supports 150W card
* Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment number.
** Indicates the number of physical electrical lanes running to the connector.

With Optional PCIe/PCI-X Riser Installed
NOTE: For PCI-X mixed situations.
Expansion Slots # Technology Bus Width** Connector Width Bus Number* Form Factor Notes
1 PCIe x8 x8 70 0 Low profile slot
2 PCIe x8 x8 67 0 Low profile slot
3 PCIe x8 x16 10 0 Full length, full height slot
4 PCI-X (133MHz, 3.3 Volt) 64-bit Not applicable 6 1 Full length, full height slot
5 PCI-X (133MHz, 3.3 Volt) 64-bit Not applicable 6 2 Full length, full height slot
* Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment number.
** Slots are enumerated differently based on OS. MS OS's enumerate from lowest to highest Device ID by bus (starting with the lowest bus).
*** Indicates the number of physical electrical lanes running to a PCI-e connector.

Storage Controller
One of the following depending on Model
Performance Models: HP Smart Array P400/512MB BBWC Controller (RAID 0/1/5/6)
Base Models: HP Smart Array P400/256MB Controller (RAID 0/1/1+0/5)
Available upgrades: 512MB memory module for RAID 0/1/5/6, battery for battery-backed write cache (BBWC).
Entry Models: HP Smart Array E200/64MB Controller (RAID 0/1)
Available upgrades: 128MB memory module for RAID 0/1/5, battery for battery-backed write cache (BBWC).

Storage Diskette Drive None Standard
Optical Drive
One of the following depending on Model
None Standard
IDE DVD-ROM/CDRW Combo included on Performance models
Hard Drives None Standard

Maximum Internal StorageHot Plug SAS1.168TB 8 x 146GB with standard internal hot plug SFF SAS drive cage
Hot Plug SATA960GB8 x 120GB

Remote Management

Integrated Lights Out 2 (iLO2) Standard Management:

  • Virtual Text Remote Console (pre-OS only)
  • Remote Serial Console
  • Virtual Power Button Control
  • Virtual Unit ID control
  • Integrated Remote Console
  • Dedicated & full function shared network connectivity
  • Embedded system health
  • Browser, command line and scripted access
  • Automatic IP Configuration via DHCP/DNS/WINS
  • Industry Standard 128-bit Secure Sockets Layer (SSL) and Secure Shell security (SSH)
  • OS independent hardware health status
  • IML and iLO Event Logging
  • Support for 12 user accounts with customizable access privilege

Intelligent Manageability

HP Systems Insight Manager
SmartStart
Management Agent
Redundant ROM
Remote Flash ROM
ROM-Based Setup Utility (RBSU)
Integrated Management Log
Automatic Server Recovery (ASR)
Dynamic Sector Repairing (with Smart Array controller)
Drive Parameter Tracking (with Smart Array controller)
NOTE: Upon the event of a failed processor in a multi-processing environment, the system will automatically reboot and attempt to use the remaining good processor.
Pre-Failure Warranty (covers processors, SAS hard drives and memory)


InterfacesSerial1
Pointing Device (Mouse)1
Graphics1
Keyboard1
VGA2 (1 front, 1 back)
Network RJ-452
iLO 2 remote management port1
USB 2.0 Ports5 (2 front, 2 back, 1 inside)
NOTE: Please see the following URL for additional information regarding USB support:
https://h18004.www1.hp.com/products/servers/platforms/usb-support.html.

Graphics

Integrated ATI ES1000, 32 MB video standard

  • 16 bit color: maximum resolution of 1600 x 1200
  • 32 bit color: maximum resolution of 1280 x 1024

NOTE: Maximum resolution available via iLO 2 remote console is 1280 x 1024.


Form Factor Rack (2U), (3.5-inch)

HP Insight Control Environment Management Suite

HP Insight Control Environment delivers foundation management, including remote monitoring, hardware resource deployment, health monitoring, software version control, performance monitoring, vulnerability scanning and patch management, and power management.
HP Insight Control Environment installs and licenses the following components by default using a wizard-based integrated installer:

  • HP Systems Insight Manager
  • HP iLO Advanced Pack
  • HP Insight Power Manager
  • HP Rapid Deployment Pack
  • HP Performance Management Pack
  • HP Vulnerability and Patch Management Pack
  • HP Virtual Machine Management Pack

Additional ProLiant Essentials software and management tools included on the Insight Control Management kit can be installed manually:

  • HP Server Migration Pack - Universal Edition
    NOTE: HP Server Migration Pack - Universal Edition is licensed separately from the Insight Control Environment Suite.
  • HP Open Service Event Manager
  • HP Service Essentials Remote Support Pack
    NOTE: Server Migration Pack - Universal Edition can be installed from the SMP Universal CD included in the Insight Control Management media kit.
    NOTE: For additional product and licensing information about HP Insight Control Environment, visit: https://www.hp.com/go/ice.

HP iLO Power Management Pack is energy-efficient management software that delivers centralized control, reliable security, and energy savings for your BladeSystem infrastructure. iPMP combines the total control of iLO 2 Advanced in the area of remote management with the energy monitoring and control of the Insight Power Manager to deliver a robust solution capable of full remote control and power management of ProLiant servers through a unified interface within HP Systems Insight Manager.

HP Insight Control management suites and most HP ProLiant Essentials include a one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit: https://www.hp.com/services/insight.


Server Management Stand Alone Software Product - ProLiant EssentialsHP Systems Insight Manager HP Systems Insight Manager (HP SIM) provides a unified, secure and extensible standards-based environment to centrally manage servers, storage and other infrastructure devices, (both HP and non-HP) across multiple operating system platforms.
HP ProLiant Essentials Rapid Deployment Pack Rapid Deployment Pack (RDP) extends HP Systems Insight Manager with a complete deployment solution for HP ProLiant servers. RDP provides a central location to configure server hardware, deploy Windows, Linux and VMware ESX operating environments and install HP ProLiant Support Pack drivers using images and scripted profiles. For more information, visit: https://www.hp.com/go/rdp.
HP ProLiant Essentials Server Migration Pack - Universal Edition

Upgrading, replacing, or virtualizing your existing server? Effortlessly transition to new virtual or physical HP ProLiant servers or BladeSystem with automated, accurate and affordable migration of OS, application and data. SMP Universal automates the manual processes required for migrating servers between physical or virtual platforms, whether migrating to VMware or Microsoft virtual machines. SMP Universal allows all of the following migrations:

  • physical to ProLiant
  • physical to virtual
  • virtual to virtual
  • virtual to ProLiant

NOTE: For more information, visit: https://www.hp.com/go/migrate.

HP ProLiant Essentials Performance Management Pack Performance Management Pack (offered exclusively through the Insight Control suites) - a performance management solution that identifies and explains hardware performance bottlenecks on ProLiant servers and attached options enabling users to better utilize their valuable resources
HP ProLiant Essentials Integrated Lights-Out (iLO 2) Advanced PackUpgrades the iLO 2 processor with comprehensive remote control including Virtual KVM remote graphical console, enhanced console sharing and replay, virtual media (floppy, CD/DVD, USB key), virtual folders, and enterprise security (directory services and two-factor authentication).
HP iLO Power Management Pack Energy-efficient management software that delivers centralized control, reliable security, and energy savings for your BladeSystem infrastructure. iPMP combines the total control of iLO 2 Advanced in the area of remote management with the energy monitoring and control of the Insight Power Manager to deliver a robust solution capable of full remote control and power management of ProLiant servers through a unified interface within HP Systems Insight Manager.
HP ProLiant Essentials Accelerated iSCSI PackEnables the embedded Multifunction network controller to serve as both a NIC and an iSCSI HBA providing access to SAN storage over the same connection used for networking. Processing of the protocol stack is offloaded to the NIC reducing CPU utilization and greatly improving the speed with which the requests are processed and sent to the network.
HP Insight Power Manager (IPM)Upgrades the single-server remote management capabilities of iLO Select/Advanced to include centralized reporting and policy-based management of power consumption and thermal output provided by the Insight Power Manager. IPM unifies all of this functionality within a single user interface - HP Systems Insight Manager.
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to: https://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.

Core Infrastructure ManagementSmartStartSmartStart is a tool that simplifies server setup, providing a rapid way to deploy reliable and consistent server configurations. For more information, please visit the SmartStart Web site at: https://www.hp.com/servers/smartstart.
SmartStart version supported (minimum): SmartStart 7.51.
Insight Management Agents

The Insight Management Agents should be installed on all HP servers to present system instrumentation, health and configuration information into HP Systems Insight Manager and the HP System Management Homepage. The HP System Management Homepage aggregates systems data from Insight Management Agents and other HP management tools, providing a consolidated browser-based interface for managing individual servers.

Insight Management Agents and The HP System Management Homepage are included on ProLiant Support Packs, and can also be installed using the server profiles provided with the ProLiant Essentials Rapid Deployment Pack.

For additional information about the Management Agents and the HP System Management Homepage please visit the management Web site at: https://www.hp.com/servers/manage.

Subscriber's ChoiceSubscriber's Choice Driver and Support Alerts/Notifications is a web-based email subscription service that provides software and driver change notifications for ProLiant products. Sign up at: https://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become available, on a weekly or monthly basis.
ProLiant Support Packs and ROMPaq, softwareThe latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options, available through ProLiant Support Packs the ProLiant Essentials Rapid Deployment Pack, SmartStart or downloaded from software and drivers download pages website at: https://www.hp.com/go/support.

HP Serviceguard for Linux (SGLX)

HP Serviceguard for Linux is a high availability clustering solution designed to protect applications and services from a wide variety of software and hardware failures, monitoring the health of each server (node) and quickly responding to failures such as those that affect system processes, system memory, LAN media and adapters, and application processes.

The following is a quick summary of HP Serviceguard for Linux features and support. For the most recent list of Linux distributions & kernels, servers and storage supported with Serviceguard for Linux, see the Serviceguard for Linux Datasheet, available at: https://www.hp.com/go/sglx/info.

  • Supported Linux Distributions:
    • Red Hat EL 4
    • Red Hat EL 5
    • SUSE SLES10
  • Supported Server Platforms
    • HP Integrity BladeSystem to Superdome
    • HP ProLiant BladeSystem p-Class & c-Class
    • HP ProLiant DL
    • HP ProLiant ML
    • IBM System x
    • Dell PowerEdge
    • Sun x64
    • Fujitsu Siemens PRIMERGY
  • Hypervisors
    • HP Integrity Virtual Machines
    • VMware ESX
  • Application Integration Toolkits
    • HP Serivceguard for Linux Oracle Database Toolkit
    • HP Serviceguard Extension for SAP on Linux (SGeSAP/LX)
    • Free Application Integration Toolkits:
      • Apache
      • MySQL
      • NFS
      • PostgreSQL
      • Samba
      • Tomcat
      • Sendmail
  • Disaster Tolerant Solutions
    • HP Serviceguard for Linux Extended Distance Cluster (XDC) extends cluster distances up to 100 km, utilizes software RAID mirroring for data replication and is storage array independent
    • HP StorageWorks XP/EVA Cluster Extension Software for Linux (CLX) works seamlessly with HP Serviceguard for Linux, HP StorageWorks Continuous Access, and HP Disk Arrays to automate failover and failback between sites
  • Software updates are distributed by HP Services to customers with support contracts

NOTE: For additional information on HP Serviceguard for Linux, visit: https://www.hp.com/go/sglx or see the HP Serviceguard for Linux QuickSpecs.
NOTE: HP Serviceguard for Linux products for HP ProLiant and select 3rd party x86 class servers include one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit: https://www.hp.com/services/swsupport.


Industry Standard ComplianceACPI 2.0 Compliant
PCI 2.2 Compliant
WOL Support
Microsoft® Logo certifications
USB 2.0 Support

Security Power-on password
Keyboard password
Diskette drive control
Diskette boot control
QuickLock, Network Server Mode
Parallel and serial interface control
Administrator's password

Server Power Cords One Highline IEC Power cord ships standard (6')
NOTE: ProLiant DL servers no longer ship standard with NEMA power cords (187335-001) that allow connection to 110V US wall outlets in a home or office. ProLiant DL servers are primarily connected to PDU's in data center racks so they now ship standard with only a PDU power cord (416151-B21). If a user wishes to power a ProLiant DL server using a 110V receptacle (NEMA-15), the NEMA power cord (187335-001) must be ordered separately.

UPS and PDU Power
Cord Matrix
Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and specifications for UPS and PDU units:
ftp://ftp.compaq.com/pub/products/servers/ProLiantstorage/power-protection/powercordmatrix.pdf.

Power Supply 800 Watt, CE Mark Compliant
Optional Hot Plug AC Redundant Power Supply

System Fans Hot plug fans ship standard, fully redundant
Fully redundant hot plug fans ship standard (N+1)

Required Cabling For required cabling information, refer to the Web site at: www.hp.com/servers/dl385-g2

OS SupportMicrosoft Windows Server 2003
Microsoft Windows Small Business Server 2003, R2
Microsoft Windows 2008
Novell NetWare
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
SCO UnixWare, OpenServer
VMware Virtualization Software
Solaris 10 32/64-bit

NOTE: For more complete and up-to-date information on how to buy server operating systems from HP please visit the OS product site at: https://h18004.www1.hp.com/products/servers/software/oem.html.
NOTE: For a more complete and up-to-date listing of supported OSs and versions, please visit our OS Support Matrix at: https://www.hp.com/go/supportos.
NOTE: For an up-to-date listing of the latest software and drivers available for your server, please select your server: https://h20000.www2.hp.com/bizsupport/TechSupport/Product.jsp?lang=en&cc
=us&taskId=135&prodTypeId=15351&prodCatId=241435
.
NOTE: For more Linux OS support & certification information, please visit our the ProLiant & BladeSystem Server Linux matrix: https://h18004.www1.hp.com/products/servers/linux/hpLinuxcert.html
NOTE: For more information on HP's Certified and Supported ProLiant Servers, please visit the VMware Server Support Matrix at: https://h18004.www1.hp.com/products/servers/software/vmware/hpvmwarecert.html.


Rack Airflow RequirementsRack 10000 series Cabinets
The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment:

  • Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of holes evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation).
  • Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 2.75 inches (7 cm).

CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

NOTE: For additional information, refer to the Setup and Installation Guide or the Documentation CD provided with the server, or to the server documentation located in the Support section at the following URL: www.hp.com/servers/dl385-g2.

Rack Kit

The HP ProLiant DL385 quick deploy rail system provides tool-free support for racks with square or round mounting holes (including Compaq/HP 7000*, 9000, 10000 and HP series), with an adjustment range of 24" - 36". The ambidextrous cable management arm can be mounted on either the left or right side for improved cable management.
NOTE: Cable management arm must be removed to access hot-plug power supplies when the cable management arm is mounted on the right.
* High Airflow Inserts (High Air Flow Rack Door Insert for the 7142 Rack (single) - PN: 327281-B21 327281-B21; or High Air Flow Rack Door Insert for the 7142 Rack (6-pack) - PN: 327281-B22) are required to support the HP ProLiant DL385 G2 in 7000 series racks. The DL385 G2 Cable Management Arm is not supported on 7000 series racks.


Telco Rack Support

DL385 G2 Telco Rack Kit:
Support for all 2-post Telco racks requires the use of the standard rack kit and an additional option kit from Rack Solutions (https://www.racksolutions.com/hp/)


Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: https://www.hp.com/go/factory-express.


HP Enterprise Configurator The HP eCo-Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance.
https://www.hp.com/products/configurator.

Service and Support

HP Care Pack services provide total care and support expertise with committed response designed to meet your IT and business needs.

HP Care Pack services include coverage for the HP branded hardware options qualified for the server and purchased at the same time or afterward that are internal to the enclosure. This also includes the 22" and smaller external monitors and tower UPS options up to 3kVA. These items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included, and standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

To fully capitalizing on your HP ProLiant servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions, provides a range of support services designed to meet the varying needs of your business. Whether an SMB, or large global corporation, HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime.

Recommended Service - simplify ProLiant solution implementation, maintenance, and management.

  • Support: 3-Year 4-Hour response 24x7 Same Business Day Coverage only
  • Deployment Service: Installation and Start up only

Enhanced Service - optimize service level to increase IT performance and availability.

  • Support: 3-Year Support Plus 24 only

Refer to the information on "Installation & Start-Up" for service on ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet; to be delivered on a scheduled basis 8am-5pm, M-F, excluding HP holidays.

NOTE: For a complete listing of service offerings and information visit:
https://www.hp.com/services/proliantservices
https://www.hp.com/go/proliant/carepack

contents
 Overview      Standard Features      HPC Interconnects      Models      Smart Buys      Configuration Information - Factory Integrated Models      DL385 G2 Options      DL385 G2 Memory      Storage      Power Specifications      DL385 G2 QuickSpecs images/line.gif

HPC Interconnects

NOTE: High Performance Computing (HPC) interconnect technologies are available for the DL385 under the Cluster Platform product portfolio. These high-speed interconnects are fully supported by HP when they are part of these configure to order clusters. Solutions can be defined with a lot of flexibility with the help of configuration tools. Please visit the following URL to configure HPC Clusters with InfiniBand, Gigabit Ethernet or Myrinet Interconnects: https://www.hp.com/techservers/clusters/ucp/index.html

HPC Interconnect InfiniBand PCI-X and PCI-Express adapters
Gigabit Ethernet Use embedded ports
Myrinet XPPCI-X Rev D and Rev E adapters
contents
 Overview      Standard Features      HPC Interconnects      Models      Smart Buys      Configuration Information - Factory Integrated Models      DL385 G2 Options      DL385 G2 Memory      Storage      Power Specifications      DL385 G2 QuickSpecs images/line.gif

Models

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.

HP DL385 G2 Performance Models

HP DL385G2 2218 4G HPM
432195-001

HP DL385G2 2220 4G HPM
438816-001

Processor(s)
One of the following depending on Model
(2) Dual-Core AMD Opteron™ 2218 Processors (2.6 GHz, 75 Watts)
(2) Dual-Core AMD Opteron™ 2220 Processors (2.8 GHz, 75 Watts)
Cache Memory 2MB (2 x 1MB) Level 2 cache - 2200 Series
Memory 4 GB (4 x 1 GB) of 2:1 interleaved PC2-5300 DIMMs (DDR2-667) with Advanced ECC capabilities
Network Controller Two Embedded NC373i Multifunction Gigabit Server Adapters
Storage ControllerHP Smart Array P400/512 MB BBWC Controller (RAID 0/1/5/6)
Hard DriveNone ship standard
Internal Storage1.168TB max - 8 x 146 GB SAS drives (with optional hard drives)
Optical DriveIDE DVD-ROM/CDRW combo
Form FactorRack (2U), (3.5-inch)
Availability Hot Plug Fully Redundant Fans and Redundant Power Supplies

HP DL385 G2 Base Models

HP DL385G2 2218 2G
407424-001
HP DL385G2 2216 2G
408838-001
HP DL385G2 2214 2G
407429-001
HP DL385G2 2220 2G 438815-001

Processor(s)
One of the following depending on Model
(1) Dual-Core AMD Opteron™ 2218 Processor (2.6 GHz, 75 Watts)
(1) Dual-Core AMD Opteron™ 2216 HE Processor (2.4 GHz, 55 Watts)
(1) Dual-Core AMD Opteron™ 2214 HE Processor (2.2 GHz, 55 Watts)
(1) Dual-Core AMD Opteron™ 2220 Processor (2.8 GHz, 75 watts)
Cache Memory 2MB (2 x 1MB) Level 2 cache - 2200 Series
Memory 2 GB (2 x 1 GB) PC2-5300 DIMMs (DDR2-667) with Advanced ECC capabilities
Network Controller Two Embedded NC373i Multifunction Gigabit Server Adapters
Storage ControllerHP Smart Array P400/256 MB Controller (RAID 0/1/1+0/5)
Hard DriveNone ship standard
Internal Storage1.168TB max - 8 x 146 GB SAS drives (with optional hard drives)
Optical DriveOptional DVD, DVD/CD-RW combo, DVD+R/RW
Form FactorRack (2U), (3.5-inch)
AvailabilityHot Plug Fully Redundant Fans Standard

HP DL385 G2 Entry Models

HP DL385G2 2210 1G
434940-001

Processor(s) (1) Dual-Core AMD Opteron™ 2210 HE Processor (1.8 GHz, 55 Watts)
Cache Memory 2MB (2 x 1MB) Level 2 cache - 2200 Series
Memory1 GB (2 x 512 MB) PC2-5300 DIMMs (DDR2-667) with Advanced ECC capabilities
Network Controller Two Embedded NC373i Multifunction Gigabit Server Adapters
Storage ControllerHP Smart Array E200/64 MB Controller (RAID 0/1)
Hard DriveNone ship standard
Internal Storage1.168TB max - 8 x 146 GB SAS drives (with optional hard drives)
Optical DriveOptional DVD, DVD/CD-RW combo, DVD+R/RW
Form FactorRack (2U), (3.5-inch)
AvailabilityHot Plug Fully Redundant Fans Standard
contents
 Overview      Standard Features      HPC Interconnects      Models      Smart Buys      Configuration Information - Factory Integrated Models      DL385 G2 Options      DL385 G2 Memory      Storage      Power Specifications      DL385 G2 QuickSpecs images/line.gif

Smart Buys

The ProLiant Smart Buy program offers a collection of promotional server and option products that are configured with SMB in mind, offered at discounted prices, and positioned for quick delivery. Smart Buy server offers are available for a limited time only.

For a full listing of ProLiant Smart Buys available for all server families, visit ftp://ftp.compaq.com/pub/products/servers/smartbuys.pdf.

S-Buy DL385G2 2214 2GB
AH525A

Processor(s) (1) Dual-Core AMD Opteron 2214 HE Processor (2.2 GHz, 68 Watts)
Memory 2 GB (2 x 1 GB) PC2-5300 DIMMs (DDR2-667) with Advanced ECC capabilities
Network Controller Two Embedded NC373i Multifunction Gigabit Server Adapters
Storage Controller HP Smart Array P400/256MB Controller (RAID 0/1/5)
Hard Drive None Ship Standard
Internal Storage 1.168TB max - 8 x 146GB SAS drives (with optional hard drives)
Optical Drive Slimline DVD/CD-RW (8X/24X) (ejectable)
Form Factor
Rack (2U), (3.5-inch)
Availability Hot Plug Fully Redundant Fans and Redundant Power Supplies

S-Buy DL385G2 2218 4GB, 2P
470064-380

Processor(s) (2) Dual-Core AMD Opteron 2218 Processor (2.6 GHz, 95 Watts)
Memory 4 GB (4 x 1 GB of 2:1 interleaved PC2-5300 DIMMs (DDR2-667) with Advanced ECC capabilities
Network Controller Two Embedded NC373i Multifunction Gigabit Server Adapters
Storage Controller HP Smart Array P400/256MB Controller (RAID 0/1/5)
Hard Drive None Ship Standard
Internal Storage 1.168TB max - 8 x 146GB SAS drives (with optional hard drives)
Optical Drive Slimline DVD/CD-RW Drive (8X/24X) (ejectable)
Form Factor
Rack (2U), (3.5-inch)
Availability Hot Plug Fully Redundant Fans and Redundant Power Supplies
contents
 Overview      Standard Features      HPC Interconnects      Models      Smart Buys      Configuration Information - Factory Integrated Models      DL385 G2 Options      DL385 G2 Memory      Storage      Power Specifications      DL385 G2 QuickSpecs images/line.gif

Configuration Information - Factory Integrated Models

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
NOTE: HP does not allow factory integration of options into standard models listed above. Configure-to-order servers must start with a CTO Chassis.
NOTE: This product offering does not support HP Factory Express Server Configuration Level 1.
NOTE: FIO indicates that this option only available as a Factory Installable Option.

Step 1: Base Configuration (choose one of the following configurable models)
Models HP ProLiant DL385G2 Rack CTO Chassis
414109-B21
Factory Integrated Model ships with:
(8) SFF Serial Attached SCSI (SAS) Drive Bays
Two Embedded NC373i Multifunction Gigabit Server Adapters
PCI-Express Riser Cage
800 Watt hot plug power supply, CE Mark Compliant
One IEC Power cord
Hot plug fans (fully redundant)
Rack (2U), (3.5-inch)


Step 1A: Choose SAS Controller (must choose only one of the following)

SAS Controllers HP Smart Array P400/256 for DL380 G5/ DL385 G2 FIO Controller
NOTE: PCI Express
HP Smart Array P400/512 BBWC for DL380 G5/ DL385 G2 FIO Controller
NOTE: PCI Express
HP Smart Array E200/128 BBWC Controller
NOTE: PCI Express
HP Smart Array P600/256 BBWC Controller
NOTE: PCI-X. SA-P600 Controller supports both internal and external drives.
HP Smart Array P800/512 BBWC Controller
NOTE: PCI Express
HP Smart Array P800/512 BBWC Controller
NOTE: PCI Express
HP Smart Array E200/64 FIO Controller
HP Smart Array 6402/512 FIO Controller
HP Smart Array 6404/512 FIO CNTRLR

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)
Processors
AMD Opteron™ Processor 2222 (3.0 GHz, 75 Watts) FIO
AMD Opteron™ Processor 2220 (2.8 GHz, 75 Watts) FIO
AMD Opteron™ Processor 2218 (2.6 GHz, 75 Watts) FIO
AMD Opteron™ Processor 2218 HE (2.6 GHz, 55 Watts) FIO
AMD Opteron™ Processor 2216 (2.4 GHz, 75 Watts) FIO
AMD Opteron™ Processor 2216 HE (2.4 GHz, 55 Watts) FIO
AMD Opteron™ Processor 2214 HE (2.2 GHz, 55 Watts) FIO
AMD Opteron™ Processor 2212 HE (2.0 GHz, 55 Watts) FIO
AMD Opteron™ Processor 2210 HE (1.8 GHz, 55 Watts) FIO
AMD Opteron™ Processor 2210 (1.8 GHz, 75 Watts) FIO
Base Memory NOTE: DIMM banks are active only when the corresponding processor socket is populated.
1 GB REG PC2-5300 2 x 512 MB Single Rank Kit
2 GB REG PC2-5300 2 x 1 GB Single Rank Kit
4 GB REG PC2-5300 2 x 2 GB Dual Rank Kit
8 GB REG PC2-5300 2 x 4 GB Dual Rank Kit

Step 3: Choose Additional Factory Integratable Options

Performance Packs

The HP ProLiant DL385 G2 performance packs are necessary to configure a HP ProLiant DL385 G2 Performance Model. HP ProLiant DL385 G2 Performance model includes the latest performance technologies and enterprise class availability features pre-installed for convenience and value. The performance pack includes a 2nd processor and a redundant power supply. To complete the configuration of a Performance model, select the Slimline CD-RW/DVD-ROM Combo Option Kit (331903-B21 331903-B21).
HP DL385G2 2220 HPM FIO Perf Pack
442239-B21
HP DL385G2 2218 HPM FIO Perf Pack
432858-B21

Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Options" section below.
contents
 Overview      Standard Features      HPC Interconnects      Models      Smart Buys      Configuration Information - Factory Integrated Models      DL385 G2 Options      DL385 G2 Memory      Storage      Power Specifications      DL385 G2 QuickSpecs images/line.gif

Options

NOTE: Some options may not be factory integratable. Contact your local sales representative for additional information.
HP ProLiant DL385 G2 Unique Options HP 2 Slot PCI-Express x16 & x4 Riser DL385G2 ALL
410571-B21

HP Insight Control Environment Management SuiteNOTE: Electronic licensing options are available for Insight Control suites software products. Please see the appropriate Insight Control QuickSpecs for additional information.
HP Insight Control Environment
HP Insight Control Environment, No Media 1-Server License including 1 year of 24x7 Technical Support and Updates
NOTE: This part number can be purchased as a single license or as multiple licenses with a single activation key. Customer will receive a license entitlement certificate via e-mail. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service. Only available directly from HP and select resellers in the Americas region.
452148-B22
HP Insight Control Management Software Media Kit
NOTE: Insight Control Management DVD media without licenses. Contains Insight Manager and Essentials software products and components licensed by Insight Control Management suites. Uses an integrated installer to perform quick and accurate software installation and updates.
436222-B21
NOTE: For additional License Kits, please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12631_na/12631_na.html
HP Insight Control Linux Edition
HP Insight Control Environment for Linux v2.0, Media pack (CD) - No licenses included
NOTE: This optional Media pack CD contains the ISO image for HP Insight Control Environment for Linux, HP System Insight Manager, and an integrated installer. Servers must be acquired separately. This Media pack is optional because the latest ISO image and latest updates may be downloaded at no cost from: https://www.hp.com/go/ice-linux (click on Download button).
464422-B21
HP Insight Control Environment for Linux v2.0, No Media, 1-Server license, including One year of 24x7 Technical Support and Updates
NOTE: This part number can be used to purchase one (1) license with a single activation key. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service. One certificate is shipped for each license.
464423-B21
NOTE: For additional License Kits, please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/13019_na/13019_na.html
HP Integrated Lights-Out Power Management Pack
HP iLO Power Management Pack, No Media, 1-Server License, including 1 year of 24x7 Technical Support and Updates
NOTE: This option kit includes 1 license for iLO Advanced and Insight Power Manager.
NOTE: For additional License Kits, please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12632_na/12632_na.html
452145-B21

Server Management Stand Alone Software Product - ProLiant EssentialsNOTE: Electronic licensing options are available for select ProLiant Essentials software products. Please see the appropriate ProLiant Essentials QuickSpecs for additional information.
Deploy
HP ProLiant Essentials Rapid Deployment Pack
HP ProLiant Essentials Rapid Deployment Pack No Media 1-Server License including 1 year of 24x7 Technical Support and Updates
NOTE: This license allows 1 server to be deployed and managed via RDP. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service
NOTE: For additional License Kits, please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/11053_na/11053_na.html
452151-B21
HP Server Migration Pack - Universal Edition
HP Server Migration Pack - Universal Edition, No Media, Physical / Virtual to ProLiant Single Migration License, including 1 year of 24x7 Technical Support and Updates
NOTE: This license allows 1 physical to ProLiant or virtual to ProLiant migration. Customer will receive a printed license entitlement certificate and documentation via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
460750-B21
HP Server Migration Pack - Universal Edition, No Media, Physical / Virtual to Virtual Single Migration License, including 1 year of 24x7 Technical Support and Updates
NOTE: This license allows 1 physical to virtual or virtual to virtual migration. Customer will receive a printed license entitlement certificate and documentation via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
460753-B21
HP Server Migration Pack - Universal Edition, No Media, 1-Year Unlimited Migration License, including 1 year of 24x7 Technical Support
NOTE: This license allows unlimited migrations (physical to ProLiant, physical to virtual, virtual to virtual, and virtual to ProLiant) for one year. Customer will receive a printed license entitlement certificate and documentation via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
460756-B21
NOTE: For additional License Kits, please see the QuickSpecs at:
https://h18000.www1.hp.com/products/quickspecs/12855_na/12855_na.html

Control
HP Integrated Lights-Out Select Pack
HP ProLiant Essentials Integrated Lights-Out Select Pack, No Media, 1-Server License
NOTE: For additional License Kits, please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12362_na/12362_na.html
452158-B21
HP Integrated Lights-Out Advanced Pack
HP Integrated Lights-Out Advanced Pack, No Media ,1 Server License
NOTE: For additional License Kits, please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/10861_na/10861_na.html
452141-B21
Optimize
HP Accelerated iSCSI Pack
HP ProLiant Essentials Accelerated iSCSI Pack, No Media, Single License
NOTE: For use with a single NIC port. Contains one license with a unique license activation key and documentation.
452679-B21
NOTE: For additional License Kits, please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12466_na/12466_na.html
HP Insight Power Manager (IPM)
HP Insight Power Manager, No Media, 1-Server License, including 1 year of 24x7 Technical Support and Updates
NOTE: Customers purchasing this upgrade must already have an iLO Advanced or Select license on each managed server. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
NOTE: For additional License Kits, please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12623_na/12623_na.html

452677-B21
HP ProLiant Essentials Virtual Machine Management Pack
HP ProLiant Essentials Virtual Machine Management Pack, No Media, 1-Server License, including 1 year of 24x7 Technical Support and Updates
NOTE: Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
NOTE: For additional License Kits, please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12328_na/12328_na.html
452153-B21
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to: https://www.hp.com/servers/proliantessentials or the various ProLiant Essentials QuickSpecs for more information.

Processors AMD Opteron™ Processor 2356 (2.3 GHz, 75 Watts) 449774-B21
AMD Opteron™ Processor 2352 (2.1 GHz, 75 Watts)
NOTE: 2300 Series processor quad-core upgrade requires purchase of a VRM kit for second socket (453059-B21) only if second socket not already populated.
449776-B21
AMD Opteron™ Processor 2222 (3.0 GHz, 75 Watts)
AMD Opteron™ Processor 2220 (2.8 GHz, 75 Watts)
AMD Opteron™ Processor 2218 (2.6 GHz, 75 Watts)
AMD Opteron™ Processor 2218 HE (2.6 GHz, 55 Watts)
AMD Opteron™ Processor 2216 (2.4 GHz, 75 Watts)
AMD Opteron™ Processor 2216 HE (2.4 GHz, 55 Watts)
AMD Opteron™ Processor 2214 HE (2.2 GHz, 55 Watts)
AMD Opteron™ Processor 2212 HE (2.0 GHz, 55 Watts)
AMD Opteron™ Processor 2210 (1.8 GHz, 75 Watts) 434947-B21 434947-B21
AMD Opteron™ Processor 2210 HE (1.8 GHz, 55 Watts) 434943-B21 434943-B21

Voltage Regulator Module HP DL385G2/DL585G2 VRM Kit
NOTE: 2300 Series processor quad-core upgrade requires purchase of a VRM kit for second socket only if second processor not already populated.
453059-B21

Memory

1 GB REG PC2-5300 2 x 512 MB Single Rank Kit
2 GB REG PC2-5300 2 x 1 GB Single Rank Kit
4 GB REG PC2-5300 2 x 2 GB Dual Rank Kit
8 GB REG PC2-5300 2 x 4 GB Dual Rank Kit

Optical Drives

Slimline CD-RW/DVD-ROM Combo Option Kit
NOTE: Included in performance models.
Slimline DVD-ROM Drive (8x/24x) Option Kit 264007-B21 264007-B21
HP DVD+R/RW 8X Slim 383975-B21 383975-B21
Slimline CD-ROM Drive 24X 356963-B21 356963-B21

Riser Cage Options

HP 2 Slot PCI-Express x16 & x4 Riser DL385G2 ALL
410571-B21
Mixed Riser Cage Option Kit (PCI-E/PCI-X) 410570-B21 410570-B21

Hard DrivesHot Plug SFF SAS 2.5" Drives
HP 146GB 3G SAS 10K SFF DP HDD
HP 146GB 3G SAS 10K SFF SP HDD
HP 72GB 3G SAS 15K SFF DP HDD
HP 72GB 3G SAS 15K SFF SP HDD
HP 72GB 3G SAS 10K SFF DP HDD
HP 72GB 3G SAS 10K SFF SP HDD
HP 36GB 3G SAS 15K SFF DP HDD
HP 36GB 3G SAS 15K SFF SP HDD
NOTE: Please see the QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:
https://h18000.www1.hp.com/products/quickspecs/12244_na/12244_na.html
SATA Hot Plug Entry (ETY) Drives
HP 120 GB 1.5 G SATA 5.4K SFF ETY HDD
NOTE: SATA drives have a 1 year warranty. Please see the QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:
https://h18000.www1.hp.com/products/quickspecs/13021_na/13021_na.html

Storage ControllersSAS Controllers
Smart Array E200 Controller
HP Smart Array E200/128 BBWC Controller
128-MB BBWC (Battery-Backed Write Cache) Enabler
NOTE: Supports the Smart Array E200 Controller, Smart Array 641 Controller, and Smart Array 642 Controller.
Smart Array P400 Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
512MB Battery-backed cache upgrade
NOTE: For Smart Array P400 Controller.
Battery-backed write cache upgrade
NOTE: For Smart Array P400 Controller.
HP SA-P400 and SA-E500 24 In Battery Cable Kit
NOTE: This option kit contains a 24" battery cable and adhesive material for installing a batter into the server if a Smart Array P400 is integrated outside of the factory. For all solutions, please refer to the server QuickSpecs and User's Manual for detailed installation instructions.
Smart Array P600 Controller
HP Smart Array P600/256 BBWC Controller
NOTE: Requires Mixed PCI-E/X riser cage.
512 MB Battery-Backed Cache Upgrade
NOTE: This 512-MB Battery-Backed Cache Module upgrade kit supports the Smart Array P600 Controller and the Smart Array 6400 series Controller.
Smart Array P800 Controller
HP Smart Array P800/512 BBWC Controller
NOTE: Please see the following Controller QuickSpecs for Technical Specifications such as PCI Bus, PCI Peak Data Transfer Rate, SCSI Protocols supported, SCSI Peak Data Transfer Rate, Channels, SCSI Ports, Drives supported, Cache, RAID support, and additional information:
https://h18000.www1.hp.com/products/quickspecs/12460_na/12460_na.html
(Smart Array E200 Controller)
https://h18000.www1.hp.com/products/quickspecs/12400_na/12400_na.html
(Smart Array P400 Controller)
https://h18000.www1.hp.com/products/quickspecs/12247_na/12247_na.html
(Smart Array P600 Controller)
https://h18000.www1.hp.com/products/quickspecs/12616_na/12616_na.html
(Smart Array P800 Controller)

SAS HBA
HP SC44Ge Host Bus Adapter
HP 8 Internal Port SAS HBA with RAID
NOTE: Please see the following QuickSpecs for additional information:
https://h18004.www1.hp.com/products/quickspecs/12617_na/12617_na.html (SC44Ge HBA)
https://h18004.www1.hp.com/products/quickspecs/12332_na/12332_na.html
(SAS HBA)

SCSI Controllers for External Drive/Storage Support
NOTE: All Ultra320 controllers are PCI-X and require the Mixed Riser Cage Option Kit (PCI-E/PCI-X).

Smart Array 6402/128 Controller
NOTE: Ultra320 SCSI.
Smart Array 6404/256 Controller
NOTE: Ultra320 SCSI.
Smart Array 642 Controller
NOTE: Ultra320 SCSI.
128-MB Battery-Backed Write Cache (BBWC)
NOTE: Supports the Smart Array E200 Controller, Smart Array 641 Controller, and Smart Array 642 Controller.
Ultra320 Expansion Module for SA-6402
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
SCSI HBA
HP SC11Xe Host Bus Adapter
NOTE: Please see the following QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/11943_na/11943_na.html
(Single Channel Ultra320 SCSI HBA)
https://h18000.www1.hp.com/products/quickspecs/11587_na/11587_na.html
(Smart Array 6400 Series)
https://h18000.www1.hp.com/products/quickspecs/12069_na/12069_na.html
(Smart Array 642)

https://h18000.www1.hp.com/products/quickspecs/12566_na/12566_na.html (SC11Xe HBA)


Communications HP NC110T PCI Express Gigabit Server Adapter
HP NC360T PCI Express Dual Port Gigabit Server Adapter
HP NC364T PCI Express Quad Port Gigabit Server Adapter
HP NC373F PCI Express Multifunction Gigabit Server Adapter
HP NC373T PCI Express Multifunction Gigabit Server Adapter
HP NC380T PCI Express Dual Port Multifunction Gigabit Server Adapter
NOTE: Supported on a full length-full height slot only.
HP NC510F PCIe 10 Gigabit Server Adapter
NOTE: A minimum of 1 gigabyte (1 GB) of server memory is required per each NC510F adapter.
HP NC510C PCIe 10 Gigabit Server Adapter
NOTE: A minimum of 1 gigabyte (1 GB) of server memory is required per each NC510C adapter.

HPC Specific Options HP IB 4X SDR PCI-e single PORT HCA
HP IB 4X DDR PCI-e Single PORT HCA
HP IB 4X DDR Conn-X PCI-e Dual Port HCA
HP IB 4X DDR PCI-e DUAL PORT 0 mem HCA 483513-B21

Redundant Options

Redundant Power Supply 350/370/380 G5 Kit
Redundant Power Supply 350/370/380 G5 Kit
Redundant Power Supply 380 G5 - 48Volt DC
433634-B21

Tape Drives

NOTE: For the complete listing of Tape Drive offerings, please see:
https://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

For recommended tape drive offerings for this ProLiant server see the following:


USB Tape Drives
HP StorageWorks 1U USB Rack-Mount Kit with one DAT 160 USB Tape Drive
AG703A
SAS Tape Drives
NOTE: For the DL385 G2, HP recommends purchasing the HP SC44Ge HBA (416096-B21 416096-B21) for a dedicated SAS HBA for tape.
HP StorageWorks DAT 160 SAS Internal Tape Drive
NOTE: HP recommends combining this tape drive with the 1U SAS Rack-Mount kit (AE459A) for a complete rack-mount solution.
Q1587A
HP StorageWorks LTO-2 Ultrium 448 SAS Internal Tape Drive
NOTE: HP recommends combining this tape drive with the 1U SAS Rack-Mount kit (AE459A) for a complete rack-mount solution.
DW085A
HP StorageWorks LTO-3 Ultrium 920 SAS Internal Tape Drive
NOTE: HP recommends combining this tape drive with the 1U SAS Rack-Mount kit (AE459A) for a complete rack-mount solution.
EH847A
HP StorageWorks 1U SAS Rack-mount kit with one LTO-4 Ultrium 1760
EH946A
NOTE: Please refer to the "Tape Drives, Tape Autoloaders & Tape Libraries" table in the Storage section of this document for a list of SAS controllers with tape support.
SCSI Tape Drives
HP StorageWorks 1U SCSI Rack-mount kit with one LTO-2 Ultrium 448 SCSI Tape Drive (Carbonite)
DW028B
HP StorageWorks 1U SCSI Rack-mount kit with one LTO-3 Ultrium 920
EH903A
NOTE: Please see the HP StorageWorks Ultrium Tape Drive QuickSpecs for additional options such as controllers, media, and other related items:
https://h18006.www1.hp.com/products/quickspecs/11739_na/11739_na.html
https://h18006.www1.hp.com/products/quickspecs/12128_na/12128_na.html

For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit: https://www.hp.com/go/connect.

Rack-Mount Tape Drive Enclosures
HP StorageWorks 1U SCSI Rack-Mount kit
NOTE: The 1U Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with multiple Single-Ended and LVD SCSI tape drives including the DAT 40, DAT 72, DAT 160, DLT VS160, LTO-1 Ultrium 232, LTO-2 Ultrium 448, LTO-3 Ultrium 920 and LTO-4 Ultrium 1760 tape drives.
HP StorageWorks 1U USB Rack-Mount Kit
NOTE: The 1U USB Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with the DAT 40 USB, DAT 72 USB and DAT 160 USB tape drives.
HP StorageWorks 1U SAS Rack-Mount Kit
NOTE: The 1U SAS Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with the LTO-2 Ultrium 448 SAS, LTO-3 Ultrium 920 SAS and LTO-4 Ultrium 1760 SAS tape drives.
AE459A
NOTE: Please see the Rack-Mount Tape Drive Kits QuickSpecs for additional information regarding these kits:
https://h18000.www1.hp.com/products/quickspecs/10854_na/10854_na.html


Disk-Based Backup

RDX Removable Disk Backup
HP StorageWorks RDX160 External Removable Disk Backup System
NOTE: 160GB of Disk Storage.

HP StorageWorks RDX320 External Removable Disk Backup System
NOTE: 320GB of Disk Storage.
NOTE: Please see the HP RDX Removable Disk Backup System QuickSpecs for additional information:
https://h18000.www1.hp.com/products/quickspecs/13036_na/13036_na.html.
D2D Backup
HP StorageWorks D2D120 Backup System
NOTE: 2TB of Disk Storage.
EH884A
HP StorageWorks D2D120 Backup System with Data Protector Express Software Kit
NOTE: 2TB of Disk Storage.
EH924A
HP StorageWorks D2D130 Backup System
NOTE: 3TB of Disk Storage.
EH950A
HP StorageWorks D2D130 Backup System with Data Protector Express Software Kit
NOTE: 3TB of Disk Storage.
EH951A
HP StorageWorks D2D130 Backup System with LTO-3 Ultrium 920 SAS Tape Drive
NOTE: 3TB of Disk Storage.
EH952A
HP StorageWorks D2D2503i Backup System
NOTE: 3TB of Disk Storage.

HP StorageWorks D2D4004i Backup System
NOTE: 4.5TB of Disk Storage.

NOTE: Please see the HP D2D Backup Systems QuickSpecs for additional information: https://www.hp.com/go/d2d.

Tape AutoloadersHP StorageWorks DAT Autoloader
HP StorageWorks DAT 72x10 tape autoloaderAE313B
HP StorageWorks 1/8 G2 Tape Autoloader
HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader
AK377A
HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SCSI Tape AutoloaderAJ816A
HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 Tape AutoloaderAH165A
HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS AutoloaderAH558A
HP StorageWorks 1/8 G2 LTO-2 Ultrium 448 Tape AutoloaderAH164A
HP StorageWorks 1/8 G2 Tape Autoloader Rack Kit
NOTE: Required to install the 1/8 G2 Autoloaders in a standard 19-inch rack; includes rails and rackmount instructions
AH166A
NOTE: Please reference the Tape Autoloader QuickSpecs at: https://www.hp.com/go/automation for additional information needed to create a complete solution.

Tape Libraries

HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1840 SCSI Drive Library
AJ033A
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1840 4GB FC Library
AJ034A
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Drive LibraryAK378A
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SCSI Drive LibraryAJ817A
HP StorageWorks MSL2024 1 LTO-3 Ultrium 960 SCSI Drive Library
HP StorageWorks MSL2024 1 LTO-3 Ultrium 960 4GB FC Library
AG326B
HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SAS Drive Library
AH559A
HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SCSI Drive Library
AH169A
HP StorageWorks MSL2024 1 LTO-2 Ultrium 448 SCSI Drive Library
HP StorageWorks MSL4048 Tape Library
HP StorageWorks MSL4048 1 LTO-4 Ultrium 1840 SCSI Drive Library
AJ035A
HP StorageWorks MSL4048 1 LTO-4 Ultrium 1840 4GB FC Library
AJ036A
HP StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SAS Drive LibraryAK380A
HP StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SCSI Drive LibraryAJ818A
HP StorageWorks MSL4048 1 LTO-3 Ultrium 960 SCSI Drive Library
AG322A
HP StorageWorks MSL4048 1 LTO-3 Ultrium 960 4GB FC Library
AG324B
HP StorageWorks MSL4048 1 LTO-3 Ultrium 920 SAS Drive Library
AH560A
HP StorageWorks MSL4048 1 LTO-3 Ultrium 920 SCSI Drive Library
AH171A
NOTE: Please reference the MSL Tape Library QuickSpecs at: https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at: https://www.hp.com/go/ebs.

High Availability Cluster OptionsHP Serviceguard for Linux
HP Serviceguard Linux for HP ProLiant/x86 Servers
Licensed per physical server
Includes media and One Year 24x7 Software Support & Updates
463831-B21
HP Serviceguard Linux Oracle Database Toolkit for HP ProLiant/x86 Servers
Licensed per cluster
Includes media and One Year 24x7 Software Support & Updates
463833-B21
HP Serviceguard Extension for SAP on Linux for HP ProLiant/x86 Servers
Licensed per physical server
Includes media and One Year 24x7 Software Support & Updates
463834-B21
HP Serviceguard Linux Extended Distance Cluster (XDC) for HP ProLiant/x86 Servers
Licensed per physical server
Includes media and One Year 24x7 Software Support & Updates
463835-B21
NOTE: For a detailed list of supported configuration/certification options for HP Serviceguard for Linux please refer to the HP Serviceguard for Linux Certification Matrix at: https://www.hp.com/go/sglx/info
NOTE: HP Serviceguard for Linux products running on x86 platforms now include one year of 24 x 7 Software Technical Support and Updates. Please see the Support Information section of the HP Serviceguard for Linux QuickSpecs for details.
NOTE: For additional information including a complete list of Product Numbers for HP Serviceguard for Linux, please see the following QuickSpecs at:
https://h18000.www1.hp.com/products/quickspecs/11518_na/11518_na.html


StorageWorks OptionsStorageWorks Fibre Channel HBA
NOTE: For the complete listing of Fibre Channel Host Bus Adapters for Windows 2000, Windows Server 2003 and Linux, please see: https://h18006.www1.hp.com/storage/saninfrastructure/hba.html
HP StorageWorks FC2142SR 4Gb PCI-e HBA
HP StorageWorks FC2242SR Dual Channel 4 Gb PCI-e HBA
HP StorageWorks FC1142SR 4Gb PCI-e HBA
HP StorageWorks FC1242SR Dual Channel 4 Gb PCI-e HBA
HP StorageWorks FC2143 4Gb PCI-X 2.0 -to-Fibre Channel HBA
HP StorageWorks FC2243 Dual Channel 4Gb PCI-X 2.0 HBA
HP StorageWorks FC1143 4Gb PCI-X 2.0 HBA
HP StorageWorks FC1243 Dual Channel 4Gb PCI-X 2.0 HBA
HP StorageWorks 81Q PCI-e FC HBA
StorageWorks SCSI HBA
HP U320e SCSI Host Bus Adapter
NOTE: Recommended Dual Channel Ultra320 SCSI Controller for connecting multi-drive MSL tape libraries to ProLiant servers.

HP StorageWorks Modular Smart Array 50

HP StorageWorks Modular Smart Array 50 Enclosure
NOTE: Please see the Modular Smart Array 50 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at: https://h18000.www1.hp.com/products/quickspecs/12245_na/12245_na.html

HP StorageWorks Modular Smart Array 500 G2

HP StorageWorks Modular Smart Array 500 Generation 2
335880-B21
NOTE: Please see the Modular Smart Array 500 Generation 2 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at:
https://h18000.www1.hp.com/products/quickspecs/11956_na/11956_na.html


Uninterruptible Power Systems - Rack

HP R1.5 VA 1U UPS
AF419A

USB Options HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver)
USB 1.44-MB External Diskette Drive (Carbonite)
DC141B
HP USB 04 Standard Keyboard
DT528A#ABA
HP 1GB USB 2.0 Floppy Drive Key
442085-B21
HP 256MB USB 2.0 Floppy Drive Key
442084-B21

Third Party Rack Adapter Kit
(for wide racks)
Rack Adapter Kit
NOTE: Not required for most racks. This kit allows HP rack servers to fit in racks that are 24" wide.
332815-B21

HP Rack 5000 Series (Graphite Metallic)HP 5642 Rack-Unassembled
NOTE: Please see the HP Rack 5642 QuickSpecs for additional part numbers and Technical Specifications such as height, width, depth, weight, and color:
https://h18000.www1.hp.com/products/quickspecs/12074_na/12074_na.html
NOTE: For additional information regarding Rack Cabinets, please see the following URL: https://www.hp.com/go/rackandpower.


HP Rack 10000 G2 Series
(Carbon/Graphite Metallic)

10642 G2 (42U) Rack Cabinet - Pallet
10642 G2 (42U) Rack Cabinet - Shock Pallet
10642 G2 (42U) Rack Cabinet - Crated
AF003A
10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet
10636 G2 (36U) Rack Cabinet - Pallet
10636 G2 (36U) Rack Cabinet - Shock Pallet
10636 G2 (36U) Rack Cabinet - Crated
10636 G2 (36U) Rack Cabinet, with Extension - Shock Pallet
10622 G2 (22U) Rack Cabinet - Pallet
AF021A
10622 G2 (22U) Rack Cabinet - Shock Pallet
AF022A
10842 G2 (42U) 800mm Wide Rack Cabinet - Pallet
AF041A
10842 G2 (42U) 800mm Wide Rack Cabinet - Shock Pallet
AF042A
10647 G2 (47U) Rack Cabinet - Pallet
AF031A
NOTE: It is mandatory to use a shock pallet when shipping racks with equipment installed.
NOTE: Please see the Rack 10000 G2 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
https://h18000.www1.hp.com/products/quickspecs/12402_na/12402_na.html

NOTE: For additional information regarding Rack Cabinets, please see the following URL: https://www.hp.com/go/rackandpower.

HP Rack 10000 Series
(Graphite Metallic)
HP S10614 (14U) Rack Cabinet - Shock Pallet
NOTE: xxxxxx-B21 (pallet) used to ship empty racks shipped on a truck. -B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels). xxxxxx-B23 (crated) used for air shipments of empty racks.
NOTE: It is mandatory to use a shock pallet in order to ship racks with equipment installed. Not all HP or Compaq equipment is qualified to be shipped in the Rack 10000 series.
NOTE: Please see the Rack 10000 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
https://h18000.www1.hp.com/products/quickspecs/10995_na/10995_na.html

NOTE: For additional information regarding Rack Cabinets, please see the following URL: https://www.hp.com/go/rackandpower.

Keyboards and MonitorsTFT7600 Rackmount Keyboard Monitor
1U Rackmount Keyboard with USB
NOTE: For additional information regarding Rack Options, please see the following URL: https://www.hp.com/go/rackandpower.

HP KVM Switch Options2x1x16 IP Console Switch with Virtual Media
4x1x16 IP Console Switch with Virtual Media
2x16 Server Console Switch with Virtual Media
PS/2 Virtual Media Interface Adapter, 1 pack
NOTE: Requires PS/2 and one USB port on server.
Server Console Switch (KVM), 0 x 1 x 8 port
Server Console Switch (KVM), 0 x 2 x 16 port
PS/2 Interface Adapter, 1 pack
PS/2 Interface Adapter, 8 pack
NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches. Cat5e cables can be found at the following URL: https://www.hp.com/go/kvm.
HP 1x4 Console Switch (ALL)
PS2 Server Console Cable, 6 ft, 2 pack
USB Server Console Cable, 6 ft, 2 pack
NOTE: required for supporting USB peripherals.
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: https://www.hp.com/go/kvm.

HP Serial Console Server Options HP 16 Port Serial Console Server (worldwide)
HP 48 Port Serial Console Server (worldwide)
Serial Adapter, RJ45-DB9 DCE Female, 1 Pack
Serial Adapter, RJ45-DB9 DCE Female, 8 Pack
AF110A
NOTE: Cat5e cables are required to connect Serial Adapters to Serial Console Servers. Additional Serial Adapters and Cat5e cables can be found at the following URL: https://www.hp.com/go/kvm.
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: https://www.hp.com/go/kvm.

Service and Support Offerings
(HP Care Pack Services)
Hardware Services On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
U4544E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4545E
Hardware Services 6-Hour Call to Repair On-site Service

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

U4546E
Installation & Start-up Services
Hardware Installation, Electronic
U4554E
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays, Electronic
U4555E
Installation and Startup for Essentials Rapid Deployment Pack, Electronic
U5683E
Support Plus
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4556E
Support Plus 24
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4557E
Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U6312E
Onsite HW support 24x7, 4hr response and Red Hat ES Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U8334E
NOTE: For more information, customer/resellers can contact: https://www.hp.com/services/carepack
contents
 Overview      Standard Features      HPC Interconnects      Models      Smart Buys      Configuration Information - Factory Integrated Models      DL385 G2 Options      DL385 G2 Memory      Storage      Power Specifications      DL385 G2 QuickSpecs images/line.gif

Memory

NOTE: Memory configurations listed do not apply to "Factory Integrated Models".

HP ProLiant DL385 G2 Base Models

Standard Memory
2 GB PC2-5300 DDR2 DIMMs (667 MHz) installed (2 x 1 GB)

Upgrading Memory and Memory Interleaving
DIMMs must be installed in identical pairs. Bank interleaving is automatically enabled on a processor node under the following conditions:
1) Four single ranked DIMMs populated per node (4 x 512 MB or 4 x 1 GB for example) yields 2-way bank interleaving.
2) Two dual ranked DIMMs populated per node (2 x 2 GB or 2 x 4 GB for example) yields 2-way bank interleaving.
3) Four dual ranked DIMMs populated per node (4 x 2 GB for example) yields 4-way bank interleaving.
If single and dual ranked DIMMs are mixed on the same node, bank interleaving will not be enabled.

Node interleaving can be configured via RBSU if both processors have the same memory footprint and it is independent of bank interleaving.

DIMMs must be installed in decreasing capacity with the largest DIMMs installed in the banks furthest away from each processor.

Standard Memory Plus Optional Memory
Up to 26 GB memory is available with the standard memory of 1GB and the optional installation of PC2-5300 DDR2 DIMMs (667 MHz) memory kits. - 6 slots would be available, and potentially could be filled with 4GB DIMMs.

Standard Memory Replaced with Optional Memory
Up to 32 GB of memory is available with the removal of the standard 1GB of memory and the optional installation of PC2-5300 DDR2 4 GB DIMMs (667 MHz) memory kits.

NOTE: Chart does not represent all possible configurations.
NOTE: DIMM banks are active only when the corresponding processor socket is populated.

Memory
Slot

1
2
3
4
5
6
7
8
Standard
2 GB
1 GB
1 GB
Empty
Empty
Empty
Empty
Empty
Empty
Optional
26 GB
4 GB
4 GB
1 GB
1 GB
4 GB
4 GB
4 GB
4 GB
Maximum
32 GB
4 GB
4 GB
4 GB
4 GB
4 GB
4 GB
4 GB
4 GB

HP ProLiant DL385 G2 Performance Models

Standard Memory
4 GB PC2-5300 DDR2 DIMMs (667 MHz) (4 x 1 GB)

Upgrading Memory and Memory Interleaving
DIMMs must be installed in identical pairs. Bank interleaving is automatically enabled on a processor node under the following conditions:
1) Four single ranked DIMMs populated per node (4 x 512 MB or 4 x 1 GB for example) yields 2-way bank interleaving.
2) Two dual ranked DIMMs populated per node (2 x 2 GB or 2 x 4 GB for example) yields 2-way bank interleaving.
3) Four dual ranked DIMMs populated per node (4 x 2 GB or 4 x 4 GB for example) yields 4-way bank interleaving.
If single and dual ranked DIMMs are mixed on the same node, bank interleaving will not be enabled.

Node interleaving can be configured via RBSU if both processors have the same memory footprint and it is independent of bank interleaving.

DIMMs must be installed in decreasing capacity with the largest DIMMs installed in the banks furthest away from each processor.

Standard Memory Plus Optional Memory
Up to 20 GB memory is available with the standard memory of 4*1 GB and the optional installation PC2-5300 DDR2 DIMMs (667 MHz) memory kits. - 4 slots available (4*4 GB + 4*1 GB standard = 20 GB).

Standard Memory Replaced with Optional Memory
Up to 32 GB of memory is available with the removal of the standard 1GB of memory and the optional installation of PC2-5300 DDR2 4 GB DIMMs (667 MHz) memory kits.

NOTE: Chart does not represent all possible configurations.

Memory
Slot

1
2
3
4
5
6
7
8
Standard
4 GB
1 GB
1 GB
Empty
Empty
1 GB
1 GB
Empty
Empty
Optional
20 GB
4 GB
4 GB
1 GB
1 GB
4 GB
4 GB
1 GB
1 GB
Maximum
32 GB
4 GB
4 GB
4 GB
4 GB
4 GB
4 GB
4 GB
4 GB

Following are memory options available from HP:



1 GB REG PC2-5300 2 x 512 MB Single Rank Kit

408850-B21 408850-B21

2 GB REG PC2-5300 2 x 1 GB Single Rank Kit

408851-B21 408851-B21

4 GB REG PC2-5300 2 x 2 GB Dual Rank Kit 408853-B21 408853-B21
8 GB REG PC2-5300 2 x 4 GB Dual Rank Kit 408854-B21 408854-B21
contents
 Overview      Standard Features      HPC Interconnects      Models      Smart Buys      Configuration Information - Factory Integrated Models      DL385 G2 Options      DL385 G2 Memory      Storage      Power Specifications      DL385 G2 QuickSpecs images/line.gif

Storage

1-8
Eight SFF SAS hot plug hard drive bays



Drive Support




Quantity
Supported

Position
Supported


Controller

Removable Media


Slimline CD-RW/DVD-ROM Combo Option Kit
NOTE: Included in performance models.
Only 1 available removable media bay
Slimline bay
Integrated IDE
NOTE: Optional
Slimline DVD-ROM Drive (8x/24x) Option Kit
Only 1 available removable media bay
Slimline bay
Integrated IDE
NOTE: Optional
HP DVD+R/RW 8X Slim
Only 1 available removable media bay
Slimline bay
Integrated IDE
NOTE: Optional

Hard Drives
SAS - Hot Plug Drives

Quantity
Supported
Position
Supported

Controller
146GB 3G SAS 10K SP
146GB 3G SAS 10K DP 72GB 3G SAS 10K SP
72GB 3G SAS 10K DP
72GB 3G SAS 15K SP
72GB 3G SAS 15K DP
36GB 3G SAS 15K SP
36GB 3G SAS 15K DP
Up to 8
1-8
HP Smart Array E200/64MB Controller
HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
NOTE: Optional mixed PCI-X/E required for SA-P600.
HP Smart Array P800/512 BBWC Controller

SFF SATA Hot Plug Entry (ETY) Drives

Quantity
Supported
Position
Supported

Controller
120GB 1.5G SATA 5.4K
Up to 8
1-8
HP Smart Array E200/64MB Controller
HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
NOTE: Optional mixed PCI-X/E required for SA-P600.
HP Smart Array P800/512 BBWC Controller

External Storage



Quantity
Supported

Position
Supported


Host Controller or Adapter

Modular Smart Array 50 Enclosure
2 per connector (supports 1+1 cascading)
External
HP Smart Array P600/256 BBWC Controller
NOTE: Optional mixed PCI-X/E cage required.
Modular Smart Array 500 G2
1 per SCSI
External
Please see the Modular Smart Array 500 or 500 G2 QuickSpecs for the latest list of supported HBAs: https://www.hp.com/go/msa500.

Maximum Storage Capacity - (SAS with MSA50)

Internal

1.168TB (8 x 146 GB SAS SFF)
External2.920TB (20 x 146 GB SAS SFF)
Total4.088TB

Tape and Disk-Based Backup

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following: https://h18000.www1.hp.com/products/quickspecs/north_america/10233.html

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders and Tape Libraries listed below, please see the following: https://h18000.www1.hp.com/products/quickspecs/north_america/10809.html

NOTE: For complete listing of tape drive offerings see: https://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

NOTE: SAS Tape Drives: Connecting hard drive cage and SAS tape to the same SAS Controller using split cable (supplied with tape drive) deactivates 1 of the hard drive bays. Actual hard drive bay deactivated depends on where split cable plugs into SAS drive connector. Example: 3x SAS cable connector plugged into SAS drive connector (5-8) on the back of the hard drive cage would mean drive bay 8 is deactivated.

Position
Supported
Controller
Controller Part Number
HP StorageWorks SCSI Tape Drives, External
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 960
LTO-3 Ultrium 920
LTO-4 Ultrium 1760
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP SC11Xe Host Bus Adapter

HP StorageWorks USB Tape Drives, External
DAT 40 USB
DAT 72 USB
DAT 160 USB
1U Rack-Mount Kit
External
USB 2.0 Port
N/A

HP StorageWorks SAS Tape Drives, External
DAT 160 SAS
LTO-2 Ultrium 448 SAS
LTO-3 Ultrium 920 SAS
LTO-4 Ultrium 1840 SAS
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP SC44Ge Host Bus Adapter

HP StorageWorks SCSI Tape Automation, External
DAT 72x10 Autoloader
1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096
MSL6000
External
HP SC11Xe Host Bus Adapter
HP U320e SCSI Host Bus Adapter
NOTE: Recommended for MSL tape libraries.



HP StorageWorks SAS Tape Automation, External
1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096

External
HP SC44Ge Host Bus Adapter
NOTE: Please visit https://www.hp.com/go/connect for details about minimum SAS controller firmware version and SAS cabling requirements.


HP StorageWorks Fibre Tape Automation, External
MSL2024
MSL4048
MSL8096
MSL6000
External
Please consult the EBS connectivity matrix at: https://www.hp.com/go/ebs for detailed connectivity information.
N/A

HP StorageWorks RDX Removable Disk Backup System, External
RDX160
RDX320
External
USB 2.0 PortN/A


HP StorageWorks D2D Backup Systems
D2D120
D2D130
D2D2503i
D2D4004i
External
Embedded Network Controller
N/A
contents
 Overview      Standard Features      HPC Interconnects      Models      Smart Buys      Configuration Information - Factory Integrated Models      DL385 G2 Options      DL385 G2 Memory      Storage      Power Specifications      DL385 G2 QuickSpecs images/line.gif

Power Specifications

Power Supply Specification - ACPart number380622-001
 Spare Kit403781-001
Operational Input Voltage Range
(Vrms)
90 to 264
Frequency Range (Nominal) (Hz)
47 to 63 (50/60)
Nominal Input Voltage (Vrms)
100
120
208
220
230
240
Max Rated Output Wattage Rating
800
850
1000
1000
1000
1000
Nominal Input Current (A rms)
10.0
8.8
5.85
5.5
5.2
4.97
Max Rated Input Wattage Rating (Watts)
980
1035
1193
1186
1172
1169
Max. Rated VA (Volt-Amp)
1000
1056
1217
1210
1196
1193
Efficiency (%)
81.5
82
84
84
85
85.5
Power Factor
0.98
0.98
0.98
0.98
0.98
0.98
Leakage Current (mA)
0.44
0.52
0.91
0.96
1.00
1.04
Max. Inrush Current (A peak)
30
30
30
30
30
30
Max. Inrush Current duration (mS)
3
3
3
3
3
3

Power Supply Specification - DCPart number412837-001
 Spare Kit419613-001
Operational Input Voltage Range (V)
-36.0 to -72.0V DC
Frequency Range (Nominal) (Hz)
DC
Nominal Input Voltage (V)
-36
-48
-72

Max Rated Output Wattage Rating
1200
1200
1200

Nominal Input Current (A)
38
29
20

Max Rated Input Wattage Rating (Watts)
1368
1392
1440

Efficiency (%)
87.6
87.6
86

Max. Inrush Current (A peak)
60
60
60

Max. Inrush Current duration (mS)
100
100
100



NOTES:
- To review typical system power ratings use the Active Answers Power Calculator which is available via the online tool located at url: https://h30099.www3.hp.com/configurator/calc/Power%20Calculator%20Catalog.xls
To drill down to calculators:

  • Click on: "ProLiant Servers"
  • Click on the Server of interest. Example: DL385 G2
  • Click on: "Power Calculator" link. (You may need to scroll down to see it)
contents
 Overview      Standard Features      HPC Interconnects      Models      Smart Buys      Configuration Information - Factory Integrated Models      DL385 G2 Options      DL385 G2 Memory      Storage      Power Specifications      DL385 G2 QuickSpecs images/line.gif

Quickspecs

System Unit Dimensions (H x W x D)
(with bezel)
3.38 x 17.54 x 26.01 in (8.59 x 44.54 x 66.07 cm)
Weight
(approximate)
Maximum
(all hard drives, power supplies, and processors installed)
60 lb (27.22 kg)
Minimum
(one hard drive, power supply, and processor installed)
47.18 lb (20.41 kg)
Input Requirements
(per power supply)
Rated Line Voltage100 VAC,
120VAC,
200-240 VAC
Rated Input Current10 A (at 100 VAC),
9 A (at 120 VAC),
6.1 A (at 200 VAC)
Rated Input Frequency50 to 60 Hz
Rated Input Power980 W (at 100 VAC),
1035 W (at 120 VAC),
1170 W (at 240 VAC)
BTU RatingMaximum 3350 BTU/hr (at 100 VAC),
3530 BTU/hr (at 120 VAC),
3990 BTU/hr (at 240 VAC)
Power SpecificationsTo review typical system power ratings use the Power Calculator which is available via the online tool located at URL:
https://h30099.www3.hp.com/configurator/calc/Power%20
Calculator%20Catalog.xls

- Click on the system of interest. Example: DL385 G2
- Follow the instructions of the next screens.

Power Supply Output
(per power supply)
Rated Steady-State Power
800 W (at 100 VAC),
850 W (at 120 VAC),
1000 W (at 200-240 VAC)
Maximum Peak Power 800 W (at 100 VAC),
850 W (at 120 VAC),
1000 W (at 200-240 VAC)
System Inlet TemperatureOperating10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed.
System performance may be reduced if operating with a fan fault or above 30°C (86°F).
Non-operating-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative Humidity
(non-condensing)
Operating10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.
Non-operating5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.
AltitudeOperating3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Acoustic NoiseListed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
Idle
LWAd
6.3 B
LpAm
47 dBA
Operating

LWAd
6.3 B
LpAm
47 dBA

Smart Array P400 Controller

Disk Drive and Enclosure Interface3 G SAS (Serial Attached SCSI)
1.5 G SATA (Serial Advanced Technology Attachment)
SAS Connectors2 internal (SFF8484) x4 wide port connectors
Cache Memory SpeedDDR2-533MHz with 40 or 72-bit wide bus provides up to 4.2 GB/s maximum bandwidth.
Server Interfacex8 2.5G PCIe provides 2GB/s maximum bandwidth.
SAS Speedx8 3G SAS provides 2.4GB/s maximum bandwidth.
Cache Memory40-bit 256MB cache (72-bit 512MB module upgrades available); ECC protection, battery-backed, and transportable
Logical Drives SupportedUp to 32 logical drives
Maximum Logical Drive Capacity3TB (6 x 500 GB)
Host Memory Addressing64-bit, supporting greater than 4GB server memory space
RAID SupportRAID 6 with ADG (Advanced Data Guarding) requires Battery Backed Write Cache Upgrade
RAID 5 (Distributed Data Guarding)
RAID 1+0 (Striping & Mirroring)
RAID 0 (Striping)

Smart Array E200 ControllerDisk Drive and Enclosure Interface3 G SAS (Serial Attached SCSI)
1.5 G SATA (Serial Advanced Technology Attachment)

SAS Connectors

2 internal (SFF8484) x4 wide port connectors

Cache Memory Speed

DDR1-266 MHz provides up to 4.2 GB/s maximum bandwidth.

Server Interface

x8 2.5 G PCIe provides 2GB/s maximum bandwidth.

SAS Speed

x8 3 G SAS provides 2.4GB/s maximum bandwidth.

Cache Memory

40-bit 64MB cache or a 128MB battery backed cache: ECC protection, battery-backed, and transportable

Logical Volumes Supported

Up to 32 logical volumes

Maximum Volume Capacity

3 TB (6 x 500 GB)

Host Memory Addressing

64-bit, supporting greater than 4GB server memory space
RAID SupportRAID 5 (Distributed Data Guarding)
RAID 1+0 (Striping & Mirroring)
RAID 0 (Striping)

Two Embedded NC373i Multifuntion Gigabit Server Adapters Network Interface 10Base-T/100Base-TX/1000Base-TX
Compatibility IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method PCI Express, four lanes (x4)
Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s
10Base-T (Full-Duplex) 20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex) 200 Mb/s
1000Base-TX (Half and Full-Duplex) 2000Mb/s
Connector Two RJ-45
Cable Support 10Base-T
Categories 3, 4 or 5 UTP;
up to 328 ft (100 m)
100Base-TX Category 5 or higher UTP;
up to 328 ft (100 m)
1000BaseTX Category 5 or higher UTP;
up to 328 ft (100 m)

The ProLiant Smart Buy program offers a collection of promotional server and option products that are configured with SMB in mind, offered at discounted prices, and positioned for quick delivery. Smart Buy server offers are available for a limited time only.

For a full listing of ProLiant Smart Buys available for all server families, visit: ftp://ftp.compaq.com/pub/products/servers/smartbuys.pdf.

S-Buy DL385G2 2214 2GB
AH525A

Processor(s)(1) Dual-Core AMD Opteron 2214 HE Processor (2.2 GHz, 68 Watts)
Memory2 GB (2 x 1 GB) PC2-5300 DIMMs (DDR2-667) with Advanced ECC capabilities
Network ControllerTwo Embedded NC373i Multifunction Gigabit Server Adapters
Storage ControllerHP Smart Array P400/256MB Controller (RAID 0/1/5)
Hard DriveNone Ship Standard
Internal Storage1.168TB max - 8 x 146GB SAS drives (with optional hard drives)
Optical DriveSlimline DVD/CD-RW (8X/24X) (ejectable)
Form Factor
Rack (2U), (3.5-inch)
AvailabilityHot Plug Fully Redundant Fans and Redundant Power Supplies

Environment-friendly Products and Approach
End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: https://www.hp.com/go/green. To recycle your product, please go to: https://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: https://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.


Sillworks                  Ph: 1.613.599.1287                  Fax: 1.613.599.8120
U320 | SSD | SAS/SATA | Fibre | Memory | Controllers | Processors | Power Supplies | Networking
line
Dell | EqualLogic | EMC | Hewlett-Packard | IBM | Seagate
line
HP      HP      HP      Dell Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account Dell      Dell      Dell      Seagate
Terms of Use | Legal | Privacy | Primary Site | Contact us | Add to favorites
Amex Accepted Visa Accepted MasterCard Accepted
