 HPE  Proliant DL740 G1 QuickSpecs Flag US QuickSpecs
Folder-Closed DL740 G1 HDD SSD Folder-Closed DL740 G1 Processors Folder-Closed DL740 G1 Memory
Folder-Closed DL740 G1 Controllers Folder-Closed DL740 G1 Networking Folder-Closed DL740 G1 Power
Folder-Closed DL740 G1 Quickspecs Folder-Closed DL740 G1 Quickspecs Folder-Closed DL740 G1 Options New  Refurb
contents
 Overview      Standard Features      Models      DL740 G1 Options      DL740 G1 Memory      Storage      DL740 G1 QuickSpecs line.gif (50 bytes)

Proliant DL740 G1 Overview

HP ProLiant DL740

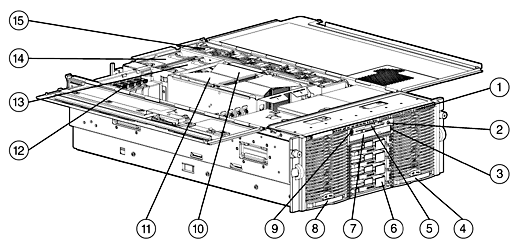

Proliant DL740 G1 Server Image
1.
LED Diagnostic Display (system health and DIMM status)
2.
Unit ID (UID) LED Switch (front and rear)
3.
Universal Media Bay Ejector Button
4.
Redundant Hot Plug Power Supply #2
5.
1.44MB Diskette Drive
6.
Ultra3 Hard Disk Drive Bays (up to four)
7.
CD/DVD-ROM Drive in Universal Media Bay
(hot pluggable)
8.
Redundant Hot Plug Power Supply #1
9.
System Power LED Switch
10.
Processor Board #2
11.
Processor Board #1
12.
Six 100MHz/64-bit PCI-X slots
13.
Redundant Hot Plug Fan #2
14.
Redundant Hot Plug Fan #1
15.
Hot Plug RAID Memory Cartridges (five total)

What's New

  • Intel® Xeon® Processor MP 3.0 GHz/4MB, 2.7 GHz/2MB, or 2.2 GHz/2MB Processors (eight processor capability)
At A Glance
  • Uncompromising 8-way performance and availability in an ultra dense, 4U form factor
  • Intel Xeon Processor MP 3.0 GHz/4MB, 2.7 GHz/2MB, 2.2 GHz/2MB Processors (eight processor capability)
  • HP developed F8 chipset
  • 133 MHz SDRAM Memory, expandable to 64 GB addressable memory
  • HP Hot Plug RAID Memory Technology
    • Hot Add, Hot Replace, and Hot Upgrade
    • Uses industry standard ECC-protected memory
  • Six 64-bit/100MHz PCI-X slots, all hot pluggable
  • Integrated Lights-Out Standard Management (iLO) on system board
  • Two NC7781 PCI-X Gigabit NICs (embedded)
  • Integrated Smart Array 5i Controller (Ultra3 support) (supports RAID 0, 1, 1+0, and 5 across internal hard disk drives)
  • Internal Hot Plug Drive Storage of 1.20TB (4 x 300GB Ultra320 hard drives running at Wide Ultra3) or one DAT hot plug tape drive and two hot plug hard drives
  • Tool less and modular chassis for enhanced serviceability
  • Innovative diagnostic lighting for rapid response to service events
  • Unit ID (UID) lighting, front and rear
  • Front bezel system health/RAID memory LEDs
  • Two 1100W/800W hot plug redundant power supplies standard
  • Two hot plug redundant system fans standard
  • Rapid deployment racking solution (rack rails and cable management)
  • Protected by HP Services and a worldwide network of resellers and service providers. Three-year Next Business Day, on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives.
contents
 Overview      Standard Features      Models      DL740 G1 Options      DL740 G1 Memory      Storage      DL740 G1 QuickSpecs line.gif (50 bytes)

Standard Features

Processor
One of the following depending on Model

(4) Intel Xeon Processor MP 3.0 GHz/4MB
(4) Intel Xeon Processor MP 2.7 GHz/2MB
(4) Intel Xeon Processor MP 2.2 GHz/2MB

Cache Memory
One of the following depending on Model
4MB Integrated Level 3 cache (per processor)
NOTE: Available with 3.0 GHz models.
2MB Integrated Level 3 cache (per processor)
NOTE: Available with 2.7 GHz or 2.2 GHz models.

Upgradeability Upgradeable to eight processors

Chipset HP developed F8 chipset

Memory ProtectionAdvanced ECC
Hot Plug RAID Memory

DL740 G1 Memory
One of the following depending on Model
Type133MHz ECC SDRAM DIMMs
Standard
(for 2.7 GHz and 3.0 GHz models)
4 GB (2 x 512 MB x 5 HP RAID Memory Cartridges)
(The 5th cartridge is populated for redundancy)
NOTE: Available with 3.0 GHz or 2.7 GHz models.
Standard
(for 2.2 GHz models only)
2 GB (2 x 256 MB x 5 HP RAID Memory Cartridges)
(The 5th cartridge is populated for redundancy)
NOTE: Available with 2.2 GHz model.
Maximum64 GB addressable (80 GB total)
NOTE: All models come standard with all five memory cartridges populated and Hot Plug RAID Memory enabled.
NOTE: In standard Hot Plug RAID Memory mode, addressable memory refers to the portion of memory that is addressable by the OS. Total memory consists of addressable memory plus the redundant memory (stored in the dedicated parity memory cartridge.)

Network Controller Two NC7781 PCI-X Gigabit NICs (embedded)

Expansion Slots
Slot Number
Bus Speed
Bus Number
Hot Plug
PCI Voltage
Notes
1
64-bit 100MHz
PCI-X
7
Yes
3.3V

2
64-bit 100MHz
PCI-X
7
Yes
3.3V

3
64-bit 100MHz
PCI-X
11
Yes
3.3V
4
64-bit 100MHz
PCI-X
11
Yes
3.3V
5
64-bit 100MHz
PCI-X
3
Yes
3.3V
6
64-bit 100MHz
PCI-X
3
Yes
3.3V
  NOTE: All slots can accept universal keyed PCI cards.

Storage Controllers Smart Array 5i Controller (integrated on system board), one internal channel, Ultra3 (supports RAID 0, 1, 1+0, and 5 across internal hard disk drives)
Optional support for Ultra3 or Ultra320 storage controllers in an I/O slot to internal drives via array bypass cable kit and required cables ships with all HP ProLiant DL740 in the accessories package.

Storage Diskette Drive 1.44 MB Diskette Drive
Optical Drive (in the Universal Media Bay) Integrated Slimline CD/DVD-ROM (8X/24X) Combo Drive Option Kit
Hard Drives None

Maximum Internal Storage Type Hot Plug SCSI 1.20TB 4 x 300GB Ultra320, Drives (internal hot plug cage only)

Interfaces Serial 1
Pointing Device (Mouse) 1
Graphics 1
Hot Plug Keyboard 1
USB (rear only) 1
iLO remote management port 1
Network RJ-45 2

Graphics Integrated ATI RAGE XL Video Controller with 8-MB SDRAM Video Memory

Form Factor 4U (7") Rack Form Factor; Ships with sliding rack rails and cable management system; Standard 19" rack-mountable

ProLiant Essentials Foundation Pack Software

HP Systems Insight Manager HP's new HP Systems Insight Manager (HP SIM) helps maximize system uptime and performance and reduce system maintenance costs by providing proactive notification of problems before those problems result in unplanned downtime or reduced productivity. HP SIM are both easy to set up work with the Insight Management Agents, integrated Lights-Out and Remote Insight Lights-Out Edition, and Version Control Agents to deliver robust fault, configuration, and asset management as well as remote administration. With HP SIM customers will also be able to take advantage of role-based security; the ability to manage ProLiant, Integrity, and HP 9000 systems; and plug-ins for storage, client, printer, and power management as well as server rapid deployment, performance management, and workload management. For more details on HP SIM visit https://www.hp.com/go/hpsim.
SmartStartSmartStart is a tool that simplifies server setup, providing a rapid way to deploy reliable and consistent server configurations. For more information, please visit the SmartStart Web site at https://www.hp.com/servers/smartstart.
SmartStart version supported (minimum): SmartStart 6.20.
Management Agents The Management Agents form the foundation for HP's Intelligent Manageability strategy. They provide direct, browser-based access to in-depth instrumentation built into HP servers, workstations, desktops, and portables, and send alerts to Systems Insight Manager and other enterprise management applications in case of subsystem or environmental failures. For additional information about the Management Agents and other management products from HP, please visit the management Web site at https://www.hp.com/servers/manage.
Subscriber's ChoiceSubscriber's Choice Driver and Support Alerts/Notifications is a web-based email subscription service that provides automatic delivery of software and driver change notifications for ProLiant products. Sign up at https://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become available, on a weekly or monthly basis.
ROMPaq, support software, and
configuration utilities
The latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options available in SmartStart or downloadable from Software and Drivers download pages, linked from the SmartStart website at https://www.hp.com/servers/smartstart.
Survey Utility and diagnostics utilities The most advanced configuration analysis, reporting and troubleshooting utilities used by HP and at your fingertips, available in SmartStart.
Optional ProLiant Essentials Value Packs

Optional software offerings that selectively extend the functionality of an Adaptive Infrastructure to address specific business problems and needs:

  • Rapid Deployment Pack - an automated solution for multi-server deployment and provisioning, enabling companies to quickly and easily adapt to changing business demands.
  • Workload Management Pack - provides easier management of complex environments, improving overall server utilization and enabling Windows® 2000 customers for the first time to confidently deploy multiple applications on a single multiprocessor ProLiant Server.
  • Integrated Lights-Out Advanced Pack - upgrades the Integrated Lights-Out processor to full virtual presence and control with graphical console and virtual media.
  • Performance Management Pack - a performance management solution that identifies and explains hardware performance bottlenecks on ProLiant servers and attached options enabling users to better utilize their valuable resources.
  • Intelligent Networking Pack - detects and analyzes network bottlenecks or broken network linkages and steers traffic to the optimum route based on network conditions, plus it provides an extra layer of protection. The virus throttle feature of the solution slows the propagation of fast spreading virus
  • Vulnerability and Patch Management Pack - identifies and remediates software security vulnerabilities due to missing patches as well operating system configurations that can be exploited by viruses, worms, and other blended threats.
  • Virtual Machine Management Pack - provides central management and control of virtual machines from Microsoft and VMware. Integrated approach provides the ability to manage both physical and virtual resources from a single management console.
  • Server Migration Pack - The Server Migration Pack automates the manual processes required for migrating servers between physical or virtual platforms (P2V, V2P, and V2V).
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to https://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: https://www.hp.com/servers/proliantessentials

Industry Standard Compliance ACPI 1.0b Compliant
PCI-X and PCI 2.2 Compliant
PAE Support
PXE Support
Microsoft® Logo certifications

Intelligent Manageability

Integrated Lights-Out (iLO) Standard Management

  • Virtual Text Remote Console
  • Virtual Power Button Control
  • Dedicated LAN Connectivity
  • Automatic IP Configuration via DHCP/DNS/WINS
  • Industry Standard 128-bit Secure Sockets Layer (SSL) Security
  • IML and iLO Event Logging
  • Support for 12 user accounts with customizable access privilege
Integrated Lights-Out (iLO) Advanced Pack (supports Advanced features such as Graphical Remote Console and Virtual Floppy - available as a separate option)
HP Systems Insight Manager
Remote Insight Lights-Out Edition ll (optional)
ROM-Based Setup Utility (RBSU)
Integrated Management Log (IML)
Server Health logging
Automatic Server Recovery-2 (ASR-2)
System Interconnect Status Indicators
Remote-Flash Redundant ROM
Hot Spare Boot
(NOTE: Upon the event of a failed processor or VRM in a multi-processing environment, the system will automatically reboot and use the remaining good processor(s).)
Power Down Utility
Pre-Failure Warranty (covers processors, as well as SCSI hard drives and memory)
Dynamic sector repairing and drive parameter tracking (with Smart Array controllers)

Availability

Hot Plug RAID Memory - delivering unsurpassed memory protection and server availability:

  • Uses industry standard ECC SDRAM DIMMs
  • Fully redundant architecture, with no more performance overhead than is currently experienced with ECC protection.
  • Same level of redundancy as achieved with memory mirroring, at only 25% of the additional memory expense when compared to mirroring.
  • Customer can choose to run in non-RAID memory mode by populating only the first 4 memory cartridges.
  • Hot Add
    • Add a new bank of DIMMs while the server is running
    • OS/Application enabled
  • Hot Upgrade
    • Upgrade from a lower capacity DIMM to a higher capacity DIMM while the server is running
    • OS/Application enabled
  • Hot Replace
    • Replace a failed DIMM while the server is running
    • OS/Application transparent
Six 64-bit/100MHz PCI-X Hot Plug slots with push button functionality
Dual Redundant Hot Plug Fans
Dynamic sector repairing and drive parameter tracking (with Smart Array controllers)
Fault Tolerant Processor Power Modules
Redundant/adaptive load balancing NIC Support
Dual Redundant Hot Plug Power Supplies

Serviceability
  • Innovative Diagnostic Lighting throughout server
    • LED display on front bezel indicates system health and DIMM status
    • LED display on memory cartridges indicates cartridge power and attention status
  • Tool-less, virtually cable-less interior design
  • Tool-less access to interior of server
  • Hot pluggable universal media bay (CD/DVD-ROM drive ships standard) ejects without the use of tools
  • Front access power supplies
  • PCI Card Guides locks full length PCI cards in place during transit
  • SCSI Drive Cage connects directly to system board – no cables.
  • Modular mechanical design allows tool-less access to major subsystems for easy upgrades and servicing
    • Host Module: Processor, Memory, and I/O Subsystems
    • Power and Media Module: SCSI Backplane, Power Supplies, Universal Media Bay
  • Quick Deploy Racking System
  • Tool-less design "snap in" rails

Security Power-on password
Diskette drive control
Diskette boot control
Network server mode
Security provision
Parallel and serial interface control
Administrator's password
Disk configuration lock
Hot plug access security

Server Power Cords Two IEC to IEC Highline power cords (PDU adapters) ship standard

UPS and PDU Power
Cord Matrix
Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and specifications for UPS and PDU units:
ftp://ftp.compaq.com/pub/products/servers/ProLiantstorage/power-protection/powercordmatrix.pdf.

Power SupplyTwo Redundant Hot Plug 1100/800-Watt power supplies per system. Power supplies are load sharing and provide 1100 Watts of Redundant power for 220-volt input or 800 Watts of power for 115-volt input.
NOTE: To ensure redundancy of server power, HP requires that 200-240 VAC power be used for all deployments. This will ensure that both power supplies can support up to their maximum configurations, and remain in a redundant power supply state.
NOTE: A maximum of two power supplies are supported and ship standard with each server. Use of 110V power is not recommended.
NOTE: Due to the increased power consumption of the new Intel Xeon MP processors, power redundancy may not be supported on all server configurations when using 115-120 VAC power. Please refer to the Power Supply Calculator https://activeanswers.compaq.com/ to determine if your configuration is redundant.

NOTE: A maximum of two power supplies are supported (shipped standard with each server).

System Fans Two Hot-Plug redundant fans ship standard. Two maximum supported.

Required CablingFor required cabling information, refer to the HP Web site at:
https://h18004.www1.hp.com/products/servers/proliantdl740/index.html.

OS Support Microsoft Windows 2000
Microsoft Windows 2000 Advanced Server
Microsoft Windows Server 2003 (Standard and Enterprise)
LINUX (Red Hat, SuSE)
VMware Virtualization Software
NOTE: For a more complete and up-to-date listing of supported OS's and versions, please visit our OS Support Matrix at: https://www.hp.com/go/supportos.
NOTE: For an up-to-date listing of the latest drivers available for the HP ProLiant DL740, please see: https://h18023.www1.hp.com/support/files/server/us/index.html.
NOTE: For a more complete and up-to-date information on Linux support, please visit HP Linux Web site at https://h18000.www1.hp.com/products/servers/linux/hpLinuxcert.html.
NOTE: For more complete and up-to-date information on how to buy server operating systems from HP please visit the OS product site at: https://h18004.www1.hp.com/products/servers/software/OEM.html
NOTE: For more information on HP's Certified and Supported ProLiant Servers, please visit the VMware Server Support Matrix at: https://h18004.www1.hp.com/products/servers/software/vmware/hpvmwarecert.html.

Rack Airflow Requirements

Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment:

    • Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation).
    • Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 2.75 inches (7 cm).

CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

NOTE: For additional information, refer to the Setup and Installation Guide or the Documentation CD provided with the server, or to the server documentation located in the Support section at the following URL: https://www5.compaq.com/products/servers/ProLiantdl740/index.html.
NOTE: Allow a minimum of 48 inches (121.92 cm) clearance beyond the front of your rack to permit server installation and removal. This applies to both individual rack installations as well as when aligning rack rows so that the front doors are facing each other.


Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to https://www.hp.com/go/factory-express.


Custom Builder
Please see the Enterprise Configurator for configuration assistance at: https://www.hp.com/products/configurator.

Service and SupportThis product is covered by a global limited warranty and supported by HP Services and a worldwide network of resellers and service providers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Additional support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services or customized service agreements.

NOTE: Limited warranty includes 3 year parts, 3 year labor, 3-year on-site support

Care Pack services provide a range of life cycle support options that let you choose the service levels that meet your business requirements, from basic to mission-critical.

A full range of HP Care Pack hardware and software services are available including:

  • Installation and start up
  • Education courses
  • Extended onsite hardware coverage hours from same business day 13 hours, 5 day to 24 hours, 7 days call window with options including 4-hour response or 6-hour Call To Repair
  • Comprehensive range of software technical support for Microsoft, Linux, ProLiant Essentials and VMWare-based IT solutions helping to deliver high level of application availability. Response times range from 30 mins for critical problems to 2 hours.
  • System Management, Performance Services and Mission Critical Support Solution

HP Care Pack services include coverage for the HP branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as 22" and smaller external monitors and tower UPS options up to 3kVA; these items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included, standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

NOTE: For more information on HP Care Pack services, contact any of our worldwide sales offices or resellers or visit our worldwide Web site on the internet at: https://www.hp.com/hps/carepack

NOTE: For more complete information on HP Services offerings, customers and resellers, please visit us at: https://www.hp.com/hps

NOTE: Additional information regarding worldwide limited warranty and technical support is available at: https://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

contents
 Overview      Standard Features      Models      DL740 G1 Options      DL740 G1 Memory      Storage      DL740 G1 QuickSpecs line.gif (50 bytes)

Models

DL740R01 X3.0-4MB, 4096MB (4P)
348445-B21
Processor(s) (4) Intel Xeon Processors MP at 3.0 GHz standard (up to 8 supported)
Cache Memory 4-MB integrated Level 3 cache (per processor)
Memory 4096 MB (Standard) to 64 GB (Maximum) addressable protected 133MHz ECC SDRAM DIMM (5120 MB total)
Network Controller Two NC7781 PCI-X Gigabit NICs (embedded)
Storage Controller Integrated Smart Array 5i Controller (Ultra 3 support) (supports RAID 0, 1, 1+0, and 5 across internal hard disk drives)
Hard Drives None
Internal Storage 1.20 TB maximum (with optional hard drives)
Cache Accelerator 2-MB Cache coherency accelerator embedded on host board
Optical Drive Slimline CD/DVD-ROM Drive (8X/24X)
Diskette Drive 1.44 MB Diskette Drive
I/O Slots PCI-X
Form Factor 4U Rack Form Factor

DL740R01 X2.7-2MB, 4096MB (4P)
348446-B21

Processor(s) (4) Intel Xeon Processors MP at 2.7 GHz standard (up to 8 supported)
Cache Memory 2-MB Integrated Level 3 cache (per processor)
Memory 4096 MB (Standard) to 64 GB (Maximum) addressable protected 133MHz ECC SDRAM DIMM (5120 MB total)
Network Controller Two NC7781 PCI-X Gigabit NICs (embedded)
Storage Controller Integrated Smart Array 5i Controller (Ultra 3 support) (supports RAID 0, 1, 1+0, and 5 across internal hard disk drives)
Hard Drives None
Internal Storage 1.20 TB maximum (with optional hard drives)
Cache Accelerator 2-MB Cache coherency accelerator embedded on host board
Optical Drive Slimline CD/DVD-ROM Drive (8X/24X)
Diskette Drive 1.44 MB Diskette Drive
I/O Slots PCI-X
Form Factor 4U Rack Form Factor

DL740R01 X2.2-2MB, 2048MB (4P)
348447-B21
Processor(s) (4) Intel Xeon Processors MP at 2.2 GHz standard (up to 8 supported)
Cache Memory 2-MB Integrated Level 3 cache (per processor)
Memory 2048MB (Standard) to 64 GB (Maximum) addressable protected 133MHz ECC SDRAM DIMM (5120 MB total)
Network Controller Two NC7781 PCI-X Gigabit NICs (embedded)
Storage Controller Integrated Smart Array 5i Controller (Ultra 3 support) (supports RAID 0, 1, 1+0, and 5 across internal hard disk drives)
Hard Drives None
Internal Storage 1.20 TB maximum (with optional hard drives)
Cache Accelerator 2-MB Cache coherency accelerator embedded on host board
Optical Drive Slimline CD/DVD-ROM Drive (8X/24X)
Diskette Drive 1.44 MB Diskette Drive
I/O Slots PCI-X
Form Factor 4U Rack Form Factor

contents
 Overview      Standard Features      Models      DL740 G1 Options      DL740 G1 Memory      Storage      DL740 G1 QuickSpecs line.gif (50 bytes)

Options

HP ProLiant DL740 Unique Options Low Line (115V) Cable Kit, C-13 to 5-15P
317424-001
DL740 Folding Metal Cable Management Arm321716-B21
NOTE: The Low Line Cable Kit consists of a single, 9 foot, IEC C-13 to 5-15P, 10 Amp cord. HP highly recommends running your HP ProLiant DL740 at high line (220V) voltage to ensure power redundancy for all of your robust, business-critical configurations. Because of the increasing power requirements of the memory and microprocessor subsystems, the HP ProLiant DL740 does not support power redundancy for all configurations when running at low line voltage. Please refer to the Power Supply Calculator
https://h71019.www7.hp.com/ActiveAnswers/cache/71108-0-0-0-121.aspx
to determine if your low line configuration is redundant.

ProLiant Essentials
Value Pack Software
ProLiant Essentials Integrated Lights-Out Advanced Pack
ProLiant Essentials Integrated Lights-Out Advanced Pack, 1 server
Featuring: sophisticated virtual administration features for ultimate control of servers in the data centers and remote sites.
NOTE: For additional ProLiant Integrated Light-Out Advanced Pack License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/11052_na/11052_na.html
ProLiant Essentials Intelligent Networking Pack
ProLiant Essentials Intelligent Networking Pack - Windows Edition, Single Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.
372906-B21
NOTE: For additional ProLiant Intelligent Networking Pack - Windows License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12062_na/12062_na.html
ProLiant Essentials Intelligent Networking Pack - Linux Edition, Single Server License
397004-B21
NOTE: For additional ProLiant Intelligent Networking Pack - Linux License Kits please see the QuickSpecs at:
https://h18000.www1.hp.com/products/quickspecs/12327_na/12327_na.html

ProLiant Essentials Performance Management Pack
ProLiant Essentials Performance Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key, HP Management CD and documentation.
NOTE: The most recent version of the software can always be downloaded at https://www.hp.com/products/pmp.

306696-B21

NOTE: For additional ProLiant Performance Management Pack License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/11925_na/11925_na.html
ProLiant Essentials Rapid Deployment Pack Windows Edition and Linux Edition Release
Rapid Deployment Pack, Single-Server License
NOTE: This license allows 1 server to be deployed and managed via RDP.

267196-B21

Rapid Deployment Pack, Single-Server License (Japan)
NOTE: This license allows 1 server to be deployed and managed via RDP.

267196-291

NOTE: For additional ProLiant Essentials Rapid Deployment Pack License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/11053_na/11053_na.html
https://h18000.www1.hp.com/products/quickspecs/11713_na/11713_na.html
ProLiant Essentials Workload Management Pack
ProLiant Essentials Workload Management Pack, Single Server License
NOTE: For additional ProLiant Workload Management Pack License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/11452_na/11452_na.html
ProLiant Essentials Virtualization Management Software
ProLiant Essentials Virtual Machine Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.

372214-B21

ProLiant Essentials Server Migration Pack, Single-Migration License
NOTE: Contains one license, enabling 1 server migration, with a unique license activation key and documentation.
NOTE: This license allows 1 server to be migrated from a physical server to a virtual machine. Or this license can be used to migrate a virtual machine from one virtualization layer i.e. VMware GSX to a different virtualization layer such as VMware ESX or Microsoft Virtual Server 2005.
375345-B21
NOTE: For additional ProLiant Essentials Virtualization Management Software License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12328_na/12328_na.html
ProLiant Essentials Vulnerability and Patch Management Pack
ProLiant Essentials Vulnerability and Patch Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.
371645-B21
NOTE: For additional ProLiant Vulnerability and Patch Management Pack License Kits, please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12111_na/12111_na.html
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to https://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: https://www.hp.com/servers/proliantessentials.

HP NetServer integration Services HP NetServer to ProLiant integration and assessment service
NOTE: HP identifies current levels of NetServer support, services, and management. This service helps maximize customer's ability to add ProLiant platforms into their current environment.
304164-002
HP TopTools to Insight Manager 7 installation and startup service
NOTE: Provides on-site review, installation and configuration services for Insight Manager 7. HP will also re-create, as closely as possible, the views and reports from the customer's current TopTools configuration. This service assures a smooth transition to the ProLiant Essentials software.
304163-002

Processor NOTE: Intel Xeon 3.0 GHz/4MB, 2.7 GHz/2MB, 2.2 GHz/2MB, 2.8 GHz/2MB, 2.0 GHz/2MB, 2.5 GHz/1MB, 2.0 GHZ/1MB, and 1.5 GHz/1MB processors cannot be mixed in the same server. They all have to be of the same speed and cache size.
(4) Intel Xeon MP 3.0 GHz -4MB Processor Option Kit
NOTE: This processor option kit (PN 351050-B21 351050-B21) supports the HP ProLiant DL760 G2 and the HP ProLiant DL740 servers. This option kit contains 4 x Intel Xeon MP 3.0 GHz-4MB processors.
351050-B21 351050-B21
(4) Intel Xeon MP 2.70 GHz -2MB Processor Option Kit
NOTE: This processor option kit (PN 351051-B21 351051-B21) supports the HP ProLiant DL760 G2 and the HP ProLiant DL740 servers. This option kit contains 4 x Intel Xeon MP 2.7 GHz-2MB processors.
351051-B21 351051-B21
(4) Intel Xeon MP 2.20 GHz -2MB Processor Option Kit
NOTE: This processor option kit (PN 351052-B21 351052-B21) supports the HP ProLiant DL760 G2 and the HP ProLiant DL740 servers. This option kit contains 4 x Intel Xeon MP 2.2 GHz-2MB processors.
351052-B21 351052-B21
Intel Xeon MP 2.80 GHz -2MB Processor Option Kit (4P)
NOTE: This processor option kit (PN 334037-B21 334037-B21) supports the HP ProLiant DL740 and the HP ProLiant DL760 G2 servers. This option kit contains 4 x Intel Xeon MP 2.8 GHz-2MB processors.
Intel Xeon MP 2.5 GHz -1MB Processor Option Kit (4P)
NOTE: This processor option kit (PN 339072-B21 339072-B21) supports the HP ProLiant DL740 and the HP ProLiant DL760 G2 servers. This option kit contains 4 x Intel Xeon MP 2.5 GHz-1MB processors.
Intel Xeon MP 2.0 GHz -1MB Processor Option Kit (4P)
NOTE: This processor option kit (PN 334036-B21 334036-B21) supports the HP ProLiant DL740 and the HP ProLiant DL760 G2 servers. This option kit contains 4 x Intel Xeon MP 2.0 GHz-1MB processors.
Intel Xeon MP 2.0 GHz -2MB Processor Option Kit (4P)
NOTE: This processor option kit (PN 287520-B21 287520-B21) supports the HP ProLiant DL740 and the HP ProLiant DL760 G2 servers. This option kit contains 4 x Intel Xeon MP 2.0 GHz-2MB processors.
Intel Xeon MP 1.50 GHz-1MB Processor Option Kit (4P)
NOTE: This processor option kit (PN 287519-B21 287519-B21) supports the HP ProLiant DL740 and the HP ProLiant DL760 G2 servers. This option kit contains 4 x Intel Xeon MP 1.50 GHz-1MB processors.

Memory
(SDRAM DIMMs)

2048 MB 133MHz ECC SDRAM Memory Option Kit (1 x 2048 MB)
1024 MB 133MHz ECC SDRAM Memory Option Kit (1 x 1024 MB)
512 MB 133MHz ECC SDRAM Memory Option Kit (1 x 512 MB)
256 MB 133MHz ECC SDRAM Memory Option Kit (1 x 256 MB)
NOTE: Memory must be populated in banks of 10. (2 per memory cartridge x 5 cartridges) All DIMMs in a bank must be the same sku number.

Optical Drives HP DVD+R/RW 8X Slim
Slimline DVD-ROM Drive (8X/24X) Option Kit (Servers)

Hard Drives Ultra320 SCSI – Universal Hot Plug
HP 300GB U320 10K Universal HDD
HP 146GB U320 10K Universal HDD
HP 72GB U320 10K Universal HDD
HP 146GB U320 15K Universal HDD
HP 72GB U320 15K Universal HDD
HP 36GB U320 15K Universal HDD
NOTE: All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives require an optional U320 Smart Array Controller or U320 SCSI HBA to support U320 transfer rates.
NOTE: Please see the Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:
https://h18000.www1.hp.com/products/quickspecs/11531_na/11531_na.html

Storage ControllersSmart Array 6402/128 Controller273915-B21 273915-B21
Smart Array 6404/256 Controller
512MB DDR BBWC Upgrade
Smart Array 641 Controller
Smart Array 642 Controller
128MB Battery-Backed Cache Enabler
NOTE: This 128MB BBWC supports the Smart Array 641 Controller and Smart Array 642 Controller.
256-MB Battery-Backed Cache Module
NOTE: This 256-MB Battery-Backed Cache Module supports the Smart Array 5300 series controllers, HP StorageWorks Modular Smart Array 1000 and the HP StorageWorks Modular Smart Array 500.
64-Bit/133Mhz Dual Channel Ultra320 SCSI Adapter
NOTE: The 64-bit/133-MHz Dual Channel Wide Ultra320 SCSI Adapter (268351-B21 268351-B21) will default to Wide Ultra2 when not used with the Wide Ultra3 hard drives.
Ultra320 Expansion Module for SA-6402273911-B21 273911-B21
NOTE: Please see the following Controller or SCSI Adapter QuickSpecs for Technical Specifications such as PCI Bus, PCI Peak Data Transfer Rate, SCSI Protocols supported, SCSI Peak Data Transfer Rate, Channels, SCSI Ports, Drives supported, Cache, RAID support, and additional information:
https://h18000.www1.hp.com/products/quickspecs/11587_na/11587_na.html
(Smart Array 6400 Series)
https://h18000.www1.hp.com/products/quickspecs/12067_na/12067_na.html (Smart Array 641)
https://h18000.www1.hp.com/products/quickspecs/12069_na/12069_na.html (Smart Array 642)
https://h18000.www1.hp.com/products/quickspecs/10429_na/10429_na.html
(SCSI Adapter)
https://h18000.www1.hp.com/products/quickspecs/11555_na/11555_na.html (U320 Adapter)


Communications HP NC150T PCI 4-port Gigabit 1000T Combo Switch Adapter
HP NC310F PCI-X 1000SX Gigabit Server Adapter
HP NC7170 PCI-X Dual Port 1000T Gigabit Server Adapter
HP NC7771 PCI-X 1000T Gigabit Server Adapter
NOTE: Any NIC on the option list can be used for redundancy with the embedded NC7781 Network Controller.
HP NC570C PCI-X Dual-port 4x Fabric Adapter
376158-B21
HP 24-Port 4x Fabric Copper Switch
376227-B21
HP 1m 4x Fabric Copper Cable
376232-B21
HP 3m 4x Fabric Copper Cable
376232-B22
HP 5m 4x Fabric Copper Cable
376232-B23

Management Options Remote Insight Lights-Out Edition II

227251-001 227251-001


Tape Drives

NOTE: For the complete listing of Tape Drive offerings for this server, please visit:
https://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

For recommended tape drive offerings for this ProLiant server see the following:

Hot Plug Tape Drives
HP StorageWorks DAT 72 SCSI Hot-plug Tape Drive (Carbon)
USB Tape Drives
HP StorageWorks DAT 72 USB External Tape Drive (Carbonite)
External and Rack-Mount Ultrium Tape Drives
HP StorageWorks Ultrium 232 Internal Tape Drive (Carbonite)
NOTE: No internal tape drives fit inside this HP ProLiant server (except hot plug tape). The internal drive shown here is for the 1U and 3U Rack-mount Kit.
HP StorageWorks Ultrium 232 External Tape Drive (Carbonite)
HP StorageWorks Ultrium 448 External Tape Drive (Carbonite)
DW017B
HP StorageWorks Ultrium 960 External Tape Drive (Carbonite)
HP StorageWorks 3U Rack-mount kit with one Ultrium 960 (Carbonite)
NOTE: Please see the HP StorageWorks Ultrium Tape Drive QuickSpecs for additional options such as controllers, media, and other related items:
https://h18006.www1.hp.com/products/quickspecs/11739_na/11739_na.html
For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit: https://www.hp.com/go/connect.

Rack-Mount Tape Drive Enclosures
HP StorageWorks 1U Rack-Mount Kit
NOTE: The 1U Rack-mount Kit can support up to (2) half-height tape drives and compatible with multiple Single-Ended and LVD SCSI tape drives including the DAT 24, DAT 40, DAT 72, DLT VS80, DLT VS160, Ultrium 215, Ultrium 232 and Ultrium 448 tape drives.
HP StorageWorks 1U USB Rack-Mount Kit
1U USB Cable Option Kit
NOTE: Converts a 1U SCSI rack-mount kit to a USB interface to support the USB tape drives.
HP StorageWorks 3U Rack-Mount Kit
NOTE: The 3U Rack-mount Kit can support up to (2) full-height or (4) half-height tape drives and compatible with multiple Single-Ended and LVD SCSI tape drives including DAT 24, DAT 40, DAT 72, DLT VS80, DLT VS160, SDLT 320, SDLT 600, Ultrium 215, Ultrium 230, Ultrium 232, Ultrium 460, Ultrium 448 and Ultrium 960 tape drives.
274338-B22
NOTE: Please see the Rack-Mount Tape Drive Kits QuickSpecs for additional information regarding these kits:
https://h18000.www1.hp.com/products/quickspecs/10854_na/10854_na.html


Tape Autoloaders DAT Autoloader
HP StorageWorks DAT 72x6 Autoloader (External) Q1567A Q1567A
NOTE: Please see the DAT Tape Autoloader QuickSpecs for additional options such as host bus adapters, controllers and media:
https://h18000.www1.hp.com/products/quickspecs/11985_na/11985_na.html

HP StorageWorks 1/8 Tape Autoloader
HP StorageWorks 1/8 Ultrium 960 Tape Autoloader AF204A AF204A
HP StorageWorks 1/8 Ultrium 448 Tape Autoloader AF203A AF203A
HP StorageWorks 1/8 Ultrium 232 Tape Autoloader AF202A AF202A
1/8 Tape Autoloader Rackmount Kit
NOTE: Required to install the unit in a standard 19-inch rack; includes rails and rackmount instructions
C9268R C9268R
NOTE: Please reference the 1/8 Tape Autoloader QuickSpecs at https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at https://www.hp.com/go/ebs.

Tape LibrariesHP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 Ultrium 960 Drive Library AG115A AG115A
HP StorageWorks MSL2024 1 Ultrium 448 Drive Library AG116A AG116A
HP StorageWorks MSL2024 2 Ultrium 448 Drive LibraryAG117A AG117A
HP StorageWorks MSL4048 Tape Library
HP StorageWorks MSL4048 1 Ultrium 448 Drive LibraryAG320A
HP StorageWorks MSL4048 2 Ultrium 448 Drive Library
AG321A
HP StorageWorks MSL4048 1 Ultrium 960 Drive Library
AG322A
HP StorageWorks MSL4048 2 Ultrium 960 Drive Library
HP StorageWorks MSL6000 Tape Library
Ultrium 960 technology
HP StorageWorks MSL6030 1 Ultrium 960 Dr LVDS Library AD606A AD606A
HP StorageWorks MSL6030 1 Ultrium 960 Dr FC Library AD608A AD608A
HP StorageWorks MSL6030 2 Ultrium 960 Dr LVDS Library AD607A AD607A
HP StorageWorks MSL6030 2 Ultrium 960 Dr FC LibraryAD609A AD609A
Ultrium 460 technology
HP StorageWorks MSL6030 1 Ultrium 460 Dr LVDS Library AD598A AD598A
HP StorageWorks MSL6030 1 Ultrium 460 Dr FC Library AD600A AD600A
HP StorageWorks MSL6030 2 Ultrium 460 Dr LVDS Library AD599A AD599A
HP StorageWorks MSL6030 2 Ultrium 460 Dr FC LibraryAD601A AD601A
NOTE: Please reference the MSL2024 and MSL6000 Tape Library QuickSpecs at https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at https://www.hp.com/go/ebs.

Magneto-Optical Jukeboxes HP StorageWorks 9.1 GB Optical Jukeboxes
600mx, 4 drive, 64 slot jukebox
C1160M
1200mx, 4 drive, up to 128 slots
C1104M
2200mx, 6 drive, up to 238 slots
C1107M
NOTE: Please see the HP StorageWorks Magneto-Optical Products data sheet for a complete listing of available jukeboxes at: https://www.hp.com/products1/storage/products/archivalprod/brochures/
MO_family_pb.pdf

NOTE: Please reference the Magneto-Optical Jukebox data sheets at https://www.hp.com/go/optical for additional information needed to create a complete solution.

Ultra Density Optical Jukeboxes1900ux, 4 drive, 64 slot jukeboxAA966A
3800ux, 4 drive, 128 slot jukeboxAA969A
7100ux, 6 drive, 238 slot jukebox AA971A
NOTE: Please see the HP StorageWorks Ultra Density Optical Jukeboxes QuickSpecs for a complete listing of available jukeboxes at:
https://h18006.www1.hp.com/products/quickspecs/11944_na/11944_na.html
NOTE: Please reference the Ultra Density Optical Jukebox QuickSpecs at: https://www.hp.com/go/optical for additional information needed to create a complete solution.


HP Data Protector Express SoftwareHP DP Express Backup Server Upgrade for ProLiant SoftwareBB117AP
HP DP Express Package for Microsoft Small Business ServerBB118AA
NOTE: Please see the HP Data Protector Express QuickSpecs for additional information regarding the purchase of HP Data Protector Express software:
https://h18000.www1.hp.com/products/quickspecs/12337_na/12337_na.html


HP StorageWorks Modular Smart Array 20 HP StorageWorks Modular Smart Array 20
NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies.
335921-B21 335921-B21
HP StorageWorks Modular Smart Array 20 Starter Kit
NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies. Includes Smart Array 6402/128 Controller.
366172-B21
NOTE: The Modular Smart Array Enclosure 20 Family supports the SATA 1.5Gb/s 3.5” Hot Plug Hard Drives.

HP StorageWorks Modular Smart Array 30HP StorageWorks Modular Smart Array 30 SB
NOTE: Rack-mountable 14 drive enclosure with single bus, redundant power supplies.
302969-B21
HP StorageWorks Modular Smart Array 30 DB
NOTE: Rack-mountable 14 drive enclosure with dual bus, redundant power supplies.
302970-B21
NOTE: The Modular Smart Array Enclosure 30 Family supports the Wide Ultra3, Ultra320 Hot Plug Hard Drives.

HP StorageWorks Modular Smart Array 500

HP StorageWorks Modular Smart Array 500 Generation 2
335880-B21
NOTE: Please see the Modular Smart Array 500 Generation 2 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at:
https://h18000.www1.hp.com/products/quickspecs/11956_na/11956_na.html



HP StorageWorks Modular Smart Array 1000

HP StorageWorks Modular Smart Array 1000

201723-B22 201723-B22

NOTE: Please see the Modular Smart Array 1000 QuickSpecs for additional options and configuration information at:
https://h18000.www1.hp.com/products/quickspecs/11033_na/11033_na.html

HP StorageWorks Modular Smart Array 1500 cs

Modular Smart Array 1500 Controller Shelf

AA986A

NOTE: Please see the StorageWorks Modular SAN Array 1500 cs QuickSpecs for additional options and configuration information at:
https://www.hp.com/go/MSA1500cs

Cluster OptionsProLiant Cluster Starter Kit 364023-B21
NOTE: For additional information regarding the ProLiant Cluster Starter Kit please see the following QuickSpecs at:
https://h18000.www1.hp.com/products/quickspecs/11935_na/11935_na.html

HP HA/F200 for Entry SAN Cluster 364026-B22
NOTE: For additional information regarding the ProLiant Cluster for Entry Level SAN please see the following QuickSpecs at:
https://h18000.www1.hp.com/products/quickspecs/11932_na/11932_na.html

ProLiant Cluster HA/F500 for the Enterprise SAN 364024-B21
NOTE: For additional information regarding the ProLiant Cluster HA/F500 for Enterprise SAN please see the following QuickSpecs at:
https://h18000.www1.hp.com/products/quickspecs/11933_na/11933_na.html

HP Serviceguard for Linux ProLiant Cluster A.11.16 for SUSE SLES 9 and Red Hat EL 3 & 4 (2 node license cluster kit)305199-B26
HP Serviceguard for Linux A.11.16 for SUSE SLES9 and Red Hat EL 3 & 4 (single license version)307754-B26
HP Serviceguard for Linux and Red Hat Global File System - 1 year subscriptionT2798AA#001
HP Serviceguard for Linux and Red Hat Global File System - 3 years subscriptionT2798AA#003
NOTE: For additional information regarding the HP Serviceguard for Linux License, please see the following QuickSpecs at:
https://h18000.www1.hp.com/products/quickspecs/11518_na/11518_na.html


Uninterruptible Power Systems – Rack Mountable

HP UPS R1500 XR (1440VA, 1340 Watt), Low Voltage

204404-001 204404-001

HP UPS R3000 XR (2880VA, 2700 Watt), Low Voltage

192186-001 192186-001

HP UPS R3000 XR (3000VA, 2700 Watt), High Voltage

192186-002 192186-002

HP UPS R5500 XR, (5000VA, 4500 Watt), High Voltage 326529-D71 326529-D71
HP UPS R12000 XR N+x (200-240V) (hardwired)
NOTE: The UPS R12000 XR has a hardwired input and output; requires a 100A circuit.
207552-B22

HP Monitored Power Distribution Unit (PDU) HP Monitored Power Distribution Unit: Full Rack Version
HP 17.3 kVA S2324 Monitored PDU- dual input, 3-phase, 24A
HP 8.3 kVA S1324 Monitored PDU- single input, 3-phase, 24A
HP 16.6 kVA S2140 Monitored PDU- dual input, 1-phase, 40A
HP 8.6 S1140 Monitored PDU- single input, 1-phase, 40A
HP Monitored Power Distribution Unit: Half Rack Version
HP 17.3 kVA S348 Monitored PDU- single input, 3-phase, 60A

Modular Power Distribution Units - 1U0U
(Up to 32 outlets)
NOTE: 1U/0U mounting brackets shipped with
the unit (optimized for 10000 and 9000 series racks).

HP Modular Power Distribution Units (mPDU), Low Volt Model, 24A (100-127 VAC)
NOTE: This mPDU (252663-D71 252663-D71) may also be used to connect the low volt model of the UPS R3000 XR.

252663-D71 252663-D71

HP Modular Power Distribution Units (mPDU), High Volt Model, 24A (200-240 VAC)

252663-D72 252663-D72

HP Modular Power Distrib, (NA/JPN)
252663-D73
NOTE: Please see the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs for additional options including shorter jumper cables and country specific power cords:
https://h18000.www1.hp.com/products/quickspecs/11041_na/11041_na.html

Third Party Rack Kit

Third Party Rack Kit
NOTE: The Third party rack kit supports the HP ProLiant ML530 G2, HP ProLiant ML570 G2, HP ProLiant DL740, and HP ProLiant DL760 G2. Provides support for any rack, square hole or round hole (including HP Rack System /E and HP Systems) with an adjustment range from 23 ½" - 34" deep.
NOTE: The Third Party Rack Kit is required for round hole racks or for square hole racks that do not conform to the adjustment range of the standard rail that ships with the server.
Telco Rack Support:
NOTE: Support for all 2-post Telco racks requires the Third Party Rack Kit (PN 274739-B21) kit plus an additional option kit from Rack Solutions. The Rack Solutions brackets can be purchased at: https://www.racksolutions.com/hp.
274739-B21
  Rack Adapter Kit
NOTE: This kit allows HP rack servers to fit in racks that are 24" wide.
332815-B21

HP Rack 5000 Series (Graphite Metallic)HP 5642 Rack-Unassembled
NOTE: Please see the HP Rack 5642 QuickSpecs for additional part numbers and Technical Specifications such as height, width, depth, weight, and color:
https://h18000.www1.hp.com/products/quickspecs/12074_na/12074_na.html
NOTE: For additional information regarding Rack Cabinets, please see the following URL: www.hp.com/go/rackandpower.


HP Rack 10000 G2 Series
(Carbon/Graphite Metallic)

10642 G2 (42U) Rack Cabinet - Pallet
10642 G2 (42U) Rack Cabinet - Shock Pallet
10642 G2 (42U) Rack Cabinet - Crated
AF003A
10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet
10642 G2 (42U) Rack Cabinet, without door - Shock Pallet
AF005A
10642 G2 (42U) Rack Cabinet - with Extension, without door - Shock Pallet
AF006A
10636 G2 (36U) Rack Cabinet - Pallet
10636 G2 (36U) Rack Cabinet - Shock Pallet
10636 G2 (36U) Rack Cabinet - Crated
10636 G2 (36U) Rack Cabinet , with Extension - Shock Pallet
10636 G2 (36U) Rack Cabinet, without door - Shock Pallet
AF015A
10636 G2 (36U) Rack Cabinet, with Extension, without door - Shock Pallet
AF016A
NOTE: It is mandatory to use a shock pallet when shipping racks with equipment installed.
NOTE: Please see the Rack 10000 G2 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
https://h18000.www1.hp.com/products/quickspecs/12402_na/12402_na.html
NOTE: For additional information regarding Rack Cabinets, please see the following URL: https://www.hp.com/go/rackandpower.

HP Rack 10000 Series
(Graphite Metallic)

10642 (42U) Infrastructure Rack (Low Voltage)
379006-001
10642 (42U) Infrastructure Rack (High Voltage)
HP Rack S10614 (14U) Rack Cabinet– Shock Pallet

HP Rack 10842 (42U, 800mm wide) – Pallet

257415-B21 257415-B21

HP Rack 10842 (42U, 800mm wide) – Shock Pallet

257415-B22 257415-B22

HP Rack 10647 (47U) – Pallet

245160-B21 245160-B21

HP Rack 10647 (47U) – Crated

245160-B23

HP Rack 10642 (42U) – Pallet

245161-B21 245161-B21

HP Rack 10642 (42U) – Shock Pallet

245161-B22 245161-B22

HP Rack 10642 (42U) – Crated

245161-B23

HP Rack 10636 (36U) – Pallet

245162-B21 245162-B21

HP Rack 10636 (36U) – Shock Pallet

245162-B22 245162-B22

HP Rack 10636 (36U) – Crated

245162-B23

HP Rack 10622 (22U) – Pallet

245163-B21 245163-B21

HP Rack 10622 (22U) – Shock Pallet

245163-B22 245163-B22

HP Rack 10622 (22U) – Crated

245163-B23

NOTE: xxxxxx-B21 (pallet) used to ship empty racks shipped on a truck. -B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels). xxxxxx-B23 (crated) used for air shipments of empty racks.
NOTE: It is mandatory to use a shock pallet in order to ship racks with equipment installed. Not all HP equipment is qualified to be shipped in the Rack 10000 series.
NOTE: For additional information regarding Rack Options, please see the following URL: https://www.hp.com/go/rackandpower




Keyboards and Monitors

TFT7210R Rack Mounted 17" Monitor
NOTE: For a complete list of Monitors please view the following URL:
https://www.hp.com/go/kvm.
TFT7600RKM US
TFT7600RKM UK
AG053A
TFT7600RKM GR
AG054A
TFT7600RKM FR
AG055A
TFT7600RKM IT
AG056A
TFT7600RKM SP
AG057A
TFT7600RKM DEN
AG058A
TFT7600RKM NOR
AG059A
TFT7600RKM SE/FI
AG060A
TFT7600RKM SWI
AG061A
TFT7600RKM PORT
AG062A
TFT7600RKM BEL
AG063A
TFT7600RKM JPN2
AG064A
TFT7600RKM RUS
AG065A
TFT7600RKM INTL
AG066A
1U Rack Keyboard & Drawer (Carbon)

257054-001 257054-001

NOTE: For additional information regarding Rack Options, please see the following URL: https://www.hp.com/go/rackandpower.

HP KVM Switch OptionsIP Console Switch Box (KVM/IP), 3 x 1 x 16
IP Console Switch Box (KVM/IP), 1 x 1 x 16
Server Console Switch (KVM), 0 x 1 x 8 port
Server Console Switch (KVM), 0 x 2 x 16 port
PS/2 Interface Adapter, 1 pack
PS/2 Interface Adapter, 8 pack
USB Interface Adapter, 1 pack
Serial Interface adapter - 1 Pack with power supply
NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches. Cat5e cables can be found at the following URL: https://www.hp.com/go/kvm.
HP 1x 4 USB/PS2 KVM Switch, TT
371301-D71
HP 1x 4 USB/PS2 KVM Switch, RM
371302-B21
HP PS2 KVM Cable with audio, 6', 2-pack
371730-B21
HP USB KVM Cable with audio, 6', 2-pack
371729-B21
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: https://www.hp.com/go/kvm.

HP Serial Console Server Options

HP 16 Port Serial Console Server
HP 48 Port Serial Console Server
Serial Adapter, RJ45-DB9 DCE Female, 1 Pack
Serial Adapter, RJ45-DB9 DCE Female, 8 Pack
AF110A
NOTE: Cat5e cables are required to connect Serial Adapters to Serial Console Servers. Additional Serial Adapters and Cat5e cables can be found at the following URL: https://www.hp.com/go/kvm.
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: https://www.hp.com/go/kvm.

Service and Support Offerings (HP Care Pack Services)
NOTE: The Service and Support Offerings specifying Microsoft O/S in the description cover Windows NT, Windows 2000 Server/Advanced Server or Novell NetWare Operating System.
Hardware Services On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
U4713E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4714E
Installation & Start-up Services
Hardware Installation, Electronic
U4723E
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays, Electronic
U4724E
Support Plus
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4725E
Onsite HW support, 8am-9pm, M-F, 4hr response and Linux O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4727E
Support Plus 24
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4726E
Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic

U4728E

6-Hour Call to Repair, On-site Service 7-Day x 24-Hour Coverage, 3 Years
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4715E
NOTE: For more information, customer/resellers can contact https://www.hp.com/services/carepack.
contents
 Overview      Standard Features      Models      DL740 G1 Options      DL740 G1 Memory      Storage      DL740 G1 QuickSpecs line.gif (50 bytes)

Memory

HP ProLiant DL740 2.2 GHz/2MB
Standard Memory
2048 MB addressable protected ECC SDRAM DIMM memory (2 x 256 MB DIMMs x 5 Hot-Plug RAID Memory Cartridges. The 5th cartridge is populated for redundancy.)

Standard Memory Plus Optional Memory
Up to 51,200 MB of addressable ECC SDRAM DIMM memory is available with the installation of optional ECC SDRAM DIMM memory expansion kits.

Standard Memory Replaced with Optional Memory
Up to 65,536 MB of addressable ECC SDRAM DIMM memory is available with the removal of standard memory and the installation of optional ECC SDRAM DIMM memory expansion kits.

NOTE: 8 slots per Hot-Plug RAID Memory Cartridge. Memory must be added in banks of two DIMMs per cartridge across all five (four if running in a non-redundant mode) Hot-Plug RAID Memory Cartridges. Tables do not represent all possible configurations.

  Bank 1
(Standard Memory)
Bank 2 Bank 3 Bank 4

DL740 G1 Memory

Slots



1

2

3

4 5 6 7

8

Cartridge 1 (C1)

Standard
256 MB
256 MB

Optional
256 MB
256 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Maximum
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB

Cartridge 2 (C2)

Standard
256 MB
256 MB

Optional
256 MB
256 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Maximum
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Cartridge 3 (C3) Standard
256 MB
256 MB

Optional
256 MB
256 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Maximum
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Cartridge 4 (C4) Standard
256 MB
256 MB

Optional
256 MB
256 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Maximum
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Cartridge 5 (C5) Standard
256 MB
256 MB

Optional
256 MB
256 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Maximum
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB


Following are memory options available from HP:


  • 2048 MB 133MHz ECC SDRAM Memory Option Kit (1 x 2048 MB)

317093-B21 317093-B21

  • 1024 MB 133MHz ECC SDRAM Memory Option Kit (1 x 1024 MB)

236854-B21 236854-B21

  • 512 MB 133MHz ECC SDRAM Memory Option Kit (1 x 512 MB)

236853-B21 236853-B21

  • 256 MB 133MHz ECC SDRAM Memory Option Kit (1 x 256 MB)

236852-B21 236852-B21


HP ProLiant DL740 3.0 GHz/4MB, 2.7 GHz/2MB
Standard Memory
4096 MB addressable protected ECC SDRAM DIMM memory (2 x 512 MB DIMMs x 5 Hot-Plug Memory Cartridges. The 5th cartridge is populated for redundancy.)

Standard Memory Plus Optional Memory
Up to 53,248 MB of SDRAM DIMM memory is available with the installation of optional SDRAM DIMM memory expansion kits.

Standard Memory Replaced with Optional Memory
Up to 65,536 MB of SDRAM DIMM memory is available with the removal of standard memory and the installation of optional SDRAM DIMM memory expansion kits.

NOTE: 8 slots per Hot-Plug RAID Memory Cartridge. Memory must be added in banks of two DIMMs per cartridge across all five (four if running in a non-redundant mode) Hot-Plug RAID Memory Cartridges. Tables do not represent all possible configurations.

  Bank 1
(Standard Memory)
Bank 2 Bank 3 Bank 4

DL740 G1 Memory

Slots



1

2

3

4 5 6 7

8

Cartridge 1 (C1)

Standard
512 MB
512 MB

Optional
512 MB
512 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Maximum
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB

Cartridge 2 (C2)

Standard
512 MB
512 MB

Optional
512 MB
512 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Maximum
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Cartridge 3 (C3) Standard
512 MB
512 MB

Optional
512 MB
512 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Maximum
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Cartridge 4 (C4) Standard
512 MB
512 MB

Optional
512 MB
512 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Maximum
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Cartridge 5 (C5) Standard
512 MB
512 MB

Optional
512 MB
512 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Maximum
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB


Following are memory options available from HP:


  • 2048 MB 133MHz ECC SDRAM Memory Option Kit (1 x 2048 MB)

317093-B21 317093-B21

  • 1024 MB 133MHz ECC SDRAM Memory Option Kit (1 x 1024 MB)

236854-B21 236854-B21

  • 512 MB 133MHz ECC SDRAM Memory Option Kit (1 x 512 MB)

236853-B21 236853-B21

  • 256 MB 133MHz ECC SDRAM Memory Option Kit (1 x 256 MB)

236852-B21 236852-B21

contents
 Overview      Standard Features      Models      DL740 G1 Options      DL740 G1 Memory      Storage      DL740 G1 QuickSpecs line.gif (50 bytes)

Storage

0-3

Ultra3 Hot Plug Drive Bays

A

1.44-MB Diskette Drive

B

Slimline CD/DVD-ROM Drive, Hot Pluggable, in Universal Media Bay

C
Universal Media Bay Eject Button


Drive Support




Quantity
Supported

Position
Supported


Controller

Integrated Media


Integrated 1.44-MB
Diskette Drive

Up to 1

A

Integrated



Slimline CD/DVD-ROM
Drive (8X/24X)

Up to 1

B

Integrated IDE


DL740 G1 Hard Drives

 Ultra320 Hot Pluggable Drives


Quantity
Supported

Position
Supported


Controller



300GB U320 10K
146.8GB U320 10K
72.8GB U320 10K
146.8GB U320 15K
72.8GB U320 15K
36.4GB U320 15K

Up to 4



0-3



Integrated Smart Array 5i Controller
Smart Array 641 Controller
Smart Array 642 Controller
64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter

 NOTE: All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives require an optional U320 Smart Array Controller or U320 SCSI HBA to support U320 transfer rates.

External Storage



Quantity
Supported

Position
Supported


Host Controller or Adapter

  Modular Smart Array 20 1 per SCSI VHDCI connector
External Smart Array 6402/128 Controller
Smart Array 6404/256 Controller


Modular Smart Array 30 Family

Up to 13

External

Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 642 Controller
64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/66MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS
  Modular Smart Array 500 G2 System 1 External Please see the Modular Smart Array 500 QuickSpecs for the latest list of supported HBAs: https://www.hp.com/go/msa500
  Modular Smart Array 1000 Please see the Modular Smart Array 1000 QuickSpecs below to determine configuration requirements External Please see the Modular Smart Array 1000 QuickSpecs (URL below) for the latest list of supported HBAs
  Modular Smart Array 1500 cs Please see the Modular Smart Array 1500 cs QuickSpecs below to determine configuration requirements External Please see the Modular Smart Array 1500 cs QuickSpecs (URL below) for the latest list of supported HBAs
  Modular Smart Array 1000: https://h18000.www1.hp.com/products/quickspecs/11033_na/11033_na.html
Modular Smart Array 1500 cs: https://www.hp.com/go/MSA1500cs

Maximum Storage Capacity - (SCSI Attached)



Internal

1.20TB (4 x 300GB Ultra320 Drives)

  External 100.80TB hot plug SCSI storage (24 x (14 x 300GB Ultra320 Drives))
  Total

102.00TB


Tape Drives, Tape Autoloaders, & Tape Libraries

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:
https://h18000.www1.hp.com/products/quickspecs/north_america/10233.html

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders & Tape Libraries listed below, please see the following:
https://h18000.www1.hp.com/products/quickspecs/north_america/10809.html

NOTE: For complete listing of tape drive offerings see https://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

For details on connecting tape drives to this server, see the following:

  Quantity
Supported
Position
Supported

Controller
 HP StorageWorks Tape Drives, Hot Plug
DAT 40 Hot Plug
DAT 72 Hot Plug
1
0-3
Smart Array 5i Controller (integrated on system board)
64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS


HP StorageWorks Tape Drives, USB External
DAT 24 USB
DAT 40 USB
DAT 72 USB
1 per USB port
External
USB port


HP StorageWorks Tape Drives, External
Ultrium 232
Ultrium 448
Ultrium 460
DAT 40
DAT 72
DLT VS80
DLT VS160
SDLT 320
Up to 2
External
64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS


HP StorageWorks Tape Drives, External
Ultrium 960
SDLT 600
1 per SCSI Channel
External
64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS


HP StorageWorks Autoloaders, External
DAT 72x6 Tape Autoloader
1/8 Tape Autoloader
1 autoloader per SCSI channel
External
64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS


HP StorageWorks Rack-mount Tape Drive Enclosures
1U Rack-Mount Kit
3U Rack-Mount Kit
5U Rack-Mount Kit
1 per SCSI channel
External
64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS


HP StorageWorks Tape Libraries, External
MSL2024 (Ultrium 448 and 960-based)
MSL4048 (Ultrium 448 and 960-based)
MSL6000 (Ultrium 960 and 460-based)
MSL6000 (SDLT 600-based)
MSL5026S2 (SDLT 320-based)
MSL5052S2 (SDLT 320-based)
Please reference the MSL Tape Library QuickSpecs to determine configuration requirements
External
Please consult the EBS connectivity matrix at https://www.hp.com/go/ebs for detailed connectivity information.
contents
 Overview      Standard Features      Models      DL740 G1 Options      DL740 G1 Memory      Storage      DL740 G1 QuickSpecs line.gif (50 bytes)

Quickspecs

System Unit

Dimensions (HxWxD)

7.00 x 17.5 x 28.7 in (17.78 x 44.45 x 72.90 cm)

Weight
No hard drives installed,
two power supplies

105 lb (47.63 kg)

Input Requirements
(per power supply)

Rated Input Voltage115 to 120 VAC/200 to 240 VAC (lowline/highline)
Rated Input Frequency47 to 63 Hz (lowline/highline)
Input Power1060W/1440W (lowline/highline)
Rated Input Current10A at 115 VAC/8A at 200 VAC (lowline/highline)

BTU Rating
(Maximum output)
(NOTE that the maximum heat output by the server is equal to the electrical power input.)

1555 Watts [5309 BTU/hr]
(System is configured to draw maximum power)
Use of 110 volt power sources is not recommended.
Please refer to the Power Calculator at:
https://h30099.www3.hp.com/configurator/
powercalcs.asp
.
Power Supply Output Power
(per power supply)
Rated Steady-State Power800W/1100W (lowline/highline)
Maximum Peak Power800W/1100W (lowline/highline)
Temperature Range Operating50° to 95° F at sea level, altitude de-rating of 1.8° F per 1,000 ft to 10,000 ft (10° to 35° C at sea level, altitude de-rating of 1° C per 300 m to 3,000 m). Maximum rate of change is 18° F/Hr (10° C/Hr)
Non-operating -22° to 140 ° F (-30° to 60° C). Maximum rate of change is 36°F/Hr (20°C/Hr)
Shipping5% to 95% relative humidity, non-condensing

Relative Humidity
(non-condensing)

Operating10 to 90% relative humidity, 82.4° F (28° C) maximum wet bulb temperature, non-condensing
Non-operating5 to 95% relative humidity, 101.7° F (38.7° C) maximum wet bulb temperature, non-condensing

Maximum Wet Bulb Temperature

101.7° F(38.7° C)

Acoustic Noise

Idle
(Fixed Disk Drives Spinning)

L WAd (BELS)7.6
L pAm (dBA)59

Power Supply

1100/800W, Hot Plug Redundant (2 standard)One Redundant Power Supply
(optimized to provide full redundancy at 220 volts)
Input SpecificationsNormal Line Voltage115 to 127 VAC/200 to 240 VAC
Range Input Line115 to 132 VAC/180 to 265 VAC
Frequency Range47 to 63 Hz
Power Factor0.95
Input Current10 A at 115 VAC/8 A at 200 VAC
Inrush Current100 A
Holdup Time21 ms from zero crossing at 120 VAC
General SpecificationsFull Output RatingTo 104° F (40° C) and 5,000 ft (1524 m)
To 89.6° F (32° C) and 10,000 ft (3,048 m)
(derate linearly)
Minimum Load1 A on + 5 V output; 2 A on + 12 V output;
1 A on + 3.3 V output
Ambient Temperature RangeOperating41° to 109° F (5° to 43° C) (End use system maximum ambient of 35°C, plus a maximum of 8° C due to rack effect)
Non-operating-40° to 185° F (-40° 85° C)
Dielectric Voltage WithstandInput to Output3,000 VAC/min
Input to Ground1,500 VAC/min
Input Transient SusceptibilityCommon and Differential Mode (superimposed on AC line)± 1kV line on AC power port for 1 minute;
± 0.5kV on signal/control lines

Slimline CD/DVD-ROM Combo Drive (8X/24X) (Multibay)

Shipping Dimensions 13.88 x 11.38 x 9.25 in (35.26 x 28.91 x 23.50 cm)

Shipping Weight

5 lb (2.27 kg)
Disk

Applicable Disk

DVD-ROM



DVD-R (Read Only)



2.6 GB/side DVD-RAM (Read Only)



5.2 GB/side DVD-RAM (Read Only)



CD-ROM Mode-1 data disc

    CD-ROM Mode-2 data disc
    CD Audio disc
    CD-Extra
    CD-R
    CD Text
    PhotoCD
    CD-I (mode 2)
    CD-I Ready
    CD-Bridge


Capacity

DVD-ROM

DVD-SL 4.7 GB/side
      DVD-DL 8.5 GB/side
      Double Sided 9.40 GB/side
    DVD-R   3.95 GB/side
    DVD-RAM   2.6 GB/side and 5.2 GB/
    CD-ROM Mode-1 650 MB (550 MB)
      Mode-2 742 MB (640 MB)
  Block Size DVD   2,048 bytes
    CD   2,352 (Mode-0)
        2352, 2340, 2336, 2048 bytes
(Mode-1)
        2352, 2340, 2336, 2048 bytes
(Mode-2)


Diameter

120 mm, 80 mm (with adapter at vertical mounting mode)

Loading Mechanism

Tray type



Interface

EIDE (ATAPI)



Access Times (typical)

Random

DVD-ROM < 120 ms, CD-ROM < 110 ms



Full-Stroke

DVD-ROM < 240 ms, CD-ROM < 160 ms

Audio Output Level (typical)

Line-out

CD 0.7 Vrms at 47 Kohms Load

Data Transfer Rate (sustained)

DVD-ROM

Single Layer

10.8 MB/sec. Max.
DVD-RAM 2.77 MB/sec. Max


CD-ROM

7.2 MB/sec. Max.

Cache Buffer

2 MB



Spin-up Time (typical)

less than 10 seconds



MTBF

120,000 Power On Hours (POH)



Ambient Temperature

Operating

-22° to 140° F (-30° to 60° C)

Relative Humidity

Operating

10% to 80%



Storage/Transportation

5% to 95%

Dimensions

(HxWxD, maximum)

0.5 x 5.04 x 5.1 in (12.7x128x129.4 mm)

Option Kit Contents DVD-ROM drive with installation guide, warranty card, registration card

Smart Array 5i Controller
(integrated on system board)

Protocol Wide Ultra3 SCSI
Processor 32-bit RISC
XOR engine Hardware RAID
Electrical interface Low Voltage Differential (LVD)
Simultaneous Drive Transfer Channels 2
Channel Transfer Rate 320 MB/s total; 160 MB/s per channel
SCSI Port Connectors One external and one internal SCSI port
Memory 32 MB of DRAM used for code, transfer buffers, and non-battery-backed read cache
Peak transfer rate 160 MB/s
Logical Drives Supported 32
Software Upgradeable Firmware Yes
RAID Support RAID 5 (Distributed Data Guarding
RAID 1+0 (Striping and Mirroring)
RAID 1 (Mirroring)
RAID 0 (Stripping)
Disk Drive and Enclosure Protocol Support Ultra2 and Ultra3

Two NC7781 PCI-X Gigabit NICs
(embedded)

Network Interface

10/100/1000-T

Compatibility

IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX

Data Transfer Method

64-bit/66MHz PCI-X

Network Transfer Rate

10Base-T (Half-Duplex),
10Base-2

10 Mb/s

10Base-T (Full-Duplex)

20 Mb/s

100Base-TX (Half-Duplex)

100 Mb/s

100Base-TX (Full-Duplex)

200 Mb/s

1000Base-T (Half and Full- Duplex) 2000 Mb/s

Connector

RJ-45

Cable Support

10Base-T

Categories 3, 4 or 5 UTP
up to 328 ft (100 m)

100Base-TX

Category 5 UTP up to 328 ft (100 m)


Sillworks                  Ph: 1.613.599.1287                  Fax: 1.613.599.8120
U320 | SSD | SAS/SATA | Fibre | Memory | Controllers | Processors | Power Supplies | Networking
line
Dell | EqualLogic | EMC | Hewlett-Packard | IBM | Seagate
line
HP      HP      HP      Dell Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account Dell      Dell      Dell      Seagate
Terms of Use | Legal | Privacy | Primary Site | Contact us | Add to favorites
Amex Accepted Visa Accepted MasterCard Accepted
