 HPE  Proliant ML110 G3 QuickSpecs Flag US QuickSpecs
Folder-Closed ML110 G3 HDD SSD Folder-Closed ML110 G3 Processors Folder-Closed ML110 G3 Memory
Folder-Closed ML110 G3 Controllers Folder-Closed ML110 G3 Networking Folder-Closed ML110 G3 Power
Folder-Closed ML110 G3 Quickspecs Folder-Closed ML110 G3 Quickspecs Folder-Closed ML110 G3 Options New  Refurb
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models (North America Only)      ML110 G3 Options      Service and Support, HP Care Pack, and Warranty Information      ML110 G3 Memory      Storage      Power Specifications      System Specifications      ML110 G3 QuickSpecs images/line.gif

Proliant ML110 G3 Overview

HP ProLiant ML110 Generation 3 (G3)

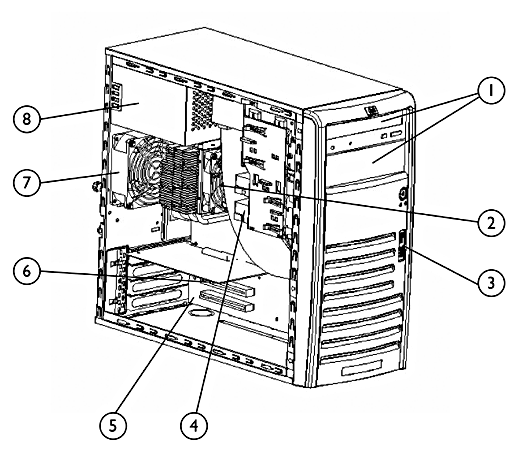

Proliant ML110 G3 Server Image
1. 48x CD-ROM & One Removable Media Bays

2. Intel® Celeron® D or Pentium® 4 Processor

3. Two Front USB Ports
4. Two 1" Non-Hot Plug Drive Bays
5. Main System Board
6. I/O slots (2 PCI and 2 PCI Express)
7. System Fan

8. Power Supply


What's New

  • Intel Pentium D 920, 930, and 940 Processors (Dual-Core, 2.8 GHz, 3.0 GHz and 3.2 GHz, 2 x 2MB Level 2 cache, and 800MHz front-side-bus).

At A Glance
The HP ProLiant ML110 G3 is a remarkable value for workgroups or small-to-medium businesses. It provides dependable server performance with appropriate technology and features an affordable price.
  • Processors:
    • Intel Dual-Core Pentium D processors and Single-core Pentium 4 and Celeron D processors
    • Intel E7230 Chipset with 800MHz FSB (Pentium 4) or 533MHz FSB (Celeron D)
  • Memory:
    • 512 MB of ECC PC2 4200 DDR II SDRAM memory standard (8GB maximum)
  • Storage Controller:
    • Integrated Single Channel Ultra ATA for optical drive
  • Internal Drive Support:
    • Up to three Ultra320 non-hot plug SCSI hard disk drives or non-hot plug SATA hard disk drives.
    • Three drive deployments require the use of a conversion kit on all models and the 6-port SATA RAID Controller on the SATA Models
    • Internal storage capacity of up to 438GB (3 x 146GB non-hot plug SCSI HDD) (SCSI Models)
    • Internal storage capacity of up to 1.5TB (3 x 500GB non-hot plug) SATA HDD (FIO SATA Model)
  • Network Controller:
    • Broadcom 5721 Gigabit NIC (embedded) 10/100/1000 WOL (Wake on LAN)
    • Embedded Serial ATA (SATA Models) or a Single Channel Ultra320 SCSI Adapter (SCSI Models)
  • Expansion Slots:
    • Four total I/O slots: two 32-bit/33MHz PCI (3.3 Volt) slots and two PCI-Express slot (x4 and x8(x16connector)).
  • USB Ports:
    • Six (USB 2.0 ports (2 rear, 2 front, 2 internal)
    • Two serial ports
  • Optical Drives:
    • CD-ROM ships standard
  • Power Supply:
    • 350W Power Supply
  • Form Factor:
    • 4U chassis
  • Management:
    • Lights-Out 100 Remote Management card (optional)
    • ROM Based Setup Utility (RBSU) and PXE support
    • Integrated ATI ES1000 16 MB video
  • Warranty:
    • Protected by HP Services and a worldwide network of resellers and service providers. One-year Next Business Day, on-site limited global warranty (one year parts, one year labor, and one year on-site (1-1-1)). Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives. (Note: AP offers a 3-1-1 warranty on the ML110 G3)
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models (North America Only)      ML110 G3 Options      Service and Support, HP Care Pack, and Warranty Information      ML110 G3 Memory      Storage      Power Specifications      System Specifications      ML110 G3 QuickSpecs images/line.gif

Standard Features

Processor
One of the following depending on Model
Intel Celeron D Processor 326 (256KB L2 cache, 2.53 GHz, 533MHz FSB)
Intel Pentium 4 Processor 630 (2MB L2 cache, 3.0 GHz, 800MHz FSB)
Intel Pentium 4 Processor 640 (2MB L2 cache, 3.2 GHz, 800MHz FSB)
Intel Pentium D Processor 930 (2x2MB L2 cache, 3.0 GHz, 800MHz FSB)

Cache Memory
One of the following depending on Model
256KB Level 2 ECC cache (Celeron D models)
2048KB Level 2 ECC cache (Pentium 4 models)
2x2048KB Level 2 ECC cache (Pentium D models)

Chipset
Intel E7230 Chipset with 800Mhz FSB (Pentium 4 and Pentium D)
Intel E7230 Chipset with 533Mhz FSB (Celeron D)

Memory Protection Un-buffered standard ECC capabilities

ML110 G3 Memory
One of the following depending on Model
Type PC2-4200 unbuffered DDR2 SDRAM (533MHz)
Standard 512 MB
(on
Pentium D, Pentium-4 and Celeron D models)
Maximum 8 GB

Network Controller Broadcom 5721 Gigabit NIC (embedded) 10/100/1000 WOL (Wake on LAN)

Expansion Slots
Slot
Number
Bus Speed
Hot Plug Y/N
PCI Voltage
Notes
1
x8 PCI Express
No
n/a
In a x16 slot
Full Height
1
x4 PCI Express
No
n/a
Full Height
2
32bit/33MHz PCI
No
3.3V
Full Height

Storage Controller
One of the following depending on Model
HP Single Channel Ultra320 SCSI Adapter (SCSI Models)
Integrated 2 ports Serial ATA (SATA Models)

Storage CD-ROM 48x IDE (ATAPI) CD-ROM Drive
Hard Drives One of the following:

  • 36GB Ultra320 SCSI 15,000 rpm Hard Drive (Standard on SCSI models)
  • 80GB SATA 7750 rpm Hard Drive (Standard on SATA Models)

Maximum Internal Storage Type

SCSI
(Non-hot plug)
438GB (3 x 146GB)
SATA
(Non-hot plug)
1.5TB (3 x 500GB)
*NOTE: Available via FIO only
NOTE: Maximum internal storage utilizes 2 internal drive bays and 1 removable media bay.
NOTE: For SCSI models, configuring the media bay to hold the 3rd hard disk drive requires the purchase of the bracket conversion option kit (P/N 396654-B21).
NOTE: For SATA models, both the bracket conversion option kit (P/N 396654-B21) and the HP 6-Port SATA RAID Controller Option Kit (P/N 372953-B21 372953-B21) are required for the installation of the 3rd HDD.

InterfacesParallel1
Serial2
Pointing Device (Mouse, PS2)1
Graphics1
Keyboard (PS2)1
USB
  • 6 (2 rear, 2 front panel, 2 internal)
  • Dedicated USB 1 internal (available for USB tape connectivity)

NOTE: Internal USB ports are optimal for the attachment of HP USB DAT Tape Drives
NOTE: Please see the following URL for additional information regarding USB support:
https://h18004.www1.hp.com/products/servers/platforms/usb-support.html

Network RJ-45 (Ethernet)1

Graphics Integrated ATI ES1000 Video Controller with 16 MB SDRAM Video Memory

Form Factor Tower (4U)

Industry Standard Compliance ACPI V2.0 Compliant
PCI 2.3 Compliant
PXE Support
WOL Support
IPMI 2.0 compliance

Manageability HP Lights-Out 100 Remote Management Card Option (For details see Lights-Out 100 Remote Management Card) (https://h18013.www1.hp.com/products/servers/management/remotemgmt/lightsout100/index.html)
Offline Version - "floppy-based" method to flash the ROM

Security Power-on password
Setup password

Server Power Cords 12' country specific, lowline NEMA power cord.
  NOTE: Rack models ship standard with a 12' IEC cable. Most redundant power supply options ship with a 6' country specific power cord. Localized cables included with geographic specific models in other world regions.

Power Supply 350 Watts

System Fans 1 - non-redundant system fan shipped standard
1 - non-redundant CPU heatsink fan shipped standard

OS Support Microsoft Windows Server 2003: Standard (32 and 64 bit)
Microsoft Windows Small Business Server 2003: Standard & Premium Edition
Windows 2000 Server - Standard Edition
Novell NetWare 6.5 SBS
Red Hat Enterprise Linux 4 ES (32 and 64 bit)
NOTE: For an up-to-date listing of the latest ML110 G3 OS support matrix, please see:
https://www.hp.com/go/supportos
NOTE: For an up-to-date listing of the latest drivers available for the HP server ML110 G3, please see: https://h18023.www1.hp.com/support/files/server/us/family/model/5769.html?lang=en&cc=us
NOTE: Drivers may also found on the base media for some Linux OS's. When configuring your server, please consult your base media driver base, or visit HP.com at: https://h18023.www1.hp.com/support/files/server/us/index.html

Factory Express Portfolio for Servers and Storage HP Factory Express offers configuration, customization, integration and deployment services for HP servers and/or storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging and custom packaging HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers, as well as, the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to https://www.hp.com/go/factory-express.

HP Enterprise Configurator The HP eCo-Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance.

HP ProLiant Smart Buys
(NA only)

The HP Smart Buy program offers mainstream business solutions at competitive prices with excellent availability and superior HP quality. It offers a wide range of industry-leading HP products at compelling prices, allowing you to receive richer configurations with additional options.

NOTE: ProLiant Smart Buys are available in NA only. For detailed specification information on ProLiant Smart Buys please click on the following link: ftp://ftp.compaq.com/pub/products/servers/smartbuys.pdf

Service and Support

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of resellers and service providers. Hardware diagnostic support and repair is available for one year from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Additional support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services or customized service agreements.

NOTE: Limited warranty includes 1 year parts, 1 year labor, 1-year on-site support (3-1-1 warranty offered in AP only). Additional information regarding worldwide limited warranty and technical support is available at: https://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

HP Care Pack services include coverage for the HP branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as 22" and smaller external monitors and tower UPS options up to 3kVA; these items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included, standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

HP services provide continuous care and support expertise with committed response designed to meet your IT and business needs.

To fully capitalizing on your HP ProLiant servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions provides a range of support services designed to meet the varying needs of business. Whether an SMB or large global corporation HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime.

Enhanced Care - Minimum recommended service support offer designed to ensure customers have access to expert assistance, whenever they need it.

  • Next Business Day on site coverage, 3 Years

Continuance Care - Recommended service, delivering cost-effective support options designed to extend HP Services committed response and guaranteed fix times, designed to speed problem identification and resolution.

  • 4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years

Total Care - Highest HP Support service level recommend to help increase IT performance and availability with comprehensive, integrated hardware and software services

  • 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years

Deployment Services - HP Installation and Start Up services designed to take time, risk, and worry out of the deployment of ProLiant servers - and free customers IT support staff to focus on what they do best, their business.

  • Installation of a ProLiant server as per Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays

For a complete listing of service offerings and information visit:
https://www.hp.com/services/proliantservices
https://www.hp.com/go/proliant/carepack

contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models (North America Only)      ML110 G3 Options      Service and Support, HP Care Pack, and Warranty Information      ML110 G3 Memory      Storage      Power Specifications      System Specifications      ML110 G3 QuickSpecs images/line.gif

Models

NOTE: ProLiant Smart Buys are available in NA only. For detailed specification information on ProLiant Smart Buys please click on the following link: ftp://ftp.compaq.com/pub/products/servers/smartbuys.pdf.
Dual Core Models
ML110 G3 3.0 GHz/800- 2X2M NHP-512MB 80 GB SATA
410066-201
ProcessorIntel Pentium D Processor 930 3.0 GHz /800MHz
Cache Memory2x2MB L2 cache
Memory512 MB (Standard) to 8 GB (Maximum) ECC PC2-4200 DDR2 (533MHz)
Network ControllerBroadcom 5721 Gigabit NIC (embedded) 10/100/1000 WOL (Wake on LAN)
Storage Controller
Integrated 2 port embedded SATA RAID (RAID levels 0, 1)
Hard Drive
(1) 80GB NHP SATA HDD
SATA Cable
1 SATA Cable installed (1 additional SATA cable provided in the box)
Internal Storage1.5 TB maximum
Optical Drive48x IDE (ATAPI) CD-ROM Drive
Form FactorTower (4U)

ML110 G3 3.0 GHz/800 2X2M 512MB 36GB NHP-SCSI
410067-201
Processor Intel Pentium D Processor 930 3.0 GHz /800MHz
Cache Memory 2x2 MB L2 cache
Memory 512 MB (Standard) to 8 GB (Maximum) ECC PC2-4200 DDR2 (533MHz)
Network Controller Broadcom 5721 Gigabit NIC (embedded) 10/100/1000 WOL (Wake on LAN)
Storage Controller HP Single Channel Ultra320 SCSI Adapter
Hard Drive (1) 36GB NHP SCSI HDD
Internal Storage 438GB maximum
Cable 3 drop internal SCSI cable
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Form Factor Tower (4U)
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models (North America Only)      ML110 G3 Options      Service and Support, HP Care Pack, and Warranty Information      ML110 G3 Memory      Storage      Power Specifications      System Specifications      ML110 G3 QuickSpecs images/line.gif

Configuration Information-Factory Integrated Models (North America Only)

NOTE: For Configure to Order requirements within EMEA region, please consult local Sales Contact.
NOTE:
HP does not allow factory integration of options into standard models listed above.
Configure-to-order servers must start with a CTO Chassis.

NOTE: This product offering does not support HP Factory Express Server Configuration Level 1.
NOTE: FIO indicates that this option is a Factory Installable Option.
Step 1: Base Configuration
Models HP ProLiant ML110 G3 SATA Tower Chassis (North America)

393256-405

Factory Integrated Models ship with:
Broadcom 5721 Gigabit NIC (embedded) 10/100/1000 WOL (Wake on LAN)
Keyboard and Mouse
350 Watts, PFC (Power Factor Correcting)
Tower Form Factor (4U)

HP ProLiant ML110 G3 SCSI Tower Chassis (North America)
393257-405
Factory Integrated Models ship with:
Broadcom 5721 Gigabit NIC (embedded) 10/100/1000 WOL (Wake on LAN)
SCSI Host controller
Keyboard and Mouse
350 Watts, PFC (Power Factor Correcting)
Tower 4U Form Factor

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)
Processors Single-Core Intel Celeron D Processor 326 2.53 GHz/533MHz Factory Integrated
393286-B21
Single-Core Intel Pentium 4 Processor 630 3.0 GHz/800MHz Factory Integrated
393287-B21
Single-Core Intel Pentium 4 Processor 640 3.2 GHz/800MHz, Factory Integrated
393288-B21
Dual-Core Intel Pentium D Processor 920 2.8 GHz/800MHz Factory Integrated
410357-B21
Dual-Core Intel Pentium D Processor 930 3.0 GHz/800MHz Factory Integrated 410358-B21
Dual-Core Intel Pentium D Processor 940 3.2 GHz/800MHz Factory Integrated 410359-B21

Base Memory 2048 MB Unbuffered Advanced ECC PC2-4200 DDR2 (1 x 2048 MB), Dual Rank
1024 MB Unbuffered Advanced ECC PC2-4200 DDR2 (1 x 1024 MB), Dual Rank 390824-B21 390824-B21
512 MB Unbuffered Advanced ECC PC2-4200 DDR2 DIMM (1 x 512 MB), Single Rank 390825-B21 390825-B21

Base Hard DrivesUltra320 SCSI - Non-hot Plug (SCSI Models Only)
HP 36GB U320 15K NHP HDD
HP 72GB U320 10K NHP HDD 332751-B21 332751-B21
HP 146GB U320 10K NHP HDD 356990-B21 356990-B21
SATA - Non-hot Plug HDD (SATA Models Only)
HP 80GB 1.5G SATA 7.2K NHP 3.5" HDD
HP 160GB 1.5G SATA 7.2K NHP 3.5" HDD411275-B21 411275-B21
HP 250GB 1.5G SATA 7.2K NHP 3.5" HDD411276-B21 411276-B21
HP 500GB 1.5G SATA 7.2K NHP 3.5" HDD, FIO* 404469-B21
NOTE: * Factory Integrated Only
NOTE: Must also select the bracket conversion kit (396654-B21) when purchasing 3rd SCSI or SATA Non-Hot Plug Hard Disk Drives.
NOTE: 500GB (P/N 404469-B21) SATA NHP HDD is FIO only. Use of 500GB HDD increases maximum ML110 G3 SATA storage to 1.5TB.

Optical Drives CD-RW/DVD-ROM Combo Drive Option Kit
HP DVD±R/RW 8X Slim
HP ProLiant 48X CD w/SCREWS
398972-B21

Step 3: Choose Additional Factory Integratable Options
Storage Controllers 64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
NOTE: PCI-X Interface (PCI 32bit/33MHz compatible)
HP PL100 SCSI RAID Controller
HP 6-Port SATA RAID Controller
NOTE: PCI-X Interface (PCI 32bit/33MHz compatible)
NOTE: SCSI Storage Controllers are qualified for SCSI drives only and do not support the SATA Drives.
NOTE: SATA Storage Controllers are qualified for SATA drives only and do not support the SCSI Drives.


Step 4: Choose Additional Options for Factory Integration
Operating Systems
Pre-install Microsoft Windows 2003 SBS Standard Edition
W2003 SBS STD PL1XX
379601-XX1

W2003 SBS PRM PL1XX ENG

379603-XX1
NOTE: For additional options, please refer to the "Options" section below.
Country Code Key XX=00 NA
XX=01 Australia
XX=03 UK
XX=04 Germany
XX=05 France
XX=06
Italy
XX=07
Spanish
XX=20
Brazil
XX=21
Hungarian
XX=22
Czech
XX=24
Polish
XX =33
Dutch
XX=37
AP
XX=42
Euro
XX=AA PRC
XX=29 Japan
XX=AB Taiwan
XX=AD Korea
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models (North America Only)      ML110 G3 Options      Service and Support, HP Care Pack, and Warranty Information      ML110 G3 Memory      Storage      Power Specifications      System Specifications      ML110 G3 QuickSpecs images/line.gif

Options

NOTE: Some options may not be factory integratable. Please contact your local sales representative for additional information.
Memory2048 MB Unbuffered Advanced ECC PC2-4200 DDR2 (1 x 2048 MB), Dual Rank
1024 MB Unbuffered Advanced ECC PC2-4200 DDR2 (1 x 1024 MB), Dual Rank
512 MB Unbuffered Advanced ECC PC2-4200 DDR2 (1 x 512 MB), Single Rank

Optical DrivesCD-RW/DVD-ROM Combo Drive Option Kit
48X CD-ROM Option, Carbon
398972-B21
1.44 MB USB Diskette Drive
DC361B
HP DVD±R/RW 8X Slim
NOTE: For the installation of Windows and other OS's, a floppy drive may be required to complete driver installation. A USB drive key may not work to complete driver installation.

ML110 G3 Hard Drives Ultra320 SCSI - Non-Hot Plug (SCSI Models Only)

HP 36GB U320 15K NHP HDD
HP 72GB U320 10K NHP HDD
HP 146GB U320 10K NHP HDD
Serial - ATA (SATA)- Non-Hot Plug (SATA Models Only)
HP 80GB 1.5G SATA 7.2K NHP 3.5" HDD
HP 160GB 1.5G SATA 7.2K NHP 3.5" HDD
HP 250GB 1.5G SATA 7.2K NHP 3.5" HDD
  NOTE: When purchasing systems with the 500GB NHP SATA drives, please reference the Configuration Information Section of this QuickSpecs to order via Configuration to Order.

HP External 160GB HDD HP External Backup Solution by Seagate (North America)
372914-001
HP External Backup Solution by Seagate (EU)
372914-011

Storage Controllers - SCSI/SATA Drives 64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
NOTE: PCI-X Interface (PCI 32bit/33MHz compatible)
HP PL100 SCSI RAID Controller
NOTE: PCI-X Interface (PCI 32bit/33MHz compatible)
HP 6-Port SATA RAID Controller
NOTE: PCI-X Interface (PCI 32bit/33MHz compatible)
NOTE: SCSI Storage Controllers are qualified for SCSI drives only and do not support the SATA Drives.
NOTE: SATA Storage Controllers are qualified for SATA drives only and do not support the SCSI Drives.


Communications HP NC150T PCI 4-port Gigabit Combo Switch Adapter
HP NC320T PCI Express Gigabit Server Adapter
HP NC360T PCI Express Dual Port Gigabit Server Adapter
HP NC1020 PCI Single Port Gigabit Server Adapter
Modem adapter option kit localizations -
DC132D
Modem adapter option kit Country Code Key
#ACP=
Austria
#ABZ=
Italy
#ABW=
Belgium (Dutch/Flemish)
#ABH=
Netherlands
#AKN=
Bosnia, Herzegovina, Croatia, Slovenia, Yugoslavia (Slovenian)
#UUW=
Nordic Region
#AKB=
Czech Republic (Czech) & Slovakia
#ACB=
Russia
#ABF=
France
#ACQ=
South Africa
#ABD=
Germany
#ACD=
Switzerland
#AB7=
Greece
#AB8=
Turkey
#AKC=
Hungary
#ABU=
UK
#ABT=
Israel
#ABG=
Australia, New Zealand

#ACJ=
India

Tape Backup Drives NOTE: A separate SCSI Controller is required for connecting SCSI tape drives to this server
NOTE: For complete listing of tape drive offerings see: https://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html
HP StorageWorks DAT 24 USB Internal Tape Drive (Carbonite)
DW069A
HP StorageWorks DAT 40 USB Internal Tape Drive (Carbonite)
DW022A

HP StorageWorks DAT 40 USB External Tape Drive (Carbonite)

DW023A
HP StorageWorks DAT 72 USB Internal Tape Drive (Carbonite)
DW026A
HP StorageWorks DAT 72 USB External Tape Drive (Carbonite)
HP StorageWorks DAT 40 SCSI Internal Tape Drive (Carbon)
HP StorageWorks DAT 72 SCSI Internal Tape Drive (Carbon)
Q1522B
NOTE: Installation of SCSI internal tape drives in a ML110 G3 model requires SCSI controller kit (PN: 374654-B21 374654-B21).

HP Data Protector Express SoftwareHP DP Express Backup Server Upgrade for ProLiant Software
BB117AP
HP DP Express Package for Microsoft Small Business Server
BB118AA
NOTE: Please see the HP Data Protector Express QuickSpecs for additional information regarding the purchase of HP Data Protector Express software: https://h18000.www1.hp.com/products/quickspecs/12337_div/12337_div.html (Worldwide)
NOTE: To obtain a free licensed copy of HP Data Protector Express for ProLiant edition software, please visit the "Protect Your Data" link accessible from your ProLiant server's System Management Homepage (SMH) software (SmartStart 7.5 or later).


Installation of Server into Racks

100Kg/220Lbs Sliding shelf (Graphite)
NOTE:
When using the100Kg/220Lbs Sliding shelf, install Stabilizer Kit for 5642 rack (PN 374493-B21).

Stabilizer Kit for 5642 rack (Graphite Carbon)
NOTE:
The stabilizing kit is used to prevent rack from tipping over.
https://www.racksolutions.com/hp
374493-B21

Lights Out Management Card Lights-Out Management Card Kit for ML110 G3
390225-B21

Other HP 2-port SATA Cable
379093-B21
Hard Drive Bracket Conversion Option Kit
396654-B21

UPS HP T500 UPS 120 Volt (NA)
361475-001
HP T750 UPS, Low Voltage (NA/JPN)
378439-D71
HP T750 UPS, High Voltage (INTL)
378439-B31

USB Options HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver)
USB 1.44-MB External Diskette Drive (Carbonite)
DC141B
HP USB 04 Standard Keyboard
DT528A#xxx
USB 2.0 4-port HUB
DG954A
HP 1GB Drive Key II- USB 2.0 Flash Drive
AG382AA
HP 512MB DriveKey II- USB Flash Drive
ED516AA
USB Drive Key 256MB
PH657A

HP KVM Switch Options HP 0x1x8 Server Console Switch
HP 0x2x16 Server Console Switch
PS/2 Interface adapter, 1-pack
PS/2 Interface adapter, 8-pack
USB Interface adapter, 1-pack
Serial Interface Adapter, 1-pack with power supply
NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches. Cat5e cables can be found at the following URL: https://www.hp.com/go/kvm
HP 1x4 USB/PS2 KVM Switch, TT (NA/JPN)
371301-D71
HP 1x4 USB/PS2 KVM Switch, TT (AU/NZ)
371301-011
HP 1x4 USB/PS2 KVM Switch, TT (UK)
371301-031
HP 1x4 USB/PS2 KVM Switch, TT (EU)
371301-A21
HP 1x4 USB/PS2 KVM Switch, RM (ALL)
371302-B21
HP PS2 KVM Cable with audio, 6' 2-pack
371730-B21
HP USB KVM Cable with audio, 6' 2-pack
371729-B21
NOTE: For additional information regarding KVM Switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: https://www.hp.com/go/kvm

HP Serial Console Server Options HP 16-Port Serial Console Server (WW)
HP 48-Port Serial Console Server (WW)
Serial Adapter, RJ45-DB9 DCE Female, 1 Pack
Serial Adapter, RJ45-DB9 DCE Female, 8 Pack
AF110A
NOTE: For additional information regarding HP KVM Switches and options, please see the following URL: https://www.hp.com/go/kvm
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models (North America Only)      ML110 G3 Options      Service and Support, HP Care Pack, and Warranty Information      ML110 G3 Memory      Storage      Power Specifications      System Specifications      ML110 G3 QuickSpecs images/line.gif

Service and Support, HP Care Pack, and Warranty Information

Service and Support Offerings (HP Care Pack Services)
Hardware Services 4-Hour On-site Service
13-Hour x 5-Day Coverage, 3 Years, Electronic
U4434E
24-Hour x 7-Day Coverage, 3 Years, Electronic
U4435E
Hardware Services Next Business Day On-Site Service
9-Hour x 5-Day Coverage, 3 Years, Electronic
U4433E
Hardware Installation, Electronic
U4444E
NOTE: For more information, customer/resellers can contact https://www.hp.com/services/carepack.
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models (North America Only)      ML110 G3 Options      Service and Support, HP Care Pack, and Warranty Information      ML110 G3 Memory      Storage      Power Specifications      System Specifications      ML110 G3 QuickSpecs images/line.gif

Memory

HP ProLiant ML110 G3 Celeron D and Pentium 4 Models
Standard Memory
512 MB of PC2-4200 DDR2 SDRAM running at 512 MB with Advanced ECC capabilities Memory installed (1 x 512 MB SDRAM DIMM).
Standard Memory Plus Optional Memory
Up to 5120 MB memory is available with the optional installation of PC2-4200 Registered un-buffered ECC DDR2 SDRAM DIMM Memory kits.
Standard Memory Replaced with Optional Memory
Up to 8192 MB of memory is available with the removal of the standard 512 MB of memory and the optional installation of PC2-4200 Registered un-buffered ECC DDR2 SDRAM DIMM Memory kits.
NOTE: The below chart does not represent all possible memory configurations.
NOTE: In memory configurations requiring 2 DIMM and 4 DIMM configurations, the memory must be paired for optimal performance. This means that DIMMs in slot 1 and 3 have to be identical, in slot 2 and 4 have to be identical. (For example, the Optional memory configuration shown below)

ML110 G3 Memory
Slot

4
3
2
1
Standard 512 MB
Empty
Empty
Empty
512 MB
Optional 5120 MB
2048 MB
512 MB
2048 MB
512 MB
Maximum 8192 MB
2048 MB
2048 MB
2048 MB
2048 MB
Following are memory options available from HP:
  • 512 MB Unbuffered Advanced ECC PC2-4200 DDR2 (1 x 512 MB), Single Rank
  • 1024 MB Unbuffered Advanced ECC PC2-4200 DDR2 (1 x 1024 MB), Dual Rank
  • 2048 MB Unbuffered Advanced ECC PC2-4200 DDR2 (1 x 2048 MB), Dual Rank
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models (North America Only)      ML110 G3 Options      Service and Support, HP Care Pack, and Warranty Information      ML110 G3 Memory      Storage      Power Specifications      System Specifications      ML110 G3 QuickSpecs images/line.gif

Storage

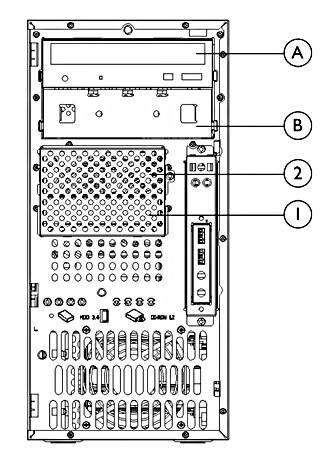

Proliant ML110 G3 Server Image
A
48x IDE (ATAPI) CD-ROM
B
Removable Media Bays (1.6" each)
1, 2
Two Non-Hot Plug Drive Bays


Drive Support



Quantity
Supported

Position
Supported


Controller

Removable Media


DVD + CDRW Drive
2
A or B
Integrated IDE (ATAPI)
DVD-RW Drive 2 A or B Integrated IDE (ATAPI)

ML110 G3 Hard Drives (SCSI Models only)
Ultra 320 SCSI - Non-Hot Plug


Quantity
Supported

Position
Supported


Controller

1-inch
36GB
72GB
146GB
Up to 3 1, 2 or B Hot Plug Single Channel Ultra320 SCSI Adapter (SCSI Models)
NOTE: Support for position "B" requires the purchase of bracket conversion kit (P/N 396654-B21).

ML110 G3 Hard Drives (SATA Models only)
SATA 1.5Gb - Non-Hot Plug


Quantity
Supported

Position
Supported


Controller

3.5-inch
80GB
160GB
250GB
500GB
Up to 31, 2 or B HP 6-Port SATA RAID Controller
NOTE: Support for position "B" requires the purchase of bracket conversion kit (P/N 396654-B21).
NOTE: 1st and 2nd hard disk drive requires no additional controller. Addition of the 3rd hard disk drive requires the purchase of HP 6-Port SATA RAID Controller (P/N 396654-B21).

Maximum Storage Capacity - SCSI Models
Internal 438GB (3 x 146GB non-hot-plug hard drives)
Total 438GB
Maximum Storage Capacity - Non-Hot Plug SATA Models
Internal 750GB (3 x 250GB non-hot-plug hard drives)
Total 750GB (3 x 250GB non-hot-plug hard drives)
1.5TB (3 x 500GB via FIO or specials only)
NOTE: Maximum internal storage utilizes 2 internal drive bays and 1 removable media bays.
NOTE: The addition of the 3rd hard disk drive for SCSI maximum internal storage support requires the purchase of the bracket conversion option kit (P/N 396654-B21).
NOTE: The addition of the 3rd hard disk drive for SATA maximum internal storage support requires the purchase of the bracket conversion option kit (P/N 396654-B21) and SATA RAID Controller (P/N 372953-B21 372953-B21.)

Tape Drives
NOTE: A SCSI controller needs to be purchased to operate internal SCSI devices in the SATA Models.
NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:
https://h18000.www1.hp.com/products/quickspecs/Division/10233.html (Worldwide)


Quantity
Supported

Position
Supported


Controller

Internal USB Tape Drives
HP DAT 24 USB
HP DAT 40 USB
HP DAT 72 USB
1
B
Internal USB 2.0 port
Internal SCSI Tape Drives
HP DAT 40 SCSI
HP DAT 72 SCSI
1 per SCSI port
External
HP Single Channel Ultra320 SCSI HBA
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models (North America Only)      ML110 G3 Options      Service and Support, HP Care Pack, and Warranty Information      ML110 G3 Memory      Storage      Power Specifications      System Specifications      ML110 G3 QuickSpecs images/line.gif

Power Specifications

Part Number391977-001
Spare Kit 392173-001
Operational Input Voltage Range (Vrms)90 to 135 and 200 to 265 V auto ranging
Frequency Range (Nominal) (Hz)47 to 63 Hz




Nominal Input Voltage (Vrms)
100
115
208
220
230
240
Max Rated Output Wattage Rating
N/A
350
N/A
N/A
350
N/A
Nominal Input Current (A rms)
N/A
8
N/A
N/A
4
N/A
Max Rated Input Wattage Rating (Watts)
N/A
N/A
N/A
N/A
N/A
N/A
Max. Rated VA (Volt-Amp)
N/A
N/A
N/A
N/A
N/A
N/A

Efficiency (%)

N/A
>65%
N/A
N/A
>65%
N/A

Power Factor

N/A
N/A
N/A
N/A
N/A
N/A

Leakage Current (mA)

0.25mA (at 60HZ)
N/A
N/A
N/A
N/A
N/A

Maximum Inrush Current (A peak)

N/A
No component was damaged and input fuse shall not blow
N/A
N/A
No component was damaged and input fuse shall not blow
N/A

Maximum Inrush Current duration (mS)

N/A
N/A
N/A
N/A
N/A
N/A
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models (North America Only)      ML110 G3 Options      Service and Support, HP Care Pack, and Warranty Information      ML110 G3 Memory      Storage      Power Specifications      System Specifications      ML110 G3 QuickSpecs images/line.gif

System Specifications

  Power **
HP ProLiant ML110 G3 Fully Configured (see **)
Fully Loaded System output Wattage (W) 350W
Fully Loaded System Input Current (A rms) 6A @ 115V, 3A @ 230V
Fully Loaded System Thermal (BTU- Hr) 1907BTU
Fully Loaded System VA (Volt-Amp) 690
System Leakage with all power supplies loaded (mA) 0.75mA@240V
0.45mA@120V
System Inrush Current with all power supplies loaded (A) 80A
Power cord requirements Nema 5-15P to IEC320-C13
  IEC320-C13 to IEC320-C14
  **Power shown is for a fully configured system consisting of (1) CPU, (4) double-sided DIMMs, (4) HDDs, (1) CD-ROM, (1) DVD-ROM, (4) PCI cards, and (1) power supply.
Power Cords (13 Cord Sets) Power Cord Part Number
Country
APD 100614-009, 100613-008, 139867-004, 187487-004(India)
Brazil 285052-001
Australia 100661-001
Euro 100614-009
France 100614-009
Germany 100614-009
Japan 139867-004
PRC 286496-001
UK 100613-008
US, Taiwan 121565-001
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models (North America Only)      ML110 G3 Options      Service and Support, HP Care Pack, and Warranty Information      ML110 G3 Memory      Storage      Power Specifications      System Specifications      ML110 G3 QuickSpecs images/line.gif

Quickspecs

System Unit Dimensions (HxWxD)
(with feet)
14.46 X 6.88 X 16.76 in (36.7 X 17.5 X 42.6 cm)
Weight (approximate) 23.15 lb (10.5 kg)
Input Requirements
(per power supply)

Range Input Voltage

90 to 135 VAC/180 to 265 VAC
Normal Line Voltage 115 or 230 VAC
Line Frequency 50 to 60 Hz
Rated Input Current load 8A at 115VAC, 4A at 230VAC
BTU Rating
1907 BTU
SCSI Connectors
(SCSI Models only)
One internal LVD/SE connector for U160 devices, plus two internal SE connectors for legacy devices.
Power Supply Output Power
(per power supply)
Rated Steady-State Power 350W
Maximum Peak Power 350W
Temperature Range Operating 50° to 95° F (10° to 35° C)
Shipping -40° to 140° F (-40° to 60° C)
Relative Humidity
(non-condensing)
Operating 10% to 90%
Non-operating 10% to 90%
Acoustic Noise Idle
(Fixed Disk Drives Spinning)

L WAd (BELS)
5.5
Operating
(Random Seeks to Fixed Disks)

L WAd (BELS)
6.0

Non-Hot Plug Ultra320 SCSI Hard Drives 36.4-GB
357021-B21
Capacity 36,419.2MB
Height 1.0 in (2.5 cm)
Width 4.0 in (10.16 cm)
Interface Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including settling)
Single track 0.7 ms
Average 5.4 ms
Full-stroke 11 ms
  Rotational Speed 10,000 rpm
Physical Configuration Bytes/Sector 512
  Logical Blocks 71,132,000
Operating Temperature 41° to 140° F (5° to 60° C)

Non-Hot Plug SATA Hard Drives 80-GB 7.2K
383410-B21 383410-B21

Capacity 80,054MB
Height 1.0 in. (2.5 cm)
Width 4.0 in. (10.16 cm)
Interface SATA 150MB
Transfer rate synchronous (maximum) 150MB/s
Seek time (typical reads, including settling) Single track 0.8 ms
Average 8.5 ms
Full-stroke 17.8 ms
  Rotational speed 7,200 rpm
Physical Configuration Bytes/Sector 512
  Logical Blocks 156,355,584
Operating Temperature 41° to 131° F (5° to 55° C)

48X Max IDE (ATAPI) CD-ROM Drive
337863-B21
Disk Applicable Disk CD-ROM, CD-XA, CD-DA
(Mode 1, Mode 2, Form 1 and 2)
Photo CD (Single and Multi-session)
Mixed Mode (Audio and Data combined)
CD-R
Capacity 540MB (Mode 1, 12 cm)
650MB (Mode 2, 12 cm)
Block Size Mode 1 2,048 bytes, 1024 bytes
Mode 2 2,340 bytes, 2,336 bytes, 1024 bytes
CD-DA 2,352 bytes
CD-XA 2,328 bytes
Interface IDE (ATAPI)
Access Times (typical) Random <100 ms
Full-Stroke <150 ms
Data Transfer Rate Sustained 3000 to 7750 KB/s (20X to 48X)
Burst 150 KBps to 7,200 KBps
Bus Rate 16.7 MBps
Cache Buffer 128 KB
Start-up Time (typical) < 7seconds
Stop Time < 4seconds
Laser Parameters Type Semiconductor Laser GaA1As
Wave Length 780 ± 25 nm
Operating Conditions Temperature 41° to 122° F (5° to 50° C)
Humidity 10% to 90%
Dimensions

(HxWxD, maximum)

1.63 x 5.75 x 7.87 in (41.3 x 146 x 200 cm)
Weight 2.64 lb (1.2 kg)

HP Single Channel Ultra320 SCSI Adapter (SCSI Models only)
391872-B21
Drives Supported Up to 4 SCSI devices Wide (3 drives supported maximum for ML110 G3)
Data Transfer Method 64-bit/33-MHz PCI bus-master
SCSI Channel Transfer Rate 320 MB/s per channel
SCSI Protocols Ultra 320, Ultra 3, Ultra 2
Fast SCSI-2
Maximum Capacity 440.4GB (3x146.8GB, NHP U320 SCSI HDD)
Electrical Protocol Low Voltage Differential (LVD)
SCSI Termination Active Termination
External SCSI Connectors None

6 port SATA RAID controller (SATA Model requiring RAID 5 Only)
372953-B21 372953-B21
SATA Protocol SATA 1.5Gb/s
SATA Ports 6 internal (3 drives supported maximum for ML110 G3)
Port transfer rate 1.5 Gb/s total
Drives Supported Up to 3SATA HDD
Data Transfer Method 32-bit/66-MHz PCI bus-master
Storage Capacity up to 320 GB (3x 80GB hot plug SATA HDD)
PCI 3.3 volt CPI slot compatibility only (PCI-X interface)
Cache Memory 64MB of SDRAM Memory for RAID and read cache
RAID Levels SupportedRAID 5 (Distributed Data Guarding)
RAID 1+0 (Striping & Mirroring)
RAID 1 (Mirroring)
RAID 0 (Striping)
Maximum Capacity up to 320GB (3x 80GB hot plug SATA HDD)
Logical RAID Volumes Supported4
Operating Systems Microsoft Windows® 2000 Server; Microsoft Windows® Server 2003; Linux: RHEL 4.

Broadcom 5721 (embedded) 10/100/1000 WOL (Wake on LAN)

Network Interface Ethernet Standards: IEEE 802.3, 802.3u, 802.3ad, and 802.3ab, 802.1x, 802.1Q and 802.1P
Data Transfer Method PCI Express
Network Transfer Rate 10/100/1000 Mbps, Half- and full-duplex Auto-negotiated speeds of 10/100/1000 Mbps in both half and full duplex
Connector RJ-45 connector
Cable Support Category 5 or higher UTP wiring

Sillworks                  Ph: 1.613.599.1287                  Fax: 1.613.599.8120
U320 | SSD | SAS/SATA | Fibre | Memory | Controllers | Processors | Power Supplies | Networking
line
Dell | EqualLogic | EMC | Hewlett-Packard | IBM | Seagate
line
HP      HP      HP      Dell Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account Dell      Dell      Dell      Seagate
Terms of Use | Legal | Privacy | Primary Site | Contact us | Add to favorites
Amex Accepted Visa Accepted MasterCard Accepted
