 HPE  Proliant ML150 G2 QuickSpecs Flag US QuickSpecs
Folder-Closed ML150 G2 HDD SSD Folder-Closed ML150 G2 Processors Folder-Closed ML150 G2 Memory
Folder-Closed ML150 G2 Controllers Folder-Closed ML150 G2 Networking Folder-Closed ML150 G2 Power
Folder-Closed ML150 G2 Quickspecs Folder-Closed ML150 G2 Quickspecs Folder-Closed ML150 G2 Options New  Refurb
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models      ML150 G2 Options      ML150 G2 Memory      Storage      Power Specifications      ML150 G2 QuickSpecs images/line.gif

Proliant ML150 G2 Overview

HP ProLiant ML150 Generation 2 (G2)

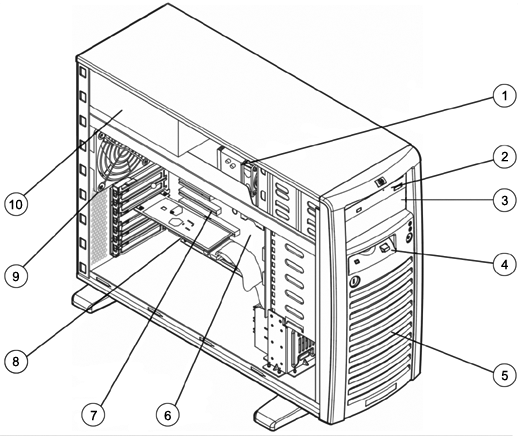

Proliant ML150 G2 Server Image
1. Intel® Xeon processor with 1 or 2MB level 2 cache
2. 48x CD-ROM
3. One Removable Media Bay (1.6")
4. 1.44 MB Diskette Drive
5. Six Drive Bays
6. Main System Board
7. Six PCI Slots (PCI-X or PCI-Express)
8. SCSI or SATA Adapter, depending upon model
9. System Fan
10. Power Supply
What's New
  • Intel Xeon 2.8 GHz, 3.0 GHz, or 3.2 GHz processors with 1MB L2 cache; or 2.8 GHz, 3.0 GHz, or 3.2 GHz processors with 2MB L2 cache, dual processor capability.
  • 800MHz Front Side Bus
  • PC2700 DDR SDRAM memory (expandable to 8GB)
  • PCI-X and PCI-Express expansion slots (one legacy PCI slot)

At A Glance
  • Processors:
    • Intel® Xeon 2.8 GHz, 3.0 GHz, or 3.2 GHz processors with 1MB level 2 cache or 2.8 GHz, 3.0 GHz, or 3.2 GHz processors with 2MB level 2 cache standard (dual processor capability). Processors include support for Hyper-Threading and Extended Memory 64 Technology (EM64T)
    • Intel® E7320 chipset
    • 800MHz Front Side Bus
  • Memory:
    • 512 MB of PC2700 DDR SDRAM standard (expandable to 8 GB)
  • Storage Controller:
    • Slot-based Single Channel Ultra320 SCSI Adapter or 4 port SATA Adapter (depending upon model)
  • Internal Drive Support:
    • Support for up to 6 Ultra320 SCSI hard drives
    • Support for up to 6 SATA hard drives with optional 6 Port SATA RAID Controller
    • Internal U320 SCSI storage capacity of up to 880GB (6 x 146GB U320 SCSI drives)
    • Internal SATA storage capacity of up to 2TB (4 x 500GB SATA drives) or up to 3TB (6 X 500GB SATA drives) with optional 6 Port SATA RAID Controller
    • Supports the HP External Backup Solution by Seagate for simple external backup
  • Network Controller:
    • Single PCI-Express Gigabit NIC (embedded)
  • Expansion Slots:
    • Six expansion slots: four 64-bit/66-MHz PCI-X (3 available), one x4 PCI-Express, and one 32-bit/33MHz PCI
  • USB Ports:
    • Three USB 2.0 ports:- (2 rear, 1 Internal)
  • Redundancy:
    • 600W Non-Hot Plug Power Supply
  • Form Factor:
    • An entry level, (5U) tower server that delivers a balance of performance, manageability, and expandability at an aggressive price
  • Management:
    • Optional HP ProLiant ML150 G2 Lights-Out 100 Remote Management Card allows you to manage server remotely
  • Deployment/Serviceability:
    • Tool-free chassis entry and component access
  • Additional Features:
    • Backed by HP's world class service and support, the ProLiant ML150 G2 offers expertise and capabilities from a best-in-class brand
    • With room for two Xeon processors, six I/O adapter cards, six hard disk drives, and four memory slots, the ProLiant ML150 G2 expands with your business
    • Integrated ATI Rage XL with 8MB SDRAM video
  • Warranty
    • Protected by HP Services and a worldwide network of resellers and service providers. One-year Next Business Day, on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives.
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models      ML150 G2 Options      ML150 G2 Memory      Storage      Power Specifications      ML150 G2 QuickSpecs images/line.gif

Standard Features

Processor
NOTE: One of the following depending on Model
Intel Xeon Processor 3.2 GHz/800 -1MB L2
Intel Xeon Processor 3.0 GHz/800 -1MB L2
Intel Xeon Processor 2.8 GHz/800 -1MB L2
Intel Xeon Processor 3.2 GHz/800 -2MB L2
Intel Xeon Processor 3.0 GHz/800 -2MB L2
Intel Xeon Processor 2.8 GHz/800 -2MB L2

Cache Memory Integrated 1MB or 2MB level 2 cache
(Depending on model)

Upgradeability Upgradeable to dual processing

Chipset Intel® E7320 Chipset with 800MHz Front Side Bus

Memory Type PC2700 DDR SDRAM (333MHz)
Standard 512 MB
Maximum 8 GB

Network Controller
Broadcom 5721 PCI-Express Gigabit NIC (embedded) 10/100/1000 WOL (Wake on LAN)

Expansion Slots I/O (6 Total, 5 Available)   PCI Voltage:
64-bit/66MHz PCI-X 4 (3 available) 3.3 volts
x 4 PCI-Express 1 3.3 volts
32-bit/33MHz PCI 1 5 volts

Storage Controller
NOTE: One of the following depending on Model
Single Channel Ultra320 SCSI Adapter in a PCI slot(SCSI Models)
4 port SATA Adapter in a PCI slot (SATA Model)

Storage Diskette Drive 1.44 MB Diskette Drive
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Hard Drives 36-GB 15,000 rpm hard drive included in non-hot plug SCSI models only

Maximum Internal Storage SCSI Models 880GB (6 x 146GB SCSI drives)
SATA Models 3TB (6 X 500GB SATA drives) with optional 6 Port SATA RAID Controller or
2TB (4 x 500GB SATA drives) with standard controller

Interfaces Parallel 1
Serial 1
Pointing Device (Mouse, PS2) 1
Graphics 1
Keyboard (PS2) 1
USB 2.0 Ports
Dedicated USB
3 (2 Rear, and 1 Internal)
NOTE: Please see the following URL for additional information regarding USB support:
https://h18004.www1.hp.com/products/servers/platforms/usb-support.html.
Network RJ-45 (Ethernet) 1

Graphics Integrated ATI RAGE XL Video Controller with 8 MB SDRAM Video Memory

Form Factor Tower (5U)

Industry Standard Compliance ACPI V1.0b compliant
PCI 2.2 compliant
PXE Support
WOL Support
Microsoft® Logo certifications
Novell Logo certifications

Manageability Optional HP ProLiant ML150 G2 Lights-Out 100 Remote Management Card

Security Power-on password
Setup password
Diskette boot control

Server Power Cords One Lowline NEMA power cord
  NOTE: Tower models ship standard with a 6' lowline NEMA power cord.

Power Supply 600 Watts, non-hot plug, non-redundant

System Fans 2 - Non-hot plug, Non-redundant system fans shipped standard

OS Support Microsoft Windows® 2000 Server
Microsoft Windows 2003 Server, Standard Edition (32 and 64 bit)
Microsoft Windows 2003 Server, Web Edition
Microsoft Small Business Server 2003
Novell NetWare 6.5
Novell NetWare SBS 6.5
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
SCO Unixware 7.1.4
VMware Virtualization Software
NOTE: For an up-to-date listing of the latest ML150 OS support matrix, please see:
https://www.hp.com/go/supportos
NOTE: For an up-to-date listing of the latest drivers available for the HP server ML150, please see: https://h18023.www1.hp.com/support/files/server/us/index.html
NOTE: For more information on HP's Certified and Supported ProLiant Servers, please visit the VMware Server Support Matrix at:
https://h18004.www1.hp.com/products/servers/software/vmware/hpvmwarecert.html
NOTE: Drivers may also found on the base media for some Linux OS's. When configuring your server, please consult your base media driver base, or visit HP.com at: https://h18023.www1.hp.com/support/files/server/us/index.html
NOTE: For more Linux OS support & certification information, please visit our the ProLiant & Bladesystem Server Linux matrix https://h18004.www1.hp.com/products/servers/linux/hpLinuxcert.html

Factory Express Portfolio for Servers and Storage HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging and custom packaging to meet customer needs. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant & HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services on your specific server model please contact your sales representative or go https://www.hp.com/go/factory-express.


HP Enterprise Configurator

The HP eCo-Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance.


HP ProLiant Smart Buys

The HP Smart Buy program offers mainstream business solutions at competitive prices with excellent availability and superior HP quality. It offers a wide range of industry-leading HP products at compelling prices, allowing you to receive richer configurations with additional options.
NOTE: For detailed specification information on ProLiant Smart Buys please click on the following link:
ftp://ftp.compaq.com/pub/products/servers/smartbuys.pdf


Service and Support

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of resellers and service providers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Additional support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services or customized service agreements.

NOTE: Limited warranty includes 1 year parts, 1 year labor, 1-year on-site support (ROW)
Limited warranty included 3 years parts, 1 year labor, 1 year on-site support (AP Only). Additional information regarding worldwide limited warranty and technical support is available at: https://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

HP Care Pack services include coverage for the HP branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as 22" and smaller external monitors and tower UPS options up to 3kVA; these items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included, standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

HP services provide continuous care and support expertise with committed response designed to meet your IT and business needs.

To fully capitalize on your HP ProLiant servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions provides a range of support services designed to meet the varying needs of business. Whether an SMB or large global corporation HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime.

Enhanced Care - Minimum recommended service support offer designed to ensure customers have access to expert assistance, whenever they need it.

  • Next Business Day on site coverage, 3 Years

Continuance Care - Recommended service, delivering cost-effective support options designed to extend HP Services committed response and guaranteed fix times, designed to speed problem identification and resolution.

  • 4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years

Total Care - Highest HP Support service level recommend to help increase IT performance and availability with comprehensive, integrated hardware and software services

  • 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years

Deployment Services - HP Installation and Start Up services designed to take time, risk, and worry out of the deployment of ProLiant servers - and free customers IT support staff to focus on what they do best, their business.

  • Installation of a ProLiant server as per Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays

For a complete listing of service offerings and information visit:
https://www.hp.com/services/proliantservices
https://www.hp.com/go/proliant/carepack

contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models      ML150 G2 Options      ML150 G2 Memory      Storage      Power Specifications      ML150 G2 QuickSpecs images/line.gif

Models

ML150T02 X3.2/800-2M HP-SATA
380188-001
Processor(1) Intel Xeon 3.2 GHz processor standard (up to 2 supported)
Cache MemoryIntegrated 2MB Level 2 cache
Memory512 MB (Standard) to 8 GB (Maximum) PC2700 DDR SDRAM (333MHz)
Network ControllerBroadcom 5721 PCI-Express Gigabit NIC (embedded) 10/100/1000 WOL (Wake on LAN)
Storage Controller4 port SATA Adapter in a PCI slot
Hard DriveNone ship standard (up to 6 HDD supported with optional 6 Port SATA RAID Controller; up to 4 HDD supported with standard SATA controller)
Internal Storage3TB (6 x 500GB SATA drives w/ optional 6 Port SATA RAID Controller) maximum
Optical Drive48x IDE (ATAPI) CD-ROM Drive
Form FactorTower (5U)

ML150T02 X3.0/800-1M HP-SCSI
366360-001

Processor (1) Intel Xeon 3.0 GHz processor standard (up to 2 supported)
Cache Memory Integrated 1MB Level 2 cache
Memory 512 MB (Standard) to 8 GB (Maximum) PC2700 DDR SDRAM (333MHz)
Network Controller Broadcom 5721 PCI-Express Gigabit NIC (embedded) 10/100/1000 WOL (Wake on LAN)
Storage Controller Single Channel Ultra320 SCSI Adapter in a PCI slot
Hard Drive None ship standard (up to 6 supported)
Internal Storage 880GB maximum
Optical Drive 48x IDE (ATAPI) CD-ROM drive
Form Factor Tower (5U)

ML150T02 X3.0/800-1M NHP-SCSI36
366362-001



Processor(1) Intel Xeon 3.0 GHz processor standard (up to 2 supported)
Cache MemoryIntegrated 1MB Level 2 cache
Memory512 MB (Standard) to 8 GB (Maximum) PC2700 DDR SDRAM (333MHz)
Network ControllerBroadcom 5721 PCI-Express Gigabit NIC (embedded) 10/100/1000 WOL (Wake on LAN)
Storage ControllerSingle Channel Ultra320 SCSI Adapter in a PCI slot
Hard Drive(1) 36.4-GB Ultra320 SCSI 15,000 rpm Drive (up to 6 supported)
Internal Storage880GB maximum
Optical Drive48x IDE (ATAPI) CD-ROM Drive
Form FactorTower (5U)

ML150T02 X3.0/800-1M HP-SATA
366358-001
Processor(1) Intel Xeon 3.0 GHz processor standard (up to 2 supported)
Cache MemoryIntegrated 1MB Level 2 cache
Memory512 MB (Standard) to 8 GB (Maximum) PC2700 DDR SDRAM (333MHz)
Network ControllerBroadcom 5721 PCI-Express Gigabit NIC (embedded) 10/100/1000 WOL (Wake on LAN)
Storage Controller4 port SATA Adapter in a PCI slot
Hard DriveNone ship standard (up to 6 HDD supported with optional 6 Port SATA RAID Controller; up to 4 HDD supported with standard SATA controller)
Internal Storage 3TB (6 x 500GB SATA drives w/ optional 6 Port SATA RAID Controller) maximum
Optical Drive48x IDE (ATAPI) CD-ROM drive
Form FactorTower (5U)

ML150T02 X2.8/800-1M HP-SATA
366357-001
Processor(1) Intel Xeon 2.8 GHz processor standard (up to 2 supported)
Cache MemoryIntegrated 1 MB Level 2 cache
Memory512 MB (Standard) to 8 GB (Maximum) PC2700 DDR SDRAM (333MHz)
Network ControllerBroadcom 5721 PCI-Express Gigabit NIC (embedded) 10/100/1000 WOL (Wake on LAN)
Storage Controller4 port SATA Adapter in a PCI slot
Hard DriveNone ship standard (up to 6 HDD supported with optional 6 Port SATA RAID Controller; up to 4 HDD supported with standard SATA controller)
Internal Storage3TB (6 x 500GB SATA drives w/ optional 6 Port SATA RAID Controller) maximum
Optical Drive48x IDE (ATAPI) CD-ROM Drive
Form FactorTower (5U)

contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models      ML150 G2 Options      ML150 G2 Memory      Storage      Power Specifications      ML150 G2 QuickSpecs images/line.gif

Configuration Information-Factory Integrated Models

NOTE: HP does not allow factory integration of options into standard models listed above.
Configure-to-order servers must start with a CTO Chassis.
NOTE: This product offering does not support HP Factory Express Server Configuration Level 1.
NOTE: FIO indicates that this option is a Factory Installable Option.
Step 1: Base Configuration (Select only one model from the following selections)
Models HP ProLiant ML150 G2 Hot Plug SCSI Model
377880-405
HP ProLiant ML150 G2 Non-hot Plug SCSI Model
377881-405
HP ProLiant ML150 G2 Hot Plug SATA Model
377882-405
Factory Integrated Models ship with:

Broadcom 5721 PCI-Express Gigabit NIC (embedded) 10/100/1000 WOL (Wake on LAN)

1.44MB Diskette Drive
Single 600W Power Supply
Tower 5U Form Factor

Step 2: Choose Required Options (Select only one option from each category unless otherwise noted)
Processors For single processor configuration choose:
X3.0/800-1M ML150G2 FIO
NOTE: If 2 processors are desired, select one 371542-B21and one 371542-B21
371542-B21
Base Memory 512 MB Advanced ECC PC2700 DDR SDRAM DIMM Kit (1 x 512 MB)
1 GB Advanced ECC PC2700 DDR SDRAM DIMM Kit (1 x 1024 MB)
2 GB Advanced ECC PC2700 DDR SDRAM DIMM Kit (1 x 2048 MB)
Optical Drives 48X CD-ROM Kit
377998-B21
CD-RW/DVD-ROM Combo Drive Option Kit
HP DVD±RW 16X Half Height CBT Drive ALL

Step 3: Choose Additional Factory Integratable Options
Base Hard DrivesSATA - Hot Plug HDD (SATA Models Only)
HP 500GB 1.5G SATA 7.2K 3.5" HDD
HP 250GB 1.5G SATA 7.2K 3.5" HDD
HP 160GB 1.5G SATA 7.2K 3.5" HDD
HP 80GB 1.5G SATA 7.2K 3.5" HDD
Ultra320 SCSI - Hot Plug
HP 146GB U320 10K Universal HDD ML150G2
HP 72GB U320 10 K Universal HDD ML150G2
HP 36GB U320 15K Universal HDD ML150G2
Ultra320 SCSI - Non-hot Plug
HP 146GB U320 10K NHP HDD
HP 72GB U320 10K NHP HDD
HP 36GB U320 15K NHP HDD
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models      ML150 G2 Options      ML150 G2 Memory      Storage      Power Specifications      ML150 G2 QuickSpecs images/line.gif

Options

NOTE: Some options may not be factory integratable. Please contact your local sales representative for additional information.
Processors Intel Xeon 2.8 GHz /800MHz-1MB Processor Option Kit for ML150G2
371541-B21
Intel Xeon 3.0 GHz /800MHz-1MB Processor Option Kit for ML150G2
371542-B21
Intel Xeon 3.2 GHz /800MHz-1MB Processor Option Kit for ML150G2
371543-B21

Memory 512 MB Advanced ECC PC2700 DDR SDRAM DIMM Kit (1 x 512 MB)
1 GB Advanced ECC PC2700 DDR SDRAM DIMM Kit (1 x 1024 MB)
2 GB Advanced ECC PC2700 DDR SDRAM DIMM Kit (1 x 2048 MB)

Optical Drives CD-RW/DVD-ROM Combo Drive Option Kit
HP DVD±RW 16X Half Height CBT Drive

Hard DrivesSATA - Hot Plug HDD (SATA Models Only)
HP 500GB 1.5G SATA 7.2K 3.5" HDD
HP 250GB 1.5G SATA 7.2K 3.5" HDD
HP 160GB 1.5G SATA 7.2K 3.5" HDD
HP 80GB 1.5G SATA 7.2K 3.5" HDD
Ultra320 SCSI - Hot Plug
HP 146GB U320 10K Universal HDD ML150G2
HP 72GB U320 10 K Universal HDD ML150G2
HP 36GB U320 15K Universal HDD ML150G2
Ultra320 SCSI - Non-hot Plug
HP 146GB U320 10K NHP HDD
HP 72GB U320 10K NHP HDD
HP 36GB U320 15K NHP HDD

160GB External HDD HP External Backup Solution by Seagate
372914-001

Storage Controllers HP SC44Ge Host Bus Adapter
64-Bit/133MHz Single Channel Ultra320 SCSI HBA
HP PL100 SCSI RAID Controller
HP 6-Port SATA RAID Controller
2 Port SATA RAID Cable Kit for ML150G2
379093-B21
NOTE: 2 Port SATA RAID Cable Kit (P/N: 379093-B21) required when using the HP 6-Port SATA RAID controller (P/N: 372953-B21 372953-B21) and supporting more than 4 SATA hard disk drives.

Communications HP NC110T PCI Express Gigabit Server Adapter
HP NC150T PCI 4-port Gigabit 1000T Combo Switch Adapter
HP NC340T PCI-X Quad Gigabit Server Adapter
HP NC360T PCI Express Dual Port Gigabit Server Adapter

Remote Management HP ProLiant ML150 G2 Lights-Out 100 Remote Management Card
373043-B21

Tape Drives NOTE: A separate SCSI Controller is required for connecting SCSI tape drives to this server.
DAT Tape Drives
HP StorageWorks DAT 40 SCSI Internal Tape Drive (Carbon)
HP StorageWorks DAT 72 SCSI Internal Tape Drive (Carbon)
Q1522B
USB Tape Drives
HP StorageWorks DAT 24 USB Internal Tape Drive (Carbonite)
DW069A
HP StorageWorks DAT 40 USB Internal Tape Drive (Carbonite)
DW022A
HP StorageWorks DAT 72 USB Internal Tape Drive (Carbonite)
DW026A
NOTE: For the complete listing of Tape Drive offerings for this server, please visit:
https://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

HP Data Protector Express SoftwareHP DP Express Backup Server Upgrade for ProLiant Software
BB117AP
HP DP Express Package for Microsoft Small Business Server
BB118AA
NOTE: Please see the HP Data Protector Express QuickSpecs for additional information regarding the purchase of HP Data Protector Express software: https://h18000.www1.hp.com/products/quickspecs/12337_na/12337_na.html
NOTE: To obtain a free licensed copy of HP Data Protector Express for ProLiant edition software, please visit the "Protect Your Data" link accessible from your ProLiant server's System Management Homepage (SMH) software (SmartStart 7.5 or later).

Uninterruptible Power Systems - Tower Supply HP T750 UPS, Low Voltage
378439-D71

Installation of Server into RacksMonitor/Utility Shelf (68 kg capacity)
100Kg/220Lbs Sliding shelf (Graphite)
NOTE: When using the100Kg/220Lbs Sliding shelf, install Stabilizer Kit for 5642 rack (PN 374493-B21).
Stabilizer Kit for 5642 rack (Graphite Carbon)
NOTE: The stabilizing kit is used to prevent rack from tipping over.
374493-B21
600mm G2 Stabilizer Option Kit (Graphite)
NOTE: When using the100Kg/220Lbs Sliding shelf, install 600mm Stabilizer Kit for 10622, 10636 and 10642 racks.
AF062A
800mm Stabilizer Option Kit (Graphite)
NOTE: When using the100Kg/220Lbs Sliding shelf, install 800mm Stabilizer Kit for 10842 racks.
NOTE: Users wishing to place the ML150 G2 into a rack may also utilize the ML150 G2 rack kit from Rack Solutions to support both 2- and 4-post racks. https://www.racksolutions.com/hp

HP Serial Console Server Options HP 16-Port Serial Console Server
HP 48-Port Serial Console Server
Serial Adapter, RJ45-DB9 DCE Female, 1 Pack
Serial Adapter, RJ45-DB9 DCE Female, 8 Pack
AF110A
NOTE: For additional information regarding HP KVM Switches and options, please see the following URL: https://www.hp.com/go/kvm.

USB Options HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver)
HP USB 04 Standard Keyboard
DT528A#ABA
USB 2.0 4-port HUB
DG954A
HP 1GB Drive Key II- USB 2.0 Flash Drive
AG382AA
HP 512MB DriveKey II- USB Flash Drive
ED516AA

Service and Support Offerings (HP Care Pack Services) Hardware Services 4-Hour On-site Service
13-Hour x 5-Day Coverage, 3 Years, Electronic
U8192E
24-Hour x 7-Day Coverage, 3 Years, Electronic
U8193E
Hardware Services Next Business Day On-Site Service
9-Hour x 5-Day Coverage, 3 Years, Electronic
U8184E
Hardware Installation, Electronic
U8195E
NOTE: For more information, customer/resellers can contact https://www.hp.com/services/carepack.
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models      ML150 G2 Options      ML150 G2 Memory      Storage      Power Specifications      ML150 G2 QuickSpecs images/line.gif

Memory

HP ProLiant ML150 Generation 2 Server
Standard Memory
512 MB of PC2700 DDR SDRAM (333MHz)
Standard Memory Plus Optional Memory
Up to 5120 MB memory is available with the optional installation of PC2700 Registered ECC DDR SDRAM DIMM Memory kits.
Standard Memory Replaced with Optional Memory
Up to 8192 MB of memory is available with the removal of the standard 512-MB of memory and the optional installation of PC2700 Registered ECC DDR SDRAM DIMM Memory kits.

NOTE: Charts do not represent all possible memory configurations. Memory must be populated in one of the following ways: Slot 1 only; slots 1 and 2 only (pairs must be of the same size); or slots 1, 2, 3, and 4 (pairs must be of the same size and in the example below with slots 1 and 2 the same and slots 3 and 4 the same)
ML150 G2 Memory
Slot

1
2
3
4
Standard
512 MB
Empty
Empty
Empty
512 MB
Optional
5120 MB
2048 MB
2048 MB
512 MB
512 MB
Maximum
8192 MB
2048 MB
2048 MB
2048 MB
2048 MB
Following are memory options available from HP:
1024 MB Advanced ECC PC2700 DDR SDRAM DIMM Memory Kit (1 x 1 GB)
2048 MB Advanced ECC PC2700 DDR SDRAM DIMM Memory Kit (1 x 2 GB)
512 MB Advanced ECC PC2700 DDR SDRAM DIMM Memory Kit (1 x 512 MB)
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models      ML150 G2 Options      ML150 G2 Memory      Storage      Power Specifications      ML150 G2 QuickSpecs images/line.gif

Storage

Hot Plug SCSI Model
A
48x IDE CD-ROM
B
Removable Media Bay (1.6" each)
C 1.44 MB Diskette Drive
1, 2, 3, 4, 5, 6 Six Hot Plug SCSI Drive Bays

Non-Hot Plug SCSI Model
A
48x IDE CD-ROM
B
Removable Media Bay (1.6" each)
C 1.44 MB Diskette Drive
1, 2, 3, 4, 5, 6 Six Non Hot Plug SCSI Drive Bays

Hot Plug SATA Model
A
48x IDE CD-ROM
B
Removable Media Bay (1.6" each)
C 1.44 MB Diskette Drive
1, 2, 3, 4, 5, 6 Six Hot Plug SATA Drive Bays
Drive Support
  Quantity
Supported
Position
Supported

Controller
Removable Media
1.44-MB Diskette Drive Up to 1 C Integrated IDE (ATAPI)
IDE CD-ROM Drive Up to 2 A or B Integrated IDE
48X Combo Drive Option Kit Up to 2 A or B Integrated IDE (ATAPI)

ML150 G2 Hard Drives (SCSI Models only)
Ultra320 SCSI
  Quantity
Supported
Position
Supported

Controller

36GB
72GB
146GB
Up to 61,2,3,4,5,6 Slot based Single Channel Ultra3 SCSI Adapter (SCSI Models) o Optional SCSI RAID Controller

ML150 G2 Hard Drives (SATA Models with optional HP 6-Port SATA RAID Controller)
7,200 rpm SATA
  Quantity
Supported
Position
Supported

Controller

80GB
160GB
250GB
500GB
Up to 61,2,3,4,5,6 Optional HP 6-Port SATA RAID Controller

ML150 G2 Hard Drives (SATA Models)
7,200 rpm SATA
  Quantity
Supported
Position
Supported

Controller

80GB
160GB
250GB
500GB
Up to 41,2,3,4 Slot based 4 port SATA Adapter (SATA Models)

Maximum Storage Capacity - SCSI Models
Internal 880GB (6 x 146GB SCSI hard drives)
Total880GB (6 x 146GB SCSI hard drives)
Maximum Storage Capacity - SATA Models
Internal 2TB (4 x 500GB SATA drives) or 3TB (6 X 500GB SATA drives) with optional HP 6-Port SATA RAID Controller
Total 2TB (4 x 500GB SATA drives) or 3TB (6 X 500GB SATA drives) with optional HP 6-Port SATA RAID Controller

Tape Drives
NOTE: A SCSI controller needs to be purchased to operate internal SCSI devices in the SATA and Hot Plug SCSI Model.
NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:
https://h18000.www1.hp.com/products/quickspecs/North_America/10233.html

Quantity
Supported
Position
Supported

Optional Controller
HP StorageWorks Tape Drives, USB Internal
DAT 24 USB
DAT 40 USB
DAT 72 USB
1
B
Embedded USB 2.0 port
HP StorageWorks Tape Drives, USB External
DAT 24 USB
DAT 40 USB
DAT 72 USB
1 per USB port
External
USB 2.0 port
HP StorageWorks Tape Drives, Internal
DAT 24
DAT 40
DAT 72
1
B
64-Bit/133MHz Single Channel Ultra320 SCSI HBA ALL
HP StorageWorks Tape Drives, External
DAT 24
DAT 40
DAT 72
1
External
64-Bit/133MHz Single Channel Ultra320 SCSI HBA ALL
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models      ML150 G2 Options      ML150 G2 Memory      Storage      Power Specifications      ML150 G2 QuickSpecs images/line.gif

Power Specifications

Part Number
372986-001
Spare Kit
372783-001
Operational Input Voltage Range (Vrms)90 to 135 and 180 to 264 V ac full ranging
Frequency Range (Nominal)
(Hz)
47 to 63 Hz
Nominal Input Voltage (Vrms)
100
115
208
220
230
240
Max Rated Output Wattage Rating
600
600
600
600
600
600
Nominal Input Current (A rms)
10
10
5
5
5
5
Max Rated Input Wattage Rating (Watts)
800
800
750
750
750
750
Max. Rated VA (Volt-Amp)
800
800
780
780
780
780
Efficiency (%)
75
77
79
80
80
80
Power Factor
0.95
0.95
0.9
0.9
0.9
0.9
Leakage Current (mA)
3.5mA
3.5mA
3.5mA
3.5mA
3.5mA
3.5mA
Maximum Inrush Current (A peak)
50
50
50
50
50
50
Maximum Inrush Current duration (mS)
3
3
3
3
3
3
System Specifications

Power**
HP ProLiant ML150 G2 Fully Configured
(see**)
Fully Loaded System Input Wattage (W)
420W
Fully Loaded System Input Current (A rms)
5A @ 115V, 2.5A @ 230V
Fully Loaded System Thermal (BTU- Hr)r)
1435 BTU
Fully Loaded System VA (Volt-Amp)
420
System Leakage with all power supplies loaded (mA)
3.5mA
System Inrush Current with all power supplies loaded (A)
50A
Power cord requirements
Nema 5-15P to IEC320-C13
IEC320-C13 to IEC320-C14
**Power shown is for a fully configured system consisting of
  (2) CPU
(4) double-sided DIMMs
(6) HDDs SCSI
(1) CD-ROM
(0) DVD-ROM
(1) 1.44MB Diskette Drive
(1) PCI express
(1) PCI
(3) PCI X
(1) 600 watts power supply

Power Cord Part Number
  121565-001
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models      ML150 G2 Options      ML150 G2 Memory      Storage      Power Specifications      ML150 G2 QuickSpecs images/line.gif

Quickspecs

System Unit Dimensions (HxWxD) (with feet) 17.56 in x 8.03 in x 21.3 in (44.6 x 20.4 x 54.1 cm)
Weight (approximate) 42 lb (17 kg)
Input Requirements
(per power supply)
Range Input Voltage 90 to 135 VAC/180 to 265 VAC
Normal Line Voltage 100 to 120/200 to 240 VAC
Line Frequency 50 to 60 Hz
Rated Input Current load 8A at 115VAC, 4A at 230VAC
BTU Rating 1907 BTU
SCSI Connectors
(SCSI Models only)
One internal LVD/SE connector for U320 devices
Power Supply Output Power (per power supply) Rated Steady-State Power 600W
Maximum Peak Power 660W
Temperature Range Operating 50° to 93° F (10° to 35° C)
Shipping -40° to 150° F (-40° to 66° C)
Relative Humidity
(non-condensing)
Operating 20% to 80%
Non-operating 5% to 90%
Acoustic Noise   Idle (Fixed Disk Drives Spinning)
L WAd (BELS)
5.8
Operating (Random Seeks to Fixed Disks)
L WAd (BELS)
6.0
*NOTE: All temperature ratings shown are for sea level. An altitude derating of 1° C per 304.8 m (1.8°F per 1,000 ft) to 3048 m (10,000 ft) is applicable. No direct sunlight allowed. Upper operating limit is 3,048m (10,000 ft) or 70 Kpa/10.1 psia. Upper non-operating limit is 9,144 m (30,000 ft) or 30.3KPa/4.4 psia. System performance may be reduced if operating with a fan fault or above 30C.
**NOTE: Storage maximum humidity of 90% is based on a maximum temperature of 45° C (113° F).
Altitude maximum for storage corresponds to a pressure minimum of 70 KPa.

Non-Hot Plug
Ultra320 SCSI Hard Drives
36.4-GB Ultra320 SCSI 15,000 rpm Hard Drive
332751-B21 332751-B21
Capacity36,419.2 MB
Height
1 in (2.54 cm)
Width
4 in (10.16 cm)
Interface
Ultra320 SCSI
Transfer Rate Synchronous
(Maximum)
320 MB/s
Seek Time (typical reads, including settling)Single Track0.4 ms
Average3.8 ms
Full-Stroke8 ms
Rotational Speed15,000 rpm

Physical Configuration

Bytes/Sector512
Logical Blocks71,132,000
Operating Temperature50° to 95° F (10° to 35° C)

48X Max IDE (ATAPI) CD-ROM Drive Disk Applicable Disk CD-ROM, CD-XA, CD-DA
(Mode 1, Mode 2, Form 1 and 2)
Photo CD (Single and Multi-session)
Mixed Mode (Audio and Data combined)
CD-R
Capacity 540 MB (Mode 1, 12 cm)
650 MB (Mode 2, 12 cm)
Block Size Mode 1 2,048 bytes
Mode 2 2,340 bytes, 2,336 bytes
CD-DA 2,352 bytes
CD-XA 2,328 bytes
Interface
IDE (ATAPI)

Access Times (typical) Random
<100 ms
  Full-Stroke <150 ms
Data Transfer Rate Sustained
3000 to 7750 KB/s (20X to 48X)
Burst
150 KBps to 7,200 KBps
Bus Rate 16.7 MBp
Cache Buffer 128 KB

Start-up Time (typical) < 7 seconds

Stop Time < 4 seconds

Laser Parameters Type
Semiconductor Laser GaA1As
Wave Length 780 ± 25 nm
Operating Conditions Temperature
41° to 113° F (5° to 45° C)
Humidity
10% to 80%
Dimensions
(HxWxD, maximum)
1.7 x 5.85 x 8.11 in (42.9 x 150 x 208 cm)
  Weight 2.09 lb (0.95 kg)

Slot based Single Channel Ultra3 SCSI Adapter (SCSI Models only) Drives Supported
Up to 16 SCSI devices Wide
Data Transfer Method
64-bit 66-MHz PCI-X bus-master
SCSI Channel Transfer Rate
320 MB/s per channel
Maximum Transfer Rate per PCI Bus (peak)
267 MB/s per channel
SCSI Protocols Wide Ultra4 SCSI, Wide Ultra2 SCSI, Wide Ultra SCSI-3, Fast-Wide SCSI-2, and Fast SCSI-2
Fast SCSI-2
Electrical Protocol
Low Voltage Differential (LVD)
SCSI Termination
Active Termination
External SCSI Connectors None

Slot based 4 port SATA controller (SATA Model Only) SATA Protocol
SATA 1.5Gb/s
SATA Ports
4 internal
Port transfer rate
1.5 Gb/s total
Drives Supported
Up to 4 SATA HDDs
Data Transfer Method 32-bit/66-MHz PCI-X bus-master
Storage Capacity
up to 1TB (4x 250GB hot plug 1" SATA HDD)
PCI
3.3 volt PCI slot compatibility only

Broadcom 5721 PCI-Express Gigabit NIC (embedded) 10/100/1000 WOL (Wake on LAN) Network Interface
Ethernet Standards: IEEE 802.3, 802.3u, 802.3ad, and 802.3ab, 802.1x, 802.1Q and 802.1p
Data Transfer Method
PCI Express
Network Transfer Rate
10/100/1000 Mbps, Half- and full-duplex Auto-negotiated speeds of 10/100/1000 Mbps in both half and full duplex
Connector
RJ-45 connector
Cable Support Category 5 or higher UTP wiring

Sillworks                  Ph: 1.613.599.1287                  Fax: 1.613.599.8120
U320 | SSD | SAS/SATA | Fibre | Memory | Controllers | Processors | Power Supplies | Networking
line
Dell | EqualLogic | EMC | Hewlett-Packard | IBM | Seagate
line
HP      HP      HP      Dell Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account Dell      Dell      Dell      Seagate
Terms of Use | Legal | Privacy | Primary Site | Contact us | Add to favorites
Amex Accepted Visa Accepted MasterCard Accepted
