 HPE  Proliant ML310 G3 QuickSpecs Flag US QuickSpecs
Folder-Closed ML310 G3 HDD SSD Folder-Closed ML310 G3 Processors Folder-Closed ML310 G3 Memory
Folder-Closed ML310 G3 Controllers Folder-Closed ML310 G3 Networking Folder-Closed ML310 G3 Power
Folder-Closed ML310 G3 Quickspecs Folder-Closed ML310 G3 Quickspecs Folder-Closed ML310 G3 Options New  Refurb
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML310 G3 Options      ML310 G3 Memory      Storage      ML310 G3 QuickSpecs images/line.gif

Proliant ML310 G3 Overview

HP ProLiant ML310 Generation 3 (G3)

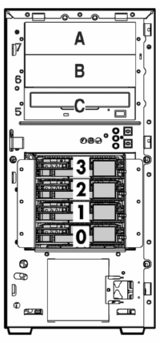

Proliant ML310 G3 Server Image

1. Removable Media Bays 5. Processor Socket (Intel® Pentium® D or Pentium® 4)
2. 48x IDE (ATAPI) CD-ROM 6. Four DIMM Sockets for up to 8GB DDR2 memory
3. Four Hot-Plug Drive Bays 7. System Fan
4. Four Expansion Slots (Two PCI-X, Two PCI Express) 8. 370W Power Supply

What's New
  • Support for Dual-core Intel® Pentium® D 900 Series processors with 2 x 2M cache

At A Glance

The HP ProLiant ML310 G3 is an affordable, single processor tower server designed to provide the solid network foundation essential to fuel thriving small offices. Dual-core Intel Pentium D or Pentium 4 processing power combines with industry-leading management and essential data protection features for a secure, affordable platform that helps you run your business efficiently.

  • Processors:
    • Supports a single Intel® Pentium® D 800 or 900 Series, Pentium® 4 600 Series, or Celeron D® 300 Series processor
    • 800MHz Front Side Bus (FSB)
      o Intel E7230 Chipset
  • Memory:
    • Up to 8GB of PC2-4200 533MHz unbuffered DDR2 SDRAM with advanced ECC capabilities and optional interleaving
  • Storage Controller:
    • SCSI Models: Single Channel U320 SCSI Adapter in PCI-X slot
    • SATA Models: Four Channel embedded SATA Controller
  • Internal Drive Support:
    • Supports up to four hot plug U320 SCSI, SAS, or SATA hard drives for up to 3TB internal storage
    • SCSI models support U320 SCSI drives
    • SATA models support SAS and SATA hard drives
  • Network Controller:
    • Embedded NC320i PCIe Gigabit Server Adapter
  • Expansion Slots:
    • 4 Total: (2) PCI-X 64-bit/100MHz; (2) PCI Express
  • USB 2.0 Ports:
    • 5 Total: 2 front; 2 rear accessible ports; 1 internal
  • Management:
    • Integrated Lights-Out 2 (iLO 2) management controller
    • ROM Based Setup Utility (RBSU) and PXE support
  • Form Factor:
    • 5U Tower
    • Optional Tower-to-Rack Enabling Kit available
  • Warranty:
    • Protected by HP Services and a worldwide network of resellers and service providers. One year, Next Business Day, on-site limited global warranty
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML310 G3 Options      ML310 G3 Memory      Storage      ML310 G3 QuickSpecs images/line.gif

Standard Features

Processor
One of the following
Dual-core Intel® Pentium® D 940 (3.2 GHz/800 - 2 x 2MB L2)
NOTE: See "Configuration Information - Factory Integrated Models" section
Dual-core Intel® Pentium® D 930 (3.0 GHz/800 - 2 x 2MB L2)
Dual-core Intel® Pentium® D 920 (2.8 GHz/800 - 2 x 2MB L2)
NOTE: See "Configuration Information - Factory Integrated Models" section
Intel® Pentium® 4 650 (3.4 GHz/800 - 2M L2)
Intel® Pentium® 4 640 (3.2 GHz/800 - 2M L2)
Intel® Pentium® 4 630 (3.0 GHz/800 - 2M L2)
NOTE: See "Configuration Information - Factory Integrated Models" section
Intel® Celeron D® 331 (2.66 GHz/533 - 256KB L2)

Cache Memory
One of the following depending on Model
Integrated 2 x 2MB level 2 ECC cache (Pentium D 900 Series models)
Integrated 2 x 1MB level 2 ECC cache (Pentium D 800 Series models)
Integrated 2MB level 2 ECC cache (Pentium 4 models)
Integrated 256KB level 2 ECC cache (Celeron D models)

Memory Protection Advanced ECC

ML310 G3 Memory Type PC2-4200 unbuffered DDR2 SDRAM (533MHz)
Standard 512 MB (1 x 512 MB)
Maximum 8 GB

Network Controller Embedded NC320i PCIe Gigabit Server Adapter

Expansion Slots
Slot Number
Bus Speed
Maximum Card Length
Hot Plug
Connector Type
4
PCI Express x4
12.3
No
x8
3
64-bit/100MHz PCI-X
12.3
No
3.3V
2
64-bit/100MHz PCI-X
12.3
No
3.3V
1
PCI Express x1
12.3
No
x1

Storage Controllers
One of the following depending on Model
The HP ProLiant ML310 G3 offers both SCSI and Serial models. SCSI models support U320 SCSI hard drives. Serial models support Serial Attached SCSI (SAS) and Serial ATA (SATA) hard drives. Use of SAS hard drives in Serial models requires installation of a SAS controller or HBA.
Single Channel Ultra320 SCSI Adapter (in PCI-X slot) (SCSI Models)
Integrated four port SATA controller with integrated SATA RAID 0, 1 (SATA Models)
NOTE: Use of the embedded SATA RAID feature requires installation of a driver from a floppy drive. The supported floppy drive can be a USB floppy drive, half-height internal floppy drive, or virtual floppy via Integrated Lights-Out 2 (iLO 2).
NOTE: See the "Storage" section of these QuickSpecs for information on controllers and cables required to support SATA and SAS hard drive configurations

StorageOptical Drive48x IDE (ATAPI) CD-ROM Drive
Diskette DriveOptional 1.44 MB Diskette Drive
NOTE: A diskette device is required to configure the embedded SATA RAID feature.

Maximum Internal Storage Hot Plug SCSI
1.2TB 4 x 300GB U320 SCSI
Hot Plug SAS (3.5")
1.2TB
4 x 300GB SAS
Hot Plug SATA (3.5")
3.0TB 4 x 750GB SATA
NOTE: See the "Storage" section of these QuickSpecs for information on controllers and cables required to support SATA and SAS hard drive configurations

InterfacesParallel1
Serial1 (Optional second serial port available)
Pointing Device (Mouse)1
Graphics1
Keyboard1
USB 2.0 Ports 5 total: 2 front; 2 rear; 1 internal
NOTE: Please see the following URL for additional information regarding USB support:
https://h18004.www1.hp.com/products/servers/platforms/usb-support.html.
Dedicated USB 1 (available for USB tape connectivity)
Network RJ-45 (Ethernet)1
iLO 2 Remote Management port1

Graphics Integrated ATI ES1000 Video Controller with 16-MB SDRAM Video Memory

Form Factor 5U Tower
Optional Tower-to-Rack Enabling Kit available

ProLiant Essentials Foundation Pack Software

HP Systems Insight Manager HP Systems Insight Manager (HP SIM) provides a unified, secure and extensible environment to centrally manage servers, storage and other infrastructure devices across multiple operating system platforms.

Through a single management view, HP SIM provides core management services that include device discovery and identification, event views, health monitoring, inventory data collection, software version control and reporting. HP SIM is built on industry standards and is extensible with value-added ProLiant Essentials, Integrity Essentials and Storage Essentials software to meet individual management needs. For more details on HP SIM visit https://www.hp.com/go/hpsim.

HP SIM provides organizations with the following benefits:

  • Simplifies and consolidates infrastructure lifecycle management using task and query based functionality
  • Provides the foundation for infrastructure automation and virtualization
  • Enables IT management based on business processes not hardware platforms
  • Lowers infrastructure maintenance cost and frees resources for innovation
  • Maximizes resource utilization with virtualization technologies
  • Provides a central point of integration between infrastructure and Enterprise management tools such as HP OpenView
Insight Management Agents Insight Management Agents should be installed on all HP servers to present system instrumentation, health and configuration information into HP Systems Insight Manager and the HP System Management Homepage. The HP System Management Homepage aggregates systems data from Insight Management Agents and other HP management tools, providing a consolidated browser-based interface for managing individual servers.

Insight Management Agents and The HP System Management Homepage are included on ProLiant Support Packs, and can also be installed using the server profiles provided with the ProLiant Essentials Rapid Deployment Pack. For additional information about the Management Agents and the HP System Management Homepage please visit the management Web site at https://www.hp.com/servers/manage.

SmartStartSmartStart is a tool that simplifies server setup, providing a rapid way to deploy consistent server configurations. For more information, please visit the SmartStart Web site at https://www.hp.com/servers/manage.
Latest SmartStart version supported: SmartStart 7.5
Minimum SmartStart version supported: SmartStart 7.4
Subscriber's ChoiceSubscriber's Choice Driver and Support Alerts/Notifications is a web-based email subscription service that provides automatic delivery of software and driver change notifications for ProLiant products. Sign up at https://www.hp.com/go/subscriberschoice and customize your profile to receive various new alerts as they become available, on a weekly or monthly basis.
ROMPaq, support software, and configuration utilitiesThe latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options available in SmartStart or downloadable from Software and Drivers download pages, linked from the SmartStart website at https://www.hp.com/servers/smartstart.
Integrated Lights-Out 2 Standard (iLO 2)Standard remote management functionality that enables remote control of system power and access to the system serial console and event logs regardless of server status. Firmware preinstalled on servers. Also, updates downloadable from the Software and Drivers web pages and on the ProLiant Software Maintenance Pack.
Survey Utility and diagnostics utilitiesThe most advanced configuration analysis, reporting and troubleshooting utilities used by HP and at your fingertips, available in SmartStart.
Optional ProLiant Essentials Value Packs

Optional software offerings that selectively extend the functionality of an Adaptive Infrastructure to address specific business problems and needs:

  • Intelligent Networking Pack - detects and analyzes network bottlenecks or broken network linkages and steers traffic to the optimum route based on network conditions, plus it provides an extra layer of protection. The virus throttle feature of the solution slows the propagation of fast spreading virus.
  • Vulnerability and Patch Management Pack - identifies and remediates software security vulnerabilities due to missing patches as well operating system configurations that can be exploited by viruses, worms, and other blended threats.
  • Virtual Machine Management Pack - provides central management and control of virtual machines from Microsoft and VMware. Integrated approach provides the ability to manage both physical and virtual resources from a single management console.
  • Server Migration Pack - The Server Migration Pack automates the manual processes required for migrating servers between physical or virtual platforms (P2V, V2P, and V2V).
Optional Remote Management Packs
  • Integrated Lights-Out Advanced Pack - upgrades the Integrated Lights-Out processor to full virtual presence and control with graphical console and virtual media.
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to https://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: https://www.hp.com/servers/proliantessentials

Industry Standard Compliance ACPI V1.0b Compliant
PCI 3.0 Compliant
PCI-X 1.0 Compliant
PCI-Express 1.0a Compliant
PXE Support
WOL Support
Microsoft Logo certifications
Novell Logo certifications
USB 2.0

Manageability HP Systems Insight Manager
Online ROM Flash Utility
Automatic Server Recovery-2 (ASR-2)
Drive Parameter Tracking (with Smart Array Controller)
Dynamic Sector Repairing (with Smart Array Controller)
Pre-Failure Warranty (covers processors, memory and SCSI and SAS hard drives)
BIOS Serial Console

Security Power-on password
Setup password
Diskette boot control
Power switch security

Server Power Cords All models ship with one 1.8m (6 foot) standard low-line power cord.

UPS and PDU Power
Cord Matrix
Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and specifications for UPS and PDU units:
ftp://ftp.compaq.com/pub/products/servers/ProLiantstorage/power-protection/powercordmatrix.pdf.

Power Specifications
To review typical system power ratings use the Active Answers Power Calculator at: https://h30099.www3.hp.com/configurator/powercalcs.asp

Power Supply 370 Watt PFC (Power Factor Correcting)

System Fans 1 - Non-hot plug, Non-redundant system fan
NOTE: Does not include fans in CPU heatsink or power supply.

Required Cabling For required cabling information, refer to the Cabling Matrix at
https://h18000.www1.hp.com/products/servers/ProLiantML310/.

OS Support Microsoft Windows Server 2003 (Standard Web Edition)
Microsoft Small Business Server 2003
Microsoft Windows 2000 Server
Novell NetWare
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
SCO OpenServer
NOTE: For a more complete and up-to-date listing of supported OSs and versions, please visit our OS Support Matrix at: https://www.hp.com/go/supportos
NOTE: For an up-to-date listing of the latest drivers available for the HP ProLiant ML310, please see: https://h18023.www1.hp.com/support/files/server/us/index.html.
NOTE: For more Linux OS support & certification information, please visit our the ProLiant & Bladesystem Server Linux matrix https://h18004.www1.hp.com/products/servers/linux/hpLinuxcert.html
NOTE: For more complete and up-to-date information on how to buy server operating systems from HP please visit the OS product site at: https://h18004.www1.hp.com/products/servers/software/OEM.html
NOTE: For more information on HP's Certified and Supported ProLiant Servers, please visit the VMware Server Support Matrix at: https://h18004.www1.hp.com/products/servers/software/vmware/hpvmwarecert.html

Factory Express Portfolio for Servers and Storage HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to https://www.hp.com/go/factory-express.


Rack and Rack Options

Rack Cabinets:

KVM Switches, Serial Console Servers, Rackmount Monitors, Keyboards:

  • For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: https://www.hp.com/go/kvm.

HP Enterprise Configurator The HP eCo-Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance.

HP ProLiant Smart Buys (NA only)

The HP Smart Buy program offers mainstream business solutions at competitive prices with excellent availability and superior HP quality. It offers a wide range of industry-leading HP products at compelling prices, allowing you to receive richer configurations with additional options.

NOTE: For detailed specification information on ProLiant Smart Buys please click on the following link: ftp://ftp.compaq.com/pub/products/servers/smartbuys.pdf


Service and Support

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of resellers and service providers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Additional support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services or customized service agreements.

NOTE: Server Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support. Additional information regarding worldwide limited warranty and technical support is available at: https://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

HP Care Pack services include coverage for the HP branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as 22" and smaller external monitors and tower UPS options up to 3kVA; these items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included, standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

HP services provide continuous care and support expertise with committed response designed to meet your IT and business needs.

To fully capitalizing on your HP ProLiant servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions provides a range of support services designed to meet the varying needs of business. Whether an SMB or large global corporation HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime.

Enhanced Care - Minimum recommended service support offer designed to ensure customers have access to expert assistance, whenever they need it.

  • 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years

Continuous Care - Recommended service delivering cost-effective support options designed to extend HP Services committed response and guaranteed fix times, designed to speed problem identification and resolution.

  • 6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years

Total Care - Highest HP Support service level recommend to help increase IT performance and availability with comprehensive, integrated hardware and software services

  • Support Plus 24 - Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays

Deployment Services - HP Installation and Start Up services designed to take time, risk, and worry out of the deployment of ProLiant servers - and free customers IT support staff to focus on what they do best, their business.

  • Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays

NOTE: For a complete listing of service offerings and information visit:
https://www.hp.com/services/proliantservices
https://www.hp.com/go/proliant/carepack

contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML310 G3 Options      ML310 G3 Memory      Storage      ML310 G3 QuickSpecs images/line.gif

Models

NOTE: For detailed specification information on ProLiant Smart Buys please click on the following link: ftp://ftp.compaq.com/pub/products/servers/smartbuys.pdf.
Hot Plug SCSI Models

ML310T03 p930 HP-SCSI
410191-001
Processor(s) Dual Core Intel Pentium D 930 (3.0 GHz/800)
Cache Memory 2 x 2MB L2
Memory 512 MB (1 x 512 MB)
Network Controller Embedded NC320i PCIe Gigabit Server Adapter
Storage Controller Single Channel Ultra320 SCSI Adapter (in PCI-X slot)
Hard Drives None ship standard (up to 4 hot plug SCSI drives supported)
Internal Storage 1.2TB maximum hot plug SCSI
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive None ship standard (Optional 1.44 MB Diskette Drive)
Form Factor Tower (5U) (Tower to Rack Enabling Kit available)

ML310T03 p650 HP-SCSI
393459-001
Processor(s) Intel Pentium 4 650 (3.4 GHz/800)
Cache Memory 2MB L2
Memory 512 MB (1 x 512 MB)
Network Controller Embedded NC320i PCIe Gigabit Server Adapter
Storage Controller Single Channel Ultra320 SCSI Adapter (in PCI-X slot)
Hard Drives None ship standard (up to 4 hot plug SCSI drives supported)
Internal Storage 1.2TB maximum hot plug SCSI
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive None ship standard (Optional 1.44 MB Diskette Drive)
Form Factor Tower (5U) (Tower to Rack Enabling Kit available)

ML310T03 p640 HP-SCSI
394320-001
Processor(s) Intel Pentium 4 640 (3.2 GHz/800)
Cache Memory 2MB L2
Memory 512 MB (1 x 512 MB)
Network Controller Embedded NC320i PCIe Gigabit Server Adapter
Storage Controller Single Channel Ultra320 SCSI Adapter (in PCI-X slot)
Hard Drives None ship standard (up to 4 hot plug SCSI drives supported)
Internal Storage 1.2TB maximum hot plug SCSI
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive None ship standard (Optional 1.44 MB Diskette Drive)
Form Factor Tower (5U) (Tower to Rack Enabling Kit available)

Hot Plug Serial Models (SATA/SAS)
NOTE: Embedded controller does not support hot plug nor LED status.

ML310T03 p930 HP-SATA/SAS
410192-001
Processor(s)Dual Core Intel Pentium D 930 (3.0 GHz/800)
Cache Memory 2 x 2MB L2
Memory512 MB (1 x 512 MB)
Network Controller Embedded NC320i PCIe Gigabit Server Adapter
Storage ControllerIntegrated four port SATA controller with integrated SATA RAID 0, 1
NOTE: Use of the embedded SATA RAID feature requires installation of a driver from a floppy drive. The supported floppy drive can be a USB floppy drive,half-height internal floppy drive, or virtual floppy via Integrated Lights-Out 2 (iLO 2).
Hard DrivesNone ship standard (up to 4 hot plug SATA or SAS drives supported)
NOTE: See the "Storage" section of these QuickSpecs for information on controllers and cables required to support SATA or SAS drive configurations
Internal Storage 3.0TB maximum (hot plug SATA)
Optical Drive48x IDE (ATAPI) CD-ROM Drive
Diskette Drive None ship standard (Optional 1.44 MB Diskette Drive)
Form FactorTower (5U) (Tower to Rack Enabling Kit available)

ML310T03 p650 HP-SATA/SAS
393460-001
Processor(s)Intel Pentium 4 650 (3.4 GHz/800)
Cache Memory 2MB L2
Memory512 MB (1 x 512 MB)
Network Controller Embedded NC320i PCIe Gigabit Server Adapter
Storage ControllerIntegrated four port SATA controller with integrated SATA RAID 0, 1
NOTE: Use of the embedded SATA RAID feature requires installation of a driver from a floppy drive. The supported floppy drive can be a USB floppy drive,half-height internal floppy drive, or virtual floppy via Integrated Lights-Out 2 (iLO 2).
Hard DrivesNone ship standard (up to 4 hot plug SATA or SAS drives supported)
NOTE: See the "Storage" section of these QuickSpecs for information on controllers and cables required to support SATA or SAS drive configurations
Internal Storage 3.0TB maximum (hot plug SATA)
Optical Drive48x IDE (ATAPI) CD-ROM Drive
Diskette Drive None ship standard (Optional 1.44 MB Diskette Drive)
Form FactorTower (5U) (Tower to Rack Enabling Kit available)

ML310T03 p640 HP-SATA/SAS
394321-001
Processor(s)Intel Pentium 4 640 (3.2 GHz/800)
Cache Memory 2MB L2
Memory512 MB (1 x 512 MB)
Network Controller Embedded NC320i PCIe Gigabit Server Adapter
Storage ControllerIntegrated four port SATA controller with integrated SATA RAID 0, 1
NOTE: Use of the embedded SATA RAID feature requires installation of a driver from a floppy drive. The supported floppy drive can be a USB floppy drive,half-height internal floppy drive, or virtual floppy via Integrated Lights-Out 2 (iLO 2).
Hard DrivesNone ship standard (up to 4 hot plug SATA or SAS drives supported)
NOTE: See the "Storage" section of these QuickSpecs for information on controllers and cables required to support SATA or SAS drive configurations
Internal Storage 3.0TB maximum (hot plug SATA)
Optical Drive48x IDE (ATAPI) CD-ROM Drive
Diskette Drive None ship standard (Optional 1.44 MB Diskette Drive)
Form FactorTower (5U) (Tower to Rack Enabling Kit available)
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML310 G3 Options      ML310 G3 Memory      Storage      ML310 G3 QuickSpecs images/line.gif

Configuration Information - Factory Integrated Models

NOTE: All configure-to-order servers must start with a CTO Chassis. Use the following section to order a server customized to your requirements with options integrated at the factory. The options you select in steps 2 and 3 will be integrated with the base configuration you select in step 1. Additional options selected in Step 4 will also be integrated when applicable.
NOTE: Standard models of this product offering (see previous section of this document) do not support HP Factory Express Server Configuration Level 1.
NOTE: FIO indicates that this option only available as a Factory Installable Option.
Step 1: Base Configuration
ModelsHP ProLiant ML310 G3 CTO Chassis HP-SCSI
393494-B21
HP ProLiant ML310 G3 CTO Chassis HP-SATA/SAS
393495-B21
Factory Integrated Models ship with:
Embedded NC320i PCIe Gigabit Server Adapter
Integrated Four Channel SATA Controller (HP-SATA/SAS chassis only)
370 Watts, PFC (Power Factor Correcting)
Keyboard and Mouse

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)
Processors Intel Celeron D 331 (2.66 GHz/533 - 256K cache), FIO
406032-B21
Intel Pentium D 920 (2.8 GHz/800 - 2 x 2MB L2) DC, FIO
410115-B21
Intel Pentium D 930 (3.0 GHz/800 - 2 x 2MB L2) DC, FIO
410116-B21
Intel Pentium D 940 (3.2 GHz/800 - 2 x 2MB L2) DC, FIO
410117-B21
Intel Pentium 4 630 (3.0 GHz/800 - 2M L2), FIO
402051-B21
Intel Pentium 4 640 (3.2 GHz/800 - 2M L2), FIO
402052-B21
Intel Pentium 4 650 (3.4 GHz/800 - 2M L2), FIO
402053-B21
Base Memory
2048 MB Unbuffered Advanced ECC PC2-4200 DDR2 (1 x 2048 MB)
1024 MB Unbuffered Advanced ECC PC2-4200 DDR2 (1 x 1024 MB)
512 MB Unbuffered Advanced ECC PC2-4200 DDR2 (1 x 512 MB)
Optical Drive CD-RW/DVD-ROM Combo Drive Option Kit
16X DVD-ROM Drive Option Kit (Carbon)
HP DVD+R/RW 16X Half Height
Base Hard Drives Hot Plug U320 SCSI Drives
NOTE: For use in Hot Plug SCSI base configurations P/N 393494-B21.
HP 300GB U320 10K Universal HDD
HP 146GB U320 10K Universal HDD
HP 72GB U320 10K Universal HDD
HP 300GB U320 15K Universal HDD
HP 146GB U320 15K Universal HDD
HP 36GB U320 15K Universal HDD
HP 72GB U320 15K Universal HDD
Hot Plug SATA Drives
NOTE: For use in Hot Plug SATA/SAS base configurations P/N 393495-B21.
HP 750GB 1.5G SATA 7.2K 3.5" HDD
HP 500GB 1.5G SATA 7.2K 3.5" HDD
HP 250GB 1.5G SATA 7.2K 3.5" HDD
HP 160GB 1.5G SATA 7.2K 3.5" HDD
HP 80GB 1.5G SATA 7.2K 3.5" HDD
Hot Plug SAS Drives
NOTE: For use in Hot Plug SATA/SAS base configurations P/N 393495-B21.
HP 300GB 3G SAS 15K 3.5" SP HDD
HP 146GB 3G SAS 15K 3.5" SP HDD
HP 72GB 3G SAS 15K 3.5" SP HDD
HP 36GB 3G SAS 15K 3.5" SP HDD

Step 3: Choose Additional Factory Integratable Options
Controllers Ultra320 SCSI HBAs and Controllers
NOTE: A U320 SCSI HBA or Controller is required if SCSI hard drives are selected.

HP U320 SCSI FIO HBA ALL
358700-B21
Smart Array 641 Controller
Smart Array 642 Controller
SAS HBAs and Controllers
NOTE: A SAS HBA or Controller is required if SAS hard drives are selected. SAS HBAs and Controllers support both SAS and SATA hard drives.
HP 8 Internal Port SAS HBA with RAID
HP Smart Array P600/256 BBWC Controller

337972-B21 337972-B21

SATA Controller
HP 6-port SATA RAID Controller
Hard Drive Cables HP 4-port SATA/SAS cable (target fan cable)
NOTE: This cable is required when the HP 6-port SATA RAID controller is installed on hot plug SATA/SAS models of the ML310 G3. See the "Storage" section of these QuickSpecs for information on controllers and cables required to support SATA drive configurations.

389653-B21

Modems Agere 2006 PCI Hi-Speed 56K Sof FIO
NOTE: This part number must be used for factory integration. For field integration (or as an additional "ship along" option) choose EK694AA.
440519-B21

Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Options" section below.
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML310 G3 Options      ML310 G3 Memory      Storage      ML310 G3 QuickSpecs images/line.gif

Options

NOTE: Some options may not be factory configurable. Please contact your local sales representative for additional information.
ProLiant Essentials
Value Pack Software
NOTE: Single Server Licenses are designed for use with a single server. Single Server Licenses contain one license with a unique license activation key and documentation. Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to https://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
ProLiant Essentials Intelligent Networking Pack
ProLiant Essentials Intelligent Networking Pack - Windows Edition, Single Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.

436225-B21

NOTE: For additional ProLiant Intelligent Networking Pack License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12062_na/12062_na.HTML
ProLiant Essentials Intelligent Networking Pack - Linux Edition, Single Server License
436229-B21
NOTE: For additional ProLiant Intelligent Networking Pack License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12327_na/12327_na.HTML
ProLiant Essentials Virtualization Management Software
ProLiant Essentials Virtual Machine Management Pack, Single-Server License
435661-B21
ProLiant Essentials Server Migration Pack, Single-Migration License
NOTE: Contains one license, enabling 1 server migration, with a unique license activation key and documentation.
NOTE: This license allows 1 server to be migrated from a physical server to a virtual machine. Or this license can be used to migrate a virtual machine from one virtualization layer i.e. VMware GSX to a different virtualization layer such as VMware ESX or Microsoft Virtual Server 2005.

435663-B21

NOTE: For additional ProLiant Essentials Virtualization Management Software License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12328_na/12328_na.HTML
ProLiant Essentials Vulnerability and Patch Management Pack
ProLiant Essentials Vulnerability and Patch Management Pack, Single-Server License
NOTE: For additional ProLiant Vulnerability and Patch Management Pack License Kits, please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12111_na/12111_na.HTML
371645-B21
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: https://www.hp.com/servers/proliantessentials.

Remote Management Integrated Lights-Out Advanced Pack
Integrated Lights-Out Advanced Pack, 1 server
Featuring: Sophisticated virtual administration features for ultimate control of servers in the data centers and remote sites.

263825-B21 263825-B21

NOTE: For additional Integrated Light-Out Advanced Pack License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/11052_na/11052_na.HTML

Memory
(SDRAM DIMMs)

2048 MB Unbuffered Advanced ECC PC2-4200 DDR2 (1 x 2048 MB)
1024 MB Unbuffered Advanced ECC PC2-4200 DDR2 (1 x 1024 MB)
512 MB Unbuffered Advanced ECC PC2-4200 DDR2 (1 x 512 MB)

Optical Drives



16X DVD-ROM Drive Option Kit (Carbon)
217053-B21 217053-B21
CD-RW/DVD-ROM Combo Drive Option Kit
HP DVD+R/RW 16X Half Height

Diskette Drives 1.44MB Floppy Drive Option Kit
379257-B21

Serial Port Kit HP ProLiant Second Serial port option kit
390390-B21

ML310 G3 Hard Drives Ultra320 - Universal Hot Plug (SCSI Hot Plug Models Only)
HP 300GB U320 10K Universal HDD
HP 146GB U320 10K Universal HDD
HP 72GB U320 10K Universal HDD
HP 300GB U320 15K Universal HDD
HP 146GB U320 15K Universal HDD
HP 72GB U320 15K Universal HDD
HP 36GB U320 15K Universal HDD

NOTE: Please see the Ultra320 Universal Hot Plug QuickSpecs for additional technical information on the hard drives Support details, please see the following:
https://h18000.www1.hp.com/products/quickspecs/11531_na/11531_na.HTML

Serial-Attached SCSI (SAS) Hot Plug Hard Drive (SATA/SAS Hot Plug Models Only)
HP 300GB 3G SAS 15K 3.5" SP HDD
HP 146GB 3G SAS 15K 3.5" SP HDD
HP 72GB 3G SAS 15K 3.5" SP HDD
HP 36GB 3G SAS 15K 3.5" SP HDD
Serial-ATA (SATA) Hot Plug Hard Drive (SATA/SAS Hot Plug Models Only)
HP 750GB 1.5G SATA 7.2K 3.5" HDD
HP 500GB 1.5G SATA 7.2K 3.5" HDD
HP 250GB 1.5G SATA 7.2K 3.5" HDD
HP 160GB 1.5G SATA 7.2K 3.5" HDD
HP 80GB 1.5G SATA 7.2K 3.5" HDD
NOTE: Please see the Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:
https://h18000.www1.hp.com/products/quickspecs/11940_na/11940_na.HTML

Hard Drive Cables HP 4-port SATA/SAS cable (target fan cable)
389653-B21
NOTE: This cable is required when the HP 6-port SATA RAID controller is installed on hot plug SATA/SAS models of the ML310 G2. See the "Storage" section of these QuickSpecs for information on controllers and cables required to support SATA drive configurations.

Storage Controllers

SCSI Controllers

NOTE: The following Storage Controllers are qualified for SCSI drives only. They do not support SATA or SAS Drives.
NOTE: In compliance with the European Union's Reduction of Hazardous Substances (RoHS) initiative, the Smart Array 641, 642, 6402, and 6404 RAID controllers will not be installed in ProLiant ML310 G3 servers sold on or after July 1, 2006. Installation of these options into the ProLiant ML310 G3 would create a non-compliant server configuration.

Smart Array 6402/128 Controller

Smart Array 6404/256 Controller

Smart Array 641 Controller

Smart Array 642 Controller

128-MB BBWC (Battery-Backed Write Cache) Enabler
NOTE: Supports the Smart Array E200 Controller, Smart Array 641 Controller, and Smart Array 642 Controller.
Ultra320 Expansion Module for SA-6402
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
SCSI HBA
HP SC11Xe Host Bus Adapter
NOTE: Please see the following QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/11587_na/11587_na.HTML (Smart Array 6400 Series)
https://h18000.www1.hp.com/products/quickspecs/12067_na/12067_na.HTML (Smart Array 641)
https://h18000.www1.hp.com/products/quickspecs/12069_na/12069_na.HTML (Smart Array 642)
https://h18000.www1.hp.com/products/quickspecs/11943_na/11943_na.HTML
(Single Channel SCSI HBA)
https://h18000.www1.hp.com/products/quickspecs/12566_na/12566_na.HTML
(SC11Xe HBA)
SAS Controllers
Smart Array E200 Controller
HP Smart Array E200/64MB Controller
HP Smart Array E200/128 BBWC Controller
128-MB BBWC (Battery-Backed Write Cache) Enabler
NOTE: Supports the Smart Array E200 Controller, Smart Array 641 Controller, and Smart Array 642 Controller.
Smart Array P400 Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
Smart Array P400 Battery Attach Kit
NOTE: This option kit contains a 24" battery cable and adhesive material for installing a battery into the server if a Smart Array P400 is integrated outside of the factory. For all solutions, please refer to the server QuickSpecs and User's Manual for detailed installation instructions.
Battery-backed write cache upgrade
NOTE: For Smart Array P400 Controller only.
512MB Battery-backed cache upgrade
NOTE: For Smart Array P400 Controller only.
Smart Array P600 Controller
Smart Array P600/256 BBWC Controller
512MB DDR BBWC Upgrade
NOTE: For Smart Array P600 Controller only.

NOTE: Please see the following QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/12460_na/12460_na.HTML
(Smart Array E200 Controller)
https://h18000.www1.hp.com/products/quickspecs/12400_na/12400_na.HTML
(Smart Array P400 Controller)
https://h18000.www1.hp.com/products/quickspecs/12247_na/12247_na.HTML
(Smart Array P600 Controller)


SAS HBA

HP SC44Ge Host Bus Adapter
HP 8 Internal Port SAS HBA with RAID
NOTE: Please see the HBA QuickSpecs for additional information:
https://h18004.www1.hp.com/products/quickspecs/12617_na/12617_na.html (SC44Ge HBA)
https://h18004.www1.hp.com/products/quickspecs/12332_na/12332_na.html
(8 Internal Port SAS HBA)
SATA Controller
HP 6-port SATA RAID Controller
NOTE: See the "Storage" section of these QuickSpecs for information on controllers and cables required to support SATA drive configurations.
NOTE: Please see the following QuickSpecs for additional information:
https://h18004.www1.hp.com/products/quickspecs/12091_na/12091_na.html
(6-port SATA RAID Controller)
NOTE: In compliance with the European Union's Reduction of Hazardous Substances (RoHS) initiative, the HP 6-port SATA RAID Controller will not be installed in ProLiant ML310 G3 servers sold on or after July 1, 2006. Installation of this option into the ProLiant ML310 G3 would create a non-compliant server configuration.

Communications HP NC110T PCI Express Gigabit Server Adapter
HP NC150T PCI 4-port Gigabit 1000T Combo Switch Adapter
HP NC340T PCI-X 4-port 1000T Gigabit Server Adapter
HP NC360T PCI Express Dual Port Gigabit Server Adapter

NOTE: When either the standard NC7761 or the NC1020 is teamed with other HP NICs, Jumbo Frames and LSO features are automatically disabled.

  2006 Agere PCI high-speed international soft modem
EK694AA

Tape Drives

NOTE: For the complete listing of Tape Drive offerings for this server, please visit:
https://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

For recommended tape drive offerings for this ProLiant server see the following:

USB Tape Drives
HP StorageWorks DAT 40 USB Internal Tape Drive (Carbonite)
DW022A
HP StorageWorks DAT 72 USB Internal Tape Drive (Carbonite)
DW026A
Internal and Rack-Mount Ultrium Tape Drives
HP StorageWorks Ultrium 232 Internal Tape Drive (Carbonite)
HP StorageWorks Ultrium 448 Internal Tape Drive (Carbonite)
DW016A
HP StorageWorks 1U Rack-mount kit with one Ultrium 448 (Carbonite)
DW028B
NOTE: Please see the HP StorageWorks Ultrium Tape Drive QuickSpecs for additional options such as controllers, media, and other related items:
https://h18006.www1.hp.com/products/quickspecs/11739_na/11739_na.html
(Worldwide)
For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit: https://www.hp.com/go/connect.
Internal DAT Drives
HP StorageWorks DAT 72 SCSI Internal Tape Drive (Carbon)
Q1522B
NOTE: Please see the DAT Tape Drive QuickSpecs for controllers, media, and other options:
https://h18000.www1.hp.com/products/quickspecs/11883_na/11883_na.HTML
https://h18006.www1.hp.com/products/quickspecs/12128_na/12128_na.html
For an up-to-date listing of the latest O/S and software support details for HP DAT drives, please visit: https://www.hp.com/go/connect.
Rack-Mount Tape Drive Enclosures
HP StorageWorks 1U SCSI Rack-Mount kit
NOTE: The 1U Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with multiple Single-Ended and LVD SCSI tape drives including the DAT 24, DAT 40, DAT 72, DLT VS80, DLT VS160, Ultrium 215, Ultrium 232, Ultrium 448 and Ultrium 920 tape drives.
HP StorageWorks 1U USB Rack-Mount Kit
NOTE: The 1U USB Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with the DAT 24 USB, DAT 40 USB and DAT 72 USB tape drives.
HP StorageWorks 3U Rack-mount kit
NOTE: The 3U Rack-mount Kit can support up to (2) full-height or (4) half-height tape drives and compatible with multiple LVD SCSI tape drives including DAT 40, DAT 72, DLT VS160, SDLT 320, SDLT 600, Ultrium 232, Ultrium 460, Ultrium 448, Ultrium 920 and Ultrium 960 tape drives.
274338-B22
NOTE: Please see the Rack-Mount Tape Drive Kits QuickSpecs for additional information regarding these kits:
https://h18000.www1.hp.com/products/quickspecs/10854_na/10854_na.HTML

Tape Autoloaders
HP StorageWorks DAT Autoloader

HP StorageWorks DAT 72x10 tape autoloader
AE313A
HP StorageWorks 1/8 Tape Autoloader
HP StorageWorks 1/8 Ultrium 920 G2 Tape Autoloader AH165A
HP StorageWorks 1/8 Ultrium 448 G2 Tape Autoloader AH164A
HP StorageWorks 1/8 Ultrium 232 G2 Tape Autoloader AH163A
HP StorageWorks 1/8 G2 Tape Autoloader Rack Kit
NOTE: Required to install the 1/8 G2 Autoloaders in a standard 19-inch rack; includes rails and rackmount instructions
AH166A
NOTE: Please reference the 1/8 Tape Autoloader QuickSpecs at https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at https://www.hp.com/go/ebs

Tape Libraries HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 Ultrium 960 Drive Library
HP StorageWorks MSL2024 1 Ultrium 960 4GB FC Drive Library AG326B
HP StorageWorks MSL2024 1 Ultrium 920 Drive Library AH169A
HP StorageWorks MSL2024 2 Ultrium 920 Drive Library AH170A
HP StorageWorks MSL2024 1 Ultrium 448 Drive Library
HP StorageWorks MSL2024 2 Ultrium 448 Drive Library
HP StorageWorks MSL4048 Tape Library
HP StorageWorks MSL4048 1 Ultrium 448 Drive Library AG320A
HP StorageWorks MSL4048 2 Ultrium 448 Drive Library AG321A
HP StorageWorks MSL4048 1 Ultrium 920 Drive Library AH171A
HP StorageWorks MSL4048 2 Ultrium 920 Drive Library AH172A
HP StorageWorks MSL4048 1 Ultrium 960 Drive Library AG322A
HP StorageWorks MSL4048 1 Ultrium 960 4GB FC Drive Library AG324B
HP StorageWorks MSL4048 2 Ultrium 960 Drive Library AG323A AG323A
HP StorageWorks MSL4048 2 Ultrium 960 4GB FC Drive Library AG325B
HP StorageWorks MSL6000 Tape Library
Ultrium 960 technology
HP StorageWorks MSL6030 1 Ultrium 960 Dr LVDS Library
AD606B
HP StorageWorks MSL6030 1 Ultrium 960 Dr FC Library
AD608B
HP StorageWorks MSL6030 2 Ultrium 960 Dr LVDS Library
AD607B
HP StorageWorks MSL6030 2 Ultrium 960 Dr FC Library
AD609B
Ultrium 460 technology
HP StorageWorks MSL6030 1 Ultrium 460 Dr LVDS Library
AD598B
HP StorageWorks MSL6030 1 Ultrium 460 Dr FC Library
AD600B
HP StorageWorks MSL6030 2 Ultrium 460 Dr LVDS Library
AD599B
HP StorageWorks MSL6030 2 Ultrium 460 Dr FC Library
AD601B
NOTE: Please reference the MSL2024, MSL4048, and MSL6000 Tape Library QuickSpecs at https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at https://www.hp.com/go/ebs.

HP Data Protector Express SoftwareHP DP Express Backup Server Upgrade for ProLiant Software
BB117AP
HP DP Express Package for Microsoft Small Business ServerBB118AA

NOTE: Please see the HP Data Protector Express QuickSpecs for additional information regarding the purchase of HP Data Protector Express software:
https://h18000.www1.hp.com/products/quickspecs/12337_na/12337_na.html

NOTE: To obtain a free licensed copy of HP Data Protector Express for ProLiant edition software, please visit the "Protect Your Data" link accessible from your ProLiant server's System Management Homepage (SMH) software (SmartStart 7.5 or later).


Uninterruptible Power Systems – Tower Supply

HP T500 UPS 120 V
361475-001
HP T750 UPS, Low Voltage
378439-D71
HP, T1000 UPS
AF403A
HP, T1500 UPS
AF406A
HP, R/T 2200 UPS
AF409A

Rack Kits

ProLiant Rack Enabling Kit (RoHS Compliant)
417705-B21
NOTE: This is a 5U Rack Enabling Kit that supports the HP ProLiant ML110 and HP ProLiant ML310 servers.
NOTE: Support for racks with round or square mounting holes (including all Compaq and HP Rack System /E and HP Systems), with an adjustment range of 24" - 36".


Other Internal to External SCSI Cable Option Kit (HD68)
159547-B22
Internal to External SCSI Cable Option Kit (VHDCI)
333370-B21

USB Options USB Optical Scroll Mouse (Carbonite) DD441B
HP USB 04 Standard Keyboard DT528A#xxx
USB 2.0 4-port HUB DG954A
HP 1GB Drive Key II- USB 2.0 Flash Drive AG382AA
HP 512MB DriveKey II- USB Flash Drive ED516AA

Service and Support Offerings (HP Care Pack Services)
Hardware Services On-site Service
Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic
U4445E
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
U4446E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4447E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4448E
Installation & Start-up Services
Hardware Installation, Electronic
U4456E
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays, Electronic
U4457E
Support Plus
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4458E
Support Plus 24
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4459E
Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic

U6306E

Onsite HW support 24x7, 4hr response and Red Hat ES Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U8328E
NOTE: For more information, customer/resellers can contact https://www.hp.com/services/carepack.
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML310 G3 Options      ML310 G3 Memory      Storage      ML310 G3 QuickSpecs images/line.gif

Memory

NOTE: Memory configurations listed do not apply to "Factory Integrated Models".

HP ProLiant ML310 G3 Models

Standard Memory
All HP ProLiant ML310 G3 models ship with unbuffered, Advanced ECC PC2-4200 DDR2 SDRAM running at 533MHz.
Standard models include a single 512 MB DIMM. Factory Integrated Models include the memory capacity of your choice.

Standard Memory Replaced with Optional Memory
Up to 8 GB memory is available with the optional installation of four 2 GB PC2-4200 Unbuffered Advanced ECC DDR2 SDRAM DIMM kits.



DIMM upgrades do not need to be installed in pairs although installation of pairs (an equal size DIMM for each channel) provides the best performance. The BIOS will detect the DIMM population and initialize the system accordingly as follows:

  • Single-channel mode - DIMMs installed for one channel only
  • Dual-channel asymmetric mode - DIMMs installed for both channels but of unequal channel capacities.
  • Dual-channel interleaved mode (recommended) - DIMMs installed for both channels and offering equal channel capacities, providing the highest performance.

The first DIMM should be installed in Socket 1. A DIMM should not be installed in Socket 2 without a DIMM in Socket 1. Likewise a DIMM should not be installed in Socket 4 without a DIMM in Socket 3. A DIMM need not be installed in Socket 2 in order to install a DIMM in Socket 3.

Table 3-1shows some of the suggested memory configurations for these systems.
NOTE: Table 3-1 does not list all possible configurations. Balanced-capacity, dual-channel loading yields best performance.

Channel A

Channel B

Total

Mode

Socket 1 Socket 2

Socket 3

Socket 4

512 MB

none
none
none
512 MB
Single-channel
512 MB
none
512 MB
none
1 GB
Dual-channel interleaved
1 GB
none
none
none
1 GB
Single-channel
1 GB
none
1 GB
none
2 GB
Dual-channel interleaved
1 GB
1 GB
1 GB
none
3 GB
Dual-channel asymmetric
1 GB
1 GB
1 GB
1 GB
4 GB
Dual-channel interleaved
1 GB
1 GB
2 GB
2 GB
6 GB
Dual-channel interleaved
2 GB
2 GB
2 GB
2 GB
8 GB
Dual-channel interleaved
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML310 G3 Options      ML310 G3 Memory      Storage      ML310 G3 QuickSpecs images/line.gif

Storage

A, B Removable Media Bays (1.6" each)
C 48x IDE (ATAPI) CD-ROM
0, 1, 2, 3 Four Hot Plug Hard Drive Bays



Drive Support




Quantity
Supported

Position
Supported


Controller

Removable Media


1.44-MB Diskette DriveUp to 1 A, B, or C Integrated
IDE (ATAPI) CD-ROM DriveUp to 2 A, B, or C Integrated IDE (ATAPI)
DVD-ROM Drive Option KitUp to 2 A, B, or C Integrated IDE (ATAPI)

Hard Drives

Hot Plug Ultra320 SCSI - (Hot Plug SCSI models only)


Quantity
Supported

Position
Supported


Controller

300GB U320 10K
146GB U320 10K
72GB U320 10K
300GB U320 15K
146GB U320 15K
72GB U320 15K
36GB U320 15K

Up to 4
0-3

Single Channel Ultra320 SCSI Adapter (SCSI Models)
Smart Array 6404/256 Controller
Smart Array 6402/256 Controller
Smart Array 641 Controller
Smart Array 642 Controller


Hot Plug SAS - (Hot Plug SATA/SAS Models Only)


Quantity
Supported

Position
Supported


Controller

300GB 3G SAS 3.5" 15K SP
146GB 3G SAS 3.5" 15K SP
72GB 3G SAS 3.5" 15K SP
36GB 3G SAS 3.5" 15K SP

Up to 4
0-3
Smart Array P600/256 BBWC Controller
HP 8 Internal Port SAS HBA with RAID
NOTE: Use of SAS hard drives in SATA/SAS models requires installation of the controllers listed above.

Hot Plug SATA - (Hot Plug SATA/SAS Models Only)


Quantity
Supported

Position
Supported


Controller

750GB 1.5G SATA 7.2K
500GB 1.5G SATA 7.2K
250GB 1.5G SATA 7.2K
160GB 1.5G SATA 7.2K
80GB 1.5G SATA 7.2K

Up to 4
0-3

Integrated four port SATA Controller
HP 6-port SATA RAID controller
Smart Array P600/256 BBWC Controller
HP 8 Internal Port SAS HBA with RAID

NOTE: Hot plug capability and drive LED status support requires installation of the HP 6-port SATA RAID Controller, the Smart Array P600 Controller, or a SAS HBA.
NOTE: The HP 4-port SATA/SAS target fan cable (P/N 389653-B21) is required when the HP 6-port SATA RAID controller (P/N 372953-B21 372953-B21) is installed.

Tape Drives, Tape Autoloaders & Tape Libraries

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:
https://h18000.www1.hp.com/products/quickspecs/North_America/10233.html

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders and Tape Libraries listed below, please see the following:
https://h18000.www1.hp.com/products/quickspecs/North_America/10809.html

NOTE:
For complete listing of tape drive offerings see https://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

For recommended tape drive offerings for this ProLiant server see the following:


Position
Supported
Controller

Controller Part Number

HP StorageWorks Tape Drives, Internal
DAT 24 USB
DAT 40 USB
DAT 72 USB

A or B


USB 2.0 Port
N/A

HP StorageWorks Tape Drives, External
DAT 24 USB
DAT 40 USB
DAT 72 USB

External
USB 2.0 Port
N/A
HP StorageWorks Tape Drives, Internal
Ultrium 232
Ultrium 448
Ultrium 920
DAT 40
DAT 72
DLT VS160
A or B
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2

HP StorageWorks Tape Drives, Internal
Ultrium 460
Ultrium 960
SDLT 600
A and B
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2

HP StorageWorks Tape Drives, External
Ultrium 232
Ultrium 448
Ultrium 460
Ultrium 920
Ultrium 960
DAT 40
DAT 72
DLT VS160
SDLT 600
External
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
HP StorageWorks Autoloaders, External
DAT 72x10 Autoloader
1/8 G2 Tape Autoloader
External
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2



374654-B21 374654-B21

HP StorageWorks SCSI Rack-Mount Tape Drive Enclosures
1U Rack-Mount Kit
3U Rack-Mount Kit

External

64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2




HP StorageWorks USB Rack-Mount Tape Drive Enclosures
1U Rack-Mount Kit

USB 2.0 Port


N/A

HP StorageWorks Tape Libraries, External
MSL2024 (Ultrium 448, Ultrium 920 and 960-based)
MSL4048 (Ultrium 448, Ultrium 920 and 960-based)
MSL6000 (Ultrium 960 and 460-based)
MSL6000 (SDLT 600-based)
Please consult the EBS connectivity matrix at https://www.hp.com/go/ebs for detailed connectivity information.
N/A
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML310 G3 Options      ML310 G3 Memory      Storage      ML310 G3 QuickSpecs images/line.gif

Quickspecs

System Unit Dimensions (HxWxD) 17.0 x 7-7/8 x 22 in (43.0 x 20.0 x 55.0 cm)
Weight (approximate) 37 lb (16.8 kg)
Input Requirements
(per power supply)
Range Line Voltage 100-127V and 200-240V
Normal Line Voltage115 to 230 VAC
Line Frequency 50 to 60 Hz
Rated Input Current < 6A RMS at 90VAC with maximum load
BTU Rating1,560 BTU
SCSI Connectors
(SCSI Models only)
One internal HD68 connectors
NOTE: Support for either one internal or one external SCSI channel is available. To use the channel for external connection, order an internal-to-external SCSI cable option kit (PN 159547-B22 or 333370-B21).
Power Supply Output PowerRated Steady-State Power 350W
Maximum Peak Power 370W
Temperature RangeOperating50° to 93° F (10° to 35° C)
Shipping-40° to 150° F (-40° to 66° C)
Relative Humidity
(non-condensing)
Operating20% to 80%
Non-operating5% to 90%
Acoustic Noise Idle
(Fixed Disk Drives Spinning)

L WAd (BELS)
5.7
L pAm (dBA)
40
Operating
(Random Seeks to Fixed Disks)

L WAd (BELS)
5.7
L pAm (dBA)
40

48X Max IDE (ATAPI)
CD-ROM Drive

Disk

Applicable Disk

CD-ROM, CD-XA, CD-DA (Mode 1, Mode 2, Form 1 and 2)
  Photo CD (Single and Multi-session)
  Mixed Mode (Audio and Data combined)
    CD-R


Capacity

540 MB (Mode 1, 12 cm)
    650 MB (Mode 2, 12 cm)

Block Size

Mode 1

2,048 bytes


Mode 2

2,340 bytes, 2,336 bytes


CD-DA

2,352 bytes
  CD-XA 2,328 bytes

Interface

IDE (ATAPI)



Access Times (typical)

Random

<100 ms

Full-Stroke

<150 ms

Data Transfer Rate

Sustained

3000 to 7750 KB/s (20X to 48X)
Burst 150 KBps to 7,200 KBps

Bus Rate

16.7 MBps

Cache Buffer

128 KB



Start-up Time (typical)

< 7seconds


Stop Time < 4seconds

Laser Parameters

Type Semiconductor Laser GaA1As

Wave Length

780 ± 25 nm

Operating Conditions

Temperature

41° to 113° F (5° to 45° C)

Humidity

10% to 80%

Dimensions

(HxWxD, maximum)

1.7 x 5.85 x 8.11 in (4.29 x 14.86 x 20.60 cm)


Weight

2.09 lb (0.95 kg)

Embedded NC320i PCIe Gigabit Server Adapter

Network Interface 10Base-T/100Base-TX/1000Base-TX
Compatibility IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method Single lane (x1), 100MHz PCI Express Reference Clock
Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s
10Base-T (Full-Duplex) 20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex) 200 Mb/s
1000Base-TX (Half and Full-Duplex) 2000Mb/s
Connector RJ-45
Cable Support 10Base-T Categories 3, 4 or 5 UTP; up to 328 ft (100 m)
10/100/1000Base-TX Category 5 UTP; up to 328 ft (100 m)

Integrated 4 Channel SATA Controller
(SATA Models only)

Drives Supported Up to 4 SATA hard drives (1 drive/channel)
Channels 4
Storage Capacity 2 TB
Maximum SATA Channel Transfer Rate 150 MB/s per channel
SATA Protocols SATA-1a
Internal SATA Connectors One 4-lane connector (all four channels)
RAID levels supported RAID 0, RAID 1

Single Channel Ultra320 SCSI Adapter
(SCSI Models only)

Drives Supported Up to 15 SCSI devices Wide
Data Transfer Method 64-bit/100-MHz PCI bus-master
SCSI Channel Transfer Rate 320 MB/s per channel
Maximum Transfer Rate per PCI Bus (peak) 1033 MB/s per channel
SCSI Protocols Ultra320, Wide Ultra3, Wide Ultra2, Wide Ultra SCSI-3, Fast-Wide SCSI-2, and Fast SCSI-2
Fast SCSI-2
Electrical Protocol Low Voltage Differential (LVD)
SCSI Termination Active Termination
External SCSI Connectors None
NOTE: To implement an external SCSI connection, install an optional controller or internal-to-external SCSI option kit (part number 159547-B22 for HD68 or 333370-B21 for VHDCI).
Internal SCSI Connectors One 68-Pin Wide Ultra SCSI-3 connectors

Sillworks                  Ph: 1.613.599.1287                  Fax: 1.613.599.8120
U320 | SSD | SAS/SATA | Fibre | Memory | Controllers | Processors | Power Supplies | Networking
line
Dell | EqualLogic | EMC | Hewlett-Packard | IBM | Seagate
line
HP      HP      HP      Dell Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account Dell      Dell      Dell      Seagate
Terms of Use | Legal | Privacy | Primary Site | Contact us | Add to favorites
Amex Accepted Visa Accepted MasterCard Accepted
