 HPE  Proliant ML330 G3 QuickSpecs Flag US QuickSpecs
Folder-Closed ML330 G3 HDD SSD Folder-Closed ML330 G3 Processors Folder-Closed ML330 G3 Memory
Folder-Closed ML330 G3 Controllers Folder-Closed ML330 G3 Networking Folder-Closed ML330 G3 Power
Folder-Closed ML330 G3 Quickspecs Folder-Closed ML330 G3 Quickspecs Folder-Closed ML330 G3 Options New  Refurb
contents
 Overview      Standard Features      Models      ML330 G3 Options      ML330 G3 Memory      Storage      Power Specifications      ML330 G3 QuickSpecs images/line.gif

Proliant ML330 G3 Overview

HP ProLiant ML330 Generation 3 (G3)

Proliant ML330 G3 Server Image

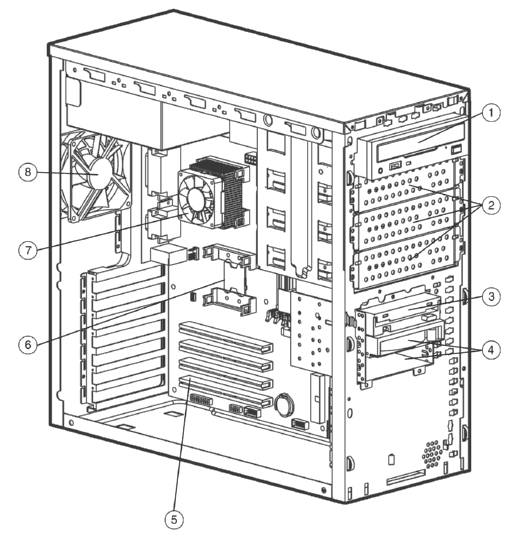

1. 48x IDE (ATAPI) CD-ROM
2. Removable Media Bays (1.6" each)
3. 1.44 MB Diskette Drive
4. Two 1" Non-hot plug Hard Drive Bays

5. Four 64-bit/33MHz PCI

6. Processor socket 2 (unpopulated)
7. Processor 1 (populated)
8. System Fan


What's New

  • Supports up to 2 Intel® Xeon® 3.06 GHz or 2.8 GHz processors

At A Glance

  • Two USB ports
  • ROM Based Setup Utility (RBSU) and PXE support
  • ServerWorks GC-SL Chipset with 533-MHz Front Side Bus
  • 512-KB second level ECC cache standard (full speed)
  • 256-MB PC2100 ECC DDR SDRAM Memory, expandable to 4 GB
  • Four total I/O slots; three available in SCSI models
  • 64-Bit/33MHz, 3.3v PCI
  • NC7760 PCI Gigabit Server Adapter (embedded)
  • Integrated Dual Channel Ultra ATA/100 Adapter with Integrated ATA RAID 0, 1, & 1+0 (ATA Models) or Integrated Single Channel Wide Ultra3 SCSI Adapter in a PCI slot (SCSI Models)
  • Support for up to five 1" Ultra320 non-hot-plug SCSI hard drives or four 1" ATA non-hot-plug drives (model dependent)
  • SCSI Models (with optional drive cage): Internal storage capacity of up to 1.040 TB (3 x 146.8 GB non-hot-plug + 2 x 300 GB hot plug 1" hard drives)
  • ATA Models: Internal storage capacity of up to 640 GB (4 x 160-GB ATA/100 drives)
  • Integrated ATI Rage XL with 8MB SDRAM video
  • 300W Power Supply
  • Systems Insight Manager, SmartStart and Automatic Server Recovery-2 (ASR-2)
  • Protected by HP Services, including a one-year, limited warranty, Next Business Day 1 year on-site limited Global warranty and Pre-Failure Warranty, which covers processors, memory, and hard drives - Certain restrictions and exclusions apply.
contents
 Overview      Standard Features      Models      ML330 G3 Options      ML330 G3 Memory      Storage      Power Specifications      ML330 G3 QuickSpecs images/line.gif

Standard Features

Processor
One of the following depending on
Model

Intel Xeon Processor 3.06 GHz/533-512KB (Supports up to 2 processors)
Intel Xeon Processor 2.8 GHz/533-512KB (Supports up to 2 processors)

Cache Memory Integrated 512-KB Level 2 ECC cache (full speed)

ChipsetServerWorks Grand Champion SL Chipset with 533-MHz Front Side Bus
NOTE: For more information regarding ServerWorks, please see the following URL: https://www.serverworks.com/products/overview.html.

Memory Protection Advanced ECC capabilities

ML330 G3 Memory
Type PC2100 DDR SDRAM running at 266MHz
Standard 256 MB (1 x 256 MB)
Maximum 4 GB

Network Controller NC7760 PCI Gigabit Server Adapter (embedded)

Expansion Slots I/O Number of slots PCI Voltage:
64-bit/33MHz PCI 4 3.3 volts

Storage Controller Integrated Single Channel Wide Ultra3 SCSI Adapter in a PCI slot (SCSI Models only)
  Integrated Dual Channel Ultra ATA 100 IDE Adapter with Integrated ATA RAID 0, 1, & 1+0 (ATA Models)

Storage Diskette Drives 1.44 MB Diskette Drive
Optical Drive 48x IDE CD-ROM Drive
Hard Drives One of the following:
(1) 36.4 GB Ultra320 SCSI Drive (SCSI Models only)
(1) 40 GB ATA/100 7750 rpm 1" Drive (ATA Models only)

Maximum Internal Storage SCSI (Non-Hot Plug and Hot Plug) 1.04 TB 3 x 146.8 GB non-hot-plug + 2 x 300 GB hot plug Ultra 320 with optional drive cage
ATA 640 GB 4 x 160.0 GB ATA
(internal drive bays and removable media bays)

InterfacesParallel1
 Serial1
Pointing Device (Mouse)1
Graphics1
Keyboard1
USB2
NOTE: Please see the following URL for additional information regarding USB support:
https://h18004.www1.hp.com/products/servers/platforms/usb-support.html.
Network RJ-45 (Ethernet)1

Graphics Integrated ATI RAGE XL Video Controller with 8MB SDRAM Video Memory

Form Factor Tower (5U) Tower to Rack Enabling Option Kit available (PN 238547-B22)

ProLiant Essentials Foundation Pack Software

HP Systems Insight Manager HP Systems Insight Manager (HP SIM) helps maximize system uptime and performance and reduce system maintenance costs by providing proactive notification of problems before those problems result in unplanned downtime or reduced productivity. For more information on HP SIM, visit https://www.hp.com/go/hpsim.
SmartStart SmartStart simplifies server setup by providing a rapid way to deploy reliable and consistent server configurations. For more information, please visit the SmartStart Web site at https://www.hp.com/servers/smartstart.
Minimum SmartStart version supported: SmartStart 6.4.
Latest SmartStart version supported: SmartStart 7.2
Management Agents The Management Agents provide direct, browser-based access to in-depth instrumentation built into HP servers, workstations, desktops, or portables, and send alerts to Systems Insight Manager or other enterprise management applications in case of subsystem or environmental failures. For additional information about the Management Agents and other management products from HP, visit https://www.hp.com/servers/manage.
Subscriber's Choice Subscriber's Choice Driver and Support Alerts/Notifications is a web-based email subscription service that provides automatic delivery of software and driver change notifications for ProLiant products. Sign up at https://www.hp.com/go/subscriberschoice and customize your profile to receive alerts on updates as they become available.
ROMPaq, support software, and
configuration utilities
The latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options
Available in SmartStart or downloadable from the Software and Drivers download pages at https://www.hp.com/go/support.
Survey Utility and diagnostics utilities The most advanced configuration analysis, reporting and troubleshooting utilities used by HP at your fingertips
Available in SmartStart.
Optional ProLiant Essentials Value Packs Optional software offerings that selectively extend the functionality of an Adaptive Infrastructure to address specific business problems and needs:
  • Rapid Deployment Pack – an automated solution for multi-server deployment and provisioning, enabling companies to quickly and easily adapt to changing business demands.
  • Workload Management Pack – provides easier management of complex environments, improving overall server utilization and enabling Windows® 2000 customers for the first time to confidently deploy multiple applications on a single multiprocessor ProLiant Server.
  • Performance Management Pack – a performance management solution that identifies and explains hardware performance bottlenecks on ProLiant servers and attached options enabling users to better utilize their valuable resources.
  • Intelligent Networking Pack - detects and analyzes network bottlenecks or broken network linkages and steers traffic to the optimum route based on network conditions.
  • Vulnerability and Patch Management Pack - identifies and remediates software security vulnerabilities due to missing patches as well operating system configurations that can be exploited by viruses, worms, and other blended threats
  • Virtual Machine Management Pack - provides central management and control of virtual machines from Microsoft and VMware. Integrated approach provides the ability to manage both physical and virtual resources from a single management console.
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to https://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: https://www.hp.com/servers/proliantessentials

Industry Standard Compliance ACPI V1.0b Compliant
PCI 2.2 Compliant
PXE Support
WOL Support
Microsoft® Logo certifications

Intelligent Manageability HP Systems Insight Manager
Redundant ROM
Remote Flash ROM
Automatic Server Recovery-2 (ASR-2)
Remote Insight Lights-Out Edition II (optional)
Drive Parameter Tracking (with Smart Array Controller)
Dynamic Sector Repairing (with Smart Array Controller)
Pre-Failure Warranty (covers processors, memory and hard drives)

Security Power-on password
Setup password
Diskette boot control
Power switch security

Server Power Cords One Lowline power cord ships standard

Power Supply 300 Watts, PFC (Power Factor Correcting)

System Fans 1 system fan ships standard. 1 system fan total supported (does not include fans integral to CPU heatsink or power supply assemblies).

Required CablingFor required cabling information, refer to the HP Web site at https://h18000.www1.hp.com/products/servers/ProLiantML330/.

OS Support Microsoft Windows 2000 (Server and Advanced Server)
Microsoft Small Business Server 2000
Microsoft Small Business Server 2003
Windows Server 2003
Novell NetWare
Novell NetWare Small Business Server 6.0
Linux (Red Hat, SuSE, UnitedLinux)
NOTE: For a more complete and up-to-date listing of supported OS's and versions, please visit our OS Support Matrix at: https://h10018.www1.hp.com/wwsolutions/index.html
NOTE: For a more complete and up-to-date information on Linux support, please visit HP Linux Web site at: https://h18004.www1.hp.com/products/servers/linux/hpLinuxcert.html
NOTE:
For an up-to-date listing of the latest drivers available for the HP ProLiant ML330, please see:
https://h18023.www1.hp.com/support/files/server/us/index.html.
NOTE: For more complete and up-to-date information on how to buy server operating systems from HP please visit the OS product site at: https://h18004.www1.hp.com/products/servers/software/OEM.html

Rack Airflow Requirements

Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment:

    • Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation).
    • Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 2.75 inches (7 cm).

CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

NOTE: For additional information, refer to the Setup and Installation Guide or the Documentation CD provided with the server, or to the server documentation located in the Support section at the following URL: https://h18000.www1.hp.com/products/servers/ProLiantml330/index.html.

Factory Express Portfolio for Servers and Storage HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA3000 & EVA5000, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to https://www.hp.com/go/factory-express


Service and Support One-year limited warranty, including hardware diagnostic support, and pre-failure warranty (coverage of hard drives, memory and processors). The warranty is fully supported by HP Services and a worldwide network of resellers and service providers. An additional 90-day getting started software telephone support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services.

NOTE: Limited warranty includes 1 year parts, 1 year labor, 1-year on-site support.

Care Pack services provide a range of life cycle support options that let you choose the service levels that meet your business requirements, from basic to mission-critical.

A full range of HP Care Pack hardware and software services are available including:

  • Installation and start up
  • Education courses
  • Extended onsite hardware coverage hours from same business day 13 hours, 5 day to 24 hours, 7 days call window with options including 4-hour response or 6-hour Call To Repair
  • Comprehensive range of software technical support for Microsoft, Linux, ProLiant Essentials and VMWare-based IT solutions helping to deliver high level of application availability. Response times range from 30 mins for critical problems to 2 hours.
  • System Management, Performance Services and Mission Critical Support Solution

HP Care Pack services include coverage for the HP branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as 22" and smaller external monitors and tower UPS options up to 3kVA; these items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included, standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

NOTE: For more information on HP Care Pack services, contact any of our worldwide sales offices or resellers or visit our worldwide Web site on the internet at: https://www.hp.com/hps/carepack
NOTE:
For more complete information on HP Services offerings, customers and resellers, please visit us at:https://www.hp.com/hps
NOTE:
Additional information regarding worldwide limited warranty and technical support is available at: https://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
contents
 Overview      Standard Features      Models      ML330 G3 Options      ML330 G3 Memory      Storage      Power Specifications      ML330 G3 QuickSpecs images/line.gif

Models

ML330T03 X3.06-512KB/533 256MB, 40GB, ATA
353448-002
Processor (1) Intel Xeon 3.06 GHz Processor standard
Cache Memory Integrated 512-KB Level 2 cache (full speed)
Memory 256 MB
Network Controller NC7760 PCI Gigabit Server Adapter (embedded)
Storage Controller Integrated Dual Channel Ultra ATA-100 IDE Adapter with Integrated ATA RAID 0, 1, 1+0
Hard Drive 40 GB Ultra ATA/100
Internal Storage 640 GB maximum (with optional hard drives)
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive 1.44 MB Diskette Drive
Form Factor Tower (5U) (Tower to Rack Enabling Kit available)

ML330T03 X2.80-512KB/533 256MB, 40GB, ATA
317817-002
Processor (1) Intel Xeon 2.80 GHz Processor standard
Cache Memory Integrated 512-KB Level 2 cache (full speed)
Memory 256 MB
Network Controller NC7760 PCI Gigabit Server Adapter (embedded)
Storage Controller Integrated Dual Channel Ultra ATA-100 IDE Adapter with Integrated ATA RAID 0, 1, 1+0
Hard Drive 40 GB Ultra ATA/100
Internal Storage 640 GB maximum (with optional hard drives)
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive 1.44 MB Diskette Drive
Form Factor Tower (5U) (Tower to Rack Enabling Kit available)

ML330T03 P3.06-512KB/533 256MB, 36GB, SCSI
353093-002
Processor (1) Intel Xeon 3.06 GHz Processor standard
Cache Memory Integrated 512-KB Level 2 cache (full speed)
Memory 256 MB
Network Controller NC7760 PCI Gigabit Server Adapter (embedded)
Storage Controller Integrated Single Channel Ultra3 SCSI Adapter in a PCI slot
Hard Drive (1) 36.4 GB Ultra320 SCSI
Internal Storage 512 GB maximum (with optional hot plug drive cage and optional hard drives)
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive 1.44 MB Diskette Drive
Form Factor Tower (5U) (Tower to Rack Enabling Kit available)

ML330T03 P2.8-512KB/533 256MB, 36GB, SCSI
317821-002
Processor (1) Intel Xeon 2.8 GHz Processor standard
Cache Memory Integrated 512-KB Level 2 cache (full speed)
Memory 256 MB
Network Controller NC7760 PCI Gigabit Server Adapter (embedded)
Storage Controller Integrated Single Channel Ultra3 SCSI Adapter in a PCI slot
Hard Drive (1) 36.4 GB Ultra320 SCSI
Internal Storage 402.8 GB maximum (with optional hot plug drive cage and optional hard drives)
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive 1.44 MB Diskette Drive
Form Factor Tower (5U) (Tower to Rack Enabling Kit available)
contents
 Overview      Standard Features      Models      ML330 G3 Options      ML330 G3 Memory      Storage      Power Specifications      ML330 G3 QuickSpecs images/line.gif

Options

ProLiant Essentials
Value Pack Software
Rapid Deployment Pack, 1 User, V1.x
NOTE: This license allows 1 server to be managed and deployed via the Deployment Server.
267196-B21
Rapid Deployment Pack, 10 Users, V1.x
NOTE: This license allows 10 servers to be managed and deployed via the Deployment Server.
269817-B21
Flexible Quantity License Kit
302127-B21
License-Only - for use with a Master License Agreement
302128-B21
ProLiant Essentials Workload Management Pack 2.0 (Featuring Compaq Resource Partitioning Manager version 2.0)
ProLiant Essentials Recovery Server Option Pack
280189-B21
Performance Management Pack, single server
NOTE: This license allows 1 server to be managed by Performance Management Pack.
306696-B21
Performance Management Pack, 10 Pack Server License
374055-B21
ProLiant Essentials Performance Management Pack Flexible License
NOTE: A single pack is shipped with a single license key for the total number of licenses ordered
306697-B21
ProLiant Essentials Intelligent Networking Pack, 1 License
372906-B21
ProLiant Essentials Intelligent Networking Pack Flex License
372950-B21
ProLiant Essentials Intelligent Networking Pack Track License
372951-B21
ProLiant Essentials Vulnerability and Patch Management Pack, Single-Server License
371645-B21
ProLiant Essentials Vulnerability and Patch Management Pack, 10-Server License
377529-B21
ProLiant Essentials Vulnerability and Patch Management Pack, Flexible-Quantity License
371646-B21
ProLiant Essentials Vulnerability and Patch Management Pack, Tracking license for new servers
371647-B21
ProLiant Essentials Vulnerability and Patch Management Pack, Tracking license for installed servers
378372-B21
ProLiant Essentials Vulnerability and Patch Management Pack, 1-Server 10-Desktop Bundle License
389941-B21
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to https://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: https://www.hp.com/servers/proliantessentials.

Software HP digital asset protection
302316-001

Processors Intel Xeon 3.06 GHz-512KB Processor Option Kit
NOTE: The Intel Xeon 3.06 GHz-512KB Processor Option Kit is supported by the ProLiant ML330 G3 servers only.
354606-B21
Intel Xeon 2.80 GHz-512KB Processor Option Kit
NOTE: The Intel Xeon 2.80 GHz-512KB Processor Option Kit is supported by the ProLiant ML330 G3 servers only.
317823-B21
Intel Xeon 2.40 GHz-512KB Processor Option Kit
NOTE: The Intel Xeon 2.40 GHz-512KB Processor Option Kit is supported by the ProLiant ML330 G3 servers only.
323139-B21

ML330 G3 Memory (DIMMs)

128MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 128 MB)
256MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 256 MB)
512MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 512 MB)
1024MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 1024 MB)

Optical Drives 16X DVD-ROM Drive Option Kit (Carbon)
  CD-RW/DVD ROM Combo Drive Option Kit
NOTE: The DVD-ROM drive is supported in the CD-ROM bay and in the removable media bay. If placed in the removable media bay, it requires the 2-Device IDE cable (PN 305381-B21).
HP DVD+R/RW 16X Half Height

Internal Storage

ML3xx Two Bay Hot Plug SCSI Drive Cage
NOTE: The drive cage option kit (PN 244059-B21 244059-B21) has one 1" drive bay and one 1.6" drive bay. It installs in two removable media bays.

Hard Drives Ultra320 SCSI – Universal Hot Plug
NOTE: These Hot Plug Drives are for use in conjunction with the ML3xx Two Bay Hot Plug SCSI Drive Cage (PN 244059-B21 244059-B21).
300-GB 10,000 rpm U320 Universal Hard Drive (1")
146.8-GB 10,000 rpm U320 Universal Hard Drive (1")
72.8-GB 10,000 rpm U320 Universal Hard Drive (1")
146.8-GB 15,000 rpm Ultra320 Universal Hard Drive (1")
72.8-GB 15,000 rpm U320 Universal Hard Drive (1")
36.4-GB 15,000 rpm U320 Universal Hard Drive (1")
Ultra320 SCSI – Non-Hot Plug
146.8-GB 10,000 rpm, U320 Non-Hot Plug Hard Drive, 1"
72-GB 10,000 rpm, U320 Non-Hot Plug Hard Drive, 1"
36-GB 15,000 rpm, U320 Non-Hot Plug Hard Drive, 1"
NOTE: All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives require an optional U320 Smart Array Controller or U320 SCSI HBA to support U320 transfer rates.
ATA 100 - Non-Hot Plug
160-GB ATA 100 7,200 rpm Hard Drive (1")
80-GB ATA 100 7,200 rpm Hard Drive (1")
40-GB ATA 100 7,200 rpm Hard Drive (1")
NOTE: Please see the Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:
U320 Hard Drive QuickSpecs:
https://h18000.www1.hp.com/products/quickspecs/11531_na/11531_na.html
ATA100 Hard Drive QuickSpecs:
https://h18000.www1.hp.com/products/quickspecs/11361_na/11361_na.html


Storage Controllers – SCSI Drives NOTE: The following Storage Controllers are qualified for SCSI drives only.
Smart Array 6402/128 Controller
Smart Array 641 Controller
Smart Array 642 Controller
Smart Array 6404/256 Controller
128MB Battery-Backed Cache Enabler
NOTE: This 128MB BBWC supports the Smart Array 641 Controller and Smart Array 642 Controller.
128-MB Cache Module for Smart Array 5302 Controller
256-MB Battery-Back Cache Module
NOTE: This 256-MB Battery-Backed Cache Module supports the Smart Array 5300 series controllers, HP StorageWorks Modular Smart Array 1000 and the HP StorageWorks Modular Smart Array 500.
256MB Battery-Backed Cache Upgrade Kit for SA-6400
NOTE: This 256-MB Battery-Backed Cache upgrade kit supports the Smart Array 6400 series controller only.
64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter
Ultra320 Expansion Module for SA-6402
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS
NOTE: Please see the following Controller or SCSI Adapter QuickSpecs for Technical Specifications such as PCI Bus, PCI Peak Data Transfer Rate, SCSI Protocols supported, SCSI Peak Data Transfer Rate, Channels, SCSI Ports, Drives supported, Cache, RAID support, and additional information:
https://h18000.www1.hp.com/products/quickspecs/11587_na/11587_na.html
(Smart Array 6400 Series)
https://h18000.www1.hp.com/products/quickspecs/12067_na/12067_na.html
(Smart Array 641)
https://h18000.www1.hp.com/products/quickspecs/12069_na/12069_na.html
(Smart Array 642)
https://h18000.www1.hp.com/products/quickspecs/10429_na/10429_na.html
(SCSI Adapter)
https://h18000.www1.hp.com/products/quickspecs/11555_na/11555_na.html
(U320 Adapter)


Communications HP NC150T PCI 4-port Gigabit 1000T Combo Switch Adapter
HP NC310F PCI-X 1000SX Gigabit Server Adapter
HP NC1020 PCI 1000T Gigabit Server Adapter
NC6770 PCI-X Gigabit Server Adapter, 1000-SX
HP NC7771 PCI-X 1000T Gigabit Server Adapter
HP NC7170 PCI-X Dual Port 1000T Gigabit Server Adapter
NOTE: Any NC61XX, or NC71XX NIC can be used for redundancy with the embedded NC7760 Network Controller.
HP High-speed PCI soft modem
DC132D

Management Options

Remote Insight Lights-Out Edition II

Tape Drives

NOTE: In order to install certain tape drives internally, you may need to remove the rails that come standard on the drives and then re-insert the screws in the mounting holes. Mounting screws are shipped standard with server.
NOTE: To run external SCSI-based devices, either an Internal-to-External SCSI Cable Option kit (for SCSI models) or a SCSI controller with external channel (for ATA models) must be purchased.
Review the server cabling matrix for additional information on cables required to connect backup products to the server.

Ultrium Tape Drives - External, Rack-Mount and Array
HP StorageWorks Ultrium 215 Tape Drive, External (Carbon)
HP StorageWorks Ultrium 215 rack-mount (Carbon) - Single drive installed in a 1U rack-mount kit
A7444A
HP StorageWorks Ultrium 215 Array Module (Carbon) - Offline hot-swap drive for Tape Array 5300
HP StorageWorks Ultrium 230 Tape Drive, External (Carbon)
HP StorageWorks Ultrium 230, Rack-mount (Carbon) - Single drive installed in a 3U rack-mount kit
HP StorageWorks Ultrium 230 Array Module (Carbon) - Offline hot-swap drive for Tape Array 5300
HP StorageWorks Ultrium 448 Tape Drive, External (Carbonite)
DW017A
HP StorageWorks Ultrium 448, Rack-mount (Carbonite) - Single drive installed in a 1U rack-mount kit
DW028A
HP StorageWorks Ultrium 448 Tape Drive, Internal (Carbonite)
DW016A
HP StorageWorks Ultrium 460 Tape Drive, External (Carbon)
HP StorageWorks Ultrium 460, Rack-mount (Carbon) - Single drive installed in a 3U rack-mount kit
HP StorageWorks Ultrium 460 Array Module (Carbon) - Offline hot-swap drive for Tape Array 5300
HP StorageWorks Ultrium 960 Tape Drive, External (Carbonite) Q1539A Q1539A
HP StorageWorks Ultrium 960 Rack-mount (Carbonite) - Single drive installed in a 3U rack-mount kit

NOTE: Please see the HP StorageWorks Ultrium Tape Drive QuickSpecs for additional options such as controllers, media, and other related items:
https://h18006.www1.hp.com/products/quickspecs/11739_na/11739_na.html
https://h18006.www1.hp.com/products/quickspecs/12128_na/12128_na.html


For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit: https://www.hp.com/go/connect
DAT Drives - External, Rack-Mount and Array Module

NOTE: Use of a hot plug tape drives requires installation of the optional two-bay SCSI drive cage.

HP StorageWorks DAT 72 Tape Drive, External (Carbon)
HP StorageWorks DAT 72 Tape Drive, Internal (Carbon)
HP StorageWorks DAT 72 Tape Drive, Internal Hot-Plug (Carbon)
HP StorageWorks DAT 72 Array Module (Carbon) - Offline hot-swap drive for Tape Array 5300
HP StorageWorks DAT 40 Tape Drive, External (Carbon)
HP StorageWorks DAT 40 Tape Drive, Internal (Carbon)
HP StorageWorks DAT 40 Tape Drive, Internal Hot-Plug (Carbon)
HP StorageWorks DAT 40 Array Module (Carbon) - Offline hot-swap drive for Tape Array 5300
NOTE: Please see the DAT Tape Drive QuickSpecs for controllers, media, and other options:
https://h18000.www1.hp.com/products/quickspecs/11883_na/11883_na.html
For an up-to-date listing of the latest O/S and software support details for HP DAT drives, please visit: https://www.hp.com/go/connect


Internal and External DLT VS Tape Drives

HP StorageWorks DLT VS80 Tape Drive, Internal (Carbon)
HP StorageWorks DLT VS80 Tape Drive, External (Carbon)
DLT VS160, Internal (Carbon)
A7569A
DLT VS160, External (Carbon)
A7570A
NOTE: Please see the DLT VS Tape Drive QuickSpecs for additional options such as host bus adapters, controllers, media, and other options:
https://h18006.www1.hp.com/products/quickspecs/11403_na/11403_na.html
For an up-to-date listing of the latest O/S and software support details for the DLT VS80, please visit: https://www.hp.com/go/connect

External and Rack-mount SDLT Tape Drives
HP StorageWorks SDLT 320 Tape Drive, External (Carbon)
NOTE: Please see the SDLT 320 Tape Drive QuickSpecs for additional options such as adapters, controllers, and media.
https://h18006.www1.hp.com/products/quickspecs/114840_na/11840_na.html
For an up-to-date listing of the latest O/S and software support details for HP SDLT tape drives, please visit: https://www.hp.com/go/connect

Rack-Mount Tape Drive Enclosures

HP StorageWorks 1U Rack-Mount Kit
NOTE: The 1U Rack-mount Kit can support up to 2 half-height tape drives and compatible with multiple Single-Ended and LVD SCSI tape drives including DAT 24, DAT40, DAT72, DLT VS 80, and Ultrium 215 tape drives.
HP StorageWorks 3U Rack-Mount Kit
NOTE: The 3U Rack-Mount Kit can support up to 2 full-height or 4 half-height tape drives and compatible with multiple Single-Ended and LVD SCSI tape drives including DAT, DLT VS80, SDLT 320, Ultrium 215, Ultrium 230, and Ultrium 460 Tape Drives.
HP StorageWorks 5U Rack-Mount Kit
NOTE: The 5U Rack-Mount Kit can support up to 4 full-height tape drives and is compatible with SDLT 320, Ultrium 230, and Ultrium 460 tape drives.
274339-B21
NOTE: Please see the Rack-Mount Tape Drive Kits QuickSpecs for additional information regarding these kits:
https://h18000.www1.hp.com/products/quickspecs/10854_na/10854_na.html

HP StorageWorks Tape Array 5300
NOTE: The Tape Array 5300 is a 3U enclosure that supports up to 2 full-height or 4 half-height hot-swap array modules, including DAT and Ultrium tape drives. Cables and terminators are not included and must be ordered separately.
NOTE: Please see the Tape Array 5300 QuickSpecs for additional information regarding this product.

https://h18000.www1.hp.com/products/quickspecs/11878_na/11878_na.html
Accessories for 3U & 5U Rack-mount Tape Drive Kits
LVD Cable Kit, VHDCI/HD68
NOTE: For use with the 3U Rack-mount Kit and 5U Rack-mount Kit only.
LVD Cable Kit, HD68/HD68
NOTE: For use with the 3U Rack-mount Kit and 5U Rack-mount Kit only.
Accessories for 3U & 5U Rack-mount Tape Drive Kits
PSU/Fan Upgrade Kit - Redundant hot-swap power supply unit and fan for Tape Array 5300.
68-pin HD multi-mode terminator
1.0m 68-pin VHDCI to 68-pin HD cable
2.5m 68-pin VHDCI to 68-pin HD cable
5.0m 68-pin VHDCI to 68-pin HD cable
10.0m 68-pin VHDCI to 68-pin HD cable
0.5m 68-pin HDI to 68-pin HD cable LVD/SE
1.5m 68-pin HDI to 68-pin HD cable LVD/SE
C2979B
0.9m 68-pin HDI to 68-pin HD cable LVD/SE
C2911C
2.5m 68-pin HDI to 68-pin HD cable LVD/SE
C2924C
NOTE: For use with Tape Array 5300 only

Tape Autoloaders
DAT Autoloader
HP StorageWorks DAT 72x6 Internal Autoloader Q1566A Q1566A
HP StorageWorks DAT 72x6 External Autoloader Q1567A Q1567A
NOTE: Please see the DAT Tape Autoloader QuickSpecs for additional options such as host bus adapters, controllers and media:
https://h18000.www1.hp.com/products/quickspecs/11985_na/11985_na.html

HP StorageWorks 1/8 Tape Autoloader
1/8 Ultrium 460 Tape Autoloader, Tabletop AA927A
1/8 SDLT 320 Tape Autoloader, Tabletop AA926A
1/8 Ultrium 230 Tape Autoloader, Tabletop C9572CB C9572CB
1/8 DLT VS80 Tape Autoloader, Tabletop C9264CB C9264CB
1/8 Tape Autoloader Rackmount Kit C9268R C9268R
NOTE: Required to install the 1/8 tape autoloader in a standard 19-inch rack
NOTE: Please reference the 1/8 Tape Autoloader QuickSpecs at https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at https://www.hp.com/go/ebs
HP StorageWorks SSL1016 Tape Autoloader
SSL1016 Ultrium 460 Tape Autoloader 330821-B21
SSL1016 SDLT 320 Tape Autoloader 330816-B21

Tape Libraries

HP StorageWorks MSL6000 Tape Library
Ultrium 960 technology
MSL6030, 1 drive, 30 slots, Ultrium 960 AD606A AD606A
MSL6030, 2 drive, 30 slots, Ultrium 960 AD607A AD607A
MSL6030, 1 drive, 30 slots, Ultrium 960, with embedded FC router AD608A AD608A
MSL6030, 2 drive, 30 slots, Ultrium 960, with embedded FC router AD609A AD609A
MSL6060, 2 drive, 60 slots, Ultrium 960 AD610A
MSL6060, 2 drive, 60 slots, Ultrium 960, with embedded FC router AD611A
SDLT 600 technology
MSL6026, 1 drive, 26 slots, SDLT 600 AD582A
MSL6026, 2 drive, 26 slots, SDLT 600 AD583A
MSL6026, 1 drive, 26 slots, SDLT 600, with embedded FC router AD584A
MSL6026, 2 drive, 26 slots, SDLT 600, with embedded FC router AD585A
MSL6052, 2 drive, 52 slots, SDLT 600 AD587A
MSL6052, 2 drive, 52 slots, SDLT 600, with embedded FC router AD588A
Ultrium 460 technology
MSL6030, 1 drive, 30 slots, Ultrium 460 AD598A AD598A
MSL6030, 2 drive, 30 slots, Ultrium 460 AD599A AD599A
MSL6030, 1 drive, 30 slots, Ultrium 460, with embedded FC router AD600A AD600A
MSL6030, 2 drive, 30 slots, Ultrium 460, with embedded FC router AD601A AD601A
MSL6060, 2 drive, 60 slot Ultrium 460 AD603A
MSL6060, 2 drive, 60 slot Ultrium 460, with embedded FC router AD604A
NOTE: Please reference the MSL6000 Tape Library QuickSpecs at https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at https://www.hp.com/go/ebs
HP StorageWorks MSL5026S2 Tape Library

MSL5026S2, 1 drive, 26 slots, SDLT 320, RM 293472-B22 293472-B22
MSL5026S2, 2 drive, 26 slots, SDLT 320, RM 293472-B23 293472-B23
MSL5026S2, 1 drive, 26 slots, SDLT 320, RM with embedded FC router 293472-B24 293472-B24
MSL5026S2, 2 drive, 26 slots, SDLT 320, RM with embedded FC router 293472-B25 293472-B25
HP StorageWorks MSL5026S2 Tape Library

MSL5026S2, 1 drive, 26 slots, SDLT 320, RM 293472-B22 293472-B22
MSL5026S2, 2 drive, 26 slots, SDLT 320, RM 293472-B23 293472-B23
MSL5026S2, 1 drive, 26 slots, SDLT 320, RM with embedded FC router 293472-B24 293472-B24
MSL5026S2, 2 drive, 26 slots, SDLT 320, RM with embedded FC router 293472-B25 293472-B25
NOTE: Please reference the MSL5026S2 Tape Library QuickSpecs at https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http:/www.hp.com/go/ebs
HP StorageWorks MSL5052S2 Tape Library
MSL5052S2, 2 drive, 52 slots, SDLT 320, RM 293474-B21 293474-B21
MSL5052S2, 2 drive, 52 slots, SDLT 320, RM with embedded FC router 293474-B24 293474-B24
NOTE: Please reference the MSL5052S2 Tape Library QuickSpecs at https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http:/www.hp.com/go/ebs
HP StorageWorks MSL5030 Tape Library

MSL5030, 1 drive, 30 slots, Ultrium 230, RM 301897-B22 301897-B22
MSL5030, 2 drive, 30 slots, Ultrium 230, RM 301897-B23 301897-B23
MSL5030, 1 drive, 30 slots, Ultrium 230, RM with embedded FC router 301897-B24 301897-B24
MSL5030, 2 drive, 30 slots, Ultrium 230, RM with embedded FC router 301897-B25 301897-B25
NOTE: Please reference the MSL5030 Tape Library QuickSpecs at https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http:/www.hp.com/go/ebs
HP StorageWorks MSL5060 Tape Library

MSL5060, 2 drive, 60 slots, Ultrium 230, RM 301899-B22 301899-B22
MSL5060, 2 drive, 60 slots, Ultrium 230, RM with embedded FC router 301899-B23 301899-B23
NOTE: Please reference the MSL5060 Tape Library QuickSpecs at https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http:/www.hp.com/go/ebs
HP StorageWorks ESL E-Series Tape Libraries
ESL Extended 712e Tape Library, 0 drive, 712 LTO slots AA934B AA934B
ESL Extended 630e Tape Library, 0 drive, 630 SDLT slots AA935B AA935B
ESL Extended 322e Tape Library, 0 drive, 322 LTO slots AA939B AA939B
ESL Extended 286e Tape Library, 0 drive, 286 SDLT slots AA940B AA940B
ESL E-Series Ultrium 960 drive kit AD595A
ESL E Ultrium 460 drive kit AA937A AA937A
ESL E SDLT 320 drive kit AA936A AA936A
NOTE: Please reference the ESL E-Series Tape Libraries QuickSpecs at https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at https://www.hp.com/go/ebs

Magneto-Optical Jukeboxes

HP StorageWorks 9.1 GB Entry-level Optical Storage

9100mx standalone drive C1114M
220mx, 1 drive, 24 slot jukebox C1118M
220mx, 2 drive, 24 slot jukebox C1119M
NOTE: Please reference the Magneto-Optical Jukebox data sheets at https://www.hp.com/go/optical for additional information needed to create a complete solution

Ultra Density Optical Jukeboxes HP StorageWorks Ultra Density Optical Storage
30ux standalone drive AA961A
700ux, 1 drive, 24 slot jukebox AA962A
700ux, 2 drive, 24 slot jukebox AA963A
1100ux, 2 drive, 38 slot jukebox AA964A
NOTE: Please reference the Magneto-Optical Jukebox data sheets at https://www.hp.com/go/optical for additional information needed to create a complete solution

HP StorageWorks Modular Smart Array 500

HP StorageWorks Modular Smart Array 500 Generation 2

335880-B21

Modular Smart Array 500 High Availability Kit
NOTE: includes Modular Smart Array 500 controller, 4-port IO Module, Smart Array Multipath Software and 2 SA-532 Adapters.
351281-B21

Modular Smart Array 500 Controller

218252-B21

128-MB Cache Module for Smart Array Controller

NOTE: 128-MB Cache Module for Smart Array Controller (PN 153506-B21 153506-B21) is an upgrade cache module (128 MB Standard) for Modular Smart Array 500 Controller


256-MB Battery-Backed Cache Module
NOTE: Please see the Modular Smart Array 500 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at:
https://h18000.www1.hp.com/products/quickspecs/11050_na/11050_na.html



External Storage – Tower & Rack NOTE: To run any external SCSI-based devices, the customer needs to purchase an Internal to External Cable Option kit for SCSI models or a SCSI controller for ATA Models.
HP StorageWorks Modular Smart Array 30 SB
NOTE: Rack-mountable 14 drive enclosure with single bus, redundant power supplies
302969-B21
HP StorageWorks Modular Smart Array 30 DB
NOTE: Rack-mountable 14 drive enclosure with dual bus, redundant power supplies
302970-B21
NOTE: The Modular Smart Array Enclosure 30 Family supports the Wide Ultra3, Ultra320 1" Hot Plug Hard Drives.
StorageWorks Enclosure 4200 Redundant Power Supply Option
StorageWorks Enclosure 4200 Ultra3 Single Bus I/O Module Option
StorageWorks Enclosure 4200 Ultra3 Dual Bus I/O Module Option
Redundant Power Supply 499W
StorageWorks Single Bus U320 I/O Module for MSA30
287484-B21
StorageWorks Dual Bus U320 I/O Module for MSA30
287483-B21

HP StorageWorks Modular Smart Array 1000

HP StorageWorks Modular Smart Array 1000

201723-B22 201723-B22

NOTE: Please see the Modular Smart Array 1000 QuickSpecs for additional options and configuration information at
https://h18000.www1.hp.com/products/quickspecs/11033_na/11033_na.html

UPS Power Cord Matrix Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and specifications for UPS and PDU units.
ftp://ftp.compaq.com/pub/products/servers/ProLiantstorage/power-protection/powercordmatrix.pdf.

Uninterruptible Power Supply

HP T500 UPS, 120 V (US)
361475-001
HP T750 UPS
378439-D71
HP UPS Model T700 (700VA, 500 Watt), Low Voltage
204015-001
HP UPS Model T1000 XR (1000VA, 700 Watt), Low Voltage
204155-001
HP UPS Model T1500 XR (1440VA, 1050 Watt), Low Voltage

Uninterruptible Power Systems – Rack

HP UPS R5500 XR, (5000VA, 4500 Watt), High Voltage 326529-D71 326529-D71
HP UPS R1500 XR (100 to 127)
HP UPS R3000 XR (120V)
HP UPS R3000 XR (208V)
UPS R12000 XR N+ x (200-240V) (hardwired)
207552-B22
NOTE: UPS R12000 XR has a hardwired input and output connection.

HP Power Distribution Unit with Power Monitoring

HP Power Distribution Unit with Power Monitoring Model S2324 - dual input, 3 phase, 24A
HP Power Distribution Unit with Power Monitoring Model S1324 - single input, 3 phase, 24A
HP Power Distribution Unit with Power Monitoring Model S2140 - dual input, 1 phase, 40A
HP Power Distribution Unit with Power Monitoring Model S1140 - single input, 1 phase, 40A

Modular PDUs – 1U/0U (up to 32 outlets)

NOTE: 1U/0U mounting brackets shipped with the unit (optimized for 10000
and 9000 series racks).

HP Modular Power Distribution Units (mPDU), Low Volt Model, 24A (100-127 VAC)
NOTE: The above mPDU may also be used to connect to the low volt model of the UPS R3000 XR.
HP Modular Power Distribution Units (mPDU), High Volt Model, 24A (200-240 VAC)
NOTE: L6-30 input.
HP Modular Power Distribution Unit (mPDU), High Volt Model, 40A, Attached Cord
252663-D73
NOTE: Please see the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs for additional options including shorter jumper cables and country specific power cords:
https://h18000.www1.hp.com/products/quickspecs/11041_na/11041_na.html

USB Options USB Optical Scroll Mouse (Carbonite)
DD441B
USB 1.44-MB External Diskette Drive (Carbonite)
DC141B

Rack Enabling Kit

ProLiant ML310/ML330 Rack Enabling Kit
238547-B22
DL360 G2/G3 Telco Rack Option Kit
251243-B21
  NOTE: The DL360 Telco Rack Option Kit (251243-B21) interfaces with the ProLiant ML310/ML330 Rack Enabling Kit (PN 238547-B22) to support installation in a telco rack.

Other

ProLiant ML310/ML330 G2 SCSI Cable Kit
NOTE: This SCSI Cable Kit (PN 273463-B21) is required when installing an internal tape drive and a SCSI Controller.
273463-B21
ProLiant ML3xx Internal to External SCSI Cable Option Kit (HD68)
159547-B22
ProLiant ML3xx Internal to External SCSI Cable Option Kit (VHDCI)
333370-B21

Custom Builder Please see the Enterprise Configurator for configuration assistance at https://www.hp.com/products/configurator.

HP Rack 5000 Series (Graphite Metallic) HP 5642 Rack-Unassembled

Rack Options for Rack 5000 Series Stabilizer Kit for 5642 rack (Graphite Carbon)
NOTE: The stabilizing kit is used to prevent rack from tipping over.
374493-B21
Baying Kit for 5642 rack (Graphite Carbon)
NOTE: The baying kit is used to join two or more HP 5642 racks.
374499-B21

HP Rack 10000 Series
(Graphite Metallic)

10642 (42U) Infrastructure Rack (Low Voltage)
379006-001
10642 (42U) Infrastructure Rack (High Voltage)
HP Rack S10614 (14U) Rack Cabinet – Shock Pallet

HP Rack 10842 (42U, 800mm wide) – Pallet

257415-B21 257415-B21

HP Rack 10842 (42U, 800mm wide) – Shock Pallet

257415-B22 257415-B22

HP Rack 10647 (47U) – Pallet

245160-B21 245160-B21

HP Rack 10647 (47U) – Crated

245160-B23

HP Rack 10642 (42U) – Pallet

245161-B21 245161-B21

HP Rack 10642 (42U) – Shock Pallet

245161-B22 245161-B22

HP Rack 10642 (42U) – Crated

245161-B23

HP Rack 10636 (36U) – Pallet

245162-B21 245162-B21

HP Rack 10636 (36U) – Shock Pallet

245162-B22 245162-B22

HP Rack 10636 (36U) – Crated

245162-B23

HP Rack 10622 (22U) – Pallet

245163-B21 245163-B21

HP Rack 10622 (22U) – Shock Pallet

245163-B22 245163-B22

HP Rack 10622 (22U) – Crated

245163-B23

HP Rack 10614 (14U) – Shock Pallet

292303-B22

NOTE: -B21 (pallet) used to ship empty racks shipped on a truck
-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels)
-B23 (crated) used for air shipments of empty racks



NOTE: It is mandatory to use a shock pallet in order to ship racks with equipment installed. Not all HP equipment is qualified to be shipped in the Rack 10000 series



NOTE: Please see the Rack 10000 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
https://h18000.www1.hp.com/products/quickspecs/10995_na/10995_na.html



NOTE: For additional information regarding Rack Cabinets, please see the following URL: https://h18000.www1.hp.com/products/servers/proliantstorage/rack-options/index.html.




Rack Options for HP Rack 10000 Series NOTE: For additional information regarding Rack Options, please see the following URL: https://h18000.www1.hp.com/products/servers/proliantstorage/rack-options/index.html.
HP Rack Light Kit (Neon)
HP Rack Plinth Kit (Carbon)

42U Side Panel – Graphite Metallic

246099-B21 246099-B21

36U Side Panel – Graphite Metallic

246102-B21 246102-B21

47U Side Panel – Graphite Metallic

255486-B21 255486-B21

TFT5600 Rack Keyboard Monitor

221546-001 221546-001

1U Rack Keyboard & Drawer (Carbon)
NOTE: For additional information regarding Rack Options, please see the following URL: https://h18000.www1.hp.com/products/servers/proliantstorage/rack-options/index.html.

HP KVM Switch Options Server Console Switch (KVM), 0 x 1 x 8 port
Server Console Switch (KVM), 0 x 2 x 16 port
IP Console Switch Box (KVM/IP), 1 x 1 x 16
IP Console Switch Box (KVM/IP), 3 x 1 x 16
HP 1x4 USB/PS2 KVM Switch, TT
371301-D71
PS/2 Interface Adapter, 8 pack
PS/2 Interface Adapter, 1 pack
CAT5 KVM Expansion Module
Serial Interface adapter - 1 Pack with power supply
CAT5e Cable 3', 4 pack
CAT5e Cable 6', 8 pack
CAT5e Cable 12', 8 pack
CAT5e Cable 20', 4 pack
CAT5e Cable 40', 1 pack
NOTE: For additional information regarding HP KVM Switches and options, please see the following URL:
https://h18004.www1.hp.com/products/servers/proliantstorage/rack-options/list.html#console


Service and Support Offerings (HP Care Pack Services)

Hardware Services On-site Service
Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years
U4462A
Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic
U4462E
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years
U4463A
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
U4463E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years
U4464A
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4464E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years
U4465A
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4465E
Installation & Start-up Services
Hardware Installation
U4473A
Hardware Installation, Electronic
U4473E
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays.
U4474A
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays, Electronic
U4474E
Support Plus
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays.
U4475A
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4475E
Onsite HW support, 8am-9pm, M-F, 4hr response and Linux O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays.
U4477A
Onsite HW support, 8am-9pm, M-F, 4hr response and Linux O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electcronic
U4477E
Support Plus 24
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays.
U4476A
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4476E
Onsite HW support 24x7, 4hr response and Linux O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays.
U4478A
Onsite HW support 24x7, 4hr response and Linux O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4478E
NOTE: For more information, customer/resellers can contact https://www.hp.com/services/carepack
contents
 Overview      Standard Features      Models      ML330 G3 Options      ML330 G3 Memory      Storage      Power Specifications      ML330 G3 QuickSpecs images/line.gif

Memory

HP ProLiant ML330 G3 Models

Standard Memory
256-MB (expandable to 4GB) of non-interleaved PC2100 DDR SDRAM running at 266MHz, with Advanced ECC capabilities (1 x 256MB)

Standard Memory Plus Optional Memory
Up to 3328-MB memory is available with the optional installation of PC2100 DDR SDRAM memory kits.

Standard Memory Replaced with Optional Memory
Up to 4096-MB memory is available with the removal of the standard 256-MB of memory and the optional installation of PC2100 DDR SDRAM DIMM memory kits.

NOTE: Charts do not represent all possible memory configurations.

ML330 G3 Memory
Slot

1

2
3
4

Standard

256 MB
256 MB
Empty
Empty
Empty

Optional

3,328 MB
256 MB
1024 MB
1024 MB
1024 MB
Maximum
4,096 MB
1024 MB
1024 MB
1024 MB
1024 MB

Following are memory options available from HP:


  • 128MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 128 MB)
  • 256MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 256 MB)
  • 512MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 512 MB)
  • 1024MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 1024 MB)

contents
 Overview      Standard Features      Models      ML330 G3 Options      ML330 G3 Memory      Storage      Power Specifications      ML330 G3 QuickSpecs images/line.gif

Storage

A48x IDE (ATAPI) CD-ROM
E 1.44 MB Diskette Drive
B, C, DRemovable Media Bays (1.6" each)
0,1Two 1" Non-Hot Plug Drive Bays



Drive Support


  Quantity
Supported
Position
Supported

Controller

Removable Media


1.44-MB Diskette Drive Up to 1 E Integrated
IDE (ATAPI) CD-ROM Drive Up to 2 A, B, C, or D Integrated IDE (ATAPI)
DVD-ROM Drive Option Kit Up to 2 A, B, C, or D Integrated IDE (ATAPI)

Hard Drives

  Hard Drives (SCSI Models only)
  Ultra320 Hot Pluggable Drives (NOTE: For use with the ML3xx Two Bay Hot Plug SCSI Drive Cage PN 244059-B21 244059-B21 ONLY.)


Quantity
Supported

Position
Supported


Controller



1-inch
300-GB 10,000 rpm
146.8-GB 10,000 rpm
72.8-GB 10,000 rpm
146.8-GB 15,000 rpm
72.8-GB 15,000 rpm
36.4-GB 15,000 rpm

Up to 2
(With optional ML3xx Two Bay Hot Plug SCSI Drive Cage)
A & B Integrated Single Channel Wide Ultra3 SCSI Adapter in a PCI slot
Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 641 Controller
Smart Array 642 Controller
64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter
  Ultra320 – Non-Hot Plug
  1-inch
146.8-GB 10,000 rpm
72-GB 10,000 rpm
36.4-GB 15,000 rpm
Up to 5 0, 1, A, B, C, D
(Using the A position requires the removal or re-positioning of CD-ROM)
Integrated Single Channel Wide Ultra3 SCSI Adapter in a PCI slot
Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 641 Controller
Smart Array 642 Controller
64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter
  NOTE: All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives require an optional U320 Smart Array Controller or U320 SCSI HBA to support U320 transfer rates.

  Hard Drives (ATA Models only)
  ATA/100 - Non-Hot Plug
  1-inch
160.0-GB
80.0-GB
40.0-GB
Up to 4 0, 1, A, B, C, D
(Using the A position requires the removal or re-positioning of CD-ROM)
Integrated Dual Channel Ultra ATA-100 Adapter with support for Integrated ATA RAID 0, 1, & 1+0 (ATA Models)

External Storage



Quantity
Supported

Position
Supported


Host Controller or Adapter



Modular Smart Array 30 Family

Up to 13

External

Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 642 Controller
64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

  Modular Smart Array 500 G2 System 1External Please see the Modular Smart Array 500 QuickSpecs for the latest list of supported HBAs: : https://www.hp.com/go/msa500
 Modular Smart Array 1000Please see the Modular Smart Array 1000 QuickSpecs below to determine configuration requirementsExternalPlease see the Modular Smart Array 1000 QuickSpecs (URL below) for the latest list of supported HBAs
 Modular Smart Array 1000: https://h18000.www1.hp.com/products/quickspecs/11033_na/11033_na.html

Maximum Storage Capacity - ATA Models (SCSI Enclosure)

Internal

640.0 GB (4 x 160.0 GB) (ATA only)
External 29.400 TB (14 x 300 GB) x 7 (Requires additional SCSI controllers in slots)
Total 30.040 TB
Maximum Storage Capacity - SCSI Models (SCSI Enclosure) + Optional Hot Plug Drive Cage)
Internal 1040.4 GB ((3 x 146.8 GB non-hot-plug hard drives) + (2 x 300 GB hot plug hard drives))
External 29.400 TB (14 x 300 GB) x 7 (Requires additional SCSI controller in slots)
Total 30.218 TB

Tape Drives, Tape Autoloaders & Tape Libraries

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:
https://h18000.www1.hp.com/products/quickspecs/north_america/10233.html

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders and Tape Libraries listed below, please see the following:
https://h18000.www1.hp.com/products/quickspecs/north_america/10809.html

NOTE: For complete listing of tape drive offerings see https://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

  Quantity Position Supported

Controller

HP StorageWorks Tape Drives, Internal, Hot Plug
DAT 72 Tape Drive
DAT 40 Tape Drive
(NOTE: For use with the ML3xx Two Bay Hot Plug SCSI Drive Cage (PN 244059-B21 244059-B21) ONLY.)
Up to 2
(With optional ML3xx Two Bay Hot Plug SCSI Drive Cage)
A & B Smart Array 5i Controller (integrated on system board)
Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 642 Controller
Smart Array 641 Controller
64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS


HP StorageWorks Tape Drives, Internal
DAT 72 Tape Drive
DAT 40 Tape Drive
DAT 24 Tape Drive
DLT VS80 Tape Drive
DLT VS160 Tape Drive
SDLT 320 Tape Drive

Up to 2 B, C, D 64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks Tape Drives, External
Ultrium 215
Ultrium 230
Ultrium 448
Ultrium 460
DAT 72 Tape Drive
DAT 40 Tape Drive
DAT 24 Tape Drive
DLT VS80 Tape Drive
DLT VS160 Tape Drive
SDLT 320 Tape Drive
Up to 2 External 64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks Tape Drives, External
Ultrium 960
1 External 64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks Autoloaders, External
DAT 72x6 Tape Autoloader
1/8 Tape Autoloader
SSL1016 Tape Autoloader
1 autoloader per SCSI channel External 64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks Tape Libraries, External
MSL6000 (Ultrium 960-based)
MSL6000 (SDLT 600-based)
MSL6000 (Ultrium 460-based)
MSL5026S2 (SDLT 320-based)
MSL5052S2 (SDLT 320-based)
Please reference the MSL Tape Library QuickSpecs to determine configuration requirements External 64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks Rack-mount Tape Drive Enclosures
1U Rack-Mount Kit
3U Rack-Mount Kit
5U Rack-Mount Kit
1 per SCSI channel External 64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks ESL E-Series Tape Libraries
ESL 712e
ESL 630e
ESL 322e
ESL 286
Please reference the ESL E-series Tape Libraries QuickSpecs to determine configuration requirements External 64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS
contents
 Overview      Standard Features      Models      ML330 G3 Options      ML330 G3 Memory      Storage      Power Specifications      ML330 G3 QuickSpecs images/line.gif

Power Specifications

Part Number319640-001
Spare Kit 324714-001
Operational Input Voltage Range
(Vrms)
90-264
Frequency Range (Nominal) (Hz)47 - 63 (50 / 60)




Nominal Input Voltage (Vrms)
100
115
208
220
230
240
Max Rated Output Wattage Rating
300
300
300
300
300
300
Nominal Input Current (Arms)
4.6
3.9
2.1
2.0
1.9
1.8
Max Rated Input Wattage Rating (Watts)
435
429
423
423
417
411
Max. Rated VA (Volt-Amp)
458
451
445
445
439
433

Efficiency (%)

69
70
71
71
72
73

Power Factor

0.95

Leakage Current (mA)

0.70
0.81
1.47
1.55
1.62
1.69

Maximum Inrush Current (A peak)

42
48
81
92
96
100

Maximum Inrush Current duration (mS)

2
System Specifications

Processor
ML330 G3 Memory
HDD
PCI
PS
HP ProLiant ML330 G3 Fully Configured
2
4
5
4
1

Fully Loaded System Input Wattage (W)
425
419
413
413
408
402
Fully Loaded System Input Current
(Arms)
4.5
3.8
2.1
2.0
1.9
1.8
Fully Loaded System Thermal (BTU-Hr)
1450
1429
1409
1409
1390
1371
Fully Loaded System VA (Volt-Amp)
448
441
435
435
429
423
System Leakage with all power supplies loaded (mA)
0.70
0.81
1.47
1.55
1.62
1.69
System Inrush Current with all power supplies loaded (A)
42
48
87
92
96
100
Power cord requirementsNema 5-15P to IEC320-C13Option no./Spare no: 227099-001/187335-001
 IEC320-C13 to IEC320-C14Option no./Spare no: 142257-001/142258-B21

Example of real input watts consumed versus rated watts consumed is available via the online tool located at url:
https://inline.compaq.com/pg/ecg/issd/power/psupply.asp
select system calculator for one of the systems and reference the green fields at the bottom of the calculator.

NOTES:
* To review typical system power ratings use the Active Answers Power Calculator which is available via the online tool located at URL: https://h30099.www3.hp.com/configurator/powercalcs.asp.

To drill down to calculators:
-   Click on: "ProLiant Servers"
-   Click on the Server of interest. Example: ML330 G3
-   Click on: "Power Calculator" link (You may need to scroll down to see it.)


Server Power Cords One 12 Ft. lowline power cord ships standard.
12 ft. Power Cords (13 Cord Sets) Power Cord Part Number
  163719-002
contents
 Overview      Standard Features      Models      ML330 G3 Options      ML330 G3 Memory      Storage      Power Specifications      ML330 G3 QuickSpecs images/line.gif

Quickspecs

System Unit

Dimensions (HxWxD)
(with feet)

16.8 x 7.5 x 20.25 in (41.91 x 19.05 x 51.44 cm)
Weight 40 lb (18.18 kg)

Input Requirements
(per power supply)

Range Input Voltage

100 to 199 VAC/200 to 240 VAC
Normal Line Voltage 115 to 230 VAC
Line Frequency 50 to 60 Hz
Rated Input Current <6A 100VAC to 199VAC
<3A 200VAC to 240VAC
BTU Rating 1,560 BTU
SCSI Connectors
One internal HD68 connectors
NOTE: Support for either one internal, or one external is available. Internal cabling is included with the server. External SCSI cabling from the integrated SCSI controller is achieved using an internal to external SCSI cable option kit (PN 159547-B22 or 333370-B21).
Power Supply Output Power
(per power supply)
Rated Steady-State Power 300W
Maximum Peak Power 400W
Temperature Range Operating 50° to 93° F (10° to 35° C)
Shipping -40° to 150° F (-40° to 66° C)
Relative Humidity
(non-condensing)
Operating 20% to 80%
Non-operating 5% to 90%
Acoustic Noise Idle
(Fixed Disk Drives Spinning)

L WAd (BELS)
5.1
L pAm (dBA)
34
Operating
(Random Seeks to Fixed Disks)

L WAd (BELS)
5.5
L pAm (dBA)
38

48X Max IDE
CD-ROM Drive

Disk

Applicable Disk

CD-ROM (modes 1 and 2); mixed mode (audio and data combined)
  CD-DA
  Photo CD (Single- and Multi-session)
    CD-XA (mode 2, forms 1 and 2)
    CDI ready ; CD-WO


Capacity

650 MB

Block Size

Mode 1

2,048 bytes, 1024 bytes


Mode 2

2,340 bytes, 2,336 bytes, 1024 bytes


CD-DA

2,352 bytes
  CD-XA 2,328 bytes

Interface

IDE (ATAPI)



Access Times (typical)

Random

<100 ms

Full-Stroke

<150 ms

Audio Output Level

Line-Out 0.7 VRMS at 47 kOhms
Data Transfer Rate

Sustained

150 KB/s (single), 1,500 to 7,200 KBps
(10x to 48x)
Burst 150 KB/s to 7,200 KB/s

Cache Buffer

128 KB



Start-up Time (typical)

<7seconds


Stop Time <4seconds

Laser Parameters

Type Semiconductor Laser GaA1As

Wave Length

780 ± 25 nm

Operating Conditions

Temperature

41° to 113° F (5° to 45° C)

Humidity

10% to 80%

Dimensions

(HxWxD, maximum)

1.7 x 5.85 x 8.11 in (42.9 x 150 x 208 cm)


Weight

2.09 lb (0.95 kg)

NC7760 PCI Gigabit Server Adapter (embedded) Network Interface 10Base-T/100Base-TX/1000Base-TX
Compatibility IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method 32-bit bus-master PCI
Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s
10Base-T (Full-Duplex) 20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
1000Base-TX (Half and Full-Duplex) 2000Mb/s
Connector RJ-45
Cable Support 10Base-T Categories 3, 4 or 5 UTP; up to 328 ft (100 m)
10/100/1000Base-TX Category 5 UTP; up to 328 ft (100 m)

Integrated Single Channel Wide Ultra3 SCSI Adapter in PCI Slot 1 Drives Supported Up to 14 SCSI devices Wide Ultra320, Wide Ultra3 and Wide Ultra2 SCSI hard drives
Data Transfer Method 64-bit/33-MHz PCI bus-master
SCSI Channel Transfer Rate 160 MB/s per channel
Maximum Transfer Rate per PCI Bus (peak) 267 MB/s per channel
SCSI Protocols Wide Ultra 3 SCSI and Wide Ultra2 SCSI
Electrical Protocol Low Voltage Differential (LVD)
SCSI Termination Active Termination
External SCSI Connectors External SCSI cabling from the integrated SCSI controller is achieved using an internal to external SCSI cable option kit (PN 159547-B22 or 333370-B21).
Internal SCSI Connectors One 68-Pin Wide Ultra SCSI-3 connectors

Sillworks                  Ph: 1.613.599.1287                  Fax: 1.613.599.8120
U320 | SSD | SAS/SATA | Fibre | Memory | Controllers | Processors | Power Supplies | Networking
line
Dell | EqualLogic | EMC | Hewlett-Packard | IBM | Seagate
line
HP      HP      HP      Dell Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account Dell      Dell      Dell      Seagate
Terms of Use | Legal | Privacy | Primary Site | Contact us | Add to favorites
Amex Accepted Visa Accepted MasterCard Accepted
