 HPE  Proliant BL10e G2 QuickSpecs Flag US QuickSpecs
Folder-Closed BL10e G2 HDD SSD Folder-Closed BL10e G2 Processors Folder-Closed BL10e G2 Memory
Folder-Closed BL10e G2 Controllers Folder-Closed BL10e G2 Networking Folder-Closed BL10e G2 Power
Folder-Closed BL10e G2 Quickspecs Folder-Closed BL10e G2 Quickspecs Folder-Closed BL10e G2 Options New  Refurb
contents
 Overview      Standard Features      Models      BL10e G2 Options      BL10e G2 Memory      BL10e G2 QuickSpecs images/line.gif

Proliant BL10e G2 Overview

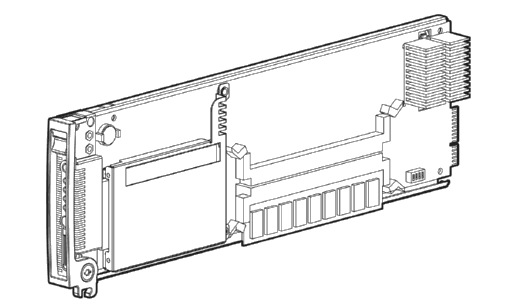

HP ProLiant BL10e Generation 2 (G2) Server Blade
  Proliant BL10e G2 Server Image


ProLiant BL e-Class Server Blade Enclosure
(shown with 20 ProLiant BL10e server blades)
  Proliant BL10e G2 Server Image

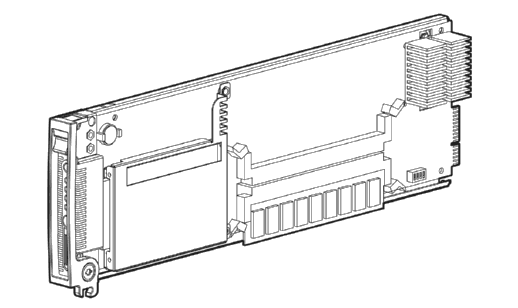

ProLiant BL10e Generation 2 (G2) Server Blade


What's New

  • One Ultra-Low Voltage Intel® Pentium® M 1GHz processor with 1-MB L2 cache
  • Support for DDR memory
    ProLiant BL10e G2 Server Blade includes:
  • One Ultra-Low Voltage ULV Intel Pentium M processor with 1-MB L2 cache (400-MHz front side bus)
  • ServerWorks GC-SL chipset
  • 512-MB C2100 Registered ECC DDR DIMM Memory standard expandable to 1024MB (2 DIMM slots)
  • Two NC3163 Fast Ethernet NIC PCI 10/100 full WOL and PXE Integrated
  • One 40-GB Ultra ATA/100 hard drive
  • Server blades protected by HP Services, including a limited one year parts warranty with optional service uplifts available
    ProLiant BL e-Class Server Blade Enclosure includes:
  • 3U high rack-mountable chassis with 20 server blade bays
  • Can be purchased with 20 licenses for new ProLiant Essentials Rapid Deployment Pack at 50% of standard license list price!
  • Dual, 1+1 redundant hot-plug power supplies
  • Four, 2+2 redundant hot-plug fans
  • Three available interconnect options: C-GbE Interconnect Switch; RJ-45 Patch Panel; and RJ-21 Patch Panel
  • Server blade enclosure protected by HP Services, including a limited three year warranty with optional service uplifts available
    ProLiant BL e-Class Integrated Administrator features:
  • Acts as a combination terminal server and remote power controller, enabling out-of-band, secure, serial console connections to all server blades and the optional interconnect switch
  • Enclosure, interconnect switch and server blade health monitoring and alerts
  • Command-line and browser-based management interfaces, including access permissions, for the server blades and the enclosure
  • Provides access to the interconnect optional switch management interfaces
  • SNMP, web and scriptable command-line interfaces
  Proliant BL10e G2 Server Image
PLUS

  Proliant BL10e G2 Server Image
PLUS


or

or

a. C-GbE Interconnect Switch

b. RJ-45 Patch Panel

c. RJ-21 Patch Panel



Configuration Steps

For a complete configuration of the HP ProLiant BL e-Class system, do the following:

  1. Select ProLiant BL10e G2 server blades sold [in a single-pack or 10-pack]

    PLUS
  2. Select Server Blade Enclosures (each can hold up to 20 ProLiant BL10e G2 server blades). The enclosure can be purchased bundled with 20 licenses for ProLiant Essentials Rapid Deployment Pack at 50% of the standard license price.
    (NOTE: Rapid Deployment Pack is optimized for configuring and deploying ProLiant BL10e G2 server blades and enable unique features such as blade "rip and replace" for effortless server redeployment.)

    PLUS
  3. Select one of the three Interconnect Tray options for each server blade enclosure
    (NOTE: Each interconnect tray includes an Integrated Administrator module.):

    a. C-GbE Interconnect Switch (with 4 10/100/1000T Gigabit Ethernet
    RJ-45 uplinks for up to 40-to-1 network cable reduction!)

    OR

    b. RJ-45 Patch Panel (with 40 RJ-45 connectors)

    OR

    c. RJ-21 Patch Panel (with 4 RJ-21 connectors for cable aggregation behind the enclosure)
    (NOTE: If suitable for your environment, select also the RJ-21 to RJ-45 Cable Option kit.)
contents
 Overview      Standard Features      Models      BL10e G2 Options      BL10e G2 Memory      BL10e G2 QuickSpecs images/line.gif

Standard Features

HP ProLiant BL10e G2 Server Blade
Processor
One Ultra-Low Voltage Intel Pentium M 1GHz processor
Cache Memory 1MB Level-2 on-die Cache
Chipset

ServerWorks GC-SL chipset

  NOTE: For more information regarding ServerWorks, please see the following URL: https://www.serverworks.com/products/overview.html
Memory Standard 512MB PC2100 Registered ECC DDR DIMM Memory standard (1x512 MB)
  Maximum 1024 MB (2 DIMM slots total)
Network Controller Two NC3163 Fast Ethernet NIC PCI 10/100 full WOL and PXE Integrated
Internal Storage Hard Drive One 40-GB Ultra ATA/100 5,400 rpm Non-Hot Plug hard drive
Warranty for the Server Blade 1 year on parts, 9x5 NBD. HP Care Pack warranty upgrades available to add labor, on-site service, faster response times, and longer terms to the standard server blade warranty.
Form Factor Server blades plug vertically into HP ProLiant BL e-Class Server Blade Enclosure
Product Demo To view the Product Demo, please see the following URL, then click on "PRODUCT DEMO":
https://www5.compaq.com/products/servers/proliant-bl/e-class/index.html

HP ProLiant BL10e G2 Server Blade Enclosure
Dimensions
5.25 inch Height (3U), 17.5 inch Width, 28.35 inch Depth
  Bays for up to 20 ProLiant BL10e G2 server blades
Rack Capability Mounts in HP, HP-branded, third-party, and Telco racks. Rack mounting hardware for HP, Compaq-branded and third-party racks ships standard with each server blade enclosure. Telco rack-mounting hardware is a separately available option kit.
Server Blade Enclosure includes

Rear bay for 1 of 3 Interconnect Tray configurations for network cable management (see below).

Two (2) Diagnostic Adapters for connecting keyboard, video, mouse and other devices locally to individual server blades
ProLiant Essentials Foundation Pack for ProLiant BL Servers, includes the Insight Managerä 7 and Management Agents CD and ProLiant Essentials Rapid Deployment Pack CD (trial version - 7-days, 10 nodes).
(NOTE: The ProLiant BL e-Class server blade enclosure can also be purchased bundled with 20 licenses for Rapid Deployment Pack at 50% of the standard license price.)
  Four (2+2 redundant) hot- plug fans
  Dual (1+1 redundant) hot- plug power supplies (600 watts each), power cords
  Server blade blanks (to fill 19 of the 20 server blade bays)
  Rack mounting hardware for HP, Compaq-branded and third-party racks
  Null-modem cable for serial connection to the Integrated Administrator serial "Console" connector
  HP Documentation CD
Warranty for Server Blade Enclosure 3 years on parts, labor and on-site service. HP Care Pack warranty upgrades available to add faster response times to the standard warranty.

HP ProLiant BL e-Class Interconnect Trays
NOTE: Each interconnect tray includes the Integrated Administrator module.
  Please see the following (3) interconnect tray configurations for accessing server blade network connections:
  ProLiant BL e-Class C-GbE Interconnect Switch (with 4 Gigabit Ethernet uplinks for up to 40-to-1 network cable reduction!)
NOTE: See details below.
RJ-45 Patch Panel (with 40 RJ-45 connectors)
RJ-21 Patch Panel (with 4 RJ-21 connectors for cable aggregation behind the enclosure)
NOTE: See "Other Options" below for RJ-21 to RJ-45 Cable option kit.
Warranty

3 years on parts, labor and on-site service. HP Care Pack warranty upgrades available to add faster response times to the standard warranty.


HP ProLiant BL e-Class Integrated Administrator ver. 1.40 Features

  • Out-of-band local console and remote network access to the server blade enclosure and all 20 server blades via (one) RJ-45 10/100T Fast Ethernet and (one) RS-232 management connectors
  • Provides local and remote access to the ProLiant BL e-Class C-GbE Interconnect Switch command console and browser-based management interfaces
  • SNMP, Web (via HTTPS) and command-line interfaces (via Console connector, Telnet and Secure Shell)
  • Remotely power on/off/reboot server blades and enclosures
  • Remotely toggle on/off unit identification LEDs (UID) of server blades and enclosures
  • Monitors and controls the enclosure fans, temperature sensors, power supplies, interconnect switch and server blade status
  • Connect to each server blade's serial text console for enabling full control over server blade's
  • Power-On Self Test (POST) and boot process, including the ROM-Based Setup Utility (RBSU).
    NOTE: For ProLiant BL10e G2 server blades running Windows® 2000 Server, there is now available a Serial Console for Windows utility that provides serial-based administrative functionality using the Integrated Administrator remote console feature. For more information and to download the Serial Console for Windows utility, go to the following page:
    https://www.compaq.com/support/files/server/us/locate/20_2611.html
  • User administration for up to 25 users. Server blade bay privileges can be set on a per-user basis
  • Virtual NMI button generates non-maskable interrupt for crash debug and analysis
  • Support for Network Time Protocol (NTP)
  • IP Security feature limits access to user-specified IP addresses
  • AlertMail enables email alerts for system events
  • More than 100 scriptable commands enable automated management
  • Selective enabling of all protocols, such as Telnet
  • Logging of operating system console, server blade and enclosure hardware events, user actions and invalid login attempts
  • Emergency server blade enclosure shutdown caused by a critical temperature
  • Enclosure Link (2) connectors reserved for future use.
    CAUTION: The enclosure link (RJ-45) connectors on the interconnect tray are not to be used. Connecting an external device to these enclosure link (RJ-45) connecters may damage your external device.
    For more information on the ProLiant BL e-Class Integrated Administrator, please visit the Web site at: https://www.compaq.com/products/servers/proliant-bl/e-class/integrated-admin.html

HP ProLiant BL e-Class C-GbE Interconnect Switch Features

  • Provides up to a 40-to-1 reduction in network cables for each server blade enclosure using a pair of non-blocking layer 2 switch modules
  • Four RJ-45 10/100/1000T Gigabit Ethernet uplinks
  • Forty 10/100T Ethernet ports dedicated to server blade-to-interconnect switch network communications
  • Communicate with all 40 server blade network controllers through any one uplink connector and the management connector
  • Spanning tree protocol for loop-free path redundancy
  • Browser, scriptable CLI, and console-based interfaces for local and remote interconnect switch management
  • Manage entire interconnect switch through the Integrated Administrator connectors or any uplink connector
  • Telnet, RMON and SNMP support; SNMP-based scripting utility with example scripts
  • 256 Port-based IEEE 802.1Q tagged VLANs per switch processor module
  • IGMP (internet group management protocol) snooping and quality of service (QoS) packet prioritization
  • TFTP server support for rapid deployment of multiple interconnect switches and to provide backup and restore capabilities
  • Industry-standard design compatible with industry-standard network components from leading network manufacturers
  • Fully pre-configured for rapid deployment and immediate operation in ProLiant BL e-Class enclosure
  • For more information on the ProLiant BL e-Class C-GbE Interconnect Switch, please visit the Web site at: https://www.compaq.com/products/servers/proliant-bl/e-class/interconnect-switch.html

Other Options

  • RJ-21 to RJ-45 Cable option kit; contains four (4) 10 foot RJ-21 to RJ-45 cables (for use with the RJ-21 Patch Panel) interconnect tray

Diagnostic Adapter Interfaces
NOTE: Two Diagnostic Adapters are included with every ProLiant BL10e G2 Server Blade Enclosure.
  ProLiant BL10e G2 server blade LEDs and buttons


PS/2 Mouse

  PS/2 Keyboard
  Video
  Serial
  USB (2)


NOTE: Please see the following URL for additional information regarding USB support:
https://www.compaq.com/products/servers/platforms/usb-support.html.
NOTE: This Web site is available in English only.
NOTE: Server blades also support USB keyboard and USB mouse attached via the Diagnostic Adapter. The following USB devices have been tested for use with the ProLiant BL10e and the Diagnostic Adapter:

  • USB Easy Access Keyboard (Carbon) (PN 267146-xx8)
  • USB Easy Access Keyboard (Carbonite) (PN DC168B#)
  • USB 2-Button Scroll Mouse (Carbon) (PN 195255-B25)
  • USB 2-Button Scroll Mouse (Carbonite) (PN DC172B DC172B)
  • USB Floppy (PN 304707-B21)

ProLiant Essentials Foundation Pack Software for the ProLiant BL Server
ProLiant Essentials Rapid Deployment Pack Rapid Deployment Pack (RDP) is an automated deployment and provisioning solution for all ProLiant servers. RDP includes the Altiris Deployment Solution and ProLiant Integration Module featuring ProLiant server pre-configured events for OS installation, and optimized software drivers, firmware and management agents. Every RDP CD includes 10-node trial licenses for evaluation purposes. RDP requires a license for each server deployed and are available for purchase with blade servers. For more information, visit https://www.hp.com/servers/rdp.
HP Systems Insight Manger HP Systems Insight Manager (HP SIM) help maximize system uptime and performance and reduce system maintenance costs by providing proactive notification of problems before those problems result in unplanned downtime or reduced productivity. HP SIM is easy to set up to work with the Insight Management Agents, integrated Light-Out and Remote Insight Light-Out Edition, and Version Control Agents to deliver robust fault, configuration, and asset management as well as remote administration. With HP Systems Insight Manager customers will also be able to take advantage of role-based security; the ability to manage ProLiant, Integrity, and HP9000 systems; and plug-ins for storage, client, printer, and power management as well as server rapid deployment, performance management, and workload management. For more details on HP Systems Insight Manager visit https://www.hp.com/go/hpsim.
Management Agents The Management Agents form the foundation for HP's Intelligent Manageability strategy. They provide direct, browser-based access to in-depth instrumentation built into HP servers, workstations, desktops, and portables, and send alerts to HP Systems Insight Manager and other enterprise management applications in case of subsystem or environmental failures. For additional information about the Management Agents and other management products from HP, please visit the management Web site at https://www.hp.com/servers/manage.
Subscriber's Choice Subscriber's Choice Driver and Support Alerts/Notifications is a web-based email subscription service that provides software and driver change notifications for ProLiant products. Sign up at https://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become available, on a weekly or monthly basis.
ROMPaq, support software, and
configuration utilities
The latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options, available in the RDP CD, SmartStart or downloadable from Software and Drivers download pages, linked from the SmartStart website at https://www.hp.com/servers/smartstart.
Survey Utility and diagnostics utilities The most advanced configuration analysis, reporting and troubleshooting utilities used by HP and at your fingertips, available in SmartStart.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: https://www.hp.com/servers/proliantessentials

Optional ProLiant Essentials Value Packs

Optional software offerings that selectively extend the functionality of an Adaptive Infrastructure to address specific business problems and needs:

  • Workload Management Pack - provides easier management of complex environments, improving overall server utilization and enabling Windows® 2000 customers for the first time to confidently deploy multiple applications on a single multiprocessor ProLiant Server.
  • Performance Management Pack - a performance management solution that identifies and explains hardware performance bottlenecks on ProLiant servers and attached options enabling users to better utilize their valuable resources.
  • Intelligent Networking Pack - detects and analyzes network bottlenecks or broken networking linkages and steers traffic to the optimum route based on network conditions.

NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to https://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.


SmartStart SmartStart is a tool that simplifies single server setup, providing a rapid way to deploy reliable and consistent server configurations. SmartStart 7.00 and later can now deploy the ProLiant BL20P G3 and ProLiant BL40P servers, using the I/O port with an attached USB CD-ROM device. To obtain a copy of SmartStart for your blade server, redeem the coupon that is included with your Blade server or order your copy from the SmartStart web site. For more information, please visit the SmartStart Web site at https://www.hp.com/servers/smartstart.
SmartStart version supported (minimum): SmartStart 6.20

Industry Standard Compliance ACPI 1.0b compliant
SDG 3.0 compliant
Microsoft Logo certifications
MIB-II (RFC 1213), Bridge MIB (RFC 1493), Interface MIB (RFC 2233), 801.1Q MIB (RFC 2684), RMON1 MIB (RFC 1757) groups 1, 2, 3, and 9, and Ethernet MIB (RFC1643) (ProLiant BL e-Class C-GbE Interconnect Switch interconnect tray option)
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.3ac and 802.1Q, IEEE 802.1Q, and IEEE 802.3x (ProLiant BL e-Class C-GbE Interconnect Switch interconnect tray option)
SNMP v1 (RFC 1157) and RMON v1 (RFC 1757) groups 1, 2, 3, and 9 (ProLiant BL e-Class C-GbE Interconnect Switch interconnect tray option)

Intelligent Manageability Insight Manager 7
HP Systems Insight Manager
ROM Based Setup Utility (RBSU)
Automatic Server Recovery (ASR-2)
Enclosure Self Recovery (ESR)
Advanced Configuration and Power Interface Specification Ready (ACPI)
Server Blade and Enclosure Health Logs
Redundant Power Supply Utility
Power Down Utility
Pre-Failure Warranty (covers processors, hard drives and memory)
HP Interconnect Switch Management System and Utilities (included with the ProLiant BL e-Class C-GbE Interconnect Switch interconnect tray option)

Availability

Redundant Hot-Plug Power Supplies (ProLiant BL e-Class Server Blade Enclosure)
Redundant Hot-Plug Fans (ProLiant BL e-Class Server Blade Enclosure)
ECC Memory (ProLiant BL10e Server Blade)
Redundant ROM (ProLiant BL10e Server Blade)
Support for ProLiant network adapter teaming
Dual network communication paths to each server blade using redundant, non-blocking layer 2 switch modules
Redundant inter-module communication links
Two redundant uplink ports per each interconnect switch module
IEEE 801.1D Spanning tree protocol for loop-free path redundancy
Redundant configurable community strings and SNMP trap manager hosts
IEEE 802.3ad automatic multi-link load balancing and link failover (excluding LACP)


Security Power-on password
Administrator's password
Secure Shell (SSH) access through the Integrated Administrator serial console
ProLiant BL e-Class C-GbE Interconnect Switch interconnect tray option security
Multilevel user names and passwords with configurable time out period setting
Ability to disable web-based and Telnet access to the switch user interfaces
256 IEEE 802.1Q tagged VLANs per interconnect switch module
Unicast and multicast static MAC address packet filtering table (layer 2 access control list)
Ability to specify the IP based management stations that are allowed to access each switch
Restriction on the maximum number of MAC addresses learned on a per port basis
Secure shell (SSH) access to the switch command line and menu driven interfaces via the Integrated Administrator

OS Support NOTE: For a more complete and up-to-date listing of supported OSs and versions, please visit OS Support Matrix at: https://www.hp.com/go/supportos.
NOTE: For a more complete and up-to-date information on Linux support, please visit HP Linux Web site at https://h18000.www1.hp.com/products/servers/linux/hpLinuxcert.html.
NOTE: For a more complete and up-to-date information on Linux support, please visit HP Linux Web site at https://h18000.www1.hp.com/products/servers/linux/hpLinuxcert.html.

Rack Airflow Requirements

Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment
  • Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 5,350 sq cm (830 square inches) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation).
  • Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 7 cm (2.75 inches)
CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.
NOTE:
Please consult the Setup & Installation Guide for the server for additional details.

Service and Support

Three-year limited warranty, including hardware diagnostic support, pre-failure warranty (coverage of hard drives, memory and processors). The warranty is fully supported by HP Services and a worldwide network of resellers and service providers. In addition 90-day's getting started software telephone support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services.

NOTE: Sever Blade Limited Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.
NOTE: Server Blade Enclosure and Interconnects Limited Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.

Care Pack services provide a range of life cycle support options that let you choose the service levels that meet your business requirements, from basic to mission-critical.

A full range of HP Care Pack hardware and software services are available including:

  • Installation and start up
  • Education courses
  • Extended onsite hardware coverage hours from same business day 13 hours, 5 day to 24 hours, 7 days call window with options including 4-hour response or 6-hour Call To Repair
  • Comprehensive range of software technical support for Microsoft, Linux, ProLiant Essentials and VMWare-based IT solutions helping to deliver high level of application availability. Response times range from 30 mins for critical problems to 2 hours.
  • System Management, Performance Services and Mission Critical Support Solution

HP Care Pack services for ProLiant BL p-Class server blades, cover the server blade and the p-Class blade enclosure that the server blade is installed in as well as interconnects, power enclosure with power supplies and power distribution.

  NOTE: For more information on HP Care Pack services, contact any of our worldwide sales offices or resellers or visit our worldwide Web site on the internet at: https://www.hp.com/hps/carepack
NOTE: For more complete information on HP Services offerings, customers and resellers, please visit us at: https://www.hp.com/hps
NOTE: Additional information regarding worldwide limited warranty and technical support is available at: https://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
contents
 Overview      Standard Features      Models      BL10e G2 Options      BL10e G2 Memory      BL10e G2 QuickSpecs images/line.gif

Models

ProLiant BL10e G2 P1GHz-1MB (ULV), 512-MB, 40-GB ATA
333773-B21 (1 pack)
333774-B21 (10 pack)


Processor One Ultra-Low Voltage Intel Pentium M 1GHz processor
Cache Memory 1-MB Level-2 on-die cache
Memory 512 MB (Standard) to 1024 MB (Maximum) PC2100 Registered ECC DDR DIMM Memory standard (1x512 MB)
Network Controller Two NC3163 Fast Ethernet NIC PCI 10/100 full WOL and PXE Integrated
Hard Drive One 40-GB Ultra ATA/100 5,400 rpm Non-Hot Plug 2.5" hard drive
Form Factor Plugs vertically into HP ProLiant BL10e G2 Server Blade Enclosure
contents
 Overview      Standard Features      Models      BL10e G2 Options      BL10e G2 Memory      BL10e G2 QuickSpecs images/line.gif

Options

ProLiant BLe-Class Unique Options

Four (4) RJ-21 to RJ-45 cables for use with the RJ-21 Patch Panel interconnect tray
(10 foot cables)

257076-B21
Enclosure Shipping Bracket Kit
NOTE: When shipping an enclosure in a rack shipping brackets must be installed to the rack.
293119-B21

Server Blade Enclosure

ProLiant BL e-Class Server Blade Enclosure

ProLiant BL e-Class Server Blade Enclosure (includes 20 licenses for ProLiant Essentials Rapid Deployment Pack at 50% of the standard per-node license list price)
273644-B21

Interconnect Trays (each includes an Integrated Administrator module) Interconnect Tray, ProLiant BL e-Class C-GbE Interconnect Switch
Interconnect Tray, RJ-21 Patch Panel
253177-B21
Interconnect Tray, RJ-45 Patch Panel
243282-B21

ProLiant Essentials
Value Pack Software
ProLiant Essentials Rapid Deployment Pack (1 node license, V1.1)
NOTE: Each server blade bay slot populated by a server blade requires one license.
267196-B21
ProLiant Essentials Rapid Deployment Pack (10 node license, V1.1)
NOTE: Rapid Deployment pack is now available in Linux only environments.
269817-B21
Flexible-Quantity License Kit
NOTE: For use with multiple servers. This part number can be used to purchase multiple licenses with a single activation key. The quantity ordered of this part number will be the quantity of licenses included in the kit in the form of a corresponding activation key. Use the same key to activate all licenses in the actual quantity ordered. For a given order, one kit will be delivered with the activation key, and documentation
302127-B21
AKA Tracking License
NOTE: For use with signed and implemented Activation Key Agreements only. Purchase of this part number entitles the customer to deploy additional licenses of the product under the terms of the existing Activation Key Agreement. Nothing is delivered in conjunction with the purchase of this part number. Visit https://h18004.www1.hp.com/products/servers/proliantessentials/license/akalic.html for more information on Activation Key Agreements.
302128-B21
ProLiant Essentials Workload Management Pack
(Featuring Resource Partitioning Manager version 2.0)
ProLiant Essentials Performance Management Pack, 10-Server License
NOTE: For use with 10 servers. Contains 10 licenses with one unique license
activation key and documentation.
374055-B21
ProLiant Essentials Performance Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license
activation key and documentation.
306696-B21
ProLiant Essentials Performance Management Pack, Flexible-Quantity License
NOTE: For use with multiple servers. This part number can be used to purchase multiple licenses with a single activation key. The quantity ordered of this part number will be the quantity of licenses included in the kit in the form of a corresponding activation key. Use the same key to activate all licenses in the actual quantity ordered. For a given order, one kit will be delivered with the activation key, and documentation
306697-B21
ProLiant Essentials Intelligent Networking Pack, Single Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.
372906-B21
ProLiant Essentials Intelligent Networking Pack, Flexible License
NOTE: For use with multiple servers. This part number can be used to purchase multiple licenses with a single activation key. The quantity ordered for this part number will be the quantity of licenses included in the kit in the form of a corresponding activation key. Use the same key to activate all licenses in the actual quantity ordered. For a given order, one kit will be delivered with the activation key, and documentation.
372950-B21
ProLiant Essentials Intelligent Networking Pack, Tracking License
NOTE: For use with signed and implemented Activation Key Agreements only. Purchase of this part number entitles the customer to deploy additional licenses of the product under the terms of the existing Activation Key Agreement.
NOTE: Nothing is delivered in conjunction with the purchase of this part number. Visit https://h18004.www1.hp.com/products/servers/proliantessentials/license/akalic.html
for more information on Activation Key Agreements.
372951-B21
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: https://www.compaq.com/proliantessentials.

Memory
(SDRAM DIMMs)

128MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 128 MB)
256MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 256 MB)
512MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 512 MB)

UPS and PDU Power Cord Matrix Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and specifications for UPS and PDU units:
ftp://ftp.compaq.com/pub/products/servers/ProLiantstorage/power-protection/powercordmatrix.pdf

Uninterruptible Power Systems- Rack HP UPS R1500 XR (1440VA, 1340 Watt), Low Voltage (NA)
HP UPS R1500 XR (1500VA, 1340 Watt), High Voltage (Int'l)
204404-B31
HP UPS R1500 XR (1500VA, 1340 Watt), Low Voltage (Japan)
204404-291
HP UPS R3000 XR (2880VA, 2700 Watt), Low Voltage (NA)
HP UPS R3000 XR (3000VA, 2700 Watt), High Voltage (NA)
HP UPS R3000 XR (2400VA, 2250 Watt), Low Voltage (Japan)
192186-291
HP UPS R3000 XR (3000VA, 2700 Watt), High Voltage (Japan)
192186-292
HP UPS R3000 XR (3000VA, 2700 Watt), High Voltage (Int'l – detachable cord)
192186-B31
HP UPS R3000 XR (3000VA, 2700 Watt), High Voltage (16A IEC309 Plug)
192186-B32
HP UPS R3000 XR (3000VA, 2700 Watt), High Voltage
(16A CEE 7/7 SCHUKO Plug)
192186-B33
HP UPS R3000 XR (3000VA, 2700 Watt), High Voltage (16A BS-546 Plug)
192186-AR1
Rack-Mountable UPS R6000 (6000VA, 6000 Watt) High Voltage (NA)
NOTE: The UPS R6000 has a hardwired input.
Rack-Mountable UPS R6000 (6000VA, 6000 Watt) High Voltage (Int'l)
NOTE: The UPS R6000 has a hardwired input.
347757-B31
Rack-Mountable UPS R6000 (6000VA, 6000 Watt) High Voltage (Japan)
NOTE: The UPS R6000 has a hardwired input.
347757-291
UPS R12000 XR N+ x (200-240V) (WW-hardwired)
NOTE: The UPS R12000 XR has a hardwired input and output.
207552-B22

UPS Options SNMP Serial Port Card
NOTE: Supports tower and rack UPS XR models ranging from 1000 – 3000VA.
192189-B21
  Six Port Card
NOTE: Supports tower and rack UPS XR models ranging from 1000 – 3000VA.
  Extended Runtime Module, R1500 XR
NOTE: 2U each, two ERM maximum.
  Extended Runtime Module, R3000 XR
NOTE: 2U each, one ERM maximum.
  Extended Runtime Module, R6000
NOTE: 3U each, two ERM maximum.
  Extended Runtime Module, R12000 XR, 4U
NOTE: 4U each, two ERM maximum.
  R12000 XR BackPlate Receptacle Kit, (2) L6-30R (NA)
NOTE: The R12000 XR BackPlate Kit has a hardwired input.
325361-001
  R12000 XR BackPlate Receptacle Kit, (2) IEC-309R (WW)
NOTE: The R12000 XR BackPlate Kit has a hardwired input.
325361-B21
  SNMP-EN Adapter
NOTE: Supports R6000 UPS series only.

Modular PDUs 1U/0U
(Up to 32 outlets)

HP Modular Power Distribution Units (mPDU), Low Volt Model, 24A (100-127 VAC)
(NA, Japan)
NOTE: This mPDU (252663-D71 252663-D71) may also be used to connect the low volt model of the UPS R3000 XR.
NOTE: 1U/0U mounting brackets shipped with the unit (optimized for 10000 and 9000 series racks).
HP Modular Power Distribution Units (mPDU), High Volt Model, 24A (200-240 VAC)
(NA, Japan)
HP Modular Power Distribution Units (mPDU), High Volt Model, 32A (200-240 VAC) (Int'l)
252663-B31
HP Modular Power Distribution Units (mPDU), High Volt Model, 40A (200-240 VAC) (WW)
NOTE: This mPDU (252663-B21 252663-B21), 40A model has a hardwired input.
HP Modular Power Distribution Units (mPDU), High Volt Model, 16A (200-240 VAC) (WW)
NOTE: This PDU has a detachable input power cord and allows for adaptability to country specific power requirements (country-specific cord needs to be ordered separately; for North America, need IEC C19 to L6-20P power cord PN: 340653-001). This model may also be used with the high volt UPSs R3000 XR and R6000.
NOTE: Please see the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs for additional options including shorter jumper cables and country specific power cords:
https://www5.compaq.com/products/quickspecs/11041_na/11041_na.HTML
(North America)

https://www5.compaq.com/products/quickspecs/11041_div/11041_div.HTML
(Worldwide)

USB Options

USB Easy Access Keyboard (carbon)
267146-xx8
USB Easy Access Keyboard (Carbon) Country Key Code
Dash # Description Dash # Description
-008 US -178 Arabic
-038 UK -188 Belgium
-048 Germany -218 Hungary
-058 France -228 Czech
-068 Italy -238 Slovac
-078 Spain -248 Polish
-088 Denmark -258 Russian
-098 Norway -298 Japan
-108 Sweden/Finland -338 Dutch
-128 French Canadian -358 Finish
-138 Portugal -B38 Int'l
-148 Turkey -B48 BHCSY
-158 Greek
USB Easy Access Keyboard (carbonite)
DC168B#
USB Easy Access Keyboard (carbonite) Country Key Code
Dash # Description Dash # Description
A2M
ICELAND
ABT
HE

AB0 TAWA ABU UK
AB1 KOR ABV ARA
AB2 PRC ABX FIN
AB6 FR A ABY DEN
AB7 GRK ABZ ITL
AB8 TURK AC0 BEL
AB9 PORT AC4 BRZ
ABA US ACB RUSS
ABB EURO AKB CZE
ABC FCAN AKC HUNG
ABD GR AKD POL
ABE SP AKL THAI
ABF FR AKN BHCSY
ABH NL AKR SLOV
ABJ Japan ARK ICELAND
ABM LA B15 KAZ
ABN NOR UUZ SWISS
ABS SW
USB 2-Button Scroll Mouse (carbon)
195255-B25
USB 2-Button Scroll Mouse (carbonite)
USB Floppy
304707-B21

Tape Libraries HP StorageWorks ESL9000 Series Tape Libraries

  ESL9595 Extended Tape Library, 0 drive, 400 slots (card cage, Interface Mgr card, Command View license)
343378-B21 343378-B21
  ESL9595 Library, 0 drive, 400 slots
330833-B21
  ESL9322 Extended Tape Library, 0 drive, 222 slots (card cage, Interface Mgr card, Command View license)
343377-B21 343377-B21
  ESL9595 Library, 0 drive, 222 slots
330832-B21
  ESL9000 Ultrium 460 drive kit
330834-B21 330834-B21
  ESL9000 Ultrium 230 drive kit
301930-B21 301930-B21
  ESL9000 SDLT 320 drive kit
293414-B21 293414-B21
  ESL9000 400 to 500 slot upgrade
330842-B21
  ESL9000 500 to 595 slot upgrade
330842-B22
  ESL9000 400 to 595 slot upgrade
330842-B23
  ESL9000 222 to 322 slot upgrade
330840-B21
  ESL9000 E2400-160 FC Interface Controller (one controller for every four drives)
330839-B21 330839-B21
  License for Direct Backup Engine ESL
343375-B21
  License for Secure Manager ESL
343376-B21
  NOTE: Please reference the ESL9000 Series Tape Libraries QuickSpecs at https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at https://www.hp.com/go/ebs

Custom Builder Please see the Enterprise Configurator for configuration assistance at: https://www.hp.com/products/configurator.

HP Rack 10000 Series
(Graphite Metallic)

S10614 (14U) Rack Cabinet - Shock Pallet

HP Rack 10647 (47U) – Pallet

245160-B21 245160-B21

HP Rack 10647 (47U) – Crated

245160-B23

HP Rack 10642 (42U) – Pallet

245161-B21 245161-B21

HP Rack 10642 (42U) – Shock Pallet

245161-B22 245161-B22

HP Rack 10642 (42U) – Crated

245161-B23

HP Rack 10636 (36U) – Pallet

245162-B21 245162-B21

HP Rack 10636 (36U) – Shock Pallet

245162-B22 245162-B22

HP Rack 10636 (36U) – Crated

245162-B23

HP Rack 10622 (22U) – Pallet

245163-B21 245163-B21

HP Rack 10622 (22U) – Shock Pallet

245163-B22 245163-B22

HP Rack 10622 (22U) – Crated

245163-B23

NOTE: -B21 (pallet) used to ship empty racks shipped on a truck
-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels)
-B23 (crated) used for air shipments of empty racks
NOTE: Not all HP equipment is qualified to be shipped in the Rack 10000 series.

NOTE: Please see the Rack 10000 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
https://www5.compaq.com/products/quickspecs/10995_div/10995_div.HTML
(Worldwide)
https://www5.compaq.com/products/quickspecs/10995_na/10995_na.HTML
(North America)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: https://h18000.www1.hp.com/products/servers/proliantstorage/rack-options/index.html.


Rack Options for HP
Rack 10000 Series
HP Light kit for 10000 series rack
HP Plinth kit for 10000 series rack
800mm Wide Stabilizer Kit (Graphite) 255488-B21 255488-B21
NOTE: Supported by the Rack 10842 cabinet only.
600mm Stabilizer Kit – Graphite 246107-B21 246107-B21
Baying Kit for Rack 10000 series (Carbon) 248929-B21 248929-B21
42U Side Panel – Graphite Metallic 246099-B21 246099-B21
110V Fan Kit (Graphite) 257413-B21 257413-B21
NOTE: Roof Mount Includes power cord with IEC320-C13 to Nema 5-15P.
220V Fan Kit (Graphite) 257414-B21 257414-B21
NOTE: Roof Mount Includes power cord with IEC320-C13 to Nema 6-15P.
36U Side Panel – Graphite Metallic 246102-B21 246102-B21
47U Side Panel – Graphite Metallic 255486-B21 255486-B21
9000/10000 Series Offset Baying Kit (42U) 248931-B21
NOTE: This kit can be used to connect 9000 and 10000 series racks of the same U height together. Kit contents include hardware for connecting racks and a panel to cover the 100mm gap at the rear of the two racks.
NOTE: For additional information regarding Rack Options, please see the following URL: https://h18000.www1.hp.com/products/servers/proliantstorage/rack-options/index.html.
Ballast Option Kit
9000/10000 Series Offset Baying Kit (42U)
248931-B21
NOTE: This kit can be used to connect 9000 and 10000 series racks of the same U height together. Kit contents include hardware for connecting racks and a panel to cover the 100mm gap at the rear of the two racks.
NOTE: For additional information regarding Rack Cabinets, please see the following URL: https://h18000.www1.hp.com/products/servers/proliantstorage/rack-options/index.html
Rack Rail Adapter Kit (25" depth) 120675-B21 120675-B21
100 kg Sliding Shelf 234672-B21 234672-B21
Monitor/Utility Shelf - Graphite 253449-B21 253449-B21
Depth Adjustable Fixed Rail 332558-B21 332558-B21
Cable Management D-Rings Kit 168233-B21 168233-B21
Server Console Switch 1 x 4 port (100-230 VAC) 400336-001 400336-001
Server Console Switch 1 x 4 port (100-230 VAC) (Int’l) 400336-B31
Server Console Switch 1 x 4 port (100-230 VAC) (Japan) 400336-291
IP Console Switch Box, 1 x 1 x 16 262585-B21 262585-B21
IP Console Switch Box, 3 x 1 x 16 262586-B21 262586-B21
CPU to Server Console Cable, 12’ 110936-B21 110936-B21
CPU to Server Console Cable, 3’ 110936-B24 110936-B24
CPU to Server Console Cable, 7’ 110936-B25 110936-B25
IP CAT5 Cable 3’, 4 pack 263474-B21 263474-B21
IP CAT5 Cable 6’, 8 pack 263474-B22 263474-B22
IP CAT5 Cable 12’, 8 pack 263474-B23 263474-B23
IP CAT5 Cable 20’, 4 pack 263474-B24 263474-B24
IP CAT5 Cable 40’, 1 pack 263474-B25 263474-B25
Switch Box Connector Kit (high voltage) (Int'l) 144007-B33
TFT5600 Rack Keyboard Monitor 221546-xx1
TFT7210R Rack Mounted 17" Monitor 348373-B21 348373-B21
NOTE: For a complete list of Monitors please view the following URL:
https://h18004.www1.hp.com/products/monitors/

1U Rack Keyboard & Drawer (Carbon)
257054-xx1
Country Code Key (for 1U Rack Keyboard & Drawer (PN 257054-xx1))
XX = 001 US XX = 091 Norway
XX = 031 UK XX = 101 Sweden/Finland
XX = 041 Germany XX = 111 Switzerland
XX = 051 France XX = 131 Portugal
XX = 061 Italy XX = 181 Belgium
XX = 071 Spain XX = 291 Japan
XX = 081 Denmark XX = B31 International
NOTE: For additional information regarding Rack Options, please see the following URL: https://h18000.www1.hp.com/products/servers/proliantstorage/rack-options/index.html.

Rack Options for HP, Compaq-branded, Third Party and Telco racks Telco rack-mounting hardware kit for ProLiant BL e-Class Server Blade Enclosure
266076-B21
Enclosure Shipping Bracket Kit
NOTE: When shipping an enclosure in a rack shipping brackets must be installed to the rack.
293119-B21

Service and Support Offerings (HP Care Pack Services)
NOTE: The HP Care Pack services for ProLiant BL e-Class server blades cover the server blade and the e-Class blade enclosure that the server blade is installed in as well as the interconnect tray.
Hardware Services On-site Service
Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years
UA220A
Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years , Electronic
UA220E
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years
UA221A
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
UA221E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years
UA222A
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UA222E
Installation & Start-up Services
ProLiant BL e-Class Blade Server Hardware Installation
UA227A
ProLiant BL e-Class Blade Server Hardware Installation, Electronic
UA227E
ProLiant BL e-Class Enclosure and Server Blade Hardware Installation
U4960A
ProLiant BL e-Class Enclosure and Server Blade Hardware Installation, Electronic
U4960E
Provides for the Installation and Start-up of Compaq's Rapid Deployment Pack on a Customer supplied server designated as a Deployment Server. Includes the deployment of a single server. This new server will be deployed using either one of the pre-configured scripts or an image. In addition, the service will provide for the capture and storage of the configuration of the newly deployed server and orientation on product usage. To be delivered during standard office ours, standard office days.
U5683A
Provides for the Installation and Start-up of Compaq's Rapid Deployment Pack on a Customer supplied server designated as a Deployment Server. Includes the deployment of a single server. This new server will be deployed using either one of the pre-configured scripts or an image. In addition, the service will provide for the capture and storage of the configuration of the newly deployed server and orientation on product usage. To be delivered during standard office ours, standard office days. Electronic.
U5683E
NOTE: For more information, customer/resellers can contact https://www.hp.com/services/carepack
contents
 Overview      Standard Features      Models      BL10e G2 Options      BL10e G2 Memory      BL10e G2 QuickSpecs images/line.gif

Memory

ProLiant BL10e G2 Server Blade

STANDARD MEMORY
512-MB PC2100 Registered ECC DDR DIMM Memory installed (1 x 512-MB SDRAM DIMM)


STANDARD MEMORY PLUS OPTIONAL MEMORY
Up to 1024 MB PC2100 Registered ECC DDR DIMM Memory is available with the installation of optional SDRAM DIMM memory expansion kits.

BL10e G2 Memory

Slot



1

2

Standard
512 MB

512 MB

Empty

Optional
640 MB

512 MB

128 MB

Optional
768 MB
512 MB
256 MB
Maximum
1024 MB

512 MB

512 MB



Following are memory options available from HP:


  • 128MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 128 MB)
287494-B21 287494-B21
  • 256MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 256 MB)
287495-B21 287495-B21
  • 512MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 512 MB)
287496-B21 287496-B21
contents
 Overview      Standard Features      Models      BL10e G2 Options      BL10e G2 Memory      BL10e G2 QuickSpecs images/line.gif

Quickspecs

HP ProLiant BL10e G2 Server Blade Enclosure

Dimensions Height 5.25 in (13.35 cm) (3U)
  Width 17.5 in (44.45 cm)
  Depth 28.35 in (72.01 cm)
  Weight Interconnect Tray 4.5 lb (2.04 kg)
    20 server blades 35 lb (15.86 kg)
    Enclosure with 2 power supplies 54.5 lb (24.7 kg)
    Total weight fully loaded 94 lb (41.73 kg)

Power Supply

600W, Hot-Plug Redundant
(2 standard)
Two Redundant Power Supplies (optimized to provide full redundancy at 120 and 220 volts)
Input Specifications Normal Line Voltage 100 to 127VAC, 200 to 240VAC
Range Input Line 90 to 264VAC
Frequency Range 43 to 63Hz
Power Factor > 0.95 (120Vac/Max Load)
Input Current 8.5A @ 120VAC, 4.3A @ 240VAC
Inrush Current 25A
Holdup Time 25mS
General Specifications Full Output Rating 600W
Minimum Load
Dielectric Voltage Withstand Input to Output 1500Vac or 2150Vdc (1 Min.)
Input to Ground 1500Vac or 2150Vdc (1 Min.)
Input Transient Susceptibility Common and Differential Mode (superimposed on AC line) 2200V
  Differential Mode 1100V
NOTES: ProLiant BL e-Class Power Calculator is available from the product page at the following address: https://www.Compaq.com/products/servers/proliant-bl/e-class/index.html
Click "Power Calculator" in the "Support" section.

Non-Hot Plug Ultra ATA/100 Hard Drives

40 GB 5.4 K Capacity 40,007 MB
  Height 0.374 in (9.5 mm)
  Width 2.756 in (70 mm)
  Interface Ultra ATA-5 (IDE) 100 MB/s
  Transfer Rate Synchronous
(Maximum)
27.8 to 44.1 MB/sec (Disk-Buffer)
  Seek Time
(typical reads, including settling)
Single Track 13 ms
    Rotational Speed 5,400 RPM
  Physical Configuration Bytes/Sector 512
    Logical Blocks 78,140,160 (LBA)

Two NC3163 Fast Ethernet NIC Embedded 10/100 WOL (Wake on LAN)

Network Interface 10Base-T/100Base-TX
Compatibility IEEE 802.3/802.3u compliant
Data Transfer Method 32-bit bus-master PCI
Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s
10Base-T (Full-Duplex) 20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex) 200 Mb/s
Connector Mates into enclosure center wall assembly
Cable Support 10Base-T Categories 3, 4 or 5 UTP; up to 328 ft (100 m)
  100Base-TX Category 5 UTP; up to 328 ft (100 m)

HP ProLiant BL
e-Class C-GbE Interconnect Switch

General Two 24-port Managed Layer 2 Ethernet switches for server network cable reduction
Fully pre-configured for immediate operation
Performance 4.0 Gbps Switching bandwidth
12 Million pps aggregate throughput (64-byte packets)
Full-wire speed for all connections
Forwarding Mode Store and forward
MAC Addresses 16,382; MAC address based filtering and MAC address packet priority configuring
BL10e G2 Memory 64MB Main
12MB Flash
32MB Packet Buffer
Ports Four RJ-45 10/100/1000 T/TX/T Gigabit Ethernet uplink ports for customer use
Forty 10/100 T/TX fast Ethernet downlink ports dedicated to server blade to interconnect switch network connections
Two 10/100 T/TX Fast Ethernet ports dedicated to inter-switch module communications
One RS-232 DB-9 port (console connector for Integrated Administrator)
One 10/100 T/TX Fast Ethernet port (Network management connector for Integrated Administrator)
Auto-negotiation and auto-sensing with full-duplex
Management Web-based interface with graphical user interface
Console menu driven Interface via local RS-232 and Telnet
Scriptable command line interface (CLI)
SNMP v1 (RFC 1157) with scripting tool and example scripts
RMON v1 (RFC 1757) groups 1, 2, 3, and 9
Telnet (RFC 854)
MIB-II (RFC 1213), Bridge MIB (RFC 1493), Interface MIB (RFC 2233), 801.1Q MIB (RFC 2684), RMON1 MIB (RFC 1757) groups 1, 2, 3, and 9, Ethernet MIB (RFC1643) and HP-specific switch MIBs
64 Port-based IEEE 802.1Q tagged VLANs per switch module
XML human read/write configuration file
TFTP client (RFC 783) for backup and remote download of configuration and history log files
IGMP (Internet Group Management Protocol) multicasting
EtherChannel (Fast EtherChannel, GigaChannel) compatible trunking
Uplink port speed and link activity LEDs
Simple network time protocol (SNTP)
Broadcast, multicast, and DA-unknown packet storm control
BootP and DHCP client support
BootP and DHCP client support
Port mirroring
IEEE Standards Compliance IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Ethernet
IEEE 802.3ab 1000Base-T Ethernet
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p Quality of Service (QoS) Packet Prioritization
IEEE 802.3ac and 802.1Q Port Based Tagged VLANs and VLAN Extensions
IEEE 802.1Q Trunking Encapsulation
IEEE 802.3x Flow Control
Form Factor Removable interconnect tray that plugs into the rear of the server blade enclosure
Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s
10Base-T (Full-Duplex) 20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex) 200 Mb/s
1000Base-T (Full-Duplex) 2000 Mb/s
1000Base-T (Full-Duplex) 2000 Mb/s
Cable Support 10Base-T Categories 3, 4 or 5 UTP;up to 328 ft (100 m)
  100Base-TX Category 5 UTP; up to 328 ft (100 m)
  1000Base-T Category 5 UTP; up to 328 ft (100 m)

Sillworks                  Ph: 1.613.599.1287                  Fax: 1.613.599.8120
U320 | SSD | SAS/SATA | Fibre | Memory | Controllers | Processors | Power Supplies | Networking
line
Dell | EqualLogic | EMC | Hewlett-Packard | IBM | Seagate
line
HP      HP      HP      Dell Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account Dell      Dell      Dell      Seagate
Terms of Use | Legal | Privacy | Primary Site | Contact us | Add to favorites
Amex Accepted Visa Accepted MasterCard Accepted
