 HPE  Proliant BL460c G7 QuickSpecs Flag US QuickSpecs
Folder-Closed BL460c G7 HDD SSD Folder-Closed BL460c G7 Processors Folder-Closed BL460c G7 Memory
Folder-Closed BL460c G7 Controllers Folder-Closed BL460c G7 Networking Folder-Closed BL460c G7 Power
Folder-Closed BL460c G7 Quickspecs Folder-Closed BL460c G7 Quickspecs Folder-Closed BL460c G7 Options New  Refurb
contents
 Overview      Standard Features      Service and Support      Models      Smart Buys      Configuration Information - Factory Integrated Models      BL460c G7 Core Options      Additional Options      BL460c G7 Memory      Storage      BL460c G7 QuickSpecs images/line.gif

Proliant BL460c G7 Overview

HP ProLiant BL460c Generation 7 (G7) Server Blade



Proliant BL460c G7 Server Image



HP ProLiant BL460c G7 Server Blade
1.
Two (2) mezzanine I/O expansion slots 5. Two (2) small form factor (SFF) hot-plug drive bays
2. Internal USB connector 6. Local I/O Connector
3. Twelve (12) DDR3 Registered or Unbuffered DIMM Memory Slots 7. Internal SD card slot
8. Up to two (2) Intel® Xeon® 5500 or 5600 series processors
4. HP Smart Array P410i Controller (under drive bays) 9. Access Panel

What's New

  • Support for HP 900GB 6G SAS 10K SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive

At A Glance

This document covers the HP ProLiant BL460c G7 server blade only. For more information on HP BladeSystems c-Class Enclosures and HP BladeSystem c-Class Interconnect and Mezzanine Components, please see the following:

HP BladeSystem c-Class Enclosures QuickSpecs:
HP BladeSystem c3000 Enclosure QuickSpecs:
https://h18000.www1.hp.com/products/quickspecs/12790_na/12790_na.html

HP BladeSystem c7000 Enclosure QuickSpecs:
https://h18000.www1.hp.com/products/quickspecs/12810_na/12810_na.html

HP BladeSystem c-Class Interconnect and Mezzanine Components:
https://h18004.www1.hp.com/products/blades/components/c-class-interconnects.html
https://h18004.www1.hp.com/products/blades/components/c-class-adapters.html

The HP ProLiant BL460c G7 provides greater 2P x86 server blade density without compromise and maximum power-efficiency with flexibility and choice.

HP ProLiant BL460c G7 server blade includes:

  • Processor:
    • Up to two (2) Intel® Xeon® 5500 or 5600 Series processors
    • Intel® 5520 Chipset
  • BL460c G7 Memory:
    • Twelve (12) DIMM slots
    • Up to 384GB, using PC3-10600 DDR3 Registered (RDIMM) memory, operating at 800MHz when fully populated at 2 DIMMs per Channel in 12 slots
    • Up to 48GB, using PC3-10600 DDR3 Unbuffered (UDIMM) memory, operating at 1333MHz when fully populated at 2 DIMMs per Channel in 12 slots
  • Storage Controller:
    • HP Smart Array P410i Controller (RAID 0/1)
  • Internal Drive Support:
    • Up to two (2) small form factor (SFF) SAS or SATA hot plug hard disk drives or SATA solid state drives
  • Network Controller:
    • Integrated NC553i Dual Port FlexFabric 10Gb Adapter supporting stateless TCP/IP offload, TCP Offload Engine (TOE), Fibre Channel over Ethernet (FCoE) and iSCSI protocols
      NOTE: Fibre Channel over Ethernet (FCoE) capability requires the use of an HP Virtual Connect FlexFabric 10Gb/24-port Module or HP 10GbE Pass-Thru Module. Learn more at: www.hp.com/go/virtualconnect.
      NOTE: Each port is autosensing 1 Gb/10 Gb, and can interoperate with 1 Gb HP BladeSystem c-Class interconnect components. Both ports will operate at the same speed.
    • One (1) additional 10/100 server adapter dedicated to iLO 3 Management
  • Mezzanine Support:
    • Two (2) I/O expansion mezzanine slots
    • Supports up to two (2) mezzanine cards
      • Dual Port FlexFabric Adapter mezzanine option
      • Dual-Port Fibre Channel Mezzanine (4-Gb or 8-Gb) options for SAN connectivity
      • Ethernet server adapter mezzanine options for additional network ports
      • InfiniBand (IB) Mezzanine options for low latency and high bandwidth server interconnectivity
      • I/O Accelerator mezzanine options for high transaction rate local storage
      • SAS mezzanine option for external direct attach and shared SAS storage
  • Expansion Blade Support:
    • Supports one (1) optional storage, tape, or PCI expansion blade
  • Internal Media Support:
    • One (1) internal USB 2.0 connector for security key devices and USB drive keys
    • One (1) internal SD-HC Card slot
  • Trusted Platform Module:
    • One (1) internal TPM 1.2 module connector
  • Form Factor:
    • HP ProLiant BL460c G7 is a half-height server blade that plugs into the HP BladeSystem c3000 and c7000 enclosures
  • Infrastructure Management:
    • This server blade requires the latest version of the Onboard Administrator firmware. This firmware release may also require other subsystem firmware upgrades. For information on the latest firmware versions, please see the Blades Firmware Maintenance website at: https://h18004.www1.hp.com/products/blades/components/c-class-compmatrix.html
    • HP Integrated Lights-Out 3 (iLO 3) management processor for simplified server setup, health monitoring and recovery, power and thermal control, and lights-out remote administration.
    • HP Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, control and optimize your IT infrastructure through a single, simple management console. Insight Control supports both Windows and Linux-based central management servers.
    • HP Insight Dynamics for ProLiant, a product option, is an integrated command center that enables IT Staff personnel to continuously analyze and optimize a converged infrastructure, while automating and reducing the cost of common data center tasks by as much as 40 percent. This ultimately enables them to dynamically keep pace with the organization's changing business requirements.
  • Operating Systems and Virtualization Software:
    • Supports Windows, RHEL, SLES, Oracle Solaris, VMware, and Citrix XenServer
      NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: https://www.hp.com/go/ossupport and our driver download page
  • Enclosures:
    • HP offers two different c-Class server blade enclosures to meet your individual needs:
      • The HP BladeSystem c7000 rack enclosure is 10U high and holds up to sixteen (16) ProLiant BL460c G7 servers plugged vertically.
      • The HP BladeSystem c3000 rack enclosure is 6U high and holds up to eight (8) HP ProLiant BL460c G7 servers plugged horizontally.
    • Server blades, storage blades, interconnect modules, power supplies, fans, and redundant Onboard Administrator modules are all designed to fit into the c3000 and c7000 enclosures.
    • For additional enclosure information, please see: https://h18004.www1.hp.com/products/blades/components/enclosures/c-class/index.html.
  • Warranty:
    • This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Certain restrictions and exclusions apply. Hard drives have either a one year or three year warranty; refer to specific hard drive QuickSpecs for details.
      NOTE: Server warranty includes 3 year Parts, 3 year Labor, 3-year on-site support. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: https://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
contents
 Overview      Standard Features      Service and Support      Models      Smart Buys      Configuration Information - Factory Integrated Models      BL460c G7 Core Options      Additional Options      BL460c G7 Memory      Storage      BL460c G7 QuickSpecs images/line.gif

Standard Features

Processor
One of the following depending on Model
Six Core Processors
Intel® Xeon® X5675 (3.06GHz/6-core/12MB/95W, DDR3-1333, HT, Turbo 2/2/2/2/3/3) Processor
Intel® Xeon® Processor X5670 (2.93GHz/6-core/12MB/95W, DDR3-1333, HT, Turbo 2/2/2/2/3/3) Processor
Intel® Xeon® Processor X5660 (2.80GHz/6-core/12MB/95W, DDR3-1333, HT, Turbo 2/2/2/2/3/3) Processor
Intel® Xeon® Processor X5650 (2.66GHz/6-core/12MB/95W, DDR3-1333, HT, Turbo 2/2/2/2/3/3) Processor
Intel® Xeon® Processor E5649 (2.53GHz/6-core/12MB/80W, DDR3-1333, HT, Turbo 1/1/1/1/2/2) Processor
Intel® Xeon® Processor E5645 (2.40GHz/6-core/12MB/80W, DDR3-1333, HT, Turbo 1/1/1/1/2/2) Processor
Intel® Xeon® Processor L5640 (2.26GHz/6-core/12MB/60W, DDR3-1333, HT, Turbo 2/2/3/3/4/4) Processor
Four Core Processors
Intel® Xeon® Processor X5672 (3.20GHz/4-core/12MB/95W, DDR3-1333, HT, Turbo 2/2/3/3) Processor
Intel® Xeon® Processor X5667 (3.06GHz/4-core/12MB/95W, DDR3-1333, HT, Turbo 1/1/2/2) Processor
Intel® Xeon® Processor L5630 (2.13GHz/4-core/12MB/40W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor L5520 (2.26GHz/4-core/8MB/60W 60W, DDR3-1066, HT, Turbo 1/1/2/2) Processor
Intel® Xeon® Processor E5640 (2.66GHz/4-core/12MB/80W, DDR3-1066, HT, Turbo 1/1/2/2) Processor
Intel® Xeon® Processor E5630 (2.53GHz/4-core/12MB/80W, DDR3-1066, HT, Turbo 1/1/2/2) Processor
Intel® Xeon® Processor E5620 (2.40GHz/4-core/12MB/80W, DDR3-1066, HT, Turbo 1/1/2/2) Processor
Intel® Xeon® Processor E5607 (2.26GHz/4-core/8MB/80W, DDR3-1066) Processor
Intel® Xeon® Processor E5506 (2.13GHz/4-core/4MB/80W, DDR3-800) Processor
Two Core Processors
Intel® Xeon® Processor E5503 (2.0GHz/2-core/4MB/80W, DDR3-800) Processor
NOTE: HT indicates that the processor model supports Intel® Hyper-Threading Technology.
NOTE: Turbo indicates the maximum potential frequency increment when using Intel® Turbo Boost Technology, with 4, 3, 2, and 1 cores active (on Four Core processors) or with 6, 5, 4, 3, 2, and 1 cores active (on Six Core processors).
NOTE: DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.
NOTE: For the Intel 5500 and 5600 Series, the letter preceding the model number indicates the performance/wattage of the processor. "X" denotes High Performance/Wattage; "E" denotes Enterprise Performance/Wattage (Mainstream); and "L" denotes Lower Wattage.

Upgradeability Upgradeable to two (2) processors

Cache Memory
One of the following depending on Model
4MB shared L3 cache
8MB shared L3 cache
12MB shared L3 cache

Chipset Intel® 5520 Chipset

Memory Type DDR3 Registered (RDIMM) or Unbuffered (UDIMM)
Standard 6 GB (3 x 2GB) RDIMM
Maximum (RDIMM) 384GB (12 x 32 GB) for Registered Memory configurations
Maximum (UDIMM) 48 GB (12 x 4 GB) for Unbuffered Memory configurations
NOTE: A minimum of 2GB of memory must be installed.
NOTE: Depending on the memory configuration and processor model the memory speed may run at 1333MHz, 1066MHz or 800MHz. Please see the Online Memory Configuration Tool for details: www.hp.com/go/ddr3memory-configurator

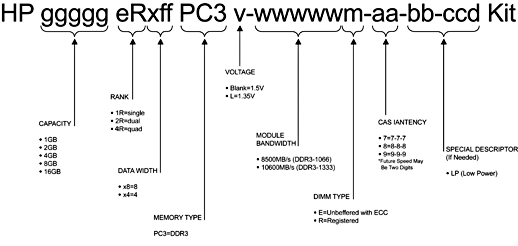

DDR3 memory options part number decoder
Proliant BL460c G7 Server Image

Memory Protection Advanced ECC (multi-bit error protection)
Memory Mirroring Mode
Memory Lock-Step Mode
Memory Online Spare Mode supported on Xeon 5600 Series processors

Network Controller Integrated NC553i Dual Port FlexFabric 10Gb Adapter
NOTE: FlexFabric capability requires the use of an HP Virtual Connect FlexFabric module or HP 10GbE Pass-Thru Module. Learn more at: www.hp.com/go/virtualconnect.
One (1) additional 10/100 NIC dedicated to iLO 3 Management

I/O Expansion Slots Two (2) I/O expansion mezzanine slots (x8 PCI Express)

Integrated Manageability HP Integrated Lights-Out 3 (iLO 3) management processor

Storage Controller Type HP Smart Array P410i Controller (RAID 0/1) with no cache
Available Options: 256MB cache, 1G and 512MB Flash Backed Write Cache (FBWC), and Smart Array Advanced Pack.
NOTE: Supports two (2) Small Form Factor (SFF) Hot Plug drive bays.

Maximum Internal Storage
One of the following depending on Model
Hot Plug SAS 2TB 2 x 1TB Serial SCSI
Hot Plug SATA 2TB 2 x 2TB Serial ATA
Hot Plug SATA SSD 240GB 2 x 120GB Serial ATA SSD

Graphics Integrated Matrox G200
Resolution Color Depths 1600 x 1200, 64K, 256, 16
1280 x 1024, 16.7M, 64k, 256, 16
1024 x 768, 16.7M, 64k, 256,16
800 x 600, 16.7M, 64k, 256, 16
640 x 480, 16.7M, 64k, 256, 16
NOTE: Maximum resolution available via HP Integrated Lights-Out 3 (iLO 3) remote console is 1280 x 1024.

Fibre Channel Support

Two (2) optional Fibre Channel HBAs are supported by the HP ProLiant BL460c G7. Both mezzanine circuit boards connect directly to the server blade system board. These Fibre Channel HBAs are available via option kits and must be ordered separately.

HBA mezzanine card option kits:

Emulex LPe1105 4Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem (403621-B21)

  • Based on the same field-proven ASIC, firmware, and driver technology as Emulex's renowned LPe1150 HBA, the Emulex LPe1105-HP is fully driver compatible with all Emulex HBAs

Emulex LPe1205 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem (456972-B21)

  • Exceptional performance, enhanced security, and scalable management for virtual server and enterprise-class applications

QLogic QMH2462 4Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem (403619-B21)

  • Uses common drivers which means that customers can standardize on one QLogic driver whether they are using the QMH2462 or other HBAs powered by QLogic

QLogic QMH2562 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem (451871-B21)

  • Provides a first step into the 8Gb future, advanced, embedded support for virtualized environments and reduced power consumption

HP BLc Brocade 804 8Gb Fibre Channel Host Bus Adapter (590647-B21)

  • Application oriented Quality of Service (AQoS) providing the ability to configure, prioritize, and optimize traffic flows from virtual machines and/or applications to the target port

Brocade, Emulex and QLogic Fibre Channel HBAs for HP BladeSystem c-Class feature:

  • Optimal performance utilizing PCI Express
  • 4/2/1Gb/s auto negotiating speeds (4Gb HBAs)
  • 8/4/2Gb/s auto negotiation speeds (8Gb HBAs)
  • Dual-ports for redundant path connections
  • Up to two FC HBAs per server blade providing redundant FC HBA support
  • Optimized for HP StorageWorks and supported by third party SAN vendors
  • Support for Microsoft® Windows® and Linux operating system environments

Compatible SAN

HP ProLiant BL460c G7 server blades are optimized for HP StorageWorks MSA, EVA and XP.

HP ProLiant BL460c G7 server blades are compatible with select 3rd party SANs (please see blade storage page for more details: https://h18004.www1.hp.com/products/blades/components/c-class-sans.html


HP Virtual Connect

HP Virtual Connect is an interconnect option for BladeSystem c-Class that simplifies server connectivity to data and storage networks, and reduces costs. Unique HP Flex-10 and FlexFabric technologies make maximum use of network bandwidths, provide dynamic tuning and enable extreme flexibility to meet individual server and infrastructure requirements. HP Virtual Connect Enterprise Manager (VCEM) provides a central console to administer network connections and workloads for thousands of servers. For more information on Virtual Connect Ethernet, Fibre Channel, Converged Network and management options see: www.hp.com/go/virtualconnect


HP Insight management software HP Insight Foundation

Managing the growing number of servers can be complex and expensive for your organization. IT managers need to address changing business needs with tools that meet the challenges of managing today's complex Datacenters.

HP provides management solutions that are designed to simplify a server's installation, configuration and maintenance throughout the entire server lifecycle. This provides the customer with higher levels of operational efficiency and highly reliable systems: https://www.hp.com/go/foundation.
The foundation pack includes:

NOTE: In an effort to support reducing our environmental impact, the HP Insight Foundation Suite for ProLiant media will be available as a selectable option for this server at time of order of a Factory Integrated Model. This will allow customers to order the number of media kits that best meet their needs and eliminate receiving unnecessary duplicate media.

HP Integrated Lights-Out (iLO)

HP Integrated Lights-Out (iLO) simplifies server setup, health monitoring, power and thermal control, and lights-out remote administration of ProLiant ML, DL, and BL servers. HP iLO functions without additional software and can be accessed from any location via a web browser. HP iLO works hand-in-hand with HP Systems Insight Manager, Insight Control suites, and Insight Dynamics for ProLiant, helping customers unleash the value of the ProLiant platform and deliver the highest possible quality of IT service. For more information, visit: www.hp.com/go/iLO

HP Insight Control HP Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console.

Two versions of Insight Control are available, to serve environments requiring either a Linux-based or a Windows-based central management server: HP Insight Control for Linux, and HP Insight Control. See www.hp.com/go/insightcontrol

HP Insight Control includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit: https://www.hp.com/services/insight.
HP Insight Dynamics for ProLiant HP Insight Dynamics for ProLiant, a product option, is advanced infrastructure management software that enables IT staff to instantly adjust their environments to meet dynamic business demands by provisioning, optimizing and protecting complex infrastructure in minutes. It's a powerful toolkit, integrated-by-design, that accelerates complex technology projects and simplifies daily operations, transforming data center economics. With Insight Dynamics IT professionals can plan capacity and power continuously, balance workloads across physical and virtual resources, and ensure cost-effective high availability. It also enables IT organizations to provision infrastructure consistently and automatically from pools of shared resources using a self-service portal. Resources provisioned can range from a single virtual machine to complex multi-tier environments and their associated physical and virtual resource requirements. In addition to the previous functional benefits, it also provides a cost-effective disaster recovery for physical and virtual environments that works with HP StorageWorks Continuous Access software for both the Enterprise Virtual Array and the XP storage array allowing application environments to be reactivated in minutes with the touch of a button to a remote location.

NOTE: For more information, visit: https://www.hp.com/go/insightdynamics

High Performance Clusters HP Cluster Platforms

HP Cluster Platforms are specifically engineered, factory-integrated large-scale ProLiant clusters optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and Novell SLES, as well as Microsoft Windows HPC Server. A Cluster Platform Configurator simplifies ordering. https://www.hp.com/go/clusters

HP HPC Interconnects

High Performance Computing (HPC) interconnect technologies are available for this server as part of the HP Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects are fully supported by HP when integrated within an HP cluster. Flexible, validated solutions can be defined with the help of configuration tools. https://www.hp.com/techservers/clusters/ucp/index.html

HP Cluster Management Utility HP Cluster Management Utility (CMU) is an HP-licensed and HP-supported suite of tools that are used to manage large-scale Linux ProLiant systems. CMU includes software for the centralized provisioning, management and monitoring of nodes. CMU makes the administration of clusters user friendly, efficient, and effective. https://www.hp.com/go/cmu
HP HPC Linux Value Pack HP HPC Linux Value Pack (Value Pack) is an HP-licensed and HP-supported specially priced software bundle for the development and deployment of applications on HPC Cluster Platforms. Value Pack includes the Platform HPC Enterprise Edition suite of tools including the LSF workload scheduler, the HP-MPI parallelization library. Also included are the HP Unified Parallel C compiler and the HP Shmem library, as well as the execution environments for the libraries and compiler. HP HPC Linux Value Pack

Operating Systems and Virtualization Software Support for ProLiant Servers

Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Oracle Solaris
VMware
Citrix XenServer

NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: https://www.hp.com/go/ossupport and our driver download page https://www.hp.com/support/BL460cG7

Availability
  • Dual-Port Fibre Channel Mezzanine Card options for redundant SAN connection
  • Dual-port embedded 10 Gigabit Ethernet adapters for redundant LAN connections
  • Two (2) hot-plug SAS/SATA hard drive bays and integrated RAID (HP Smart Array P410i Controller)
  • Optional Battery-backed and Flash-backed write cache module for integrated RAID controller
  • Redundant ROM
  • Advanced ECC Memory
  • Support for Memory Mirroring Mode and Memory Lock-Step Mode
  • Support for Memory Online Spare Mode with Xeon 5600 Series processors
  • Network adapter teaming (network fault tolerance, transmit load balancing, switch-assisted load balancing)

Industry Standard Compliance

ACPI 2.0 Compliant
PCI 2.2 Compliant
WOL Support
Microsoft® Logo certifications
USB 2.0 Support
IMPI 2.0 Compliant
SMASH CLP Compliant


Security
  • Power-on password
  • Administrator's password
  • Keyboard password (QuickLock)
  • Integrated Lights-Out 3 with:
    • 12 customizable user accounts
    • SSL encryption
    • Secure Shell version 2
    • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser, CLP and XML scripting interface
    • AES and RC4 encryption of video
    • Disable via a global setting
  • Keyboard password
  • External USB port enable/disable
  • Network server mode
  • Serial interface control
  • TPM (Trusted Platform Module) 1.2 option

Security - Trusted Platform Module The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline.

NOTE: For more information about TPM, including a white paper, go to: https://www.hp.com/go/TPM
NOTE: ProLiant OS pre-installed units will come with the partition required for TPM deployment.
NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss.

Factory Express Portfolio for Servers and Storage HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services on your specific server model please contact your sales representative or go to: https://www.hp.com/go/factory-express.html

HP Enterprise Configurator The HP e-Configure Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance. https://www.hp.com/products/configurator
contents
 Overview      Standard Features      Service and Support      Models      Smart Buys      Configuration Information - Factory Integrated Models      BL460c G7 Core Options      Additional Options      BL460c G7 Memory      Storage      BL460c G7 QuickSpecs images/line.gif

Service and Support

Service and Support HP Technology Services for Industry Standard Servers and BladeSystem
Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires a service partner who understands your increasingly complex business technology environment. That's why it makes sense to team up with the people who know HP infrastructure hardware and software best - the experienced professionals at HP Services.

What HP ProLiant and BladeSystem Services can do for you
HP ProLiant and BladeSystem Services can help you design, deploy, test, integrate, support, and manage IT and infrastructure solutions. This way, HP proposes services solutions that include more than just uplift of base warranty. You can get the support you need by choosing from one of a number of service packaged solutions we have designed to address wider set of customer support needs:.

HP Technology Services meets business challenges with services offered in three packages
Optimized Care Package, Standard Care Package, and Basic Care Package - available for each product group. Such packaged solutions enable customers to optimize technology operations, minimize risk and drive better business outcomes with easy-to-buy, easy-to-use scalable support packages for servers, storage, networking and software.

Optimized Care Package Supports maintaining servers at optimum performance availability

HP Installation and Startup Service for HP BladeSystem c-Class Infrastructure for c3000/c7000 enclosure

Provides for the installation and startup of a BladeSystem c3000 Infrastructure in a single blade enclosure including hardware and software, including deployment of OS, HP SIM, RDP, RDP, PMP and VPM.
https://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-5964ENW

3-Year HP Critical Advantage for c3000/c7000 enclosure + 3-Year HP Critical Advantage for Blade server
Provides end-to-end infrastructure support solution for business critical applications running on virtualized/x86 infrastructures, enabling the customers to cost effectively build, operate, and continuously improve their IT environment. https://h20195.www2.hp.com/V2/GetDocument.aspx?docname=4AA3-1772ENW

HP Installation and Startup Service for HP BladeSystem c-Class Enhanced Network
HP Provides for the configuration and testing of BladeSystem Ethernet interconnect switches to facilitate proper implementation of network protocols and access to advanced features.
https://h20195.www2.hp.com/V2/GetPDF.aspx/4aa0-5969ENW

Additional Services: Virtualization Services - Strategy, Design, Transition, Operation, Continual Service Improvement.

Standard Care Package Package that maintains high level of server availability

HP Installation and Startup Service for HP BladeSystem c-Class Infrastructure for c3000/c7000 enclosure

Provides for the installation and startup of a BladeSystem c3000 Infrastructure in a single blade enclosure including hardware and software, including deployment of OS, HP SIM, RDP, RDP, PMP and VPM.
https://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-5964ENW

HP Installation and Startup Service for HP BladeSystem c-Class Enhanced Network
HP Provides for the configuration and testing of BladeSystem Ethernet interconnect switches to facilitate proper implementation of network protocols and access to advanced features.
https://h20195.www2.hp.com/V2/GetPDF.aspx/4aa0-5969ENW

3-Year, HP 6 hour Hardware Support Onsite Call-to-Repair Service for c3000/c7000 enclosure + 3-Year, HP 6 hour Hardware Support Onsite Call-to-Repair Service for Blade server
Provides an IT manager with a team of support specialists who will quickly begin troubleshooting the system to help return the hardware to operating condition within 6 hours of the initial service request to the HP Global Solution Center.
https://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6636ENN

3-Year , HP 24x7 Software Support for Insight Control
Provides for the deployment and basic configuration of HP Insight Control on HP ProLiant ML and DL series servers or HP BladeSystem servers.
https://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6645EEE.pdf

Additional Services: Software OS (Microsoft, Linux (SUSE/Red Hat) & VMware Installation & Start Up and Software Support); Microsoft or Linux or VMware education courses; +60 Proactive Select Credits, Factory Express.

Basic Care Package

Delivers minimum recommended support service level

HP Installation and Startup Service for HP BladeSystem c-Class Infrastructure for c3000/c7000 enclosure

Provides for the installation and startup of a BladeSystem c3000 Infrastructure in a single blade enclosure including hardware and software, including deployment of OS, HP SIM, RDP, RDP, PMP and VPM.
https://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-5964ENW

3-Year, HP 24x7 4 hour Response, Hardware Support Onsite Service for c3000/c7000 enclosure + 3-Year, HP 24x7 4 hour Response, Hardware Support Onsite Service for Blade server
Provides you with rapid remote support and if required an HP authorized representative who will arrive on site any time and day of the year to begin hardware maintenance service within 4 hours of the service request being logged.
https://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE

3-Year , HP 24x7 Software Support for Insight Control
Provides for the deployment and basic configuration of HP Insight Control on HP ProLiant ML and DL series servers or HP BladeSystem servers.
https://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6645EEE.pdf

Additional Services
: Startup Blade System c-Cass Enhanced Network Service; Software OS (Microsoft, Linux (SUSE/Red Hat) & VMware Installation & Start Up and Software Support); +30 Proactive Select Credits, Factory Express.


Insight Remote Support

The packages include HP Insight Remote Support that uses proven technology to deliver secure, reliable 24x7 remote monitoring, diagnoses, and problem resolution. It is available at no additional cost to all warranty, HP Care Pack Service, and service agreement customers.


For more information

To learn more on HP ProLiant servers and HP BladeSystem servers, please contact your HP sales representative or HP Authorized Channel Partner. Or visit: www.hp.com/services/bladesystem

contents
 Overview      Standard Features      Service and Support      Models      Smart Buys      Configuration Information - Factory Integrated Models      BL460c G7 Core Options      Additional Options      BL460c G7 Memory      Storage      BL460c G7 QuickSpecs images/line.gif

Models

Models

HP ProLiant BL460c G7 X5675 1P 12GB-R Server
637390-B21

HP ProLiant BL460c G7 X5670 1P 12GB-R P410i Server
603251-B21

HP ProLiant BL460c G7 X5650 1P 6GB-R P410i Server
603259-B21

HP ProLiant BL460c G7 E5649 1P 6GB-R Server
637391-B21

HP ProLiant BL460c G7 E5640 1P 6GB-R P410i Server
603569-B21

HP ProLiant BL460c G7 E5620 1P 6GB-R P410i Server
603588-B21

HP ProLiant BL460c G7 E5506 1P 6GB-R P410i Server
603591-B21

HP ProLiant BL460c G7 L5640 1P 12GB-L P410i Server
603256-B21

Processor(s)
One of the following depending on Model

(1) Intel® Xeon® X5675 (3.06GHz/6-core/12MB/95W, DDR3-1333, HT, Turbo 2/2/2/2/3/3) Processor
(1) Intel® Xeon® X5670 (2.93GHz/6-core/12MB/95W, DDR3-1333, HT, Turbo 2/2/2/2/3/3) Processor
(1) Intel® Xeon® X5650 (2.66GHz/6-core/12MB/95W, DDR3-1333, HT, Turbo 2/2/2/2/3/3) Processor
(1) Intel® Xeon® E5649 (2.53GHz/6-core/12MB/80W, DDR3-1333, HT, Turbo1/1/1/1/2/2) Processor
(1) Intel® Xeon® E5640 (2.66GHz/4-core/12MB/80W, DDR3-1066, HT, Turbo 1/1/2/2) Processor
(1) Intel® Xeon® E5620 (2.40GHz/4-core/12MB/80W, DDR3-1066, HT, Turbo 1/1/2/2) Processor
(1) Intel® Xeon® E5506 (2.13GHz/4-core/4MB/80W, DDR3-800) Processor
(1) Intel® Xeon® L5640 (2.26GHz/6-core/12MB/60W, DDR3-1333, HT, Turbo 2/2/3/3/4/4) Processor

Cache Memory 4MB or 12MB shared L3 cache
Memory
One of the following depending on Model
12 GB (3 x 4 GB) PC3-10600 (DDR3-1333) Registered DIMMs
6 GB (3 x 2 GB) PC3-10600 (DDR3-1333) Registered DIMMs
12GB (3 x 4 GB) PC3L-10600 (DDR3-1333) Low Voltage Registered DIMMs
Network Adapter Embedded NC553i Dual Port FlexFabric 10Gb Adapter and one (1) additional 10/100 server adapter dedicated to iLO 3 Management
Storage Controller HP Smart Array P410i Controller (RAID 0/1)
Hard Drives None ship standard
Internal Storage Two Hot Plug SFF Drive Bays
Optical Drive None
Form Factor Up to eight (8) half-height blades supported in the HP BladeSystem c3000 Enclosure
Up to sixteen (16) half-height blades supported in HP BladeSystem c7000 Enclosure
contents
 Overview      Standard Features      Service and Support      Models      Smart Buys      Configuration Information - Factory Integrated Models      BL460c G7 Core Options      Additional Options      BL460c G7 Memory      Storage      BL460c G7 QuickSpecs images/line.gif

Smart Buys

HP BL460c G7 X5650 2P 16GB-R US Svr/S-Buy
630442-S01

Processor(s)

(2) HP BL460c G7 X5650 (2.66 GHz, 12MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/2/2/3/3)

Memory 16GB (2x HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9)
Network Adapter Embedded NC553i Dual Port FlexFabric 10Gb Converged Network Adapter supporting stateless TCP/IP offload, TCP Offload Engine (TOE), Fibre Channel over Ethernet (FCoE) and iSCSI protocols
Storage Controller HP Smart Array P410i Controller (RAID 0/1)
Hard Drives None included, supports up to two (2) small form factor (SFF) SAS or SATA hot plug hard disk drives
Form Factor Half-height server blade

HP BL460c G7 E5649 12G 1P Svr/S-Buy
644568-S01

Processor(s)

(1) Intel® Xeon® E5649 (2.53GHz/6-core/12MB/80W)

Memory 12GB (3x HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9)
Network Adapter Embedded NC553i Dual Port FlexFabric 10Gb Converged Network Adapter supporting stateless TCP/IP offload, TCP Offload Engine (TOE), Fibre Channel over Ethernet (FCoE) and iSCSI protocols
Storage Controller HP Smart Array P410i Controller (RAID 0/1)
Hard Drives None included, supports up to two (2) small form factor (SFF) SAS or SATA hot plug hard disk drives
Form Factor Half-height server blade
contents
 Overview      Standard Features      Service and Support      Models      Smart Buys      Configuration Information - Factory Integrated Models      BL460c G7 Core Options      Additional Options      BL460c G7 Memory      Storage      BL460c G7 QuickSpecs images/line.gif

Configuration Information - Factory Integrated Models

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
NOTE: HP does not allow factory integration of options into standard models listed above.
Configure-to-order server blades must start with a CTO Blade.
NOTE: FIO indicates that this option is a Factory Installable Option.
Step 1: Base Server Blade Configuration (Select a configurable Blade)
Models HP ProLiant BL460c G7 Configure-to-order Server
603718-B21
Configurable Model ships with:
Integrated NC553i Dual Port FlexFabric 10Gb Adapter and one (1) additional 10/100 server adapter dedicated to iLO 3 management
Smart Array P410i/ZM Controller
Integrated Lights-Out 3 Standard Blade Edition

Step 2: Choose Required Options (one of the following from each list unless otherwise noted)
HP Processors For single processor configuration choose:
Six Core Processor Option Kits
NOTE: If two processors are desired, select one xxxxxx-B21 and one xxxxxx-B21.

HP BL460c G7 Intel® Xeon® X5675 (3.06GHz/6-core/12MB/95W) FIO Processor Kit 637406-B21 637406-B21
HP BL460c G7 Intel® Xeon® X5670 (2.93GHz/6-core/12MB/95W) FIO Processor Kit 610859-B21 610859-B21
HP BL460c G7 Intel® Xeon® X5660 (2.80GHz/6-core/12MB/95W) FIO Processor Kit 603254-B21 603254-B21
HP BL460c G7 Intel® Xeon® X5650 (2.66GHz/6-core/12MB/95W) FIO Processor Kit 610860-B21 610860-B21
HP BL460c G7 Intel® Xeon® E5649 (2.53GHz/6-core/12MB/80W) FIO Processor Kit
637410-B21 637410-B21
HP BL460c G7 Intel® Xeon® E5645 (2.40GHz/6-core/12MB/80W) FIO Processor Kit 637412-B21 637412-B21
HP BL460c G7 Intel® Xeon® L5640 (2.26GHz/6-core/12MB/60W) FIO Processor Kit 610863-B21 610863-B21
Four Core Processor Option Kits
HP BL460c G7 Intel® Xeon® X5672 (3.20GHz/4-core/12MB/95W) FIO Processor Kit 637408-B21 637408-B21
HP BL460c G7 Intel® Xeon® X5667 (3.06GHz/4-core/12MB/95W) FIO Processor Kit 626902-B21 626902-B21
HP BL460c G7 Intel® Xeon® L5630 (2.13GHz/4-core/12MB/40W) FIO Processor Kit
HP BL460c G7 Intel® Xeon® L5520 (2.26GHz/4-core/8MB/60W)FIO Processor Option Kit 641568-B21 641568-B21
HP BL460c G7 Intel® Xeon® E5640 (2.66GHz/4-core/12MB/80W) FIO Processor Kit 610861-B21 610861-B21
HP BL460c G7 Intel® Xeon® E5630 (2.53GHz/4-core/12MB/80W) FIO Processor Kit 610862-B21 610862-B21
HP BL460c G7 Intel® Xeon® E5620 (2.40GHz/4-core/12MB/80W) FIO Processor Kit 612127-B21 612127-B21
HP BL460c G7 Intel® Xeon® E5506 (2.13GHz/4-core/4MB/80W) FIO Processor Kit 610864-B21 610864-B21
HP BL460c G7 Intel® Xeon® E5607 (2.26GHz/4-core/8MB/80W) FIO Processor Kit 637414-B21 637414-B21
Two Core Processor Option Kits
HP BL460c G7 Intel® Xeon® E5503 (2.0GHz/2-core/4MB/80W) FIO Processor Kit 612890-B21 612890-B21
HP Memory Registered DIMMS (RDIMMs)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 593339-B21 593339-B21
HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit 604504-B21 604504-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500662-B21 500662-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit 604506-B21 604506-B21
HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit 500666-B21 500666-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory Kit 627812-B21 627812-B21
HP 32GB (1x32GB) Quad Rank x4 PC3L-8500 (DDR3-1066) Registered CAS-7 LP Memory Kit 627814-B21 627814-B21
Unbuffered with ECC DIMMs (UDIMMs)
HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500668-B21 500668-B21
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500670-B21 500670-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500672-B21 500672-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: PC3L is low voltage memory.

Step 3: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Core Options" and "Additional Options" section below. For additional options, including server blade enclosures interconnect, mezzanine options and power subsystem options; please see the Core Options and Additional sections below; or the following:
HP BladeSystem c-Class Enclosures QuickSpecs:
HP BladeSystem c3000 Enclosure QuickSpecs:
https://h18000.www1.hp.com/products/quickspecs/12790_na/12790_na.html
HP BladeSystem c7000 Enclosure QuickSpecs:
https://h18000.www1.hp.com/products/quickspecs/12810_na/12810_na.html
and HP BladeSystem c-Class Interconnect and Mezzanine Components:
https://h18004.www1.hp.com/products/blades/components/c-class-interconnects.html
https://h18004.www1.hp.com/products/blades/components/c-class-adapters.html
contents
 Overview      Standard Features      Service and Support      Models      Smart Buys      Configuration Information - Factory Integrated Models      BL460c G7 Core Options      Additional Options      BL460c G7 Memory      Storage      BL460c G7 QuickSpecs images/line.gif

BL460c G7 Core Options

HP Ethernet Mezzanine Options Gigabit Ethernet Mezzanines
HP NC325m PCI Express Quad Port 1Gb Server Adapter for c-Class BladeSystem
NOTE: If the NC325m is installed in mezzanine slot 1 of a half-height server, connectivity will be provided on 2 of the 4 ports.
416585-B21
HP NC364m Quad Port 1GbE BL-c Adapter
NOTE: If the NC364m is installed in mezzanine slot 1 of a half-height server, connectivity will be provided on only 2 of the 4 ports.
447883-B21
HP NC382m Dual Port 1GbE Multifunction BL-c Adapter 453246-B21
NOTE: The Gigabit Ethernet adapters above transmit from the server at 2000 Mbps, full duplex per port only. For more information, see the "Network Controller" segment in the Standards Features section.
10 Gigabit Ethernet Mezzanines
NOTE: A 10 Gigabit Ethernet adapter is required for each server blade connecting to a 10Gb interconnect in bays 3-8 (HP BladeSystem c7000 Enclosure) or bays 2-4 (HP BladeSystem c3000 Enclosure).
NOTE: Each 10 Gigabit Ethernet adapter requires a minimum of 2GB of server memory.
NOTE: Each 10 Gigabit Either adapter supports linking at 1000Mbps or 10000Mbps when not connected to a Flex-10 enabled module and will link with all current 1Gb switches at 1Gb.
NOTE: The ROM Based Setup Utility (RBSU) feature allows for the configuring of a FlexFabric Adapter to any of the supported protocols. For example iSCSI to FCoE (Fibre Channel over Ethernet). Note that a HP Virtual Connect profile takes precedence over the setting in this menu. Also, some FlexFabric Adapters may require that network boot be enabled in order to configure the protocol. If the protocol is configured without enabling network boot with certain FlexFabric Adapters, the protocol may not take effect. Once the protocol has taken effect on the first boot after configuring this option, network boot may be disabled if desired.

HP NC532m Dual Port 10GbE BL-c Adapter
467799-B21
HP NC542m Dual Port Flex-10 10GbE Multifunction BL-c Adapter 539857-B21
HP BLc NC552m Flex-10GbE Dual Port Adapter 610609-B21
HP NC553m 10Gb 2-port FlexFabric Adapter 613431-B21

HP Fiber Channel Mezzanine Options HP BLc Brocade 804 8Gb Fibre Channel Host Bus Adapter 590647-B21
Emulex LPe1205 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem
456972-B21
Emulex LPe1105 4Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem 403621-B21
QLogic QMH2562 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem 451871-B21
QLogic QMH2462 4Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem 403619-B21

HP Processors Six Core Processor Option Kits
HP BL460c G7 Intel® Xeon® X5675 (3.06GHz/6-core/12MB/95W) Processor Kit 637406-B21 637406-B21
HP BL460c G7 Intel® Xeon® X5670 (2.93GHz/6-core/12MB/95W) Processor Kit 610859-B21 610859-B21
HP BL460c G7 Intel® Xeon® X5660 (2.80GHz/6-core/12MB/95W) Processor Kit 603254-B21 603254-B21
HP BL460c G7 Intel® Xeon® X5650 (2.66GHz/6-core/12MB/95W) Processor Kit 610860-B21 610860-B21
HP BL460c G7 Intel® Xeon® E5649 (2.53GHz/6-core/12MB/80W) Processor Kit 637410-B21 637410-B21
HP BL460c G7 Intel® Xeon® E5645 (2.40GHz/6-core/12MB/80W) Processor Kit 637412-B21 637412-B21
HP BL460c G7 Intel® Xeon® L5640 (2.26GHz/6-core/12MB/60W) Processor Kit 610863-B21 610863-B21
Four Core Processor Option Kits
HP BL460c G7 Intel® Xeon® X5672 (3.20GHz/4-core/12MB/95W) Processor Kit 637408-B21 637408-B21
HP BL460c G7 Intel® Xeon® X5667 (3.06GHz/4-core/12MB/95W) Processor Kit 626902-B21 626902-B21
HP BL460c G7 Intel® Xeon® L5630 (2.13GHz/4-core/12MB/40W) Processor Kit
HP BL460c G7 Intel® Xeon® L5520 (2.26GHz/4-core/8MB/60W) Processor Kit 641568-B21 641568-B21
HP BL460c G7 Intel® Xeon® E5640 (2.66GHz/4-core/12MB/80W) Processor Kit 610861-B21 610861-B21
HP BL460c G7 Intel® Xeon® E5630 (2.53GHz/4-core/12MB/80W) Processor Kit 610862-B21 610862-B21
HP BL460c G7 Intel® Xeon® E5620 (2.40GHz/4-core/12MB/80W) Processor Kit 612127-B21 612127-B21
HP BL460c G7 Intel® Xeon® E5607 (2.26GHz/4-core/8MB/80W) Processor Kit 637414-B21 637414-B21
HP BL460c G7 Intel® Xeon® E5506 (2.13GHz/4-core/4MB/80W) Processor Kit 610864-B21 610864-B21
Two Core Processor Option Kits
HP BL460c G7 Intel® Xeon® E5503 (2.0GHz/2-core/4MB/80W) Processor Kit 612890-B21 612890-B21

HP Memory Registered DIMMS (RDIMMs)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
HP S-Buy 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500656-S21
HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
HP S-Buy 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500658-S21
HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 593339-B21 593339-B21
HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit 604504-B21 604504-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500662-B21 500662-B21
HP S-Buy 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500662-S21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit 604506-B21 604506-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit 627812-B21 627812-B21
HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit 500666-B21 500666-B21
HP S-Buy 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit 500666-S21
HP 32GB (1x32GB) Quad Rank x4 PC3L-8500 (DDR3-1066) Registered CAS-7 LP Memory Kit 627814-B21 627814-B21
Unbuffered with ECC DIMMs (UDIMMs)
HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500668-B21 500668-B21
HP S-Buy 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit
500668-S21
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500670-B21 500670-B21
HP S-Buy 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500670-S21
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500672-B21 500672-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as LP include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, see: https://h18004.www1.hp.com/products/servers/platforms/energyefficient/
NOTE: PC3L is a low voltage memory.

BL460c G7 Hard Drives NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives
HP 900GB 6G SAS 10K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive 619291-B21
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 581286-B21 581286-B21
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 581284-B21 581284-B21
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP S-Buy 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 507127-S21
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP S-Buy 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 512547-S21
HP 146GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 507125-B21 507125-B21
HP S-Buy 146GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 507125-S21
HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 512545-B21 512545-B21
SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) Hot Plug Midline 1yr Warranty Hard Drive 605935-B21 605835-B21
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive 507610-B21 507610-B21
NOTE: Please see QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/12244_na/12244_na.html
NOTE: The hard drive options are not required when configuring a Drive-less Model.

SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 1TB 3G SATA 7.2K rpm SFF (2.5-inch) Hot Plug Midline 1yr Warranty Hard Drive 625609-B21 625609-B21
HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive 507750-B21 507750-B21
HP S-Buy 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive 507750-S21
HP 160GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive 530888-B21 530888-B21
SATA Hot Plug SFF Midline Solid State Drives
HP 60GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive 577571-B21
HP 120GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive 577573-B21 577573-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/13121_na/13121_na.html


contents
 Overview      Standard Features      Service and Support      Models      Smart Buys      Configuration Information - Factory Integrated Models      BL460c G7 Core Options      Additional Options      BL460c G7 Memory      Storage      BL460c G7 QuickSpecs images/line.gif

Additional Options

HP Insight software HP Insight Control
HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic License
T9074BAE
HP S-Buy Insight Control including 1yr 24x7 Technical Support and Updates Electronic License T9074ASE
HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server License
452148-B22
HP S-Buy Insight Control, Single-Server License including 1 year of 24x7 Technical Support and Updates 452148-S22
HP Insight Software Media Kit
NOTE: Insight Software DVD media without licenses. Contains Insight Control, Insight Dynamics and Virtual Connect Enterprise Manager. Uses an integrated installer to perform quick and accurate software installation and updates.
436222-B21
NOTE: Licenses ship without media. The HP Insight Control Media Kit can be ordered separately, or can be downloaded at: https://www.hp.com/go/insightupdates.
NOTE: Electronic licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support & Update Service.
NOTE: For additional license kits, including bundles with HP BladeSystem enclosures, please see the Insight Control QuickSpecs at: https://h18004.www1.hp.com/products/quickspecs/12631_na/12631_na.html

HP Insight Control for Linux
HP Insight Control for Linux including 1yr 24x7 Support Electronic License TC213AAE
HP S-Buy Insight Control for Linux including 1yr 24x7 Support Electronic License TC213ASE
NOTE: This part number can be purchased as a single license or as multiple licenses with a single activation key. Customer will receive a license entitlement certificate via e-mail. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
HP Insight Control for Linux including 1yr 24x7 Support Single Server License TC209A
HP Insight Control for Linux Media Kit
NOTE: This optional Media pack DVD contains the ISO image for HP Insight Control for Linux, HP Systems Insight Manager, HP Insight Control power management, HP Insight Control virtual machine management, and an integrated installer. Servers must be acquired separately.
NOTE: This Media pack is optional because the latest ISO image and latest updates may be downloaded at no cost from: https://www.hp.com/go/ic-linux (click on Download button).
TC208A
NOTE: Licenses ship without media. The Media Kit for Insight Control for Linux can be ordered separately, or can be downloaded at: https://www.hp.com/go/ic-linux (click on Download button).
NOTE: Electronic licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional License Kits, including electronic licensing options, please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/13019_na/13019_na.html

HP Integrated Lights-Out (iLO) Advanced for ProLiant BladeSystem Remote Management
HP iLO Advanced for BladeSystem including 1yr 24x7 Support Electronic License TA851AAE
HP iLO Advanced for BladeSystem including 1yr 24x7 Support Single Server License 512488-B21
NOTE: Electronic licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional license kits please see the HP Integrated Lights-Out (iLO) QuickSpecs at: www.hp.com/go/iLO.


High Performance Clusters HP Cluster Management Utility
HP Cluster Management Utility Compute Node Flexible License
NOTE: This part number can be used to purchase one certificate for multiple licenses with a single activation key. Each license is for one node (server). Customer will receive a printed end user license agreement and license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key.
QL803A
HP Cluster Management Utility License and Media
NOTE: Order a minimum of one license per cluster to purchase media including software and documentation, which will be delivered to the customer, and also licenses CMU management. No license key is delivered or required.
433257-B21
NOTE: For additional license kits please see the QuickSpecs at: https://h18004.www1.hp.com/products/quickspecs/12612_na/12612_na.html
HP HPC Linux Value Pack
HP High Performance Computing Linux Value Pack 1 Processor Flexible License
NOTE: This part number can be used to purchase one certificate for multiple licenses with a single activation key. Each license is for one socket (a.k.a. processor). Customer will receive a printed end user license agreement and license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key.
TC293B
HP High Performance Computing Linux Value Pack Media Kit
NOTE: This part number can be used to purchase media including software and documentation, which will be delivered to the customer.
TC294A
NOTE: For additional license kits please see the QuickSpecs at: https://h18004.www1.hp.com/products/quickspecs/13485_na/13485_na.html

HP Security - TPM HP Trusted Platform Module (TPM) Kit
NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss.
488069-B21

HP Storage Controllers HP Smart Array P700m Controller
HP Smart Array P711m/1G 6Gb FBWC 4-ports Ext Mezzanine SAS Controller 513778-B21 513778-B21
HP Smart Array P700m/512 4-ports Ext PCIe x8 SAS Controller
HP Smart Array P700m/256 4-ports Ext PCIe x8 SAS Controller 507925-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/13175_na/13175_na.html
HP Smart Array P712M Controller
HP Smart Array P712m/256 6Gb 2-ports Int/2-ports Ext Mezzanine SAS Controller 488348-B21 488348-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/13296_na/13296_na.html
Optional Upgrades
HP Smart Array P-Series Low Profile Battery
NOTE: The Smart Array Low Profile Battery supports the HP Smart Array P700m Controller.
NOTE: The Smart Array battery option kit is required to enable battery-backed write cache (BBWC).
452348-B21
NOTE: The options listed below supports the integrated HP Smart Array P410i.
HP 256MB P-series Cache Upgrade 462968-B21 462968-B21
HP 512MB Flash Backed Write Cache 534916-B21 534916-B21
HP 1GB Flash Backed Cache 534562-B21 534562-B21
HP Smart Array Advanced Pack including 1yr 24x7 Technical Support and Updates Single Server License
NOTE: A license key, a minimum of 256MB cache, and battery kit is required to enable Smart Array Advanced Pack features. For more information go to: https://www.hp.com/go/saap
516471-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/13201_na/13201_na.html


HP I/O Expansion Options HP StorageWorks 320GB IO Accelerator for BladeSystem c-Class
AJ878B
HP 640GB IO Accelerator for BladeSystem c-Class BK836A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/13220_na/13220_na.html

HP c-Class Mezzanine Options QLogic 4X QDR IB Dual Port Mezzanine HCA for HP BladeSystem c-Class
583210-B21
HP 4X QDR IB CX2 Dual Port Mezz HCA for HP BladeSystem c-Class 592519-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/12586_na/12586_na.html

HP Ultrium Tape Blades HP StorageWorks SB1760c Tape Blade
NOTE: LTO-4 Ultrium tape technology.
AQ697A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/12729_na/12729_na.html

HP StorageWorks Storage Blades HP StorageWorks LTO-5 SB3000c Tape Blade BS580A
NOTE: Please see the for Technical Specifications and additional information at: https://h18000.www1.hp.com/products/quickspecs/12729_na/12729_na.html
HP StorageWorks SB40c Storage Blade 411243-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/12587_na/12587_na.html
HP StorageWorks D2200sb PCIe Storage Blade
NOTE: The HP PCI Express Mezzanine Pass-Thru Card (P/N 431643-B21) is required to support the HP StorageWorks D2200sb PCIe Storage Blade with the BL620c G7. Up to two storage blades are supported per server mix and match (Ultrium Tape, D2200sb PCIe Storage, and/or PCI Expansion Blades).
NOTE: The HP PCI Express Mezzanine Pass-Thru Card can be placed in mezzanine slot 2 and/or 3.
NOTE: Please see the HP StorageWorks D2200sb PCIe Storage Blade QuickSpecs for technical specifications and additional information at: https://h18006.www1.hp.com/storage/bladesystem/index.html.
AP880A

HP Expansion Blade HP PCI Expansion Blade
NOTE: Ships with one pre-installed PCI-X connect board. Also includes one PCIe connect board which requires installation.
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/12753_na/12753_na.html
448018-B21

HP USB and SD Options HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver) DC172B DC172B
HP USB Standard Keyboard DT528A#ABA
HP 2GB USB Flash Media Drive Key
NOTE: HP qualified blank USB key for use with HP ProLiant servers that support the VMware virtualization environment and other HP value-add software like Smartstart. HP recommends this industry standard USB flash device for use with VMware ESXi. USB device must be installed in the internal slot of the ProLiant server for use with VMware ESXi. Refer to HP VMware Getting Started Guide for installation instructions.
608447-B21
HP 4GB SD Flash Media 580387-B21
NOTE: Blank SD media devices are supported for use with VMware and Citrix. SD media must be installed in the internal slot of the ProLiant server. Learn more at: https://www.hp.com/go/proliantvirtualization

HP Care Pack Services NOTE: The HP Care Pack service part numbers below for ProLiant BL c-Class server blades, cover the server blade and all HP branded hardware options qualified for the server, purchased at the same time or afterwards, internal to the server.
Hardware Services On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
UK065E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UK066E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UK067E
Smart Buy Care Pack Services NOTE: The HP Care Pack service part numbers below for ProLiant BL c-Class server blades, cover the server blade and all HP branded hardware options qualified for the server, purchased at the same time or afterwards, internal to the server.

Hardware Services On-site Service

S-Buy 4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
UH959E
S-Buy 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic UH960E
S-Buy 6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic UM366E
contents
 Overview      Standard Features      Service and Support      Models      Smart Buys      Configuration Information - Factory Integrated Models      BL460c G7 Core Options      Additional Options      BL460c G7 Memory      Storage      BL460c G7 QuickSpecs images/line.gif

Memory

NOTE: Memory configurations listed do not apply to "Factory Integrated Models".
Memory Population Guidelines

For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-configurator

Some DIMM installation guidelines are summarized below:

  • For the HP ProLiant BL460c G7 server with twelve (12) memory slots:
    • There are three (3) channels per processor; six (6) channels per server
    • There are two (2) DIMM slots for each memory channel; twelve (12) total slots.
    • Memory channel 1 consists of the two (2) DIMMs that are closest to the processor
    • Memory channel 3 consists of the two (2) DIMMs that are furthest from the processor
  • DIMM slots that are white should be populated first
  • Do not mix Unbuffered memory (UDIMMs) with Registered memory (RDIMMs).
  • Do not install DIMMs if the corresponding processor is not installed
  • If only one processor is installed in a 2CPU system, only half of the DIMM slots are available
  • To maximize performance, balance the total memory capacity between all installed processors
  • It is not required, but it is recommended to load the channels similarly if possible
  • Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank) within a channel
  • Heaviest load (DIMM with most ranks) within a channel goes furthest from the processor
  • For memory mirroring mode, channel 3 must be unpopulated. Channels 1 and 2 are populated identically
  • For lock-step mode, channel 3 must be unpopulated. DIMMs in channels 1 and 2 will be installed in pairs. The paired slots will be 1,4; 2,5 on the BL460c G7
  • Low Voltage DIMMs can only be used with Intel Xeon 5600 series processors.
  • If mixing DIMM voltage is a requirement, please note that the DIMMs will run at 1.5V since all 1.35V are capable of supporting 1.5V operations
DIMM slot/capacity/populated speed table
DIMM Type Registered DIMMS (RDIMMs) Unbuffered with ECC DIMMs (UDIMMs)
DIMM Rank Single Rank (1R) Dual Rank (2R) Quad Rank (4R) Single Rank (1R) Dual Rank (2R)
DIMM Capacity 4GB 2GB 4GB 8GB 16GB 16GB 32 GB 1GB 2GB 4GB
DIMM Native Speed (MHz) 1333 1333 1333 1333 1333 1066 1066 1333 1333 1333
DIMM Voltage LV/Std Std Std LV/Std LV/Std Std LV/Std Std Std Std

SLOTS THAT CAN BE POPULATED
12 slot servers 12 12 12 12 12 12 12 12 12 12

MAXIMUM CAPACITY (GB)
  48 24 48 96 192 192 384 12 24 48

POPULATED DIMM SPEED (MHz)
1 DIMM Per Channel 1333 1333 1333 1333 1333 1066 1066 1333 1333 1333
2 DIMM Per Channel 1066/
1333*
1333 1333 1066/
1333*
1066/
1333*
800 800 1333 1333 1333
* By default, Low Voltage (LV) DIMMs will operate at standard voltage (1.5V) and operate at 1333MHz in a 2 DIMM per channel configuration. For power savings, this behavior can be changed in RBSU to operate at low voltage (1.35V) and 1066MHz.

NOTES:

  • PC3-10600 DIMMs have a maximum speed of 1333MHz. PC3-8500 DIMMs have a maximum speed of 1066MHz.
  • Mixing DIMM speeds is allowed, but the system processor speed rules always override the DIMM capabilities
  • If you do mix DIMM speeds, the memory bus will default to the minimum clock rate of all DIMMs in the system - even if the slower DIMM is on the other processor
  • If you install 1x 1066MHz DIMM in channel 1 and 1x 1333MHz DIMM in channel 2, the maximum speed will be 1066MHz
  • If you install 1x 1066MHz DIMM in channel 1 and 5x 1333MHz DIMMs with 1 DIMM Per Channel (DPC) in each of the other channels, the maximum speed will be 1066MHz
  • Maximum memory speed will also depend on the processor installed
  • References to the above MHz speeds are for the various speeds of DDR3 DIMMs; 1333 refers to DDR3-1333, etc.

HP ProLiant BL460c G7 Server Blade DIMM slot and configuration diagrams

Basic memory slot and population diagram

  • Population order; start with "A" first, "B" second, "C" third, etc.
12 DIMM SLOTS (6 per CPU node)
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 D 1 D Chnl 1
2 A 2 A

Chnl 2 3 E 3 E Chnl 2
4 B 4 B

Chnl 3 5 F 5 F Chnl 3
6 C 6 C

HP ProLiant BL460c G7 Server Blade (1P Model)

Standard memory configuration (1 CPU model)

  • 6GB (3 x 2GB) of PC3-10600 (DDR3-1333) RDIMMs
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 D: empty 1 D: empty Chnl 1
2 A: 2GB DIMM 2 A: empty

Chnl 2 3 E: empty 3 E: empty Chnl 2
4 B: 2GB DIMM 4 B: empty

Chnl 3 5 F: empty 5 F: empty Chnl 3
6 C: 2GB DIMM 6 C: empty


Standard Memory Plus Optional Memory (1 CPU model)

  • 30 GB of PC3-10600 (DDR3-1333) RDIMMs (3 x 2GB plus 3 x 8GB)
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 D: 2GB DIMM 1 D: empty Chnl 1
2 A: 8GB DIMM 2 A: empty

Chnl 2 3 E: 2GB DIMM 3 E: empty Chnl 2
4 B: 8GB DIMM 4 B: empty

Chnl 3 5 F: 2GB DIMM 5 F: empty Chnl 3
6 C: 8GB DIMM 6 C: empty


Standard Memory Replaced with Optional Memory (1 CPU model)

  • 96GB of PC3-8500 Quad-Rank RDIMMs (6 x 16GB)
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 D: 16GB DIMM 1 D: empty Chnl 1
2 A: 16GB DIMM 2 A: empty

Chnl 2 3 E: 16GB DIMM 3 E: empty Chnl 2
4 B: 16GB DIMM 4 B: empty

Chnl 3 5 F: 16GB DIMM 5 F: empty Chnl 3
6 C: 16GB DIMM 6 C: empty


UDIMM maximum configuration (1 CPU model)

  • 24GB, consisting of six (6) 4GB dual-rank PC3-10600 UDIMMs
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 D: 4GB DIMM 1 D: empty Chnl 1
2 A: 4GB DIMM 2 A: empty

Chnl 2 3 E: 4GB DIMM 3 E: empty Chnl 2
4 B: 4GB DIMM 4 B: empty

Chnl 3 5 F: 4GB DIMM 5 F: empty Chnl 3
6 C: 4GB DIMM 6 C: empty


Standard Memory Replaced with Optional Memory (2 CPU Model)
RDIMM maximum configuration

  • 384GB, consisting of twelve (12) 32GB quad-rank PC3-8500 RDIMMs
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 D: 32GB DIMM 1 D: 32GB DIMM Chnl 1
2 A: 32GB DIMM 2 A: 32GB DIMM

Chnl 2 3 E: 32GB DIMM 3 E: 32GB DIMM Chnl 2
4 B: 32GB DIMM 4 B: 32GB DIMM

Chnl 3 5 F: 32GB DIMM 5 F: 32GB DIMM Chnl 3
6 C: 32GB DIMM 6 C: 32GB DIMM


UDIMM maximum configuration (2 CPU model)

  • 48GB, consisting of twelve (12) 4GB dual-rank PC3-10600 UDIMMs
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 D: 4GB DIMM 1 D: 4GB DIMM Chnl 1
2 A: 4GB DIMM 2 A: 4GB DIMM

Chnl 2 3 E: 4GB DIMM 3 E: 4GB DIMM Chnl 2
4 B: 4GB DIMM 4 B: 4GB DIMM

Chnl 3 5 F: 4GB DIMM 5 F: 4GB DIMM Chnl 3
6 C: 4GB DIMM 6 C: 4GB DIMM


NOTE: Capacity references are rounded to the common Gigabyte values.

  • 1GB = 1024MB
  • 2GB = 2048MB
  • 4GB = 4096MB
  • 8GB = 8192MB
  • 16GB = 16384MB
  • 32GB = 32768MB
Following are memory options available from HP:
HP Memory Registered DIMMs (RDIMMs)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500656-B21 500656-B21
HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500658-B21 500658-B21
HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 593339-B21 593339-B21
HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit 604504-B21 604504-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500662-B21 500662-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit 604506-B21 604506-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory Kit 627812-B21 627812-B21
HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit 500666-B21 500666-B21
HP 32GB (1x32GB) Quad Rank x4 PC3L-8500 (DDR3-1066) Registered CAS-7 LP Memory Kit 627814-B21 627814-B21
Unbuffered with ECC DIMMs (UDIMMs)
HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500668-B21 500668-B21
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500670-B21 500670-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500672-B21 500672-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: PC3L is a low voltage memory.
contents
 Overview      Standard Features      Service and Support      Models      Smart Buys      Configuration Information - Factory Integrated Models      BL460c G7 Core Options      Additional Options      BL460c G7 Memory      Storage      BL460c G7 QuickSpecs images/line.gif

Storage

1-2
2 x SFF SAS or SATA Hot Plug Hard Drives or SATA solid state drives
BL460c G7 Hard Drives
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

Quantity Supported
Position Supported
Controller
900GB 6G SAS 10K
600GB 6G SAS 10K
450GB 6G SAS 10K
300GB 6G SAS 10K
146GB 6G SAS 15K
146GB 6G SAS 10K
72GB 6G SAS 15K
2
1-2
HP Smart Array P410i Controller

SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives

Quantity Supported
Position Supported
Controller
1TB 6G SAS 7.2K
500GB 3G SAS 7.2K
2
1-2
HP Smart Array P410i Controller

SATA Non-Hot Plug SFF (2.5-inch) Midline (MDL) Drives

Quantity Supported
Position Supported
Controller
1TB 3G SATA 7.2K
500GB 3G SATA 7.2K
160GB 3G SATA 7.2K
2
1-2
HP Smart Array P410i Controller

SATA Hot Plug SFF Midline solid state drives

Quantity Supported
Position Supported
Controller
60GB 3G SATA SSD
120GB 3G SATA SSD
2
1-2
HP Smart Array P410i Controller

External Storage



Quantity
Supported

Position
Supported

Host Controller or Adapter

XP Disk Array Systems
Please see the XP Disk Array Systems QuickSpecs below to determine configuration requirements
External
Please see the XP Disk Array Systems Quick Specs for the latest list of supported HBAs
HP StorageWorks XP10000 Disk Array:
https://h18006.www1.hp.com/products/storageworks/xp10000/index.html
Enterprise Virtual Array Systems
Please see the XP Disk Array Systems QuickSpecs below to determine configuration requirements
External
Please see the XP Disk Array Systems Quick Specs for the latest list of supported HBAs
HP StorageWorks Enterprise Virtual Array Family:
https://h18006.www1.hp.com/products/quickspecs/12408_na/12408_na.html
contents
 Overview      Standard Features      Service and Support      Models      Smart Buys      Configuration Information - Factory Integrated Models      BL460c G7 Core Options      Additional Options      BL460c G7 Memory      Storage      BL460c G7 QuickSpecs images/line.gif

Quickspecs

System Unit Dimensions (H x W x D)
(with bezel)
7.154 x 2.19 x 20.058 in (18.17 x 5.56 x 50.95 cm)
Weight
(approximate)
Maximum
(all hard drives and processors installed)
16.5 lb (7.5 kg)
Minimum
(one hard drive and processor installed)
11.50 lb (5.22 kg)
Power Specifications

For power specifications including Input Requirements, BTU Rating, and Power Supply Output, please see the HP BladeSystem c-Class Enclosures QuickSpecs located at URL:
HP BladeSystem c3000 Enclosure QuickSpecs:
https://h18000.www1.hp.com/products/quickspecs/12790_na/
12790_na.html

HP BladeSystem c7000 Enclosure QuickSpecs:
https://h18000.www1.hp.com/products/quickspecs/12810_na/
12810_na.html


To review typical system power ratings use the HP BladeSystem Power Sizer which is available via the online tool located at URL: https://www.hp.com/go/bladesystem/powercalculator

System Inlet Temperature

Operating

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed.

System performance may be reduced if operating with a fan fault or above 30°C (86°F).

Non-operating -30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative Humidity
(non-condensing)
Operating 10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.
Non-operating 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.
Altitude Operating 3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating 9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Acoustic Noise

For acoustic noise specifications, please see the HP BladeSystem c-Class Enclosures QuickSpecs located at URL:
HP BladeSystem c3000 Enclosure QuickSpecs:
https://h18000.www1.hp.com/products/quickspecs/12790_na/
12790_na.html

HP BladeSystem c7000 Enclosure QuickSpecs:
https://h18000.www1.hp.com/products/quickspecs/12810_na/
12810_na.html


HP Smart Array P410i Controller Disk Drive Interface 6Gb/s SAS (Serial Attached SCSI)
3Gb/s SATA (Serial ATA)
Server Interface x4 PCI Express host interface
Cache Memory 0 MB (none) standard
Optional 256MB, 512MB, or 1GBCache Memory
Logical Drives Supported 2 (with standard 0MB cache)
Maximum Logical Drive Capacity 32 (with optional 256MB cache)
64 (with optional 512MB cache)
Host Memory Addressing 64-bit, supporting servers memory space greater than 4 GB
RAID Support RAID 1( Mirroring)
RAID 0 (Striping)
Upgradeable Firmware Controller: Upgradeable Firmware with Recovery ROM feature
Online Drive Flash (with SAS drives) requires 256MB, 512MB, or 1GB module

Embedded HP NC553i Dual Port FlexFabric 10Gb Adapter Type Integrated dual-port KR 10Gb with FlexFabric (FCoE or iSCSI) capability
Network Processor ServerEngines BE3
Data Transfer Method x8 PCI Express 2.0
Network Transfer Rate Two ports, each at 20 Gbps full duplex; 40 Gbps aggregate full duplex theoretical bandwidth
NOTE: Each port is autosensing 1 Gb / 10 Gb, and can interoperate with 1 Gb HP BladeSystem c-Class interconnect components. Both ports will operate at the same speed.
NOTE: Each port on the NC553i adapter transmits from the server at 20 Gbps (theoretical) full duplex.
IEEE Compliance 802.1p QoS, 802.1Q VLAN tagging, 802.3ad link aggregation, 802.3ap 10GBase-KR, and 802.3x flow control
Standard Features
  • ProLiant Teaming including Network Fault Tolerance, Transmit Load Balancing, and Switch-Assisted Load Balancing
  • 9K Jumbo frames (4K Jumbo frames when in FCoE mode)
  • Microsoft Windows Receive Side Scaling (RSS)
  • Accelerated iSCSI

HP Integrated Lights-Out 3 (iLO 3)
integrated on system board
Architecture PCI Express based health and remote management ASIC
Processor PCI Express RISC processor core running at 250MHz
Upgradeability Option firmware upgradeable via Flash ROM
Video Support 1600 x 1200 DVR max resolution
Interfaces One Ethernet Sideband connection (10/100/1000 Mb/s)
One Ethernet network connection (10/100Mb/s)
Memory 128-MB DDR with ECC
Operating System Support Microsoft Windows 2008 R2
Microsoft Windows 2008 (32 bit and 64 bit)
Microsoft Windows Server 2008 Standard Edition (32bit and 64bit)
Microsoft Windows Server 2008 Enterprise Edition (32bit and 64bit)
Microsoft Windows Server 2003 and Windows Server 2003 R2, and Windows Server 2003 for Extended Systems Standard Edition, Enterprise Edition
Red Hat Enterprise Linux 5.4 (32 bit and 64 bit)
SUSE LINUX Enterprise Server 11 (32bit and 64bit)
SUSE LINUX Enterprise Server 10 (32bit and 64bit)
VMware ESX 4.0
VMware ESX 3.5.0
Client System Support Microsoft Windows 7
Microsoft Windows XP Professional Edition
Microsoft Windows Vista Business and Ultimate Editions
Red Hat Enterprise Desktop 5.00
SUSE Linux Enterprise Desktop 11
SUSE Linux Enterprise Desktop 10
Client Browser Support Microsoft Internet Explorer 8
Microsoft Internet Explorer 7
Microsoft Internet Explorer 6
Firefox 3.5 (on supported Windows and Linux systems)
Firefox 3.0 (on supported Windows and Linux systems)
Command Line Support Secure Shell and serial port access
Secure Socket Layer
Secure Shell version 2
Security Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser, CLP and XML scripting interface
AES encryption of video
RC4 encryption of video
Directory Support Services Active Directory v1.0 (Windows 2003)
Driver Support HP ProLiant iLO3 Management Controller Driver Package
Management protocols supported SNMP, IPMI 2.0 (system and LAN interface), DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP), HP RIBCL XML

Environment-friendly Products and Approach End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: https://www.hp.com/go/green. To recycle your product, please go to: https://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: https://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.


Sillworks                  Ph: 1.613.599.1287                  Fax: 1.613.599.8120
U320 | SSD | SAS/SATA | Fibre | Memory | Controllers | Processors | Power Supplies | Networking
line
Dell | EqualLogic | EMC | Hewlett-Packard | IBM | Seagate
line
HP      HP      HP      Dell Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account Dell      Dell      Dell      Seagate
Terms of Use | Legal | Privacy | Primary Site | Contact us | Add to favorites
Amex Accepted Visa Accepted MasterCard Accepted
