   Proliant BL465c G7 QuickSpecs  US QuickSpecs
  BL465c G7 Hard Drives   BL465c G7 Processors   BL465c G7 Memory
  BL465c G7 Controllers   BL465c G7 Networking   BL465c G7 Power Supplies
  BL465c G7 Quickspecs   BL465c G7 Quickspecs-Options   BL465c G7 Options
contents
 Overview      Standard Features      Service and Support      Models      Smart Buys      Configuration Information - Factory Integrated Models      BL465c G7 Core Options      Additional Options      BL465c G7 Memory      Storage      BL465c G7 QuickSpecs images/line.gif (50 bytes)

Proliant BL465c G7 Overview

HP ProLiant BL465c Generation 7 (G7) Server Blade

HP ProLiant BL465c G7 Server Blade
1.
Smart Array P410i storage controller (available as an option in factory integrated models)
5.
Up to two (2) Multi-Core AMD Opteron™ 6100 Series processors
2.
Two (2) small form factor (SFF) hot plug drive bays
6.
System power button and LED
3.
Internal USB connector
Internal MicroSD card slot
7.
Local I/O connector
4.
Two (2) mezzanine I/O expansion slots
8.
Sixteen (16) PC3-8500 DDR3 Registered DIMMs, PC3-10600 DDR3 Registered DIMMs, or PC3-10600 DDR3 Unbuffered DIMMs

What's New
  • Support for HP 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory Kit
  • Support for HP 32GB (1x32GB) Quad Rank x4 PC3L-8500 (DDR3-1066) Registered CAS-7 LP Memory Kit
  • Support for HP 900GB 6G SAS 10K SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive

At A Glance

This document covers the HP ProLiant BL465c G7 server blade only. For more information on HP BladeSystem c-Class Enclosures and HP BladeSystem c-Class Interconnect and Mezzanine Components, please see the following QuickSpecs:

The BL465c G7 helps simplify network connections, lower infrastructure costs, and delivers the performance you expect for demanding application workloads.

HP ProLiant BL465c G7 server blade includes:

  • Processor:
    • Up to two (2) Multi-Core AMD Opteron™ 6100 Series processors
      • Twelve-Core supports up to 2.3 GHz; 512 KB Level 2 cache memory per core; 12 MB Level 3 cache
      • Eight-Core supports up to 2.6 GHz; 512 KB Level 2 cache memory per core; 12 MB Level 3 cache
    • AMD SR5690 and SP5100 chipsets
  • BL465c G7 Memory:
    • Sixteen (16) DIMM slots
    • Up to 512GB of PC3L-10600 DDR3 Registered (RDIMM) memory, operating at 1066 MHz when fully populated at 2 DIMMs per channel in 16 slots
    • Up to 128GB of PC3-10600 DDR3 Registered (RDIMM) memory, operating at 1333 MHz when fully populated at 2 DIMMs per channel in 16 slots
    • Up to 64GB of PC3-10600 DDR3 Unbuffered (UDIMM) memory, operating at 1333 MHz when fully populated at 2 DIMMs per channel in 16 slots
    • Supporting memory interleaving (2:1)
      NOTE: Each processor memory bus will operate at up to 1333 MHz with either one quad-rank (QR) or two single-rank/dual-rank (SR/DR) DIMMs per processor memory channel and 1066 MHz with up to two QR or one QR and one SR/DR DIMMs per processor memory channel with standard voltage (1.5V, PC3) DIMMs. Memory bus will operate one speed slower when low voltage (1.35V, PC3L) memory is installed. Memory bus speeds may be further limited by the speed of the memory used as well.
  • Storage Controller:
    • Smart Array P410i RAID controller with 1 GB flash-backed write cache (FBWC). Supports RAID 0,1.
      NOTE: The HP Smart Array P410i controller is required for all blades that support hot plug drives. See Factory Integrated Models section for more information.
  • Internal Drive Support:
    • Up to two (2) small form factor (SFF) SAS or SATA hot plug hard disk drives or SATA solid state drives
  • Network Controller:
    • One (1) integrated NC551i Dual Port FlexFabric 10Gb Converged Network Adapter supporting stateless TCP/IP offload, TCP Offload Engine (TOE), Fibre Channel over Ethernet (FCoE) and iSCSI protocols
      NOTE: Flex-10 capability requires the use of an HP Virtual Connect Flex-10 10Gb Ethernet module. Learn more at: www.hp.com/go/virtualconnect
      NOTE: Fibre Channel over Ethernet (FCoE) capability requires the use of an HP Virtual Connect FlexFabric 10GB/24-port Module or HP 10GbE Pass-Thru Module.
      NOTE: Each port is autosensing 1 Gb / 10 Gb, and can interoperate with 1 Gb HP BladeSystem c-Class interconnect components. Both ports will operate at the same speed.
    • One (1) additional embedded 10/100 network adapter dedicated to iLO 3 management
  • Mezzanine Support:
    • Two (2) I/O expansion mezzanine slots
    • Supports up to two (2) mezzanine cards
      • Dual-Port FlexFabric Adapter mezzanine option
      • Dual-Port Fibre Channel Mezzanine (4-Gb or 8-Gb) options for SAN connectivity
      • Dual-Port FlexFabric Converged Network Adapter
      • Ethernet server adapter mezzanine options for additional network ports
      • InfiniBand (IB) Mezzanine options for low latency server interconnectivity
      • I/O Accelerator mezzanine options for high transaction rate local storage
      • SAS mezzanine option for external direct attach and shared SAS storage
  • Expansion Blade Support:
    • Supports one (1) optional storage, tape, or PCI expansion blade
  • Internal Media Support:
    • One (1) internal USB 2.0 connector for security key devices and USB drive key
    • One (1) internal Micro SD-HC card slot
  • Trusted Platform Module:
    • One (1) internal TPM 1.2 module connector
  • Form Factor:
    • HP ProLiant BL465c G7 server blade plugs into the BladeSystem c3000 and c7000 enclosures
  • Infrastructure Management:
    • This server blade requires the latest version of the Onboard Administrator firmware. This firmware release may also require other subsystem firmware upgrades. For information on the latest firmware versions, please see the Blades Firmware Maintenance website at http://h18004.www1.hp.com/products/blades/components/c-class-compmatrix.html
    • HP Integrated Lights-Out 3 management processor for simplified server setup, health monitoring and recovery, power and thermal control, and lights-out remote administration.
    • HP Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, control and optimize your IT infrastructure through a single, simple management console. Insight Control supports both Windows and Linux-based central management servers.
    • HP Insight Dynamics for ProLiant, a product option, is an integrated command center that enables IT Staff personnel to continuously analyze and optimize a converged infrastructure, while automating and reducing the cost of common data center tasks by as much as 40 percent. This ultimately enables them to dynamically keep pace with the organization's changing business requirements.
  • Operating Systems and Virtualization Software:
    • Supports Windows, RHEL, SLES, VMware,, Citrix XenServer
  • Enclosures:
    • HP offers two (3) different c-Class server blade enclosures to meet your individual needs:
      • The HP BladeSystem c7000 rack enclosure is 10U high and holds up to sixteen (16) ProLiant BL465c G7 servers plugged vertically.
      • The HP BladeSystem c3000 rack enclosure is 6U high and holds up to eight (8) HP ProLiant BL465c G7 servers plugged horizontally.
    • Server blades, storage blades, and interconnect modules are all designed to fit into the c7000 and c3000 enclosures.
    • For additional enclosure information, please see: http://h18004.www1.hp.com/products/blades/components/enclosures/c-class/index.html.
      NOTE: For optimal cooling and system performance the BL465c G7 requires the c7000 enclosure to be configured with 10 fans and the c3000 enclosure to be configured with 6 fans.
  • Warranty:
    • This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to specific hard drive QuickSpecs for details.
      NOTE: Server warranty includes 3-year Parts, 3- year Labor, 3-year on-site support. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
contents
 Overview      Standard Features      Service and Support      Models      Smart Buys      Configuration Information - Factory Integrated Models      BL465c G7 Core Options      Additional Options      BL465c G7 Memory      Storage      BL465c G7 QuickSpecs images/line.gif (50 bytes)

Standard Features

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
Processor
One of the following depending on Model
Twelve-Core Processors
AMD Opteron™ 6176 (2.3GHz/12-core/12MB/80W, ACP) Processor
AMD Opteron™ 6174 (2.2GHz/12-core/12MB/80W, ACP) Processor
AMD Opteron™ 6172 (2.1GHz/12-core/12MB/80W ,ACP) Processor
Low Power AMD Opteron™ Model 6166 HE (1.8GHz/12-core/12MB/65W ,ACP) Processor
Low Power AMD Opteron™ Model 6164 HE (1.7GHz/12-core/12MB/65W, ACP) Processor
Eight-Core Processors
AMD Opteron™ 6140 (2.6GHz/8-core/12MB/80W, ACP) Processor
AMD Opteron™ 6136 (2.4GHz/8-core/12MB/80W, ACP) Processor
AMD Opteron™ 6134 (2.3GHz/8-core/12MB/80W, ACP) Processor
Low Power AMD Opteron™ 6132 HE (2.2GHz/8-core/12MB/65W, ACP) Processor
Low Power AMD Opteron™ 6128 HE (2.0GHz/8-core/12MB/65W, ACP) Processor
NOTE: Processor wattage references reflect Average CPU Power (ACP). For more information on ACP visit: http://www.amd.com/acp.

Upgradeability Upgradeable to dual (2) processors

Cache Memory
One of the following depending on Model
512 KB Level 2 cache memory per core
12 MB Level 3 cache memory

Chipset AMD SR5690 and SP5100

Memory Type DDR3 Registered (RDIMM) or Unbuffered (UDIMM)
Standard 8 GB (2 x 4 GB)
Maximum (RDIMM) 512 GB (16 x 32 GB) at 1333 MHz
Maximum (UDIMM) 64 GB (16 x 4 GB) at 1333 MHz
NOTE: Each processor memory bus will operate at up to 1333 MHz with either one quad-rank (QR) or two single-rank/dual-rank (SR/DR) DIMMs per processor memory channel and 1066 MHz with up to two QR or one QR and one SR/DR DIMMs per processor memory channel with standard voltage (1.5V, PC3) DIMMs. Memory bus will operate one speed slower when low voltage (1.35V, PC3L) memory is installed. Memory bus speeds may be further limited by the speed of the memory used as well. Please see the Online Memory Configuration Tool at: www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as PC3L include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, see: www.hp.com/go/ddr3memory-configurator

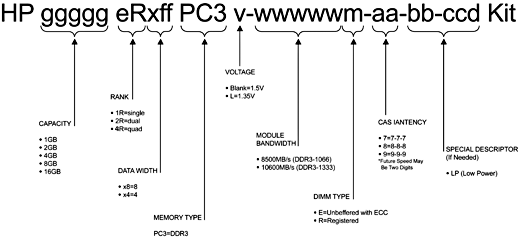

DDR3 memory options part number decoder

Network Controller One (1) integrated NC551i Dual Port FlexFabric 10Gb Converged Network Adapter
NOTE: Flex-10 capability requires the use of an HP Virtual Connect Flex-10 10Gb Ethernet module. Learn more at: www.hp.com/go/virtualconnect.
NOTE: Fibre Channel over Ethernet (FCoE) capability requires the use of an HP Virtual Connect FlexFabric 10GB/24-port Module or HP 10GbE Pass-Thru Module.

One (1) additional 10/100 network adapter dedicated to iLO 3 Management


I/O Expansion Slots Two (2) I/O expansion mezzanine slots (All x8 PCI Express)

Integrated Manageability HP Integrated Lights-Out 3

Storage Controller HP Smart Array P410i Controller 1GB memory module with flash-backed write cache (FWBC). Supports RAID 0,1.
NOTE: The HP Smart Array P410i controller is required for all blades that support hot plug drives. See Factory Integrated Models section for more information.

Maximum Internal Storage
One of the following depending on Model
Hot Plug SAS 2TB SAS (2 x 1TB) Serial SCSI
Hot Plug SATA 2TB SATA (2 x 1TB) Serial ATA
Hot Plug SATA SSD 240GB SATA SSD (2 x 120GB) Serial ATA SSD

Graphics Integrated ATI RN-50 1280 x 1024 x 16M color
Resolution Color Depths Depths 1280 x 1024, 16.7M , 64k, 256,16
1024 x 768, 16.7M, 64k, 256, 16
800 x 600, 16.7M, 64k, 256, 16
640 x 480, 16.7M, 64k, 256, 16

Fibre Channel Support

Two (2) optional dual-port Fibre Channel HBAs are supported by the HP ProLiant BL465c G7. Each mezzanine circuit board connects directly to the server blade system board. These Fibre Channel HBAs are available via option kits and must be ordered separately.

HBA mezzanine card option kits:

Emulex LPe1105 4Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem (PN 403621-B21)

  • Field-proven reliability and performance for a broad range of applications using drivers and management tools that are fully compatible with all Emulex HBAs

Emulex LPe1205 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem (PN 456972-B21)

  • Exceptional performance, enhanced security, and scalable management for virtual server and enterprise-class applications

QLogic QMH2462 4Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem (PN 403619-B21)

  • Uses common drivers which means that customers can standardize on one QLogic driver whether they are using the QMH2462 or other HBAs powered by QLogic

QLogic QMH2562 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem (PN 451871-B21)

  • Provides a first step into the 8Gb future, advanced, embedded support for virtualized environments and reduced power consumption

HP BLc Brocade 804 8Gb Fibre Channel Host Bus Adapter (PN 590647-B21)

  • Application oriented Quality of Service (AQoS) providing the ability to configure, prioritize, and optimize traffic flows from virtual machines and/or applications to the target port

Brocade, Emulex and QLogic Fibre Channel HBAs for HP BladeSystem c-Class feature:

  • Optimal performance utilizing PCI Express
  • 4/2/1Gb/s auto negotiating speeds (4Gb HBAs)
  • 8/4/2Gb/s auto negotiation speeds (8Gb HBAs)
  • Dual-ports for redundant path connections
  • Up to two FC HBAs per server blade providing redundant FC HBA support
  • Optimized for HP StorageWorks and supported by third party SAN vendors
  • Support for Microsoft® Windows®, Linux, VMware ESX and Citrix XenServer™ operating system environments

Compatible SAN

HP ProLiant BL465c G7 server blades are optimized for HP StorageWorks MSA, EVA, and XP
HP ProLiant BL465c G7 server blades are compatible with select 3rd party SANs (please see blade storage page for more details:
http://h18004.www1.hp.com/products/blades/components/c-class-sans.html)


HP Virtual Connect

HP Virtual Connect is an interconnect option for BladeSystem c-Class that simplifies server connectivity to data and storage networks, and reduces costs. Unique HP Flex-10 and FlexFabric technologies make maximum use of network bandwidths, provide dynamic tuning and enable extreme flexibility to meet individual server and infrastructure requirements. HP Virtual Connect Enterprise Manager (VCEM) provides a central console to administer network connections and workloads for thousands of servers. For more information on Virtual Connect Ethernet, Fibre Channel, Converged Network and management options see: www.hp.com/go/virtualconnect


HP Insight management software

HP Insight Foundation

Managing the growing number of servers can be complex and expensive for your organization. IT managers need to address changing business needs with tools that meet the challenges of managing today's complex Datacenters.

HP provides management solutions that are designed to simplify a server's installation, configuration and maintenance throughout the entire server lifecycle. This provides the customer with higher levels of operational efficiency and highly reliable systems: http://www.hp.com/go/foundation.

The foundation pack includes:

NOTE: In an effort to support reducing our environmental impact, the HP Insight Foundation Suite for ProLiant media will be available as a selectable option for this server at time of order of a Factory Integrated Model. This will allow customers to order the number of media kits that best meet their needs and eliminate receiving unnecessary duplicate media.

HP Integrated Lights-Out (iLO)

HP Integrated Lights-Out (iLO) simplifies server setup, health monitoring, power and thermal control, and lights-out remote administration of ProLiant ML, DL, and BL servers. HP iLO functions without additional software and can be accessed from any location via a web browser. HP iLO works hand-in-hand with HP Systems Insight Manager, Insight Control suites, and Insight Dynamics for ProLiant, helping customers unleash the value of the ProLiant platform and deliver the highest possible quality of IT service. For more information, visit: www.hp.com/go/iLO

HP Insight Control HP Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console.

Two versions of Insight Control are available, to serve environments requiring either a Linux-based or a Windows-based central management server: HP Insight Control for Linux, and HP Insight Control. See www.hp.com/go/insightcontrol

HP Insight Control includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit: http://www.hp.com/services/insight.
HP Insight Dynamics for ProLiant HP Insight Dynamics for ProLiant, a product option, is advanced infrastructure management software that enables IT staff to instantly adjust their environments to meet dynamic business demands by provisioning, optimizing and protecting complex infrastructure in minutes. It's a powerful toolkit, integrated-by-design, that accelerates complex technology projects and simplifies daily operations, transforming data center economics. With Insight Dynamics IT professionals can plan capacity and power continuously, balance workloads across physical and virtual resources, and ensure cost-effective high availability. It also enables IT organizations to provision infrastructure consistently and automatically from pools of shared resources using a self-service portal. Resources provisioned can range from a single virtual machine to complex multi-tier environments and their associated physical and virtual resource requirements. In addition to the previous functional benefits, it also provides a cost-effective disaster recovery for physical and virtual environments that works with HP StorageWorks Continuous Access software for both the Enterprise Virtual Array and the XP storage array allowing application environments to be reactivated in minutes with the touch of a button to a remote location.

NOTE: For more information, visit:
http://www.hp.com/go/insightdynamics

High Performance Clusters

HP Cluster Platforms

HP Cluster Platforms are specifically engineered, factory-integrated large-scale ProLiant clusters optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and Novell SLES, as well as Microsoft Windows HPC Server. A Cluster Platform Configurator simplifies ordering. http://www.hp.com/go/clusters

HP HPC Interconnects

High Performance Computing (HPC) interconnect technologies are available for this server as part of the HP Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects are fully supported by HP when integrated within an HP cluster. Flexible, validated solutions can be defined with the help of configuration tools. http://www.hp.com/techservers/clusters/ucp/index.html

HP Cluster Management Utility HP Cluster Management Utility (CMU) is an HP-licensed and HP-supported suite of tools that are used to manage large-scale Linux ProLiant systems. CMU includes software for the centralized provisioning, management and monitoring of nodes. CMU makes the administration of clusters user friendly, efficient, and effective. http://www.hp.com/go/cmu
HP HPC Linux Value Pack HP HPC Linux Value Pack (Value Pack) is an HP-licensed and HP-supported specially priced software bundle for the development and deployment of applications on HPC Cluster Platforms. Value Pack includes the Platform HPC Enterprise Edition suite of tools including the LSF workload scheduler, the HP-MPI parallelization library. Also included are the HP Unified Parallel C compiler and the HP Shmem library, as well as the execution environments for the libraries and compiler. HP HPC Linux Value Pack

Operating Systems and Virtualization Software

Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Solaris
VMware ESX
Citrix XenServer

NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, including how to purchase from HP, please visit our OS Support Site at: http://www.hp.com/go/supportos and our driver download page: http://www.hp.com/support/BL465cG7


Availability

Dual-Port Fibre Channel Mezzanine Card for redundant SAN connection
Embedded dual-port 10Gb Converged Network Adapter for redundant LAN connections
Two (2) hot-plug SAS/SATA/SSD drive bays and integrated RAID (Smart Array P410i) controller with flash-backed write cache
Redundant ROM on each server blade
Multiple mezzanine I/O expansion
Advanced ECC Memory
Online memory spare
Network adapter teaming (network fault tolerance, transmit load balancing, switch-assisted load balancing)


Industry Standard Compliance

ACPI 2.0 Compliant
PCI 2.2 Compliant
WOL Support
Microsoft® Logo certifications
USB 2.0 Support


Security
  • Power-on password
  • Administrator's password
  • Integrated Lights-Out 3 with:
    • 12 customizable user accounts
    • SSL encryption
    • Secure Shell version 2
    • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser, CLP and XML scripting interface
    • AES and RC4 encryption of video
    • Disable via a global setting
  • Keyboard password
  • External USB port enable/disable
  • Network server mode
  • Serial interface control
  • TPM (Trusted Platform Module) 1.2 option

Security - Trusted Platform Module

The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline.

NOTE: For more information about TPM, including a white paper, go to: www.hp.com/go/TPM.
NOTE: ProLiant OS pre-installed units will come with the partition required for TPM deployment.
NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss.


Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services on your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.


HP Enterprise Configurator

The HP eConfigure Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator.

contents
 Overview      Standard Features      Service and Support      Models      Smart Buys      Configuration Information - Factory Integrated Models      BL465c G7 Core Options      Additional Options      BL465c G7 Memory      Storage      BL465c G7 QuickSpecs images/line.gif (50 bytes)

Service and Support

Service and Support

HP Technology Services for Industry Standard Servers and BladeSystem
Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires a service partner who understands your increasingly complex business technology environment. That's why it makes sense to team up with the people who know HP infrastructure hardware and software best - the experienced professionals at HP Services.

What HP ProLiant and BladeSystem Services can do for you
HP ProLiant and BladeSystem Services can help you design, deploy, test, integrate, support, and manage IT and infrastructure solutions. This way, HP proposes services solutions that include more than just uplift of base warranty. You can get the support you need by choosing from one of a number of service packaged solutions we have designed to address wider set of customer support needs:.

HP Technology Services meets business challenges with services offered in three packages
Optimized Care Package, Standard Care Package, and Basic Care Package - available for each product group. Such packaged solutions enable customers to optimize technology operations, minimize risk and drive better business outcomes with easy-to-buy, easy-to-use scalable support packages for servers, storage, networking and software.


Optimized Care Package Supports maintaining servers at optimum performance availability

HP Installation and Startup Service for HP BladeSystem c-Class Infrastructure for c3000/c7000 enclosure

Provides for the installation and startup of a BladeSystem c3000 Infrastructure in a single blade enclosure including hardware and software, including deployment of OS, HP SIM, RDP, RDP, PMP and VPM. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-5964ENW

3-Year HP Critical Advantage for c3000/c7000 enclosure + 3-Year HP Critical Advantage for Blade server
Provides end-to-end infrastructure support solution for business critical applications running on virtualized/x86 infrastructures, enabling the customers to cost effectively build, operate, and continuously improve their IT environment. http://h20195.www2.hp.com/V2/GetDocument.aspx?docname=4AA3-1772ENW

HP Installation and Startup Service for HP BladeSystem c-Class Enhanced Network
HP Provides for the configuration and testing of BladeSystem Ethernet interconnect switches to facilitate proper implementation of network protocols and access to advanced features.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4aa0-5969ENW

Additional Services
: Virtualization Services - Strategy, Design, Transition, Operation, Continual Service Improvement.

Standard Care Package Package that maintains high level of server availability

HP Installation and Startup Service for HP BladeSystem c-Class Infrastructure for c3000/c7000 enclosure

Provides for the installation and startup of a BladeSystem c3000 Infrastructure in a single blade enclosure including hardware and software, including deployment of OS, HP SIM, RDP, RDP, PMP and VPM.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-5964ENW

HP Installation and Startup Service for HP BladeSystem c-Class Enhanced Network
HP Provides for the configuration and testing of BladeSystem Ethernet interconnect switches to facilitate proper implementation of network protocols and access to advanced features.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4aa0-5969ENW

3-Year, HP 6 hour Hardware Support Onsite Call-to-Repair Service for c3000/c7000 enclosure + 3-Year, HP 6 hour Hardware Support Onsite Call-to-Repair Service for Blade server
Provides an IT manager with a team of support specialists who will quickly begin troubleshooting the system to help return the hardware to operating condition within 6 hours of the initial service request to the HP Global Solution Center.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6636ENN

3-Year , HP 24x7 Software Support for Insight Control
Provides for the deployment and basic configuration of HP Insight Control on HP ProLiant ML and DL series servers or HP BladeSystem servers.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6645EEE.pdf

Additional Services
: Software OS (Microsoft, Linux (SUSE/Red Hat) & VMware Installation & Start Up and Software Support); Microsoft or Linux or VMware education courses; +60 Proactive Select Credits, Factory Express.

Basic Care Package

Delivers minimum recommended support service level

HP Installation and Startup Service for HP BladeSystem c-Class Infrastructure for c3000/c7000 enclosure

Provides for the installation and startup of a BladeSystem c3000 Infrastructure in a single blade enclosure including hardware and software, including deployment of OS, HP SIM, RDP, RDP, PMP and VPM.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-5964ENW

3-Year, HP 24x7 4 hour Response, Hardware Support Onsite Service for c3000/c7000 enclosure + 3-Year, HP 24x7 4 hour Response, Hardware Support Onsite Service for Blade server
Provides you with rapid remote support and if required an HP authorized representative who will arrive on site any time and day of the year to begin hardware maintenance service within 4 hours of the service request being logged.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE

3-Year , HP 24x7 Software Support for Insight Control
Provides for the deployment and basic configuration of HP Insight Control on HP ProLiant ML and DL series servers or HP BladeSystem servers.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6645EEE.pdf

Additional Services
: Startup Blade System c-Cass Enhanced Network Service; Software OS (Microsoft, Linux (SUSE/Red Hat) & VMware Installation & Start Up and Software Support); +30 Proactive Select Credits, Factory Express.


Insight Remote Support

The packages include HP Insight Remote Support that uses proven technology to deliver secure, reliable 24x7 remote monitoring, diagnoses, and problem resolution. It is available at no additional cost to all warranty, HP Care Pack Service, and service agreement customers.


For more information

To learn more on HP ProLiant servers and HP BladeSystem servers, please contact your HP sales representative or HP Authorized Channel Partner. Or visit: www.hp.com/services/bladesystem

contents
 Overview      Standard Features      Service and Support      Models      Smart Buys      Configuration Information - Factory Integrated Models      BL465c G7 Core Options      Additional Options      BL465c G7 Memory      Storage      BL465c G7 QuickSpecs images/line.gif (50 bytes)

Models

Twelve-Core Models
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.

HP ProLiant BL465c G7 6176 1P 8GB-R P410i/1GB FBWC 2 SFF Server
632982-B21

HP ProLiant BL465c G7 6174 1P 8GB-R P410i/1GB FBWC Hot Plug 2 SFF Server
518859-B21

HP ProLiant BL465c G7 6172 1P 8GB-R P410i/1GB FBWC Hot Plug 2 SFF Server
518851-B21

Processor(s)
One of the following depending on Model

(1) AMD Opteron™ 6176 (2.3GHz/12-core/12MB/80W) Processor
(1) AMD Opteron™ 6174 (2.2 GHz)
(1) AMD Opteron™ 6172 (2.2GHz/12-core/12MB/80W)

Cache Memory
One of the following depending on Model
512 KB Level 2 cache memory per core
12 MB Level 3 cache memory
Memory 8 GB (2 x 4 GB) PC3-10600, Registered DDR3-1333
Network Adapter One (1) embedded HP NC551i Dual Port FlexFabric 10Gb Converged Network Adapter
Storage Controller Smart Array P410i RAID controller with 1 GB cache flash-backed write cache (FBWC)
Hard Drives None ships standard; (2) SFF SAS/SATA/SSD drive bays
Internal Storage
One of the following depending on Model
Up to 2TB SAS
Up to 2TB SATA
Up to 240GB SATA SSD
Optical Drive None ships standard
Form Factor Up to eight (8) half-height blades supported in the HP BladeSystem c3000 Enclosure
Up to sixteen (16) half-height blades supported in HP BladeSystem c7000 Enclosure

Eight-Core Models

HP ProLiant BL465c G7 6132HE 1P 8GB-R P410i/1GB FBWC 2 SFF Server
632985-B21

HP ProLiant BL465c G7 6136 1P 8GB-R P410i/1GB FBWC Hot Plug 2 SFF Server
518854-B21

HP ProLiant BL465c G7 6128HE 1P 8GB-R P410i/1GB FBWC Hot Plug 2 SFF Server
518867-B21

Processor(s)
One of the following depending on Model

(1) Low Power AMD Opteron™ 6132 HE(2.2GHz/8-core/12MB/65W) Processor
(1) AMD Opteron™ 6136 (2.4GHz/8-core/12MB/80W) Processor
(1) Low Power AMD Opteron™ 6128 HE (2.0GHz/8-core/12MB/65W) Processor

Cache Memory
One of the following depending on Model
512 KB Level 2 cache memory per core
12 MB Level 3 cache memory
Memory 8 GB (2 x 4 GB) PC3-10600, Registered DDR3-1333
Network Adapter One (1) embedded HP NC551i Dual Port FlexFabric 10Gb Converged Network Adapter
Storage Controller Smart Array P410i RAID controller with 1 GB cache flash-backed write cache (FBWC)
Hard Drives None ships standard; (2) SFF SAS/SATA/SSD drive bays
Internal Storage
One of the following depending on Model
Up to 2TB SAS
Up to 2TB SATA
Up to 240GB SATA SSD
Optical Drive None ships standard
Form Factor Up to eight (8) half-height blades supported in the HP BladeSystem c3000 Enclosure
Up to sixteen (16) half-height blades supported in HP BladeSystem c7000 Enclosure
contents
 Overview      Standard Features      Service and Support      Models      Smart Buys      Configuration Information - Factory Integrated Models      BL465c G7 Core Options      Additional Options      BL465c G7 Memory      Storage      BL465c G7 QuickSpecs images/line.gif (50 bytes)

Smart Buys

HP BL465c G7 6176 2P 16 GB Svr/S-Buy
644341-S01

Processor(s)

(2) AMD Opteron™ 6176 (2.3GHz/12-core/12MB/80W)

Memory 16 GB (4 x 4 GB) PC3-10600, Registered DDR3-1333
Network Adapter One (1) embedded HP NC551i Dual Port FlexFabric 10Gb Converged Network Adapter
Storage Controller Smart Array P410i RAID controller with 1 GB cache flash-backed write cache (FBWC)
Hard Drives None ships standard; (2) SFF SAS/SATA/SSD drive bays
Internal Storage Up to 1.2TB SAS
Up to 1TB SATA
Up to 240GB SATA SSD
Optical Drive None ships standard
Form Factor Up to eight (8) half-height blades supported in the HP BladeSystem c3000 Enclosure
Up to sixteen (16) half-height blades supported in HP BladeSystem c7000 Enclosure
contents
 Overview      Standard Features      Service and Support      Models      Smart Buys      Configuration Information - Factory Integrated Models      BL465c G7 Core Options      Additional Options      BL465c G7 Memory      Storage      BL465c G7 QuickSpecs images/line.gif (50 bytes)

Configuration Information - Factory Integrated Models

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
NOTE: HP does not allow factory integration of options into standard models listed above.
Configure-to-order servers must start with a CTO Chassis.
NOTE: FIO indicates that this option is a Factory Installable Option.

Step 1: Base Server Blade Configuration
HP Models HP ProLiant BL465c G7 Configure-to-order Server
518857-B21
Configurable Model ships with:
One (1) integrated HP NC551i Dual Port FlexFabric 10Gb Converged Network Adapter and one (1) additional 10/100 server adapter dedicated to iLO 3 management
Two (2) small form factor (SFF) SAS/SATA/SSD hot plug drive bays
HP Integrated Lights-Out 3 (iLO 3)

Step 2: Choose Required Options (one of the following from each list unless otherwise noted)
HP Processors For single (1) processor configuration choose (one of the following):
NOTE: If two (2) processors are desired, select one xxxxxx-B21 and one xxxxxx-B21.

Twelve-Core Processors
HP BL465c G7 AMD Opteron™ 6176 (2.3GHz/12-core/12MB/80W) FIO Processor Kit 632983-B21 632983-B21
HP BL465c G7 AMD Opteron™ 6174 (2.2GHz/12-core/12MB/80W) FIO Processor Kit 518860-B21 518860-B21
HP BL465c G7 AMD Opteron™ 6172 (2.10GHz/12-core/12MB/80W) FIO Processor Kit 518852-B21 518852-B21
HP BL465c G7 AMD Opteron™ 6166HE (1.8GHz/12-core/12MB/65W) FIO Processor Kit 632991-B21 632991-B21
HP BL465c G7 AMD Opteron™ 6164HE (1.7GHz/12-core/12MB/65W) FIO Processor Kit 596207-B21 596207-B21
Eight-Core Processors
HP BL465c G7 AMD Opteron™ 6140 (2.6GHz/8-core/12MB/80W) FIO Processor Kit 632989-B21 632989-B21
HP BL465c G7 AMD Opteron™ 6136 (2.4GHz/8-core/12MB/80W) FIO Processor Kit 518855-B21 518855-B21
HP BL465c G7 AMD Opteron™ 6134 (2.3GHz/8-core/12MB/80W) FIO Processor Kit 518863-B21 518863-B21
HP BL465c G7 AMD Opteron™ 6132HE (2.2GHz/8-core/12MB/65W) FIO Processor Kit 632986-B21 632986-B21
HP BL465c G7 AMD Opteron™ 6128HE (2.0GHz/8-core/12MB/65W) FIO Processor Kit 518868-B21 518868-B21
HP Memory Registered DIMMs (RDIMMs)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 593907-B21 593907-B21
HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit 604500-B21 604500-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit 604502-B21 604502-B21
HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory Kit 627808-B21 627808-B21
HP 32GB (1x32GB) Quad Rank x4 PC3L-8500 (DDR3-1066) Registered CAS-7 LP Memory Kit 627810-B21 627810-B21
Unbuffered with ECC DIMMs (UDIMMs)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 593921-B21 593921-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 593923-B21 593923-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator
NOTE: A minimum of two (2) DIMMs per processor are required.
NOTE: Kits described as PC3L include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient.
NOTE: Each processor memory bus will operate at up to 1333 MHz with either one quad-rank (QR) or two single-rank/dual-rank (SR/DR) DIMMs per processor memory channel and 1066 MHz with up to two QR or one QR and one SR/DR DIMMs per processor memory channel with standard voltage (1.5V, PC3) DIMMs. Memory bus will operate one speed slower when low voltage (1.35V, PC3L) memory is installed. Memory bus speeds may be further limited by the speed of the memory used as well.

Step 3: Choose Additional Factory Integration Options
HP Storage Controller HP Smart Array P410i/1G FBWC 2-ports Int PCIe x8 FIO SAS Controller
NOTE: Includes 1 GB cache with flash-backed write cache (FBWC).
NOTE: The Smart Array P410i controller is required for all blades that support hot plug drives.
588184-B22 588184-B22

Step 4: Choose Additional Options for Factory Integration
NOTE: For additional Core Options and Additional Options please see options sections below. For additional options, including server blade enclosures interconnect and mezzanine options and power subsystem options; please see the following:
HP BladeSystem c3000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12790_na/12790_na.html
HP BladeSystem c7000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12810_na/12810_na.html
and HP BladeSystem c-Class Interconnect and Mezzanine Components:
http://h18004.www1.hp.com/products/blades/components/c-class-interconnects.html
http://h18004.www1.hp.com/products/blades/components/c-class-adapters.html
contents
 Overview      Standard Features      Service and Support      Models      Smart Buys      Configuration Information - Factory Integrated Models      BL465c G7 Core Options      Additional Options      BL465c G7 Memory      Storage      BL465c G7 QuickSpecs images/line.gif (50 bytes)

BL465c G7 Core Options

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
HP Ethernet Mezzanine Options Gigabit Ethernet Mezzanines
HP NC325m PCI Express Quad Port 1Gb Server Adapter for c-Class BladeSystem
NOTE: If the NC325m is installed in mezzanine slot 1 of a half-height server, connectivity will be provided on only 2 of the 4 ports.
416585-B21
HP NC360m Dual Port 1GbE BL-c Adapter 445978-B21
HP NC364m Quad Port 1GbE BL-c Adapter
NOTE: If the NC364m is installed in mezzanine slot 1 of a half-height server, connectivity will be provided on only 2 of the 4 ports.
447883-B21
HP NC382m Dual Port 1GbE Multifunction BL-c Adapter 453246-B21
10 Gigabit Ethernet Mezzanines
NOTE: A 10 Gigabit Ethernet adapter is required for each server blade connecting to a 10Gb interconnect in bays 3-8 (HP BladeSystem c7000 Enclosure) or bays 2-4 (HP BladeSystem c3000 Enclosure).
NOTE: Each 10 Gigabit Ethernet adapter requires a minimum of 2GB of server memory.
NOTE: Each 10 Gigabit Either adapter supports linking at 1000Mbps or 10000Mbps when not connected to a Flex-10 enabled module and will link with all current 1Gb switches at 1Gb.
NOTE: The ROM Based Setup Utility (RBSU) feature allows for the configuring of a FlexFabric Adapter to any of the supported protocols. For example iSCSI to FCoE (Fibre Channel over Ethernet). Note that a HP Virtual Connect profile takes precedence over the setting in this menu. Also, some FlexFabric Adapters may require that network boot be enabled in order to configure the protocol. If the protocol is configured without enabling network boot with certain FlexFabric Adapters, the protocol may not take effect. Once the protocol has taken effect on the first boot after configuring this option, network boot may be disabled if desired.

HP NC532m Dual Port Flex-10 10GbE Multifunction BL-c Adapter 467799-B21
HP NC542m Dual Port Flex-10 10GbE BLc Adapter. 539857-B21
HP NC550m 10GbE 2-port PCIe x8 Flex-10 Ethernet Adapter 581204-B21
HP NC551m Dual Port FlexFabric 10Gb Converged Network Adapter 580151-B21
HP NC552m 10Gb 2-port Flex-10 Ethernet Adapter 610609-B21
HP NC553m 10Gb 2-port FlexFabric Converged Network Adapter 613431-B21

HP Fibre Channel Mezzanine Options 4Gb Fibre Channel Mezzanines
Emulex LPe1105 4Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem
403621-B21
QLogic QMH2462 4Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem
8Gb Fibre Channel Mezzanines
Emulex LPe1205 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem
456972-B21
QLogic QMH2562 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem 451871-B21
HP BLc Brocade 804 8Gb Fibre Channel Host Bus Adapter 590647-B21

HP Processors Twelve-Core Processors
HP BL465c G7 AMD Opteron™ 6176 (2.3GHz/12-core/12MB/80W) Processor Kit 632983-B21 632983-B21
HP BL465c G7 AMD Opteron™ 6174 (2.2GHz/12-core/12MB/80W) Processor Kit 518860-B21 518860-B21
HP BL465c G7 AMD Opteron™ 6172 (2.1GHz/12-core/12MB/80W) Processor Kit 518852-B21 518852-B21
HP BL465c G7 AMD Opteron™ 6166HE (1.8GHz/12-core/12MB/65W) Processor Kit 632991-B21 632991-B21
HP BL465c G7 AMD Opteron™ 6164HE (1.7GHz/12-core/12MB/65W) Processor Kit 596207-B21 596207-B21
Eight-Core Processors
HP BL465c G7 AMD Opteron™ 6140 (2.6GHz/8-core/12MB/80W) Processor Kit 632989-B21 632989-B21
HP BL465c G7 AMD Opteron™ 6136 (2.4GHz/8-core/12MB/80W) Processor Kit 518855-B21 518855-B21
HP BL465c G7 AMD Opteron™ 6134 (2.3GHz/8-core/12MB/80W) Processor Kit 518863-B21 518863-B21
HP BL465c G7 AMD Opteron™ 6132HE (2.2GHz/8-core/12MB/65W) Processor Kit 632986-B21 632986-B21
HP BL465c G7 AMD Opteron™ 6128HE (2.0GHz/8-core/12MB/65W) Processor Kit 518868-B21 518868-B21
NOTE: HP ProLiant BL465c G7 processor option kits contain one (1) processor.

HP Memory Registered DIMMs (RDIMMs)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 593907-B21 593907-B21
HP S-Buy 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 593907-S21
HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
HP S-Buy 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 593911-S21
HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit 604500-B21 604500-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
HP S-Buy 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 593913-S21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit 604502-B21 604502-B21
HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit
HP S-Buy 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit 593915-S21
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory Kit 627808-B21 627808-B21
HP 32GB (1x32GB) Quad Rank x4 PC3L-8500 (DDR3-1066) Registered CAS-7 LP Memory Kit 627810-B21 627810-B21
Unbuffered with ECC DIMMs (UDIMMs)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 593921-B21 593921-B21
HP S-Buy 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 593921-S21
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 593923-B21 593923-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: A minimum of two (2) DIMMs per processor are required.
NOTE: Kits described as PC3L include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient.
NOTE: Each processor memory bus will operate at up to 1333 MHz with either one quad-rank (QR) or two single-rank/dual-rank (SR/DR) DIMMs per processor memory channel and 1066 MHz with up to two QR or one QR and one SR/DR DIMMs per processor memory channel with standard voltage (1.5V, PC3) DIMMs. Memory bus will operate one speed slower when low voltage (1.35V, PC3L) memory is installed. Memory bus speeds may be further limited by the speed of the memory used as well.

BL465c G7 Hard Drives NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives
HP 900GB 6G SAS 10K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive 619291-B21
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 581286-B21 581286-B21
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 581284-B21 581284-B21
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 507127-B21 507127-B21
HP S-Buy 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 507127-S21
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 512547-B21 512547-B21
HP S-Buy 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 512547-S21
HP 146GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 507125-B21 507125-B21
HP S-Buy 146GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 507125-S21
HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 512545-B21 512545-B21
NOTE: Please see the for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/12244_na/12244_na.html

SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) Hot Plug Midline 1yr Warranty Hard Drive 605935-B21 605835-B21
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive 507610-B21 507610-B21
SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 1TB 3G SATA 7.2K rpm SFF (2.5-inch) Hot Plug Midline 1yr Warranty Hard Drive 625609-B21 625609-B21
HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive 507750-B21 507750-B21
HP S-Buy 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive 507750-S21
HP 160GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive 530888-B21 530888-B21
SATA Hot Plug Midline (MDL) Solid State Drives
HP 120GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive 572073-B21 572073-B21
HP 60GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive 572071-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13021_na/13021_na.html

contents
 Overview      Standard Features      Service and Support      Models      Smart Buys      Configuration Information - Factory Integrated Models      BL465c G7 Core Options      Additional Options      BL465c G7 Memory      Storage      BL465c G7 QuickSpecs images/line.gif (50 bytes)

Additional Options

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.

HP Insight Software

HP Insight Control
HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic License T9074BAE
HP Smart Buy Insight Control suite, No Media, Electronic License including 1 year of 24x7 Technical Support and Updates T9074ASE
HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server License 452148-B22
HP S-Buy Insight Control, Single-Server License including 1 year of 24x7 Technical Support and Updates 452148-S22
HP Insight Software Media Kit
NOTE: Insight Software DVD media without licenses. Contains Insight Control, Insight Dynamics and Virtual Connect Enterprise Manager. Uses an integrated installer to perform quick and accurate software installation and updates.
436222-B21
NOTE: Licenses ship without media. The Media Kit for Insight Control for Linux can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: Electronic licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional license kits please see the Insight Control QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/12631_na/12631_na.html

HP Insight Control for Linux
HP Insight Control for Linux including 1yr 24x7 Support Electronic License TC213AAE
HP Smart Buy Insight Control for Linux, 1-server license, including one year of 24x7 Technical Support and Updates, Electronic TC213ASE
HP Insight Control for Linux including 1yr 24x7 Support Single Server License TC209A
HP Insight Control for Linux Media Kit
NOTE: Media pack DVD contains the ISO image for HP Insight Control for Linux, HP Systems Insight Manager, HP Insight Control power management, HP Insight Control virtual machine management, and an integrated installer. Servers must be acquired separately.
TC208A
NOTE: Licenses ship without media. The Media Kit for Insight Control for Linux can be ordered separately, or can be downloaded at: http://www.hp.com/go/ic-linux (click on Download button).
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single set of activation keys.
NOTE: For additional License Kits, including electronic licensing options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/13019_na/13019_na.html

HP iLO Advanced for BladeSystem
HP iLO Advanced for BladeSystem including 1yr 24x7 Support Electronic License TA851AAE
HP iLO Advanced for BladeSystem including 1yr 24x7 Support Single Server License 512488-B21
NOTE: Licenses ship without media. The Media Kit for Insight Control for Linux can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: Electronic licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional license kits, including electronic delivery options, please see the HP Integrated Lights-Out (iLO) QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12362_na/12362_na.html

HP Insight Control server deployment
HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License T9082AAE
HP Insight Control Server Deployment including 1yr 24x7 Support Single Server License 452151-B21
NOTE: Licenses ship without media. The Media Kit for Insight Control for Linux can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: Electronic licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional license kits please see the Insight Control QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/12631_na/12631_na.html


High Performance Clusters

HP Cluster Management Utility Compute Node License
NOTE: This part number can be used to purchase one certificate for multiple licenses with a single activation key. Each license is for one node (server). Customer will receive a printed end user license agreement and license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key.
NOTE: For additional license kits please see the QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/12612_na/12612_na.html
QL803A
HP Cluster Management Utility Media and Management License
NOTE: Order a minimum of one license per cluster to purchase media including software and documentation, which will be delivered to the customer, and also licenses CMU management. No license key is delivered or required.
NOTE: For additional license kits please see the QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/12612_na/12612_na.html
433257-B21
HP HPC Linux Value Pack One Processor License
NOTE: This part number can be used to purchase one certificate for multiple licenses with a single activation key. Each license is for one socket (a.k.a. processor). Customer will receive a printed end user license agreement and license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key.
NOTE: For additional license kits please see the QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/13485_na/13485_na.html
TC293B
HP HPC Linux Value Pack Media
NOTE: This part number can be used to purchase media including software and documentation, which will be delivered to the customer.
NOTE: For additional license kits please see the QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/13485_na/13485_na.html
TC294A

HP Security - TPM

HP Trusted Platform Module (TPM) Kit 488069-B21
NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss.

HP Storage Controller HP Smart Array P712m Controller
HP Smart Array P712m/256 6Gb 2-ports Int/2-ports Ext Mezzanine SAS Controller 488348-B21 488348-B21
HP Smart Array P711m Controller
HP Smart Array P711m/1G 6Gb FBWC 4-ports Ext Mezzanine SAS Controller 513778-B21 513778-B21
HP Smart Array P700m Controller
HP Smart Array P700m/512 4-ports Ext PCIe x8 SAS Controller 508226-B21
HP Smart Array P700m/256 4-ports Ext PCIe x8 SAS Controller
NOTE: Supports all HP ProLiant Server Blades, except the HP ProLiant BL2x220c and BL685c G7 server blades.
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/13175_na/13175_na.html

Optional Upgrades
HP Smart Array P-Series Low Profile Battery
NOTE: The BL465c G7 supports a maximum of one array controller battery. If one Smart Array P700m controller with cache battery kit is ordered for factory integration, the internal Smart Array P410i cache module capacitor will be removed and shipped with the server for customer installation.
452348-B21
HP Smart Array Advanced Pack including 1yr 24x7 Technical Support and Updates Single Server License
NOTE: A license key, a minimum of 256MB cache, and battery kit is required to enable Smart Array Advanced Pack features. For more information go to: http://www.hp.com/go/saap
516471-B21

HP I/O Expansion Options HP 640GB MLC IO Accelerator for BladeSystem c-Class BK836A
HP 320GB MLC IO Accelerator for BladeSystem c-Class AJ878B
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/13220_na/13220_na.html

HP InfiniBand Mezzanine Options

QLogic 4X QDR IB Dual Port Mezzanine HCA for HP BladeSystem c-Class 583210-B21
HP 4X QDR IB CX2 Dual Port Mezz HCA for HP BladeSystem c-Class 592519-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/12586_na/12586_na.html

HP Ultrium Tape Blades

HP StorageWorks SB1760c Tape Blade
NOTE: LTO-4 Ultrium technology
AQ697A
NOTE: Please see the QuickSpecs for Technical Specifications and additional configuration information at: http://h18000.www1.hp.com/products/quickspecs/12729_na/12729_na.html
NOTE: Please visit the BladeSystem c-Class enclosure QuickSpecs for a complete list of recommended data protection solutions for BladeSystem c-Class enclosures: http://h18004.www1.hp.com/products/blades/components/enclosures/c-class/index.html.


HP StorageWorks Storage Blades HP StorageWorks LTO-5 SB3000c Tape Blade
NOTE: Please see the for Technical Specifications and additional information at: http://h18000.www1.hp.com/products/quickspecs/12729_na/12729_na.html
BS580A
HP StorageWorks D2200sb PCIe Storage Blade
NOTE: Please see the HP StorageWorks D2200sb PCIe Storage Blade QuickSpecs for technical specifications and additional information at: http://h18006.www1.hp.com/storage/bladesystem/index.html.
AP880A

HP Expansion Blade

HP PCI Expansion Blade
NOTE: Ships with one pre-installed PCI-X connect board. Also includes one PCIe connect board which requires installation.
NOTE: Please see the QuickSpecs Technical Specifications and additional configuration information at: http://h18000.www1.hp.com/products/quickspecs/12753_na/12753_na.html
448018-B21

HP USB and SD Options HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver) DC172B DC172B
HP USB Standard Keyboard DT528A#ABA
HP 2GB USB Flash Media Drive Key
NOTE: HP qualified blank USB key for use with HP ProLiant servers that support the VMware virtualization environment and other HP value-add software like SmartStart. HP recommends this industry standard USB flash device for use with VMware ESXi. USB device must be installed in the internal slot of the ProLiant server for use with VMware ESXi. Refer to HP VMware Getting Started Guide for installation instructions.
608447-B21
HP 4GB Micro SDHC Flash Media Kit 647444-B21

HP Care Pack Services NOTE: The HP Care Pack service part numbers below for ProLiant BL c-Class server blades, cover the server blade and all HP branded hardware options qualified for the server, purchased at the same time or afterwards, internal to the server.
Hardware Services On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
UK065E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UK066E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UK067E
Smart Buy Care Pack Services

S-Buy 4-Hour Onsite Response, 13-Hour x 5-Day Coverage, 3 years
UH959E
S-Buy 4-Hour Onsite Response, 24-Hour x 7-Day Coverage, 3 years UH960E
S-Buy 6-Hour Call to Repair, 24-Hour x 7-Day Coverage, 3 years UM366E
NOTE: Smart Buy Care Packs can only be attached to Smart Buy SKUs
contents
 Overview      Standard Features      Service and Support      Models      Smart Buys      Configuration Information - Factory Integrated Models      BL465c G7 Core Options      Additional Options      BL465c G7 Memory      Storage      BL465c G7 QuickSpecs images/line.gif (50 bytes)

Memory

NOTE: Memory configurations listed do not apply to "Factory Integrated Models".

DDR3 Memory Population Guidelines

For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-configurator

Some DIMM installation guidelines are summarized below:

  • For the HP ProLiant BL465c G7 server blade with sixteen (16) memory slots:
    • There are four (4) channels per processor; eight (8) channels per server
    • There are two (2) DIMM slots for each memory channel; sixteen (16) total slots.
    • Memory channel 1 consists of the two (2) DIMMs that are furthest from the processor
    • Memory channel 4 consists of the two (2) DIMMs that are closest from the processor
  • A minimum of two (2) DIMMs per processor are required
  • DIMM slots that are white should be populated first
  • Do not mix Unbuffered memory (UDIMMs) with Registered memory (RDIMMs)
  • Do not install DIMMs if the corresponding processor is not installed
  • If only one (1) processor is installed in a two (2) CPU system, only half of the DIMM slots are available
  • To maximize performance, balance the total memory capacity between all installed processors
  • To maximize performance, balance the total memory capacity on any given processor across the memory channels
  • You may only have up to eight (8) ranks installed per channel
  • You may install up to two (2) quad-rank DIMMs per channel
  • If mixing DIMM voltage is a requirement, please note that the DIMMs will run at 1.5V since all 1.35V are capable of supporting 1.5V operations
  • When running virtualization software, a minimum of two (2) DIMMs per processor are required. Populate DIMM sockets 1A and 5B for each processor socket populated.
DIMM slot/capacity/populated speed table
DIMM Type Registered DIMMS (RDIMMs) Unbuffered with ECC DIMMs (UDIMMs)
DIMM Rank Single Rank
(1R)
Dual Rank
(2R)
Quad Rank
(4R)
Dual Rank
(2R)
DIMM Capacity 4GB 2GB 8GB 16GB 16GB 32GB 2GB 4GB
DIMM Native Speed (MHz) 1333 1333 1333 1333 1066 1066 1333 1333
DIMM Voltage LV/Std Std LV/Std LV/Std Std LV/Std Std Std
SLOTS THAT CAN BE POPULATED
16 slot servers 16 16 16 16 16 16 16 16
MAXIMUM CAPACITY (GB)
16 slot servers 64 32 128 256 256 512 32 64
POPULATED DIMM SPEED (MHz)
1 DIMM Per Channel 1333 1333 1333 1333 1066 1066 1333 1333
2 DIMM Per Channel 1333 1333 1333 1333 1066 1066/800* 1333 1333
* 3DPC: LV runs at 800/Std voltage runs at 1066

NOTES:

  • PC3-10600 DIMMs have a maximum speed of 1333MHz. PC3-8500 DIMMs have a maximum speed of 1066MHz.
  • If you do mix DIMM speeds, the memory bus will default to the minimum clock rate of all DIMMs in the system - even if the slower DIMM is on the other processor
  • If you install 1x 1066MHz DIMM in channel 1 and 1x 1333MHz DIMM in channel 2, the maximum speed will be 1066MHz
  • If you install 1x 1066MHz DIMM in channel 1 and 7x 1333MHz DIMMs with 1 DIMM Per Channel (DPC) in each of the other channels, the maximum speed will be 1066MHz
  • References to the above MHz speeds are for the various speeds of DDR3 DIMMs; 1333 refers to DDR3-1333, etc.

HP ProLiant BL465 G7 Server Blade DIMM slot and configuration diagrams

Basic memory slot and population diagram

  • Population order; start with "A" first, "B" second, "C" third, etc.
16 DIMM SLOTS (8 per CPU node)
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 A 1 A Chnl 1
2 E 2 E

Chnl 2 3 C 3 C Chnl 2
4 G 4 G

Chnl 3 5 B 5 B Chnl 3
6 F 6 F

Chnl 4 7 D 7 D Chnl 4
8 H 8 H

HP ProLiant BL465c G7 Server Blade (1P Model)

Standard memory configuration (1 CPU model)

  • 8GB, consisting of two (2) 4GB single-rank PC3-10600 RDIMMs
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 A: 4GB DIMM 1 A: empty Chnl 1
2 E: empty 2 E: empty

Chnl 2 3 C: empty 3 C: empty Chnl 2
4 G: empty 4 G: empty

Chnl 3 5 B: 4GB DIMM 5 B: empty Chnl 3
6 F: empty 6 F: empty

Chnl 4 7 D: empty 7 D: empty Chnl 4
8 H: empty 8 H: empty


Standard Memory Plus Optional Memory (1 CPU model)

  • 104GB, consisting of two (2) 4GB RDIMMs plus six (6) 16GB RDIMMs
    • 2 x 4GB single-rank PC3-10600 RDIMMs
    • 6 x 16GB quad-rank PC3-8500 RDIMMs
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 A: 4GB DIMM 1 A: empty Chnl 1
2 E: 16GB DIMM 2 E: empty

Chnl 2 3 C: 16GB DIMM 3 C: empty Chnl 2
4 G: 16GB DIMM 4 G: empty

Chnl 3 5 B: 4GB DIMM 5 B: empty Chnl 3
6 F: 16GB DIMM 6 F: empty

Chnl 4 7 D: 16GB DIMM 7 D: empty Chnl 4
8 H: 16GB DIMM 8 H: empty


Standard Memory Replaced with Optional Memory (1 CPU model)

  • 128GB, consisting of eight (8) 16GB quad-rank PC3-8500 RDIMMs
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 A: 16GB DIMM 1 A: empty Chnl 1
2 E: 16GB DIMM 2 E: empty

Chnl 2 3 C: 16GB DIMM 3 C: empty Chnl 2
4 G: 16GB DIMM 4 G: empty

Chnl 3 5 B: 16GB DIMM 5 B: empty Chnl 3
6 F: 16GB DIMM 6 F: empty

Chnl 4 7 D: 16GB DIMM 7 D: empty Chnl 4
8 H: 16GB DIMM 8 H: empty


UDIMM maximum configuration (1 CPU model)

  • 32GB, consisting of eight (8) 4GB dual-rank PC3-10600 UDIMMs
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 A: 4GB DIMM 1 A: empty Chnl 1
2 E: 4GB DIMM 2 E: empty

Chnl 2 3 C: 4GB DIMM 3 C: empty Chnl 2
4 G: 4GB DIMM 4 G: empty

Chnl 3 5 B: 4GB DIMM 5 B: empty Chnl 3
6 F: 4GB DIMM 6 F: empty

Chnl 4 7 D: 4GB DIMM 7 D: empty Chnl 4
8 H: 4GB DIMM 8 H: empty


Standard Memory Replaced with Optional Memory (2 CPU Model)
RDIMM maximum configuration

  • 512GB, consisting of sixteen (16) 32GB quad-rank PC3L-8500 RDIMMs
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 A: 32GB DIMM 1 A: 32GB DIMM Chnl 1
2 E: 32GB DIMM 2 E: 32GB DIMM

Chnl 2 3 C: 32GB DIMM 3 C: 32GB DIMM Chnl 2
4 G: 32GB DIMM 4 G: 32GB DIMM

Chnl 3 5 B: 32GB DIMM 5 B: 32GB DIMM Chnl 3
6 F: 32GB DIMM 6 F: 32GB DIMM

Chnl 4 7 D: 32GB DIMM 7 D: 32GB DIMM Chnl 4
8 H: 32GB DIMM 8 H: 32GB DIMM


UDIMM maximum configuration (2 CPU model)

  • 64GB, consisting of sixteen (16) 4GB dual-rank PC3-10600 UDIMMs
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 A: 4GB DIMM 1 A: 4GB DIMM Chnl 1
2 E: 4GB DIMM 2 E: 4GB DIMM

Chnl 2 3 C: 4GB DIMM 3 C: 4GB DIMM Chnl 2
4 G: 4GB DIMM 4 G: 4GB DIMM

Chnl 3 5 B: 4GB DIMM 5 B: 4GB DIMM Chnl 3
6 F: 4GB DIMM 6 F: 4GB DIMM

Chnl 4 7 D: 4GB DIMM 7 D: 4GB DIMM Chnl 4
8 H: 4GB DIMM 8 H: 4GB DIMM


NOTE: Capacity references are rounded to the common Gigabyte values.

  • 2GB = 2048MB
  • 4GB = 4096MB
  • 8GB = 8192MB
  • 16GB = 16384MB

HP Memory Registered DIMMs (RDIMMs)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 593907-B21 593907-B21
HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 593911-B21 593911-B21
HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit 604500-B21 604500-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 593913-B21 593913-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit 604502-B21 604502-B21
HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit 593915-B21 593915-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory Kit 627808-B21 627808-B21
HP 32GB (1x32GB) Quad Rank x4 PC3L-8500 (DDR3-1066) Registered CAS-7 LP Memory Kit 627810-B21 627810-B21
Unbuffered with ECC DIMMs (UDIMMs)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 593921-B21 593921-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 593923-B21 593923-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator
NOTE: A minimum of two (2) DIMMs per processor are required.
NOTE: Kits described as PC3L include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient.
NOTE: Each processor memory bus will operate at up to 1333 MHz with either one quad-rank (QR) or two single-rank/dual-rank (SR/DR) DIMMs per processor memory channel and 1066 MHz with up to two QR or one QR and one SR/DR DIMMs per processor memory channel with standard voltage (1.5V, PC3) DIMMs. Memory bus will operate one speed slower when low voltage (1.35V, PC3L) memory is installed. Memory bus speeds may be further limited by the speed of the memory used as well.
contents
 Overview      Standard Features      Service and Support      Models      Smart Buys      Configuration Information - Factory Integrated Models      BL465c G7 Core Options      Additional Options      BL465c G7 Memory      Storage      BL465c G7 QuickSpecs images/line.gif (50 bytes)

Storage

1-2
2 x SFF SAS or SATA Hot Plug Hard Drives, or
2 x SFF SATA Hot Plug SSD Drives

BL465c G7 Hard Drives
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Simultaneous operation of hot plug hard drives and solid state drives is not supported.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

Quantity
Supported
Position
Supported
Controller
900GB 6G SAS 10K DP
600GB 6G SAS 10K DP
450GB 6G SAS 10K DP
300GB 6G SAS 10K DP
146GB 6G SAS 15K DP
146GB 6G SAS 10K DP
72GB 6G SAS 15K DP
2
1-2
Smart Array P410i Controller

SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives

Quantity
Supported
Position
Supported
Controller
1TB 6G SAS 7.2K DP
500GB 6G SAS 7.2K DP
2
1-2
Smart Array P410i Controller

SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives

Quantity
Supported
Position
Supported
Controller
1TB 3G SATA 7.2K
500GB 3G SATA 7.2K
160GB 3G SATA 7.2K
2
1-2
Smart Array P410i Controller

SATA Hot Plug Midline (MDL) Solid State Drives

Quantity
Supported
Position
Supported
Controller
120GB 3G SATA SSD
60GB 3G SATA SSD
2
1-2
Smart Array P410i Controller
contents
 Overview      Standard Features      Service and Support      Models      Smart Buys      Configuration Information - Factory Integrated Models      BL465c G7 Core Options      Additional Options      BL465c G7 Memory      Storage      BL465c G7 QuickSpecs images/line.gif (50 bytes)

Quickspecs

System Unit Dimensions
(H x W x D)
7.154 x 2.19 x 20.058 in (18.17 x 5.56 x 50.95 cm)
Weight
(approximate)
Maximum
(all hard drives, DIMMs, and processors installed)
13.9 lb (6.3 kg)
Minimum
(no hard drives, two DIMMs, and one processor installed)
9.8 lb (4.45 kg)
Power Specifications For power specifications including Input Requirements, BTU Rating, and Power Supply Output, please see the HP BladeSystem c-Class Enclosures QuickSpecs located at URL:
HP BladeSystem c3000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12790_na/
12790_na.html

HP BladeSystem c7000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12810_na/
12810_na.html


To review typical system power ratings use the HP BladeSystem Power Sizer which is available via the online tool located at URL: http://www.hp.com/go/bladesystem/powercalculator

NOTE: For optimal cooling and system performance the BL465c G7 requires the c7000 enclosure to be configured with 10 fans and the c3000 enclosure to be configured with 6 fans.
System Inlet Temperature Operating 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed. System performance may be reduced if operating with a fan fault, or above 30°C (86°F).
Non-operating -30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative Humidity
(non-condensing)
Operating 10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.
Non-operating 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating 3050 m (10,000 ft). This value may be limited by the type and number of options installed.
Non-operating Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Acoustic Noise

For acoustic noise specifications, please see the HP BladeSystem c-Class Enclosures QuickSpecs located at URL:
HP BladeSystem c3000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12790_na/
12790_na.html

HP BladeSystem c7000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12810_na/
12810_na.html

HP Smart Array P410i Controller

Disk Drive and Enclosure Interface

6G SAS (Serial Attached SCSI)
3.0 G SATA (Serial Advanced Technology Attachment)

SAS Connectors

2 internal (SFF8484) x4 wide port connectors
Cache Memory Speed DDR2-533MHz with 40 or 72-bit wide bus provides up to 4.2 GB/s maximum bandwidth.

Server Interface

x4 5G PCIe Gen2 provides 2 GB/s maximum bandwidth.

SAS Speed

x2 6G SAS provides 1.2 GB/s maximum bandwidth.

Cache Memory

72-bit 1GB cache; ECC protection, capacitor-backed

Logical Drives Supported

Up to 32 logical drives

Maximum Logical Drive Capacity

2 TB (2 x 1 TB)

Host Memory Addressing

64-bit, supporting greater than 4 GB server memory space

RAID Support

RAID 1 (Mirroring)
RAID 0 (Striping)

Upgradeable Firmware

Upgradeable Firmware with recovery ROM feature

Integrated HP NC551i Dual Port FlexFabric 10Gb Converged Network Adapter Type Integrated dual-port KR 10GbE with FlexFabric (FCoE or iSCSI) capability
Network Processor Blade Engines 2 (BE2)
Data Transfer Method x8 PCI Express 2.0
Network Transfer Rate Two ports, each at 20 Gbps full duplex; 40 Gbps aggregate full duplex theoretical bandwidth
NOTE: Each port is autosensing 1 Gb / 10 Gb, and can interoperate with 1 Gb HP BladeSystem c-Class interconnect components. Both ports will operate at the same speed.
NOTE: Each port on the NC551i adapter transmits from the server at 20 Gbps (theoretical) full duplex.
IEEE Compliance 802.1p QoS, 802.1Q VLAN tagging, 802.3ad link aggregation, 802.3ap 10GBase-KR, and 802.3x flow control
Standard Features
  • ProLiant Teaming including Network Fault Tolerance, Transmit Load Balancing, and Switch-Assisted Load Balancing
  • 9K Jumbo frames (4K Jumbo frames when in FCoE mode)
  • Microsoft Windows Receive Side Scaling (RSS)
  • Accelerated FCoE or iSCSI

HP Integrated Lights-Out 3 (iLO 3)
integrated on system board
Architecture PCI Express based health and remote management ASIC
Processor PCI Express RISC processor core running at 250MHz
Upgradeability Option firmware upgradeable via Flash ROM
Video Support 1600 x 1200 DVR max resolution
Interfaces One Ethernet network connection (10/100Mb/s)
Memory 128-MB DDR with ECC
Operating System Support

Microsoft Windows 2008 R2
Microsoft Windows 2008 (32 bit and 64 bit)
Microsoft Windows Server 2008 Standard Edition (32bit and 64bit)
Microsoft Windows Server 2008 Enterprise Edition (32bit and 64bit)
Microsoft Windows Server 2003 and Windows Server 2003 R2, and Windows Server 2003 for Extended Systems Standard Edition, Enterprise Edition
Red Hat Enterprise Linux 5.4 (32 bit and 64 bit)
SUSE LINUX Enterprise Server 11 (32bit and 64bit)
SUSE LINUX Enterprise Server 10 (32bit and 64bit)
VMware ESX 4.0
VMware ESX 3.5.0

Client System Support

Microsoft Windows 7
Microsoft Windows XP Professional Edition
Microsoft Windows Vista Business and Ultimate Editions
Red Hat Enterprise Desktop 5.00
SUSE Linux Enterprise Desktop 11
SUSE Linux Enterprise Desktop 10

Client Browser Support

Microsoft Internet Explorer 8
Microsoft Internet Explorer 7
Microsoft Internet Explorer 6
Firefox 3.5 (on supported Windows and Linux systems)
Firefox 3.0 (on supported Windows and Linux systems)

Command Line Support

Secure Shell and serial port access
Secure Socket Layer
Secure Shell version 2
Security Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser, CLP and XML scripting interface
AES encryption of video
RC4 encryption of video
Directory Support Services Active Directory v1.0 (Windows 2003)

Driver Support

HP ProLiant iLO3 Management Controller Driver Package

Management protocols supported

SNMP, IPMI 2.0 (system and LAN interface), DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP), HP RIBCL XML

Environment-friendly Products and Approach End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.


Toll Free: 866.252.9743            Ph: 613.599.1287            Fax: 613.599.8120
Servers | Blades | All Hard Drives | U320 Drives | SAS/SATA Drives | Memory | Controllers | Processors | Tape Drives | Power Supplies | Misc
Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account | Add to favorites

 Controllers                        LegalPrivacy | | Backup SiteContact us | Site Problem?  |  Controllers           Controllers           Controllers
Controllers Hard Drives SAS Hard Drives u320 Hard Drives u320 Hard Drives2 processors processors2 memory tape drives Misc ipphones servers blades power supplies
