 HPE  Proliant DL160se G6 QuickSpecs Flag US QuickSpecs
Folder-Closed DL160se G6 HDD SSD Folder-Closed DL160se G6 Processors Folder-Closed DL160se G6 Memory
Folder-Closed DL160se G6 Controllers Folder-Closed DL160se G6 Networking Folder-Closed DL160se G6 Power
Folder-Closed DL160se G6 Quickspecs Folder-Closed DL160se G6 Quickspecs Folder-Closed DL160se G6 Options New  Refurb
contents
 Overview      Standard Features      Optional Features      Service and Support      Configuration Information - Factory Integrated Models      DL160se G6 Core Options      Additional Options      DL160se G6 Memory      Storage      Power Specifications      System Specifications      DL160se G6 QuickSpecs images/line.gif

Proliant DL160se G6 Overview

HP ProLiant DL160se Generation 6 (G6)

The HP ProLiant DL160se G6 server is a high performance, low cost, ultra-dense, dual processor capable, 1U rack server for I/O intense High Performance Computing (HPC) environments, Web 2.0, hosting, and general heterogeneous server deployments requiring multiple PCI-e card attach.
Hot Plug SAS/SATA and Non-Hot Plug SATA Models

Proliant DL160se G6 Server Image

Proliant DL160se G6 Server Image
Proliant DL160se G6 Front View: Proliant DL160se G6 Rear View:
1. Access panel 1. Power Supply Cable Socket
2. System fans 2. Video Port
3. Two USB ports 3. Serial Port
4. Power on/off & system LEDs 4. Rear USB ports (2)
5. Optional 3rd and 4th 3.5" Non-Hot plug SATA or hot plug SAS/SATA hard drive bays 5. One GbE LAN ports for NIC 2 (RJ-45)
6. Optional DVD-RW or DVD-ROM drive 6. Optional LO100i 10/100 Mbps LAN port for IPMI management (RJ-45)
7. Standard 1st and 2nd 3.5" Non-Hot plug SATA or hot plug SAS/SATA hard drive bays 7. Low-Profile x16 PCI-Express Gen2 slot
8. Full-height PCI-Express x16
8. Twelve DIMM slots: DDR3 Registered (RDIMM) or Unbuffered (UDIMM) memory 9. UID - Rear Unit Identification LED
9. Expansion Slots:
Non-Hot Plug Models - One full-length/full height x16 PCI-Express Gen2 slot and One Low Profile x16 PCI-Express Gen2 slot

Hot Plug Models - One available Full-length/full height x16 PCI-Express Gen2 slot, Low Profile PCI-Express Gen2 slot (used for storage controller)
10. One GbE LAN ports for NIC 1 (RJ-45)
10. Quad-Core Intel® Xeon® 5500 series processors (supports up to two)
11. Power supply (500 Watts - standard, other PS options available)

What's New
  • Support for 600GB and 450 GB SAS SFF Enterprise Hard Drives
  • Support for 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
contents
 Overview      Standard Features      Optional Features      Service and Support      Configuration Information - Factory Integrated Models      DL160se G6 Core Options      Additional Options      DL160se G6 Memory      Storage      Power Specifications      System Specifications      DL160se G6 QuickSpecs images/line.gif

Standard Features

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
Processor
One of the following depending on Model
Intel® Xeon® Processor X5570 (2.93 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3)
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.
Intel® Xeon® Processor X5560 (2.80 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3)
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.
Intel® Xeon® Processor X5550 (2.66 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3)
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.
Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.
Intel® Xeon® Processor E5530 (2.40 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.
Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.
Intel® Xeon® Processor L5520 (2.26 GHz, 8MB L3 Cache, 60W, DDR3-1066, HT, Turbo 1/1/2/2)
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.
Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800)
NOTE: Available through Configure To Order only. See Factory Integration Models section for more details.
NOTE: HT indicates that the processor model supports Intel® Hyper-Threading Technology.
NOTE: Turbo indicates the maximum potential frequency increment when using Intel® Turbo Boost Technology, with 4, 3, 2, and 1 cores active.
NOTE: DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.
NOTE: For the Intel 5500 Series, the letter preceding the model number indicates the performance/wattage of the processor. "X" denotes High Performance/Wattage; "E" denotes Enterprise Performance/Wattage (Mainstream); and "L" denotes Lower Wattage.
NOTE: Supports up to two Intel® Quad-Core 5500 sequence processors.

Cache Memory 4 MB Level 3 cache (E5504)
8 MB Level 3 cache (standard)

Chipset Intel® 5520 Chipset

Upgradeability Upgradeable to two processors

Memory Protection Advanced memory protection

Memory Type DDR3 Registered (RDIMM) or Unbuffered (UDIMM)
DIMM Slots Total 12 DIMM slots
Standard 4 GB (2 x 2 GB) UDIMMs
6 GB (3 x 2 GB) UDIMMs
12 GB (6 x 2 GB) RDIMMs
Maximum (RDIMM) 192 GB (12 x 16 GB)
Maximum (UDIMM) 48 GB (12 x 4 GB)
NOTE: Depending on the memory configuration and processor model, the memory speed may run at 1333MHz, 1066MHz, or 800MHz. Please see the Online Memory Configuration Tool at: www.hp.com/go/ddr3memory-configurator.

Network Controller HP NC362i Integrated Dual Port Gigabit Server Adapter

Expansion Slots #
Technology
Bus Width
Connector Width*
Bus Number*
Device No.**
Form Factor
Notes
1
PCI-Express 2.0
x16
x16
1
0
Full length, full height
3.3 volts
1 PCI-X*** 64-bit N/A 5 1 Full length, full height 3.3 volts
2
PCI-Express 2.0
x16
x16
6 3 Low Profile
3.3 volts
  NOTE: All slots can accept universal keyed PCI cards
* Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number.
** Slots are enumerated differently based on OS. MS OS's enumerate from lowest to highest Device ID by bus (starting with the lowest bus).
*** PCI-X bus speed will be 133MHz when only one PCI-X card is installed. It will be 100MHz when both slots have PCI-X cards installed.

Storage ControllerNon-Hot Plug SATA ModelsHP Embedded SATA RAID Controller (integrated into the south-bridge)
NOTE: Transfer rate: up to 3 Gb/s SATA
HP Smart Array B110i SATA RAID supporting SW RAID 0,1,10
NOTE: To enable RAID on Embedded SATA, use the HP Smart Array B110i SATA Raid controller, To enable use of the B110i, enter the ROM based setup utility(RBSU). The option for enabling RAID can be found in the Advanced section of the RBSU.
Hot Plug SATA/SAS Models HP Smart Array P212 RAID Controller (RAID 0/1/1+0)
HP Smart Array P212 Controller 256 BBWC (RAID/0/1/1+0/5/5+0)
NOTE: Transfer rate: up to 3 Gb/s SATA, up to 3 Gb/s SAS.
NOTE: A diskette drive or virtual FDD using LO100 Advanced Pack is needed to install storage controller drivers during a Windows operating system installation from a CD.
NOTE: Addition of the battery backed cache upgrade enables BBWC, RAID 5, 5+0, array expansion, logical drive extension, RAID migration, and stripe size migration.
NOTE: RAID 6 functionality requires the addition of Smart Array Advanced Pack (P/N: 516471-B21).
NOTE: The addition of a Smart Array hardware based storage controller to a Non-Hot Plug SATA Model is only supported for external storage.

Internal Storage Devices Diskette Drives
Via USB only
Optical DrivesOptional HP 9.5mm SATA DVD-ROM Optical Drive
Optional HP 9.5mm SATA DVD RW Optical Drive
Drive BaysUp to 4 Non-hot plug SATA 3.5" drives
Up to 4 Hot plug SAS/SATA 3.5" drives

Maximum Internal Storage Non-Hot Plug SATA 8.0TB 4 x 2TB
Hot Plug SATA 8.0TB 4 x 2TB
Hot Plug SAS 8.0TB 4 x 2TB
Hot Plug SFF SAS 4.8 TB 8 x 600GB
Hot Plug SFF SATA 4.0 TB 8 x 500GB
NOTE: Installation of the Hot Plug Backplane 1U 2S Kit (512181-B21) is required if ordering third or fourth Hard Drives for Hot Plug models only.
NOTE: Installation of the Hot Plug 8 Small Form Factor HDD Cage & Backplane G6 FIO (515938-B21) is required if ordering small form factor hard drives for Hot Plug models only.

Interfaces Parallel None
Network RJ-45(Ethernet) 2 10/100/1000 NIC ports (plus 1 optional dedicated port for the HP ProLiant Lights Out 100i Remote Management)
Serial 1
Pointing Device (Mouse) 0 (via USB only)
Graphics 1
Keyboard 0 (via USB only)
USB 5 (two front, one internal, two rear)
NOTE: In order to connect a USB device internally, the internal USB Cable G6 Kit must be used (P/N 536769-B21)
NOTE: Please see the following URL for additional information regarding USB support:
https://h18004.www1.hp.com/products/servers/platforms/usb-support.html.

Industry Standard Compliance ACPI V2.0 Compliant
PCI 2.2 Compliant
PXE Support
WOL Support
Microsoft® Logo certifications
IPMI 2.0, SMASH CLP compliant

Server Power Cords One 6' Highline (IEC-IEC) power cord ships standard
NOTE: HP ProLiant DL servers no longer ship standard with NEMA power cords (163719-002) that allow connection to 110V wall outlets in a home or office. ProLiant DL servers are primarily connected to PDU's in data center racks so they now ship standard with only a PDU power cord (416151-B21). If a user wishes to power a ProLiant DL server using a 110V receptacle (NEMA-15), the NEMA power cord (227099-001) must be ordered separately.

If customers require a power cord, they can check the power cord matrix for the appropriate cord. Please see the following power cord matrix: https://www.hp.com/go/powercordmatrix.

Power Supply500 Watts, auto-switching, high efficiency, PFC (Power Factor Correcting)
NOTE: Factory upgradeable to high-efficiency (HE) hot plug common slot redundant power supply.

System Fans5 system fans ship standard; Non-hot plug, Non-redundant
NOTE: The HP Redundant Fan 40x56 1U seG6 Kit (P/N 536576-B21) can be ordered as a factory upgrade for N+1 fan redundancy.

OS Support

Microsoft Windows Server
Microsoft Windows Server Hyper V
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Solaris 10 for x86/x64 based Systems
VMware
Citrix XenServer

NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: https://www.hp.com/go/supportos and our driver download page https://www.hp.com/support/DL160G6.

Graphics

32MB shared supporting all display resolutions up to 1600x1200 16bpp@75Hz
NOTE: 8MB is dedicated to video memory.


Form Factor Rack (1U), (1.75 in/4.45 cm)

Embedded Manageability

HP LO100i

HP LO100i Advanced Licenses for Virtual KVM and Virtual Media.

Features:

  • Embedded IPMI standard reporting
  • System event log access
  • Remote Serial console (serial redirection)
  • Browser, Telnet access
  • SMASH-CLP compliant
  • IPMI 2.0 compliant
  • Secure Socket Layer (SSL) Encryption
  • Secure Shell (SSH) Encryption
  • Virtual media (Floppy, CD, USB 2.0) with Advanced License
  • Virtual Keyboard, Video, Mouse (KVM) for graphical remote console with Advanced License

NOTE: Flexible and volume quantity (AKA) license kits are available for the Lights-Out 100i Advanced Pack licenses as well as Electronic License To Use (E-LTU). AKA Tracking licenses require a 100 unit minimum forecast at initial contract signing. For these additional part numbers, please refer to each software products. QuickSpecs at this link for more information: www.hp.com/go/lo100.


Security Power-on password
Setup password
Diskette boot control
Secure Sockets Layer (SSL)
Secure Shell (SSH)

Warranty

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners. Hardware diagnostic support and parts replacement is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE: Server Warranty includes 3 year Next Day Parts replacement, 0-Years Labor, 0-Years Onsite support. Additional information regarding worldwide limited warranty and technical support is available at: https://h18004.www1.hp.com/products/servers/platforms/warranty/index.html.

contents
 Overview      Standard Features      Optional Features      Service and Support      Configuration Information - Factory Integrated Models      DL160se G6 Core Options      Additional Options      DL160se G6 Memory      Storage      Power Specifications      System Specifications      DL160se G6 QuickSpecs images/line.gif

Optional Features

Core Infrastructure Management HP Insight Control for Linux HP Insight Control for Linux, as a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, monitor, remote control, and optimize your IT infrastructure through a single, simple management console. The Insight Control for Linux suite installs and license software modules that are integrated into HP System Insight Manager.

The HP Insight Control suite for Linux (IC-Linux) serves environments requiring a Linux-based management consoles. See: www.hp.com/go/ic-linux

HP Insight Control suites include one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit: https://www.hp.com/services/insight.

High Performance Clusters HP Cluster Platforms HP Cluster Platforms are specifically engineered, factory-integrated large-scale ProLiant clusters optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and Novell SLES, as well as Microsoft Windows HPC Server. A Cluster Platform Configurator simplifies ordering. https://www.hp.com/go/clusters
HP HPC Interconnects High Performance Computing (HPC) interconnect technologies are available for this server as part of the HP Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects are fully supported by HP when integrated within an HP cluster. Flexible, validated solutions can be defined with the help of configuration tools. https://www.hp.com/techservers/clusters/ucp/index.html
HP Cluster Management Utility HP Cluster Management Utility (CMU) is an HP-licensed and HP-supported suite of tools that are used to manage large-scale Linux ProLiant systems. CMU includes software for the centralized provisioning, management and monitoring of nodes. CMU makes the administration of clusters user friendly, efficient, and effective. https://www.hp.com/go/cmu
HP HPC Linux Value Pack HP HPC Linux Value Pack (Value Pack) is an HP-licensed and HP-supported specially priced software bundle for the development and deployment of applications on HPC Cluster Platforms. Value Pack includes the Platform LSF workload scheduler, the HP-MPI parallelization library, the HP Unified Parallel C compiler and the HP Shmem library, as well as the execution environments for the libraries and compiler. HP HPC Linux Value Pack

Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: https://www.hp.com/go/factory-express.


HP Enterprise Configurator The HP eConfigure Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance. https://www.hp.com/products/configurator.
contents
 Overview      Standard Features      Optional Features      Service and Support      Configuration Information - Factory Integrated Models      DL160se G6 Core Options      Additional Options      DL160se G6 Memory      Storage      Power Specifications      System Specifications      DL160se G6 QuickSpecs images/line.gif

Service and Support

Service and Support

HP Care Pack Services: Packaged server and storage services for increased uptime, productivity and ROI
When you buy HP server and storage products and solutions, it's also a good time to think about what levels of support you may need. Our portfolio of service options reduce deployment and management worries while helping you get the most out of your server and storage investments. We take a holistic approach to your environment, bridging servers, blades, storage, software and network infrastructures with our packaged HP Care Pack Services for servers and storage.

Protect your business beyond warranty
When it comes to robustness and reliability, standard computing equipment warranties have matured along with technology. Good news that can also create problems stemming from depending on standard warranties designed to only protect against product defects and some downtime causes. Using a standard approach to warranty uplifts, such as HP Care Pack Services, helps reduce downtime risks and provides operational consistency for mission-critical and standard business computing.

HP Care Pack Services: Upgrading or extending standard server and storage warranties cost effectively
HP Care Pack Services offer a standard reactive hardware and software support services suite sold separately, or combined with our Support Plus and Support Plus 24 services. The portfolio also provides a combination of integrated proactive and reactive services, such as Proactive 24 Service and Critical Service. In addition with HP Proactive Select, you can acquire the specific proactive constancy and technical services. HP Proactive Select menu offers a broad set of service options that you can mix and match depending on your specific requirements. Proactive service options include offers for server, storage, network, SAN device, software, environment and education services.

HP server and storage lifecycle support services offers a full spectrum of customer care-from technology support to complex migrations to complete managed services. HP Factory Express provides customization, integration and deployment services for turnkey solutions. HP Education Services offer flexible, comprehensive training on to help your IT staff get the most out of your server and storage investments. HP Financial solutions extend innovative financing and cost-effective asset management programs-from purchase to equipment retirement.

Learn more: www.hp.com/services/servers and www.hp.com/services/storage

NOTE: Care Pack Services availability may vary by product and country.

HP Care Pack Services are sold by HP and HP Authorized Service Partners:

  • Services for customers purchasing from HP or an enterprise reseller are quoted using HP order configuration tools.
  • Customers purchasing from a commercial reseller can find HP Care Pack Services at https://www.hp.com/go/lookuptool

Recommended HP Care Pack Services for optimal satisfaction with your HP product
Recommended Services

3-Year HP Hardware Support Onsite Service, 4-hour response, 13x5
Delivers increased equipment availability and productivity with rapid remote support and onsite response for your HP server and storage hardware.

  • Help improve or maintain system uptime
  • Convenient onsite support
  • Committed response time

https://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE



3-Year HP Hardware Support Onsite Service, next-day response, 9x5
Provides high-quality remote assistance and onsite support for your covered hardware if required, helping you to improve product uptime.

  • Help improve or maintain system uptime
  • Convenient onsite support
  • Reliable response time

https://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE



HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.

  • Expedited installation, with all service prerequisites met before the installation is performed
  • Installation in accordance with manufacturer's specifications, enhancing the supportability of your HP-installed hardware and software
  • Service delivery at a mutually scheduled time
  • Allows your IT resources to stay focused on their core tasks and priorities
  • Availability of an HP service specialist to answer questions during the onsite delivery of this service

https://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN


Optional HP Care Pack Services that will enhance your HP product experience
Optional Services

3-Year HP Hardware Support Onsite Service, 4-hour response, 24x7
As an alternative to our recommended support level, for customers who need same day response service level 24x7.

Provides you with rapid remote support and if required an HP authorized representative who will arrive on site any time and day of the year to begin hardware maintenance service within 4 hours of the service request being logged.

https://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE



3-Year HP Hardware Support Onsite Call-to-Repair (CTR) Service, 6- or 24-hour
As an alternative to our recommended support level, for customers who need committed call-to-repair for server hardware.

Provides your IT manager with a team of support specialists who will quickly begin troubleshooting the system to help return the hardware to operating condition within 6 or 24 hours of the initial service request to the HP Global Solution Center.

https://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6636ENN



HP Proactive Select Service
Customer needs on demand access to consulting, technical proactive services and education courses

Provides a flexible way to purchase HP best-in-class consultancy and technical services. You can buy Proactive Select Service Credits when you purchase your hardware and then use the credits over the next 12 months.

https://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN


eSupport

HP eSupport is a portfolio of technology-based services that assist you with managing your business environment - from the desktop to the data center.

Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to manage the daily operations of your IT environment.

Features include:

  • Access to self-solve tools (including search technical knowledge base)
  • Efficient logging and tracking of support cases
  • Collaboration with other business and IT professionals
  • Download of patches and drivers
  • Access to diagnostic tools
  • Proactive notification of relevant information

Access to certain features of the support portal requires an HP service agreement. To access the support portal, visit: https://www.hp.com/support

HP Insight Remote Support software delivers secure remote support for your HP Servers and Storage, 24 X 7, so you can spend less time solving problems and more time focused on your business. You can have your systems remotely monitored for hardware failure using secure technology that's been proven at thousands of companies around the world. In many cases, you can avoid problems before they occur.


Customer Technical Training

In today's cost-conscious business environment, IT professionals, developers, consultants and users face an interesting challenge: how to keep up with the latest technologies and expand important skills while delivering profitable results on current projects. To help address this challenge, HP offers innovative training solutions that help keep you up-to-date on virtualization, server, storage, Insight Control, Citrix, Microsoft® and open source/Linux-related topics-while spending less time away from business-critical activities.


HP Services Awards

HP Technology Services continues to be recognized for service and support excellence by customers, partners, industry organizations and publications around the world. Recent honors and award reflect our services team's dedications, technical expertise, professionalism and uncompromising commitment to customer satisfaction.


Additional Services Information

To learn more on HP ProLiant servers, HP BladeSystem servers and HP StorageWorks storage products, please contact your HP sales representative or HP Authorized Channel Partner. Or visit: www.hp.com/services/proliant or www.hp.com/services/bladesystem or https://www.hp.com/hps/storage

contents
 Overview      Standard Features      Optional Features      Service and Support      Configuration Information - Factory Integrated Models      DL160se G6 Core Options      Additional Options      DL160se G6 Memory      Storage      Power Specifications      System Specifications      DL160se G6 QuickSpecs images/line.gif

Configuration Information - Factory Integrated Models

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
NOTE: Configure-to-order servers must start with a CTO Chassis.
NOTE: FIO indicates that this option is a Factory Installable Option.

Step 1: Base Configuration (choose one of the following configurable models)
HP Models Non-Hot Plug SATA Model
NOTE: Non-Hot Plug models are not upgradeable to Hot Plug.
NOTE: The addition of a Smart Array controller is supported for external storage use only.

HP ProLiant DL160se G6 Non-hot Plug Configure-to-order Rack Server 495958-B21
Factory Integrated Model ships with:
HP NC362i Integrated Dual Port Gigabit Server Adapter
One available full-length/full-height PCI-Express x16 Generation 2 slot
One available Low Profile PCI-Express x16 Generation 2 slot

One Highline IEC Power Cord
5 Non-Hot Plug Fans
Rack (1U), (1.75 in / 4.45 cm)
Tool-less Fixed Rails
Hot Plug Model
HP ProLiant DL160se G6 Hot Plug Configure-to-order Rack Server 495959-B21
Factory Integrated Model ships with:
HP NC362i Integrated Dual Port Gigabit Server Adapter
One available PCI-Express Generation 2 slot:

Slot 1: full-length/full-height
Slot 2: low-profile occupied by controller card

One Highline IEC Power Cord
5 Non-Hot Plug Fans
Rack (1U), (1.75 in / 4.45 cm)
Tool-less Fixed Rails

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)
HP Processors Quad-Core Processors
NOTE: If 2 processors are desired, select one xxxxxx-B21 and one xxxxxx-B21.
HP DL160 G6 Intel® Xeon® X5570 (2.93GHz/4-core/8MB/95W) FIO Processor Kit 508231-B21
HP DL160 G6 Intel® Xeon® X5560 (2.80GHz/4-core/8MB/95W) FIO Processor Kit 573893-B21
HP DL160 G6 Intel® Xeon® X5550 (2.66GHz/4-core/8MB/95W) FIO Processor Kit
491511-B21
HP DL160 G6 Intel® Xeon® E5540 (2.53GHz/4-core/8MB/80W) FIO Processor Kit
490461-B21
HP DL160 G6 Intel® Xeon® E5530 (2.40GHz/4-core/8MB/80W) FIO Processor Kit 573895-B21
HP DL160 G6 Intel® Xeon® E5520 (2.26GHz/4-core/8MB/80W) FIO Processor Kit
490459-B21
HP DL160 G6 Intel® Xeon® L5520 (2.26GHz/4-core/8MB/60W) FIO Processor Kit
491507-B21
HP DL160 G6 Intel® Xeon® E5504 (2.00GHz/4-core/4MB/80W) FIO Processor Kit
490457-B21
NOTE: HT indicates that the processor model supports Intel® Hyper-Threading Technology.
NOTE: Turbo indicates the maximum potential frequency increment when using Intel® Turbo Boost Technology, with 4, 3, 2, and 1 cores active.
NOTE: DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.
NOTE: For the Intel 5500 Series, the letter preceding the model number indicates the performance/wattage of the processor. "X" denotes High Performance/Wattage; "E" denotes Enterprise Performance/Wattage (Mainstream); and "L" denotes Lower Wattage.


HP Memory Registered DIMMs (RDIMMs)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500656-B21 500656-B21
HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
HP 4GB (1x4GB) Quad Rank x8 PC3-8500 (DDR3-1066) Registered CAS-7 Low Power Memory Kit
HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 593339-B21 593339-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500662-B21 500662-B21
HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit 500666-B21 500666-B21
Unbuffered with ECC DIMMs (UDIMMs)
HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500668-B21 500668-B21
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500670-B21 500670-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500672-B21 500672-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as LP include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, see: https://h18004.www1.hp.com/products/servers/platforms/energyefficient/

NOTE: There is a maximum support limitation of 8 ranks per memory channel (maximum of 2 quad rank DIMMs per channel)

HP Hard Drives NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE: A minimum of one hard drive is required when purchasing Non-Hot Plug CTO Chassis Model (P/N 495958-B21) in Step 1.
NOTE: SATA Non-Hot Plug Hard Drives ONLY required when purchasing Non-Hot Plug CTO Chassis Models (P/N 495958-B21) in Step 1.

SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive 458941-B21 458941-B21
SATA Non-Hot Plug LFF (3.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty Hard Drive 571232-B21
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty Hard Drive 458947-B21 458947-B21

HP Storage Controllers NOTE: A minimum of one Smart Array Controller is ONLY required when purchasing Hot Plug CTO Chassis Model (P/N 495958-B21) in Step 1. The HP Smart Array P212 (491191-B21 491191-B21) is supported in the Non-Hot Plug Model (P/N 495958-B21) for external storage control ONLY. The HP Smart Array P410 Controller is not supported in the Non Hot Plug Model.
NOTE: The addition of the battery backed cache upgrade enables BBWC, RAID 5, 5+0, array expansion, logical drive extension, RAID migration, and stripe size migration. In order to upgrade to RAID 6, at least 256MB Cache and a Battery is required in addition to the Smart Array Advanced Pack license (P/N 516471-B21).
HP Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 FIO SAS Controller
HP Smart Array P410/ZM 2-ports Int PCIe x8 FIO SAS Controller

HP Power Supplies NOTE: Prior to making a power supply selection it is highly recommended that the HP Power Advisor is run to determine the right size power supply for your server configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor
NOTE: The 400W 1U G6 RPS (P/N: 532092-B21 532092-B21) is limited to the following configuration support: (1.) NHP SATA Model (P/N: 495958-B21), (2.) Up to 2 60W Low Voltage processors (P/N: 491507-B21, -B21), (3.) No graphics cards supported via PCI-e.

HP 500 Watts Non Hot Plug Power Supply Factory Integrated Kit
HP High Efficiency 460W Power Supply/Backplane/Bracket G6 Factory Integrated Kit
535684-B21
HP High Efficiency 750W Power Supply/Backplane/Bracket G6 Factory Integrated Kit 535683-B21 535683-B21
HP 400 Watts 1U G6 Redundant Power Supply Option Kit 532092-B21 532092-B21

Step 3: Choose Additional Factory Integratable Options (only one of the following from each list unless otherwise noted)
HP Drive Cage Options HP 8SFF HDD Cage & Backplane G6 FIO
NOTE: Installation of the HP 8SFF HDD Cage & Backplane G6 FIO Kit is required when installing small form factor drives.
515938-B21
HP Cooling Options HP Redundant Fan 40x56 1U seG6 Factory Integrated Kit 536576-B21)
NOTE: The HP Redundant Fan 40x56 1U seG6 Kit (P/N 536576-B21) can be ordered as a factory upgrade for N+1 fan redundancy.

Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Options" section below.
contents
 Overview      Standard Features      Optional Features      Service and Support      Configuration Information - Factory Integrated Models      DL160se G6 Core Options      Additional Options      DL160se G6 Memory      Storage      Power Specifications      System Specifications      DL160se G6 QuickSpecs images/line.gif

DL160se G6 Core Options

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.

HP Unique Options HP Dedicated Management Port Kit
516006-B21
HP Internal USB Cable G6 Kit
NOTE: This option required to connect a USB device internally.
536769-B21

HP Processors Quad-Core Processors
HP DL160 G6 Intel® Xeon® X5570 (2.93GHz/4-core/8MB/95W) Processor Kit 508231-B21
HP DL160 G6 Intel® Xeon® X5560 (2.80GHz/4-core/8MB/95W) Processor Kit 573893-B21
HP DL160 G6 Intel® Xeon® X5550 (2.66GHz/4-core/8MB/95W) Processor Kit 491511-B21
HP DL160 G6 Intel® Xeon® E5540 (2.53GHz/4-core/8MB/80W) Processor Kit 490461-B21
HP DL160 G6 Intel® Xeon® E5530 (2.40GHz/4-core/8MB/80W) Processor Kit 573895-B21
HP DL160 G6 Intel® Xeon® E5520 (2.26GHz/4-core/8MB/80W) Processor Kit 490459-B21
HP DL160 G6 Intel® Xeon® L5520 (2.26GHz/4-core/8MB/60W) Processor Kit 491507-B21
HP DL160 G6 Intel® Xeon® E5504 (2.00GHz/4-core/4MB/80W) Processor Kit 490457-B21
NOTE: HT indicates that the processor model supports Intel® Hyper-Threading Technology.
NOTE: Turbo indicates the maximum potential frequency increment when using Intel® Turbo Boost Technology, with 4, 3, 2, and 1 cores active.
NOTE: DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.
NOTE: For the Intel 5500 Series, the letter preceding the model number indicates the performance/wattage of the processor. "X" denotes High Performance/Wattage; "E" denotes Enterprise Performance/Wattage (Mainstream); and "L" denotes Lower Wattage.


DL160se G6 Memory

Registered DIMMs (RDIMMs)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
HP 4GB (1x4GB) Quad Rank x8 PC3-8500 (DDR3-1066) Registered CAS-7 Low Power Memory Kit
HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 593339-B21 593339-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500662-B21 500662-B21
HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit 500666-B21 500666-B21
Unbuffered with ECC DIMMs (UDIMMs)
HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500668-B21 500668-B21
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500670-B21 500670-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500672-B21 500672-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as LP include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, see: https://h18004.www1.hp.com/products/servers/platforms/energyefficient/


HP Optical Drives

HP 9.5mm SATA DVD-ROM Optical Drive
481045-B21
HP 9.5mm SATA DVD RW Optical Drive481047-B21

DL160se G6 Hard Drives NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives (SAS/SATA Hot Plug Models Only)
NOTE: A SAS HBA or Array Controller is required.

HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive 507632-B21 507632-B21
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive 454146-B21 454146-B21
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive 458928-B21 458928-B21
SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives (Non-Hot Plug Models Only)
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive 507774-B21 507774-B21
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive 507772-B21 507772-B21
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive 458941-B21 458941-B21
SATA Hot Plug LFF (3.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive 571230-B21 571230-B21
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive 458945-B21 458945-B21
NOTE: Please see QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/13021_na/13021_na.html

SATA Non-Hot Plug LFF (3.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty Hard Drive 571232-B21
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty Hard Drive 458947-B21 458947-B21
SATA Hot Plug Midline (MDL) Solid State Drives
HP 60GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive 577571-B21
HP 120GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive 577573-B21 577573-B21
SATA Hot Plug 3.5" Midline (MDL) Solid State Drives
HP 60GB 3G SATA LFF (3.5-inch) Midline 1yr Warranty Solid State Drive 570761-B21
HP 120GB 3G SATA LFF (3.5-inch) Midline 1yr Warranty Solid State Drive 570763-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/13415_na/13415_na.html

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 581286-B21 581286-B21
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 581284-B21 581284-B21
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 507127-B21 507127-B21
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 512547-B21 512547-B21
HP 146GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 507125-B21 507125-B21
HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 512545-B21 512545-B21
SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 516828-B21 516828-B21
HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 516816-B21 516816-B21
HP 300GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 516814-B21 516814-B21
NOTE: The purchase of SAS HBA or array controller is required.
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/12244_na/12244_na.html
SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive 507610-B21 507610-B21
SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive 507616-B21 507616-B21
HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive 507614-B21 507614-B21

HP Networking Gigabit Ethernet Adapters
HP NC112T PCIe Gigabit Server Adapter
HP NC360T PCI Express Dual Port Gigabit Server Adapter
HP NC373F PCI Express Multifunction Gigabit Server Adapter
HP NC373T PCI Express Multifunction Gigabit Server Adapter
HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter
HP NC375T PCI Express Quad Port Gigabit Server Adapter 538696-B21 538696-B21
HP NC364T PCI Express Quad Port Gigabit Server Adapter 435508-B21 435508-B21
HP NC365T 4-port Ethernet Server Adapter 593722-B21 593722-B21
10 Gigabit Ethernet Adapters
HP NC522SFP Dual Port 10GbE Server Adapter
NOTE: A minimum of two Gigabtyes (2GB) of server memory is required for each NC522SFP adapter.
NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately.
HP NC550SFP Dual Port 10GbE Server Adapter
NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each NC550SFP adapter.
NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately.
581201-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: www.hp.com/go/ProLiantNICs
contents
 Overview      Standard Features      Optional Features      Service and Support      Configuration Information - Factory Integrated Models      DL160se G6 Core Options      Additional Options      DL160se G6 Memory      Storage      Power Specifications      System Specifications      DL160se G6 QuickSpecs images/line.gif

Additional Options

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
HP Entry-Level Server Management HP LO100i Advanced Pack, No Media 1-Server License including 1 year of 24x7 Technical Support and Updates
NOTE: For additional License Kits please see the Lights-Out 100i QuickSpecs at: www.hp.com/go/lo100
530521-B21

HP Insight Software HP Insight Control for Linux
HP Insight Control for Linux including 1yr 24x7 Support Electronic License TC213AAE
HP Insight Control for Linux including 1yr 24x7 Support Single Server License
NOTE: This part number can be purchased as a single license or as multiple licenses with a single activation key. Customer will receive a license entitlement certificate via e-mail. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
NOTE: Electronic LTUs are only available through limited points of sales; if not available, order a printed license entitlement certificate instead.
TC209A
HP Insight Control for Linux Media Kit
NOTE: This optional Media pack DVD contains the ISO image for HP Insight Control for Linux, HP Systems Insight Manager, HP Insight Control power management, HP Insight Control virtual machine management, and an integrated installer. Servers must be acquired separately.
NOTE: This Media pack is optional because the latest ISO image and latest updates may be downloaded at no cost from: https://www.hp.com/go/ic-linux (click on Download button).
TC208A
NOTE: Electronic licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional License Kits, including electronic licensing options, please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/13019_na/13019_na.html

HP Insight Control server deployment
HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License T9082AAE
HP Insight Control Server Deployment including 1yr 24x7 Support Single Server License 452151-B21
NOTE: Licenses ship without media. The Insight Control Media Kit can be ordered separately, or can be downloaded at: https://www.hp.com/go/insightupdates.
NOTE: Electronic licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional license kits please see the Insight Control QuickSpecs at: https://h18004.www1.hp.com/products/quickspecs/12631_na/12631_na.html


High Performance Clusters

HP Cluster Management Utility Compute Node License
NOTE: This part number can be used to purchase one certificate for multiple licenses with a single activation key. Each license is for one node (server). Customer will receive a printed end user license agreement and license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key.
NOTE: For additional license kits please see the QuickSpecs at: https://h18004.www1.hp.com/products/quickspecs/12612_na/12612_na.html
436284-B21
HP Cluster Management Utility Media and Management License
NOTE: Order a minimum of one license per cluster to purchase media including software and documentation, which will be delivered to the customer, and also licenses CMU management. No license key is delivered or required.
NOTE: For additional license kits please see the QuickSpecs at: https://h18004.www1.hp.com/products/quickspecs/12612_na/12612_na.html
433257-B21
HP HPC Linux Value Pack One Processor License
NOTE: This part number can be used to purchase one certificate for multiple licenses with a single activation key. Each license is for one socket (a.k.a. processor). Customer will receive a printed end user license agreement and license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key.
NOTE: For additional license kits please see the QuickSpecs at: https://h18004.www1.hp.com/products/quickspecs/13485_na/13485_na.html
TC293A
HP HPC Linux Value Pack Media
NOTE: This part number can be used to purchase media including software and documentation, which will be delivered to the customer.
NOTE: For additional license kits please see the QuickSpecs at: https://h18004.www1.hp.com/products/quickspecs/13485_na/13485_na.html
TC294A

HP Drive Cage Options

HP 4HDD Hot Plug Backplane G6 Kit
512181-B21
NOTE: Installation of the 4 HDD Hot Plug Backplane G6 Kit (512181-B21) is required if ordering third or fourth Hard Drives for Hot Plug models only.

HP Security - TPM

HP Trusted Platform Module Option Kit
488069-B21
NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline.
NOTE: For more information about TPM, including a white paper, go to: https://www.hp.com/go/TPM
NOTE: ProLiant OS pre-installed units will come with the partition required for TPM deployment.
NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss.


HP Storage Controllers NOTE: The addition of storage controllers for internal hard drive use is intended for use ONLY with the Hot Plug SATA/SAS Model Chassis (P/N 495959-B21). The addition of a storage controller to the Non-Hot Plug Model Chassis (P/N: 495958-B21) is supported for external storage ONLY.
NOTE: With the HP Smart Array P410 Controller, the addition of the battery backed cache upgrade enables BBWC, RAID 5, 5+0, array expansion, logical drive extension, RAID migration, and stripe size migration. In order to upgrade to RAID 6, at least 256MB Cache and a Battery is required in addition to the Smart Array Advanced Pack license (P/N 516471-B21).

SAS Controllers
Smart Array P212 Controller
HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS Controller
HP Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 SAS Controller 462834-B21 462834-B21
Smart Array P410 Controller
HP Smart Array P410/256 2-ports Int PCIe x8 SAS Controller
HP Smart Array P410/256 2-ports Int PCIe x8 FIO SAS Controller
HP Smart Array P410/512 BBWC 2-ports Int PCIe x8 SAS Controller 462864-B21 462864-B21
HP Smart Array P410/1G FBWC 2-ports Int PCIe x8 SAS Controller 572532-B21 572532-B21
HP Smart Array P410/512 FBWC 2-ports Int PCIe x8 SAS Controller 578230-B21 578230-B21
Smart Array P411 Controller
HP Smart Array P411/512 FBWC 2-ports Ext PCIe x8 SAS Controller 578229-B21 578229-B21
HP Smart Array P411/1G FBWC 2-ports Ext PCIe x8 SAS Controller 572531-B21 572531-B21
Smart Array P812 Controller
HP Smart Array P812/1G FBWC 2-ports Int/4-ports Ext PCIe x8 SAS Controller 487754-B21 487754-B21
Storage Controllers for use with External Storage Only
HP Smart Array P411/256 2-ports Ext PCIe x8 SAS Controller
HP Smart Array P411/512 BBWC 2-ports Ext PCIe x8 SAS Controller
NOTE: Please see the following QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/13203_na/13203_na.html
(Smart Array P212 Controller)
https://h18000.www1.hp.com/products/quickspecs/13201_na/13201_na.html
(Smart Array P410 Controller)
https://h18000.www1.hp.com/products/quickspecs/13202_na/13202_na.html
(Smart Array P411 Controller)
https://h18000.www1.hp.com/products/quickspecs/13558_na/13558_na.html
(Smart Array P812 Controller)

Optional upgrades
HP Smart Array Advanced Pack including 1yr 24x7 Technical Support and Updates Single Server License 516471-B21
NOTE: This part number can be used to purchase a single license or to order multiple licenses with a single activation key. Customers will receive a license entitlement certificate via e-mail. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Include one year of 24x7 HP Software Technical Support Services.
HP 1GB Flash Backed Cache 534562-B21 534562-B21
HP 512MB Flash Backed Write Cache 534916-B21 534916-B21
HP 256MB P-Series Cache Upgrade 462968-B21 462968-B21
HP 512MB P-Series Battery Backed Write Cache Upgrade
NOTE: This is an option for the HP Smart Array P410i Controller (P410i is standard integrated controller).
NOTE: Battery included. When used with the embedded HP Smart Array P410i controller.
462967-B21 462967-B21
HP 650 mAh P-Series Battery
NOTE: This is an option for the HP Smart Array P410i Controller (P410i is standard integrated controller).
NOTE: To enable BBWC on the 256MB cache on P410i.
462969-B21
SAS HBA
HP SC08Ge 2-ports Ext PCIe x8 SAS Host Bus Adapter 488765-B21 488765-B21
HP Modular Smart Array SC08e 2-ports Ext PCIe x8 SAS Host Bus Adapter
NOTE: This is a 2 x4 External Port HBA.
614988-B21 614988-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://h18004.www1.hp.com/products/quickspecs/13082_na/13082_na.html
(SC08Ge HBA)
https://h18004.www1.hp.com/products/quickspecs/13651_na/13651_na.html
(SC08e 6Gb HBA)


HP InfiniBand Options HP 10 GbE PCI-e G2 Dual Port Adapter
516937-B21
HP IB 4X DDR CX-2 PCI-e G2 Dual Port HCA 592521-B21
HP IB 4X DDR PCI-e DUAL PORT 0 mem HCA 483513-B21
HP IB 4X DDR PCI-e DUAL PORT HCA 448397-B21 448397-B21
HP IB 4X QDR CX-2 PCI-e G2 Dual Port HCA 592520-B21
QLogic IB 4X QDR PCI-e G2 Dual-port HCA 583211-B21
NOTE: Please see the QuickSpecs for additional information: https://h18000.www1.hp.com/products/quickspecs/13078_na/13078_na.html

HP Backup & Recovery Software Data Protector Express
HP Data Protector Express 5.0 for 1 Server TC330AAE
HP Data Protector Express 5.0 for 3 Servers TC331AAE
HP Data Protector Express 5.0 for 10 Servers TC332AAE
HP Data Protector Express 5.0 for 1 Server Upgrade from HP Data Protector Express Basic TC333AAE
NOTE: Only one of these Data Protector Express base products is required. To see available options: https://www.hp.com/go/dataprotectorexpress

HP Tape Backup

NOTE: For the complete range of StorageWorks tape drives, autoloaders, libraries and media see: https://www.hp.com/go/tape. For hardware and software compatibility of HP StorageWorks tape backup products see: https://www.hp.com/go/connect.
NOTE: Connection using the HP P212 SAS Smart Array Controller (462828-B21 462828-B21) recommended.


HP StorageWorks DAT 160 SAS Internal Tape Drive
NOTE: For installation into 1U SAS Rack-Mount Kit (AE459B) or 3U SAS Rack-Mount Kit (AG576B). No peripheral bay available for installation into the server.
Q1587A
HP StorageWorks DAT 320 USB in 1U Rack-mount Kit
AP835B
HP StorageWorks DAT 320 SAS Internal Tape Drive
NOTE: For installation into 1U SAS Rack-Mount Kit (AE459B) or 3U SAS Rack-Mount Kit (AG576B). No peripheral bay available for installation into the server.
AJ830A
HP StorageWorks Ultrium 448 SAS Internal Drive
NOTE: For installation into 1U SAS Rack-Mount Kit (AE459B) or 3U SAS Rack-Mount Kit (AG576B). No peripheral bay available for installation into the server.
DW085A
HP StorageWorks Ultrium 920 SAS Internal Tape Drive
NOTE: For installation into 1U SAS Rack-Mount Kit (AE459B) or 3U SAS Rack-Mount Kit (AG576B). No peripheral bay available for installation into the server.
EH847A
HP StorageWorks 1/8 G2 Ultrium 920 SAS Autoloader
NOTE: Requires HP 1U Tape Autoloader Rack-Mount Kit (AH166A) for rack installation.
AH558A
HP StorageWorks MSL2024 Ultrium 920 SAS Tape Library AH559A

HP Disk Backup

NOTE: For the complete range of StorageWorks D2D Backup Systems see: https://www.hp.com/go/d2d. For the complete range of StorageWorks RDX drives and media see: https://www.hp.com/go/rdx. For hardware and software compatibility of HP StorageWorks disk backup products see: https://www.hp.com/go/connect.
HP StorageWorks D2D Backup Systems with Backup Data Deduplication
HP StorageWorks D2D2502i Backup System
NOTE: 1.5TB of usable network disk backup capacity. Network connected appliance with connectivity using the iSCSI protocol. If the server requires a hardware iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is recommended.
EJ001B
HP StorageWorks D2D2504i Backup System
NOTE: 3.0TB of usable network disk backup capacity. Network connected appliance with connectivity using the iSCSI protocol. If the server requires a hardware iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is recommended.
EJ002B
USB Removable Media RDX Disk Backup Systems
HP RDX 1TB Int Removable Disk Backup System BV847A
HP StorageWorks RDX320 Internal Removable Disk Backup System
NOTE: For installation into 1U USB Rack-Mount Kit (A8007A A8007A). No peripheral bay available for drive installation into the server. 320GB of disk capacity per data cartridge.
AJ767A
HP StorageWorks RDX500 Internal Removable Disk Backup System
NOTE: For installation into 1U USB Rack-Mount Kit (A8007A A8007A). No peripheral bay available for drive installation into the server. 500GB of disk capacity per data cartridge.
AJ934A

HP Disk Storage Systems

Disk Enclosures
HP StorageWorks D2600 Disk Enclosure AJ940A
HP StorageWorks D2700 Disk Enclosure
NOTE: Please see the QuickSpecs for additional options and configuration information at:
https://h18000.www1.hp.com/products/quickspecs/13404_na/13404_na.html
AJ941A

HP StorageWorks Options StorageWorks Fibre Channel HBA
NOTE: The following is a list of all Fibre Channel Host Bus Adapters for Windows and Linux. For detailed compatibility information please see: https://h18006.www1.hp.com/storage/saninfrastructure/hba.html

Brocade Fibre Channel HBAs
HP StorageWorks 81B PCIe 8Gb Fibre Channel Single Port Host Bus Adapter
HP StorageWorks 82B PCIe 8Gb Fibre Channel Dual Port Host Bus Adapter AP770A AP770A
HP StorageWorks 41B PCIe 4Gb Fibre Channel Single Port Host Bus Adapter
HP StorageWorks 42B PCIe 4Gb Fibre Channel Dual Port Host Bus Adapter
Emulex Fibre Channel HBAs
HP StorageWorks 81E 8Gb Single Port PCI-e Fibre Channel Host Bus Adapter AJ762A AJ762A
HP StorageWorks 82E 8Gb Dual Port PCI-e Fibre Channel Host Bus Adapter AJ763A AJ763A
HP StorageWorks FC2142SR 4Gb PCIe Host Bus Adapter A8002A A8002A
HP StorageWorks FC2242SR 4Gb PCIe DC Host Bus Adapter
QLogic Fibre Channel HBAs
HP StorageWorks 81Q PCI-e Fibre Channel Host Bus Adapter AK344A AK344A
HP StorageWorks 82Q 8Gb Dual Port PCI-e Fibre Channel Host Bus Adapter AJ764A AJ764A
HP StorageWorks FC1142SR 4Gb PCIe Host Bus Adapter
HP StorageWorks FC1242SR 4Gb PCIe DC Host Bus Adapter
StorageWorks Converged Network Adapter
HP StorageWorks CN1000E Dual Port Converged Network Adapter AW520A AW520A

HP Power Distribution Units Monitored PDUs
HP Monitored Power Distribution Unit: Full Rack Version
HP 8.6 kVA S1324 Monitored PDU- single input, 3Ø, 24A
AF504A
HP 8.3 S1140 Monitored PDU- single input, 1Ø, 40A AF506A
HP Monitored Power Distribution Unit: Half Rack Version
HP 4.9 kVA S124 Monitored PDU- single input, 1Ø, 24A AF914A
Modular Power Distribution Units 1U/0U (Up to 32 outlets)
4.9 kVA Modular PDU, 24A 252663-D72 252663-D72
8.3 kVA Modular PDU, 40A
252663-D73
3.6 kVA Modular PDU, 16A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/12118_na/12118_na.html
NOTE: Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units. Please see the following link: www.hp.com/products/powercords

HP Uninterruptible Power Systems

HP Rack-mountable UPS
HP R/T3000 Uninterruptible Power System (UPS)
HP R/T3000 3300VA High Voltage 2U Rackmount Uninterruptible Power System
AF453A
NOTE: Please see the QuickSpecs for additional information:
https://h18000.www1.hp.com/products/quickspecs/13417_na/13417_na.html

HP Rack-Mountable R5500 UPS
HP R5500 5000kVA 3U Rackmount Uninterruptible Power System AF426A
NOTE: Please see the QuickSpecs for additional information:
https://h18000.www1.hp.com/products/quickspecs/11871_na/11871_na.html

NOTE: For additional information on sizing your server, please reference:
https://www.upssizer.com

NOTE: Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units. Please see the following link: www.hp.com/products/powercords

HP Rack Series

HP Rack 10000 G2 Series (Graphite Metallic)
HP 10642 G2 1200mm deep Shock Rack
AF092A
HP 10647 G2 1200mm deep Shock Rack
AF094A
HP 10642 G2 Pallet Universal Rack AF001A AF001A
HP 10642 G2 Shock Universal Rack AF002A AF002A
NOTE: It is mandatory to use a shock pallet when shipping racks with equipment installed.
NOTE: Please see the Rack 10000 G2 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
https://h18000.www1.hp.com/products/quickspecs/12402_na/12402_na.html

NOTE: For additional information regarding Rack Cabinets, please see the following URL: https://www.hp.com/go/rackandpower.

NOTE: The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 G2 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment:

  • Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation).
  • Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 2.75 inches (7 cm).

CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.


NOTE: HP ProLiant DL rack models have fixed rails which provide support for racks with round mounting holes and tool-free support for racks with square mounting holes (including Compaq/HP 7000, 9000, 10000 and HP series), with an adjustment range of 26" - 36".
NOTE: Support for all 2 and 4 post Telco racks and threaded hole racks requires an additional option kit from Rack Solutions. The Rack Solutions brackets can be purchased at: www.hp.com/go/rackandpower.


HP Rack Options HP KVM Switch Options

0x2x16 KVM Server Console G2 Switch with Virtual Media and CAC AF618A
0x2x32 KVM Server Console G2 Switch with Virtual Media and CAC AF619A
1x1Ex8 KVM IP Console Switch G2 with Virtual Media and CAC AF620A
2x1Ex16 KVM IP Console Switch G2 with Virtual Media and CAC AF621A
4x1Ex32 KVM IP Console Switch G2 with Virtual Media and CAC AF622A
Server console switch 0x2x8 AF616A
Server console switch 0x2x16 AF617A
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: https://www.hp.com/go/kvm.

HP USB and SD Options HP USB Optical Mouse
HP USB 04 Standard Keyboard DT528A#ABA

HP Care Pack Services Hardware Services 4-Hour On-site Service
13-Hour x 5-Day Coverage, 3 Years, Electronic
U9509E
24-Hour x 7 Day Coverage, 3 Years, Electronic
U9510E
Hardware Services Next Business Day On-Site Service

9-Hour x 5-Day Coverage, 3 Years, Electronic

U9508E
Hardware Services 6-Hour Call to Repair On-Site Service
Hardware Installation, Electronic
U9520E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic U9511E
NOTE: For more information, customer/resellers can contact: https://www.hp.com/services/carepack
contents
 Overview      Standard Features      Optional Features      Service and Support      Configuration Information - Factory Integrated Models      DL160se G6 Core Options      Additional Options      DL160se G6 Memory      Storage      Power Specifications      System Specifications      DL160se G6 QuickSpecs images/line.gif

Memory

HP ProLiant DL160se G6 (all models)
NOTE: Memory configurations listed do not apply to "Factory Integrated Models".
Standard Memory
4GB (2x2GB) or 6GB (3 x 2GB) depending on model, PC3-10600E Unbuffered UDIMM memory, with ECC.

Maximum Memory
Up to 192 GB memory is available with the optional installation of PC3-8500R Registered DIMM memory kits.
NOTE: Charts do not represent all possible memory configurations.

DDR3 memory population guidelines

NOTE: For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator

Some DIMM installation guidelines are summarized below:

  • For servers with twelve (12) memory slots
  • There are three (3) channels per processor; six (6) channels per server
  • There are two (2) DIMM slots for each memory channel; twelve (12) total slots
  • Memory channel 1 consists of the two (2) DIMMs that are closest to the processor
  • Memory channel 3 consists of the two (2) DIMMs that are furthest from the processor
  • DIMM slots that are white should be populated first
  • Do not mix Unbuffered memory (UDIMMs) with Registered memory (RDIMMs)
  • Do not install DIMMs if the corresponding processor is not installed
  • If only one processor is installed in a 2CPU system, only half of the DIMM slots are available
  • To maximize performance, balance the total memory capacity between all installed processors
  • It is not required, but it is recommended to load the channels similarly if possible
  • You can only have up to eight (8) ranks installed per channel
  • You can only install two quad-rank DIMMs per channel
  • You can only install two UDIMMs per channel; if available, the third slot in the channel must remain empty
  • Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank) within a channel
  • Heaviest load (DIMM with most ranks) within a channel goes furthest from the chipset
  • For memory mirroring mode, channel 3 must be unpopulated. Channels 1 and 2 are populated identically
  • For lock-step mode, channel 3 must be unpopulated. DIMMs in channels 1 and 2 will be installed in pairs. The paired slots will be 1,4; 2,5; 3;6 on a 3DPC system or 1,4; 2,5; on a 2DPC system
  • No mixing DIMM voltage; all DIMMs must be the same voltage
DIMM Type -> Registered DIMMs (RDIMMs) Unbuffered with ECC DIMMs (UDIMMs)
DIMM Rank -> Dual Rank (2R) Quad Rank (4R) Single Rank (1R) Dual Rank (2R)
DIMM Capacity -> 2GB 4GB 8GB 2GB
4GB 16GB 1GB 2GB 1GB 2GB
DIMM Native Speed (MHz) -> 1333 1333 1066 * 1066 1066 1333 * * 1333

SLOTS THAT CAN BE POPULATED
12 slot servers 12 12 12 * 12 12 12 * * 12
                * *
MAXIMUM CAPACITY (GB)
12 slot servers 24 48 96 * 48 192 12 * * 24
                * *
POPULATED DIMM SPEED (MHz)
1 DIMM Per Channel 1333 1333 1066 * 1066 1066 1333 * * 1333
2 DIMM Per Channel 1333 1333 1066 * 800 800 1333 * * 1333
* - not supported by HP at this time.

NOTES:

  • Mixing DIMM speeds is allowed, but the system processor speed rules always override the DIMM capabilities
  • If you do mix DIMM speeds, the memory bus will default to the minimum clock rate of all DIMMs in the system - even if the slower DIMM is on the other processor
  • If you install 1x 1066MHz DIMM in channel 1 and 1x 1333MHz DIMM in channel 2, you still run at 1066MHz
  • If you install 1x 1066MHz DIMM in channel 1 and 5x 1333MHz DIMMs with 1 DIMM Per Channel (DPC) in each of the other channels, you run at 1066MHz
  • If you install 3DPC in one channel (if applicable) and 1DPC in all other channels, you run at 800MHz
  • 95 Watt CPU's are required for 1333MHz DIMM speeds. All other CPU's are capable of up to 1066MHz
  • References to the above MHz speeds are for the various speeds of DDR3 DIMMs; 1333 refers to DDR3-1333, etc.


DIMM slot and configuration diagrams

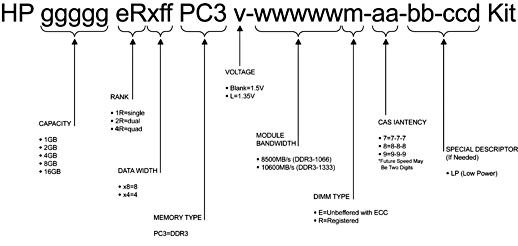

Basic memory slot & population diagram

  • Population order; start with "A" first, "B" second, "C" third, etc.
12 DIMM SLOTS (6 per CPU node)
 CPU1CPU2
 slot #population orderslot #population order
Chnl 11D
1D
Chnl 1
2A
2A

Chnl 23E
3E
Chnl 2
4B
4B

Chnl 35F
5F
Chnl 3
6C6C


Standard memory configuration (1 CPU model)

  • 6GB, consisting of three (3) 2GB dual-rank PC3-10600 RDIMMs
 CPU1CPU2
 slot #population orderslot #population order
Chnl 11D; empty1D: emptyChnl 1
2A; 2GB DIMM2A: empty

Chnl 23E; empty3E: emptyChnl 2
4B; 2GB DIMM4B: empty

Chnl 35F; empty5F: emptyChnl 3
6C; 2GB DIMM6C: empty


Standard memory plus optional memory (1 CPU model)

  • 30GB, consisting of three (3) 2GB RDIMMs plus three (3) 8GB RDIMMs
    • 3x 2GB dual-rank PC3-10600 RDIMMs
  • 3x 8GB dual-rank PC3-8500 RDIMMs
 CPU1CPU2
 slot #population orderslot #population order
Chnl 11D; 8GB DIMM1D: emptyChnl 1
2A; 2GB DIMM2A: empty

Chnl 23E; 8GB DIMM3E: emptyChnl 2
4B; 2GB DIMM4B: empty

Chnl 35F; 8GB DIMM5F: emptyChnl 3
6C; 2GB DIMM6C: empty


Standard memory replaced with optional memory (1 CPU model)
RDIMM maximum configuration

  • 96GB, consisting of six (6) 8GB dual-rank PC3-8500R-7 RDIMMs
 CPU1CPU2
 slot #population orderslot #population order
Chnl 11 D; 16GB DIMM 1D; emptyChnl 1
2 A; 16GB DIMM 2A; empty

Chnl 23 E; 16GB DIMM 3E; emptyChnl 2
4 B; 16GB DIMM 4B; empty

Chnl 35 F; 16GB DIMM 5I: empty
Chnl 3
6 C; 16GB DIMM 6C; empty


UDIMM maximum configuration (1 CPU model)

  • 12GB, consisting of six (6) 2GB dual-rank PC3-10600 UDIMMs
 CPU1CPU2
 slot #population orderslot #population order
Chnl 11D; 2GB DIMM1D; emptyChnl 1
2A; 2GB DIMM2A; empty

Chnl 23E; 2GB DIMM3E; emptyChnl 2
4B; 2GB DIMM4B; empty

Chnl 35F; 2GB DIMM5F; emptyChnl 3
6C; 2GB DIMM6C; empty


Standard memory replaced with optional memory (2 CPU model)
RDIMM maximum configuration

  • 192GB, consisting of twelve (12) 8GB dual-rank PC3-8500R-7 RDIMMs
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 D; 16GB DIMM 1 D; 16GB DIMM Chnl 1
2 A; 16GB DIMM 2 A; 16GB DIMM

Chnl 2 3 E; 16GB DIMM 3 E; 16GB DIMM Chnl 2
4 B; 16GB DIMM 4 B; 16GB DIMM

Chnl 3 5 F; 16GB DIMM 5 F; 16GB DIMM Chnl 3
6 C; 16GB DIMM 6 C; 16GB DIMM


UDIMM maximum configuration (2 CPU model)

  • 24GB, consisting of twelve (12) 2GB dual-rank PC3-10600 UDIMMs
 CPU1CPU2
 slot #population orderslot #population order
Chnl 11D; 2GB DIMM1D; 2GB DIMMChnl 1
2A; 2GB DIMM2A; 2GB DIMM

Chnl 23E; 2GB DIMM3E; 2GB DIMMChnl 2
4B; 2GB DIMM4B; 2GB DIMM

Chnl 35F; 2GB DIMM5F; 2GB DIMMChnl 3
6C; 2GB DIMM6C; 2GB DIMM


NOTE: Capacity references are rounded to the common Gigabyte values.

  • 1GB = 1024MB
  • 2GB = 2048MB
  • 4GB = 4096MB
  • 8GB = 8192MB
  • 16GB = 16384MB

DDR3 memory options part number decoder
Proliant DL160se G6 Server Image

Following are memory options available from HP:
Memory Registered DIMMs (RDIMMs)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500656-B21 500656-B21
HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500658-B21 500658-B21
HP 4GB (1x4GB) Quad Rank x8 PC3-8500 (DDR3-1066) Registered CAS-7 Low Power Memory Kit 500660-B21 500660-B21
HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 593339-B21 593339-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500662-B21 500662-B21
HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit 500666-B21 500666-B21
Unbuffered with ECC DIMMs (UDIMMs)
HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500668-B21 500668-B21
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500670-B21 500670-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500672-B21 500672-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as LP include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, see: https://h18004.www1.hp.com/products/servers/platforms/energyefficient/

contents
 Overview      Standard Features      Optional Features      Service and Support      Configuration Information - Factory Integrated Models      DL160se G6 Core Options      Additional Options      DL160se G6 Memory      Storage      Power Specifications      System Specifications      DL160se G6 QuickSpecs images/line.gif

Storage

Proliant DL160se G6 Server Image
1-4
Four Non-hot plug SATA or four 3.5" Hot-plug SAS/SATA hard drive bays
AOptional DVD-ROM, or DVD RW
Proliant DL160se G6 Server Image1-8Eight 2.5" Hot-plug SATA/SAS hard drive bays
AOptional DVD-ROM, or DVD RW


Drive Support




Quantity
Supported

Position
Supported

Controller

Removable Media


DVD-ROM
Up to 1
A
Integrated IDE (ATAPI) (optional)
DVD RW
Up to 1
A
Integrated IDE (ATAPI) (optional)

DL160se G6 Hard Drives
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives

Quantity
Supported
Position
Supported
Controller
2TB 3G SATA 7.2K
1TB 3G SATA 7.2K
500GB 3GSATA 7.2K
Up to 4
1-4
HP Embedded SATA RAID Controller
NOTE: Transfer rate: 1.5 Gb/s SATA

SATA Non-Hot Plug LFF (3.5-inch) Entry (ETY) Drives

Quantity
Supported
Position
Supported
Controller
250GB 3G SATA 7.2K
160GB 3G SATA 7.2K
Up to 4
1-4
HP Embedded SATA RAID Controller
NOTE: Transfer rate: 1.5 Gb/s SATA

SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives

Quantity
Supported
Position
Supported
Controller
2TB 3G SATA 7.2K
1TB 3G SATA 7.2K
500GB 3G SATA 7.2K
160GB 3G SATA 7.2K
Up to 4
1-4
HP Smart Array P212Controller
HP Smart Arrays P410Controller
NOTE: Support for transfer rates up to 3 Gb/s

SATA Hot Plug 3.5" Entry (ETY) Drives

Quantity
Supported
Position
Supported
Controller
250GB 3G SATA 7.2K
160GB 3G SATA 7.2K
Up to 4
1-4
HP Embedded SATA RAID Controller
NOTE: Support for transfer rates up to 3 Gb/s

SATA Hot Plug Midline (MDL) Solid State Drives

Quantity
Supported
Position
Supported
Controller
60GB 3.0G SATA SSD
120GB 3.0G SATA SSD
Up to 8
1-8
HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller

SATA Hot Plug 3.5" Midline (MDL) Solid State Drives

Quantity
Supported
Position
Supported
Controller
60GB 3G SATA SSD
120GB 3G SATA SSD
Up to 4
1-4
HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller

SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives

Quantity
Supported
Position
Supported
Controller
500GB 6G SAS 7.2K DP
Up to 8
1-8
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller

SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives

Quantity
Supported
Position
Supported
Controller
2TB 6G SAS 7.2K
1TB 6G SAS 7.2K
Up to 4
1-4
HP Smart Array P212Controller
HP Smart Arrays P410Controller
NOTE: Support for transfer rates up to 3 Gb/s

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

Quantity
Supported
Position
Supported
Controller
600GB 6G SAS 10K
450GB 6G SAS 10K
300GB 6G SAS 10K
146GB 6G SAS 15K
146GB 6G SAS 10K
72GB 6G SAS 15K
Up to 4
1-4
HP Smart Array P212Controller
HP Smart Array P410Controller
NOTE: Support for transfer rates up to 3 Gb/s

SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives

Quantity
Supported
Position
Supported
Controller
600GB 6G SAS 15K
450GB 6G SAS 15K
300GB 6G SAS 15K
Up to 4
1-4
HP Smart Array P212Controller
HP Smart Array P410Controller
NOTE: Support for transfer rates up to 3 Gb/s

Tape and Disk-Based Backup

NOTE: For the complete range of StorageWorks tape drives, autoloaders, libraries and media, including the internal fitting models, see: https://www.hp.com/go/tape. For the complete range of StorageWorks D2D Backup Systems see: https://www.hp.com/go/d2d. For the complete range of StorageWorks RDX drives and media see: https://www.hp.com/go/rdx. For hardware and software compatibility of HP StorageWorks disk and tape backup products see: https://www.hp.com/go/connect.


Position
Recommended Controller
Part Number
HP StorageWorks SCSI Tape Drives
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-3 Ultrium 960
LTO4 Ultrium 1760
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter

HP StorageWorks USB Tape Drives
DAT 40
DAT 72
DAT 160
DAT 320
1U USB Rack-Mount Kit
External
USB 2.0 Port
N/A


HP StorageWorks SAS Tape Drives
DAT 160
DAT 320
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-4 Ultrium 1760
LTO-4 Ultrium 1840
LTO-5 Ultrium 3000
LTO-5 Ultrium 3280
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS Controller


HP StorageWorks SCSI Tape Autoloaders
DAT 72x10 Autoloader
1/8 G2 Autoloader
External
HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter


HP StorageWorks SCSI Tape Libraries
MSL2024
MSL4048
MSL8096
MSL6000
External
HP StorageWorks U320e SCSI Dual Channel Host Bus Adapter


HP StorageWorks SAS Tape Autoloaders and Libraries
1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096
External
HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS Controller


HP StorageWorks Fibre Channel Tape Libraries
MSL2024
MSL4048
MSL8096
MSL6000
External Please consult the EBS connectivity matrix at: https://www.hp.com/go/ebs for connectivity information and the supported Fibre Channel HBAs shown in this QuickSpecs.

HP StorageWorks USB RDX Removable Disk Backup System
RDX160
RDX320
RDX500
RDX750
External
USB 2.0 port
N/A

HP StorageWorks D2D Backup Systems, iSCSI
D2D2500i
D2D4000i
External Embedded Network Controller. If the server requires a hardware iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is recommended.

HP StorageWorks D2D Backup Systems, Fibre Channel
D2D4000fc
External Direct server attach is not supported, requires connection via SAN fabric. See: https://www.hp.com/go/connect
contents
 Overview      Standard Features      Optional Features      Service and Support      Configuration Information - Factory Integrated Models      DL160se G6 Core Options      Additional Options      DL160se G6 Memory      Storage      Power Specifications      System Specifications      DL160se G6 QuickSpecs images/line.gif

Power Specifications

HP High Efficiency 750W Power Supply/Backplane/Bracket G6 Factory Integrated Kit
Part Number 535683-B21 535683-B21 Option Kit
Input Voltage Range (Vrms) 100 to 240
Frequency Range (Nominal) (Hz) 50/60
Nominal Input Voltage (Vrms) 100 120 200 208 220 230 240
Max Rated Output Wattage Rating 750 750 750 750 750 750 750
Nominal Input Current (A rms) 8.9 7.4 4.3 4.1 3.9 3.7 3.6
Maximum Rated Input Wattage Rating (Watts) 857 847 824 825 820 820 820
Maximum Rated VA (Volt-Amp) 894 884 859 854 854 854 854
Efficiency (%) 87.5 88.5 91 91 91.5 91.5 91.5
Power Factor 0.97
Leakage Current (mA) 0.42 0.50 0.83 0.87 0.92 0.96 1.00
Maximum Inrush Current (A peak) 30
Maximum Inrush Current duration (mS) 20
Maximum British Thermal Unit Rating (BTU-Hr) 2925 2892 2812 2812 2797 2797 2797



HP 500 Watts Non Hot Plug Power Supply Factory Integrated Kit
Part Number 515915-B21 515915-B21 Option Kit
Input Voltage Range (Vrms) 100 to 240
Frequency Range (Nominal) (Hz) 47/63
Nominal Input Voltage (Vrms) 100 120 200 220 230 240
Maximum Rated Output Wattage 500 500 500 500 500 500
Nominal Input Current (A rms) 5.74 4.99 2.86 2.58 2.46 2.36
Max Rated Input Wattage Rating (Watts) 568 568 562 556 556 556
Max. Rated VA (Volt-Amp) 574 574 573 567 567 567
Efficiency (%) at Max. Rated Output Wattage 88 88 89 90 90 90
Power Factor 0.99 0.99 0.98 0.98 0.98 0.98
Leakage Current (mA) 0.42 0.50 0.81 0.91 0.95 1.00
Max. Inrush Current (A peak) 30
Max. Inrush Current duration (mS) 20
Maximum British Thermal Unit Rating (BTU-Hr)

HP High Efficiency 460W Power Supply/Backplane/Bracket G6 Factory Integrated Kit
Part Number 535684-B21 Option Kit
Input Voltage Range (Vrms) 100 to 240
Frequency Range (Nominal) (Hz) 50/60
Nominal Input Voltage (Vrms) 100 120 200 208 220 230 240
Maximum Rated Output Wattage 460 460 460 460 460 460 460
Nominal Input Current (A rms) 5.5 4.5 2.6 2.5 2.4 2.3 2.2
Max Rated Input Wattage Rating (Watts) 526 520 505 505 503 503 503
Max. Rated VA (Volt-Amp) 548 542 527 527 524 524 524
Efficiency (%) at Max. Rated Output Wattage 87.5 88.5 91 91 91.5 91.5 91.5
Power Factor 0.97
Leakage Current (mA) 0.42 0.50 0.83 0.87 0.92 0.96 1.00
Max. Inrush Current (A peak) 30
Max. Inrush Current duration (mS) 20
Maximum British Thermal Unit Rating (BTU-Hr) 1794 1773 1725 1725 1715 1715 1715

HP 400 Watts 1U G6 Redundant Power Supply Option Kit
Part Number 532092-B21 532092-B21 Option Kit
Input Voltage Range (Vrms) 100 to 240
Frequency Range (Nominal) (Hz) 50/60
Nominal Input Voltage (Vrms) 100 120 200 208 220 230 240
Maximum Rated Output Wattage 320 320 360 360 360 360 360
Nominal Input Current (A rms) 4.15 3.41 2.23 2.16 2.03 1.94 1.86
Max Rated Input Wattage Rating (Watts) 412 406 445 445 444 443 443
Max. Rated VA (Volt-Amp) 413 407 447 447 446 446 445
Efficiency (%) at Max. Rated Output Wattage 77.4 78.5 80.5 80.6 80.7 80.8 81.0
Power Factor 0.99
Leakage Current (mA) 0.75 0.75 0.85 0.90 0.95 0.95 1.00
Max. Inrush Current (A peak) 35
Max. Inrush Current duration (mS) 20
Maximum British Thermal Unit Rating (BTU-Hr) 1354 1334 1462 1462 1459 1456 1456


NOTE: To review typical system power ratings use the Active Answers Power Advisor which is available via the online tool located at URL: www.hp.com/go/proliant-energy-efficient or www.hp.com/go/hppoweradvisor

contents
 Overview      Standard Features      Optional Features      Service and Support      Configuration Information - Factory Integrated Models      DL160se G6 Core Options      Additional Options      DL160se G6 Memory      Storage      Power Specifications      System Specifications      DL160se G6 QuickSpecs images/line.gif

System Specifications

Power
ProLiant DL160se G6 Fully Configured115V/60Hz220V/50Hz
Fully Loaded System Input Wattage (W)448445
Fully Loaded System Input Current (A rms)3.8332.046
Fully Loaded System Thermal (BTU- Hr)15291518
Fully Loaded System VA (Volt-Amp)449454
System Inrush Current with all power supplies loaded (A)10.110.96
Power cord requirementsNema 5-15P to IEC320-C13IEC320-C13 to IEC320-C14
NOTE: Power shown is for a fully configured system consisting of (2) CPU, (8) double-sided DIMMs, (2) HDDs, (1) CD-ROM, and (2) PCI cards.
Power CordAF556A
Server Power Cords One 6' Highline (IEC-IEC) power cord ships standard
NOTE: HP ProLiant DL servers no longer ship standard with NEMA power cords (163719-002) that allow connection to 110V wall outlets in a home or office. ProLiant DL servers are primarily connected to PDU's in data center racks so they now ship standard with only a PDU power cord (416151-B21). If a user wishes to power a ProLiant DL server using a 110V receptacle (NEMA-15), the NEMA power cord (227099-001) must be ordered separately.

If customers require a power cord, they can check the power cord matrix for the appropriate cord. Please see the following power cord matrix: https://www.hp.com/go/powercordmatrix.
contents
 Overview      Standard Features      Optional Features      Service and Support      Configuration Information - Factory Integrated Models      DL160se G6 Core Options      Additional Options      DL160se G6 Memory      Storage      Power Specifications      System Specifications      DL160se G6 QuickSpecs images/line.gif

Quickspecs

System Unit Dimensions (H x W x D)
(with bezel)
1.70 x 17.64 x 26.85 in (4.32 x 44.80 x 68.20 cm)
Weight
(approximate)
Maximum
(all hard drives, power supplies, and processors installed)
34.00 lb (16.78 kg)
Minimum
(one hard drive, power supply, and processor installed)
28.00 lb (12.7 kg)
Input Requirements
(per power supply)
Rated Line Voltage90 to 132 VAC
180 to 264 VAC
Rated Input Current5. 8 Amps (at 100 VAC) to 2.9 Amps (at 200 VAC)
Rated Input Frequency47 to 63 Hz
BTU RatingRated Input Power 570W (at 100 VAC)
565W (at 200 VAC)
Maximum500W1940 BTU / hr (at 100 VAC)
1920 BTU/hr (at 200 VAC)
460W1773 BTU / hr (at 120 VAC)
1715 (at 240 VAC)
750W2892 BTU / hr (at 120 VAC)
2797 (at 240 VAC)
Power SpecificationsTo review typical system power ratings use the Power Advisor which is available via the online tool located at URL:
www.hp.com/go/proliant-energy-efficient
Or
www.hp.com/go/hppoweradvisor

- Click on the system of interest. Example: DL160 G6
- Follow the instructions of the next screens.
Power Supply Output
(per power supply)
Rated Steady-State Power 500 Watts (at 100 VAC),
500 Watts (at 200 VAC)
Maximum Peak Power
(See Power Specifications Tables)
500Watts (at 100 VAC),
500 Watts (at 200 VAC)
System Inlet TemperatureOperating10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed.
System performance may be reduced if operating with a fan fault or above 30°C (86°F).
Non-operating-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative Humidity
(non-condensing)
Operating10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.
Non-operating-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
AltitudeOperating3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Acoustic NoiseListed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
Idle
LWAd
6.4 B
LpAm
49dBA
Operating

LWAd
6.4 B
LpAm
49dBA
Emissions Classification (EMC)FCC RatingClass A
Normative StandardsCISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1
NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

NC362i Integrated Dual Port Gigabit Server Adapter Network Interface Integrated 10/100/1000BASE-T Transceiver
Combines a triple-speed IEEE 802.3TM - Compliant Media Access Controller (MAC) with a triple-speed Ethernet transceiver.
Data Transfer Method Compliant to x1 PCIe Specification
Controller Intel® 82576
Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s
10Base-T (Full-Duplex) 20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex) 200 Mb/s
1000Base-TX (Half and Full-Duplex) 2000Mb/s
Connector RJ-45 connector
Cable Support Performs all the physical layer functions for 10BASE-T, 100BASE-T, and 1000BASE-T Ethemet on standard Category 5 UTP

Smart Array P410/410i Controller

Disk Drive and Enclosure Interface 6Gb/s SAS (Serial Attached SCSI)
3Gb/s SATA (Serial ATA)
SAS Connectors 2 internal (Mini-SAS) x8 wide port connectors
Cache Memory Speed DDR2-533MHz with 40 or 72-bit wide bus provides up to 4.2 GB/s maximum bandwidth.
Server Interface x8 2.5G PCIe 2.0 provides 2GB/s maximum bandwidth
SAS Speed x8 6Gb/s SAS provides 4.8GB/s maximum bandwidth
Cache Memory 40-bit 256MB ECC protected cache (72-bit 512MB BBWC module upgrades available); transportable with battery-backed upgrade
Logical Drives Supported Up to 64 logical drives
Host Memory Addressing 64-bit, supporting greater than 4GB server memory space
RAID Support RAID 6, 6+0 (Advanced Data Guarding)
NOTE: The minimum of 256 MB cache, battery kit, and Smart Array Advanced Pack License Key upgrade is required to enable RAID 6, 6+0
RAID 5, 5+0 (Distributed Data Guarding)
NOTE: The 256 MB is required to enable RAID 5, 5+0 support of the Smart Array P410
RAID 1+0 (Striping & Mirroring)
RAID 0 (Striping)

Environment-friendly Products and Approach End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: https://www.hp.com/go/green. To recycle your product, please go to: https://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: https://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.


Sillworks                  Ph: 1.613.599.1287                  Fax: 1.613.599.8120
U320 | SSD | SAS/SATA | Fibre | Memory | Controllers | Processors | Power Supplies | Networking
line
Dell | EqualLogic | EMC | Hewlett-Packard | IBM | Seagate
line
HP      HP      HP      Dell Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account Dell      Dell      Dell      Seagate
Terms of Use | Legal | Privacy | Primary Site | Contact us | Add to favorites
Amex Accepted Visa Accepted MasterCard Accepted
