 HPE  Proliant DL360 G4 QuickSpecs Flag US QuickSpecs
Folder-Closed DL360 G4 HDD SSD Folder-Closed DL360 G4 Processors Folder-Closed DL360 G4 Memory
Folder-Closed DL360 G4 Controllers Folder-Closed DL360 G4 Networking Folder-Closed DL360 G4 Power
Folder-Closed DL360 G4 Quickspecs Folder-Closed DL360 G4 Quickspecs Folder-Closed DL360 G4 Options New  Refurb
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      DL360 G4 Options      DL360 G4 Memory      Storage      Power Specifications      DL360 G4 QuickSpecs images/line.gif

Proliant DL360 G4 Overview

HP ProLiant DL360 Generation 4 (G4)

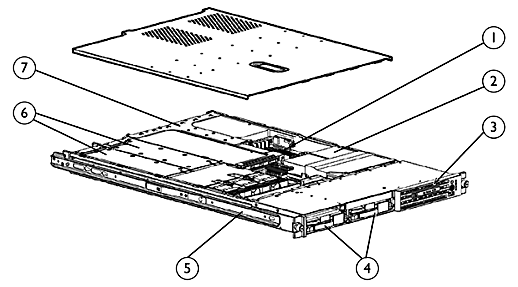

  Proliant DL360 G4 Server Image
1. Up to 8 GB PC2700 SDRAM Memory
2.Up to two Xeon processors with 800MHz FSB
3. Redundant fans standard
4. Two U320 hot plug drive bays (SATA models also available)
5.
Sliding rails standard for in rack servicing
6.
Optional redundant power supplies
7.
1 full length and 1 half length PCI-X slots (optional PCI Express)
At A Glance
  • Combining concentrated 1U compute power, integrated Lights-Out management, and essential fault tolerance, the HP ProLiant DL360 is optimized for space constrained data center installations
  • Up to 2 Intel Xeon 3.0 GHz/1MB, 3.4 GHz/1MB and 3.6 GHz/1MB Processors with 800MHz front side bus
  • Intel E7520 chipset
  • 64-bit Intel® Xeon™ processors with 32-bit & 64-bit computing
  • Up to 8 GB of PC2700 DDR 333 SDRAM; system can be configured for 2:1 interleaving
  • Advanced ECC memory standard; optional Online Spare Memory
  • Two 64 bit/133 MHz PCI-X slots (one full length slot and one half length); optional PCI-Express
  • Fan redundancy, standard
  • 460-Watt hot plug power supply with optional 1+1 redundancy
  • HP Power Regulator for ProLiant delivering server level, policy based power management with industry leading energy efficiency and savings on system power and cooling costs
  • Integrated Lights-Out featuring new firmware v 1.70 with support for Power Regulator for ProLiant and introducing support for the draft DMTF System Management Architecture for Server Hardware Command Line Protocol standard
  • Integrated Lights-Out (iLO) remote management embedded on every HP ProLiant DL360
  • Support for new iLO Shared Network Port enables access to the iLO management processor through one of the embedded system NICs
  • Embedded Smart Array 6i RAID Controller with optional 128MB transportable BBWC
  • Embedded NC7782 Dual Port NIC
  • Supports up to two Ultra320 hot plug hard drives; Serial ATA models also available
  • Three USB ports available: rear, front, internal
  • 1U Rack form factor (1.75")
  • New spring-loaded Universal sliding rails for in rack servicing ship standard; optional ambidextrous cable management arm
  • ProLiant Essential Foundation Pack standard, including HP Systems Insight Manager, SmartStart, SmartStart Scripting Toolkit, Subscriber's Choice and ROM Based Setup Utility (RBSU)
  • Protected by HP Services and a worldwide network of resellers and service providers. Three-year Next Business Day, on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives. SATA hard drives have a one-year warranty.
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      DL360 G4 Options      DL360 G4 Memory      Storage      Power Specifications      DL360 G4 QuickSpecs images/line.gif

Standard Features

Hard DrivesSerial-ATA (SATA) Hard Drives

HP 500GB 1.5G SATA 7.2K 3.5" HDD
HP 250GB 1.5G SATA 7.2K 3.5" HDD
HP 160GB 1.5G SATA 7.2K 3.5" HDD
HP 80GB 1.5G SATA 7.2K 3.5" HDD

NOTE: Please see the SATA Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:
Serial ATA Hard Drive QS:
https://h18000.www1.hp.com/products/quickspecs/11940_na/11940_na.html



NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
Processor
One of the following depending on Model
Intel Xeon Processor 3.0 GHz/800MHz -1MB L2
Intel Xeon Processor 3.4 GHz/800MHz -1MB L2
Intel Xeon Processor 3.6 GHz/800MHz -1MB L2

Cache Memory 1MB Level 2 cache

UpgradeabilityUpgradeable to dual processing

Chipset Intel chipset is E7520

Memory Type PC2700 DDR 333 SDRAM
  Standard 1 GB (1 x 1024 MB)
  Maximum 8 GB

Memory Protection Online spare
Advanced ECC

Network Controller Embedded NC7782 Dual Port NIC

Expansion SlotsSlot Number
Bus SpeedBus Number*Device Number**Hot PlugPCI VoltageNotes
1
64bit/133MHz PCI-X
7
0
no
3.3 Volt

1
PCI Express x8(optional)
3
0
no
n/a

2
64bit/133MHz PCI-X
10
0
no
3.3 Volt

2
PCI Express x8(optional)
13
0
no
n/a

*NOTE: Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number.
**NOTE: Slots are enumerated differently based on OS. MS OS's enumerate from lowest to highest Device ID by bus (starting with the lowest bus).
NOTE: For more information regarding PCI-X, please see the following URL: https://www.hp.com/servers/pci-x.
NOTE: All slots can accept universal keyed PCI cards.

Manageability

Integrated Lights-Out (iLO) Management (integrated on motherboard)


Storage Controllers SCSI Models Smart Array 6i Controller (integrated on system board of SCSI models)
NOTE: The HP ProLiant DL360 G4 does not offer an external SCSI port.
SATA Models HP embedded 2 Port SATA Controller (integrated on system board of SATA models)
NOTE: The HP ProLiant DL360 G4 does not offer an external SCSI port.

Storage Diskette Drive 1.44 MB Diskette Drive; optional in some models
Optical Drive 24x IDE CD-ROM Drive (Low-Profile) (ejectable); optional in some models

Maximum Internal Storage TypeHot Plug SCSI 600GB2 x 300GB Ultra320
SATA 1TB2 x 500GB Serial ATA

InterfacesSerial1
Pointing Device (Mouse)1
Graphics1
Hot Plug Keyboard1
USB 3 (rear, front, internal)
  NOTE: Please see the following URL for additional information regarding USB support:
https://h18004.www1.hp.com/products/servers/platforms/usb-support.html
.
Network RJ-452
iLO remote management port1

Graphics Integrated ATI RAGE XL Video Controller with 8-MB SDRAM Video Memory

Form Factor Rack (1U), (1.75 in/4.45 cm)

ProLiant Essentials Foundation Pack Software
HP Systems Insight ManagerHP's new HP Systems Insight Manager (HP SIM) helps maximize system uptime and performance and reduce system maintenance costs by providing proactive notification of problems before those problems result in unplanned downtime or reduced productivity. HP SIM are both easy to set up work with the Insight Management Agents, integrated Light-Out and Remote Insight Lights-Out Edition, and Version Control Agents to deliver robust fault, configuration, and asset management as well as remote administration. With HP SIM customers will also be able to take advantage of role-based security; the ability to manage ProLiant, Integrity, and HP 9000 systems; and plug-ins for storage, client, printer, and power management as well as server rapid deployment, performance management, and workload management. For more details on HP SIM visit https://www.hp.com/go/hpsim.
SmartStartSmartStart is a tool that simplifies server setup, providing a rapid way to deploy reliable and consistent server configurations. For more information, please visit the SmartStart Web site at https://www.hp.com/servers/smartstart.
SmartStart version supported (minimum): SmartStart 7.10.
Management AgentsThe Management Agents form the foundation for HP's Intelligent Manageability strategy. They provide direct, browser-based access to in-depth instrumentation built into HP servers, workstations, desktops, and portables, and send alerts to HP System Insight Manager and other enterprise management applications in case of subsystem or environmental failures. For additional information about the Management Agents and other management products from HP, please visit the management Web site at https://www.hp.com/servers/manage.
Subscriber's ChoiceSubscriber's Choice Driver and Support Alerts/Notifications is a web-based email subscription service that provides automatic delivery of software and driver change notifications for ProLiant products. Sign up at https://www.hp.com/go/subscriberschoice and customize your profile to receive various new alerts as they become available, on a weekly or monthly basis.
ROMPaq, support software, and
configuration utilities
The latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options available in SmartStart or downloadable from Software and Drivers download pages: https://www.hp.com/go/support
Insight Diagnostics Online EditionThe most advanced configuration analysis, reporting and troubleshooting utilities used by HP and at your fingertips, available in SmartStart.
Optional ProLiant Essentials Value Packs

Optional software offerings that selectively extend the functionality of an Adaptive Infrastructure to address specific business problems and needs:

  • Rapid Deployment Pack - an automated solution for multi-server deployment and provisioning, enabling companies to quickly and easily adapt to changing business demands.
  • Workload Management Pack - provides easier management of complex environments, improving overall server utilization and enabling Windows® 2000 customers for the first time to confidently deploy multiple applications on a single multiprocessor ProLiant Server.
  • Integrated Lights-Out Advanced Pack - upgrades the Integrated Lights-Out processor to full virtual presence and control with graphical console and virtual media.
  • Performance Management Pack - a performance management solution that identifies and explains hardware performance bottlenecks on ProLiant servers and attached options enabling users to better utilize their valuable resources.
  • Intelligent Networking Pack - detects and analyzes network bottlenecks or broken network linkages and steers traffic to the optimum route based on network conditions, plus it provides an extra layer of protection. The virus throttle feature of the solution slows the propagation of fast spreading virus
  • Vulnerability and Patch Management Pack - identifies and remediates software security vulnerabilities due to missing patches as well operating system configurations that can be exploited by viruses, worms, and other blended threats
  • Virtual Machine Management Pack - provides central management and control of virtual machines from Microsoft and VMware. Integrated approach provides the ability to manage both physical and virtual resources from a single management console.
  • Server Migration Pack - The Server Migration Pack automates the manual processes required for migrating servers between physical or virtual platforms (P2V, V2P, and V2V).
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to https://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: https://www.hp.com/servers/proliantessential.

Industry Standard Compliance ACPI 1.0b Compliant
PCI 2.2 Compliant
Microsoft® Logo certifications
USB 1.1 and 2.0 Compliant

Remote Manageability

Integrated Lights-Out (iLO) Standard Management:

  • Virtual Text Remote Console
  • Virtual Power Button Control
  • Dedicated & shared LAN Connectivity
  • Browser and command line access
  • Automatic IP Configuration via DHCP/DNS/WINS
  • Industry Standard 128-bit Secure Sockets Layer (SSL) and Secure Shell Security
  • IML and iLO Event Logging
  • Support for 12 user accounts with customizable access privilege

Integrated Lights Out Advanced Pack (optional)
Remote Lights out Edition ll (optional)


Intelligent Manageability HP Systems Insight Manager
SmartStart
Remote Insight Lights-Out Edition ll (optional)
ROM-Based Setup Utility (RBSU)
Remote-Flash Redundant ROM
Integrated Management Log (IML)
Server Health logging
Automatic Server Recovery-2 (ASR-2)
System Interconnect Status Indicators
Dynamic sector repairing and drive parameter tracking (with Smart Array controllers)
Hot Spare Boot
(NOTE: Upon the event of a failed processor or VRM in a multi-processing environment, the system will automatically reboot and use the remaining good processor(s).)
Power Down Utility
Pre-Failure Warranty (covers processors, as well as SCSI hard drives and memory)

Security Power-on password
Keyboard password
Diskette drive control
Diskette boot control
QuickLock, Network Server Mode
Removable CD and Floppy Drive Assembly
Serial interface control
Administrator's password
Disk configuration lock
Integrated Lights-Out has 12 customizable user accounts and SSL encryption
Integrated Lights-Out can be disabled via a Global Setting

Server Power Cords High line cord ships standard with all part numbers, an additional low line cord

UPS and PDU Power
Cord Matrix
Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and specifications for UPS and PDU units:
ftp://ftp.compaq.com/pub/products/servers/ProLiantstorage/power-protection/powercordmatrix.pdf.

Power Supply SCSI & SATA Models: 460W Optional (1+ 1 redundant) power supply
NOTE: PN 354587-B21 354587-B21 contains the optional power supply and an IEC power cable only; purchase if connecting to PDU/UPS that supports IEC cables. PN 354587-001 354587-001 contains a low line (NEMA) power cord only.

System Fans 7 fans ship standard; Fan redundancy standard

Required Cabling For required cabling information, refer to the Web site at https://h18000.www1.hp.com/products/servers/proliantdl360/.

OS Support Microsoft Windows 2000
Windows Server 2003
Novell NetWare
Linux (Red Hat, SuSE, UnitedLinux)
Solaris
VMware Virtualization Software
NOTE: SCSI and SATA models have different OS support. Please see OS Support Matrix.
NOTE: For a more complete and up-to-date listing of supported OSs and versions, please visit our OS Support Matrix page at: https://www.hp.com/go/supportos.
NOTE: For more complete and up-to-date information on how to buy server operating systems from HP please visit the OS product site at: https://h18004.www1.hp.com/products/servers/software/OEM.html
NOTE: For a listing of the latest drivers available for the HP ProLiant DL360, please see: https://h18023.www1.hp.com/support/files/server/us/index.html.
NOTE: For a more complete and up-to-date information on Linux support, please visit HP Linux Web site at https://h18000.www1.hp.com/products/servers/linux/hpLinuxcert.html.
NOTE: For more information on HP's Certified and Supported ProLiant Servers, please visit the VMware Server Support Matrix at: https://h18004.www1.hp.com/products/servers/software/vmware/hpvmwarecert.html.

Rack Airflow Requirements Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment:

  • Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation).
  • Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 2.75 inches (7 cm).

CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

NOTE: For additional information, refer to the Setup and Installation Guide or the Documentation CD provided with the server, or to the server documentation located in the Support section at the following URL: https://h18000.www1.hp.com/products/servers/proliantdl360/index.html.

Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to https://www.hp.com/go/factory-express.


Custom Builder Please see the Enterprise Configurator for configuration assistance at: https://www.hp.com/products/configurator.

Service and Support

Three-year limited warranty, including hardware diagnostic support, pre-failure warranty (coverage of hard drives, memory and processors). The warranty is fully supported by HP Services and a worldwide network of resellers and service providers. In addition 90-day's getting started software telephone support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services.

NOTE: Limited warranty includes 3 year parts, 3 year labor, 3-year on-site support.
NOTE: SATA drives have a 1 year warranty.

Care Pack services provide a range of life cycle support options that let you choose the service levels that meet your business requirements, from basic to mission-critical.
A full range of HP Care Pack hardware and software services are available including:

  • Installation and start up
  • Education courses
  • Extended onsite hardware coverage hours from same business day 13 hours, 5 day to 24 hours, 7 days call window with options including 4-hour response or 6-hour Call To Repair
  • Comprehensive range of software technical support for Microsoft, Linux, ProLiant Essentials and VMWare-based IT solutions helping to deliver high level of application availability. Response times range from 30 mins for critical problems to 2 hours.
  • System Management, Performance Services and Mission Critical Support Solution

HP Care Pack services include coverage for the HP branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as 22" and smaller external monitors and tower UPS options up to 3kVA; these items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included, standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

  NOTE: For more information on HP Care Pack services, contact any of our sales offices or resellers or visit our Web site on the internet at: https://www.hp.com/hps/carepack
NOTE: For more complete information on HP Services offerings, customers and resellers, please visit us at: https://www.hp.com/hps
NOTE: Additional information regarding worldwide limited warranty and technical support is available at: https://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      DL360 G4 Options      DL360 G4 Memory      Storage      Power Specifications      DL360 G4 QuickSpecs images/line.gif

Models

DL360R04 X3.4-1MB/800, 2GB SCSI, RPS
354572-001

Processor(1) Intel Xeon Processor 3.4 GHz/800MHz standard (up to 2 supported)
Cache Memory1MB level 2 cache
Memory2 x 1 GB (Standard) to 8 GB (Maximum) of PC2700 DDR 333 SDRAM
Network ControllerEmbedded NC7782 Dual Port NIC
Storage ControllerU320 Smart Array 6i Controller (embedded on system board)
NOTE: The HP ProLiant DL360 Generation 4 (G4) does not offer an external SCSI port.
Hard DrivesNone ship standard; system supports up to two hot plug U320 drives
NOTE: The HP ProLiant DL360 G4 SCSI models only support U320 Universal Hot Plug drives.
Remote ManagementIntegrated Lights-Out (iLO) Standard Management (embedded)
Power SupplyTwo 460W power supply (1+ 1 redundant)
Optical Drive24x IDE CD-ROM Drive (Low-profile)
Diskette Drive1.44 MB Diskette Drive
PCI-X Slots1 full length and 1 half length 64bit/133MHz PCI-X slot
Form FactorRack (1U), (1.75 in/4.45 cm)

DL360R04 X3.4-1MB/800, 1GB SCSI
354571-001

Processor

(1) Intel Xeon Processor 3.4 GHz/800MHz standard (up to 2 supported)

Cache Memory1MB level 2 cache
Memory1 x 1 GB (Standard) to 8 GB (Maximum) of PC2700 DDR 333 SDRAM
Network ControllerEmbedded NC7782 Dual Port NIC
Storage ControllerU320 Smart Array 6i Controller (embedded on system board)
NOTE: The HP ProLiant DL360 Generation 4 (G4) does not offer an external SCSI port.
Hard DrivesNone ship standard; system supports up to two hot plug U320 drives
NOTE: The HP ProLiant DL360 G4 SCSI models only support U320 Universal Hot Plug drives.
Remote ManagementIntegrated Lights-Out (iLO) Standard Management (embedded)
Power SupplyOne 460W power supply (redundant power supply optional)
Optical Drive24x IDE CD-ROM Drive (Low-profile)
Diskette Drive1.44 MB Diskette Drive
PCI-X Slots1 full length and 1 half length 64bit/133MHz PCI-X slot
Form FactorRack (1U), (1.75 in/4.45 cm)

DL360R04 X3.4-1MB/800, 1GB 2P SATA
354570-001


Processor (2) Intel Xeon Processor 3.4 GHz/800MHz standard
Cache Memory 1MB level 2 cache
Memory 1 x 1 GB (Standard) to 8 GB (Maximum) of PC2700 333 DDR SDRAM
Network Controller Embedded NC7782 Dual Port NIC
Storage Controller Embedded SATA controller; Non-RAID for controller
Hard Drives None ship standard; system supports up to two Serial ATA drives
NOTE: When SATA drives are installed, hot-plug capability and LEDs are not currently supported.
Remote Management Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply One 460W power supply (redundant power supply optional)
Optical Drive Optional on SATA Models
Diskette Drive Optional on SATA Models
PCI-X Slots 1 full length and 1 half length 64bit/133 MHz PCI-X slot
Form Factor Rack (1U), (1.75 in/4.45 cm)

contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      DL360 G4 Options      DL360 G4 Memory      Storage      Power Specifications      DL360 G4 QuickSpecs images/line.gif

Configuration Information - Factory Integrated Models

NOTE: HP does not allow factory integration of options into standard models listed below.
Configure-to-order servers must start with a CTO Chassis.

NOTE: This product offering does not support HP Factory Express Server Configuration Level 1.
Step 1: Base Configuration (choose one of the following configurable models)
Models HP ProLiant DL360G4 SATA Rack CTO Chassis
367006-405

Factory Integrated Model ships with:



NC7782 Dual Port PCI-X Gigabit Server Adapter (embedded)
Non-RAID SATA (SATA RAID functionality is available via OS software RAID)
1 full length and 1 half length 64bit/133 MHz PCI-X slot
Integrated Lights-Out (iLO) embedded
7 fans; Fan redundancy
Rack (1U), (1.75 in/4.45 cm)


HP ProLiant DL360G4 SCSI Rack CTO Chassis
367007-405

Factory Integrated Model ships with:



NC7782 Dual Port PCI-X Gigabit Server Adapter (embedded)
U320 Smart Array 6i Controller (embedded on system board)
1 full length and 1 half length 64bit/133 MHz PCI-X slot
Integrated Lights-Out (iLO) embedded
1.44MB Diskette Drive
7 fans; Fan redundancy
Rack (1U), (1.75 in/4.45 cm)



Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)
Processors Intel X3.0GHz/800-1MB DL360G4 FIO BASE
368152-B21
Intel X3.4GHz/800-1MB DL360G4 FIO BASE
354582-B21
Intel X3.6GHz/800-1MB DL360G4 FIO BASE 354583-B21
Base Memory 512 MB of Advanced ECC PC2700 DDR SDRAM DIMM Memory Kit (1 x 512 MB)
1024 MB of Advanced ECC PC2700 DDR SDRAM DIMM Memory Kit (1 x 1 GB)
2048 MB of Advanced ECC PC2700 DDR SDRAM DIMM Memory Kit (1 x 2 GB)
Optical Drive NOTE: An Optical Drive is REQUIRED if choosing the 367007-405 SCSI Rack CTO Chassis Model in Step 1.
NOTE: Optical Drives are OPTIONAL if choosing the 367006-405 SATA Rack CTO Chassis Model in Step 1.


Slimline CD-ROM Drive 24X
NOTE: This CD/ROM Drive (PN 356963-B21 356963-B21) is for SATA models.
Slimline CD-RW/DVD-ROM Combo Option Kit
Slimline DVD-ROM Drive (8X/24X) Option Kit
NOTE: This DVD-ROM Drive (PN 264007-B21 264007-B21) is for SCSI models. It is not supported in SATA models.

Step 3: Choose Additional Factory Integratable Options
Diskette Drive 1.44 MB Diskette drive
NOTE: This Diskette Drive is for SATA (367006-405) models
354588-B21
Optical Drive NOTE: The Optical Drive is OPTIONAL for the SATA Rack CTO Chassis Model (367006-405) but REQUIRED if choosing the SCSI Rack CTO Chassis Model (367007-405) in Step 1.
Slimline CD-ROM Drive 24X
NOTE: This CD/ROM Drive (PN 356963-B21 356963-B21) is for SATA models.
Slimline DVD-ROM Drive (8X/24X) Option Kit
NOTE: This DVD-ROM Drive (PN 264007-B21 264007-B21) is for SCSI models. It is not supported in SATA models.
460W HP redundant power supply with IEC cord only

Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Options" section below.
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      DL360 G4 Options      DL360 G4 Memory      Storage      Power Specifications      DL360 G4 QuickSpecs images/line.gif

Options

NOTE: Some options may not be factory integratable. Please contact your local sales representative for additional information.
HP ProLiant DL360
G4 Unique Options
Intel Xeon 3.0 GHz/800MHz-1MB Processor Option Kit
NOTE: This processor option kit (PN 368152-B21) supports the HP ProLiant DL360 G4 only.
368152-B21
Intel Xeon 3.4 GHz/800MHz-1MB Processor Option Kit
NOTE: This processor option kit (PN 354582-B21) supports the HP ProLiant DL360 G4 only.
354582-B21
Intel Xeon 3.6 GHz/800MHz-1MB Processor Option Kit
NOTE: This processor option kit (PN 354583-B21) supports the HP ProLiant DL360 G4 only.
354583-B21
1.44 MB Diskette Drive
NOTE: This Diskette drive is for SATA models only.
354588-B21
PCI-e Riser option (to convert one or both PCI-X to PCI-e slots)
354589-B21
Ambidextrous cable management arm
NOTE: Package contains two cable management arms
365403-B21
Fixed Cord Extension Bars for 1U servers (2 PDU sticks per kit)
351655-B21
460W HP redundant power supply with IEC cord only
460W HP redundant power supply with NEMA cord only
NOTE: The HP ProLiant DL360 G4 ships with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). For stand-alone deployments or installation without a rack. Models ship with two power cords: IEC-IEC and NEMA cords.

ProLiant Essentials
Value Pack Software
ProLiant Essentials Integrated Lights-Out Advanced Pack
ProLiant Essentials Integrated Lights-Out Advanced Pack, 1 server
Featuring: sophisticated virtual administration features for ultimate control of servers in the data centers and remote sites.
NOTE: For additional ProLiant Integrated Light-Out Advanced Pack License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/11052_na/11052_na.html
ProLiant Essentials Intelligent Networking Pack
ProLiant Essentials Intelligent Networking Pack - Windows Edition, Single Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.

372906-B21

NOTE: For additional ProLiant Intelligent Networking Pack - Windows License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12062_na/12062_na.html
ProLiant Essentials Intelligent Networking Pack - Linux Edition, Single Server License
397004-B21
NOTE: For additional ProLiant Intelligent Networking Pack - Linux License Kits please see the QuickSpecs at:
https://h18000.www1.hp.com/products/quickspecs/12327_na/12327_na.html

ProLiant Essentials Performance Management Pack
ProLiant Essentials Performance Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key, HP Management CD and documentation.
NOTE: The most recent version of the software can always be downloaded at https://www.hp.com/products/pmp.

306696-B21

NOTE: For additional ProLiant Performance Management Pack License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/11925_na/11925_na.html
ProLiant Essentials Rapid Deployment Pack Windows Edition and Linux Edition Release
Rapid Deployment Pack, Single-Server License
NOTE: This license allows 1 server to be deployed and managed via RDP.

267196-B21

NOTE: For additional ProLiant Essentials Rapid Deployment Pack License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/11053_na/11053_na.html
https://h18000.www1.hp.com/products/quickspecs/11713_na/11713_na.html
ProLiant Essentials Workload Management Pack
ProLiant Essentials Workload Management Pack, Single Server License
NOTE: For additional ProLiant Workload Management Pack License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/11452_na/11452_na.html
ProLiant Essentials Virtualization Management Software
ProLiant Essentials Virtual Machine Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.

372214-B21

ProLiant Essentials Server Migration Pack, Single-Migration License
NOTE: Contains one license, enabling 1 server migration, with a unique license activation key and documentation.
NOTE: This license allows 1 server to be migrated from a physical server to a virtual machine. Or this license can be used to migrate a virtual machine from one virtualization layer i.e. VMware GSX to a different virtualization layer such as VMware ESX or Microsoft Virtual Server 2005.
375345-B21
NOTE: For additional ProLiant Essentials Virtualization Management Software License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12328_na/12328_na.html
ProLiant Essentials Vulnerability and Patch Management Pack
ProLiant Essentials Vulnerability and Patch Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.
371645-B21
NOTE: For additional ProLiant Vulnerability and Patch Management Pack License Kits, please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12111_na/12111_na.html
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to https://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: https://www.hp.com/servers/proliantessentials.

ProLiant Software Maintenance Subscription ProLiant Software Maintenance Subscription
355060-B21
ProLiant Software Maintenance Single Release
356573-B21
ProLiant Foundation Pack Single Release
356604-B21
NOTE: Please see the SmartStart QuickSpecs for additional information regarding the subscription purchase:
https://h18000.www1.hp.com/products/quickspecs/north_america/11073.html


Processor Intel Xeon 3.0 GHz/800MHz-1MB Processor Option Kit
NOTE: This processor option kit (PN 368152-B21) supports the HP ProLiant DL360 G4 only.
368152-B21
Intel Xeon 3.4 GHz/800MHz-1MB Processor Option Kit
NOTE: This processor option kit (PN 354582-B21) supports the HP ProLiant DL360 G4 only.
354582-B21
Intel Xeon 3.6 GHz/800MHz-1MB Processor Option Kit
NOTE: This processor option kit (PN 354583-B21) supports the HP ProLiant DL360 G4 only.
354583-B21

Memory
(DIMMs)

512 MB of Advanced ECC PC2700 DDR SDRAM DIMM Memory Kit (1 x 512 MB)
1024 MB of Advanced ECC PC2700 DDR SDRAM DIMM Memory Kit (1 x 1 GB)
2048 MB of Advanced ECC PC2700 DDR SDRAM DIMM Memory Kit (1 x 2 GB)

Optical Drives Slimline CD-RW/DVD-ROM Combo Option Kit
Slimline DVD-ROM Drive (8X/24X) Option Kit (Servers)
NOTE: This DVD-ROM Drive (PN 264007-B21 264007-B21) is for SCSI models. It is not supported in SATA models.
Slimline CD-ROM Drive 24X
NOTE: This CD/ROM Drive (PN 356963-B21 356963-B21) is for SATA models.
HP DVD+R/RW 8X Slim

Diskette Drive 1.44 MB Diskette Drive
NOTE: This 1.44MB Diskette Drive (PN 354588-B21) is for SATA models.
354588-B21

Hard DrivesSerial-ATA (SATA) Hard Drives
Serial-ATA (SATA) Hard Drive (SATA Models only)
NOTE: When SATA drives are installed, hot-plug capability and LEDs are currently not supported.
NOTE: SATA drives have a 1 year warranty.

HP 500GB 1.5G SATA 7.2K 3.5" HDD
HP 250GB 1.5G SATA 7.2K 3.5" HDD
HP 160GB 1.5G SATA 7.2K 3.5" HDD
HP 80GB 1.5G SATA 7.2K 3.5" HDD

NOTE: Please see the SATA Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:
Serial ATA Hard Drive QS:
https://h18000.www1.hp.com/products/quickspecs/11940_na/11940_na.html



Storage ControllersSCSI Controllers
128MB Battery Backed Write Cache Enabler Option Kit
NOTE: Upgrade for Smart Array 6i Controller.

Smart Array 6402/128 Controller
NOTE: For support of external drives only.

273915-B21 273915-B21

Smart Array 6404/256 Controller
NOTE: For support of external drives only.

273914-B21 273914-B21

Smart Array 642 Controller
NOTE: For support of external drives only.

291967-B21 291967-B21

128MB Battery-Backed Cache Enabler
NOTE: This 128MB BBWC supports the Smart Array 641 Controller and Smart Array 642 Controller.
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS
64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter
NOTE: For support of external drives only.
Ultra320 Expansion Module for SA-6402
NOTE: For support of external drives only.
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
NOTE: Please see the following Controller or SCSI Adapter QuickSpecs for Technical Specifications such as PCI Bus, PCI Peak Data Transfer Rate, SCSI Protocols supported, SCSI Peak Data Transfer Rate, Channels, SCSI Ports, Drives supported, Cache, RAID support, and additional information:
https://h18000.www.1.hp.com/products/quickspecs/12030_na/12030_na.html
(Smart Array 6i)
https://h18000.www1.hp.com/products/quickspecs/11587_na/11587_na.html
(Smart Array 6400 Series)
https://h18000.www1.hp.com/products/quickspecs/11563_na/11563_na.html
(Smart Array 642)
https://h18000.www1.hp.com/products/quickspecs/10429_na/10429_na.html
(SCSI Adapter)
https://h18000.www1.hp.com/products/quickspecs/11555_na/11555_na.html
(U320 Adapter)
https://h18000.www.1.hp.com/products/quickspecs/11943_na/11943_na.html
(U320 SCSI HBA)

SAS Controller
HP Smart Array P600 Controller
512MB DDR BBWC Upgrade
NOTE: Please see the following Controller QuickSpecs for Technical Specifications such as PCI Bus, PCI Peak Data Transfer Rate, SCSI Protocols supported, SCSI Peak Data Transfer Rate, Channels, SCSI Ports, Drives supported, Cache, RAID support, and additional information:
https://h18000.www1.hp.com/products/quickspecs/12247_na/12247_na.html (Smart P600 Controller)

SAS HBA
HP 8 Internal Port SAS HBA with RAID

NOTE: Please see the following QuickSpec for additional information:
https://h18000.www.1.hp.com/products/quickspecs/12332_na/12332_na.html
(SAS HBA)



Communications HP NC150T PCI 4-port Gigabit 1000T Combo Switch Adapter
HP NC310F PCI-X 1000SX Gigabit Server Adapter
HP NC320T PCI Express 1000T Gigabit Server Adapter
HP NC370F PCI-X Multifunction 1000SX Gigabit Server Adapter
374193-B22
HP NC370T PCI-X Multifunction 1000T Gigabit Server Adapter
HP NC1020 PCI 1000T Gigabit Server Adapter
HP NC7170 PCI-X Dual Port 1000T Gigabit Server Adapter
HP NC7771 PCI-X 1000T Gigabit Server Adapter
NOTE: A minimum of 1 GB of memory is required for NC370x adapters, with a maximum of two NC370x adapters permitted in a server.
NOTE: Any NIC (except the NC1020) on the option list can be used for redundancy with the embedded NC7782 Dual Port Network Controller. When teaming with other NICs or with the embedded NIC, the lack of Jumbo Frames and LSO features on the NC1020 will cause high end NICs to have those features disabled. (e.g. incompatibility issues with the other option NICs for that platform).

HP NC570C PCI-X Dual-port 4x Fabric Adapter
376158-B21
HP NC571C PCI Express Dual-port 4x Fabric Adapter
376160-B21
HP 24-Port 4x Fabric Copper Switch
376227-B21
HP 1m 4x Fabric Copper Cable
376232-B21
HP 3m 4x Fabric Copper Cable
376232-B22
HP 5m 4x Fabric Copper Cable
376232-B23

Management Options Remote Insight Lights-Out Edition II

227251-001 227251-001


High Performance Solutions

HPCC Myrinet Fiber NIC

257894-006

Myrinet 2XP PCI-X, Fiber, F-series, 2MB
390456-B21

Tape Drives

NOTE: For the complete listing of Tape Drive offerings, please see:
https://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

For recommended tape drive offerings for this ProLiant server see the following:
USB Tape Drives
HP StorageWorks DAT 40 USB External Tape Drive (Carbonite)
DW023A
HP StorageWorks DAT 72 USB External Tape Drive (Carbonite)
Ultrium Tape Drives - External, Rack-Mount and Array
HP StorageWorks Ultrium 232 External Tape Drive (Carbonite)
HP StorageWorks Ultrium 232 Internal Tape Drive (Carbonite)
NOTE: No internal tape drives fit inside the HP ProLiant DL360 G4p. The internal drive shown here is for the 1U or 3U Rack-mount Kit.
HP StorageWorks Ultrium 448 External Tape Drive (Carbonite)
DW017B
NOTE: Please see the HP StorageWorks Ultrium Tape Drive QuickSpecs for additional options such as controllers, media, and other related items:
https://h18006.www1.hp.com/products/quickspecs/11739_na/11739_na.html
https://h18006.www1.hp.com/products/quickspecs/12128_na/12128_na.html

For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit: https://www.hp.com/go/connect
DAT Drives - External, Rack-Mount and Array Module
HP StorageWorks DAT 72 SCSI External Tape Drive (Carbon)
Q1523B
HP StorageWorks 1U Rack-mount kit with one DAT 72 (Carbon)
A7443A
NOTE: Please see the DAT Tape Drive QuickSpecs for controllers, media, and other options:
https://h18000.www1.hp.com/products/quickspecs/11883_na/11883_na.html
For an up-to-date listing of the latest O/S and software support details for HP DAT drives, please visit: https://www.hp.com/go/connect

Rack-Mount Tape Drive Enclosures
HP StorageWorks 1U Rack-Mount Kit
NOTE: The 1U Rack-mount Kit can support up to (2) half-height tape drives and compatible with multiple Single-Ended and LVD SCSI tape drives including the DAT 24, DAT 40, DAT 72, DLT VS80, DLT VS160, Ultrium 215, Ultrium 232 and Ultrium 448 tape drives.
HP StorageWorks 1U USB Rack-Mount Kit
1U USB Cable Option Kit
NOTE: Converts a 1U SCSI rack-mount kit to a USB interface to support the USB tape drives.
HP StorageWorks 3U Rack-Mount Kit
NOTE: The 3U Rack-mount Kit can support up to (2) full-height or (4) half-height tape drives and compatible with multiple Single-Ended and LVD SCSI tape drives including DAT 24, DAT 40, DAT 72, DLT VS80, DLT VS160, SDLT 320, SDLT 600, Ultrium 215, Ultrium 230, Ultrium 232, Ultrium 460, Ultrium 448 and Ultrium 960 tape drives.
274338-B22
NOTE: Please see the Rack-Mount Tape Drive Kits QuickSpecs for additional information regarding these kits:
https://h18000.www1.hp.com/products/quickspecs/10854_na/10854_na.html


Tape Autoloaders DAT Autoloader
HP StorageWorks DAT 72x6 Autoloader (External)Q1567A Q1567A
NOTE: Please see the DAT 72x6 Tape Autoloader QuickSpecs for additional options such as host bus adapters, controllers and media:
https://h18006.www1.hp.com/products/quickspecs/11905_na/11905_na.html

HP StorageWorks 1/8 Tape Autoloader
HP StorageWorks 1/8 Ultrium 960 Tape Autoloader AF204A AF204A
HP StorageWorks 1/8 Ultrium 448 Tape AutoloaderAF203A AF203A
HP StorageWorks 1/8 Ultrium 232 Tape AutoloaderAF202A AF202A
1/8 Tape Autoloader Rackmount Kit
NOTE: Required to install the 1/8 tape autoloader in a standard 19-inch rack.
C9268R C9268R
NOTE: Please reference the 1/8 Tape Autoloader QuickSpecs at https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at https://www.hp.com/go/ebs.

Tape Libraries HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 Ultrium 960 Drive Library AG115A AG115A
HP StorageWorks MSL2024 1 Ultrium 448 Drive Library AG116A AG116A
HP StorageWorks MSL2024 2 Ultrium 448 Drive Library AG117A AG117A
HP StorageWorks MSL6000 Tape Library
Ultrium 960 technology
HP StorageWorks MSL6030 1 Ultrium 960 Dr LVDS Library AD606A AD606A
HP StorageWorks MSL6030 1 Ultrium 960 Dr FC Library AD608A AD608A
HP StorageWorks MSL6030 2 Ultrium 960 Dr LVDS Library AD607A AD607A
HP StorageWorks MSL6030 2 Ultrium 960 Dr FC Library AD609A AD609A
Ultrium 460 technology
HP StorageWorks MSL6030 1 Ultrium 460 Dr LVDS Library AD598A AD598A
HP StorageWorks MSL6030 1 Ultrium 460 Dr FC Library AD600A AD600A
HP StorageWorks MSL6030 2 Ultrium 460 Dr LVDS Library AD599A AD599A
HP StorageWorks MSL6030 2 Ultrium 460 Dr FC Library AD601A AD601A
NOTE: Please reference the MSL2024 and MSL6000 Tape Library QuickSpecs at https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at https://www.hp.com/go/ebs.

Magneto-Optical Jukeboxes HP StorageWorks 9.1 GB Optical Jukeboxes
600mx, 4 drive, 64 slot jukebox
C1160M
1200mx, 4 drive, up to 128 slots
C1104M
2200mx, 6 drive, up to 238 slots
C1107M
NOTE: Please see the HP StorageWorks Magneto-Optical Products data sheet for a complete listing of available jukeboxes at: https://www.hp.com/products1/storage/products/archivalprod/brochures/
MO_family_pb.pdf

NOTE: Please reference the Magneto-Optical Jukebox data sheets at https://www.hp.com/go/optical for additional information needed to create a complete solution.

Ultra Density Optical Jukeboxes 1900ux, 4 drive, 64 slot jukebox AA966A
3800ux, 4 drive, 128 slot jukebox AA969A
7100ux, 6 drive, 238 slot jukebox AA971A
NOTE: Please see the HP StorageWorks Ultra Density Optical Jukeboxes QuickSpecs for a complete listing of available jukeboxes at:
https://h18006.www1.hp.com/products/quickspecs/11944_div/11944_div.html
NOTE: Please reference the Ultra Density Optical Jukebox QuickSpecs at https://www.hp.com/go/optical for additional information needed to create a complete solution


Power Cords NOTE: The HP ProLiant DL360 G4 ships with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). For stand-alone deployments or installation without a rack, power cord options are available. Model will ship with two power cords: IEC-IEC (142257-002) and C13-Nema 5-15P (103541-001) cords.

HP StorageWorks Modular Smart Array 20HP StorageWorks Modular Smart Array 20
NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies.
335921-B21 335921-B21
HP StorageWorks Modular Smart Array 20 Starter Kit
NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies. Includes Smart Array 6402/128 Controller.
366172-B21
NOTE: The Modular Smart Array Enclosure 20 Family supports the SATA 1.5Gb/s 3.5" Hot Plug Hard Drives.

HP StorageWorks Modular Smart Array 30HP StorageWorks Modular Smart Array 30 SB
NOTE: Rack-mountable 14 drive enclosure with single bus, redundant power supplies
302969-B21
HP StorageWorks Modular Smart Array 30 DB
NOTE: Rack-mountable 14 drive enclosure with dual bus, redundant power supplies
302970-B21
NOTE: The Modular Smart Array Enclosure 30 Family supports the Wide Ultra3, Ultra320 Hot Plug Hard Drives.

HP StorageWorks Modular Smart Array 50

HP StorageWorks Modular Smart Array 50 Enclosure

364430-B21 364430-B21

NOTE: Please see the Modular Smart Array 50 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at:
https://h18000.www1.hp.com/products/quickspecs/12245_na/12245_na.html

HP StorageWorks Modular Smart Array 500

HP StorageWorks Modular Smart Array 500 Generation 2

335880-B21

NOTE: Please see the Modular Smart Array 500 Generation 2 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at:
https://h18000.www1.hp.com/products/quickspecs/11956_na/11956_na.html

HP StorageWorks Modular Smart Array 1000

HP StorageWorks Modular Smart Array 1000

201723-B22 201723-B22

NOTE: Please see the Modular Smart Array 1000 QuickSpecs for additional options and configuration information at
https://h18000.www1.hp.com/products/quickspecs/11033_na/11033_na.html

HP StorageWorks Modular Smart Array 1500 cs Modular Smart Array 1500 Controller Shelf
AA986A
NOTE: Please see the StorageWorks Modular SAN Array 1500 cs QuickSpecs for additional options and configuration information at:
https://www.hp.com/go/MSA1500cs


StorageWorks Options StorageWorks 2 Gb, 64-bit/133 MHz PCI-X-to-Fibre Channel Host Bus Adapter for Windows 2000, Windows Server 2003 and Linux
NOTE: FCA2214 2 Gb Fibre Channel Host Bus Adapter is a single channel, 64-bit/133 MHz PCI-X-to Fibre Channel Host Bus Adapter (HBA) with an embedded multi-mode optical interface
FCA2404DC - HP StorageWorks 2 Gb, Dual Channel, 133 MHz PCI-X-to-Fibre Channel Host Bus Adapter for Windows® 2000, and Windows Server 2003
NOTE: FCA2404DC HP StorageWorks 2 Gb Fibre Channel Host Bus Adapter is a dual channel, 133 MHz, PCI-X to Fibre Channel Host Bus Adapter (HBA) with an embedded multi-mode optical interface.
323264-B21
FCA2404 - StorageWorks 2 Gb, single channel, 133 MHz PCI-X-to-Fibre Channel Host Bus Adapter for Windows 2000, Windows NT and Windows Server 2003
NOTE: FCA2404 StorageWorks 2 Gb, Fibre Channel Host Bus Adapter is a single channel, multi-path failover, 133 MHz, PCI-X to Fibre Channel Host Bus Adapter (HBA) with an embedded multi-mode optical interface for ProLiant Server connects
305573-B21
StorageWorks 2 Gb, Dual Port, 64-Bit/133 MHz PCI-X-to-Fibre Channel Host Bus Adapter for W2K, Windows Server 2003 and Linux
NOTE: FCA2214DC StorageWorks 2 Gb Dual Port, Fibre Channel Host Bus Adapter is a 64-bit/133 MHz, PCI-X-to Fibre Channel Host Bus Adapter (HBA) with an embedded multi-mode optical interface.

Cluster OptionsProLiant Cluster Starter Kit
364023-B21
NOTE: For additional information regarding the ProLiant Cluster Starter Kit please see the following QuickSpecs at:
https://h18000.www1.hp.com/products/quickspecs/11935_na/11935_na.html
HP HA/F200 for Entry SAN Cluster
364026-B22
NOTE: For additional information regarding the ProLiant Cluster for Entry Level SAN please see the following QuickSpecs at:
https://h18000.www1.hp.com/products/quickspecs/11932_na/11932_na.html

ProLiant Cluster HA/F500 for the Enterprise SAN
364024-B21
NOTE: For additional information regarding the ProLiant Cluster HA/F500 for Enterprise SAN please see the following QuickSpecs at:
https://h18000.www1.hp.com/products/quickspecs/11933_na/11933_na.html
HP Serviceguard for Linux ProLiant Cluster A.11.16 for SUSE SLES 9 and Red Hat EL & 4 (2 node license cluster kit)
305199-B26
HP Serviceguard for Linux A.11.16 for SUSE SLES9 and Red Hat EL 3 & 4 (single license version)
307754-B26
HP Serviceguard for Linux and Red Hat Global File System - 1 year subscription
T2798AA#001
HP Serviceguard for Linux and Red Hat Global File System - 3 years subscription
T2798AA#003
NOTE: For additional information regarding HP Serviceguard for Linux, please see the following QuickSpecs at:
https://h18000.www1.hp.com/products/quickspecs/11518_na/11518_na.html


Uninterruptible Power Systems – Rack Mountable HP UPS R1500 XR (1440VA, 1340 Watt), Low Voltage

204404-001 204404-001

HP UPS R3000 XR (2880VA, 2700 Watt), Low Voltage

192186-001 192186-001

HP UPS R3000 XR (3000VA, 2700 Watt), High Voltage

192186-002 192186-002

HP UPS R5500 XR, (5000VA, 4500 Watt), High Voltage
HP UPS R12000 XR, N+ x (12KVA, 12KW) High Voltage
207552-B22

NOTE: UPS R12000 has a hardwired input and output connection.




HP Monitored Power Distribution Unit (PDU)HP Monitored Power Distribution Unit: Full Rack Version
HP 17.3 kVA S2324 Monitored PDU- dual input, 3-phase, 24A
HP 8.3 kVA S1324 Monitored PDU- single input, 3-phase, 24A
HP 16.6 kVA S2140 Monitored PDU- dual input, 1-phase, 40A
HP 8.6 S1140 Monitored PDU- single input, 1-phase, 40A

Modular PDUs 1U/0U
(Up to 32 outlets)
NOTE: 1U/0U mounting brackets shipped with
the unit (optimized for 10000 and 9000 series racks).

Fixed Cord Extension Bars
NOTE: Two extension bar sticks; each with (7) C13 plugs.
351655-B21
Fixed Cord PDU
NOTE: Four Fixed Cord Extension Bars, and one 24A, HV mPDU L6-30P core.
351655-D72
HP Modular Power Distribution Units (mPDU), Low Volt Model, 24A (100-127 VAC)
NOTE: This mPDU (252663-D71 252663-D71) may also be used to connect the low volt model of the UPS R3000 XR.

HP Modular Power Distribution Units (mPDU), High Volt Model, 24A (200-240 VAC)

252663-D72 252663-D72

HP Modular Power Distribution Units (mPDU), High Volt Model, 40A (200-240 VAC)
NOTE: This mPDU (252663-B21 252663-B21), 40A model has a hardwired input.

252663-B21 252663-B21

HP Modular Power Distribution Unit(mPDU), High Volt Model, 16A (200-240 VAC)

252663-B24 252663-B24

HP Modular Power Distribution Unit (mPDU), High Volt Model, 40A, Attached Cord
252663-D73
NOTE: This PDU has a detachable input power cord and allows for adaptability to country specific power requirements. This model may also be used with the high volt UPSs R3000 XR and R6000, need to order cable PN 340653-001.
NOTE: Please see the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs for additional options including shorter jumper cables and country specific power cords:
https://h18000.www1.hp.com/products/quickspecs/11041_na/11041_na.html

USB Options HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver)
USB 1.44-MB External Diskette Drive (Carbonite)
DC141B
256MB HP Drive Key II (USB 2.0)
PH657A

HP ProLiant DL360 G4 Deployment Options 460W HP redundant power supply with IEC cord only
460W HP redundant power supply with NEMA cord only
NOTE: The HP ProLiant DL360 G4 ships with a single IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). For stand-alone deployments or installation without a rack, power cord options are available. Model ships with two power cords: IEC-IEC and NEMA cords.

Third Party Rack Kit Rack Adapter Kit
NOTE: This kit allows HP rack servers to fit in racks that are 24" wide.
332815-B21

HP Rack 5000 Series
(Graphite Metallic)

HP 5642 Rack Unassembled

Rack Options for Rack 5000 Series

Stabilizer Kit for 5642 rack (Graphite Carbon)
NOTE: The stabilizing kit is used to prevent rack from tipping over.
374493-B21
  Baying Kit for 5642 rack (Graphite Carbon)
NOTE: The baying kit is used to join two or more HP 5642 racks.
374499-B21

HP Rack 10000 G2 Series
(Carbon/Graphite Metallic)
10642 G2 (42U) Rack Cabinet - Pallet
10642 G2 (42U) Rack Cabinet - Shock Pallet
10642 G2 (42U) Rack Cabinet - Crated
AF003A
10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet
10642 G2 (42U) Rack Cabinet, without door - Shock Pallet
AF005A
10642 G2 (42U) Rack Cabinet - with Extension, without door - Shock Pallet
AF006A
10636 G2 (36U) Rack Cabinet - Pallet
10636 G2 (36U) Rack Cabinet - Shock Pallet
10636 G2 (36U) Rack Cabinet - Crated
10636 G2 (36U) Rack Cabinet , with Extension - Shock Pallet
10636 G2 (36U) Rack Cabinet, without door - Shock Pallet
AF015A
10636 G2 (36U) Rack Cabinet, with Extension, without door - Shock Pallet
AF016A
NOTE: It is mandatory to use a shock pallet when shipping racks with equipment installed.
NOTE: Please see the Rack 10000 G2 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
https://h18000.www1.hp.com/products/quickspecs/12402_na/12402_na.html

NOTE: For additional information regarding Rack Cabinets, please see the following URL: https://www.hp.com/go/rackandpower.

Rack Options for Rack 10000 G2 SeriesHP 10642 G2 Front Door
AF009A
HP 10636 G2 Front Door
AF019A
10642 G2 (42U) Side Panels (set of two) (Graphite Metallic)
AF054A
10636 G2 (36U) Side Panels (set of two) (Graphite Metallic)
AF056A
10636 G2 Rear Extension Kit
AF060A
600mm G2 Stabilizer Option Kit (Graphite)
AF062A
600mm G2, Heavy Duty Stabilizer Option Kit (Graphite)
AF064A
800mm G2 Stabilizer Option Kit (Graphite)
AF066A
800mm G2, Heavy Duty Stabilizer Option Kit (Graphite)
NOTE: Supports 10000 G2 Series only.
AF068A
HP 10000 G2 Rack Grounding Kit
AF074A
600W 10K G2 Rack Tie Down
AF076A
NOTE: For additional information regarding Rack Options, please see the following URL: https://www.hp.com/go/rackandpower.

HP Rack 10000 Series
(Graphite Metallic)

10642 (42U) Infrastructure Rack (Low Voltage)
379006-001
10642 (42U) Infrastructure Rack (High Voltage)
HP Rack S10614 (14U) Rack Cabinet - Shock Pallet
HP Rack 10842 (42U, 800mm wide) – Pallet

257415-B21 257415-B21

HP Rack 10842 (42U, 800mm wide) – Shock Pallet

257415-B22 257415-B22

HP Rack 10647 (47U) – Pallet

245160-B21 245160-B21

HP Rack 10647 (47U) – Crated

245160-B23

HP Rack 10642 (42U) – Pallet

245161-B21 245161-B21

HP Rack 10642 (42U) – Shock Pallet

245161-B22 245161-B22

HP Rack 10642 (42U) – Crated

245161-B23

HP Rack 10636 (36U) – Pallet

245162-B21 245162-B21

HP Rack 10636 (36U) – Shock Pallet

245162-B22 245162-B22

HP Rack 10636 (36U) – Crated

245162-B23

HP Rack 10622 (22U) – Pallet

245163-B21 245163-B21

HP Rack 10622 (22U) – Shock Pallet

245163-B22 245163-B22

HP Rack 10622 (22U) – Crated

245163-B23

NOTE: -B21 (pallet) used to ship empty racks shipped on a truck
-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels)
-B23 (crated) used for air shipments of empty racks



NOTE: It is mandatory to use a shock pallet in order to ship racks with equipment installed. Not all HP equipment is qualified to be shipped in the Rack 10000 series



NOTE: Please see the Rack 10000 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
https://h18000.www1.hp.com/products/quickspecs/10995_na/10995_na.html



NOTE: For additional information regarding Rack Cabinets, please see the following URL: https://www.hp.com/go/rackandpower.




Rack Options for Rack 10000 Series

HP Rack Light Kit (Neon)
HP Rack Plinth Kit (Carbon)
42U Side Panel - Graphite Metallic
36U Side Panel - Graphite Metallic
47U Side Panel - Graphite Metallic
TFT7210R Rack Mounted 17" Monitor
NOTE: For a complete list of Monitors please view the following URL:
https://www.hp.com/go/kvm.
TFT5600 Rack Keyboard Monitor
NOTE: For a complete list of Monitors please view the following URL:
https://h18004.www1.hp.com/products/monitors/.
1U Rack Keyboard & Drawer (Carbon)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: https://www.hp.com/go/rackandpower.

HP KVM Switch Options

IP Console Switch Box (KVM/IP), 3 x 1 x 16
IP Console Switch Box (KVM/IP), 1 x 1 x 16
Server Console Switch (KVM), 0 x 1 x 8 port
Server Console Switch (KVM), 0 x 2 x 16 port
PS/2 Interface Adapter, 1 pack
PS/2 Interface Adapter, 8 pack
USB Interface Adapter, 1 pack
Serial Interface adapter - 1 Pack with power supply
NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches. Cat5e cables can be found at the following URL: https://www.hp.com/go/kvm.
HP 1x 4 USB/PS2 KVM Switch, TT
371301-D71
HP 1x 4 USB/PS2 KVM Switch, RM
371302-B21
HP PS2 KVM Cable with audio, 6', 2-pack
371730-B21
HP USB KVM Cable with audio, 6', 2-pack
371729-B21
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: https://www.hp.com/go/kvm.

HP Serial Console Server Options

HP 16 Port Serial Console Server
HP 48 Port Serial Console Server
Serial Adapter, RJ45-DB9 DCE Female, 1 Pack
Serial Adapter, RJ45-DB9 DCE Female, 8 Pack
AF110A
NOTE: Cat5e cables are required to connect Serial Adapters to Serial Console Servers. Additional Serial Adapters and Cat5e cables can be found at the following URL: https://www.hp.com/go/kvm.
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: https://www.hp.com/go/kvm.

Service and Support Offerings (HP Care Pack Services)

Hardware Services 4-Hour On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
U4496E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4497E
Hardware Services 6-Hour Call to Repair On-site Service
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4498E
Hardware Services Next Business Day On-Site Service
Hardware Installation, Electronic
U4506E
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays, Electronic
U4507E
Support Plus
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4508E
Support Plus 24
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4509E
Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U6310E
Onsite HW support 24x7, 4hr response and Red Hat ES2.1 Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U8332E
NOTE: For more information, customer/resellers can contact https://www.hp.com/services/carepack.
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      DL360 G4 Options      DL360 G4 Memory      Storage      Power Specifications      DL360 G4 QuickSpecs images/line.gif

Memory

NOTE: Memory configurations listed do not apply to "Factory Integrated Models".

HP ProLiant DL360 G4 3.06 GHz and 3.4 GHz-1MB Models

Standard Memory
1 GB PC2700 DDR 333 Registered SDRAM DIMM installed (1 x 1 GB SDRAM DIMM)

Upgrading Memory and Memory Interleaving
When upgrading memory, DIMMs 1A and 2A must match. DIMMs 3B and 4B must match and must be installed as a pair. When DIMMs 1A and 2A are populated the system is automatically configured for 2:1 interleaving. When all four DIMMs are populated with identical DIMMs the system is automatically configured for bank interleaving. Bank B can be configured for Online Spare Memory.

Standard Memory Plus Optional Memory
Up to 6 GB memory is available with the standard memory of 1 GB and the optional installation of PC2700 DDR 333 Registered SDRAM DIMM memory kits.

Standard Memory Replaced with Optional Memory
Up to 8 GB of memory is available with the removal of the standard 1 GB of memory and the optional installation of PC2700 DDR 333 Registered SDRAM DIMM memory kits.

NOTE: Chart does not represent all possible configurations.

DL360 G4 Memory

Slot



1

2

3

4

Standard

1 GB
1 GB
Empty
Empty
Empty

Optional

6 GB
1 GB
1 GB
2 GB
2 GB
Maximum
8 GB
2 GB
2 GB
2 GB
2 GB


Following are memory options available from HP:


  • 512 MB of Advanced ECC PC2700 DDR 333 SDRAM DIMM Memory Kit (1 x 512 MB)
358347-B21 358347-B21
  • 1 GB of Advanced ECC PC2700 DDR 333 SDRAM DIMM Memory Kit (1 x 1 GB)
358348-B21 358348-B21
  • 2 GB of Advanced ECC PC2700 DDR 333 SDRAM DIMM Memory Kit (1 x 2 GB)
358349-B21 358349-B21


HP ProLiant DL360 G4 3.4 GHz-1MB RPS Models

Standard Memory
2 GB PC2700 DDR 333 Registered SDRAM DIMM installed (2 x 1 GB SDRAM DIMM)

Upgrading Memory and Memory Interleaving
When upgrading memory, DIMMs 1A and 2A must match. DIMMs 3B and 4B must match and must be installed as a pair. When DIMMs 1A and 2A are populated the system is automatically configured for 2:1 interleaving. When all four DIMMs are populated with identical DIMMs the system is automatically configured for bank interleaving. Bank B can be configured for Online Spare Memory.

Standard Memory Plus Optional Memory
Up to 6 GB memory is available with the standard memory of 1 GB and the optional installation of PC2700 DDR 333 Registered SDRAM DIMM memory kits.

Standard Memory Replaced with Optional Memory
Up to 8 GB of memory is available with the removal of the standard 1 GB of memory and the optional installation of PC2700 DDR 333 Registered SDRAM DIMM memory kits.
NOTE: Chart does not represent all possible configurations.

DL360 G4 Memory

Slot



1

2

3

4

Standard

2 GB
1 GB
1 GB
Empty
Empty

Optional

6 GB
1 GB
1 GB
2 GB
2 GB
Maximum
8 GB
2 GB
2 GB
2 GB
2 GB


Following are memory options available from HP:


  • 512 MB of Advanced ECC PC2700 DDR 333 SDRAM DIMM Memory Kit (1 x 512 MB)
358347-B21 358347-B21
  • 1 GB of Advanced ECC PC2700 DDR 333 SDRAM DIMM Memory Kit (1 x 1 GB)
358348-B21 358348-B21
  • 2 GB of Advanced ECC PC2700 DDR 333 SDRAM DIMM Memory Kit (1 x 2 GB)
358349-B21 358349-B21

Sillworks                  Ph: 1.613.599.1287                  Fax: 1.613.599.8120
U320 | SSD | SAS/SATA | Fibre | Memory | Controllers | Processors | Power Supplies | Networking
line
Dell | EqualLogic | EMC | Hewlett-Packard | IBM | Seagate
line
HP      HP      HP      Dell Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account Dell      Dell      Dell      Seagate
Terms of Use | Legal | Privacy | Primary Site | Contact us | Add to favorites
Amex Accepted Visa Accepted MasterCard Accepted
