Proliant DL380 G4 QuickSpecs |
US QuickSpecs |
|
|
|
|
|
|
|
|
|
Proliant DL380 G4 Overview
HP
ProLiant DL380 Generation 4 (G4)
SCSI Model |
SAS Model |
| |
|

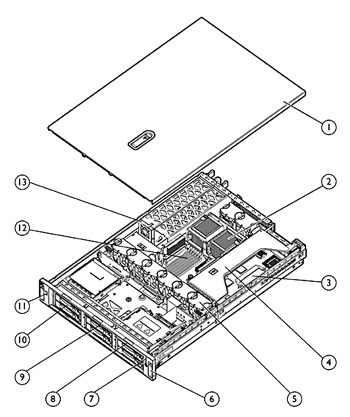

1. | Quick removal access panel |
2. | Intel Xeon Processor (High performance
models include two processors) | 3.
|
Smart Array 6i Array Controller (Ultra320) with
optional 128MB Battery Backed Write Cache (BBWC) or Smart Array
P600/256 BBWC Controller. (All High performance models include
BBWC) |
4. | Three PCI-X
non-hot plug expansion slots (or optional PCI-X hot plug expansion cage or PCI
Express expansion cage) | 5.
| Hot-plug fans, full redundancy option (All 2M Cache models and
High performance models include fully redundant fans) |
6. | Quick release lever for fast server access |
7. | Front LEDs (show server status) and Unit Identification
button/LED (for easy in rack server identification) |
8. | 24X Max CD-ROM (High
performance models include DVD-ROM drive) |
9. | Optional 1.44 MB
(3.5") Diskette Drive (High performance models include Diskette Disk Drive) |
10. | Support for six
Ultra320 SCSI hot plug hard drives (or five hot plug hard drives and one DAT 40
or DAT 72 hot plug tape drive) | 11. |
USB 2.0 port |
12. |
Six PC2-3200R 400MHz DDR2 Sockets |
13. |
Hot plug power supply, redundancy option (High
performance models include redundant power supply) |
|
1. | Quick
removal access panel | 2.
| Hot-plug fans, full redundancy option (All
2M Cache models and High performance models include fully redundant fans) |
3. | Front
LEDs (show server status) and Unit Identification button/LED (for easy in rack
server identification) | 4.
| 24X Max CD-ROM (High performance models include
DVD-ROM drive) | 5.
| Support for eight universal small form factor hot
plug hard drives | 6.
| Optional 1.44 MB (3.5") Diskette Drive (High performance
models include Diskette Disk Drive) | 7.
| USB 2.0 port |
8. | Quick
release lever for fast server access |
9. | Intel Xeon Processor
(High performance models include two processors) |
10. | Hot plug power
supply, redundancy option (High performance models include redundant power supply) |
11. | Three
PCI-X non-hot plug expansion slots (or optional PCI-X hot plug expansion cage
or PCI Express expansion cage) | 12. |
Smart Array P600/256 BBWC Controller
(All High performance models include BBWC) |
|
| |
What's New |
Introducing the ProLiant DL380 G4 SAS model with the latest Dual-core
Intel Xeon Processors with Hyperthreading technology for maximum application
performance.
- New SAS Model: DL380R04 X2.8-2x2MB/800 DC, 1GB SAS
- Improve server responsiveness
- Increase performance up to 50%
- Enhance multi-tasking
|
|
At a Glance |
The HP ProLiant DL380, the world's largest selling server,
delivers on its history of design excellence with enterprise-class uptime
and manageability, proven 2-way Intel Xeon performance, and 2U density
for a variety of rack deployments and applications.
- Processors:
- 64-bit Intel® Xeon™ processors up to
3.6 GHz
- 800MHz Front Side Bus and 2MB of L2 cache
- High Performance Models:
- Two processors included standard
- Based on the 3.4 GHz 2MB Intel Xeon
Processor and the 3.6 GHz 2MB Intel Xeon Processor
- Intel E7520 Chipset
- High performance models available fully
loaded for convenience
- Memory:
- 1 GB PC2-3200R 400MHz DDR2 Memory with
online spare capabilities
- 2 GB included in High Performance models
- Support for dual-rank 400MHz DDR2 memory
- Storage Controller:
- SAS (Serial attached SCSI) models include
the HP Smart Array P600/256 BBWC Controller.
- SCSI models include the integrated Smart
Array 6i Ultra320 Array Controller with optional 128MB of Battery
Backed Write Cache (BBWC standard on all high performance models)
- Internal Drive Support:
- Internal hot plug capacity 1.8TB standard
(6 x 300GB HDD)
- (8) small form factor hot-plug drive bays
or (6) hot-plug U320 SCSI drive bays
- SCSI models have (1) 1.6" bay that
supports a hot-plug DAT tape backup drive
- Optional PCI-X Hot-plug cage or Optional
PCI Express Non-hot plug Cage (U320 SCSI Models only)
- Optional dual channel drive backplane
(2/4 split) for U320 SCSI models (Included in SCSI High Performance
Models)
- Optional dual channel drive backplane
(2/4 split) (Included in High Performance Models)
- Optional floppy disk drive (Included in
High Performance Models)
- Network Controller:
- Embedded NC7782 PCI-X Gigabit Server Adapter
- Expansion Slots:
- 3 Total Available Slots (2 available on
SAS models): (2) non-hot plug 64-bit/100MHz PCI-X slots and (1)
non-hot plug 64-bit/133MHz PCI-X slot
- USB 2.0 Ports:
- 3 Total: (1) front, (2) rear accessible
ports
- Redundancy:
- Hot Plug Fans with optional full redundancy
(Included in 2MB Cache and High performance models)
- Hot Plug Power Supply with optional redundancy
(Included in High performance models)
- Management:
- HP Power Regulator for ProLiant, delivering
server level, policy based power management with industry leading
energy efficiency and savings on system power and cooling costs
- Integrated Lights-Out industry leading
remote management with new support for two-factor authentication,
schema-free Microsoft Active Directory integration, Power Regulator
p-state reporting, USB key virtual media and VLAN on the shared
network port
- Integrated Lights-Out (iLO) Standard Management
on system board
- Support for new iLO Shared Network Port
enables access to the iLO management processor through one of the
embedded system NICs
- Automatic Server Recovery (ASR), ROM Based
Setup Utility (RBSU), HP System Insight Manager, Status LEDs including
system health and UID and SmartStart
- Form Factor:
- Deployment/Serviceability:
- Tool-less access to all system components
for easy in rack serviceability
- Quick Deploy Rail System includes sliding
universal rails, an ambidextrous cable management arm and quick
release levers for fast and easy serviceability and in-rack tool-less
access to major components
- Warranty:
- Protected by HP Services and a worldwide
network of resellers and service providers. Three-year Next Business
Day, on-site limited global warranty. Certain restrictions and exclusions
apply. Pre-Failure Notification on processors, memory, and SCSI/SAS
hard drives. SATA hard drives have a one-year warranty.
|
Standard Features
NOTE: For the
Standard Features shipped in the "Factory Integrated Models",
please see the "Configuration Information - Factory Integrated Models"
section. |
Processor
One of the following depending on Model |
Intel Xeon Processor 3.0 GHz/800MHz-2MB
L2 |
Dual-core Intel Xeon Processor
2.8 GHz/800MHz-2x2MB L2
NOTE: This kit is not backwards compatible,
existing systems cannot be upgraded. |
Intel Xeon Processor 3.2 GHz/800MHz-2MB
L2 |
Intel Xeon Processor 3.4 GHz/800MHz-2MB
L2 |
Intel Xeon Processor 3.6 GHz/800MHz-2MB
L2 |
|
Cache Memory
One of the following depending on Model
|
2MB Level 2 cache |
2x2MB Level 2 cache (Dual-core
Models) |
|
Upgradeability |
Upgradeable to dual processing |
|
Memory Protection
|
Online spare
Advanced ECC |
|
DL380 G4 Memory
One of the following depending on model | Type | PC2-3200R
400MHz DDR2 | Standard
(base models) | 1 GB (2
x 512 MB) | Standard
(High Performance models) | 2
GB (2 x 1024 MB) | Maximum | 12
GB | |
Network Controller |
Embedded NC7782 PCI-X Gigabit
Server Adapter |
|
PCI-X Non-Hot Plug Riser |
|
|
|
|
|
Expansion Slots |
Slot
Number
|
Bus Speed
|
Bus Number*
|
Device Number**
|
Hot Plug
|
PCI Voltage
|
1
|
64-bit/133MHz PCI-X
|
10
|
1
|
no
|
3.3 Volt
|
2
|
64-bit/100MHz PCI-X
|
6
|
1
|
no
|
3.3 Volt
|
3
|
64-bit/100MHz PCI-X |
6
|
2
|
no
|
3.3 Volt
|
NOTE: The Smart
Array P600 Array Controller (SAS) with 256MB BBWC installed in Slot 1 on
SAS models.
NOTE: Universal cards are supported. |
PCI-X Hot Plug Riser (Optional) |
|
|
|
|
|
|
1
|
64-bit/133MHz PCI-X
|
10
|
1
|
no
|
3.3 Volt
|
2
|
64-bit/100MHz PCI-X
|
6
|
1
|
yes
|
3.3 Volt
|
3
|
64-bit/100MHz PCI-X |
6
|
2
|
yes
|
3.3 Volt
|
NOTE:
Universal cards are supported |
PCI Express Non-Hot Plug
Riser
(Optional on U320 SCSI Models only)
|
|
|
|
|
|
|
1
|
PCI Express x4 |
8
|
0
|
no
|
NA
|
2
|
PCI Express x4 |
5
|
0
|
no
|
NA
|
NOTE: x8 cards are supported but will run at x4 speeds.
*NOTE: Default bus assignment. Inserting cards with PCI bridges
may alter the actual bus assignment number.
**NOTE: Slots are enumerated differently based on OS. MS OS's enumerate
from lowest to highest Device ID by bus (starting with the lowest bus).
|
|
Storage Controller
One of the following depending on model
|
Smart Array 6i Controller (integrated
on system board) |
Smart Array P600/256 BBWC Controller
(SAS Models) |
|
Storage |
Diskette Drive
|
1.44 MB Diskette Drive (optional
on some models) |
Optical Drive |
24x IDE CD-ROM (IDE DVD-ROM
included on High performance models) |
Hard Drives |
None Standard
NOTE: U320 SCSI models can be operated
in single channel or dual channel (2/4 split). SCSI configuration kit (364471-B21)
is required for dual channel configurations. |
|
Maximum Internal
Storage Type |
Hot Plug U320 SCSI
|
1.8TB |
6 x 300GB with standard internal
hot plug SCSI drive cage |
Hot Plug SAS |
1.168TB |
8 x 146GB with standard internal
hot plug small form factor SAS drive cage |
|
Interfaces |
Serial |
1 |
Pointing Device (Mouse) |
1 |
Graphics |
1 |
Keyboard |
1 |
External SCSI (VHDCI) |
1
NOTE: External VHDCI not included on SAS Models. |
Network RJ-45 |
3 (1 for iLO) |
USB 2.0 Ports |
3 total: 1 front, 2 back
NOTE: Please see the following URL
for additional information regarding USB support:
https://h18004.www1.hp.com/products/servers/platforms/usb-support.html. |
|
Graphics |
Integrated ATI Rage XL Video
Controller with 8-MB SDRAM Video Memory |
|
Form Factor |
Rack (2U), (3.5-inch) |
|
ProLiant
Essentials Foundation Pack Software |
HP Systems Insight Manager |
HP Systems Insight Manager (HP SIM) provides a unified, secure
and extensible environment to centrally manage servers, storage
and other infrastructure devices across multiple operating system
platforms.
Through a single management view, HP SIM provides core management
services that include device discovery and identification, event
views, health monitoring, inventory data collection, software version
control and reporting. HP SIM is built on industry standards and
is extensible with value-added ProLiant Essentials, Integrity Essentials
and Storage Essentials software to meet individual management needs.
For more details on HP SIM visit https://www.hp.com/go/hpsim.
HP SIM provides organizations with the following benefits:
- Simplifies and consolidates infrastructure lifecycle management
using task and query based functionality
- Provides the foundation for infrastructure automation and virtualization
- Enables IT management based on business processes not hardware
platforms
- Lowers infrastructure maintenance cost and frees resources
for innovation
- Maximizes resource utilization with virtualization technologies
- Provides a central point of integration between infrastructure
and Enterprise management tools such as HP OpenView
|
|
SmartStart | SmartStart
is a tool that simplifies server setup, providing a rapid way to deploy reliable
and consistent server configurations. For more information, please visit the SmartStart
Web site at: https://www.hp.com/servers/smartstart
SmartStart version supported (minimum): SmartStart 7.10 SmartStart version
supported (minimum for SCSI models): SmartStart 7.10 SmartStart version supported
(minimum for SAS models): SmartStart 7.30 | |
Insight
Management Agents |
Insight Management Agents
should be installed on all HP servers to present system instrumentation,
health and configuration information into HP Systems Insight Manager
and the HP System Management Homepage. The HP System Management Homepage
aggregates systems data from Insight Management Agents and other HP
management tools, providing a consolidated browser-based interface
for managing individual servers,
Insight Management Agents and The HP System Management Homepage are
included on ProLiant Support Packs, and can also be installed using
the server profiles provided with the ProLiant Essentials Rapid Deployment
Pack. For additional information about the Management Agents and the
HP System Management Homepage please visit the management Web site
at https://www.hp.com/servers/manage |
|
Subscribers Choice | Subscriber's
Choice Driver and Support Alerts/Notifications is a web-based email subscription
service that provides automatic delivery of software and driver change notifications
for ProLiant products. Sign up at https://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become available,
on a weekly or monthly basis. | |
ROMPaq,
support software, and configuration utilities | The
latest software, drivers, and firmware fully optimized and tested for your ProLiant
server and options available in SmartStart or downloadable from Software and Drivers
download pages https://www.hp.com/go/support. |
|
Insight Diagnostics Online
Edition | The most advanced configuration
analysis, reporting and troubleshooting utilities used by HP and at your fingertips,
available in SmartStart. | |
Optional ProLiant Essentials
Value Packs |
Optional software offerings that selectively extend the functionality
of an Adaptive Infrastructure to address specific business problems
and needs:
- Rapid Deployment Pack (RDP) is an automated deployment and
provisioning solution for all ProLiant servers. RDP includes the
ProLiant Integration Module featuring ProLiant server pre-configured
events for OS installation, and optimized software drivers, firmware
and management agents. Every RDP disc includes 7-day, 10-node
trial licenses for evaluation purposes. RDP requires a license
for each server deployed and is available for purchase with HP
servers. For more information, visit: https://www.hp.com/servers/rdp.
- Workload Management Pack - provides easier management of complex
environments, improving overall server utilization and enabling
Windows 2000 customers for the first time to confidently deploy
multiple applications on a single multiprocessor ProLiant Server.
- Performance Management Pack - a performance management solution
that identifies and explains hardware performance bottlenecks
on ProLiant servers and attached options enabling users to better
utilize their valuable resources.
- Intelligent Networking Pack - detects and analyzes network bottlenecks
or broken network linkages and steers traffic to the optimum route
based on network conditions, plus it provides an extra layer of
protection. The virus throttle feature of the solution slows the
propagation of fast spreading virus.
- Vulnerability and Patch Management Pack - identifies and remediates
software security vulnerabilities due to missing patches as well
operating system configurations that can be exploited by viruses,
worms, and other blended threats.
- Virtual Machine Management Pack - provides central management
and control of virtual machines from Microsoft and VMware. Integrated
approach provides the ability to manage both physical and virtual
resources from a single management console.
- Server Migration Pack - The Server Migration Pack automates
the manual processes required for migrating servers between physical
or virtual platforms (P2V, V2P, and V2V).
- Server Migration Pack - P2P Edition: Upgrading or replacing
your existing server? Effortlessly transition to new servers with
automated, accurate and affordable migration of OS, application
and data.
|
Optional Remote Management
Packs |
- Integrated Lights-Out Advanced Pack - upgrades the Integrated
Lights-Out processor to full virtual presence and control with
graphical console and virtual media.
|
|
NOTE: Flexible
and volume quantity license kits are available for ProLiant Essentials Value Packs.
Refer to https://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software,
please see the following URL: https://www.hp.com/servers/proliantessentials |
|
Industry Standard Compliance |
ACPI 2.0 Compliant
PCI 2.2 Compliant
WOL Support
Microsoft® Logo certifications
USB 2.0 Support |
|
Remote Management |
Integrated Lights Out (iLO) Standard Management:
- Virtual Text Remote Console
- Virtual Power Button Control
- Dedicated & shared LAN Connectivity
- Browser and command line access
- Automatic IP Configuration via DHCP/DNS/WINS
- Industry Standard 128-bit Secure Sockets Layer
(SSL) and Secure Shell Security
- IML and iLO Event Logging
- Support for 12 user accounts with customizable access privilege
Integrated Lights Out Advanced Pack (optional) Remote Graphical Console:
- Microsoft Remote Desktop for Administrators
integration
- Virtual media (floppy, CD, USB key, floppy
images and ISO images)
- User access management via Directory Services
- Two-factor authentication
Remote Insight Lights-Out Edition II (optional)
|
|
Intelligent
Manageability |
HP Systems Insight Manager
SmartStart
Redundant ROM
Remote Flash ROM
Management Agent
Integrated Management Log
Automatic Server Recovery (ASR)
Dynamic Sector Repairing (with Smart Array Controllers)
Drive Parameter Tracking (with Smart Array Controllers)
Hot Spare Boot
(NOTE: Upon the event of a failed
processor or VRM in a multi-processing environment, the system will automatically
reboot and use the remaining good processor(s).)
Pre-Failure Warranty (covers processors,
SCSI
hard drives and memory) |
|
Server
Power Cords |
One Lowline NEMA power cord
and One Highline IEC Power cord ships standard in most NA models. Smart
Buys include one IEC power cable per power supply. Localized cables included
with geographic specific models in other world regions. |
|
Power Supply |
575 Watt, CE Mark Compliant
Optional Hot Plug AC Redundant Power Supply |
|
System Fans |
5 hot plug fans ship standard.
8 hot plug fans total supported internally for full redundancy
NOTE: The additional 3 fans are available
via Redundant Fan Option Kit (PN 293048-B21), this kit is included with
all high performance, SAS models and 2MB cache models. |
|
Rack
Airflow Requirements |
Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires
increased cooling efficiency for rack-mounted servers. The 10000 Series
Racks provide enhanced airflow for maximum cooling, allowing these racks
to be fully loaded with servers using the latest processors.
CAUTION: If a third-party rack
is used, observe the following additional requirements to ensure adequate
airflow and to prevent damage to the equipment:
- Front and rear doors: If your 42U server
rack includes closing front and rear doors, you must allow 830 square
inches (5,350 sq cm) of hole evenly distributed from top to bottom
to permit adequate airflow (equivalent to the required 64 percent
open area for ventilation).
- Side: The clearance between the installed
rack component and the side panels of the rack must be a minimum of
2.75 inches (7 cm).
CAUTION: Always use blanking panels
to fill all remaining empty front panel U-spaces in the rack. This arrangement
ensures proper airflow. Using a rack without blanking panels results in
improper cooling that can lead to thermal damage.
|
|
NOTE: For additional
information, refer to the Setup and Installation Guide or the Documentation
CD provided with the server, or to the server documentation located in the
Support section at the following URL: https://h18000.www1.hp.com/products/servers/proliantdl380/index.html. |
|
Rack Kit |
The HP ProLiant DL380 quick
deploy rail system provides tool-free support for racks with square or round
mounting holes (including Compaq/HP 7000*,
9000, 10000 and HP series), with an adjustment range of 24" - 36".
The ambidextrous cable management arm can be mounted on either the left
or right side for improved cable management.
NOTE: Cable management arm must be
removed to access hot-plug power supplies when the cable management arm
is mounted on the right.
*NOTE: High Airflow Inserts (High Air Flow Rack Door Insert for the
7142 Rack (single) PN: 327281-B21; or High Air Flow Rack Door Insert
for the 7142 Rack (6-pack) PN: 327281-B22) are required to support
the HP ProLiant DL380 G4 in 7000 series racks. The DL380 G4 Cable Management
Arm is not supported on 7000 series racks. |
|
Telco Rack Support |
DL380 G4 Telco Rack Kit:
Support for all 2-post Telco racks requires the use of the standard rack
kit and an additional option kit from Rack Solutions (https://www.racksolutions.com/hp/) |
|
Factory Express Portfolio for
Servers and Storage |
HP Factory Express offers configuration, customization, integration and
deployment services for HP servers and storage products. Customers can
choose how their factory solutions are built, tested, integrated, shipped
and deployed.
Factory Express offers service packages for simple
configuration, racking, installation, complex configuration and design services as well
as individual factory services, such as image loading, asset tagging, and
custom packaging. HP products supported through Factory Express include a wide
array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant
Server Blades, HP BladeSystem, HP 9000 servers as well as the MSA1000,
VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.
For more information on Factory Express services for your specific server
model please contact your sales representative or go to https://www.hp.com/go/factory-express.
|
|
HP Enterprise Configurator |
The HP eCo-Enterprise Configurator
now provides factory default racking for our HP hardware portfolio. This
approach is aligned with our strategic direction to meet the needs and expectations
of our valued customers. If you require "custom" rack configuration,
please contact HP's Customer Business Center or an Authorized Partner for
assistance.
https://www.hp.com/products/configurator |
|
HP ProLiant Smart Buys (NA
only) |
The HP Smart Buy program offers mainstream business solutions at competitive
prices with excellent availability and superior HP quality. It offers
a wide range of industry-leading HP products at compelling prices, allowing
you to receive richer configurations with additional options.
NOTE: ProLiant Smart Buys are
available in NA only. For detailed specification information on ProLiant
Smart Buys please click on the following link: ftp://ftp.compaq.com/pub/products/servers/smartbuys.pdf
|
|
Service
and Support |
This product is covered by a global limited warranty and supported by
HP Services and a worldwide network of resellers and service providers.
Hardware diagnostic support and repair is available for three years from
date of purchase. Support for software and initial setup is available
for 90 days from date of purchase. Additional support may be covered under
the warranty or available for an additional fee. Enhancements to warranty
services are available through HP Care Pack services or customized service
agreements.
NOTE: Server Warranty includes
3 year Parts, 3 year Labor, 3-year on-site support. Additional information
regarding worldwide limited warranty and technical support is available
at: https://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
HP Care Pack services include coverage for the HP branded hardware options
qualified for the server, purchased at the same time or afterward, internal
to the enclosure, as well as 22" and smaller external monitors and
tower UPS options up to 3kVA; these items will be covered at the same
service level and for the same coverage period as the server. Coverage
of UPS Battery is not included, standard warranty terms & conditions
apply. For servers or storage systems installed within a rack, service
also covers all HP qualified rack options installed within the same rack.
HP services provide continuous care and support expertise with committed
response designed to meet your IT and business needs.
To fully capitalizing on your HP ProLiant servers' capabilities requires
a service partner who thoroughly understands your server technology and
systems environment. HP Services, an industry leader in provision of multi
vender support solutions provides a range of support services designed
to meet the varying needs of business. Whether an SMB or large global
corporation HP has a ProLiant server support offer to help you speedily
deploy and maximize system uptime.
Enhanced Care - Minimum recommended service support offer designed to
ensure customers have access to expert assistance, whenever they need
it.
- 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years
Continuous Care - Recommended service delivering cost-effective support
options designed to extend HP Services committed response and guaranteed
fix times, designed to speed problem identification and resolution.
- 6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage,
3 Years
Total Care - Highest HP Support service level recommend to help increase
IT performance and availability with comprehensive, integrated hardware
and software services
- Support Plus 24 - Onsite HW support 24x7, 4hr response and Microsoft
O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response
time incl. HP holidays
Deployment Services - HP Installation and Start Up services designed
to take time, risk, and worry out of the deployment of ProLiant servers
- and free customers IT support staff to focus on what they do best, their
business.
- Installation & Start-Up of a ProLiant server and Microsoft
or Linux O/S per the Customer Description and/or Data Sheet. To be delivered
on a scheduled basis 8am-5pm, M-F, excl. HP holidays
|
|
NOTE: For a complete listing of service
offerings and information visit:
https://www.hp.com/services/proliantservices
https://www.hp.com/go/proliant/carepack
|
Models
DL380R04 X3.0-2MB/800,
1GB SAS
382483-xx1
|
Processor(s) |
(1) Intel Xeon Processor 3.0
GHz (up to 2 supported) |
Cache Memory |
2MB level 2 cache per processor |
Memory |
1 GB (2 x 512 MB) of 2-way interleaved
PC2-3200R 400MHz DDR2 with Advanced ECC and online spare memory capabilities |
Network Controller |
Embedded NC7782 PCI-X Gigabit
Server Adapter |
Storage Controller |
Smart Array P600/256 BBWC Controller
(installed in PCI-X slot) |
Hard Drive |
None ship standard |
Internal Storage |
1.168TB max (with optional
hard drives) |
Optical Drive |
24x IDE CD-ROM (Universal Media
Bay) |
Diskette Drive |
Optional |
Form Factor |
Rack (2U), (3.5-inch) |
Availability |
Hot Plug Fully Redundant Fans
Standard |
|
DL380R04 X3.4-2MB/800,
1GB SAS
382484-xx1 |
Processor(s) |
(1) Intel Xeon Processor 3.4
GHz (up to 2 supported) |
Cache Memory |
2MB level 2 cache per processor |
Memory |
1 GB (2 x 512 MB) of 2-way interleaved
PC2-3200R 400MHz DDR2 with Advanced ECC and online spare memory capabilities |
Network Controller |
Embedded NC7782 PCI-X Gigabit
Server Adapter |
Storage Controller |
Smart Array P600/256 BBWC Controller
(installed in PCI-X slot) |
Hard Drive |
None ship standard |
Internal Storage |
1.168TB max (with optional
hard drives) |
Optical Drive |
24x IDE CD-ROM (Universal Media
Bay) |
Diskette Drive |
Optional |
Form Factor |
Rack (2U), (3.5-inch) |
Availability |
Hot Plug Fully Redundant Fans
Standard |
|
DL380R04 X3.6-2MB/800,
2GB SAS High Performance
382485-xx1 |
Processor(s) |
(2) Intel Xeon Processor 3.6
GHz |
Cache Memory |
2MB level 2 cache per processor |
Memory |
2 GB (2 x 1024 MB) of 2-way interleaved
PC2-3200R 400MHz DDR2 with Advanced ECC and online spare memory capabilities |
Network Controller |
Embedded NC7782 PCI-X Gigabit
Server Adapter |
Storage Controller |
Smart Array P600/256 BBWC Controller
(installed in PCI-X slot) |
Hard Drive |
None ship standard |
Internal Storage |
1.168TB max (with optional
hard drives) |
Optical Drive |
DVD-ROM Drive |
Diskette Drive |
1.44 MB Diskette Drive |
Form Factor |
Rack (2U), (3.5-inch) |
Availability |
Hot Plug Fully Redundant Fans
Standards
Hot Plug Redundant Power Supplies Standard |
|
DL380R04 X3.8-2MB/800,
1GB SAS
397628-xx1 |
Processor(s) |
(1) Intel Xeon Processor 3.8
GHz (up to 2 supported) |
Cache Memory |
2MB level 2 cache per processor |
Memory |
1 GB (2 x 512 MB) of 2-way interleaved
PC2-3200R 400MHz DDR2 with Advanced ECC and online spare memory capabilities |
Network Controller |
Embedded NC7782 PCI-X Gigabit
Server Adapter |
Storage Controller |
Smart Array P600/256 BBWC Controller
(installed in PCI-X slot) |
Hard Drive |
None ship standard |
Internal Storage |
1.168TB max (with optional
hard drives) |
Optical Drive |
24x IDE CD-ROM (Universal Media
Bay) |
Diskette Drive |
Optional |
Form Factor |
Rack (2U), (3.5-inch) |
Availability |
Hot Plug Fully Redundant Fans
Standard |
|
U320 SCSI Models (Processors
with 2MB Level 2 cache) |
|
DL380R04 X3.8-2MB/800,
1GB
378741-xx1 |
Processor(s) |
(1) Intel Xeon Processor 3.8
GHz (up to 2 supported) |
Cache Memory |
2MB level 2 cache per processor |
Memory |
1 GB (2 x 512 MB) of 2-way interleaved
PC2-3200R 400MHz DDR2 with Advanced ECC and online spare memory capabilities |
Network Controller |
Embedded NC7782 PCI-X Gigabit
Server Adapter |
Storage Controller |
Ultra320 Smart Array 6i Controller
(integrated on system board) |
Hard Drive |
None ship standard |
Internal Storage |
1.8TB max (with optional hard
drives) |
Optical Drive |
24x IDE CD-ROM (Universal Media
Bay) |
Diskette Drive |
Optional |
Form Factor |
Rack (2U), (3.5-inch) |
Availability |
Hot Plug Fully Redundant Fans
Standard |
|
DL380R04 X3.6-2MB/800,
1GB
378739-xx1
|
Processor(s) |
(1) Intel Xeon Processor 3.6
GHz (up to 2 supported) |
Cache Memory |
2MB level 2 cache per processor |
Memory |
1 GB (2 x 512 MB) of 2-way interleaved
PC2-3200R 400MHz DDR2 with Advanced ECC and online spare memory capabilities |
Network Controller |
Embedded NC7782 PCI-X Gigabit
Server Adapter |
Storage Controller |
Ultra320 Smart Array 6i Controller
(integrated on system board) |
Hard Drive |
None ship standard |
Internal Storage |
1.8TB max (with optional hard
drives) |
Optical Drive |
24x IDE CD-ROM (Universal Media
Bay) |
Diskette Drive |
Optional |
Form Factor |
Rack (2U), (3.5-inch) |
Availability |
Hot Plug Fully Redundant Fans
Standard |
|
DL380R04 X3.4-2MB/800,
1GB
378737-xx1
|
Processor(s) |
(1) Intel Xeon Processor 3.4
GHz (up to 2 supported) |
Cache Memory |
2MB level 2 cache per processor |
Memory |
1 GB (2 x 512 MB) of 2-way interleaved
PC2-3200R 400MHz DDR2 with Advanced ECC and online spare memory capabilities |
Network Controller |
Embedded NC7782 PCI-X Gigabit
Server Adapter |
Storage Controller |
Ultra320 Smart Array 6i Controller
(integrated on system board) |
Hard Drive |
None ship standard |
Internal Storage |
1.8TB max (with optional hard
drives) |
Optical Drive |
24x IDE CD-ROM (Universal Media
Bay) |
Diskette Drive |
Optional |
Form Factor |
Rack (2U), (3.5-inch) |
Availability |
Hot Plug Fully Redundant Fans
Standard |
|
DL380R04 X3.2-2MB/800,
1GB
378736-xx1
|
Processor(s) |
(1) Intel Xeon Processor 3.2
GHz (up to 2 supported) |
Cache Memory |
2MB level 2 cache per processor |
Memory |
1 GB (2 x 512 MB) of 2-way interleaved
PC2-3200R 400MHz DDR2 with Advanced ECC and online spare memory capabilities |
Network Controller |
Embedded NC7782 PCI-X Gigabit
Server Adapter |
Storage Controller |
Ultra320 Smart Array 6i Controller
(integrated on system board) |
Hard Drive |
None ship standard |
Internal Storage |
1.8TB max (with optional hard
drives) |
Optical Drive |
24x IDE CD-ROM (Universal Media
Bay) |
Diskette Drive |
Optional |
Form Factor |
Rack (2U), (3.5-inch) |
Availability |
Hot Plug Fully Redundant Fans
Standard |
|
DL380R04 X3.0-2MB/800,
1GB
378735-xx1
|
Processor(s) |
(1) Intel Xeon Processor 3.0
GHz (up to 2 supported) |
Cache Memory |
2MB level 2 cache per processor |
Memory |
1 GB (2 x 512 MB) of 2-way interleaved
PC2-3200R 400MHz DDR2 with Advanced ECC and online spare memory capabilities |
Network Controller |
Embedded NC7782 PCI-X Gigabit
Server Adapter |
Storage Controller |
Ultra320 Smart Array 6i Controller
(integrated on system board) |
Hard Drive |
None ship standard |
Internal Storage |
1.8TB max (with optional hard
drives) |
Optical Drive |
24x IDE CD-ROM (Universal Media
Bay) |
Diskette Drive |
Optional |
Form Factor |
Rack (2U), (3.5-inch) |
Availability |
Hot Plug Fully Redundant Fans
Standard |
|
DL380R04 X3.8-2MB/800,
2GB High Performance
378742-xx1 |
Processor(s) |
(2) Intel Xeon Processor 3.8
GHz |
Cache Memory |
2MB level 2 cache per processor |
Memory |
2 GB (2 x 1024 MB) of 2-way
interleaved PC2-3200R 400MHz DDR2 with Advanced ECC and online spare memory
capabilities |
Network Controller |
Embedded NC7782 PCI-X Gigabit
Server Adapter |
Storage Controller |
Ultra320 Smart Array 6i Controller
(integrated on system board) with 128MB Battery Backed Write Cache (BBWC)
and Duplex backplane standard (SCSI configuration kit) |
Hard Drive |
None ship standard |
Optical Drive |
DVD-ROM Drive |
Diskette Drive |
1.44 MB Diskette Drive |
Form Factor |
Rack (2U), (3.5-inch) |
Availability |
Hot Plug Fully Redundant Fans
Standards
Hot Plug Redundant Power Supplies Standard |
|
DL380R04 X3.6-2MB/800,
2GB High Performance
378740-xx1
|
Processor(s) |
(2) Intel Xeon Processor 3.6
GHz |
Cache Memory |
2MB level 2 cache per processor |
Memory |
2 GB (2 x 1024 MB) of 2-way interleaved
PC2-3200R 400MHz DDR2 with Advanced ECC and online spare memory capabilities |
Network Controller |
Embedded NC7782 PCI-X Gigabit
Server Adapter |
Storage Controller |
Ultra320 Smart Array 6i Controller
(integrated on system board) with 128MB Battery Backed Write Cache (BBWC)
and Duplex backplane standard (SCSI configuration kit) |
Hard Drive |
None ship standard |
Optical Drive |
DVD-ROM Drive |
Diskette Drive |
1.44 MB Diskette Drive |
Form Factor |
Rack (2U), (3.5-inch) |
Availability |
Hot Plug Fully Redundant Fans
Standards
Hot Plug Redundant Power Supplies Standard |
|
DL380R04 X3.4-2MB/800,
2GB High Performance
378738-xx1 |
Processor(s) |
(2) Intel Xeon Processor 3.4
GHz |
Cache Memory |
2MB level 2 cache per processor |
Memory |
2 GB (2 x 1024 MB) of 2-way interleaved
PC2-3200R 400MHz DDR2 with Advanced ECC and online spare memory capabilities |
Network Controller |
Embedded NC7782 PCI-X Gigabit
Server Adapter |
Storage Controller |
Ultra320 Smart Array 6i Controller
(integrated on system board) with 128MB Battery Backed Write Cache (BBWC)
and Duplex backplane standard (SCSI configuration kit) |
Hard Drive |
None ship standard |
Optical Drive |
DVD-ROM Drive |
Diskette Drive |
1.44 MB Diskette Drive |
Form Factor |
Rack (2U), (3.5-inch) |
Availability |
Hot Plug Fully Redundant Fans
Standards
Hot Plug Redundant Power Supplies Standard |
|
Country Code Key |
XX=00 |
U.S. |
|
XX=20 |
Brazil |
|
XX=29 |
Japan |
|
XX=37 |
APD |
|
XX=42 |
Euro |
|
XX=AA |
PRC |
Configuration Information - Factory Integrated Models (North America only)
NOTE: For Configure to Order requirements within EMEA region, please
consult local Sales Contact. NOTE: HP does not allow factory integration
of options into standard models listed above. Configure-to-order servers must
start with a CTO Chassis. NOTE: This product offering does not support
HP Factory Express Server Configuration Level 1. NOTE: FIO indicates
that this option only available as a Factory Installable Option. |
Step 1: Base Configuration | Models | HP
ProLiant DL380G4 U320 SCSI Rack Chassis (North America) | 371293-405 |
Factory Integrated
Model ships with: | |
(6) U320 SCSI
Drive Bays
Ultra320 Smart Array 6i Controller (integrated on system board)
Embedded NC7782 PCI-X Gigabit Server Adapter
Three available 64-bit PCI-X slots, including two non-hot plug 100MHz slots
and one non-hot plug 133MHz slot
575 Watt hot plug power supply, CE Mark Compliant
One Lowline NEMA power cord and One Highline IEC Power cord
5 hot plug fans
Rack (2U), (3.5-inch)
|
| HP
ProLiant DL380G4 SAS Model Rack Chassis (North America) |
383891-405 | Factory
Integrated Model ships with: | |
(8) SFF Serial
Attached SCSI (SAS) Drive Bays
Embedded NC7782 PCI-X Gigabit Server Adapter
Three 64-bit PCI-X slots (2 available after SAS starter kit installed),
including two non-hot plug 100MHz slots and one non-hot plug 133MHz slot
575 Watt hot plug power supply, CE Mark Compliant
One Lowline NEMA power cord and One Highline IEC Power cord
8 hot plug fans
Rack (2U), (3.5-inch)
| |
|
Step
1A: If SAS Model, Choose SAS Starter Kit or Controller (only one of the
following) |
SAS Controller |
HP Smart Array
P600/256 BBWC Controller
NOTE: This is a required selection
if one of the two following SAS Starter Kits is not selected. If choosing
this sku, SFF SAS hard drives must still be selected under Step 4.
|
337972-B21 |
SAS
Starter Kit |
SAS Starter Kit
- 36GB
NOTE: Includes Smart Array P600/256
BBWC Controller and (2) 36GB SFF SAS Universal Hard Drives. |
396221-B21 |
SAS Starter Kit
- 72GB
NOTE: Includes Smart Array P600/256
BBWC and (2) 72GB SFF SAS Universal Hard Drives. |
396220-B21 |
|
Step
2: Choose Required Options (only one of the following from each list unless
otherwise noted) |
Processors |
Intel X2.8-2MB/800MHz
DL380 G4 FIO BASE
NOTE: If 2 processors are desired,
select one 397645-L22 and one 397645-B21.
Redundant Fan Kit (293048-B21) also required
if choosing this processor with 371293-405.
|
397645-L22 |
Intel X3.8-2MB/800MHz
DL380 G4 FIO BASE
NOTE: If 2 processors are desired,
select one 378752-L22 and one 378752-B21 unless High Performance Model features
are sought. If HPM features are desired, select one 378752-L22 and one 382618-001.
Unless 382618-001 is selected, a Redundant
Fan Kit (293048-B21) is also required if choosing this processor with 371293-405. |
378752-L22 |
Intel X3.0-2MB/800MHz
LV DL380 G4 FIO BASE
NOTE: If 2 processors are desired,
select one 397646-L22 and one 397646-B21.
Redundant Fan Kit (293048-B21) also required
if choosing this processor with 371293-405.
|
397646-L22 |
Intel X3.0/800-2M
380 G4 FIO BASE
NOTE: If 2 processors are desired,
select one 378748-L22 and one 378748-B21.
Redundant Fan Kit (293048-B21) also required if choosing this processor
with 371293-405. |
378748-L22
|
Intel X3.2/800-2M
380 G4 FIO BASE
NOTE: If 2 processors are desired,
select one 378749-L22 and one 378749-B21.
Redundant Fan Kit (293048-B21) also required if choosing this processor
with 371293-405. |
378749-L22
|
Intel X3.4/800-2M 380 G4 FIO BASE
NOTE: If 2 processors are desired,
select one 378750-L22 and one 378750-B21 unless High Performance Model
features are sought. If HPM features are desired, select one 378750-L22
and one 382616-001. Unless 382616-001 is selected, a Redundant Fan Kit
(293048-B21) is also required if choosing this processor with 371293-405.
|
378750-L22
|
Intel X3.6/800-2M
380 G4 FIO BASE
NOTE: If 2 processors are desired,
select one 378751-L22 and one 378751-B21 unless High Performance Model features
are sought. If HPM features are desired, select one 378751-L22 and one 382617-001
or 391323-001 if SAS HPM model.
Unless 382617-001 is selected, a Redundant
Fan Kit (293048-B21) is also required if choosing this processor with 371293-405. |
378751-L22
|
Base
Memory |
1 GB of Advanced
PC2 PC3200 DDR2 SDRAM DIMM Memory Kit (2 x 512 MB) |
|
2 GB of Advanced
PC2 PC3200 DDR2 SDRAM DIMM Memory Kit (2 x 1024 MB) |
|
4 GB of Advanced
PC2 PC3200 DDR2 SDRAM DIMM Memory Kit (2 x 2048 MB) |
|
|
Step
3: Choose Additional Factory Integratable Options |
Optical
Drive |
Slimline DVD-ROM
Drive (8x/24x) Option Kit |
264007-B21 |
Slimline CD-RW/DVD-ROM
Combo Option Kit |
331903-B21 |
HP ProLiant Slim
CD-ROM FIO Base |
338732-B21 |
Performance
Packs |
The HP
ProLiant DL380 G4 performance packs are necessary to configure a HP ProLiant
DL380 G4 High Performance Model. HP ProLiant DL380 G4 High Performance model
includes the latest performance technologies and enterprise class availability
features pre-installed for convenience and value. The performance pack includes
a 2nd processor, redundant fans and power supplies, floppy drive, 128MB
(U320 SCSI models) or 256MB (SAS models) of BBWC and the duplex backplane
option for U320 SCSI (SCSI configuration kit). |
|
HP DL380G4 3.4/2M
HPM Perf Pack FIO, US |
382616-001 |
HP DL380G4 3.6/2M
HPM Perf Pack FIO, US |
382617-001 |
HP DL380G4 3.8/2M
HPM Perf Pack FIO |
382618-001 |
HP DL380G4 3.6/2M
SAS HPM Perf Pack FIO, US |
391323-001 |
HP DL380G4 X2.8-800-2x2M
HPM Perf Pack FIO, US (Dual-core) |
399631-001 |
|
Step
4: Choose Additional Options for Factory Integration |
NOTE:
For additional options, please refer to the "Options" section
below. |
Options
NOTE:
Some options may not be factory integratable. Please contact your local
sales representative for additional information. |
HP
ProLiant DL380 G4 Unique Options |
PCI-X Hot Plug Riser
Cage Option Kit |
354676-B21
|
PCI Express Riser
Cage Option Kit
NOTE: Not Supported on SAS models.
For information about PCI Express visit: https://www.hp.com/servers/pci-express.
|
354675-B21
|
|
ProLiant
Essentials
Value Pack Software |
ProLiant Essentials
Intelligent Networking Pack |
|
ProLiant Essentials
Intelligent Networking Pack - Windows Edition, Single Server License
NOTE: For use with a single server.
Contains one license with a unique license activation key and documentation.
|
|
NOTE:
For additional ProLiant Intelligent Networking Pack License Kits please
see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12062_div/12062_div.html
|
|
ProLiant Essentials
Intelligent Networking Pack - Linux Edition, Single Server License
|
436229-B21
|
NOTE:
For additional ProLiant Intelligent Networking Pack License Kits please
see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12327_div/12327_div.html |
|
ProLiant Essentials
Performance Management Pack |
|
ProLiant Essentials
Performance Management Pack, Single-Server License
NOTE: For use with a single server.
Contains one license with a unique license activation key, HP Management
CD and documentation.
NOTE: The most recent version of the software can always be downloaded
at https://www.hp.com/products/pmp. |
|
NOTE:
For additional ProLiant Performance Management Pack License Kits please
see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/11925_div/11925_div.html
|
|
ProLiant Essentials
Rapid Deployment Pack Windows Edition Release |
|
Rapid Deployment
Pack, Single-Server License
NOTE: This license allows 1 server
to be deployed and managed via RDP. |
|
Rapid Deployment
Pack, Single-Server License (Japan)
NOTE: This license allows 1 server to be deployed and managed via
RDP. |
|
ProLiant Essentials
Rapid Deployment Pack - Physical Media Kit
|
434559-B21
|
ProLiant Essentials
Rapid Deployment Pack Flatpack - single-server license |
434560-B21
|
NOTE:
For additional ProLiant Essentials Rapid Deployment Pack License Kits please
see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/11053_div/11053_div.html
|
|
ProLiant Essentials
Workload Management Pack |
|
ProLiant Essentials
Workload Management Pack, Single Server License |
|
NOTE:
For additional ProLiant Workload Management Pack License Kits please see
the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/11452_div/11452_div.html
|
|
ProLiant Essentials
Virtualization Management Software |
|
ProLiant Essentials
Virtual Machine Management Pack, Single-Server License
NOTE: For use with a single server.
Contains one license with a unique license activation key and documentation. |
435661-B21
|
ProLiant
Essentials Server Migration Pack, Single-Migration License
NOTE: Contains one license, enabling 1 server migration, with a unique
license activation key and documentation.
NOTE: This license allows 1 server to be migrated from a physical
server to a virtual machine. Or this license can be used to migrate a virtual
machine from one virtualization layer i.e. VMware GSX to a different virtualization
layer such as VMware ESX or Microsoft Virtual Server 2005. |
435663-B21
|
HP ProLiant Essentials
Server Migration Pack - Physical to ProLiant Edition. 1 Year Unlimited Migration
License
|
412982-B21
|
ProLiant Essentials
Server Migration Pack - Physical to ProLiant Edition, Single-Migration License |
412978-B21
|
NOTE:
For additional ProLiant Essentials Virtualization Management Software License
Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12328_div/12328_div.html
|
|
ProLiant Essentials
Vulnerability and Patch Management Pack |
|
ProLiant Essentials
Vulnerability and Patch Management Pack, Single-Server License
NOTE: For use with a single server.
Contains one license with a unique license activation key and documentation.
|
371645-B21
|
NOTE:
For additional ProLiant Vulnerability and Patch Management Pack License
Kits, please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12111_div/12111_div.html
|
|
NOTE:
Flexible and volume quantity license kits are available for ProLiant Essentials
Value Packs. Refer to https://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more
information.
NOTE: For more information regarding ProLiant Essentials Software,
please see the following URL: https://www.hp.com/servers/proliantessentials. |
|
|
Remote Management |
Integrated Lights-Out Advanced
Pack
|
|
Integrated Lights-Out Advanced
Pack, 1 server
Featuring:
Sophisticated virtual administration
features for ultimate control of servers in the data centers and remote
sites. |
263825-B21 |
NOTE:
For additional Integrated Light-Out Advanced Pack License Kits please see
the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/11052_div/11052_div.html
|
|
|
ProLiant Software
Maintenance Subscription |
ProLiant Software Maintenance
Subscription |
355060-B21 |
ProLiant Software Maintenance
Single Release |
356573-B21 |
ProLiant Foundation Pack Single
Release |
356604-B21 |
NOTE:
Please see the SmartStart QuickSpecs for additional information regarding
the subscription purchase:
https://h18000.www1.hp.com/products/quickspecs/division/11073.html
(Worldwide) |
|
|
Processor |
Intel Xeon X3.2-1MB/800MHz Processor
Option Kit |
374492-B21 |
Intel Xeon X2.8-2MB/800MHz Processor
Option Kit |
397645-B21 |
Intel Xeon X3.0-2MB/800MHz Processor
Option Kit |
378748-B21 |
Intel Xeon X3.0-2MB/800MHz LV
Processor Option Kit |
397646-B21 |
Intel Xeon X3.2-2MB/800MHz Processor
Option Kit |
378749-B21 |
Intel Xeon X3.4-2MB/800MHz Processor
Option Kit |
378750-B21 |
Intel Xeon X3.6-2MB/800MHz Processor
Option Kit |
378751-B21 |
Intel Xeon X3.8-2MB/800MHz Processor
Option Kit |
378752-B21 |
|
Memory
|
1 GB of Advanced PC2 PC3200 DDR2
SDRAM DIMM Memory Kit
(2 x 512 MB) |
|
2 GB of Advanced PC2 PC3200 DDR2
SDRAM DIMM Memory Kit
(2 x 1024
MB)
|
|
4 GB of Single-Ranked PC2 PC3200
DDR2 SDRAM DIMM Memory Kit
(2 x 2048 MB)
|
|
4 GB of 2-Rank Advanced ECC PC3200
DDR2-400 SDRAM DIMM Memory Kit (2 x 2048 MB)
NOTE: There are configuration limitations
associated with this kit, please see memory section for more information.
|
|
|
Optical Drives
|
Slimline CD-RW/DVD-ROM Combo Option
Kit |
|
Slimline DVD-ROM Drive (8x/24x)
Option Kit
NOTE: Included in high performance
models.
|
264007-B21 |
HP DVD+R/RW 8X Slim |
383975-B21 |
|
Diskette Drive
|
Floppy Drive Option Kit
NOTE: For U320 SCSI models only.
NOTE: Included in high performance models.
|
364507-B21
|
Floppy Drive Option Kit, SAS
NOTE: For SAS models only. |
393998-B21
|
|
Hard Drives |
Ultra320 SCSI - Universal Hot
Plug |
|
HP 300GB U320 10K Universal HDD
|
|
HP 146GB U320 10K Universal HDD
|
|
HP 72GB U320 10K Universal HDD
|
|
HP 300GB U320 15K Universal HDD
|
|
HP 146GB U320 15K Universal HDD
|
|
HP 72GB U320 15K Universal HDD
|
|
HP 36GB U320 15K Universal HDD |
|
NOTE: All U320
Universal Hard Drives are backward compatible to U2 or U3 speeds.
NOTE: Please see the Hard Drive QuickSpecs for Technical Specifications
such as capacity, height, width, interface, transfer rate, seek time, physical
configuration, and operating temperature:
https://h18000.www1.hp.com/products/quickspecs/11531_div/11531_div.html
(Worldwide) |
|
SFF
SATA Hot Plug |
|
HP 60GB 1.5G SATA 5.4K SFF HDD |
|
NOTE: SATA drives
have a 1 year warranty. Please see the SATA Hard Drive QuickSpecs for Technical
Specifications such as capacity, height, width, interface, transfer rate,
seek time, physical configuration, and operating temperature:
https://h18000.www1.hp.com/products/quickspecs/12091_div/12091_div.html
(Worldwide) |
|
SAS Hot Plug |
|
HP 146GB 3G SAS 10K SFF SP HDD
|
|
HP 72GB 3G SAS 10K SFF SP HDD
|
|
HP 72GB 3G SAS 15K SFF SP HDD
|
|
HP 36GB 3G SAS 10K SFF SP HDD |
|
HP 36GB 3G SAS 15K SFF SP HDD |
|
NOTE: All SAS
Universal Hard Drives are supported ONLY by HP ProLiant DL380 G4 SAS models.
NOTE: Please see the SAS Hard Drive QuickSpecs for Technical Specifications
such as capacity, height, width, interface, transfer rate, seek time, physical
configuration, and operating temperature:
https://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html
(Worldwide) |
|
|
SCSI Configuration Kit |
SCSI Configuration Kit
NOTE: Kit Includes duplex drive backplane
terminator and 2 long SCSI cables. Not supported on SAS models.
|
364471-B21
|
|
Communications
|
HP NC110T PCI Express Gigabit
Server Adapter
|
|
HP NC150T PCI 4-port Gigabit 1000T
Combo Switch Adapter |
|
HP NC310F PCI-X 1000SX Gigabit
Server Adapter |
|
HP NC340T PCI-X 4-port 1000T
Gigabit Server Adapter |
|
HP NC360T PCI Express Dual
Port Gigabit Server Adapter |
|
HP NC373F PCI Express Multifunction
Gigabit Server Adapter
|
|
HP NC373T PCI Express Multifunction
Gigabit Server Adapter
|
|
HP NC380T PCI Express Dual Port
Multifunction Gigabit Server Adapter
|
|
HP NC510F PCIe 10 Gigabit Server
Adapter
NOTE: A minimum of 1 gigabyte (1
GB) of server memory is required per each NC510F adapter.
|
|
HP NC510C PCIe 10 Gigabit Server
Adapter
NOTE: A minimum of 1 gigabyte (1
GB) of server memory is required per each NC510C adapter.
|
|
HP NC7771 PCI-X 1000T Gigabit
Server Adapter |
|
HP IB 4X SDR PCI-e single PORT
HCA |
|
HP IB 4X DDR PCI-e Single PORT
HCA |
|
|
Redundant Options
|
Hot Plug AC Redundant Power Supply
Module (NEMA and IEC cord)
(NA and Japan) |
355892-001
|
Hot Plug AC Redundant Power Supply
Module (IEC cord only) (WW) |
355892-B21
|
Redundant Fan Option Kit
NOTE: Hot Plug Redundant Fan Option
Kit (PN 293048-B21) contains three fans per kit, it is included in all 2MB
Cache, SAS and high performance models. |
293048-B21
|
|
Management Options
|
Remote Insight
Lights-Out Edition II (NA, LA)
|
|
Remote Insight
Lights-Out Edition II (EMEA)
|
227251-021
|
Remote Insight Lights-Out Edition
II (ROW) |
227251-371
|
|
Tape Drives |
NOTE: For
complete listing of tape drive offerings see https://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html
For recommended tape drive offerings for this ProLiant server see
the following: |
|
USB Tape Drives |
|
HP StorageWorks DAT 72 USB
Internal Tape Drive (Carbonite)
NOTE: HP recommends combining
this tape drive with the 1U USB Rack-Mount kit ( A8007A) for a complete
rack-mount solution. |
DW026A
|
Ultrium Tape Drives
NOTE:
The Ultrium tape drives must be connected to one of the supported
U320 SCSI controllers listed in the Storage section of this document. |
|
HP StorageWorks Ultrium
232 Internal Tape Drive (Carbonite)
NOTE: HP recommends combining
this tape drive with the 1U SCSI Rack-Mount kit ( A7445B) for a complete
rack-mount solution.
|
|
HP StorageWorks 3U SCSI
Rack-mount kit with one Ultrium 460 (Carbon)
|
350546-B22
|
HP StorageWorks 1U SCSI
Rack-mount kit with one Ultrium 448 SCSI Tape Drive (Carbonite)
|
DW028B
|
HP StorageWorks 1U SCSI
Rack-mount kit with one Ultrium 920 |
EH903A
|
HP StorageWorks 3U SCSI
Rack-mount kit with one Ultrium 960 (Carbonite) |
Q1595B
|
NOTE: Please
see the HP StorageWorks Ultrium Tape Drive QuickSpecs for additional
options such as controllers, media, and other related items:
https://h18006.www1.hp.com/products/quickspecs/11739_div/11739_div.html
(Worldwide)
https://h18006.www1.hp.com/products/quickspecs/12128_div/12128_div.html
(Worldwide)
For an up-to-date listing of the latest O/S and software support details
for HP Ultrium tape drives, please visit: https://www.hp.com/go/connect. |
|
Rack-Mount Tape Drive
Enclosures |
|
HP StorageWorks 1U SCSI
Rack-Mount kit
NOTE: The 1U Rack-Mount Kit
can support up to (2) half-height tape drives and is compatible with
multiple Single-Ended and LVD SCSI tape drives including the DAT 24,
DAT 40, DAT 72, DLT VS80, DLT VS160, Ultrium 215, Ultrium 232, Ultrium
448 and Ultrium 920 tape drives.
|
|
HP StorageWorks 1U USB Rack-Mount
Kit
NOTE: The 1U USB Rack-Mount
Kit can support up to (2) half-height tape drives and is compatible
with the DAT 24 USB, DAT 40 USB and DAT 72 USB tape drives.
|
|
HP
StorageWorks 3U Rack-mount kit
NOTE: The 3U Rack-mount Kit can support up to (2) full-height
or (4) half-height tape drives and compatible with multiple LVD SCSI
tape drives including DAT 40, DAT 72, DLT VS160, SDLT 320, SDLT 600,
Ultrium 232, Ultrium 460, Ultrium 448, Ultrium 920 and Ultrium 960
tape drives.
|
274338-B22
|
NOTE: Please
see the Rack-Mount Tape Drive Kits QuickSpecs for additional information
regarding these kits:
https://h18000.www1.hp.com/products/quickspecs/10854_div/10854_div.html
(Worldwide) |
|
|
|
Tape Autoloaders
|
HP StorageWorks DAT Autoloader |
|
HP StorageWorks DAT 72x10 tape
autoloader |
AE313A |
HP StorageWorks 1/8 Tape Autoloader
|
|
HP StorageWorks 1/8 Ultrium 920
G2 Tape Autoloader
|
AH165A |
HP StorageWorks 1/8 Ultrium 448
G2 Tape Autoloader
|
AH164A |
HP StorageWorks 1/8 Ultrium 232
G2 Tape Autoloader
|
AH163A |
HP StorageWorks 1/8 G2 Tape Autoloader
Rack Kit
NOTE: Required to install the 1/8
G2 Autoloaders in a standard 19-inch rack; includes rails and rackmount
instructions |
AH166A |
NOTE: Please reference
the Tape Autoloader QuickSpecs at https://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at https://www.hp.com/go/ebs
|
|
|
HP
Data Protector Express Software | HP
DP Express Backup Server Upgrade for ProLiant Software | BB117AP |
HP DP Express Package for Microsoft
Small Business Server | BB118AA |
NOTE: Please
see the HP Data Protector Express QuickSpecs for additional information regarding
the purchase of HP Data Protector Express software: https://h18000.www1.hp.com/products/quickspecs/12337_div/12337_div.html
(Worldwide) NOTE: To obtain a free licensed copy of HP Data Protector
Express for ProLiant edition software, please visit the "Protect Your Data"
link accessible from your ProLiant server's System Management Homepage (SMH) software
(SmartStart 7.5 or later). | |
|
HP StorageWorks Modular
Smart Array 20 |
HP StorageWorks Modular Smart
Array 20
NOTE: Rack-mountable 12 (SATA) drive
enclosure with U320 Host connectivity, redundant power supplies.
|
335921-B21 |
HP StorageWorks Modular Smart
Array 20 Starter Kit
NOTE: Rack-mountable 12 (SATA) drive
enclosure with U320 Host connectivity, redundant power supplies. Includes
Smart Array 6402/128 Controller.
|
366172-B21 |
NOTE: The Modular
Smart Array Enclosure 20 Family supports the SATA 1.5Gb/s 3.5” Hot
Plug Hard Drives. |
|
|
HP StorageWorks Modular
Smart Array 30 |
HP StorageWorks Modular Smart
Array 30 SB
NOTE: Rack-mountable 14 drive enclosure
with single bus, redundant power supplies |
302969-B21 |
HP StorageWorks Modular Smart
Array 30 DB
NOTE: Rack-mountable 14 drive enclosure
with dual bus, redundant power supplies
|
302970-B21 |
NOTE:
The Modular Smart Array Enclosure 30 Family supports the Wide Ultra3,
Ultra320 Hot Plug Hard Drives. |
|
|
HP StorageWorks Modular Smart Array 50
|
HP
StorageWorks Modular Smart Array 50 Enclosure
|
|
NOTE: Supported
by the SAS Models only.
NOTE: Please see the Modular Smart Array 50 QuickSpecs for additional
information including configuration steps and additional options needed
for a complete solution at: https://h18000.www1.hp.com/products/quickspecs/12245_div/12245_div.html
(Worldwide)
|
|
|
HP
StorageWorks Modular Smart Array 500 G2
|
HP StorageWorks Modular Smart
Array 500 Generation 2 |
335880-B21
|
NOTE:
Please see the Modular Smart Array 500 Generation 2 QuickSpecs for additional
information including configuration steps and additional options needed
for a complete solution at:
https://h18000.www1.hp.com/products/quickspecs/11956_div/11956_div.html
(Worldwide)
|
|
|
HP StorageWorks Modular Smart Array 1500 cs
|
Modular Smart Array 1500 Controller Shelf
|
AA986A
|
NOTE: Please see
the StorageWorks Modular SAN Array 1500 cs QuickSpecs for additional options
and configuration information at:
https://www.hp.com/go/MSA1500cs
|
|
|
StorageWorks Options
|
NOTE: For the
complete listing of Fibre Channel Host Bus Adapters for Windows 2000, Windows
Server 2003 and Linux, please see: https://h18006.www1.hp.com/storage/saninfrastructure/hba.html |
|
HP StorageWorks FC2142SR 4Gb PCI-e
HBA |
|
HP StorageWorks FC2242SR Dual
Channel 4 Gb PCI-e HBA |
|
HP StorageWorks FC1142SR 4Gb PCI-e
HBA |
|
HP StorageWorks FC1242SR Dual
Channel 4 Gb PCI-e HBA |
|
HP StorageWorks FC2143 4Gb PCI-X
2.0 -to-Fibre Channel HBA |
|
HP StorageWorks FC2243 Dual Channel
4Gb PCI-X 2.0 HBA |
|
HP StorageWorks FC1143 4Gb PCI-X
2.0 HBA |
|
HP StorageWorks FC1243 Dual Channel
4Gb PCI-X 2.0 HBA |
|
|
Uninterruptible Power Systems - Rack
|
HP, R1.5kVA UPS, 1U, NA |
AF419A
|
HP, R1.5kVA UPS, 1U, INTL |
AF418A
|
HP, R1.5kVA UPS, 1U, JPN/TW |
AF421A
|
HP R3000 VA UPS, 2U, DTC, INTL
NOTE: Replaces non-RoHs compliant
part numbers 192186-B31, 192186-B32, 192186-B33, 192186-AR1.
|
AF414A |
HP R3000 VA UPS, 2U, L5-30, NA
NOTE: Replaces non-RoHs compliant
part number 192186-001.
|
AF422A |
HP R3000 VA UPS, 2U, L6-20, NA
NOTE: Replaces non-RoHs compliant
part number 192186-002.
|
AF423A |
HP R3000 VA UPS, 2U, L6-20, JPN
NOTE: Replaces non-RoHs compliant
part number 192186-292.
|
AF424A |
HP R3000 VA UPS, 2U, L5-30, JPN
NOTE: Replaces non-RoHs compliant
part number 192186-291.
|
AF425A |
HP R5500 VA UPS, INTL
NOTE: Replaces non-RoHs compliant
part number 326529-B31. |
AF416A |
HP R5500 VA UPS, NA/JPN
NOTE: Replaces non-RoHs compliant
part number 326529-D71.
|
AF426A |
|
HP Monitored Power Distribution
Unit (PDU) |
HP Monitored Power Distribution
Unit: Full Rack Version |
|
HP 17.3 kVA S2324 Monitored PDU-
dual input, 3U, 24A (NA/JPN)
NOTE: Replaces non-RoHs compliant
part number 370959-D71. |
AF503A
|
HP 8.3 kVA S1324 Monitored PDU-
single input, 3U, 24A (NA/JPN)
NOTE: Replaces non-RoHs compliant
part number 370960-D71.
|
AF504A
|
HP 16.6 kVA S2140 Monitored PDU-
dual input, 1U, 40A (NA/JPN)
NOTE: Replaces non-RoHs compliant
part number 37061-D71.
|
AF505A
|
HP 8.6 S1140 Monitored PDU- single
input, 1U, 40A (NA/JPN)
NOTE: Replaces non-RoHs compliant
part number 370962-D71.
|
AF506A
|
HP 22.1 kVA S2316 Monitored PDU-
dual input, 3U, 16A (INTL)
NOTE: Replaces non-RoHs compliant
part number 370963-B31.
|
AF507A
|
HP 11 kVA S1316 Monitored PDU-
single input, 3U, 16A (INTL)
NOTE: Replaces non-RoHs compliant
part number 370964-B31.
|
AF508A
|
HP 14.7 kVA S2132 Monitored PDU-
dual input, 1U, 32A (INTL)
NOTE: Replaces non-RoHs compliant
part number 370965-B31.
|
AF509A
|
HP 7.3kVA S1132 Monitored PDU-
single input, 1U, 32A (INTL)
NOTE: Replaces non-RoHs compliant
part number 370966-B31.
|
AF510A
|
|
Modular Power
Distribution Units 1U/0U
(Up to 32 outlets)
NOTE: 1U/0U mounting brackets shipped
with
the unit (optimized for 10000 and 9000 series racks). |
3.6kVA Model - mPDU, 16A, High
(WW)
|
|
2.8 kVA Model - mPDU, 24A, Low
(NA/JPN)
|
|
4.9kVA Model - mPDU, 24A, High
(NA/JPN)
|
|
7.3kVA Model - mPDU, 32A, High
(INT'L)
|
252663-B31
|
8.3kVA Model - mPDU, 40A, High
(WW)
|
|
8.3kVA
Model - mPDU, 40A, High (power cord attached) (NA/JPN)
|
252663-D73
|
9.2kVA Model - mPDU, 40A, High
(power cord attached) (INTL)
|
252663-B32
|
8.3kVA Model - mPDU 40A, High
(core only) (NA/JPN)
|
252663-D75
|
9.2kVA Model - mPDU 40 A, High
(core only) (Int'l)
|
252663-B34
|
8.3kVA Model - mPDU 32A, High
(core only) (Int'l)
|
252663-B33
|
4.9kVA Model - mPDU 24A, High
(core only) (NA/JPN) |
252663-D74
|
NOTE: Please see
the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs
for additional options including shorter jumper cables and country specific
power cords:
https://h18000.www1.hp.com/products/quickspecs/11041_div/11041_div.html
(Worldwide) |
|
|
USB
Options |
HP USB 2-Button Optical Scroll
Mouse (Carbonite/Silver) |
|
HP USB 04 Standard Keyboard |
DT528A#xxx
|
USB 2.0 4-port HUB |
DG954A
|
HP 1GB Drive Key II- USB 2.0
Flash Drive |
AG382AA
|
HP 512MB DriveKey II- USB Flash
Drive |
ED516AA
|
|
Rack Shipping Kit |
Shipping Bracket for Round Hole
Racks
NOTE: Required when shipping server
pre-installed in round hole rack. Square hole pre-configured rack shipping
hardware included with server mounting rails.
|
371482-B21 |
|
HP Rack 10000 G2 Series (Carbon/ Graphite Metallic)
|
10642 G2 (42U) Rack Cabinet -
Pallet |
|
10642 G2 (42U) Rack Cabinet -
Shock Pallet |
|
10642 G2 (42U) Rack Cabinet -
Crated |
AF003A
|
10642 G2 (42U) Rack Cabinet, with
Extension - Shock Pallet |
|
10636 G2 (36U) Rack Cabinet -
Pallet |
|
10636 G2 (36U) Rack Cabinet -
Shock Pallet |
|
10636 G2 (36U) Rack Cabinet -
Crated |
|
10636 G2 (36U) Rack Cabinet, with
Extension - Shock Pallet |
|
10622 G2 (22U) Rack Cabinet -
Pallet
|
AF021A
|
10622 G2 (22U) Rack Cabinet -
Shock Pallet
|
|
10842 G2 (42U) 800mm Wide Rack
Cabinet - Pallet
|
|
10842 G2 (42U) 800mm Wide Rack
Cabinet - Shock Pallet
|
|
10647 G2 (47U) Rack Cabinet -
Pallet |
|
NOTE: It is mandatory
to use a shock pallet when shipping racks with equipment installed. |
|
NOTE: Please see
the Rack 10000 G2 QuickSpecs for Technical Specifications such as height,
width, depth, weight, and color:
https://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.html
(Worldwide) |
|
NOTE: For additional
information regarding Rack Cabinets, please see the following URL: https://www.hp.com/go/rackandpower. |
|
|
HP Rack 10000
Series
(Graphite Metallic) |
10642 (42U) Infrastructure Rack
(Low Voltage) |
379006-001
|
10642 (42U) Infrastructure Rack
(High Voltage) |
|
HP S10614 (14U) Rack Cabinet -
Shock Pallet |
|
HP 10842 (42U) Rack Cabinet -
Pallet |
|
HP 10842 (42U) Rack Cabinet -
Shock Pallet |
|
HP 10647 (47U) Rack Cabinet -
Pallet |
|
HP 10647 (47U) Rack Cabinet -
Crated |
245160-B23
|
HP 10622 (22U) Rack Cabinet -
Pallet |
|
HP 10622 (22U) Rack Cabinet -
Shock Pallet |
|
HP 10622 (22U) Rack Cabinet -
Crated |
245163-B23
|
NOTE: xxxxxx-B21
(pallet) used to ship empty racks shipped on a truck. -B22 (shock pallet)
used to ship racks with equipment installed (by custom systems, VARs and
Channels). xxxxxx-B23 (crated) used for air shipments of empty racks. |
|
NOTE: It is mandatory
to use a shock pallet in order to ship racks with equipment installed. |
|
NOTE: Please see
the Rack 10000 QuickSpecs for additional options and Technical Specifications
such as height, width, depth, weight, and color:
https://h18000.www1.hp.com/products/quickspecs/10995_div/10995_div.html
(Worldwide)
|
|
NOTE: For additional
information regarding Rack Cabinets, please see the following URL: https://www.hp.com/go/rackandpower |
|
|
Keyboards and Monitors |
TFT7210R Rack Mounted 17"
Monitor
|
348373-B21 |
TFT7600 Rackmount Keyboard Monitor
US |
AG052A |
TFT7600 Rackmount Keyboard Monitor
UK |
AG053A
|
TFT7600 Rackmount Keyboard Monitor
GR |
AG054A |
TFT7600 Rackmount Keyboard Monitor
FR |
AG055A |
TFT7600 Rackmount Keyboard Monitor
IT |
AG056A
|
TFT7600 Rackmount Keyboard Monitor
SP |
AG057A |
TFT7600 Rackmount Keyboard Monitor
DEN |
AG058A |
TFT7600 Rackmount Keyboard Monitor
NOR |
AG059A |
TFT7600 Rackmount Keyboard Monitor
SE/FI |
AG060A |
TFT7600 Rackmount Keyboard Monitor
SWI |
AG061A |
TFT7600 Rackmount Keyboard Monitor
PORT |
AG062A |
TFT7600 Rackmount Keyboard Monitor
BEL |
AG063A |
TFT7600 Rackmount Keyboard Monitor
JPN2 |
AG064A |
TFT7600 Rackmount Keyboard Monitor
RUS |
AG065A |
TFT7600 Rackmount Keyboard Monitor
INTL |
AG066A |
1U Rackmount Keyboard with USB,
US |
AG072A |
1U Rackmount Keyboard with USB,
UK |
AG073A |
1U Rackmount Keyboard with USB,
GR |
AG074A |
1U Rackmount Keyboard with USB,
FR |
AG075A |
1U Rackmount Keyboard with USB,
ITL |
AG076A |
1U Rackmount Keyboard with USB,
SP |
AG077A |
1U Rackmount Keyboard with USB,
DEN |
AG078A |
1U Rackmount Keyboard with USB,
NOR |
AG079A |
1U Rackmount Keyboard with USB,
SE/FI |
AG080A |
1U Rackmount Keyboard with USB,
SWI |
AG081A |
1U Rackmount Keyboard with USB,
PORT |
AG082A |
1U Rackmount Keyboard with USB,
BEL |
AG083A |
1U Rackmount Keyboard with USB,
JPN2 |
AG084A |
1U Rackmount Keyboard with USB,
RUS |
AG085A |
1U Rackmount Keyboard with USB,
INTL |
AG086A |
NOTE:
For additional information regarding
Rack Options, please see the following URL: https://www.hp.com/go/rackandpower |
|
|
HP KVM Switch Options |
2x1x16 IP Console Switch with
Virtual Media |
|
4x1x16 IP Console Switch with
Virtual Media |
AF602A |
2x16 Server Console Switch with
Virtual Media |
AF600A |
PS/2 Virtual Media Interface Adapter,
1 pack
NOTE: Requires PS/2 and one USB port
on server. |
AF604A |
Server Console Switch (KVM), 0
x 1 x 8 port |
|
Server Console Switch (KVM), 0
x 2 x 16 port |
|
PS/2 Interface Adapter, 1 pack
|
|
PS/2 Interface Adapter, 8 pack
|
|
USB Interface Adapter, 1 pack
|
|
Serial Interface adapter - 1 Pack
with power supply |
|
NOTE:
Cat5e cables are required to connect Interface Adapters to Console Switches.
Cat5e cables can be found at the following URL: https://www.hp.com/go/kvm.
|
|
HP 1x 4 USB/PS2 KVM Switch, TT
(NA/JPN) |
371301-D71
|
HP 1x 4 USB/PS2 KVM Switch, TT
(AU/NZ) |
371301-011
|
HP 1x 4 USB/PS2 KVM Switch, TT
(UK) |
371301-031
|
HP 1x 4 USB/PS2 KVM Switch, TT
(EU) |
371301-A21
|
HP 1x 4 USB/PS2 KVM Switch, RM
(ALL) |
371302-B21
|
HP PS2 KVM Cable with audio, 6',
2-pack |
371730-B21
|
HP USB KVM Cable with audio, 6',
2-pack |
371729-B21
|
NOTE: For additional
information regarding KVM switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: https://www.hp.com/go/kvm. |
|
|
HP
Serial Console Server Options |
HP 16 Port
Serial Console Server (worldwide)
|
|
HP 48 Port
Serial Console Server (worldwide)
|
|
Serial
Adapter, RJ45-DB9 DCE Female, 1 Pack
|
|
Serial
Adapter, RJ45-DB9 DCE Female, 8 Pack
|
AF110A
|
NOTE: Cat5e
cables are required to connect Serial Adapters to Serial Console Servers.
Additional Serial Adapters and Cat5e cables can be found at the following
URL: https://www.hp.com/go/kvm. |
|
NOTE: For additional
information regarding KVM switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: https://www.hp.com/go/kvm. |
|
|
Service
and Support Offerings (HP Care Pack Services) |
Hardware Services On-site
Service |
|
4-Hour On-site Service,
5-Day x 13-Hour Coverage, 3 Years, Electronic |
U4544E
|
4-Hour
On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
|
U4545E
|
Hardware Services 6-Hour
Call to Repair On-site Service |
|
6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic |
U4546E
|
|
Installation & Start-up
Services |
|
Hardware Installation, Electronic |
U4554E
|
Installation & Start-Up
of a ProLiant server and Microsoft or Linux O/S per the Customer Description
and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F,
excl. HP holidays, Electronic |
U4555E
|
Installation and Startup
for Essentials Rapid Deployment Pack, Electronic |
U5683E
|
|
Support Plus |
|
Onsite HW support, 8am-9pm,
M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite
at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays,
Electronic |
U4556E
|
|
Support Plus 24 |
|
Onsite HW support 24x7,
4hr response and Microsoft O/S SW Tech support offsite, onsite at
HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic |
U4557E
|
Onsite HW support 24x7,
4hr response and SuSE Linux SW Tech support offsite, onsite at HP's
discretion, 24x7 2hr response time incl. HP holidays, Electronic |
|
Onsite HW support 24x7,
4hr response and Red Hat ES Linux SW Tech support offsite, onsite
at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic |
U8334E
|
|
|
Memory
NOTE:
Memory configurations listed do not apply to "Factory Integrated Models". |
HP ProLiant Model
DL380 Generation 4 (G4) Base (1P) Models |
Standard
Memory
1 GB PC2 3200 DDR2 SDRAM running at 400MHz comes installed (2 x 512 MB SDRAM)
Standard Memory Plus Optional Memory
Up to 9 GB memory is available with the optional installation of PC2 3200
Registered DDR2 SDRAM DIMM Memory Option Kit
Standard Memory Replaced with Optional Memory
Up to 12 GB of memory is available with the removal of the standard
512 MB of memory and the optional installation of PC2 3200 Registered DDR2
SDRAM DIMM Memory Option Kit
NOTE: Chart does not represent all
possible memory configurations. |
Memory
|
Slot
|
|
|
1
|
2
|
3
|
4
|
5
|
6
|
Standard |
1 GB
|
512 MB
|
512 MB
|
Empty
|
Empty
|
Empty
|
Empty
|
Optional |
9 GB
|
512 MB
|
512 MB
|
2 GB
|
2 GB
|
2 GB
|
2 GB
|
Maximum
|
12 GB
|
2 GB
|
2 GB
|
2 GB
|
2 GB
|
2 GB
|
2 GB
|
HP ProLiant Model DL380 Generation 4 (G4) High Performance
(2P) Model
|
Standard Memory
2 GB PC2 3200 DDR2 SDRAM running at 400MHz comes installed (2 x 1024 MB
SDRAM)
Standard Memory Plus Optional Memory
Up to 10 GB memory is available with the optional installation of PC2
3200 Registered DDR2 SDRAM DIMM Memory Option Kit
Standard Memory Replaced with Optional Memory
Up to 12 GB of memory is available with the removal of the standard
512 MB of memory and the optional installation of PC2 3200 Registered
DDR2 SDRAM DIMM Memory Option Kit
NOTE: Chart does not represent
all possible memory configurations.
|
Memory |
Slot |
| |
1 | 2 |
3 | 4 |
5 | 6 |
Standard |
2 GB | 1024
MB | 1024
MB | Empty |
Empty | Empty |
Empty | Optional |
10 GB | 1024
MB | 1024
MB | 2 GB |
2 GB | 2
GB | 2 GB |
Maximum |
12 GB | 2
GB | 2 GB |
2 GB | 2
GB | 2 GB |
2 GB |
HP
ProLiant Model DL380 Generation 4 (G4) Dual Rank Support: |
Following is the dual rank memory option available from HP: |
|
- 4 GB of 2-Rank Advanced ECC PC3200 DDR2-400 SDRAM DIMM Memory Kit (2 x 2048
MB)
| 375004-B21 |
Following are the
single/dual rank memory population rules for the HP ProLiant DL380 G4. | |
Key: S denotes
single rank kit, D denotes Dual rank kit, and X denotes no install. | |
Bank A |
Bank B |
Bank C |
NOTES: |
S | X |
X |
|
S | S |
X |
|
S | S |
S | |
D |
X | X |
Online spare not supported |
D | S |
X |
Online spare not supported |
D | S |
S |
Online spare not supported |
D | D |
X |
Online spare not supported |
Storage
|
0 - 5
|
Six Ultra320 SCSI hot
plug hard drive bays |
A
|
1.44-MB Diskette Drive |
B
|
24x IDE CD-ROM (Universal Media
Bay) |
C
|
Six Ultra320 SCSI hot plug hard
drives or for five hot plug hard drives and one DAT 40 or DAT 72 hot plug
tape drive |
|
|
|
1-8
|
Eight SFF SAS hot plug hard drive
bays |
|
|
|
Drive Support
|
|
|
Quantity
Supported
|
Position
Supported
|
Controller
|
Removable Media
|
|
|
|
1.44-MB Diskette Drive |
1 |
A |
Integrated IDE
NOTE: Optional except on high performance
models |
IDE CD-ROM Drive |
1 |
B |
Integrated IDE
NOTE: Standard on base models |
Slimline DVD-ROM (8x24x) Option
Kit (Servers) |
1 |
B |
Integrated IDE
NOTE: Standard
on high performance models
|
|
Hard Drives | Ultra320
SCSI - Hot Plug Drives |
| Quantity Supported |
Position Supported |
Controller
|
300GB U320 10K
146GB U320 10K
72GB U320 10K
300GB U320 15K
146GB U320 10K
72GB U320 10K
36GB U320 10K
| Up
to 6 | 0-5 |
Smart Array 6i Controller (integrated on system board) Smart Array 6402/128
Controller Smart Array 6404/256 Controller Smart Array 641 Controller
Smart Array 642 Controller | NOTE:
All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds. |
|
SFF SATA - Hot Plug Drives |
|
Quantity Supported |
Position Supported |
Controller
|
60GB 1.5G SATA 5.4K | Up
to 8 | 0-7 |
Smart Array P600/256 BBWC Controller |
|
SFF SAS - Hot Plug Drives |
|
Quantity Supported |
Position Supported |
Controller
|
146GB 3G SAS 10K SP
72GB 3G SAS 10K SP
72GB 3G SAS 15K SP
36GB 3G SAS 10K SP
36GB 3G SAS 15K SP
| Up
to 8 | 1-8 |
Smart Array P600/256 BBWC Controller |
|
External Storage |
| Quantity Supported |
Position Supported |
Host Controller or Adapter
| | Modular
Smart Array 20 | 1
per SCSI VHDCI connector | External | Smart
Array 6i Controller Smart Array 6402/128 Controller Smart Array 6404/256
Controller | |
Modular Smart Array 30 |
1 per SCSI VHDCI connector |
External | Smart Array 6i
Controller Smart Array 6402/128 Controller Smart Array 6404/256 Controller
Smart Array 642 Controller | |
Modular Smart Array 50 Enclosure | 2
per connector (supports 1+1 cascading) | External
|
HP Smart Array P600/256 BBWC Controller |
| Modular
Smart Array 500 G2 | 1
per SCSI | External | Smart
Array 6i Controller Smart Array 642 Controller (used as Host Bus Adapter)
Please see the Modular Smart Array 500 G2 QuickSpecs for the latest list of supported
HBAs: https://www.hp.com/go/msa500 |
| Modular
Smart Array 1500 cs | Please
see the Modular Smart Array 1500 cs QuickSpecs link below to determine configuration
requirements | External | Please
see the Modular Smart Array 1500 QuickSpecs (URL below) for the latest list of
supported HBAs | | Modular
Smart Array 1000 | Please
see the Modular Smart Array 1000 QuickSpecs link below to determine configuration
requirements | External | Please
see the Modular Smart Array 1000 QuickSpecs (URL below) for the latest list of
supported HBAs | |
Modular Smart Array 1000: https://h18000.www1.hp.com/products/quickspecs/11033_div/11033_div.html
(Worldwide)
Modular Smart Array 1500: https://www.hp.com/go/MSA1500cs |
|
Maximum Storage Capacity - (Enclosure SCSI Attached)
|
Internal |
1.80TB (6 x 300GB
Ultra320) |
External |
54.60TB (13 x (14
x 300GB Ultra320)) |
Total |
58.20TB |
|
Maximum Storage Capacity - (SAS Models with MSA50)
|
Internal
|
1.168TB (8 x 146GB
SAS) |
External |
2.920 (20 x 146GB
SAS) |
Total |
4.088TB |
|
Tape Drives, Tape
Autoloaders, & Tape Libraries |
NOTE: For an up-to-date listing of the
latest O/S Support details for each of the Tape Drives listed below, please
see the following:
https://h18000.www1.hp.com/products/quickspecs/division/10233.html
(Worldwide)
NOTE: For an up-to-date listing of the latest O/S Support details
for each of the Tape Autoloaders and Tape Libraries listed below, please
see the following:
https://h18000.www1.hp.com/products/quickspecs/division/10809.html
(Worldwide)
NOTE: For complete listing of tape drive offerings see https://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html
For recommended tape drive offerings for this
ProLiant server see the following:
|
|
Position
Supported
|
Controller
|
Controller Part Number
|
|
HP StorageWorks Tape Drives,
External
DAT 24 USB
DAT 40 USB
DAT 72 USB |
External
|
USB 2.0 Port
|
N/A
|
|
|
|
|
HP StorageWorks Tape Drives,
External
Ultrium 232
Ultrium 448
Ultrium 460
Ultrium 920
Ultrium 960
DAT 40
DAT 72
DLT VS160
SDLT 600
|
External
|
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
|
|
|
|
|
|
HP StorageWorks Autoloaders,
External
DAT 72x10 Autoloader
1/8 G2 Tape Autoloader
|
External
|
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
|
|
|
|
|
|
HP StorageWorks SCSI Rack-Mount Tape Drive Enclosures
1U Rack-Mount Kit
3U Rack-Mount Kit
|
External
|
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
|
|
|
|
|
|
HP StorageWorks USB Rack-Mount
Tape Drive Enclosures
1U Rack-Mount Kit
|
External
|
USB 2.0 Port
|
N/A
|
|
|
|
|
HP StorageWorks Tape Libraries,
External
MSL2024 (Ultrium 448, Ultrium 920 and 960-based)
MSL4048 (Ultrium 448, Ultrium 920 and 960-based)
MSL6000 (Ultrium 960 and 460-based)
MSL6000 (SDLT 600-based)
|
|
|
N/A
|
Power Specifications
Power Supply Specification |
Part number
|
321632-001
|
|
|
Spare Kit
|
355892-B21
|
Operational Input Voltage Range
(Vrms)
|
90 - 264
|
Frequency Range (Nominal) (Hz)
|
47 - 63 ( 50 / 60 )
|
Nominal Input Voltage (Vrms) |
100
|
115
|
208
|
220
|
230
|
240
|
Max Rated Output Wattage Rating |
575
|
575
|
575
|
575
|
575
|
575
|
Nominal Input Current (A rms)
|
7.4
|
6.4
|
3.4
|
3.2
|
3.1
|
2.9
|
Max Rated Input Wattage Rating (Watts)
|
728
|
719
|
701
|
693
|
693
|
693
|
Max. Rated VA (Volt-Amp) |
743
|
733
|
716
|
707
|
707
|
707
|
Efficiency (%)
|
79
|
80
|
82
|
83
|
83
|
83
|
Power Factor
|
0.98
|
Leakage Current (mA)
|
0.31
|
0.36
|
0.65
|
0.69
|
0.72
|
0.75
|
Max. Inrush Current (A peak)
|
35
|
35
|
35
|
35
|
35
|
35
|
Max. Inrush Current duration (mS)
|
2-3
|
Power
cord requirements
|
Nema 5-15P to IEC320-C13 Option
no. / Spare no: See chart on Page 2 |
IEC320-C13 to IEC320-C14 Option
no. / Spare no.: 142259-001/142258-B21 |
NOTES:
- To review typical system power ratings use the Active Answers Power
Calculator which is available via the online tool located at url: https://h30099.www3.hp.com/configurator/calc/Power%20Calculator%20Catalog.xls
To drill down to calculators:
- Click on: “ProLiant Servers”
- Click on the Server of interest. Example: DL380
G4
- Click on: “Power Calculator” link. (You may need to scroll
down to see it)
|
# - Power cords (13 Cord Sets) |
Country
|
Power Cord Part Number
|
|
APD
|
139867-006
|
|
APD
|
100613-003
|
|
APD
|
100614-003
|
|
Australia
|
100611-007
|
|
Europe
|
100614-003
|
|
France
|
100614-003
|
|
Germany
|
100614-003
|
|
Japan
|
139867-006
|
|
PRC
|
139867-006
|
|
PRC
|
100613-003
|
|
PRC
|
100661-007
|
|
UK
|
100613-003
|
|
US
|
163719-002
|
Quickspecs
System Unit | Dimensions
(HxWxD) (with feet/bezel) | 3.38
x 17.54 x 26.01 in (8.59 x 44.54 x 66.07 cm) |
Weight(approximate) | Maximum | 60
lb (27.22 kg) | | No
drives: | 47.18 lb (20.41 kg) |
Input Requirements
(per power supply) | Rated Input
Voltage | 100-132 VAC, 200-240
VAC | Rated Input Current | 7.5A
(100VAC), 3.8A (200VAC) | Rated
Input Frequency | 50 to 60 Hz |
Rated Input Power | 735
W | BTU Rating | 2508
BTU/HR | | Power
Specifications | To
review typical system power ratings use the Active Answers Power Calculator which
is available via the online tool located at URL: https://h30099.www3.hp.com/configurator/powercalcs.asp.
To drill down to calculators: - Click on: "ProLiant Servers"
- Click on the Server of interest. Example: DL380 G4 - Click on: "Power
Calculator" link. (You may need to scroll down to see it.) |
SCSI Connectors |
One external VHDCI
connector
NOTE: External VHDCI not included
on SAS Models |
Power
Supply Output Power (per power supply) | Rated
Steady-State Power | 575W |
| Maximum
Peak Power | 575W |
Temperature Range
NOTE: All temperature ratings shown
are for sea level. An altitude derating of 1 C° per 300 m (1.8 FR per 1000
ft) to 3048 m (10,000 ft) is applicable. No direct sunlight allowed. | Operating
| 50° to 95° F (10°
to 35° C) | Shipping
| -40° to 158° F (-40°
to 70° C) | Maximum
Wet Bulb Temperature | 82.4°
F (28° C) | Relative
Humidity (non-condensing) NOTE:
Storage maximum humidity of 95% is based on a maximum temperature of 45°C
(113°F). Altitude maximum for storage corresponds to a pressure minimum of
70 kPa. | Operating | 10%
to 90% | Shipping | 5%
to 95% | Acoustic
Noise | Idle Minimum (Fixed
Disk Drives Spinning) | |
L
WAd (BELS) | 7.4 |
L
pAm (dBA) | 58 |
Operating Minimum
(Random Seeks to Fixed Disks) | |
L
WAd (BELS) | 7.4 |
L
pAm (dBA) | 58 |
|
Smart Array 6i Controller
(Ultra320), Integrated |
Data Compatible with all Smart Array
Controllers |
Yes |
Instant Upgrades to other Smart
Array Controllers |
Yes |
Consistent Software Manageability
Tools |
Yes |
PCI-X Bus |
64-bit up to 133 MHz (integrated
on system board) |
Electrical Protocol |
Low Voltage Differential (LVD) |
SCSI Protocols Supported |
Ultra 320, Ultra3, Ultra2 |
SCSI Peak Data
Transfer Rate
|
320 MB/s per channel |
Channels |
Two 68-Pin Wide-Ultra SCSI-3 connectors |
SCSI Ports
(external/internal)
|
1/2
NOTE: The HP ProLiant DL380 G4 external
SCSI port can only be used if PORT 1 of the system board is NOT connected
to the internal SCSI backplane. |
Logical Drives Supported
|
Supports up to 32 RAID volume |
Cache |
64 MB Read Cache |
Battery-Backed Write Cache |
Yes, with installation of Battery-Backed
Write Cache Enabler, up to 128MB |
RAID Support |
0, 1, 1+0, 5 |
Online Configuration |
Yes |
Online Capacity Expansion |
Yes |
Logical Drive Capacity Extension |
Yes |
Online Stripe Size Migration |
Yes |
Online RAID Level Migration |
Yes |
Online Spare Support |
Yes |
Automatic Data Recovery |
Yes |
Drive Roaming |
Yes |
Redundant Controllers |
No |
|
Smart Array P600
Controller
(SAS models only) |
Disk Drive and Enclosure Protocol
Support
|
3 Gbps SAS (Serial Attached SCSI)
1.5 Gbps SATA (Serial AT Attachment) |
Architecture
|
1.5 Gb SATA |
SAS Connectors
|
1 internal SFF8484 & 1 external
SFF8470 / internal SFF8484 shared x4 Wide SAS Ports
12 Gbps per x4 Wide SAS Port (4 x 3 Gbps) |
Data Transfer Method
|
64-bit wide, PCIX 133 MHz (1 GB/s
maximum bandwidth) |
PCI Bus Speed
|
PCIX-133 and 3.3 volt PCI compatibility
only |
Memory Bus Speed |
DDR-266 and 72 bit wide bus |
PCI
|
64-bit, 133-MHz PCI-X (1 GB/s maximum
bandwidth) |
Simultaneous Drive Transfer Ports |
PCI-X and 3.3 volt PCI compatibility
only |
Port Transfer Rate |
2 x4 Wide SAS Ports |
Software upgradeable Firmware
|
12 Gb/s per x4 Wide SAS Port (4
x 3 Gb/s) |
Cache Memory
|
Yes |
Logical Drives Supported
|
256 MB Read/Write (512-MB module
upgrade available);
ECC protection, battery-backed, and removable |
Maximum Capacity
|
Up to 32 logical drives
Up to 2.2 TB per logical drive |
Memory Addressing
|
2.7 TB (38 x 72 GB)
64-bit, supporting servers memory greater than 4 GB |
RAID Support |
RAID 6 (Advanced Data Guarding)
RAID 5 (Distributed Data Guarding)
RAID 1+0 (Striping & Mirroring)
RAID 0 (Striping) |
Upgradeable Firmware
Disk Drive and
|
4-MB flashable ROM |
Enclosure Protocol Support |
3 Gb SAS and 1.5 Gb SATA |
|
Embedded NC7782
PCI-X Gigabit Server Adapter
|
Network Interface |
10Base-T/100Base-TX/1000Base-TX |
Compatibility |
IEEE 802.3 10Base-T |
IEEE 802.3ab 1000Base-T
|
IEEE 802.3u 100Base-TX |
Data Transfer Method |
64-bit bus-master PCI-X |
Network Transfer Rate |
10Base-T (Half-Duplex), |
10 Mb/s |
10Base-T (Full-Duplex) |
20 Mb/s |
100Base-TX (Half-Duplex) |
100 Mb/s |
100Base-TX (Full-Duplex) |
200 Mb/s |
1000Base-TX (Half and Full-Duplex) |
2000 Mb/s |
Connector |
Two RJ-45 |
Cable Support |
10Base-T |
Categories 3, 4 or 5 UTP;
up to 328 ft (100 m) |
100Base-TX |
Category 5 or higher UTP;
up to 328 ft (100 m) |
1000BaseTX |
Category 5 or higher UTP;
up to 328 ft (100 m) |
|
|
