 HPE  Proliant DL785 G6 QuickSpecs Flag US QuickSpecs
Folder-Closed DL785 G6 HDD SSD Folder-Closed DL785 G6 Processors Folder-Closed DL785 G6 Memory
Folder-Closed DL785 G6 Controllers Folder-Closed DL785 G6 Networking Folder-Closed DL785 G6 Power
Folder-Closed DL785 G6 Quickspecs Folder-Closed DL785 G6 Quickspecs Folder-Closed DL785 G6 Options New  Refurb
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information      DL785 G6 Core Options      Additional Options      DL785 G6 Memory      Storage      Power Specifications      DL785 G6 QuickSpecs images/line.gif

Proliant DL785 G6 Overview

HP ProLiant DL785 Generation 6 (G6)

Powered by latest AMD Opteron™ 6 Core Processors, the HP ProLiant DL785 G6, is the next generation server of the award winning HP ProLiant DL785 G5. HP ProLiant DL785 G6 is an 8 socket x86 server, supporting up to eight Six-Core AMD Opteron™ Processors, 512GB of memory, 11 PCI-e I/O slots or an optional I/O backplane with 7 PCI-e & 2 HTx I/O slots. With this highly expandable feature set, the DL785 G6 is an ideal choice for the growing enterprise class database, consolidation and virtualization environments seeking to improve server utilization and reduce server and virtualization sprawl, while continuing to leverage all the familiar and easy to use ProLiant management tools and options.

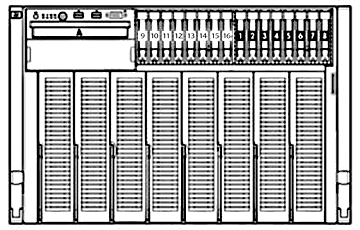

Proliant DL785 G6 Front View: Proliant DL785 G6 Rear View:
1.

Front Panel LED display (internal and external health, Unit ID button & LED, NIC LED and Power Button

1. NIC connector 1
2. Keyboard connector
2.

System Insight Display (SID)

3. USB connector
3.

Slimline Media Bay

4. Video connector
4.

Processor Memory Cells (1 - 8)

5. Serial connector
5. Eight bay Small Form Factor (SFF) Serial Attached SCSI (SAS) drive cage 6. HP Integrated Lights-Out 2 (iLO2) connector
7. Mouse connector
6. Video Connector 8. NIC connector 2
7. SAS backplane (Standard) 9. PCI Express expansion slots
8. SAS backplane (Optional) 10. Fan 6
9. USB Connectors 11. Fan 5
10. BBWC Battery Pack 12. Fan 4
11. Power Supply Backplane 13. T-15 Torx screwdriver
12. PCI-Express x8 non-hot-plug expansion slot 1 14. Redundant power supply 4 - 6 (optional)
13. PCI-Express x4 non-hot-plug expansion slot 2 15. Power supply 1 - 3
14. PCI-Express x4 non-hot-plug expansion slot 3
15. PCI-Express x4 non-hot-plug expansion slot 4
16. PCI-Express x16 non-hot-plug expansion slot 5
17. PCI-Express x4 non-hot-plug expansion slot 6
18. PCI-Express x4 non-hot-plug expansion slot 7
19. Serial Peripheral Interface (SPI) Board
20. System Maintenance Switch
21. Fan 1
22. Fan 2
23. Fan 3
  Not shown: PCI-Express expansion slots 8 - 11
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information      DL785 G6 Core Options      Additional Options      DL785 G6 Memory      Storage      Power Specifications      DL785 G6 QuickSpecs images/line.gif

Standard Features

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
Processor
Four or eight of the following depending on Model
Six-Core Processors
AMD Opteron™ Model 8439 (2.8 GHz, 6MB L3 cache, 105W ACP)
AMD Opteron™ Model 8431 (2.4 GHz, 6MB L3 cache, 75W ACP)
AMD Opteron™ Model 8425 (2.1 GHz, 6MB L3 cache, 55W ACP)
NOTE: Processor wattage references reflect Average CPU Power (ACP). For more information on ACP visit: https://www.amd.com/powernow.
NOTE: 4 or 8 supported.
NOTE: Up to 2.8GHz clock speed.

Cache Memory
One of the following depending on Model
512 KB Level 2 cache memory per core
6 MB Level 3 cache memory

Chipset Serverworks HT-2100 Northbridge and HT-1000 Southbridge chipset

Upgradeability Supports up to 8 processors

Memory Protection Advanced ECC

Memory
One of the following depending on Model
Type

REG PC2-5300 DIMMs (DDR2-667)

REG PC2-6400 DIMMs (DDR2-800)
Standard PC2-6400

64 GB (16 x 4 GB)

32 GB (8 x 4 GB)
Maximum 512 GB (64 x 8 GB)
NOTE: Support of low-power or regular PC2-5300 or PC2-6400 registered DIMMs.

Network Controller Two HP NC371i Multifunction Gigabit Network Adapters with TCP/IP Offload Engine, including support for Accelerated iSCSI through an optional Licensing Kit

Expansion Slots

I/O backplane with 11 PCIe slots
Expansion Slots # Technology Bus
Width
Connector Width Bus
Number
Form
Factor
Notes
1 PCIe x8 x16 4
Full-size
2 PCIe x4 x8 7 Full-size
3 PCIe x4 x8 10 Full-size
4 PCIe x4 x8 13 Full-size
5 PCIe x16 x16 65 Full-size
6 PCIe x4 x8 68 Full-size
7 PCIe x4 x8 71 Full-size
8 PCIe x16 x16 129 Full-size
9 PCIe x8 x16 132 Full-size
10 PCIe x16 x16 193 Full-size
11 PCIe x8 x16 196 Full-size
NOTE: Bus Number - Default bus assignment (in Decimal format). Inserting cards with PCI bridges may alter the actual bus assignment number
NOTE: Bus Width - Indicates the number of physical electrical lanes running to the connector
NOTE: All slots are non-hot-plug Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number. Slots are enumerated differently based on the operating system. Microsoft operating systems enumerate from lowest to highest Device ID by bus (starting with the lowest bus).
NOTE: 11 total slots: (3) x16 PCI-Express; (3) x8 PCI-Express; (5) x4 PCI-Express. Optional backplane with 9 total slots: (2) x16 HTx ; (1) x16 PCI-Express; (1) x8 PCI-Express; (5) x4 PCI-Express.
NOTE: VMware is not supported on DL785 G6 with backplane that has (2) HTx slots and (7) PCI-Express slots.

I/O backplane with 7 PCIe & 2 HTx slots Expansion Slots # Technology Bus
Width
Connector Width Bus
Number
Form
Factor
Notes
1 PCIe x8 x16 4
Full-size
2 PCIe x4 x8 7 Full-size
3 PCIe x4 x8 10 Full-size
4 PCIe x4 x8 13 Full-size
5 PCIe x16 x16 65 Full-size
6 PCIe x4 x8 68 Full-size
7 PCIe x4 x8 71 Full-size
8 HTx   N/A 128 Full-Height/Full-Length

No Slot
10 HTx x16 N/A 192 Full-Height/Full-Length

No Slot
NOTE: Bus Number - Default bus assignment (in Decimal format). Inserting cards with PCI bridges may alter the actual bus assignment number
NOTE: Bus Width - Indicates the number of physical electrical lanes running to the connector
NOTE: All slots are non-hot-plug Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number. Slots are enumerated differently based on the operating system. Microsoft operating systems enumerate from lowest to highest Device ID by bus (starting with the lowest bus).
NOTE: This optional IO backplane with 7 PCIe and 2 HTX slots replaces standard I/O backplane with 11 PCIe slots
NOTE: VMware is not supported on DL785 G6 with backplane that has (2) HTx slots and (7) PCI-Express slots

Storage Controllers All Models HP Smart Array P400i Controller
Available upgrades: 256MB, 512MB with BBWC, Battery kit upgrade (for the 256MB cache), 512MB, 1G with FBWC, and Smart Array Advanced Pack (SAAP).

Internal Storage Devices

Diskette Drive None standard
Optical Drive Slimline DVD/CD-RW Drive Standard on some models - ejectable for security and serviceability
Hard Drives None ship standard
Hard Disk Drive Backplane Standard: Internal SAS backplane supports up to eight SFF hard disk drives
Optional: Adding the optional SAS Option Kit enables the second SAS backplane to support an additional eight SFF hard disk drives

Maximum Internal Storage Type Hot Plug SAS 8.0TB 16 x 500GB SFF SAS drives

Interfaces Serial 1
Pointing Device (Mouse) 1
Video 1 front, 1 rear
Keyboard 1
USB 2.0 Ports 2 front, 2 rear, 1 internal
NOTE: Please see the following URL for additional information regarding USB support:
https://h18004.www1.hp.com/products/servers/platforms/usb-support.html.
iLO 2 remote management port 1
Network RJ-45 2

Industry Standard Compliance ACPI V2.0 Compliant
PCIe 1.1 Compliant
PXE Support
WOL Support (with embedded NC371i Multifunction Gigabit Network Adapters)
Physical Address Extension (PAE) Support
Microsoft® Logo certifications
USB 2.0 Support

Server Power Cords NOTE: The HP ProLiant DL785 G6 servers ship standard worldwide with a 6-foot IEC 320-C14 to IEC320-C13 jumper cord. If you require a local power cord, please check the Power Specifications below for the appropriate country-specific power cord, or consult the Power Cord Matrix: https://www.hp.com/go/powercordmatrix.

Power Supply
One of the following depending on Model
1200 Watts- High Efficiency Power Supply (Redundant Hot Plug, Autoswitching), CSCI 2007/2008
NOTE: Three Hot Plug Power Supplies ship standard with the AM439A sku. Three optional power supplies may be added for redundancy.
NOTE: Six Hot Plug Power Supplies ship standard with the AM438A sku (the 4th, 5th and 6th power supplies are for redundancy).

System Fans 6 Hot plug, redundant fans
NOTE: Fans are N+1 hot plug redundant and individually removable.

Required Cabling For required cabling information, refer to the HP Web site at: www.hp.com/servers/dl785

Operating Systems and Virtualization Software Support for ProLiant Servers

Microsoft Windows Server
Microsoft Windows Server Hyper-V
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Solaris
VMware
HP Citrix Essentials for XenServer

NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: https://www.hp.com/go/ossupport and our driver download page www.hp.com/support/DL785G5.

Graphics Integrated ATI ES1000, 32MB video standard

Form Factor Rack (7U = 12.25 inches), ships with sliding rails and cable management system
Space saving form factor (7U) provides space efficiencies while providing maximum deployment flexibility

HP Insight Management Control Software

HP Insight Foundation

Managing the growing number of servers can be complex and expensive for your organization. IT managers need to address changing business needs with tools that meet the challenges of managing today's complex Datacenters.

HP provides management solutions that are designed to simplify a server's installation, configuration and maintenance throughout the entire server lifecycle. This provides the customer with higher levels of operational efficiency and highly reliable systems: https://www.hp.com/go/foundation.

The foundation pack includes:

  • HP SmartStart
  • HP Management DVD
  • HP ProLiant Smart Update Firmware DVD

SmartStart version supported (minimum): SmartStart 8.30
https://www.hp.com/servers/smartstart

NOTE: In an effort to support reducing our environmental impact, the HP Insight Foundation Suite for ProLiant media will be available as a selectable option for this server at time of order of a CTO SKU. This will allow customers to order the number of media kits that best meet their needs and eliminate receiving unnecessary duplicate media.

HP Integrated Lights-Out (iLO) HP Integrated Lights-Out (iLO) simplifies server setup, health monitoring, power and thermal control, and lights-out remote administration of ProLiant ML, DL, and BL servers. HP iLO functions without additional software and can be accessed from any location via a web browser. HP iLO works hand-in-hand with HP Systems Insight Manager, Insight Control suites, and Insight Dynamics for ProLiant, helping customers unleash the value of the ProLiant platform and deliver the highest possible quality of IT service. For more information, visit: www.hp.com/go/iLO

Intelligent Manageability HP Systems Insight Manager software
SmartStart
Redundant ROM
Remote Flash ROM
Management Agents
Integrated Management Log (IML)
Automatic Server Recovery-2 (ASR-2)
ROM-Based Setup Utility (RBSU)
Dynamic Sector Repairing (with Smart Array Controllers)
Drive Parameter Tracking (with Smart Array Controllers)
Pre-Failure Warranty (covers processors, SAS hard drives and memory)
Redundant/adaptive load balancing NIC Support

Security Power-on password
Keyboard password
External USB port enable/disable
Network Server Mode
Serial interface control
Administrator's password
Removable Diskette drive (optional)
Removable optical drive

Warranty This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: https://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information      DL785 G6 Core Options      Additional Options      DL785 G6 Memory      Storage      Power Specifications      DL785 G6 QuickSpecs images/line.gif

Optional Features

HP Insight Management Software

HP Insight Control HP Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console.

Two versions of Insight Control are available, to serve environments requiring either a Linux-based or a Windows-based central management server: HP Insight Control for Linux, and HP Insight Control. See www.hp.com/go/insightcontrol

HP Insight Control includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit: https://www.hp.com/services/insight.

HP Insight Dynamics HP Insight Dynamics for ProLiant, a product option, is an integrated command center that enables IT Staff personnel to continuously analyze and optimize a converged infrastructure, while automating and reducing the cost of common data center tasks by as much as 40 percent. As a powerfully integrated by design toolkit to accelerate complex technology projects and simplify daily operations that ultimately enable IT Staff personnel to dynamically keep pace with the organizations changing business requirements. It enables them to plan capacity and power continuously, balance across physical and virtual resources, and ensure cost-effective high availability. It also enables IT organizations to provision infrastructure consistently and automatically from pools of shared resources using a self-service portal. Resources provisioned can range from a single virtual machine to complex multi-tier environments and their associated physical and virtual resource requirements. In addition to the previous functional benefits, it also provides a cost-effective disaster recovery for physical and virtual environments that works with HP StorageWorks Continuous Access software for both the Enterprise Virtual Array and the XP storage array allowing application environments to be reactivated in minutes with the touch of a button to a remote location.

NOTE: For more information, visit:
https://www.hp.com/go/insightdynamics


High Performance Clusters

HP Cluster Platforms HP Cluster Platforms are specifically engineered, factory-integrated large-scale ProLiant clusters optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and Novell SLES, as well as Microsoft Windows HPC Server. A Cluster Platform Configurator simplifies ordering. https://www.hp.com/go/clusters.
HPC Interconnects

High Performance Computing (HPC) interconnect technologies are available for this server as part of the HP Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects are fully supported by HP when integrated within an HP cluster. Flexible, validated solutions can be defined with the help of configuration tools. https://www.hp.com/techservers/clusters/ucp/index.html

HP Cluster Management Utility
HP Cluster Management Utility (CMU) is an HP-licensed and HP-supported suite of tools that are used to manage large-scale Linux ProLiant systems. CMU includes software for the centralized provisioning, management and monitoring of nodes. CMU makes the administration of clusters user friendly, efficient, and effective. https://www.hp.com/go/cmu
HP HPC Linux Value Pack HP HPC Linux Value Pack (Value Pack) is an HP-licensed and HP-supported specially priced software bundle for the development and deployment of applications on HPC Cluster Platforms. Value Pack includes the Platform LSF workload scheduler, the HP-MPI parallelization library, the HP Unified Parallel C compiler and the HP Shmem library, as well as the execution environments for the libraries and compiler. HP HPC Linux Value Pack

Solutions

The very scalable 8-socket x86 ProLiant DL785 G6, with Quad-Core processing power, delivers outstanding flexibility, scalability and performance for customers growing Enterprise class database, consolidation and virtualization environments. Specifically, the HP ProLiant DL785 G6 would be excellent for running the following types of applications:

Typical Usage:
  • Consolidation and Virtualization
  • Large database applications
  • High Performance Computing (HPC)
  • Electronic Design Automation (EDA)/Semiconductor
  • Financial
  • ERP / CRM
  • Petrochemical
  • Life Science and Material Science
  • Video Rendering
Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model, please contact your sales representative or go to: https://www.hp.com/go/factory-express.


HP Enterprise Configurator

The HP eConfigure Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance. For additional information please visit: https://www.hp.com/products/configurator

contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information      DL785 G6 Core Options      Additional Options      DL785 G6 Memory      Storage      Power Specifications      DL785 G6 QuickSpecs images/line.gif

Service and Support

Service and Support

HP Care Pack Services provide total care and support expertise with committed response designed to meet your IT and business needs.

HP Care Pack services include coverage for the HP branded hardware options qualified for the server that are purchased at the same time or afterward and internal to the enclosure. It also includes the 22" and smaller external monitors and tower UPS options up to 3kVA. These items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included and standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

To fully capitalize on your HP ProLiant servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions provides a range of support services designed to meet the varying needs of business. Whether an SMB or large global corporation HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime.

Recommended Service - Simplify ProLiant solution implementation, maintenance, and management.

  • Support - 3-Year 9x5 Next Business Day coverage, excluding HP holidays only
  • Deployment Service – hardware Installation only

Enhanced Service - Optimize service level to increase IT performance and availability.

  • Support - 3-Year 13x5 Same Business Day, 4-Hour response coverage
  • Deployment Service – Installation and Start-up only

Refer to the information on "Installation & Start-Up" for service on ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet; to be delivered on a scheduled basis 8am-5pm, M-F, excluding HP holidays.

NOTE: For a complete listing of service offerings and information visit:
https://www.hp.com/services/proliantservices
https://www.hp.com/go/proliant/carepack

contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information      DL785 G6 Core Options      Additional Options      DL785 G6 Memory      Storage      Power Specifications      DL785 G6 QuickSpecs images/line.gif

Pre-configured Models

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
NOTE: Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section of this QuickSpecs.
NOTE: HP does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped separately.
NOTE: If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this QuickSpecs.
NOTE: Not all models are available in all regions. Check with your local country HP offices for availability.
Performance Models
HP ProLiant DL785 G6 8439SE 2.8GHz Six Core 4P 64GB ICE Rack Server
AM438A
Processor 6 Core AMD Opteron™ 8400 Series Processors
Cache Memory 6MB shared L3 cache per processor
Memory 64GB (16 X 4GB) of PC2-6400 DDR SDRAM standard
Network Controller Two embedded NC371i Multifunction Gigabit Network Adapters
Storage Controller HP Smart Array P400i/512MB BBWC Controller
Hard Drive None
Internal Storage 8.0 TB max
Optical Drive Slimline CD-RW/DVD-ROM 24x Combo Drive
Power Supply Six 1200W Power Supplies standard
Fans 6 Hot plug, redundant fans
Insight Control HP Insight Control Environment No Media single server license, including 1 year of 24x7 Technical Support and Updates
Form Factor 7U
Warranty Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.

Base Models
HP ProLiant DL785 G6 8431 2.4GHz Six Core 4P 32GB Rack Server
AM439A
Processor 6 Core AMD Opteron™ 8400 Series Processors
Cache Memory 6MB shared L3 cache per processor
Memory 32GB (8 X 4GB) of PC2-6400 DDR SDRAM standard
Network Controller Two embedded NC371i Multifunction Gigabit Network Adapters
Storage Controller HP Smart Array P400i/512MB BBWC Controller
Hard Drive None
Internal Storage 8.0 TB max
Optical Drive Slimline CD-RW/DVD-ROM 24x Combo Drive
Power Supply Three 1200W Power Supplies standard
Fans 6 Hot plug, redundant fans
Form Factor 7U
Warranty Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information      DL785 G6 Core Options      Additional Options      DL785 G6 Memory      Storage      Power Specifications      DL785 G6 QuickSpecs images/line.gif

Configuration Information

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.
NOTE: Configure-to-order (CTO) servers must start with a CTO Chassis.
NOTE: FIO indicates that this option is only available as a factory installable option.
Step 1: Base Configuration
HP Models HP ProLiant DL785 G6 Rack CTO Chassis
AM437A
Factory Integrated Models ship with:

Two embedded NC371i Multifunction Gigabit Network Adapters
HP Smart Array P400i Controller
HP Integrated Lights-Out 2 (iLO 2) management processor management
Six (6) Redundant Hot Plug Fans
Three Hot Plug Power Supply
Rack 7U Form Factor


Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)
HP Processors NOTE: If eight processors are desired, select one xxxxxx-B21 and one xxxxxx-B21.
AMD Opteron™ 8439 SE six-core processor (2.8GHz,105W ACP) 4P Option Kit, FIO 575261-B21
AMD Opteron™ 8431 six-core processor (2.4GHz, 75W ACP) 4P Option Kit, FIO 575260-B21
AMD Opteron™ 8425 HE six-core processor (2.1GHz, 55W ACP) 4P Option Kit, FIO 575259-B21

HP Memory 4 GB REG PC2-6400 2 x 2 GB Kit 497765-B21 497765-B21
8 GB REG PC2-6400 2 x 4 GB Kit 497767-B21 497767-B21
8 GB REG PC2-6400 2 x 4 GB Low Power Kit 504351-B21 504351-B21
16 GB REG PC2-5300 2 x 8 GB Dual Rank Kit 408855-B21 408855-B21
64 GB REG PC2-5300 8 x 8 GB Dual Rank Kit 495605-B21 495605-B21
4 GB REG PC2-5300 2 x 2 GB Low Power Single Rank Kit 483401-B21 483401-B21
8 GB REG PC2-5300 2 x 4 GB Low Power Dual Rank Kit 483403-B21 483403-B21
NOTE: A minimum of two DIMMs (1 kit) must be installed per processor.
NOTE: Memory must be ordered in like-pairs, i.e. two of the same size.
NOTE: When only PC2-6400 DIMMs modules are installed with a processor then the memory bus speeds for 4 or fewer, 6 or 8 DIMMs per processor will operate at PC2-6400, PC2-5300 and PC2-4200 respectively. All other processor and memory configurations will operate at PC2-5300 with 4 or fewer DIMMs and PC2-4200 with 6 or more DIMMs.


HP Storage Controllers Upgrade Options
HP Smart Array P400 256MB FIO Cache
NOTE: Supports Smart Array P400 Controller and Smart Array P400i Controller only.
405139-B21 405139-B21
512MB Battery-backed write cache upgrade 405148-B21 405148-B21

HP Optical Drives NOTE: Optical drives are ejectable.
Slimline CD-RW/DVD-ROM 24X Combo Drive Option Kit 331903-B21 331903-B21
Slimline DVD-ROM Drive (8X/24X) Option Kit (Servers) 264007-B21 264007-B21
HP DVD±R/RW 8X Slim 383975-B21 383975-B21

Step 3: Choose Additional Factory Integratable Options
HP Insight Software

HP Insight Control, No Media 1-Server License Factory-Integratable Option (FIO) including 1 year of 24x7 Technical Support and Updates
582765-B21
HP Insight Control for Linux, No Media 1-Server License Factory-Integratable Option (FIO) including 1 year of 24x7 Technical Support and Updates
TC203A

Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Core Options" and “Additional Options” sections below.
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information      DL785 G6 Core Options      Additional Options      DL785 G6 Memory      Storage      Power Specifications      DL785 G6 QuickSpecs images/line.gif

DL785 G6 Core Options

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
HP Processor 6-Core Processors
HP DL785 G6 AMD Opteron™ 8439SE (2.80GHz/6-core/6MB/105W) Processor Kit 575261-B21
HP DL785 G6 AMD Opteron™ 8431 (2.40GHz/6-core/6MB/75W) Processor Kit 575260-B21
HP DL785 G6 AMD Opteron™ 8425HE (2.10GHz/6-core/6MB/55W) Processor Kit 575259-B21

DL785 G6 Memory

HP 2GB (2x1GB) Single Rank PC2-5300 (DDR2-667) Registered Low Power Memory Kit
483399-B21 483399-B21
HP 4GB (2x2GB) Single Rank PC2-6400 (DDR2-800) Registered Memory Kit
497765-B21 497765-B21
HP 8GB (2x4GB) Dual Rank PC2-6400 (DDR2-800) Registered Memory Kit
497767-B21 497767-B21
HP 8GB (2x4GB) Dual Rank x4 PC2-6400 (DDR2-800) Registered Low Power Memory Kit
504351-B21 504351-B21
HP 16GB (2x8GB) Dual Rank PC2-5300 (DDR2-667) Registered Memory Kit
408855-B21 408855-B21
HP 64GB (8x8GB) Dual Rank PC2-5300 (DDR2-667) Registered Memory Kit
495605-B21 495605-B21
HP 4GB (2x2GB) Single Rank PC2-5300 (DDR2-667) Registered Low Power Memory Kit
483401-B21 483401-B21
HP 8GB (2x4GB) Dual Rank PC2-5300 (DDR2-667) Registered Low Power Memory Kit 483403-B21 483403-B21
NOTE: A minimum of two DIMMs (1 kit) must be installed per processor.
NOTE: Memory must be ordered in like-pairs, i.e. two of the same size.
NOTE: When only PC2-6400 DIMMs modules are installed with a processor then the memory bus speeds for 4 or fewer, 6 or 8 DIMMs per processor will operate at PC2-6400, PC2-5300 and PC2-4200 respectively. All other processor and memory configurations will operate at PC2-5300 with 4 or fewer DIMMs and PC2-4200 with 6 or more DIMMs.


HP Drive Cage
Options

HP DL785 G5 SAS Drive Option Kit AH267A
NOTE: The SAS Option Kit enables the second drive cage to support an additional eight SFF SAS hard disk drives, for a total internal support of sixteen SFF SAS hard disk drives.
NOTE: When choosing the HP DL785 G5 SAS Option Kit, customer must also order one of the following Smart Array Controllers: HP Smart Array P400 Controller, HP Smart Array P800 Controller, HP Smart Array P812 Controller, or the HP Smart Array P410 Controller.
NOTE: The SAS Option Kit enables the second drive cage to support an additional eight SFF SAS hard disk drives, for a total internal support of sixteen SFF SAS hard disk drives.


HP Optical Drives HP 8X Slim DVD+RW Drive 383975-B21 383975-B21
HP 8X/24X SlimLine DVD-ROM Drive 264007-B21 264007-B21
HP Slimline CD-RW/DVD-ROM 24X Carbon Combo Drive 331903-B21 331903-B21

DL785 G6 Hard Drives SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
581286-B21 581286-B21
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
581284-B21 581284-B21
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
507127-B21 507127-B21
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 512547-B21 512547-B21
HP 146GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
507125-B21 507125-B21
HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 512545-B21 512545-B21
SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive 507610-B21 507610-B21
NOTE: SAS Enterprise drives have a 3 year warranty, while SAS Midline drives have a 1 year warranty. Please see the QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/12244_na/12244_na.html
Solid State Drive (SSD)
HP 60GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive 577571-B21
HP 120GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive 577573-B21 577573-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/13415_na/13415_na.pdf
NOTE: HP P410/256 Smart Array Controller or HP SAS Expander Card must be used for adding the SATA Hot Plug Midline (MDL) solid state drives as internal drives in HP ProLiant DL785 G6.
NOTE: SAS Expander card must be used with the HP Smart Array P410 Controller.
NOTE: SATA Hot Plug Midline(MDL) solid state drives are not supported for factory integration.


HP Networking

Gigabit Ethernet adapters
HP NC112T PCI Express Gigabit Server Adapter 503746-B21 503746-B21
HP NC360T PCI-E Dual Port Gigabit Server Adapter 412648-B21 412648-B21
HP NC364T PCI-E Quad Port Gigabit Server Adapter
NOTE: There is a maximum of five NC364T PCI Express Quad Port Gigabit Server Adapter NICs allowed in this server.
435508-B21 435508-B21
HP NC365T 4-port Ethernet Server Adapter 593722-B21 593722-B21
HP NC373F PCI-E Multifunction 1000SX Gigabit Svr Adapter 394793-B21 394793-B21
HP NC373T PCI-E Multifunction Gigabit Server Adapter 394791-B21 394791-B21
HP NC375T PCI Express Quad Port Gigabit Server Adapter 538696-B21 538696-B21
10 Gigabit Ethernet adapters
HP NC522SFP Dual Port 10GbE Gigabit Server Adapter 468332-B21 468332-B21
HP NC523SFP 10Gb 2-port Server Adapter 593717-B21
HP NC550SFP Dual Port 10GbE Server Adapter
581201-B21
NOTE: No more than two 10GbE I/O devices are supported in a single ProLiant server.
NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each adapter.
NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately


NOTE: Please see the QuickSpecs for Technical Specifications and additional information: www.hp.com/go/ProLiantNICs.

HP InfiniBand
Options

HP InfiniBand 4X DDR PCI-E Dual Port HCA 448397-B21 448397-B21

HP I/O Expansion Options

HP DL785 G5 I/O PCI-e and HTx Backplane Upgrade Kit AH262A

HP Power Supplies NOTE: Prior to making a power supply selection it is highly recommended that the HP Power Advisor is run to determine the right size power supply for your server configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor.
HP 1200W 12V Hot Plug AC Power Supply
NOTE: Three additional power supply units are required for full redundancy.
NOTE: If you require a local power cord, please check the Power Specifications below for the appropriate country-specific power cord, or consult the Power Cord Matrix: https://www.hp.com/go/powercordmatrix.
500172-B21 500172-B21
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information      DL785 G6 Core Options      Additional Options      DL785 G6 Memory      Storage      Power Specifications      DL785 G6 QuickSpecs images/line.gif

Additional Options

HP Insight Software HP Insight Control

HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server License

452148-B22
HP Insight Software Media Kit
NOTE: Insight Software DVD media without licenses. Contains Insight Manager and Essentials software products and components licensed by Insight Control Environment suite. Uses an integrated installer to perform quick and accurate software installation and updates.
436222-B21
HP Insight Control including 1yr 24x7 Support ProLiant ML/DL-bundle Electronic License TC278AAE
HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic License T9074BAE
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Customer will receive a license entitlement certificate. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
NOTE: Licenses ship without media. The HP Insight Control Media Kit can be ordered separately, or can be downloaded at: https://www.hp.com/go/insightupdates.

NOTE: For additional License Kits, please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12631_na/12631_na.html
HP Insight Control for Linux
HP Insight Control for Linux Media Kit TC208A
NOTE: This optional Media pack DVD contains the ISO image for HP Insight Control for Linux, HP System Insight Manager, HP Insight Power Manager, HP Virtual Machine Management Pack, and an integrated installer. Servers must be acquired separately.
NOTE: This Media pack is optional because the latest ISO image and latest updates may be downloaded at no cost from: https://www.hp.com/go/ice-linux (click on Download button).


HP Insight Control for Linux including 1yr 24x7 Support Single Server License TC209A
HP Insight Control for Linux including 1yr 24x7 Support Electronic License TC213AAE
NOTE: Licenses ship without media. The Media Kit for Insight Control for Linux can be ordered separately, or can be downloaded at: https://www.hp.com/go/ic-linux (click on Download button).
NOTE: For additional License Kits, please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/13019_na/13019_na.html

HP Integrated Lights-Out (iLO) Advanced
HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server License 512485-B21
NOTE: This license allows 1 server to be deployed and managed via HP iLO Advanced. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional license kits, including electronic delivery options, please see the ProLiant OA/iLO QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12362_na/12362_na.html


HP iLO Advanced including 1yr 24x7 Technical Support and Updates Electronic License TA850AAE

High Performance Clusters

HP Cluster Management Utility

AH267A
HP Cluster Management Utility License and Media
433257-B21
HP Cluster Management Utility Compute Node Flexible License
436284-B21
HP High Performance Computing Linux Value Pack 1 Processor Flexible License
TC293A
HP High Performance Computing Linux Value Pack Media Kit TC294A

HP I/O Accelerator
Options

HP 160GB Single Level Cell PCIe ioDrive for ProLiant Servers
NOTE: A low-profile PCI bracket is included for use in low-profile slots.

600278-B21
HP 320GB Multi Level Cell PCIe ioDrive for ProLiant Servers
NOTE: A low-profile PCI bracket is included for use in low-profile slots.
600279-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/13587_na/13587_na.html



HP Storage Controllers SAS Controllers
Smart Array E500 Controller
HP Smart Array E500/256 2-ports Ext PCIe x8 SAS Controller 435129-B21 435129-B21
Smart Array P400 Controller
HP Smart Array P400 512MB Battery Kit 411064-B21 411064-B21
HP Smart Array P400/256 2-ports Int PCIe x8 SAS Controller
NOTE: 405132-B21 405132-B21 comes with 256 MB Cache.
405132-B21 405132-B21
HP Smart Array P800 Controller
HP Smart Array P800/512 BBWC 2-ports Int/2-ports Ext PCIe x8 SAS Controller 381513-B21 381513-B21
Smart Array P212 Controller
HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS Controller 462828-B21 462828-B21
HP Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 SAS Controller 462834-B21 462834-B21
Smart Array P410 Controller
HP Smart Array P410/256 2-ports Int PCIe x8 SAS Controller 462862-B21 462862-B21
HP Smart Array P410/512 BBWC 2-ports Int PCIe x8 SAS Controller 462864-B21 462864-B21
HP Smart Array P410/512 FBWC 2-ports Int PCIe x8 SAS Controller 578230-B21 578230-B21
HP Smart Array P410/1G FBWC 2-ports Int PCIe x8 SAS Controller 572532-B21 572532-B21
NOTE: AM436A - HP DL785 Smart Array Controller cable option kit is included when ordered on the DL785 with factory integration.
NOTE: AM436A HP DL785 Smart Array Controller cable option kit is required each time the Smart Array P410 Controller is ordered without factory integration and will be used to control internal drives 9-16.


Smart Array P411 Controller
HP Smart Array P411/256 MB Controller 462830-B21 462830-B21
HP Smart Array P411/512 MB BBWC Controller 462832-B21 462832-B21
HP P411 with 512MB Flash Backed Cache Controller 578229-B21 578229-B21
HP P411 with 1GB Flash Backed Cache Controller 572531-B21 572531-B21
Smart Array P812 Controller
HP Smart Array P812/1G FBWC 2-ports Int/4-ports Ext PCIe x8 SAS Controller 487754-B21 487754-B21
NOTE: AM436A HP DL785 Smart Array Controller cable option kit is required each time the Smart Array P812 Controller is ordered without factory integration and will be used to control internal drives 9-16.
Optional Upgrades
HP Smart Array P400 Battery Attach Kit
NOTE: This option kit contains a 24" battery cable and adhesive material for installing a battery into the server if a Smart Array E500 is integrated outside of the factory. For all solutions, please refer to the server QuickSpecs and User's Manual for detailed installation instructions.
417836-B21 417836-B21
HP 512MB w/Battery Smart Array Battery Back Write Cache Enabler
NOTE: For Smart Array P400 Controller only.
NOTE: If you install the 512MB DDR BBWC as an upgrade to a Smart Array P400/256MB Controller, you must also order part 417836-B21 417836-B21 (HP SA-P400 and SA-E500 24 In Battery Cable Kit).
405148-B21 405148-B21
HP Smart Array Cache Battery Kit
NOTE: For Smart Array P400 Controller only.
NOTE: If you install the Battery-backed write cache as an upgrade to a Smart Array P400/256MB Controller, you must also order part 417836-B21 417836-B21 (HP SA-P400 and SA-E500 24 In Battery Cable Kit).
383280-B21 383280-B21
HP 256MB P-Series Cache Upgrade
NOTE: Option kit not supported for factory integration.
NOTE: Supported on HP Smart Array P212 Controller and P410 Controller only.
462968-B21 462968-B21
HP 512MB P-Series Battery Backed Write Cache Upgrade
NOTE: Option kit not supported for factory integration.
NOTE: Supported on HP Smart Array P212 Controller and P410 Controller only.
462967-B21 462967-B21
HP 650 mAh P-Series Battery
NOTE: Option kit not supported for factory integration.
NOTE: To enable BBWC on the 256MB cache.
NOTE: Supported on HP Smart Array P212 Controller, HP Smart Array P410 Controller, and HP Smart Array P411 Controller only.
462969-B21
HP 512MB Flash Backed Write Cache 534916-B21 534916-B21
HP 1GB Flash Backed Cache 534562-B21 534562-B21
NOTE: Option kit not supported for factory integration.
NOTE: Supported on HP Smart Array P410 Controller and HP Smart Array P411 Controller only.

HP 8484 to Mini SAS 33in Cable Assembly 591734-B21
NOTE: Please see the following QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/12700_na/12700_na.html
(Smart Array E500 Controller)
https://h18000.www1.hp.com/products/quickspecs/12400_na/12400_na.html
(Smart Array P400 Controller)
https://h18000.www1.hp.com/products/quickspecs/12616_na/12616_na.html
(Smart Array P800 Controller)
https://h18000.www1.hp.com/products/quickspecs/13203_na/13203_na.html
(Smart Array P212 Controller)
https://h18000.www1.hp.com/products/quickspecs/13201_na/13201_na.html
(Smart Array P410 Controller)
https://h18000.www1.hp.com/products/quickspecs/13202_na/13202_na.html
(Smart Array P411 Controller)
https://h18000.www1.hp.com/products/quickspecs/13558_na/13558_na.html
(Smart Array P812 Controller)


SAS Controller Options
HP 24 Bay 3Gb SAS Expander Card
NOTE: Option kit not supported for factory integration.
NOTE: Enables a single Smart Array P410 Controller to control all of the embedded HDD's. Allows the configuration of a RAID array with up to 16 embedded HDD's. The Controller must be installed in PCIe Slot 1 and the Expander in PCIe Slot 2. The embedded SA P400i controller is not used.
NOTE: AM440A HP DL785 SAS Expander cable option kit required.
NOTE: Requires SA P410 Controller with Cache memory.
NOTE: Please see the following QuickSpecs for Technical Specifications and additional information:
https://h18004.www1.hp.com/products/quickspecs/13232_na/13232_na.html
(SAS Expander Card)
468406-B21 468406-B21
HP DL785 G6 SAS Expander Cable Option Kit
NOTE: Option kit not supported for factory integration
NOTE: Required each time the 468406-B21 468406-B21 HP SAS Expander card is ordered.
Provides (6) cables to connect the Smart Array Controller to the Expander, and the Expander to the Primary and Optional SAS backplanes. The SAS cables provided with the DL785 and the Expander are not used.
AM440A
SAS HBA
HP SC08Ge 2-ports Ext PCIe x8 SAS Host Bus Adapter
NOTE: Please see the following QuickSpecs for additional information:
https://h18004.www1.hp.com/products/quickspecs/13082_na/13082_na.html
(SC08Ge HBA)
488765-B21 488765-B21
HP Modular Smart Array SC08e 2-ports Ext PCIe x8 SAS Host Bus Adapter 614988-B21 614988-B21
SCSI HBA
HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter 412911-B21 412911-B21

HP Cable Options HP High Power Graphics Card Cable
NOTE: High Line Voltage is required with this kit. Using Low Line Voltage will halt the system. However if the total power usage is validated using the HP Power Advisor, the system halt condition with Low Line Voltage may be overridden by pressing "F9" to enter the RBSU and enabling the "Power Supply Override" setting under "Advanced Options".
AH270A
HP DL785 G6 Smart Array Controller Cable Option Kit
NOTE: Option kit not supported for factory integration
NOTE: Supports internal connection of Smart Array P410 and P812 Controllers. Provides (2) cables to connect the Controller to the Optional SAS Backplane (HP DL785 G5 SAS Option Kit - AH267A). This is required each time one of the Smart Array P410 and P812 Controllers is ordered without factory integration and will be used to control internal drives 9-16.
AM436A

HP Tape Backup Tape Autoloaders
HP StorageWorks 1/8 G2 Tape Autoloader
HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader AK377A
HP P212 Smart Array Controller SAS (462828-B21 462828-B21) is recommended for a dedicated HBA for SAS tape connection
Tape Libraries
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Tape Library
AK378A
HP StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SAS Tape Library
AK380A
HP StorageWorks MSL8096 2 LTO-4 Ultrium 1760 SAS Tape Library AK382A

HP Disk Backup D2D Backup
HP StorageWorks D2D2504i Backup System
EJ002A
HP StorageWorks D2D4112 Backup System
EH993A
HP StorageWorks D2D4009i Backup System EH939A
HP StorageWorks RDX Removable Disk Backup Systems USB
HP StorageWorks RDX 1TB Internal Removable Disk Backup System
NOTE: For installation into 1U USB Rack-Mount Kit (A8007A A8007A). No peripheral bay available for drive installation into the server. 1 TB of disk capacity per data cartridge.
BV847A

HP StorageWorks Options NOTE: The following is a list of all Fibre Channel Host Bus Adapters for Windows and Linux. For detailed compatibility information please see:
https://h18006.www1.hp.com/storage/saninfrastructure/hba.html

Brocade Fibre Channel HBAs
HP StorageWorks 81B PCIe 8Gb Fibre Channel Single Port Host Bus Adapter
AP769A AP769A
HP StorageWorks 82B PCIe 8Gb Fibre Channel Dual Port Host Bus Adapter
AP770A AP770A
HP StorageWorks 41B PCIe 4Gb Fibre Channel Single Port Host Bus Adapter
AP767A AP767A
HP StorageWorks 42B PCIe 4Gb Fibre Channel Dual Port Host Bus Adapter AP768A AP768A
Emulex Fibre Channel HBAs

HP StorageWorks 81E 8Gb Single Port PCI-e Fibre Channel Host Bus Adapter
AJ762A AJ762A
HP StorageWorks 82E 8Gb Dual Port PCI-e Fibre Channel Host Bus Adapter AJ763A AJ763A
HP StorageWorks FC2142SR 4Gb PCIe Host Bus Adapter
A8002A A8002A
HP StorageWorks FC2242SR 4Gb PCIe DC Host Bus Adapter A8003A A8003A
QLogic Fibre Channel HBAs

HP StorageWorks 81Q PCI-e Fibre Channel Host Bus Adapter AK344A AK344A
HP StorageWorks 82Q 8Gb Dual Port PCI-e Fibre Channel Host Bus Adapter AJ764A AJ764A
HP StorageWorks FC1142SR 4Gb PCIe Host Bus Adapter AE311A AE311A
HP StorageWorks FC1242SR 4Gb PCIe DC Host Bus Adapter AE312A AE312A

StorageWorks SCSI HBA


HP StorageWorks U320e SCSI Dual Channel Host Bus Adapter AH627A AH627A

HP Disk Storage Systems

MSA Drive Enclosures
HP StorageWorks MSA60 Array 418408-B21 418408-B21
NOTE: Please see the QuickSpecs for additional options and configuration information at: https://h18000.www1.hp.com/products/quickspecs/12627_na/12627_na.html
HP StorageWorks MSA70 Array 418800-B21 418800-B21
NOTE: Please see the QuickSpecs for additional options and configuration information at: https://h18000.www1.hp.com/products/quickspecs/12652_na/12652_na.html
HP 2012sa Single Controller Modular Smart Array AJ752A AJ752A
HP 2012sa Dual Controller Modular Smart Array AJ753A AJ753A
NOTE: Please see QuickSpecs for additional options and configuration information at:
https://h18000.www1.hp.com/products/quickspecs/13045_na/13045_na.html

Disk Enclosures
HP StorageWorks D2600 Disk Enclosure AJ940A
HP StorageWorks D2700 Disk Enclosure AJ941A
NOTE: Please see the QuickSpecs for additional options and configuration information at:
https://h18000.www1.hp.com/products/quickspecs/13044_na/13044_na.html


HP Uninterruptible Power Systems

HP Rack-mountable UPS
HP R1500 G2 UPS
HP R1.5 VA 1U Uninterruptible Power System
AF419A
NOTE: Please see the QuickSpecs for additional information:
https://h18000.www1.hp.com/products/quickspecs/12507_na/12507_na.html

HP R3000 UPS
HP R/T3000 High Voltage Uninterruptible Power System AF453A
NOTE: Please see the QuickSpecs for additional information:
https://h18000.www1.hp.com/products/quickspecs/10671_na/10671_na.html

HP Rack-Mountable R5500 UPS
HP R5500 VA 3U Uninterruptible Power System AF426A
NOTE: Please see the QuickSpecs for additional information:
https://h18000.www1.hp.com/products/quickspecs/11871_na/11871_na.html

NOTE: For additional information on HP Uninterruptible Power Systems please go to: www.hp.com/servers/rackups.
NOTE: Please see the UPS and PDU cable matrix’s on the HP Power Protection and Management page. Under Power Cords, click on the “HP Power Cord Matrix” link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units. Please see the following link: www.hp.com/products/powercords.


HP Power Distribution Units Monitored PDUs
HP Monitored Power Distribution Unit: Full Rack Version
HP Single Input 3 Phase 24A Monitored Power Distribution Unit
AF504A
HP Single Input 1 Phase 40A Monitored Power Distribution Unit
AF506A
HP Single Input 3 Phase 16A Monitored Power Distribution Unit
AF508A
HP Single Input 1 Phase 32A INT Monitored Power Distribution Unit
AF510A
HP Monitored Power Distribution Unit: Half Rack Version
HP Single Input 1 Phase 24A Monitored Power Distribution Unit
AF914A
HP Single Input 1 Phase 32A Monitored Power Distribution Unit
AF915A
Modular PDUs
HP 24A High Voltage Modular Power Distribution Unit 252663-D72 252663-D72
HP 16A High Voltage Modular Power Distribution Unit
NOTE: This PDU has a detachable input power cord and allows for adaptability to country specific power requirements.
252663-B24 252663-B24
HP 32A High Voltage Modular Power Distribution Unit 252663-B31
HP 40A High Voltage Modular Power Distribution Unit 252663-D73
NOTE: Please see the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs for additional options including shorter jumper cables and country specific power cords:
https://h18000.www1.hp.com/products/quickspecs/11041_na/11041_na.html
NOTE: For additional information on HP Power Distribution Units including accessories please go to: www.hp.com/go/pdu.
NOTE: Please see the UPS and PDU cable matrix’s on the HP Power Protection and Management page. Under Power Cords, click on the “HP Power Cord Matrix” link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units. Please see the following link: www.hp.com/products/powercords.


HP Rack Series Rack 10000 G2 Series
HP 10642 G2 Pallet Universal Rack
AF001A AF001A
HP 10642 G2 Shock Universal Rack
AF002A AF002A
HP 10642 G2 1200mm deep Shock Rack
AF092A
HP 10647 G2 1200mm deep Shock Rack AF094A
NOTE: It is mandatory to use a shock pallet when shipping racks with equipment installed.
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/12402_na/12402_na.html (Worldwide)

NOTE: For additional information regarding Rack Cabinets, please see the following URL: https://www.hp.com/go/rackandpower.
NOTE: The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 G2 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.
CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment: Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation). Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 2.75 inches (7 cm).
CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

NOTE: Quick deploy rail system provides tool-free support for racks with square or round mounting holes (including Compaq/HP 7000, 9000, 10000 G2 and HP series), with an adjustment range of 24" - 36". The ambidextrous cable management arm can be mounted on either the left or right side for improved cable management.

HP Rack Options

Keyboards and Monitors
HP TFT7600 G2 KVM Console Rackmount Keyboard Monitor AZ870A
HP TFT7600 G2 KVM Console Rackmount Keyboard TAA Monitor AZ885A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/13731_na/13731_na.html

HP TFT7600 Rackmount Keyboard 17in Monitor AG052A AG052A
HP TAA TFT7600 Rackmount Keyboard 17in Monitor AG067A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/12417_na/12417_na.html

HP 1U Rackmount Keyboard with USB AG072A AG072A
HP 1U Rackmount Keyboard with USB AG081A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/12465_na/12465_na.html

HP KVM Switch Options
HP Server Console 0x2x8 Port Analog Switch AF616A
HP Server Console 0x2x16 Port Analog Switch AF617A
HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software AF618A
HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software AF619A
HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software AF620A
HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software AF621A
HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software AF622A

HP USB and SD Options

HP 1.44MB USB External Floppy Drive
DC141B
HP 2GB USB Flash Media Drive Key Kit
608447-B21
NOTE: HP qualified blank USB key for use with HP ProLiant servers that support the VMware virtualization environment and other HP value-add software like SmartStart. HP recommends this industry standard USB flash device for use with VMware ESXi. USB device must be installed in the internal slot of the ProLiant server for use with VMware ESXi. Refer to HP VMware Getting Started Guide for installation instructions.

HP USB 2-Button Optical Scroll Mouse
DC172B DC172B
HP USB Standard Keyboard DT528A#ABA

HP Care Pack Services Hardware Services On-site Service
HP 3 year 4 hour 13x5 ProLiant DL785 G6 Server Hardware Support US137E
HP 3 year 4 hour 24x7 ProLiant DL785 G6 Server Hardware Support US139E
Hardware Services 6-Hour Call to Repair On-site Service
HP 3 year 6 hour 24x7 Call to Repair ProLiant DL785 G6 Server Hardware Support US141E
Installation & Start-up Services
HP Install ProLiant DL785 Service UM450E
HP Startup ProLiant DL785 Service
Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays, Electronic
UM451E
Support Plus 24
HP 3 year Support Plus 24 for Microsoft OS for Proliant DL785 G6 Service
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
US143E
HP 3 year Support Plus 24 for Linux RedHat for Proliant DL785 G6 Service
Onsite HW support 24x7, 4hr response and Red Hat AS Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
US144E
HP 3 year Support Plus 24 for Linux SuSe for Proliant DL785 G6 Service
Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
US145E
HP 3 year Support Plus 24 ICE for Proliant DL785 G6 Service
Onsite HW support 24x7, 4hr response and Insight Control ( ICE ) SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
US146E
NOTE: For more information, customer/resellers can contact: https://www.hp.com/services/carepack
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information      DL785 G6 Core Options      Additional Options      DL785 G6 Memory      Storage      Power Specifications      DL785 G6 QuickSpecs images/line.gif

Memory

NOTE: Memory configurations listed do not apply to "Factory Integrated Models."
HP ProLiant DL785 G6 4P Models

Standard Memory (One of the following, depending on Model)
64 GB PC2-6400 Double Data Rate 2 (DDR2) SDRAM (Registered SDRAM) memory running at 800 MHz with Advanced ECC or 32 GB PC2-6400 Double Data Rate 2 (DDR2) SDRAM (Registered SDRAM) memory running at 800 MHz with Advanced ECC
At least one pair of DIMMs must be installed in slots 1A and 2A to operate the server. Observe the following DIMM installation guidelines to add additional memory to the server:

  • DIMMs must be installed in pairs.
  • DIMM installed on the same memory bank must have the same part number.
  • DIMMs installed in different banks can be of different sizes.
  • DIMMs must be installed in decreasing capacity with the largest DIMMs installed in the banks furthest away from each processor.

Standard Memory Configuration (model AM439A)
Total Memory = 32 GB


1
(Slot furthest from processor)

2

3

4

5

6

7
8
(Slot closest to processor)
Processor 1 Memory Bus
4 GB
4 GB
Empty
Empty
Empty
Empty
Empty
Empty
Processor 2 Memory Bus
4 GB
4 GB
Empty
Empty
Empty
Empty
Empty
Empty
Processor 3 Memory Bus Empty Empty Empty Empty Empty Empty Empty Empty
Processor 4 Memory Bus Empty Empty Empty Empty Empty Empty Empty Empty
Processor 5 Memory Bus Empty Empty Empty Empty Empty Empty Empty Empty
Processor 6 Memory Bus Empty Empty Empty Empty Empty Empty Empty Empty
Processor 7 Memory Bus 4 GB 4 GB Empty Empty Empty Empty Empty Empty
Processor 8 Memory Bus 4 GB 4 GB Empty Empty Empty Empty Empty Empty

Standard Memory Configuration (model AM438A)
Total Memory = 64GB


1
(Slot furthest from processor)

2

3

4

5

6

7
8
(Slot closest to processor)
Processor 1 Memory Bus
4 GB
4 GB
4 GB
4 GB
Empty
Empty
Empty
Empty
Processor 2 Memory Bus
4 GB
4 GB
4 GB
4 GB
Empty
Empty
Empty
Empty
Processor 3 Memory Bus Empty Empty Empty Empty Empty Empty Empty Empty
Processor 4 Memory Bus Empty Empty Empty Empty Empty Empty Empty Empty
Processor 5 Memory Bus Empty Empty Empty Empty Empty Empty Empty Empty
Processor 6 Memory Bus Empty Empty Empty Empty Empty Empty Empty Empty
Processor 7 Memory Bus 4 GB 4 GB 4 GB 4 GB Empty Empty Empty Empty
Processor 8 Memory Bus 4 GB 4 GB 4 GB 4 GB Empty Empty Empty Empty


Examples of other optional configurations include, but are not limited to:
Example #1: Optional Memory Configuration with DIMM mixing
Standard Memory plus Optional Memory and Processors
Total Memory = 64 GB


1

2

3

4

5

6

7
8
Processor 1 Memory Bus
4 GB
4 GB
2 GB
2 GB
1 GB
1 GB
1 GB
1 GB
Processor 2 Memory Bus
4 GB
4 GB
2 GB
2 GB
1 GB
1 GB
1 GB
1 GB
Processor 3 Memory Bus EmptyEmptyEmptyEmptyEmptyEmptyEmptyEmpty
Processor 4 Memory Bus EmptyEmptyEmptyEmptyEmptyEmptyEmptyEmpty
Processor 5 Memory Bus EmptyEmptyEmptyEmptyEmptyEmptyEmptyEmpty
Processor 6 Memory Bus EmptyEmptyEmptyEmptyEmptyEmptyEmptyEmpty
Processor 7 Memory Bus
4 GB
4 GB
4 GB
4 GB
2 GB
2 GB
1 GB
1 GB
Processor 8 Memory Bus
2 GB
2 GB
2 GB
2 GB
2 GB
2 GB
1 GB
1 GB

Example #2: Optional Memory Configuration with Partial Bus Population
Standard Memory plus Optional Memory and Processors
Total Memory = 32 GB


1

2

3

4

5

6

7
8
Processor 1 Memory Bus 1 GB1 GB1 GB1 GBEmptyEmptyEmptyEmpty
Processor 2 Memory Bus 1 GB1 GB1 GB1 GBEmptyEmptyEmptyEmpty
Processor 3 Memory Bus 1 GB1 GB1 GB1 GBEmptyEmptyEmptyEmpty
Processor 4 Memory Bus 1 GB1 GB1 GB1 GBEmptyEmptyEmptyEmpty
Processor 5 Memory Bus 1 GB1 GB1 GB1 GBEmptyEmptyEmptyEmpty
Processor 6 Memory Bus 1 GB1 GB1 GB1 GBEmptyEmptyEmptyEmpty
Processor 7 Memory Bus 1 GB1 GB1 GB1 GBEmptyEmptyEmptyEmpty
Processor 8 Memory Bus 1 GB1 GB1 GB1 GBEmptyEmptyEmptyEmpty

Example #3: Maximum Memory Configuration
Maximum Memory (Standard replaced with Optional Memory)
Total Memory = 512 GB


1

2

3

4

5

6

7
8
Processor 1 Memory Bus 8 GB 8 GB 8 GB 8 GB 8 GB 8 GB 8 GB 8 GB
Processor 2 Memory Bus 8 GB 8 GB 8 GB 8 GB 8 GB 8 GB 8 GB 8 GB
Processor 3 Memory Bus 8 GB 8 GB 8 GB 8 GB 8 GB 8 GB 8 GB 8 GB
Processor 4 Memory Bus 8 GB 8 GB 8 GB 8 GB 8 GB 8 GB 8 GB 8 GB
Processor 5 Memory Bus 8 GB 8 GB 8 GB 8 GB 8 GB 8 GB 8 GB 8 GB
Processor 6 Memory Bus 8 GB 8 GB 8 GB 8 GB 8 GB 8 GB 8 GB 8 GB
Processor 7 Memory Bus 8 GB 8 GB 8 GB 8 GB 8 GB 8 GB 8 GB 8 GB
Processor 8 Memory Bus 8 GB 8 GB 8 GB 8 GB 8 GB 8 GB 8 GB 8 GB

The following memory options are available from HP:
DL785 G6 Memory

HP 4GB (2x2GB) Single Rank PC2-6400 (DDR2-800) Registered Memory Kit

497765-B21 497765-B21
HP 8GB (2x4GB) Dual Rank PC2-6400 (DDR2-800) Registered Memory Kit
497767-B21 497767-B21
HP 8GB (2x4GB) Dual Rank x4 PC2-6400 (DDR2-800) Registered Low Power Memory Kit
504351-B21 504351-B21
HP 16GB (2x8GB) Dual Rank PC2-5300 (DDR2-667) Registered Memory Kit
408855-B21 408855-B21
HP 64GB (8x8GB) Dual Rank PC2-5300 (DDR2-667) Registered Memory Kit
495605-B21 495605-B21
HP 4GB (2x2GB) Single Rank PC2-5300 (DDR2-667) Registered Low Power Memory Kit 483401-B21 483401-B21
HP 8GB (2x4GB) Dual Rank PC2-5300 (DDR2-667) Registered Low Power Memory Kit 483403-B21 483403-B21
NOTE: A minimum of two DIMMs (1 kit) must be installed per processor.
NOTE: Memory must be ordered in like-pairs, i.e. two of the same size.
NOTE: When only PC2-6400 DIMMs modules are installed with a processor then the memory bus speeds for 4 or fewer, 6 or 8 DIMMs per processor will operate at PC2-6400, PC2-5300 and PC2-4200 respectively. All other processor and memory configurations will operate at PC2-5300 with 4 or fewer DIMMs and PC2-4200 with 6 or more DIMMs.

contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information      DL785 G6 Core Options      Additional Options      DL785 G6 Memory      Storage      Power Specifications      DL785 G6 QuickSpecs images/line.gif

Storage

A

Slimline Media Bay
1-8 Standard 8 SFF hot plug SAS drive bays
9-16 Optional 8 SFF hot plug SAS drive bays



Drive Support



Quantity
Supported

Position
Supported

Controller

Ejectable Slimline Drives

IDE Slimline DVD-ROM Drive (8X/24X)
Up to 1
A
Integrated IDE
IDE Slimline CD-RW/DVD-ROM Combo Drive
Up to 1
A
Integrated IDE
IDE DVD±R/RW 8X Drive
Up to 1
A
Integrated IDE

Hard Drives
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE: All the internal drives in HP ProLiant DL785 G6 will operate at a maximum data transfer rate of 3Gb/s.
NOTE: Up to 16 disks in position 1-16 are supported if HP SAS Expander and P410 Controller is used.
SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives


Quantity
Supported

Position
Supported


Controller

600GB 6G SAS 10K DP
450GB 6G SAS 10K DP
300GB 6G SAS 10K DP
146GB 6G SAS 15K DP
146GB 6G SAS 10K DP
72GB 6G SAS 15K DP
Up to 8
1-8
HP Smart Array P400i Controller
Up to 8 9-16 HP Smart Array E500/256MB Controller
HP Smart Array P400/256 MB Controller
HP Smart Array P400/512 MB Controller with BBWC
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives


Quantity
Supported

Position
Supported


Controller

600GB 6G SAS 10K DP
450GB 6G SAS 10K DP
300GB 6G SAS 10K DP
146GB 6G SAS 15K DP
146GB 6G SAS 10K DP
72GB 6G SAS 15K DP

Up to 16 1-16 HP Smart Array E500/256MB Controller
HP Smart Array P400/256 MB Controller
HP Smart Array P400/512 MB Controller with BBWC
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
HP SAS Expander Card
NOTE: SAS Expander card can only be used with the HP Smart Array P410 Controller.

SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives


Quantity
Supported

Position
Supported


Controller

500GB 6G SAS 7.2K DP
Up to 8
1-8
HP Smart Array P400i Controller
Up to 8 9-16 HP Smart Array E500/256MB Controller
HP Smart Array P400/256 MB Controller
HP Smart Array P400/512 MB Controller with BBWC
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller

SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives


Quantity
Supported

Position
Supported


Controller

500GB 6G SAS 7.2K DP Up to 16 1-16 HP Smart Array E500/256MB Controller
HP Smart Array P400/256 MB Controller
HP Smart Array P400/512 MB Controller with BBWC
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
HP SAS Expander Card
NOTE: SAS Expander card can only be used with the HP Smart Array P410 Controller.

SATA Hot Plug SFF Midline (MDL) Solid State Drives


Quantity
Supported

Position
Supported


Controller

60GB 3.0G SATA SSD 120GB 3.0G SATA SSD
Up to 8
Up to 8
1-8
9-16
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller

SAS Hot Plug SFF Midline (MDL) Solid State Drives


Quantity
Supported

Position
Supported


Controller

60GB 3.0G SATA SSD 120GB 3.0G SATA SSD
Up to 16
1-8
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
HP SAS Expander Card
NOTE: SAS Expander card can only be used with the HP Smart Array P410 Controller.
NOTE: SATA Hot Plug Midline(MDL) solid state drives are not supported for factory integration

External Storage



Quantity
Supported

Position
Supported


Host Controller or Adapter

60 Modular Smart Array Up to 4 External HP Smart Array P212/256 MB Controller
Up to 8 HP Smart Array E500/256MB Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
70 Modular Smart Array Up to 2 External HP Smart Array P212/256 MB Controller
Up to 4 HP Smart Array E500/256MB Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
HP 2000sa Modular Smart Array Controller Up to 4 External HP SC08Ge Host Bus Adapter
D2700 Disk Enclosure Up to 2

External HP Smart Array P212/256 MB Controller
Up to 4 External HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller

Maximum Storage Capacity - (External Enclosure Attached)

Internal

8.000TB (16 x 500GB SFF SAS Drives)

Tape and Disk-Based Backup

NOTE: For the complete range of StorageWorks tape drives, autoloaders, libraries and media, including the internal fitting models, see: https://www.hp.com/go/tape. For the complete range of StorageWorks D2D Backup Systems see: https://www.hp.com/go/d2d. For the complete range of StorageWorks RDX drives and media see: https://www.hp.com/go/rdx. For hardware and software compatibility of HP StorageWorks disk and tape backup products see: https://www.hp.com/go/connect.



Position
Supported

Controller

Controller Part Number

HP StorageWorks SCSI Tape Drives
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-3 Ultrium 960
LTO4 Ultrium 1760
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP SC11Xe Host Bus Adapter
NOTE: Please check the full compatibility information at: https://www.hp.com/go/connect


HP StorageWorks USB Tape Drives
DAT 40
DAT 72
DAT 160
DAT 320
1U USB Rack-Mount Kit

External
USB 2.0 Port
N/A

HP StorageWorks SAS Tape Drives
DAT 160
DAT 320
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-4 Ultrium 1760
LTO-4 Ultrium 1840
LTO-5 Ultrium 3000
LTO-5 Ultrium 3280
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP Smart Array P212/Zero Memory Controller
NOTE: Please check the full compatibility information at: https://www.hp.com/go/connect

HP StorageWorks SCSI Tape Autoloaders
DAT 72x10 Autoloader
1/8 G2 Autoloader
External HP SC11Xe Host Bus Adapter
NOTE: Please check the full compatibility information at: https://www.hp.com/go/connect
412911-B21 412911-B21


HP StorageWorks SCSI Tape Libraries, External
MSL2024
MSL4048
MSL8096
MSL6000

External HP U320e SCSI Dual Channel Controller
NOTE: Please check the full compatibility information at: https://www.hp.com/go/connect
AH627A AH627A

HP StorageWorks SAS Tape Autoloaders and Libraries
1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096
External
HP Smart Array P212/Zero Memory Controller
NOTE: Please check the full compatibility information at: https://www.hp.com/go/connect

HP StorageWorks Fibre Channel Tape Libraries
MSL2024
MSL4048
MSL8096
MSL6000
External

Please consult the EBS connectivity matrix at: https://www.hp.com/go/ebs for connectivity information and the supported Fibre Channel HBAs shown in this QuickSpecs

N/A

HP StorageWorks USB RDX Removable Disk Backup System
RDX160
RDX320
RDX500
RDX750
RDX1TB
External USB 2.0 Port N/A


HP StorageWorks D2D Backup Systems, iSCSI
D2D2500i
D2D4000i

External
Embedded Network Controller. If the server requires a hardware iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is recommended.


HP StorageWorks D2D Backup Systems, Fibre Channel
D2D4000fc
External Direct server attach is not supported, requires connection via SAN fabric. See: https://www.hp.com/go/connect
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information      DL785 G6 Core Options      Additional Options      DL785 G6 Memory      Storage      Power Specifications      DL785 G6 QuickSpecs images/line.gif

Power Specifications

HP 1200W 12V Hot Plug AC Power Supply
Part Number
500172-B21 500172-B21
Input Voltage Range (V rms) 100 to 240
Frequency Range (Nominal) (Hz)
50/60
Nominal Input Voltage (Vrms)
100
120
200
208
220
230
240
Maximum Rated Output Wattage Rating
800
900
1200
1200
1200
1200
1200
Nominal Input Current (A rms)
9.7
9.0
7.0
6.8
6.4
6.1
5.9
Maximum Rated Input Wattage Rating (Watts)
930
1034
1348
1348
1348
1348
1348
Maximum Rated VA (Volt-Amp)
970
1079
1406
1406
1406
1406
1406
Efficiency (%)
86
87
89
89
89
89
89
Power Factor
97
Leakage Current (mA)
0.42
0.50
0.83
0.87
0.92
0.96
1.00
Maximum Inrush Current (A peak)
30
Maximum Inrush Current duration (mS)
20
Maximum British Thermal Unit Rating (BTU-Hr)
3174
3530
4600
4600
4600
4600
4600
NOTE: To review typical system power ratings use the HP Power Advisor which is available online located at url: www.hp.com/go/proliant-energy-efficient or www.hp.com/go/hppoweradvisor
  • There are certain lowline, max configurations that are not supported. All highline configurations are supported. Consult the HP Power Advisor to determine if your lowline configuration is supported.

Standard Rack Model Power Cords / Jumper Cords Description
Asia Pacific IEC320-C14 to IEC320-C13 Jumper Cord
Europe IEC320-C14 to IEC320-C13 Jumper Cord
Japan JIS C8303 to IEC320-C13
IEC320-C14 to IEC320-C13 Jumper Cord

PRC

IEC320-C14 to IEC320-C13 Jumper Cord

USA

IEC320-C14 to IEC320-C13 Jumper Cord
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information      DL785 G6 Core Options      Additional Options      DL785 G6 Memory      Storage      Power Specifications      DL785 G6 QuickSpecs images/line.gif

Quickspecs

System Unit

Dimensions (H x W x D)
(with bezel)

12.04 x 17.32 x 27.4 in (30.58 x 44 x 69.6cm)

Weight
(approximate)

Maximum
(all hard drives, power supplies, and processors installed)
160lb (72 kg)
Minimum
(one hard drive, 2 power supply, and 4 processor modules installed)
147 lb (67 kg)

Input Requirements
(per 3 power supplies non redundant)

Rated Line Voltage90 - 132 VAC
180 - 264 VAC
Rated Input Current24A @ 100 VAC
14A @ 200 VAC
Rated Input Frequency47 to 63 Hz
Rated Input Power 2400W @ 100-120 VAC
2800W @ 200-240 VAC
BTU RatingMaximum8189 BTU/hr @ 100-120 VAC
9554 BTU/hr @ 200-240 VAC
Power Specifications

NOTE: To review typical system power ratings use the HP Power Advisor which is available online located at url: www.hp.com/go/proliant-energy-efficient or www.hp.com/go/hppoweradvisor

  • Click on the system of interest. Example: DL785 G6
  • Follow the instructions of the next screens
Power Supply Output (per power supply)Rated Steady-State Power800 W (at 100 VAC),
1200 W (at 200 VAC)
Maximum Peak Power800 W (at 100 VAC),
1200 W (at 200 VAC)
System Inlet Temperature Operating10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed. System performance may be reduced if operating with a fan fault or above 30°C (86°F).
Non-operating-30° to 60° (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity
(non-condensing)

Operating 10% to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.
Non-operating5% to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non condensing.
AltitudeOperating3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min)
Acoustic Noise



Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
Idle
L WAd7.6 B
L pAm58 dBa
Operating
L WAd7.6 B
L pAm58 dBa
Emissions Classification (EMC)FCC RatingClass A
Normative StandardsCISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1
NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

Slimline CD-RW/DVD-ROM 24X Combo Drive

Shipping Dimensions 13.88 x 11.38 x 9.25 in (35.26 x 28.91 x 23.50 cm)

Shipping Weight

5 lb (2.27 kg)
Disk

Applicable Disk

DVD-ROM

DVD-R (Read Only)

2.6 GB/side DVD-RAM (Read Only)

5.2 GB/side DVD-RAM (Read Only)

CD-ROM Mode-1 data disc

CD-ROM Mode-2 data disc
CD Audio disc
CD-Extra
CD-RW
CD-R
CD Text
PhotoCD
CD-I (mode 2)
CD-I Ready
CD-Bridge

Capacity

DVD-ROM

DVD-SL 4.7 GB/side
DVD-DL 8.5 GB/side
Double Sided 9.40 GB/side
DVD-R   3.95 GB/side
DVD-RAM   2.6 GB/side and 5.2 GB/
CD-ROM Mode-1 650 MB (550 MB)
Mode-2 742 MB (640 MB)
Block Size DVD   2,048 bytes
CD   2,352 (Mode-0)
  2352, 2340, 2336, 2048 bytes
(Mode-1)
  2352, 2340, 2336, 2048 bytes
(Mode-2)

Diameter

120 mm, 80 mm (with adapter at vertical mounting mode)

Loading Mechanism

Tray type



Interface

EIDE (ATAPI)



Access Times (typical)

Random

DVD-ROM < 120 ms, CD-ROM < 110 ms

Full-Stroke

DVD-ROM < 240 ms, CD-ROM < 160 ms

Audio Output Level (typical)

Line-out

CD 0.7 Vrms at 47 Kohms Load

Data Transfer Rate (sustained)

DVD-ROM

Single Layer

10.8 MB/sec. Max.
DVD-RAM 2.77 MB/sec. Max

CD-ROM

7.2 MB/sec. Max.

Cache Buffer

2 MB



Spin-up Time (typical)

less than 10 seconds



MTBF

120,000 Power On Hours (POH)



Ambient Temperature

Operating

-22° to 140° F (-30° to 60° C)

Relative Humidity

Operating

10% to 80%

Storage/Transportation

5% to 95%

Dimensions

(HxWxD, maximum)

0.5 x 5.04 x 5.1 in (12.7 x 128 x 129.4 mm)

Option Kit Contents DVD-ROM drive with installation guide, warranty card, registration card

Smart Array P400i Controller

Disk Drive and Enclosure Interface 3G SAS (Serial Attached SCSI)
1.5G SATA (Serial Advanced Technology Attachment)
SAS Connectors 2 internal (SFF8484) x4 wide port connectors
Cache Memory Speed DDR2-533MHz with 40 or 72-bit wide bus provides up to 4.2 GB/s maximum bandwidth.
Server Interface x8 2.5G PCIe provides 2GB/s maximum bandwidth.
SAS Speed x8 3G SAS provides 2.4GB/s maximum bandwidth.
Cache Memory 40-bit 256MB cache (72-bit 512MB module upgrades available); ECC protection, battery-backed, and transportable
Logical Drives Supported Up to 32 logical drives
Maximum Logical Drive Capacity 2TB
Host Memory Addressing 64-bit, supporting greater than 4GB server memory space
RAID Support RAID 6 with ADG (Advanced Data Guarding) requires Battery Backed Write Cache Upgrade
RAID 5 (Distributed Data Guarding)
RAID 1, 1+0 (Striping & Mirroring)
RAID 0 (Striping)

Two embedded NC371i Multifunction Gigabit Server Adapters

Network Interface 10/100/1000-T
Compatibility IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method PCI Express, four lanes (x4)
Controller BCM5706
Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s
10Base-T (Full-Duplex) 20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex) 200 Mb/s
1000Base-TX (Half and Full-Duplex) 2000 Mb/s
Connector RJ-45
Cable Support 10Base-T Categories 3, 4, or 5 UTP; up to 328 ft (100 m)
10/100/1000 Base-TX Category 5 UTP up to 328 ft (100 m)

HP Integrated Lights-Out 2 (iLO 2)
integrated on system board

Architecture 32-bit PCI-based health and remote management ASIC

Processor

32-bit RISC processor core running at 66MHz
Upgradeability Option firmware upgradeable via Flash ROM
Operating System Support Microsoft Windows Server 2008 Standard Edition (32bit and 64bit)
Microsoft Windows Server 2008 Enterprise Edition (32bit and 64bit)
Microsoft Windows Server 2003 and Windows Server 2003 R2, and Windows Server 2003 for Extended Systems Standard Edition, Enterprise Edition
Red Hat Enterprise Linux 5.4 (32bit and 64bit)
SUSE LINUX Enterprise Server 11 (32bit and 64bit)
SUSE LINUX Enterprise Server 10 (32bit and 64bit)
VMware ESX 4.0
VMware ESX 3.5.0
Microsoft Windows XP Professional Edition
Microsoft Windows Vista Business and Ultimate Editions
Red Hat Enterprise Linux Desktop 5.00
SUSE Linux Enterprise Desktop 11
SUSE Linux Enterprise Desktop 10

Client Browser Support

Microsoft Internet Explorer 7
Microsoft Internet Explorer 6
Firefox 3.5 (on supported Windows and Linux systems)
Firefox 3.0 (on supported Windows and Linux systems)

Command Line Support

Telnet, Secure Shell and serial port access
Secure Socket Layer
Secure Shell version 2 (Password and certificate)

Security

Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser, CLP and XML scripting interface
RC4 encryption of video

Directory Support Services

Active Directory v1.0 (Windows 2003)

Driver Support

Health Driver (HP ProLiant iLO 2 Management Controller Driver)
iLO Management Channel Interface Driver

Management protocols supported

SNMP 2, IPMI 2.0 (KCS interface), DMTF Server Management Command Line Protocol Specification
(SM CLP), DMTF Web Services Management Specification (WS Management)

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: https://www.hp.com/go/green. To recycle your product, please go to: https://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: https://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.


Sillworks                  Ph: 1.613.599.1287                  Fax: 1.613.599.8120
U320 | SSD | SAS/SATA | Fibre | Memory | Controllers | Processors | Power Supplies | Networking
line
Dell | EqualLogic | EMC | Hewlett-Packard | IBM | Seagate
line
HP      HP      HP      Dell Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account Dell      Dell      Dell      Seagate
Terms of Use | Legal | Privacy | Primary Site | Contact us | Add to favorites
Amex Accepted Visa Accepted MasterCard Accepted
