 HPE  Proliant ML350 G4 QuickSpecs Flag US QuickSpecs
Folder-Closed ML350 G4 HDD SSD Folder-Closed ML350 G4 Processors Folder-Closed ML350 G4 Memory
Folder-Closed ML350 G4 Controllers Folder-Closed ML350 G4 Networking Folder-Closed ML350 G4 Power
Folder-Closed ML350 G4 Quickspecs Folder-Closed ML350 G4 Quickspecs Folder-Closed ML350 G4 Options New  Refurb
contents
 Overview      Standard Features      Models      ML350 G4 Options      ML350 G4 Memory      Storage      Power Specifications      ML350 G4 QuickSpecs images/line.gif

Proliant ML350 G4 Overview

HP ProLiant ML350 Generation 4 (G4)

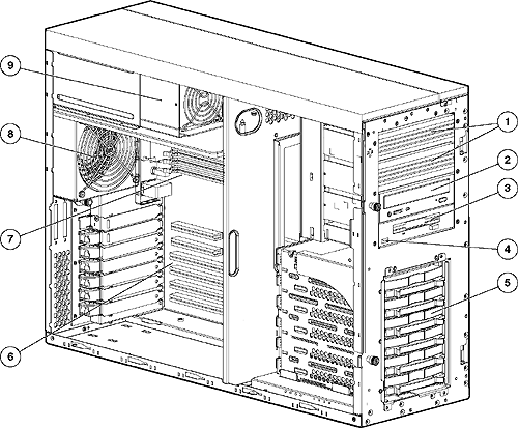

Proliant ML350 G4 Server Image
1. Two Available Removable Media Bays
2. 48X Max IDE CD-ROM Drive
3. 1.44 Diskette Drive
4. USB Port
5. Six Hot Plug Drive Bays (shown above) or Four Non Hot Plug SCSI Drive Bays (not shown)
6. Six Expansion Slots (four PCI-X, two PCI-Express)
7. Four DIMM sockets for up to 8GB of memory
8. System Fan (an optional redundant system fan is available)
9. Power Supply
NOTE: In hot plug models, an optional 2nd power supply is available for hot-plug 1+1 redundancy

At A Glance
  • Intel Xeon 3.0 GHz, 3.2 GHz, or 3.4 GHz processors (dual processor capability) with 1MB level 2 cache standard. Processors include support for Hyper-Threading and Extended Memory 64 Technology (EM64T)
  • Intel® E7520 chipset
  • 800-MHz Front Side Bus
  • Integrated Dual Channel Ultra320 SCSI Adapter
  • Smart Array 641 Controller (standard in Array Models only)
  • NC7761 PCI Gigabit NIC (embedded)
  • Up to 1 GB of PC2700 DDR SDRAM with Advanced ECC capabilities (Expandable to 8 GB)
  • Six expansion slots: one 64-bit/133-MHz PCI-X, two 64-bit/100-MHz PCI-X, one 64-bit/66-MHz PCI-X, one x4 PCI-Express, and one x8 PCI-Express
  • New HP Power Regulator for ProLiant delivering server level, policy based power management with industry leading energy efficiency and savings on system power and cooling costs
  • Three USB ports: 1 front, 1 internal, 1 rear
  • Support for Ultra320 SCSI hard drives (six hot plug or four non-hot plug drives supported standard, model dependent)
  • Internalstorage capacity of up to 1.8TB; 2.4TB with optional 2-bay hot plug SCSI drive
  • 725W Hot-Plug Power Supply (standard, most models); optional 725W Hot-Pluggable Redundant Power Supply (1+1) available. Non hot plug SCSI models include a 460W non-hot plug power supply.
  • Tool-free chassis entry and component access
  • Support for ROM based setup utility (RBSU) and redundant ROM
  • Systems Insight Manager, SmartStart, and Automatic Server Recovery 2 (ASR-2) included
  • Protected by HP Services and a worldwide network of resellers and service providers. Three-year Next Business Day, on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives.
contents
 Overview      Standard Features      Models      ML350 G4 Options      ML350 G4 Memory      Storage      Power Specifications      ML350 G4 QuickSpecs images/line.gif

Standard Features

Processor
One of the following depending on Model
Intel Xeon Processor 3.4 GHz/800-1MB L2
Intel Xeon Processor 3.2 GHz/800-1MB L2
Intel Xeon Processor 3.0 GHz/800-1MB L2

Cache Memory Integrated 1MB Level 2 cache

Upgradeability Upgradeable to dual processing

Chipset
Intel® E7520 Chipset with 800-MHz Front Side Bus

Memory Protection
Advanced ECC

ML350 G4 Memory
One of the following depending on model
Type PC2700 DDR SDRAM (333MHz)
Standard for Non-Array Models 512 MB
Standard for Array Models 1 GB
Maximum 8 GB

Network Controller NC7761 Gigabit NIC (embedded)

Expansion Slots
Slot
Number
Bus Speed
Maximum Card Length
Bus Number*
Device Number**
Hot Plug
PCI Voltage
1
PCI Express x4
(half length)
6.6”
16
1
no
N/A
2
PCI Express x8
12.28”
12
1
no
N/A
3
64-bit/100MHz PCI-X
12.28”
9
2
no
3.3 Volt
  In HP ProLiant ML350 G4 Array Models, the Smart Array 641 is installed in Slot 3.
4
64-bit/100MHz PCI-X
12.28”
9
1
no
3.3 Volt
5
64-bit/133MHz PCI-X
12.28”
6
1
no
3.3 Volt
6
64-bit/66MHz PCI-X
12.28”
2
2
no
3.3 Volt
*NOTE: Bus number listed reflects the default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number.
**NOTE: Slots are enumerated differently based on operating system. Microsoft's operating systems enumerate from lowest to highest Device ID by bus (starting with the lowest bus).
NOTE: All slots can accept universal keyed PCI cards

Storage Controller Integrated Dual Channel Ultra320 SCSI Adapter
  Smart Array 641 Controller (Standard in Array Models only)

Storage Diskette Drives 1.44MB Diskette Drive
Optical Drive 48x IDE CD-ROM Drive
Hard Drives 36GB 15,000 rpm hard drive included in non hot plug SCSI models only

Maximum Internal Storage Hot Plug SCSI
2.4TB
6 x 300GB with standard drive cage +
2 x 300GB with optional ML3xx Two Bay Hot Plug SCSI Drive Cage
Non hot plug SCSI
888GB 4 x 72GB with standard drive cage +
2 x 300GB with optional ML3xx Two Bay Hot Plug SCSI Drive Cage
External Storage

Two external SCSI port knockouts available; optional Internal-to-External SCSI Cable Option Kit required for external connections

  • HD68 Internal to External SCSI Cable Option Kit PN 159547-B22
  • VHDCI Internal to External SCSI Cable Option Kit PN 333370-B21

Interfaces Parallel 1
Serial 1 (optional 2nd serial port available)
Pointing Device (Mouse) 1
Graphics 1
Keyboard 1
Network RJ-45 1
USB 2.0 Ports 3 (1 front, 1 internal, 1 rear)
NOTE: Please see the following URL for additional information regarding USB support:
https://h18004.www1.hp.com/products/servers/platforms/usb-support.html.
External SCSI knockouts 2

Graphics Integrated ATI RAGE XL Video Controller with 8-MB SDRAM Video Memory
VGA connector; up to 1200 x 1600 resolution supported

Form Factor Tower or rack (5U)


NOTE: Rack models (and rack conversion kit) support:

  • Square or round hole racks 24"- 35" deep, including HP Rack System /E and HP Systems
  • Telco racks with 3rd part option kit from Rack Solutions
    https://www.racksolutions.com/hp

ProLiant Essentials Foundation Pack Software
HP Systems Insight Manager HP Systems Insight Manager (HP SIM) helps maximize system uptime and performance and reduce system maintenance costs by providing proactive notification of problems before those problems result in unplanned downtime or reduced productivity. For more information on HP SIM visit https://www.hp.com/go/hpsim.
Management Agents The Management Agents provide direct, browser-based access to in-depth instrumentation built into HP servers, workstations, desktops, or portables, and send alerts to Systems Insight Manager or other enterprise management applications in case of subsystem or environmental failures. For additional information about the Management Agents and other management products from HP, visit https://www.hp.com/servers/manage.
SmartStart SmartStart simplifies server setup by providing a quick, easy way to deploy reliable and consistent server configurations. For more information, please visit the SmartStart Web site at https://www.hp.com/servers/manage.
Minimum SmartStart version supported: 7.1
Latest SmartStart version supported: 7.2
Subscriber's Choice Subscriber's Choice Driver and Support Alerts/Notifications is a web-based email subscription service that provides automatic delivery of software and driver change notifications for ProLiant products. Sign up at https://www.hp.com/go/subscriberschoice
and customize your profile to receive alerts on updates as they become available.
ROMPaq, support software, and configuration utilities The latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options
Available in SmartStart or downloadable from the Software and Drivers download pages at https://www.hp.com/go/support.
Insight Diagnostics Online Edition The most advanced configuration analysis, reporting and troubleshooting utilities used by HP at your fingertips
Available in SmartStart.
Optional ProLiant Essentials Value Packs

Optional software offerings that extend the functionality of an Adaptive Infrastructure to address specific business problems and needs:

  • Rapid Deployment Pack - an automated solution for multi-server deployment and provisioning, enabling companies to quickly and easily adapt to changing business demands.
  • Workload Management Pack - provides easier management of complex environments, improving overall server utilization and enabling Windows® 2000 customers for the first time to confidently deploy multiple applications on a single multiprocessor ProLiant Server.
  • Integrated Lights-Out Advanced Pack - upgrades the Integrated Lights-Out processor to full virtual presence and control with graphical console and virtual media.
  • Performance Management Pack - a performance management solution that identifies and explains hardware performance bottlenecks on ProLiant servers and attached options enabling users to better utilize their valuable resources.
  • Intelligent Networking Pack - detects and analyzes network bottlenecks or broken network linkages and steers traffic to the optimum route based on network conditions, plus it provides an extra layer of protection. The virus throttle feature of the solution slows the propagation of fast spreading virus
  • Vulnerability and Patch Management Pack - identifies and remediates software security vulnerabilities due to missing patches as well operating system configurations that can be exploited by viruses, worms, and other blended threats
  • Virtual Machine Management Pack - provides central management and control of virtual machines from Microsoft and VMware. Integrated approach provides the ability to manage both physical and virtual resources from a single management console.
  • Server Migration Pack - The Server Migration Pack automates the manual processes required for migrating servers between physical or virtual platforms (P2V, V2P, and V2V).
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to https://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: https://www.hp.com/servers/proliantessentials.

Industry Standard Compliance ACPI V2.0 Compliant
PCI 2.2 Compliant
PXE Support
WOL Support
PCI-X 1.0 Compliant
Novell Certified
Microsoft® Logo certifications
USB 2.0

Availability Optional Redundant System Fan
Optional Hot Plug, Redundant Power supply (most models)

Remote Management Remote Insight Lights-Out Edition II (optional)

Management HP Systems Insight Manager
SmartStart
Redundant ROM
System Firmware Update
ROMPaq
ProLiant RBSU (ROM-Based Setup Utility)
Automatic Server Recovery-2 (ASR-2)
Dynamic Sector Repairing (with Smart Array Controller)
Drive Parameter Tracking (with Smart Array Controller)
Pre-Failure Warranty (covers processors, memory and SCSI hard drives)

Security Power-on password
Setup password
Diskette boot control
Parallel and serial interface control
Disk configuration lock
Power switch security

Server Power Cords Tower models ship standard with a 12' country specific, lowline NEMA power cord.
Rack models ship standard with a 10' IEC cable. Rack models for some countries also include a 12' NEMA cord.
Most redundant power supply options ship with a 12' country specific power cord. The one exception is the IEC redundant power supply (P/N 358352-B21) which ships with a 10' IEC cable only.

UPS and PDU Power
Cord Matrix
Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and specifications for UPS and PDU units:
ftp://ftp.compaq.com/pub/products/servers/ProLiantstorage/power-protection/powercordmatrix.pdf.

Power Supply Hot plug models 725 Watt, Power Factor Correction (PFC), Hot Plug 100 to 240 VAC Rated Input Voltage (Auto-sensing), CE Mark Compliant
Optional 2nd power supply for hot-pluggable 1 + 1 redundancy.
Non hot plug models 460 Watt, Power Factor Correction (PFC), Non hot plug 100 to 240 VAC Rated Input Voltage (Auto-sensing), CE Mark Compliant

System Fans 1 fan ships standard, 2 fans total supported (does not include power supply or processor heatsink fans)

Required Cabling For required cabling information, refer to the HP ProLiant ML350 G4 cabling matrix at https://www.hp.com/servers/proliantML350.

OS Support Microsoft Windows Server 2003
Microsoft Small Business Server 2003
Microsoft Windows 2000 Server and Advanced Server
Novell NetWare
Novell NetWare Small Business Suite
LINUX (Red Hat, SuSE, and UnitedLinux)
VMware Virtualization Software
NOTE: For a complete and up-to-date listing of supported operating systems please visit our OS Support Matrix at: https://www.hp.com/go/supportos.
NOTE: For a complete and up-to-date information on Linux support, please visit the HP Linux Web site at https://h18000.www1.hp.com/products/servers/linux/hpLinuxcert.html
NOTE: Optional hardware may be required to support some operating systems.
NOTE: For information on how to buy server operating systems from HP please visit the OS product site at: https://h18004.www1.hp.com/products/servers/software/OEM.html
NOTE: For an up-to-date listing of the latest drivers available for the HP ProLiant ML350 G4, please see: https://www.compaq.com/support/files/server/us/index.html.
NOTE: For more information on HP's Certified and Supported ProLiant Servers, please visit the VMware Server Support Matrix at: https://h18004.www1.hp.com/products/servers/software/vmware/hpvmwarecert.html.

Installation of Server into Telco Racks Support for all 2-post Telco racks requires the use of the HP ProLiant ML350 G4 rack kit and an additional option kit from Rack Solutions. https://www.racksolutions.com/hp.

Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to https://www.hp.com/go/factory-express.


Custom Builder Please see the Enterprise Configurator for configuration assistance at: https://www.hp.com/products/configurator.

Service and Support This product is covered by a global limited warranty and supported by HP Services and a worldwide network of resellers and service providers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Additional support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services or customized service agreements.

NOTE: Limited warranty includes 3 year parts, 3 year labor, 3-year on-site support.

The warranty is fully supported by HP Services and a worldwide network of resellers and service providers. In addition, 90-day software telephone support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services.

Care Pack services provide a range of life cycle support options that let you choose the service levels that meet your business requirements, from basic to mission-critical.

A full range of HP Care Pack hardware and software services are available including:

  • Installation and start up
  • Education courses
  • Extended onsite hardware coverage hours from same business day 13 hours, 5 day to 24 hours, 7 days call window with options including 4-hour response or 6-hour Call To Repair
  • Comprehensive range of software technical support for Microsoft, Linux, ProLiant Essentials and VMWare-based IT solutions helping to deliver high level of application availability. Response times range from 30 mins for critical problems to 2 hours.
  • System Management, Performance Services and Mission Critical Support Solution

HP Care Pack services include coverage for the HP branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as 22" and smaller external monitors and tower UPS options up to 3kVA; these items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included, standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

NOTE: For more information on HP Care Pack services, contact any of our worldwide sales offices or resellers or visit our worldwide Web site on the internet at: https://www.hp.com/hps/carepack

NOTE: For more complete information on HP Services offerings, customers and resellers, please visit us at: https://www.hp.com/hps

NOTE: Additional information regarding worldwide limited warranty and technical support is available at: https://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

contents
 Overview      Standard Features      Models      ML350 G4 Options      ML350 G4 Memory      Storage      Power Specifications      ML350 G4 QuickSpecs images/line.gif

Models

ML350T04 HPSCSI x3.0-1MB/800, 512 MB
331890-xx1
Processor(s) (1) Intel Xeon 3.0 GHz processor standard (up to 2 supported)
Cache Memory Integrated 1MB Level 2 cache
Standard Memory 512 MB (1 x 512 MB)
Network Controller NC7761 PCI Gigabit NIC (Embedded)
Storage Controller Integrated dual channel Ultra320 SCSI adapter
Hard Drive None ship standard (up to 6 supported)
Internal Storage 2.4 TB maximum hot plug SCSI (with optional hard drives & drive cage)
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive 1.44 MB Diskette Drive
Form Factor Tower (5U)

Country Code Key Tower Code Key Rack Code Key
XX=00 U.S. English U.S. English
XX=01 Australia N/A
XX=03 UK N/A
XX=04 Germany N/A
XX=05 France N/A
XX=20 Brazil N/A
XX=29 Japan Japan
XX=37 APD APD
XX=42 Europe Europe
XX=AA PRC PRC
contents
 Overview      Standard Features      Models      ML350 G4 Options      ML350 G4 Memory      Storage      Power Specifications      ML350 G4 QuickSpecs images/line.gif

Options

HP ProLiant ML350
G4 Unique Options
Hot Plug Redundant Power Supply Option Kit (NA, LA)
358352-001
Hot Plug Redundant Power Supply Option Kit (AUST)
358352-011
Hot Plug Redundant Power Supply Option Kit (EURO)
358352-021
Hot Plug Redundant Power Supply Option Kit (UK)
358352-031
Hot Plug Redundant Power Supply Option Kit (Japan)
358352-291
Hot Plug Redundant Power Supply Option Kit (IEC)
NOTE: PN 358352-B21 contains the redundant power supply with an IEC power cable. Purchase this kit only when connecting to a PDU or UPS that supports IEC cables. All other kits contain country specific power cables.
358352-B21
ProLiant ML350 G4 Tower to Rack Conversion Kit
358350-B21
ML350 G4 Redundant System Fan Kit
365866-B21
ProLiant ML350 G4 Second Serial Port Option Kit
338288-B21

ProLiant Essentials
Value Pack Software
ProLiant Essentials Integrated Lights-Out Advanced Pack
ProLiant Essentials Integrated Lights-Out Advanced Pack, 1 server
Featuring: sophisticated virtual administration features for ultimate control of servers in the data centers and remote sites.
NOTE: For additional ProLiant Integrated Light-Out Advanced Pack License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/11052_div/11052_div.HTML
ProLiant Essentials Intelligent Networking Pack
ProLiant Essentials Intelligent Networking Pack - Windows Edition, Single Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.

372906-B21

NOTE: For additional ProLiant Intelligent Networking Pack - Windows License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12062_div/12062_div.HTML
ProLiant Essentials Intelligent Networking Pack - Linux Edition, Single Server License
NOTE: For additional ProLiant Intelligent Networking Pack - Linux License Kits please see the QuickSpecs at:
https://h18000.www1.hp.com/products/quickspecs/12327_div/12327_div.HTML
397004-B21
ProLiant Essentials Performance Management Pack
ProLiant Essentials Performance Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key, HP Management CD and documentation.
NOTE: The most recent version of the software can always be downloaded at https://www.hp.com/products/pmp.

306696-B21

NOTE: For additional ProLiant Performance Management Pack License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/11925_div/11925_div.HTML
ProLiant Essentials Rapid Deployment Pack Windows Edition and Linux Edition Release
Rapid Deployment Pack, Single-Server License
NOTE: This license allows 1 server to be deployed and managed via RDP.

267196-B21

Rapid Deployment Pack, Single-Server License (Japan)
NOTE: This license allows 1 server to be deployed and managed via RDP.

267196-291

NOTE: For additional ProLiant Essentials Rapid Deployment Pack License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/11053_div/11053_div.HTML
https://h18000.www1.hp.com/products/quickspecs/11713_div/11713_div.HTML
ProLiant Essentials Workload Management Pack
ProLiant Essentials Workload Management Pack, Single Server License
NOTE: For additional ProLiant Workload Management Pack License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/11452_div/11452_div.HTML
ProLiant Essentials Virtualization Management Software
ProLiant Essentials Virtual Machine Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.

372214-B21

ProLiant Essentials Server Migration Pack, Single-Migration License
NOTE: Contains one license, enabling 1 server migration, with a unique license activation key and documentation.
NOTE: This license allows 1 server to be migrated from a physical server to a virtual machine. Or this license can be used to migrate a virtual machine from one virtualization layer i.e. VMware GSX to a different virtualization layer such as VMware ESX or Microsoft Virtual Server 2005.
375345-B21
NOTE: For additional ProLiant Essentials Virtualization Management Software License Kits please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12328_div/12328_div.HTML
ProLiant Essentials Vulnerability and Patch Management Pack
ProLiant Essentials Vulnerability and Patch Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.
371645-B21
NOTE: For additional ProLiant Vulnerability and Patch Management Pack License Kits, please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12111_div/12111_div.HTML
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to https://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: https://www.hp.com/servers/proliantessentials.

ProLiant Software Maintenance Subscription ProLiant Software Maintenance Subscription
355060-B21
ProLiant Software Maintenance Single Release
356573-B21
ProLiant Foundation Pack Single Release
356604-B21
  NOTE: Please see the SmartStart QuickSpecs for additional information regarding the subscription purchase:
https://h18000.www1.hp.com/products/quickspecs/Division/11073.html
(Worldwide)


Processors Intel Xeon 3.4 GHz-1MB Processor Option Kit 370513-B21
Intel Xeon 3.2 GHz-1MB Processor Option Kit
358345-B21
  Intel Xeon 3.0 GHz-1MB Processor Option Kit
358344-B21

Memory (DIMMs)

NOTE: The HP ProLiant ML350 G4 requires interleaved memory configurations when more than one DIMM is installed. Base models ship standard with a single DIMM. To upgrade system memory, DIMMs must be installed in identical pairs.
NOTE: Each SDRAM Memory kit contains one (1) DIMM.

512 MB Advanced ECC PC2700 DDR SDRAM DIMM Kit (1 x 512 MB)
1 GB Advanced ECC PC2700 DDR SDRAM DIMM Kit (1 x 1024 MB)
2 GB Advanced ECC PC2700 DDR SDRAM DIMM Kit (1 x 2048 MB)

Internal Storage Upgrades

Duplex Ultra320 SCSI Backplane Option Kit
339323-B21
ML3xx Two Bay Hot Plug SCSI Drive Cage
NOTE: The drive cage option kit (PN 244059-B21 244059-B21) has one 1" drive bay and one 1.6" drive bay. It installs in two removable media bays.

Optical Drives

CD-RW/DVD-ROM Combo Drive Option Kit
NOTE: The DVD-ROM drive is supported in either the CD-ROM bay or a removable media bay. If placed in a removable media bay, it requires the 2-Device IDE cable (PN 305381-B21).
16X DVD-ROM Drive Option Kit (Carbon) 217053-B21 217053-B21
HP DVD+R/RW 16X Half Height 383974-B21 383974-B21

Serial Port Kit

HP ProLiant 2nd Serial port option kit
390390-B21

Hard Drives Ultra320 – Universal Hot Plug
HP 300GB U320 10K Universal HDD
HP 146GB U320 10K Universal HDD
HP 72GB U320 10K Universal HDD
HP 146GB U320 15K Universal HDD
HP 72GB U320 15K Universal HDD
HP 36GB U320 15K Universal HDD
Ultra320 - Non-Hot Plug
HP 36GB U320 15K NHP HDD
HP 72GB U320 10K NHP HDD
HP 146GB U320 10K NHP HDD
NOTE: Please see the Wide Ultra320 Universal Hot Plug QuickSpecs for additional technical information on the hard drives Support details, please see the following:
https://h18000.www1.hp.com/products/quickspecs/11531_div/11531_div.HTML (Worldwide)


Storage Controllers Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
512MB DDR BBWC Upgrade
Smart Array 641 Controller
Smart Array 642 Controller
128MB Battery-Backed Cache Enabler
NOTE: This 128MB BBWC supports the Smart Array 641 Controller and Smart Array 642 Controller.
Ultra320 Expansion Module for SA-6402

64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2

64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter

NOTE: Please see the following Controller or SCSI Adapter QuickSpecs for Technical Specifications such as PCI Bus, PCI Peak Data Transfer Rate, SCSI Protocols supported, SCSI Peak Data Transfer Rate, Channels, SCSI Ports, Drives supported, Cache, RAID support, and additional information:
https://h18000.www1.hp.com/products/quickspecs/11587_div/11587_div.HTML
(Smart Array 6400 Series)
https://h18000.www1.hp.com/products/quickspecs/12067_div/12067_div.HTML
(Smart Array 641)
https://h18000.www1.hp.com/products/quickspecs/12069_div/12069_div.HTML
(Smart Array 642)
https://h18000.www1.hp.com/products/quickspecs/10429_div/10429_div.HTML
(SCSI Adapter)
https://h18000.www1.hp.com/products/quickspecs/11555_div/11555_div.HTML
(U320 Adapter)

Communications HP NC150T PCI 4-port Gigabit 1000T Combo Switch Adapter
HP NC310F PCI-X 1000SX Gigabit Server Adapter
HP NC320T PCI Express 1000T Gigabit Server Adapter
HP NC340T PCI-X 4-port Gigabit Server Adapter
HP NC370F PCI-X Multifunction 1000SX Gigabit Server Adapter
374193-B22
HP NC370T PCI-X Multifunction 1000T Gigabit Server Adapter
HP NC1020 PCI 1000T Gigabit Server Adapter
HP NC7170 PCI-X Dual Port 1000T Gigabit Server Adapter
HP NC7771 PCI-X 1000T Gigabit Server Adapter
NOTE: A minimum of 1 GB of memory per port is required for NC370x adapters, with a maximum of two NC370x ports permitted in a server.
NOTE: NC61XX, NC71XX, NC77XX, or NC1020 network adapter (NIC) can be used for redundancy with the embedded NC7761 NIC. When either the embedded NC7761 or the NC1020 is teamed with other HP Ethernet adapters, Jumbo Frames and LSO features are automatically disabled.

Management Options

Remote Insight Lights-Out Edition II (NA, LA)

227251-001 227251-001

Remote Insight Lights-Out Edition II (EMEA)

227251-021

Remote Insight Lights-Out Edition II (ROW)

227251-371


Tape Drives

NOTE: The following tape drives are recommended for use with the HP ProLiant ML350 G4. Additional HP tape drives are supported.

NOTE: For the complete listing of Tape Drive offerings, please see:
https://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html
USB Tape Drives
NOTE: When using the USB internal tape connector, the front USB port will be deactivated.
HP StorageWorks DAT 72 USB Internal Tape Drive (Carbonite)
DW026A
HP StorageWorks DAT 72 USB External Tape Drive (Carbonite)
Internal, Rack-Mount, and Array Module Ultrium Tape Drives
HP StorageWorks Ultrium 232 Internal Tape Drive (Carbonite)

DW064A DW064A

HP StorageWorks Ultrium 448 Internal Tape Drive (Carbonite)

DW016A

Internal, Rack-Mount, and Array Module DAT Drives
HP StorageWorks DAT 72 SCSI Internal Tape Drive (Carbon)
Q1522B
HP StorageWorks 1U Rack-mount kit with one DAT 72 (Carbon)
NOTE: Single drive installed in a 1U Rack-mount kit.
A7443A
Rack-Mount Tape Drive Enclosures
HP StorageWorks 1U Rack-Mount Kit
NOTE: The 1U Rack-mount Kit can support up to (2) half-height tape drives and compatible with multiple Single-Ended and LVD SCSI tape drives including the DAT 24, DAT 40, DAT 72, DLT VS80, DLT VS160, Ultrium 215, Ultrium 232 and Ultrium 448 tape drives.
HP StorageWorks 1U USB Rack-Mount Kit
1U USB Cable Option Kit
NOTE: Converts a 1U SCSI rack-mount kit to a USB interface to support the USB tape drives.

Tape Autoloaders
DAT Autoloader
HP StorageWorks DAT 72x6 Autoloader (Internal) Q1566A Q1566A
HP StorageWorks DAT 72x6 Autoloader (External) Q1567A Q1567A
NOTE: Please see the DAT 72x6 Tape Autoloader QuickSpecs for additional options such as host bus adapters, controllers and media:
https://h18006.www1.hp.com/products/quickspecs/11905_div/11905_div.html
(Worldwide)

HP StorageWorks 1/8 Tape Autoloader
HP StorageWorks 1/8 Ultrium 960 Tape Autoloader AF204A AF204A
HP StorageWorks 1/8 Ultrium 448 Tape Autoloader AF203A AF203A
HP StorageWorks 1/8 Ultrium 232 Tape Autoloader AF202A AF202A
1/8 Tape Autoloader Rackmount Kit
NOTE: Required to install the unit in a standard 19-inch rack; includes rails and rackmount instructions.
C9268R C9268R
NOTE: Please reference the 1/8 Tape Autoloader QuickSpecs at https://www.hp.com/go/automation for additional information needed to create
a complete solution; reference current compatibility information at https://www.hp.com/go/ebs


Tape Libraries

HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 Ultrium 960 Drive Library AG115A AG115A
HP StorageWorks MSL2024 1 Ultrium 448 Drive Library AG116A AG116A
HP StorageWorks MSL2024 2 Ultrium 448 Drive Library AG117A AG117A
HP StorageWorks MSL4048 Tape Library
HP StorageWorks MSL4048 1 Ultrium 448 Drive Library AG320A
HP StorageWorks MSL4048 2 Ultrium 448 Drive Library AG321A
HP StorageWorks MSL4048 1 Ultrium 960 Drive Library AG322A
HP StorageWorks MSL4048 2 Ultrium 960 Drive Library AG323A AG323A
HP StorageWorks MSL6000 Tape Library
Ultrium 960 technology
HP StorageWorks MSL6030 1 Ultrium 960 Dr LVDS Library AD606A AD606A
HP StorageWorks MSL6030 1 Ultrium 960 Dr FC Library AD608A AD608A
HP StorageWorks MSL6030 2 Ultrium 960 Dr LVDS Library AD607A AD607A
HP StorageWorks MSL6030 2 Ultrium 960 Dr FC Library AD609A AD609A
Ultrium 460 technology
HP StorageWorks MSL6030 1 Ultrium 460 Dr LVDS Library AD598A AD598A
HP StorageWorks MSL6030 1 Ultrium 460 Dr FC Library AD600A AD600A
HP StorageWorks MSL6030 2 Ultrium 460 Dr LVDS Library AD599A AD599A
HP StorageWorks MSL6030 2 Ultrium 460 Dr FC Library AD601A AD601A
NOTE: Please reference the MSL2024 and MSL6000 Tape Library QuickSpecs at https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at https://www.hp.com/go/ebs

Magneto-Optical Jukeboxes

HP StorageWorks 9.1 GB Optical Jukeboxes
600mx, 4 drive, 64 slot jukebox C1160M
1200mx, 4 drive, up to 128 slots C1104M
2200mx, 6 drive, up to 238 slots C1107M
NOTE: Please see the HP StorageWorks Magneto-Optical Products data sheet for a complete listing of available jukeboxes at: https://www.hp.com/products1/storage/products/archivalprod/brochures/
MO_family_pb.pdf

NOTE: Please reference the Magneto-Optical Jukebox data sheets at https://www.hp.com/go/optical for additional information needed to create a complete solution.



Ultra Density Optical Jukeboxes

1900ux, 4 drive, 64 slot jukebox AA966A
3800ux, 4 drive, 128 slot jukebox AA969A
7100ux, 6 drive, 238 slot jukebox AA971A
NOTE: Please see the HP StorageWorks Ultra Density Optical Jukeboxes QuickSpecs for a complete listing of available jukeboxes at:
https://h18006.www1.hp.com/products/quickspecs/11944_div/11944_div.html


NOTE: Please reference the Ultra Density Optical Jukebox QuickSpecs at https://www.hp.com/go/optical for additional information needed to create a complete solution

HP Data Protector Express Software

HP DP Express Backup Server Upgrade for ProLiant Software AA966A
HP DP Express Package for Microsoft Small Business Server AA969A
NOTE: Please see the HP Data Protector Express QuickSpecs for additional information regarding the purchase of HP Data Protector Express software:
https://h18000.www1.hp.com/products/quickspecs/12337_div/12337_div.html
(Worldwide)

HP StorageWorks Modular Smart Array 20

HP StorageWorks Modular Smart Array 20
NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies.
HP StorageWorks Modular Smart Array 20 Starter Kit
NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies. Includes Smart Array 6402/128 Controller.
366172-B21
NOTE: The Modular Smart Array Enclosure 20 Family supports the SATA 1.5Gb/s 3.5" Hot Plug Hard Drives.

HP StorageWorks Modular Smart Array 30

HP StorageWorks Modular Smart Array 30 SB
NOTE: Rack-mountable 14 drive enclosure with single bus, redundant power supplies
302969-B21
HP StorageWorks Modular Smart Array 30 DB
NOTE: Rack-mountable 14 drive enclosure with dual bus, redundant power supplies
302970-B21
NOTE: The Modular Smart Array Enclosure 30 Family supports the Wide Ultra3, Ultra320 Hot Plug Hard Drives.

HP StorageWorks Modular Smart Array 500

HP StorageWorks Modular Smart Array 500 Generation 2
335880-B21
NOTE: Please see the Modular Smart Array 500 Generation 2 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at:
https://h18000.www1.hp.com/products/quickspecs/11956_div/11956_div.HTML
(Worldwide)


HP StorageWorks Modular Smart Array 1000

HP StorageWorks Modular Smart Array 1000

201723-B22 201723-B22

NOTE: Please see the Modular Smart Array 1000 QuickSpecs for additional options and configuration information at
https://h18000.www1.hp.com/products/quickspecs/11033_div/11033_div.HTML (Worldwide)

HP StorageWorks Modular Smart Array 1500 cs

Modular Smart Array 1500 Controller Shelf

AA986A

NOTE: Please see the StorageWorks Modular SAN Array 1500 cs QuickSpecs for additional options and configuration information at:
https://www.hp.com/go/MSA1500cs

Cluster Options ProLiant Cluster Starter Kit
364023-B21
NOTE: For additional information regarding the ProLiant Cluster Starter Kit please see the following QuickSpecs at:
https://h18000.www1.hp.com/products/quickspecs/11935_div/11935_div.html (Worldwide)
HP HA/F200 for Entry SAN Cluster

364026-B22

HP HA/F200 for Entry SAN Cluster (Japan)

364026-292

NOTE: For additional information regarding the ProLiant Cluster for Entry Level SAN please see the following QuickSpecs at:
https://h18000.www1.hp.com/products/quickspecs/11932_div/11932_div.html (Worldwide)
ProLiant Cluster HA/F500 for the Enterprise SAN
364024-B21
NOTE: For additional information regarding the ProLiant Cluster HA/F500 for Enterprise SAN please see the following QuickSpecs at:
https://h18000.www1.hp.com/products/quickspecs/11933_div/11933_div.html (Worldwide)

HP Serviceguard for Linux ProLiant Cluster A.11.16 for SUSE SLES 9 and Red Hat EL & 4 (2 node license cluster kit)
305199-B26
HP Serviceguard for Linux A.11.16 for SUSE SLES9 and Red Hat EL 3 & 4 (single license version)
307754-B26
HP Serviceguard for Linux and Red Hat Global File System - 1 year subscription
T2798AA#001
HP Serviceguard for Linux and Red Hat Global File System - 3 years subscription
T2798AA#003
NOTE: For additional information regarding HP Serviceguard for Linux, please see the following QuickSpecs at:
https://h18000.www1.hp.com/products/quickspecs/11518_div/11518_div.html (Worldwide)


Uninterruptible Power Systems – Tower UPS

HP UPS T1000 XR (1000 VA, 700 Watts), Low Voltage (NA)
204155-001
HP UPS T1000 XR (1000 VA, 700 Watts), High Voltage (Int'l)
204155-B31
HP UPS T1000 XR (1000VA, 700Watts) 100 VAC (JPN)
312803-291
HP UPS T1500 XR (1440 VA, 1050 Watts) (NA)
HP UPS T1500 XR (1500 VA, 1050 Watts) (Int'l)
204155-B32
HP UPS T1500 XR (1500 VA, 1050 Watts) (Japan)
204155-291
HP UPS T2200 XR (1920 VA, 1600 Watts) Low Voltage (NA)
204451-001
HP UPS T2200 XR (2200 VA, 1600 Watts) High Voltage (NA)
HP UPS T2200 XR (2200 VA, 1600 Watts) (Int'l)
204451-B31
HP UPS T2200 XR (2200 VA, 1600 Watts) (Japan)
204451-291

Uninterruptible Power Systems – HP Rack UPS

HP UPS R1500 XR (100 to 127) (NA)
HP UPS R1500 XR (208 to 480) (Int'l)
204404-B31
HP UPS R1500 XR (100 to 127) (Japan)
204404-291
HP UPS R3000 XR (120V) (NA)
HP UPS R3000 XR (208V) (NA)
HP UPS R3000 XR (100V) (Japan)
192186-291
HP UPS R3000 XR (208V) (Japan) HP UPS R3000 XR (200V) (Japan)
192186-292
HP UPS R3000 XR (230V) (Int'l - detachable cord)
192186-B31
HP UPS R3000 XR (230V) (16A IEC309 Plug)
192186-B32
HP UPS R3000 XR (230V) (16A CEE 7/7 SCHUKO Plug)
192186-B33
HP UPS R3000 XR (230V) (16A BS-546 Plug)
192186-AR1
HP UPS R5500 XR, (5000VA, 4500 Watt), High Voltage (NA/Jpn) 326529-D71 326529-D71
HP UPS R5500 XR, (6000VA, 5400 Watt), High Voltage (Int'l) 326529-B31

HP Monitored Power Distribution Unit (PDU) HP Monitored Power Distribution Unit: Full Rack Version
HP 17.3 kVA S2324 Monitored PDU- dual input, 3-phase, 24A (NA/JPN)
HP 8.3 kVA S1324 Monitored PDU- single input, 3-phase, 24A (NA/JPN)
HP 16.6 kVA S2140 Monitored PDU- dual input, 1-phase, 40A (NA/JPN)
HP 8.6 S1140 Monitored PDU- single input, 1-phase, 40A (NA/JPN)
HP 22.1 kVA S2316 Monitored PDU- dual input, 3-phase, 16A (INTL)
370963-B31
HP 11 kVA S 1316 Monitored PDU- single input, 3-phase, 16A (INTL)
370964-B31
HP 14.7 kVA S2132 Monitored PDU- dual input, 1-phase, 32A (INTL)
370965-B31
HP 7.4 kVA S1132 Monitored PDU- single input, 1-phase, 32A (INTL)
370966-B31

Modular PDUs 1U/0U
(Up to 32 outlets)
NOTE: 1U/0U mounting brackets shipped with
the unit (optimized for 10000 and 9000 series racks).
HP Modular Power Distribution Units (mPDU), Low Volt Model, 24A (100-127 VAC) (NA, Japan)
NOTE: This mPDU (252663-D71 252663-D71) may also be used to connect the low volt model of the UPS R3000 XR.

252663-D71 252663-D71

HP Modular Power Distribution Units (mPDU), High Volt Model, 24A (200-240 VAC) (NA, Japan)

252663-D72 252663-D72

HP Modular Power Distribution Units (mPDU), High Volt Model, 32A (200-240 VAC) (Int’l)

252663-B31

HP Modular Power Distribution Units (mPDU), High Volt Model, 40A (200-240 VAC) (WW)
NOTE: This mPDU (252663-B21 252663-B21), 40A model has a hardwired input.

252663-B21 252663-B21

HP Modular Power Distribution Units (mPDU), High Volt Model, 16A (200-240 VAC) (WW)
NOTE: This PDU has a detachable input power cord and allows for adaptability to country specific power requirements. This model may also be used with the high volt UPSs R3000 XR and R6000 For North America, need to order cable PN 340653-001.

252663-B24 252663-B24

HP Modular Power Distribution Unit (mPDU), High Volt Model, 40A, Attached Cord, (NA/JPN)
252663-D73
HP Modular Power Distribution Unit (mPDU), High Volt Model, 40A, Attached Cord, (Int'l)
252663-B32
NOTE: Please see the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs for additional options including shorter jumper cables and country specific power cords:
https://h18000.www1.hp.com/products/quickspecs/11041_div/11041_div.HTML (Worldwide)

USB Options HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver)
USB 1.44-MB External Diskette Drive (Carbonite)
DC141B
256MB HP Drive Key II (USB 2.0)
PH657A

Other ProLiant ML3xx Internal to External SCSI Cable Option Kit (HD68)
159547-B22
ProLiant ML3xx Internal to External SCSI Cable Option Kit (VHDCI)
333370-B21
NOTE: The ProLiant ML3xx Internal to External SCSI Cable Option Kits (PN 159547-B21 and 333370-B21) are supported by the HP ProLiant ML330, HP ProLiant ML350, and HP ProLiant ML370 products.

Rack Conversion Kit

ProLiant ML350 G4 Tower to Rack Conversion Kit
358350-B21
Rack Adapter Kit
NOTE: This kit allows HP rack servers to fit in racks that are 24" wide.
332815-B21
Shipping Kit for Round Hole Racks
NOTE: This kit is required if the server will be configured and shipped within a round hole rack.
371482-B21

HP Rack 5000 Series (Graphite Metallic) HP 5642 Rack-Unassembled
NOTE: Please see the HP Rack 5642 QuickSpecs for additional part numbers and Technical Specifications such as height, width, depth, weight, and color:
https://h18000.www1.hp.com/products/quickspecs/12074_div/12074_div.HTML
(Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: https://www.hp.com/go/rackandpower.

HP Rack 10000 G2 Series
(Carbon/Graphite Metallic)

10642 G2 (42U) Rack Cabinet - Pallet
10642 G2 (42U) Rack Cabinet - Shock Pallet
10642 G2 (42U) Rack Cabinet - Crated
AF003A
10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet
10642 G2 (42U) Rack Cabinet, without door - Shock Pallet
AF005A
10642 G2 (42U) Rack Cabinet - with Extension, without door - Shock Pallet
AF006A
10636 G2 (36U) Rack Cabinet - Pallet
10636 G2 (36U) Rack Cabinet - Shock Pallet
10636 G2 (36U) Rack Cabinet - Crated
10636 G2 (36U) Rack Cabinet , with Extension - Shock Pallet
10636 G2 (36U) Rack Cabinet, without door - Shock Pallet
AF015A
10636 G2 (36U) Rack Cabinet, with Extension, without door - Shock Pallet
AF016A
NOTE: It is mandatory to use a shock pallet when shipping racks with equipment installed.
NOTE: Please see the Rack 10000 G2 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
https://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.HTML (Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: https://www.hp.com/go/rackandpower.

HP Rack 10000 Series
(Graphite Metallic)
10642 (42U) Infrastructure Rack (Low Voltage)
379006-001
10642 (42U) Infrastructure Rack (High Voltage)
HP S10614 (14U) Rack Cabinet - Shock Pallet
HP 10842 (42U) Rack Cabinet - Pallet
HP 10842 (42U) Rack Cabinet - Shock Pallet
HP 10647 (47U) Rack Cabinet - Pallet
HP 10647 (47U) Rack Cabinet - Crated
245160-B23
HP 10642 (42U) Rack Cabinet - Pallet
HP 10642 (42U) Rack Cabinet - Shock Pallet
HP 10642 (42U) Rack Cabinet - Crated
245161-B23
HP 10636 (36U) Rack Cabinet - Pallet
HP 10636 (36U) Rack Cabinet - Shock Pallet
HP 10636 (36U) Rack Cabinet - Crated
245162-B23
HP 10622 (22U) Rack Cabinet - Pallet
HP 10622 (22U) Rack Cabinet - Shock Pallet
HP 10622 (22U) Rack Cabinet - Crated
245163-B23
NOTE: xxxxxx-B21 (pallet) used to ship empty racks shipped on a truck. -B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels). xxxxxx-B23 (crated) used for air shipments of empty racks.
NOTE: It is mandatory to use a shock pallet in order to ship racks with equipment installed. Not all Compaq equipment is qualified to be shipped in the Rack 10000 series.
NOTE: Please see the Rack 10000 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
https://h18000.www1.hp.com/products/quickspecs/10995_div/10995_div.HTML (Worldwide)

NOTE: For additional information regarding Rack Cabinets, please see the following URL: https://www.hp.com/go/rackandpower

Rack Options for HP Rack 10000 Series TFT7210R Rack Mounted 17" Monitor
NOTE: For a complete list of Monitors please view the following URL:
https://www.hp.com/go/kvm
TFT7600RKM US
TFT7600RKM UK
AG053A
TFT7600RKM GR
AG054A
TFT7600RKM FR
AG055A
TFT7600RKM IT
AG056A
TFT7600RKM SP
AG057A
TFT7600RKM DEN
AG058A
TFT7600RKM NOR
AG059A
TFT7600RKM SE/FI
AG060A
TFT7600RKM SWI
AG061A
TFT7600RKM PORT
AG062A
TFT7600RKM BEL
AG063A
TFT7600RKM JPN2
AG064A
TFT7600RKM RUS
AG065A
TFT7600RKM INTL
AG066A
1U Rack Keyboard & Drawer (Carbon)
257054-xx1
Country Code Key (for 1U Rack Keyboard & Drawer (PN 257054-xx1))
XX = 001 US XX = 091 Norway
XX = 031 UK XX = 101 Sweden/Finland
XX = 041 Germany XX = 111 Switzerland
XX = 051 France XX = 131 Portugal
XX = 061 Italy XX = 181 Belgium
XX = 071 Spain XX = 291 Japan
XX = 081 Denmark XX = B31 International
NOTE: For additional information regarding Rack Options, please see the following URL: https://www.hp.com/go/rackandpower.

HP KVM Switch Options IP Console Switch Box (KVM/IP), 3 x 1 x 16
IP Console Switch Box (KVM/IP), 1 x 1 x 16
Server Console Switch (KVM), 0 x 1 x 8 port
Server Console Switch (KVM), 0 x 2 x 16 port
PS/2 Interface Adapter, 1 pack
PS/2 Interface Adapter, 8 pack
USB Interface Adapter, 1 pack
Serial Interface adapter - 1 Pack with power supply
NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches. Cat5e cables can be found at the following URL: https://www.hp.com/go/kvm.
HP 1x 4 USB/PS2 KVM Switch, TT (NA/JPN)
371301-D71
HP 1x 4 USB/PS2 KVM Switch, TT (AU/NZ)
371301-011
HP 1x 4 USB/PS2 KVM Switch, TT (UK)
371301-031
HP 1x 4 USB/PS2 KVM Switch, TT (EU)
371301-A21
HP 1x 4 USB/PS2 KVM Switch, RM (ALL)
371302-B21
HP PS2 KVM Cable with audio, 6', 2-pack
371730-B21
HP USB KVM Cable with audio, 6', 2-pack
371729-B21
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: https://www.hp.com/go/kvm.

HP Serial Console Server Options HP 16 Port Serial Console Server (worldwide)
HP 48 Port Serial Console Server (worldwide)
Serial Adapter, RJ45-DB9 DCE Female, 1 Pack
Serial Adapter, RJ45-DB9 DCE Female, 8 Pack
AF110A
NOTE: Cat5e cables are required to connect Serial Adapters to Serial Console Servers. Additional Serial Adapters and Cat5e cables can be found at the following URL: https://www.hp.com/go/kvm.
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: https://www.hp.com/go/kvm.

Service and Support Offerings (HP Care Pack Services)
Hardware Services On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years (Electronic)
U4512E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years (Electronic)
U4513E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years (Electronic)
U4514E
O/S and Hardware Installation

Hardware Installation (Electronic)

U4522E
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays. (Electronic)
U4523E
Support Plus
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays. (Electronic)
U4524E
Support Plus 24
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4525E
Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U6308E
Onsite HW support 24x7, 4hr response and Red Hat ES Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U8330E
NOTE: For more information, customer/resellers can contact https://www.hp.com/services/carepack
contents
 Overview      Standard Features      Models      ML350 G4 Options      ML350 G4 Memory      Storage      Power Specifications      ML350 G4 QuickSpecs images/line.gif

Memory

HP ProLiant ML350 G4 Memory Configuration
The HP ProLiant ML350 G4 requires memory interleaving when more than one DIMM is installed. For interleaving, DIMMs must be populated in identical pairs. The system will not boot properly if multiple DIMMs of varying density or type are installed in the system.

Standard Memory
All ML350 G4 models ship with Advanced ECC** PC2700 DDR SDRAM (running at 333 MHz).
Non-array models include a single 512 MB DIMM.
Array models include a single 1 GB DIMM.

Factory Integrated Models include the memory capacity of your choice.

**NOTE: Advanced ECC Memory - ECC protection provides the ability to detect and correct single bit memory errors while Advanced ECC extends this coverage to include protection against multiple simultaneous errors on a DIMM. Advanced ECC detects and corrects 4bit memory errors that occur within a single DRAM chip on a DIMM. Advanced ECC algorithms work in combination with industry standard ECC DIMMS.

Common Memory Upgrades from Base Memory
NOTE: Charts do not represent all possible memory configurations.


Pair 1
Pair 2
Total Capacity Required
Base Memory
(Non-Array Models)
DIMM Upgrade #1
DIMM Upgrade #2
DIMM Upgrade #3
512 MB
512 MB
Empty
Empty
Empty
1 GB
512 MB
512 MB
Empty
Empty
2 GB
512 MB
512 MB
512 MB
512 MB
3 GB
512 MB
512 MB
1 GB
1 GB
5 GB
512 MB
512 MB
2 GB
2 GB


Pair 1
Pair 2
Total Capacity Required
Base Memory
(Array Models)
DIMM Upgrade #1
DIMM Upgrade #2
DIMM Upgrade #3
1 GB
1 GB
Empty
Empty
Empty
2 GB
1 GB
1 GB
Empty
Empty
3 GB
1 GB
1 GB
512 MB
512 MB
4 GB
1 GB
1 GB
1 GB
1 GB
6 GB
1 GB
1 GB
2 GB
2 GB


Following are memory options available from HP:
NOTE: All memory kits are single DIMM kits


  • 512 MB Advanced ECC PC2700 DDR SDRAM DIMM Memory Kit (1 x 512 MB)
358347-B21 358347-B21
  • 1 GB Advanced ECC PC2700 DDR SDRAM DIMM Memory Kit (1 x 1024 MB)
358348-B21 358348-B21
  • 2 GB Advanced ECC PC2700 DDR SDRAM DIMM Memory Kit (1 x 2048 MB)
358349-B21 358349-B21
NOTE: 2 GB DIMMs are supported in memory slots 1 and 2 only when slots 3 and 4 are also populated with 2 GB DIMMs. In all other instances, 2 GB DIMMs should be installed in slots 3 and 4.
contents
 Overview      Standard Features      Models      ML350 G4 Options      ML350 G4 Memory      Storage      Power Specifications      ML350 G4 QuickSpecs images/line.gif

Storage

0 - 5
6 Hot Plug SCSI Hard Drive Bays
or

N0 - N3
4 Non-hot plug SCSI Hard Drive Bays
D
1.44 MB Diskette Drive
C
48x CD-ROM
A,B
Available half height bay



Drive Support




Quantity
Supported

Position
Supported


Controller

Removable Media


1.44-MB Diskette Drive Up to 1 D Integrated
IDE (ATAPI) CD-ROM Drive Up to 2 A, B, C Integrated IDE
DVD-ROM Drive Option Kit Up to 2 A, B, C Integrated IDE
ML3xx Two Bay Hot Plug SCSI Drive Cage Up to 1 A + B* Integrated SCSI
*NOTE: The Two Bay Hot Plug SCSI Drive Cage requires the use of both available removable media bays (A+B). In most cases, it is not possible to install both a non hot plug tape drive and the two bay hot pug SCSI drive cage option.

NOTE: Non hot plug SCSI models support a maximum of 4 total drive devices in bays 0-5, A or B.


Hard Drives
Ultra320 SCSI - Hot Plug Drives
  Quantity
Supported
Position
Supported

Controller
300GB U320 10K
146.8GB U320 10K
72.8GB U320 10K
146.8GB U320 15K
72.8GB U320 15K
36.4GB U320 15K
Up to 6 0-5 Integrated Dual Channel Ultra320 SCSI Adapter
Smart Array 641 Controller
Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 642 Controller
64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
NOTE: All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds.

Ultra320 SCSI - Non-Hot Plug
  Quantity
Supported
Position
Supported

Controller
146GB U320 10K
78GB U320 10K
36GB U320 15K
Up to 4 N0-N4, A, B Integrated Dual Channel Ultra320 SCSI Adapter
Smart Array 641 Controller
(NOTE: The Smart Array 641 Controller ships standard with Array models.)
Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 642 Controller
64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
NOTE: Installation of Non hot plug SCSI drives in the removable media bays (position C or D) requires the purchase of an additional SCSI cable.

External Storage



Quantity
Supported

Position
Supported


Host Controller or Adapter

  Modular Smart Array 20 Family Up to 2 External Smart Array 6402/128 Controller
Smart Array 6404/256 Controller


Modular Smart Array 30 Family

Up to 2

External

Integrated Dual Channel Ultra320 SCSI Adapter
NOTE: Connection of an external device to the embedded SCSI controller requires an internal-to-external cable (PN 159547-B22 or 333370-B21)
Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 642 Controller
64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS
  Modular Smart Array 500 G2
1 External Please see the Modular Smart Array 500 or 500 G2 QuickSpecs for the latest list of supported HBAs: https://www.hp.com/go/msa500.
  Modular Smart Array 1500 cs or Modular Smart Array 1000
Please see the Modular Smart Array 1500 cs or Modular Smart Array 1000 QuickSpecs links below to determine configuration requirements   Please see the Modular Smart Array 1500 cs or Modular Smart Array 1000 QuickSpecs (URL below) for the latest list of supported HBAs.
  Modular Smart Array 1000: https://h18000.www1.hp.com/products/quickspecs/11033_div/11033_div.HTML (Worldwide)
Modular Smart Array 1500 cs: https://www.hp.com/go/MSA1500cs

Tape Drives, Tape Autoloaders, & Tape Libraries
NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:
https://h18000.www1.hp.com/products/quickspecs/Division/10233.html (Worldwide)

NOTE:
For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders & Tape Libraries listed below, please see the following:
https://h18000.www1.hp.com/products/quickspecs/Division/10809.html (Worldwide)
  Quantity
Supported
Position
Supported

Controller
  HP StorageWorks Tape Drives, Hot plug
DAT 40 Hot Plug
DAT 72 Hot Plug
1
0-5
Integrated Dual Channel Ultra320 SCSI Adapter
64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS


HP StorageWorks Tape Drives, Internal
Ultrium 232
Ultrium 448
DAT 40
DAT 72
DLT VS80
DLT VS160
SDLT 320
Up to 2
A, B
Integrated Dual Channel Ultra320 SCSI Adapter
Smart Array 641 Controller
64-Bit/133MHz Dual Channel Ultra320 SCSI
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2


HP StorageWorks Tape Drives, External
Ultrium 232
Ultrium 448
Ultrium 460
DAT 40
DAT 72
DLT VS80
DLT VS160
SDLT 320
Up to 2
External
64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS


HP StorageWorks Tape Drives, External
Ultrium 960
SDLT 600
1 per SCSI Channel
External
64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS


HP StorageWorks Tape Drives, USB External
DAT 24 USB
DAT 40 USB
DAT 72 USB
1 per USB port
External
USB port


HP StorageWorks Tape Autoloaders, External
DAT 72x6 Tape Autoloader
1/8 Tape Autoloader
1 autoloader per SCSI channel
External
64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS


HP StorageWorks Rack-mount Tape Drive Enclosures
1U Rack-Mount Kit
3U Rack-Mount Kit
5U Rack-Mount Kit
1 per SCSI channel
External
64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks Tape Libraries, External

MSL2024 (Ultrium 448 and 960-based)
MSL4048 (Ultrium 448 and 960-based)
MSL6000 (Ultrium 960 and 460-based)
MSL6000 (SDLT 600-based)
MSL5026S2 (SDLT 320-based)
MSL5052S2 (SDLT 320-based)

Please reference the MSL Tape Library QuickSpecs to determine configuration requirements
External
Please consult the EBS connectivity matrix at https://www.hp.com/go/ebs for detailed connectivity information.
contents
 Overview      Standard Features      Models      ML350 G4 Options      ML350 G4 Memory      Storage      Power Specifications      ML350 G4 QuickSpecs images/line.gif

Power Specifications

Part Number 345875-001
Operational Input Voltage Range (Vrms) 90 to 264
Frequency Range (Nominal) (Hz) 47 to 63 (50/60)




Nominal Input Voltage (Vrms)
100
115
208
220
230
240
Max Rated Output Wattage Rating
725
725
725
725
725
725
Nominal Input Current (A rms)
9.2
7.9
4.2
4.0
3.8
3.6
Max Rated Input Wattage Rating (Watts)
906
895
873
863
863
863
Max. Rated VA (Volt-Amp)
915
904
910
899
909
909

Efficiency (%)

80
81
83
84
84
84

Power Factor

0.99
0.99
0.96
0.96
0.95
0.95

Leakage Current (mA)

0.31
0.36
0.65
0.69
0.72
0.75

Maximum Inrush Current (A peak)

15
17
30
32
34
35

Maximum Inrush Current duration (miliseconds)

3
NOTES:
ActiveAnswers Power Calculation
Power calculator is LIVE on ActiveAnswers Web site. This is an external link.
Follow this link: https://h30099.www3.hp.com/configurator/powercalcs.asp

To drill down to calculators:
- Click on: "ProLiant Servers"
- Click on the Server of interest. Example: ML350 G4
- Click on: "Power Calculator" link. (You may need to scroll down to see it)
contents
 Overview      Standard Features      Models      ML350 G4 Options      ML350 G4 Memory      Storage      Power Specifications      ML350 G4 QuickSpecs images/line.gif

Quickspecs

System Unit - Hot Plug SCSI Tower Dimensions (HxWxD)
(with feet/bezel)
18.5 x 10.25 x 26 in (46.99 x 26.04 x 66.04 cm)
Dimensions (HxWxD)
(without feet/bezel)
17.5 x 8.5 x 24 in (44.50 x 21.59 x 60.96 cm)
Weight(approximate) 60 lb (27.24 kg) (without hard drives)
Input Requirements
(per power supply)
Rated Line Voltage 100 to 120 VAC
Rated Input Frequency50 Hz to 60 Hz
Input Power 906W @ 100VAC
Rated Input Current 9.2A(100VAC),4.3A(200VAC)
Rated Line Frequency 50 to 60 Hz
BTU Rating 3,125 BTU/hr
SCSI Connectors
Two internal HD68 connectors
(Support for either two internal, two external, or a mix of internal/external is available. This is achieved using an internal to external SCSI cable option kit (PN 159547-B22) and either of the two SCSI knockouts.)
Power Supply Output Power
(per power supply)
Rated Steady-State Power 725W
Temperature RangeOperating50° to 95° F (10° to 35° C)
(No direct sustaining sunlight)
Storage (up to one year)-40° to 158° F (-40° to 70° C)
Maximum Wet Bulb Temperature82.4° F (28° C)
Relative Humidity
(non-condensing)
Operating10% to 90%
Non-operating5% to 90%
Acoustic NoiseIdle
(Fixed Disk Drives Spinning)

L WAd (BELS)
6.5
L pAm (dBA)
48
Operating
(Random Seeks to Fixed Disks)

L WAd (BELS)
6.5
L pAm (dBA)
48

System Unit - Hot Plug SCSI Rack Dimensions (HxWxD) 8.61 x19 x 24 in (21.87 x48.26 x 60.96 cm)
Weight(approximate) 60 lb (27.24 kg) (without hard drives)
Input Requirements
(per power supply)
Rated Line Voltage 100 to 120 VAC
Rated Input Frequency 50 Hz to 60 Hz
Input Power 906W @ 100VAC
Rated Input Current 9.2A(100VAC),4.3A(200VAC)
Rated Line Frequency 50 to 60 Hz
BTU Rating 3,125 BTU/hr
SCSI Connectors
Two internal HD68 connectors
NOTE: Support for either two internal, two external, or a mix of internal/external is available. This is achieved using an internal to external SCSI cable option kit, PN 159547-B22 or 333370-B21, and either of the two SCSI knockouts.
Power Supply Output Power
(per power supply)
Rated Steady-State Power 725W
Temperature Range Operating 50° to 95° F (10° to 35° C)
(No direct sustaining sunlight)
Storage (up to one year) -40° to 158° F (-40° to 70° C)
Maximum Wet Bulb Temperature 82.4° F (28° C)
Relative Humidity
(non-condensing)
Operating 10% to 90%
Non-operating 5% to 90%
Acoustic Noise Idle
(Fixed Disk Drives Spinning)

L WAd (BELS)
6.5
L pAm (dBA)
48
Operating
(Random Seeks to Fixed Disks)

L WAd (BELS)
6.5
L pAm (dBA)
48

System Unit - Non Hot Plug SCSI Tower Dimensions (HxWxD)
(with feet/bezel)
18.5 x 10.25 x 25.75 in (46.99 x 26.04 x 65.4 cm)
Dimensions (HxWxD)
(without feet/bezel)
17.5 x 8.5 x 24 in (44.50 x 21.59 x 60.96 cm)
Weight(approximate) 60 lb (27.24 kg) (without hard drives)
Input Requirements
(per power supply)
Rated Line Voltage 100 to 120 VAC
Rated Input Frequency50 Hz to 60 Hz
Input Power 676W @ 100 VAC
Rated Input Current 6.9A(100VAC)/3.3A(200VAC)
Rated Line Frequency 50 to 60 Hz
BTU Rating 2,360 BTU/hr
SCSI Connectors
Two internal HD68 connectors
(Support for either two internal, two external, or a mix of internal/external is available. This is achieved using an internal to external SCSI cable option kit,PN 159547-B22 or 333370-B21, and either of the two SCSI knockouts.)
Power Supply Output Power
(per power supply)
Rated Steady-State Power 460W
Temperature RangeOperating50° to 95° F (10° to 35° C)
(No direct sustaining sunlight)
Storage (up to one year)-40° to 158° F (-40° to 70° C)
Maximum Wet Bulb Temperature82.4° F (28° C)
Relative Humidity
(non-condensing)
Operating10% to 90%
Non-operating5% to 90%
Acoustic NoiseIdle
(Fixed Disk Drives Spinning)

L WAd (BELS)
6.0
L pAm (dBA)
46.3
Operating
(Random Seeks to Fixed Disks)

L WAd (BELS)
6.0
L pAm (dBA)
46.5

NC7761 PCI Gigabit Server Adapter (embedded) Network Interface10Base-T/100Base-TX/1000Base-TX
CompatibilityIEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method32-bit bus-master PCI
Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s
10Base-T (Full-Duplex) 20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex) 200 Mb/s
1000Base-TX (Half and Full-Duplex) 2000Mb/s
ConnectorRJ-45
Cable Support10Base-TCategories 3, 4 or 5 UTP; up to 328 ft (100 m)
 10/100/1000Base-TXCategory 5 UTP; up to 328 ft (100 m)

Integrated Dual Channel Ultra320 SCSI Adapter Drives SupportedUp to 28 SCSI devices (14 per channel)
Data Transfer Method64-bit PCI bus-master
SCSI Channel Transfer Rate 320 MB/s per channel
Maximum Transfer Rate per PCI Bus (peak) 400 MB/s per channel
SCSI ProtocolsWide Ultra2 SCSI
Wide-Ultra SCSI-3
Ultra320 SCSI
Electrical ProtocolLow Voltage Differential (LVD)
SCSI TerminationActive Termination
External SCSI ConnectorsOptional VHDCI and HD68 internal-to-external connectors
Internal SCSI ConnectorsTwo 68-Pin Wide-Ultra SCSI-3 connectors

Smart Array 641 Controller
(NOTE: The Smart Array 641 Controller ships standard with the Array Models only.)
ProtocolUltra320 SCSI
SCSI Electrical InterfaceLow Voltage Differential (LVD)
Drives SupportedUp to 6 Ultra 320, Ultra3 and Ultra2 SCSI hard drives
SCSI Port Connectors SA-641One internal SCSI port
Data Transfer Method64-Bit PCI bus-master
PCI Bus Speed64-bit, 133-MHz PCI-X (1 GB/s maximum bandwidth)
PCI3.3 volt PCI slot compatibility only
Simultaneous Drive Transfer ChannelsOne
Channel Transfer Rate320-MB/s total; 320-MB/s per channel
Software upgradeable Firmware Yes
Cache Memory64-MB DRAM used for code, transfer buffers, and non-battery backed read cache
Logical Drives Supported32
Maximum Capacity 1.80 TB (6 X 300 GB)
Memory Addressing64-bit, supporting servers memory greater than 4 GB
RAID SupportRAID 5 (Distributed Data Guarding)
RAID 1+0 (Striping & Mirroring)
RAID 1 (Mirroring)
RAID 0 (Striping)
Upgradeable Firmware2-MB Flashable ROM
Disk Drive and Enclosure Protocol Support Ultra320, Ultra2 and Ultra3
WarrantyMaximum: The remaining warranty of the HP server product in which it is installed (to a maximum three-year limited warranty)
Minimum: One-year, on-site limited warranty
Pre-Failure Warranty: Drives attached to the Smart Array Controller and monitored under Insight Manager are supported by a Pre-Failure (replacement) Warranty. For complete details, consult the HP Support Center or refer to your HP Server Documentation.

Sillworks                  Ph: 1.613.599.1287                  Fax: 1.613.599.8120
U320 | SSD | SAS/SATA | Fibre | Memory | Controllers | Processors | Power Supplies | Networking
line
Dell | EqualLogic | EMC | Hewlett-Packard | IBM | Seagate
line
HP      HP      HP      Dell Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account Dell      Dell      Dell      Seagate
Terms of Use | Legal | Privacy | Primary Site | Contact us | Add to favorites
Amex Accepted Visa Accepted MasterCard Accepted
